Intro to Mentra Control your Mentra Live with the Mentra app on your phone. Connect to the Mentra app for photo gallery, apps, updates, etc. Hardware at a glance Turn on • Press & hold the power button for 3 seconds. • First start takes 20 seconds. Take a picture • Press the action button once. • You hear a shutter sound. • A photo is saved. Store & charge • Open the case & place the glasses inside. • Ensure the glasses click into place. • Close the case, the glasses will start charging. 1 23 5 6 7 8 9 10 Turn off • Press & hold the power button for 3 seconds. Connect the charge cable • Hold Mentra Live in your hands. • Connect the charge cable to right temple. • You’ll see a blinking red light when charging starts. • Green light indicates fully charged. See your photos and videos On your phone: • Open the Mentra app. • Tap Camera to browse, open, and share. Take a video • Press & hold the action button to start recording. • Press again anytime to stop recording. • A video is saved. 1 2 3 Quickstart Scan the QR code to download the Mentra app and set up your Mentra Live. 4 2 Speakers 2 3 Microphones 1 Status LED 3 Charger Connector 8 Action Button 9 Camera 4 Touchpad 5 Flash LED 6 Power Button 7 8 9 4 6 5 7 Intro to Mentra Control your Mentra Live with the Mentra app on your phone. Connect to the Mentra app for photo gallery, apps, updates, etc. Hardware at a glance Turn on • Press & hold the power button for 3 seconds. • First start takes 20 seconds. 1 23 5 Turn off • Press & hold the power button for 3 seconds. 1 2 3 Quickstart Scan the QR code to download the Mentra app and set up your Mentra Live. 4 2 Speakers 2 3 Microphones 1 Status LED 3 Charger Connector 8 Action Button 9 Camera 4 Touchpad 5 Flash LED 6 Power Button 7 8 9 4 6 5 7 Take a picture • Press the action button once. • You hear a shutter sound. • A photo is saved. Store & charge • Open the case & place the glasses inside. • Ensure the glasses click into place. • Close the case, the glasses will start charging. 6 7 8 9 10 Connect the charge cable • Hold Mentra Live in your hands. • Connect the charge cable to right temple. • You’ll see a blinking red light when charging starts. • Green light indicates fully charged. See your photos and videos On your phone: • Open the Mentra app. • Tap Camera to browse, open, and share. Take a video • Press & hold the action button to start recording. • Press again anytime to stop recording. • A video is saved. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body. ISED Statement ‐ English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. ‐ French:Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux CNR exempts de licence d’Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes : (1) Cet appareil ne doit pas causer d’interférences. (2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l’appareil. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator & your body. Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 0 cm entre leradiateur et votre corps. The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. L'appareil destiné à fonctionner dans la bande 5150-5250 MHz est uniquement destiné à une utilisation en intérieur afin de réduire le potentiel d'interférences nuisibles aux systèmes mobiles par satellite cocanaux.

Mentra Labs, Inc. 369 Hayes St,San Francisco,California United States 94102 Applicant as U.S. Agent Letter of Attestation Date: 2025-12-16 To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BT6G-LIVE01 Mentra Labs, Inc. (“the applicant”) as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. Designated U.S. Agent from Applicant Company Company Name: Mentra Labs, Inc. Contact Person: ZENG YIXIAQIAN Address: 369 Hayes St,San Francisco,California United States 94102 Tel.: (185) 980-3380 6 Email: [email protected] FRN: 0037657970 Sincerely yours, Signature Printed Name: ZENG YIXIAQIAN Title: Director of China ops Email: [email protected]

Mentra Labs, Inc. 369 Hayes St,San Francisco,California United States 94102 Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: 2025-12-16 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2BT6G-LIVE01 Mentra Labs, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Name/Title： ZENG YIXIAQIAN/Director of China ops Company: Mentra Labs, Inc. Address: 369 Hayes St,San Francisco,California United States 94102 Phone: (185) 980-3380 6 Fax: N/A E-Mail: [email protected]

Mentra Labs, Inc. 369 Hayes St,San Francisco,California United States 94102 1 | P a g e Attestation Statements To: Federal Communications Commission Date: 2025-12-16 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID:2BT6G-LIVE01 Product Name:Mentra LIVE This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Name/Title： ZENG YIXIAQIAN/Director of China ops Company: Mentra Labs, Inc. Address: 369 Hayes St,San Francisco,California United States 94102 Phone: (185) 980-3380 6 Fax: N/A E-Mail: [email protected] Mentra Labs, Inc. 369 Hayes St,San Francisco,California United States 94102 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. The MCU “ MT8766“, The RF chip “ BES2700H for BT and MT6631 for 2.4G/5.2G/5.8GWIFI“ don’t support the mentioned function. ☐ The Memory used is limited to run the Cybersecurity or anti-virus software. ☐ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. ☐ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

Mentra Labs, Inc. 369 Hayes St,San Francisco,California United States 94102 Date: 2025-12-16 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Subject: FCC ID: 2BT6G-LIVE01 To Whom It May Concern: We hereby attest to the fact that we have applied the Suppliers Declaration of Conformity procedure for a Class B Computer Peripheral to the digital portion of this composite filing. The requirements identified in KDB 896810 and 47CFR 2.948(b) have been followed. A test report has been issued by SHENZHEN CTA TESTING TECHNOLOGY CO., LTD., Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China and can be identified by report number CTA25112402006. Sincerely, Signature Name/Title: ZENG YIXIAQIAN/Director of China ops Company: Mentra Labs, Inc. Address: 369 Hayes St,San Francisco,California United States 94102 Phone: (185) 980-3380 6 Fax: N/A E-Mail: [email protected]

Mentra Labs, Inc. 369 Hayes St,San Francisco,California United States 94102 Date: 2025-12-16 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID: 2BT6G-LIVE01 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description ⎯ FCC Software Security Requirements for UNII devices The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Sincerely, Name/Title： ZENG YIXIAQIAN/Director of China ops Company: Mentra Labs, Inc. Address: 369 Hayes St,San Francisco,California United States 94102 Phone: (185) 980-3380 6 Fax: N/A E-Mail: [email protected]

Mentra Labs, Inc. 369 Hayes St,San Francisco,California United States 94102 Date: 2025-12-16 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID: 2BT6G-LIVE01 I, the undersigned, hereby authorize (SHENZHEN CTA TESTING TECHNOLOGY CO., LTD.) to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by (SHENZHEN CTA TESTING TECHNOLOGY CO., LTD.) shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with (Mentra Labs, Inc.). We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Name/Title: ZENG YIXIAQIAN/Director of China ops Company: Mentra Labs, Inc. Address: 369 Hayes St,San Francisco,California United States 94102 Phone: (185) 980-3380 6 Fax: N/A E-Mail: [email protected]

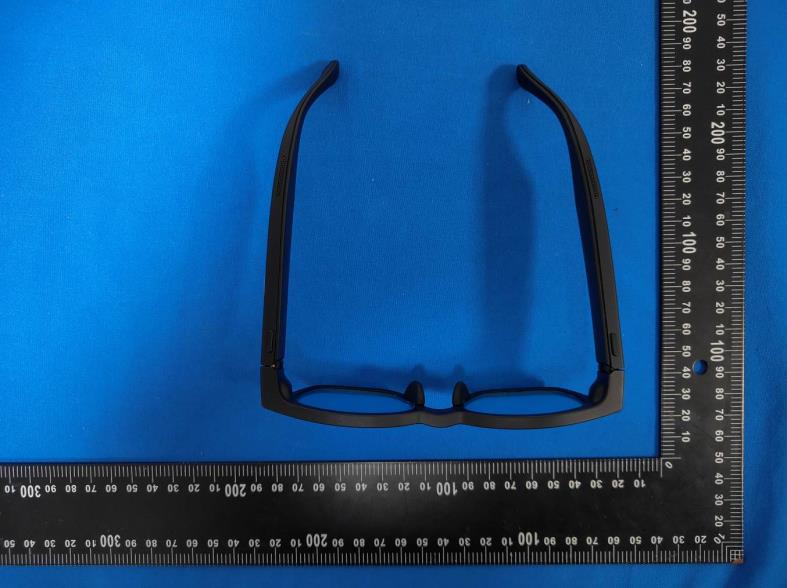

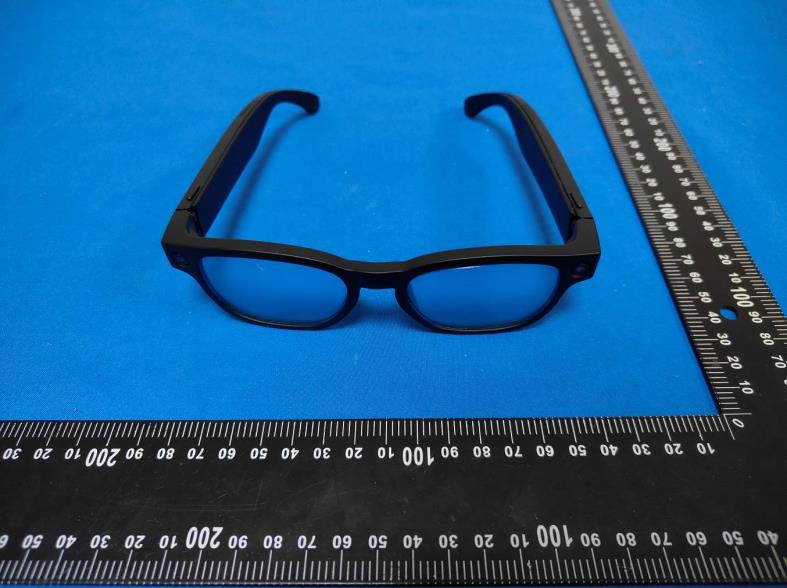

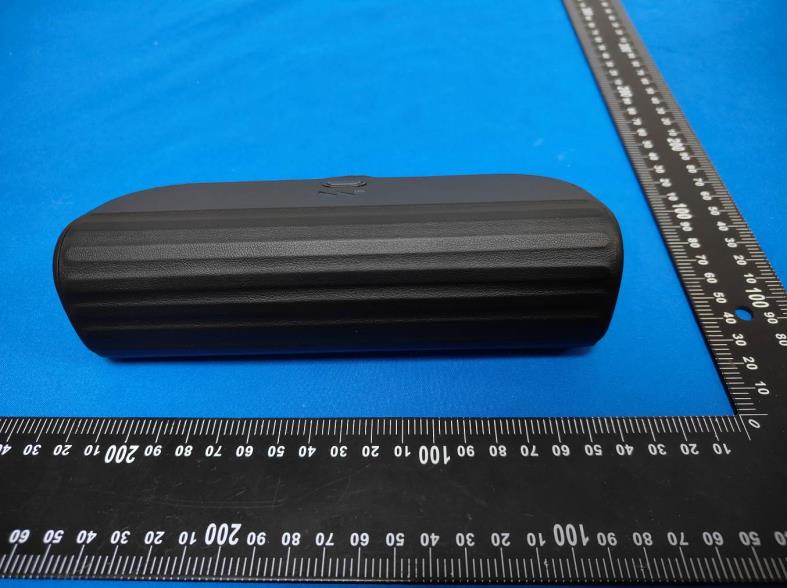

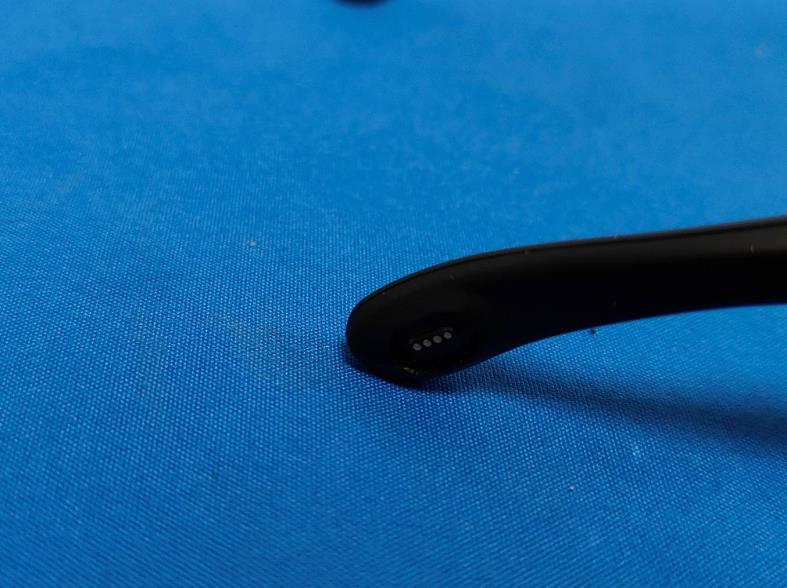

FCC ID: 2BT6G-LIVE01 External Photos of the EUT FCC ID: 2BT6G-LIVE01 FCC ID: 2BT6G-LIVE01 FCC ID: 2BT6G-LIVE01 FCC ID: 2BT6G-LIVE01 FCC ID: 2BT6G-LIVE01 FCC ID: 2BT6G-LIVE01

Label and Location Size: L: 1.5cm*W: 0.8cm Label and Location FCC ID: 2BT6G-LIVE01

FCC ID: 2BT6G-LIVE01 Internal Photos of the EUT WIFI ANT BT ANT FCC ID: 2BT6G-LIVE01 FCC ID: 2BT6G-LIVE01 FCC ID: 2BT6G-LIVE01 FCC ID: 2BT6G-LIVE01 FCC ID: 2BT6G-LIVE01

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25112402005 2BT6G-LIVE01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 04, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Mentra Labs, Inc. Address............................................ : 369 Hayes St, San Francisco, CA 94102 Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mentra LIVE Trade Mark ....................................... : Mentra Manufacturer .................................... : Shenzhen Xingyi Intelligent Technology Co., Ltd. Model/Type reference ...................... : LIVE01 Listed Models ................................... : N/A Ratings ............................................. : Mentra LIVE: 5V 1A Battery: 3.87V 260mAh, 1.007Wh Charging box: 5V1A Battery: 3.7V 2200mAh 8.14Wh Result ............................................... : PASS Report No.: CTA25112402005 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Mentra LIVE Model /Type : LIVE01 Listed Models : N/A Applicant : Mentra Labs, Inc. Address : 369 Hayes St, San Francisco, CA 94102 Manufacturer : Shenzhen Xingyi Intelligent Technology Co., Ltd. Address : Room 905, Building 1, Xinyi Domain R&D Center, No. 30 Honglang North 2nd Road, 69th District, Xingdong Community, Xinan Subdistrict, Bao'an District, Shenzhen, 518102 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112402005 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance ........................................................................................ 10 4.4 Evaluation Result ................................................................................................... 10 4.5 Simultaneous Transmission for SAR Exclusion .................................................... 10 5 Conclusion ......................................................................................................................... 10 Report No.: CTA25112402005 Page 4 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed accordin…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PIFA Antenna Model LIVE01-BT Frequency range 2400-2500MHz Manufacturer Mentra Labs, Inc. Address 369 Hayes St, San Francisco, CA 94102 ANT Peak Gain 1.02 dBi 2. Antenna Photo: Length :15.59mm Width:6.48mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25112402002 2BT6G-LIVE01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 04, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Mentra Labs, Inc. Address ............................................ : 369 Hayes St, San Francisco, CA 94102 Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mentra LIVE Trade Mark ....................................... : Mentra Manufacturer .................................... : Shenzhen Xingyi Intelligent Technology Co., Ltd. Model/Type reference ...................... : LIVE01 Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : Mentra LIVE: 5V 1A Battery: 3.87V 260mAh, 1.007Wh Charging box: 5V1A Battery: 3.7V 2200mAh 8.14Wh Result ............................................... : PASS Report No.: CTA25112402002 Page 2 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Mentra LIVE Model /Type : LIVE01 Listed Models : N/A Applicant : Mentra Labs, Inc. Address : 369 Hayes St, San Francisco, CA 94102 Manufacturer : Shenzhen Xingyi Intelligent Technology Co., Ltd. Address : Room 905, Building 1, Xinyi Domain R&D Center, No. 30 Honglang North 2nd Road, 69th District, Xingdong Community, Xinan Subdistrict, Bao'an District, Shenzhen, 518102 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112402002 Page 3 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory............................................................................................................ 7 3.2 Test Facility ....................................................................................................................................... 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results .................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BT6G-LIVE01 Company : Mentra Labs, Inc. EUT : Mentra LIVE Model Number : LIVE01 Report No. : CTA25112402002 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.933 2401.553 2402.486 --- --- 2441 0.948 2440.550 2441.498 --- --- 2480 0.936 2479.547 2480.483 --- --- 2DH5 Ant1 2402 1.332 2401.343 2402.675 --- --- 2441 1.275 2440.382 2441.657 --- --- 2480 1.332 2479.343 2480.675 --- --- 3DH5 Ant1 2402 1.278 2401.382 2402.660 --- --- 2441 1.278 2440.382 2441.660 --- --- 2480 1.320 2479.349 2480.669 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86518 2401.5767 2402.4419 --- --- 2441 0.86282 2440.5777 2441.4405 --- --- 2480 0.87293 2479.5726 2480.4455 --- --- 2DH5 Ant1 2402 1.1868 2401.4176 2402.6044 --- --- 2441 1.1908 2440.4153 2441.6061 --- --- 2480 1.1905 2479.4156 2480.6061 --- --- 3DH5 Ant1 2402 1.1874 2401.4162 2402.6036 --- --- 2441 1.1905 2440.4147 2441.6052 --- --- 2480 1.1907 2479.4158 2480.6065 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -0.18 ≤20.97 PASS 2441 -0.44 ≤20.97 PASS 2480 -0.49 ≤20.97 PASS 2DH5 Ant1 2402 -1.01 ≤20.97 PASS 2441 -1.19 ≤20.97 PASS 2480 -1.32 ≤20.97 PASS 3DH5 Ant1 2402 -1.00 ≤20.97 PASS 2441 -1.27 ≤20.97 PASS 2480 -1.29 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.004 ≥0.948 PASS 2DH5 Ant1 Hop 1.036 ≥0.888 PASS 3DH5 Ant1 Hop 1.216 ≥0.880 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 319 0.124 ≤0.4 PASS DH3 Ant1 Hop 1.640 162 0.266 ≤0.4 PASS DH5 Ant1 Hop 2.890 100 0.289 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 318 0.124 ≤0.4 PASS 2DH3 Ant1 Hop 1.650 160 0.264 ≤0.4 PASS 2DH5 Ant1 Hop 2.890 99 0.286 ≤0.4 PASS 3DH1 Ant1 Hop 0.380 318 0.121 ≤0.4 PASS 3DH3 Ant1 Hop 1.640 159 0.261 ≤0.4 PASS 3DH5 Ant1 Hop 2.890 110 0.318 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PA…
