2BT6K6THSENSEFireCat - 6th Sense

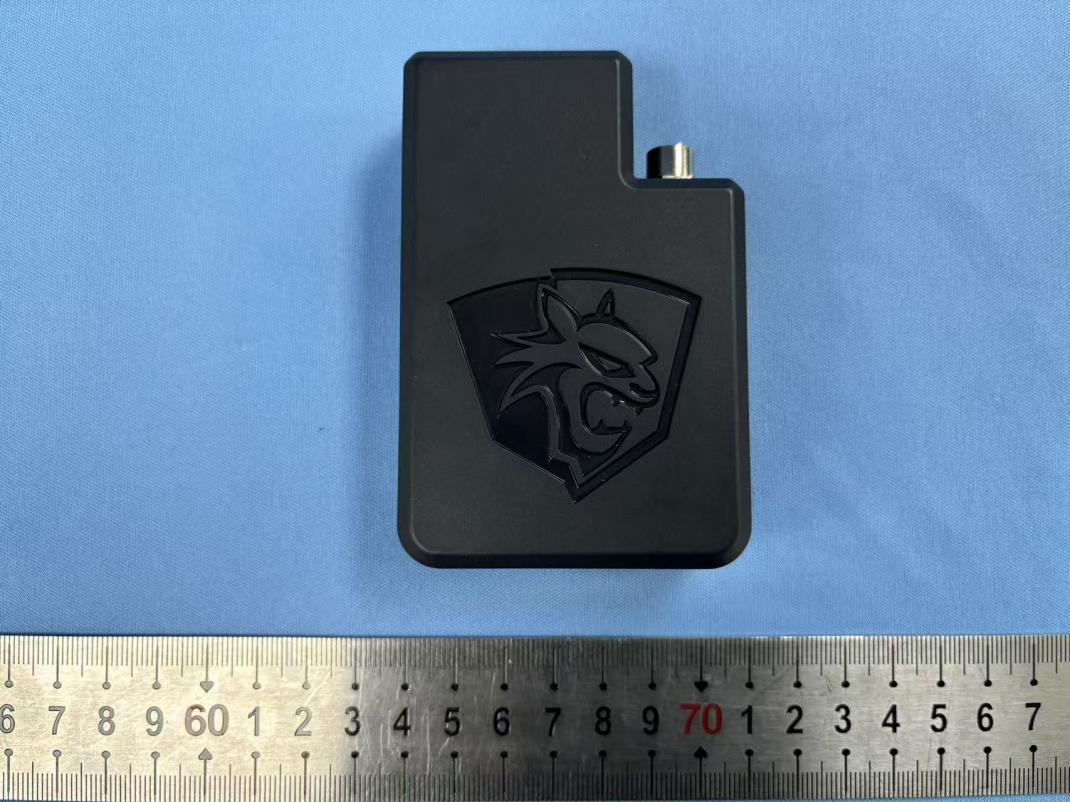

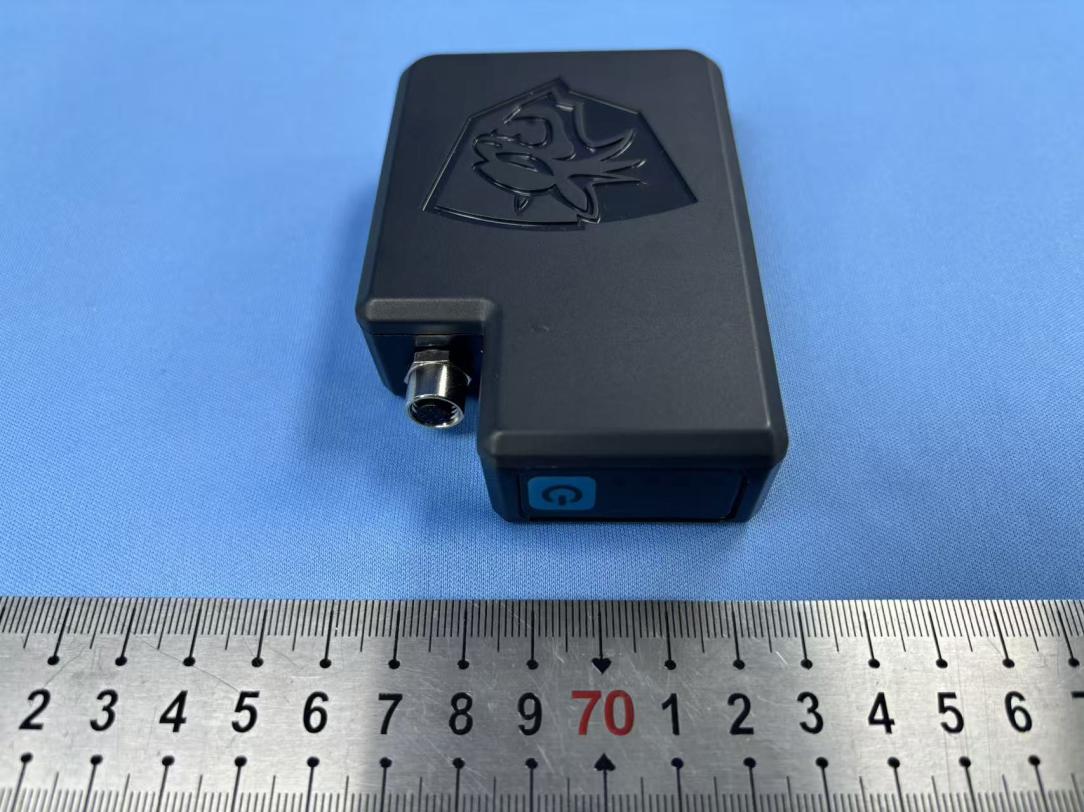

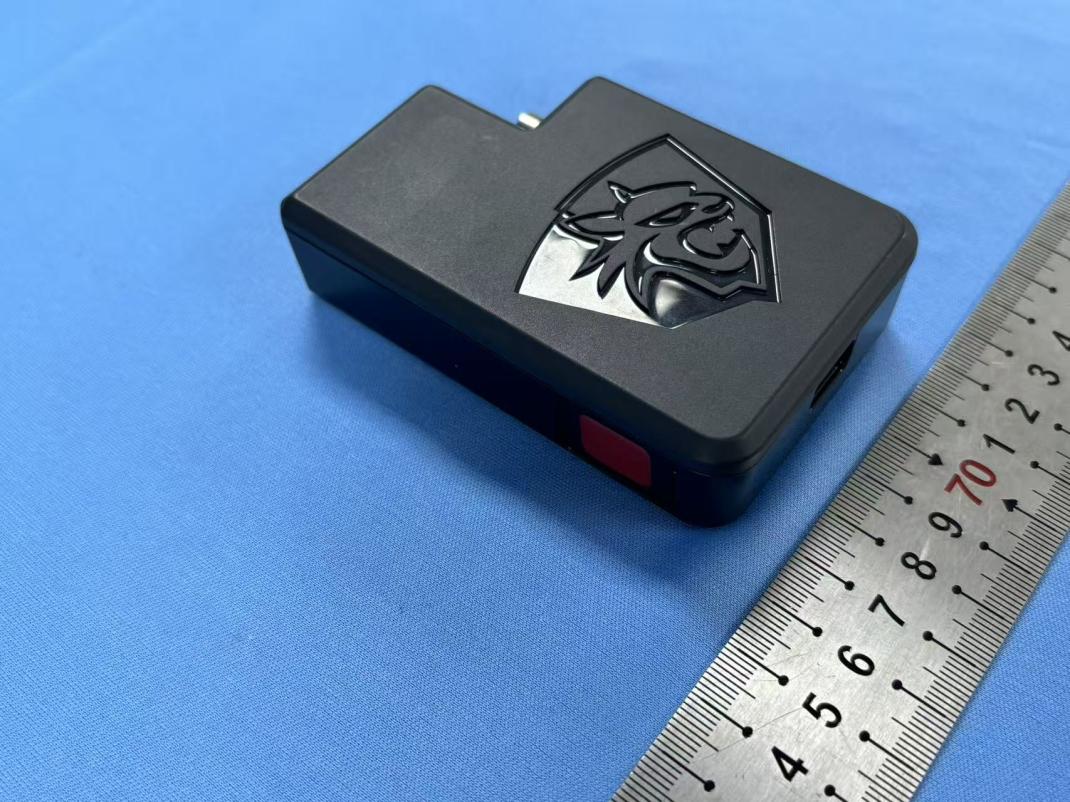

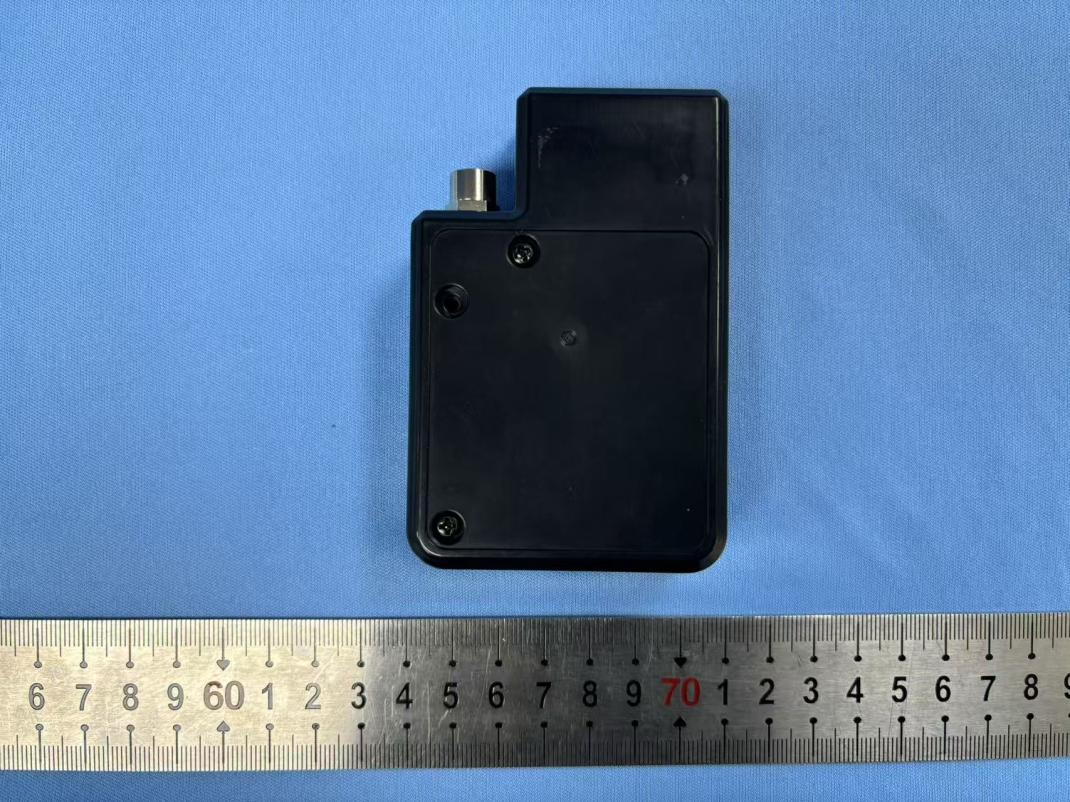

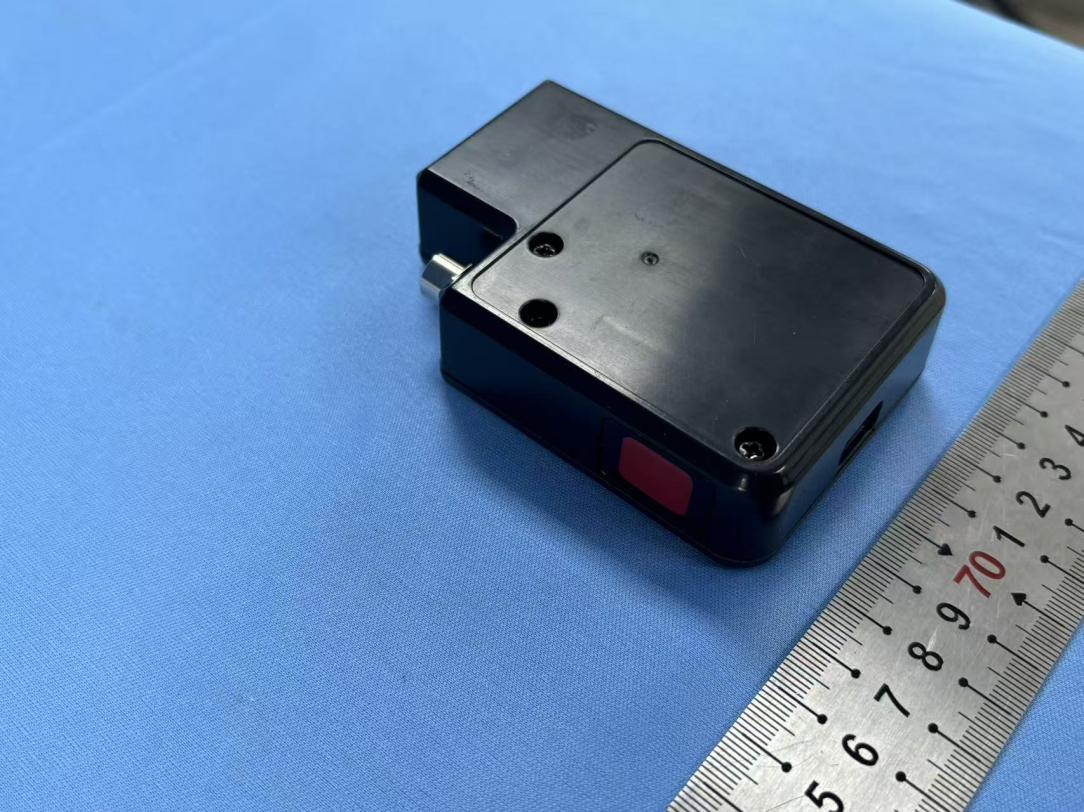

User Manual for 6th Sense Smart Sensor Device by FireCat Table of Contents 1. Introduction 2. Device Overview ▪ Main Unit ▪ Integrated Sensor 3. Features and Specifications 4. Getting Started ▪ Charging the Device ▪ Turning the Device On/Off ▪ Connecting the Heart Rate Sensor 5. Using the Device ▪ Motion Detection ▪ Panic Buttons ▪ Heart Rate Sensor 6. The Mobile App ▪ App Overview ▪ Configuring Users and Devices ▪ Viewing and Managing Data 7. Data Security 8. Regulatory information 9. Frequently Asked Questions (FAQs) 10. Contact Information Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 1. Introduction Welcome to the user manual for the 6th Sense smart sensor device by Firecat. This device is designed to aid uniformed personnel such as police, firefighters, and military personnel in managing dangerous situations more effectively. By providing real-time data and alerts, the 6th Sense helps prevent critical incidents before they escalate. Purpose of the Device The 6th Sense enhances safety and operational efficiency by delivering crucial information through sensors integrated into the user's attire, allowing commanders to monitor their team remotely and respond quickly in emergencies. Key Features The system includes GPS, motion detection, a high-G impact sensor, heart rate monitoring, and panic buttons, all working together to provide comprehensive situational awareness. Usage Context Designed for tough environments, the 6th Sense is water and dust resistant. It consists of a main unit worn on the belt or in the breast pocket and an integrated sensor in the shirt sleeve, connected by a washable, flexible cable. Limitations of Liability The 6th Sense is a tool, not a guarantee of safety. It is not a medical device, and the data provided may not be 100% accurate. Firecat and its affiliates do not accept responsibility for outcomes resulting from the use of this device in critical situations. Users should continue to employ standard safety protocols and use the 6th Sense as an additional resource. By using the 6th Sense, you acknowledge these limitations and agree to use the device as intended, understanding that it supports but does not replace traditional safety measures. 2. Device Overview The 6th Sense Smart Sensor consists of two main components: • Main Unit: Worn either on the user's belt in a holster or in the breast pocket. It is water and dust- resistant and connects to the sensor embedded in the uniform via a flexible cable. • Integrated Sensor: This precision sensor is integrated into the sleeve of the user's shirt. It is washable, always stays in the shirt, and securely connects to the main unit. 3. Features and Specifications GPS and Assisted GPS: High accuracy with typical GPS limitations. Details: The GPS provides precise location tracking, crucial for real-time monitoring and response. However, it may face challenges in acquiring a signal indoors or in areas with dense infrastructure. The assisted GPS is a cloud enabled support feature helping in faster location acquisition through software services and cell tower triangulation, improving response times. Note: Assisted GPS typically comes with lower accuracy meaning that at times, the avatar on the map can be >200m from it’s actual position. Motion Sensor with AI: Detects various motions such as laying down, crawling, walking, running, and idling. Details: The AI-driven motion sensor categorizes user activity, helping commanders understand the wearer's status. Motions are categorized into “laying down”, “crawling”, “walking”, “idle”, “running”. The different motions are shown with icons in the app. The icons use different colors to indicate potential risks. A user who is “laying down” for example is shown with an orange/red icon whereas a user who is “idle” has a green icon. High-G Impact Sensor: Triggers alarms during high-impact events. Details: The high-G impact sensor is sensitive to sudden and intense forces, automatically triggering alarms of possible accidents. Proper calibration is critical to avoid false alarms or missed alerts and should be done in consultation with Firecat's support team prior to roll-out. When a high-G impact is triggered, the app will show a “Critical” emergency notice as well as sound an alarm. Panic Buttons: Activates alarms when pressed simultaneously. Details: Located on the main unit, these buttons provide a manual way to send distress signals. When both buttons are pressed, an alarm is activated, and red LEDs blink to confirm the alert has been sent. When the emergency alarm is triggered, the app will show an “emergency” notice as well as sound an alarm. Heart Rate Sensor: Measures heart rate and oxygen saturation Details: Integrated into the shirt sleeve, the heart rate sensor provides vital signs monitoring. It helps in assessing the wearer's physical condition, indicating normal, elevated, or risky heart rates through color- coded alerts in the app. The app interface is centered around heartrate as the most crucial health indicator with visualisation both around the avatars on the map and in the main user data section. In addition, the app shows Blood Oxygen Saturation (SPO2) levels in the “See more” section of each user. SPO2 levels have lower accuracy when a user is moving and should be used as health indicators rather than medical data. To improve accuracy, a user can hold still for 1-2 minutes. On/Off Button: Powers the device on and off. Details: A long press on the On/Off button turns the device on or off, with green and red LEDs indicating the status. A double press shows the battery level. The system may take up to a minute to fully power on or off. Rechargeable Battery: Long-lasting with a minimum of 12 hours of operation. Details: The rechargeable battery ensures the device operates throughout a typical shift. Charging takes approximately 3 hours, and softw…

Text truncated - open the document above for the full version.

Page 1 of 77 Report No.: 260105078SZN-002-Appendix A Effective (Isotropic) Radiated Power Output Data for M1 Test Result Band Bandwidth Modulation Channel RB Size RB Start NBIndex Conducted Power(dBm) EIRP(dBm) Verdict Band2 1.4MHz QPSK 18607 1 0 Low 22.07 25.57 PASS Band2 1.4MHz QPSK 18607 1 5 Low 22.09 25.59 PASS Band2 1.4MHz QPSK 18607 6 0 Low 20.07 23.57 PASS Band2 1.4MHz QPSK 18900 1 0 Low 22.30 25.80 PASS Band2 1.4MHz QPSK 18900 1 5 Low 22.28 25.78 PASS Band2 1.4MHz QPSK 18900 6 0 Low 20.39 23.89 PASS Band2 1.4MHz QPSK 19193 1 0 High 21.68 25.18 PASS Band2 1.4MHz QPSK 19193 1 5 High 21.68 25.18 PASS Band2 1.4MHz QPSK 19193 6 0 High 19.83 23.33 PASS Band2 3MHz QPSK 18615 1 0 Low 22.17 25.67 PASS Band2 3MHz QPSK 18615 1 5 Low 22.19 25.69 PASS Band2 3MHz QPSK 18615 6 0 Low 20.12 23.62 PASS Band2 3MHz QPSK 18900 1 0 Low 22.42 25.92 PASS Band2 3MHz QPSK 18900 1 5 Low 22.40 25.90 PASS Band2 3MHz QPSK 18900 6 0 Low 20.50 24.00 PASS Band2 3MHz QPSK 19185 1 0 High 21.72 25.22 PASS Band2 3MHz QPSK 19185 1 5 High 21.71 25.21 PASS Band2 3MHz QPSK 19185 6 0 High 19.81 23.31 PASS Band2 5MHz QPSK 18625 1 0 Low 21.30 24.80 PASS Band2 5MHz QPSK 18625 1 5 Low 21.42 24.92 PASS Band2 5MHz QPSK 18625 6 0 Low 20.36 23.86 PASS Band2 5MHz QPSK 18900 1 0 Low 22.06 25.56 PASS Band2 5MHz QPSK 18900 1 5 Low 22.15 25.65 PASS Band2 5MHz QPSK 18900 6 0 Low 21.11 24.61 PASS Band2 5MHz QPSK 19175 1 0 High 21.85 25.35 PASS Band2 5MHz QPSK 19175 1 5 High 21.88 25.38 PASS Band2 5MHz QPSK 19175 6 0 High 20.83 24.33 PASS Band2 10MHz QPSK 18650 1 0 Low 21.04 24.54 PASS Band2 10MHz QPSK 18650 1 5 Low 21.18 24.68 PASS Band2 10MHz QPSK 18650 6 0 Low 20.15 23.65 PASS Band2 10MHz QPSK 18900 1 0 Low 21.60 25.10 PASS Band2 10MHz QPSK 18900 1 5 Low 21.66 25.16 PASS Band2 10MHz QPSK 18900 6 0 Low 20.66 24.16 PASS Band2 10MHz QPSK 19150 1 0 High 21.48 24.98 PASS Band2 10MHz QPSK 19150 1 5 High 21.65 25.15 PASS Page 2 of 77 Report No.: 260105078SZN-002-Appendix A Band2 10MHz QPSK 19150 6 0 High 20.59 24.09 PASS Band2 15MHz QPSK 18675 1 0 Low 21.09 24.59 PASS Band2 15MHz QPSK 18675 1 5 Low 21.24 24.74 PASS Band2 15MHz QPSK 18675 6 0 Low 21.11 24.61 PASS Band2 15MHz QPSK 18900 1 0 Low 21.57 25.07 PASS Band2 15MHz QPSK 18900 1 5 Low 21.63 25.13 PASS Band2 15MHz QPSK 18900 6 0 Low 21.43 24.93 PASS Band2 15MHz QPSK 19125 1 0 High 21.68 25.18 PASS Band2 15MHz QPSK 19125 1 5 High 21.64 25.14 PASS Band2 15MHz QPSK 19125 6 0 High 21.49 24.99 PASS Band2 20MHz QPSK 18700 1 0 Low 21.16 24.66 PASS Band2 20MHz QPSK 18700 1 5 Low 21.31 24.81 PASS Band2 20MHz QPSK 18700 6 0 Low 21.21 24.71 PASS Band2 20MHz QPSK 18900 1 0 Low 21.51 25.01 PASS Band2 20MHz QPSK 18900 1 5 Low 21.58 25.08 PASS Band2 20MHz QPSK 18900 6 0 Low 21.35 24.85 PASS Band2 20MHz QPSK 19100 1 0 High 21.55 25.05 PASS Band2 20MHz QPSK 19100 1 5 High 21.57 25.07 PASS Band2 20MHz QPSK 19100 6 0 High 21.35 24.85 PASS Band2 1.4MHz 16QAM 18607 1 0 Low 20.28 23.78 PASS Band2 1.4MHz 16QAM 18607 1 5 Low 20.36 23.86 PASS Band2 1.4MHz 16QAM 18607 5 0 Low 19.21 22.71 PASS Band2 1.4MHz 16QAM 18900 1 0 Low 20.59 24.09 PASS Band2 1.4MHz 16QAM 18900 1 5 Low 20.67 24.17 PASS Band2 1.4MHz 16QAM 18900 5 0 Low 19.86 23.36 PASS Band2 1.4MHz 16QAM 19193 1 0 High 20.57 24.07 PASS Band2 1.4MHz 16QAM 19193 1 5 High 20.74 24.24 PASS Band2 1.4MHz 16QAM 19193 5 0 High 19.64 23.14 PASS Band2 3MHz 16QAM 18615 1 0 Low 19.85 23.35 PASS Band2 3MHz 16QAM 18615 1 5 Low 19.97 23.47 PASS Band2 3MHz 16QAM 18615 5 0 Low 19.08 22.58 PASS Band2 3MHz 16QAM 18900 1 0 Low 20.61 24.11 PASS Band2 3MHz 16QAM 18900 1 5 Low 20.69 24.19 PASS Band2 3MHz 16QAM 18900 5 0 Low 19.89 23.39 PASS Band2 3MHz 16QAM 19185 1 0 High 20.61 24.11 PASS Band2 3MHz 16QAM 19185 1 5 High 20.69 24.19 PASS Band2 3MHz 16QAM 19185 5 0 High 19.65 23.15 PASS Band2 5MHz 16QAM 18625 1 0 Low 20.07 23.57 PASS Band2 5MHz 16QAM 18625 1 5 Low 20.19 23.69 PASS Band2 5MHz 16QAM 18625 5 0 Low 19.12 22.62 PASS Band2 5MHz 16QAM 18900 1 0 Low 20.84 24.34 PASS Band2 5MHz 16QAM 18900 1 5 Low 20.93 24.43 PASS Band2 5MHz 16QAM 18900 5 0 Low 19.99 23.49 PASS Page 3 of 77 Report No.: 260105078SZN-002-Appendix A Band2 5MHz 16QAM 19175 1 0 High 20.68 24.18 PASS Band2 5MHz 16QAM 19175 1 5 High 20.80 24.30 PASS Band2 5MHz 16QAM 19175 5 0 High 19.76 23.26 PASS Band2 10MHz 16QAM 18650 1 0 Low 20.37 23.87 PASS Band2 10MHz 16QAM 18650 1 5 Low 20.42 23.92 PASS Band2 10MHz 16QAM 18650 5 0 Low 20.25 23.75 PASS Band2 10MHz 16QAM 18900 1 0 Low 20.72 24.22 PASS Band2 10MHz 16QAM 18900 1 5 Low 20.84 24.34 PASS Band2 10MHz 16QAM 18900 5 0 Low 20.87 24.37 PASS Band2 10MHz 16QAM 19150 1 0 High 20.60 24.10 PASS Band2 10MHz 16QAM 19150 1 5 High 20.80 24.30 PASS Band2 10MHz 16QAM 19150 5 0 High 20.63 24.13 PASS Band2 15MHz 16QAM 18675 1 0 Low 20.29 23.79 PASS Band2 15MHz 16QAM 18675 1 5 Low 20.31 23.81 PASS Band2 15MHz 16QAM 18675 5 0 Low 20.24 23.74 PASS Band2 15MHz 16QAM 18900 1 0 Low 20.60 24.10 PASS Band2 15MHz 16QAM 18900 1 5 Low 20.71 24.21 PASS Band2 15MHz 16QAM 18900 5 0 Low 20.71 24.21 PASS Band2 15MHz 16QAM 19125 1 0 High 20.62 24.12 PASS Band2 15MHz 16QAM 19125 1 5 High 20.75 24.25 PASS Band2 15MHz 16QAM 19125 5 0 High 20.64 24.14 PASS Band2 20MHz 16QAM 18700 1 0 Low 20.35 23.85 PASS Band2 20MHz 16QAM 18700 1 5 Low 20.37 23.87 PASS Band2 20MHz 16QAM 18700 5 0 Low 20.32 23.82 PASS Band2 20MHz 16QAM 18900 1 0 Low 20.54 24.04 PASS Band2 20MHz 16QAM 18900 1 5 Low 20.59 24.09 PASS Band2 20MHz 16QAM 18900 5 0 Low 20.54 24.04 PASS Band2 20MHz 16QAM 19100 1 0 High 20.53 24.03 PASS Band2 20MHz 16QAM 19100 1 5 High 20.72 24.22 PASS Band2 20MHz 16QAM 19100 5 0 High 20.56 24.06 PASS Page 4 of 77 Report No.: 260105078SZN-002-Appendix A Peak-to-Average Ratio(CCDF) for M1 Test Result Band Bandwidth Modulation Channel RB Size RB Start NBIndex Result(dB) Limit(dB) Verdict Band2 1.4MHz QPSK 18607 1 0 Low 3.99 <=13 PASS Band2 1.4MHz QPSK 18607 6 0 Low 5.26 <=13 PASS Band2 1.4MHz QPSK 18900 1 0 Low 4.41 <=13 PASS Band2 1.4MHz QPSK 18900 6 0 Low 5.18 <=13 PASS Band2 1.4MHz QPSK 19193 1 5 High 4.18 <=13 …

Text truncated - open the document above for the full version.

Page 1 of 2 RADIATED EMISSION TEST SET-UP Front View (Below 1GHz) Back View (Below 1GHz) The EUT is placed at the center of turntable Page 2 of 2 Front View (Above 1GHz) Back View (Above 1GHz) The EUT is placed at the center of turntable

Page 1 of 1 CONDUCTED EMISSION TEST SET-UP Front View Slide View

FireCat Group D.O.O TEST REPORT SCOPE OF WORK FCC Testing – FC6S_01 REPORT NUMBER 260105078SZN-002 ISSUE DATE 03 April 2026 PAGES 22 DOCUMENT CONTROL NUMBER FCC ID 22/24/27/90_a © 2017 INTERTEK Test Report Intertek Report No.: 260105078SZN-002 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 22 FCC ID 22/24/27/90_a FCC RF Test Report For FireCat Group D.O.O Product Name: FireCat - 6th Sense Model Number: FC6S_01 FCC ID: 2BT6K6THSENSE Report No: 260105078SZN-002 Tested and Prepared by: Approved by: Zoey Liu Engineer Johnny Wang Project Engineer Date: 03 April 2026 Test Report Intertek Report No.: 260105078SZN-002 Version: 01-November-2017 Page: 2 of 22 FCC ID 22/24/27/90_a Table of Contents 1. Summary of Test Result ........................................................................................................ 3 1.1 PCS Band (1850-1910MHz paired with 1930-1990MHz) ........................................................................................ 4 2. General Description .............................................................................................................. 5 2.1 Product Description ................................................................................................................................................ 5 2.2 Test Facility ............................................................................................................................................................. 5 2.3 Test Environment Condition ................................................................................................................................... 5 2.4 Sub-Assembly .......................................................................................................................................................... 5 2.5 Technical Specification ............................................................................................................................................ 6 3. General Test Conditions/Configuration ................................................................................. 7 3.1 Test Modes .............................................................................................................................................................. 7 3.2 Test Environment .................................................................................................................................................... 7 3.3 Test Frequency ........................................................................................................................................................ 7 4. DESCRIPTION OF TESTS ......................................................................................................... 8 4.1 Radiated Power and Radiated Spurious Emissions ................................................................................................. 8 4.2 Peak-Average Ratio ................................................................................................................................................. 9 4.3 Occupied Bandwidth ............................................................................................................................................. 10 4.4 Band Edge Compliance .......................................................................................................................................... 10 4.5 Spurious and Harmonic Emissions at Antenna Terminal ...................................................................................... 11 4.6 Frequency Stability / Temperature Variation ....................................................................................................... 12 5. Test Setups ......................................................................................................................... 13 5.1 Test Setup 1 .......................................................................................................................................................... 13 5.2 Test Setup 2 .......................................................................................................................................................... 13 5.3 Test Setup 3 .......................................................................................................................................................... 14 5.4 Test Conditions ..................................................................................................................................................... 15 6. Field Strength of Spurious Radiation ................................................................................... 17 7. Main Test Instruments ........................................................................................................ 21 8. Measurement Uncertainty ..........................…

Text truncated - open the document above for the full version.

Page 21 of 40 Report No.: 260105078SZN-002-Appendix B [email protected] 0.15-PASS [email protected] 30-PASS [email protected] 1000-PASS [email protected] 20000-PASS [email protected] 0.15-PASS [email protected] 30-PASS Page 22 of 40 Report No.: 260105078SZN-002-Appendix B [email protected] 1000-PASS [email protected] 20000-PASS [email protected] 0.15-PASS [email protected] 30-PASS [email protected] [email protected] Page 23 of 40 Report No.: 260105078SZN-002-Appendix B 1000-PASS 20000-PASS [email protected] 0.15-PASS [email protected] PASS Band2-0.18-QPSK-18601-12@0-15kHz-30- 1000-PASS Band2-0.18-QPSK-18601-12@0-15kHz-1000- 20000-PASS Page 24 of 40 Report No.: 260105078SZN-002-Appendix B [email protected] 0.15-PASS [email protected] PASS Band2-0.18-QPSK-18876-12@0-15kHz-30- 1000-PASS Band2-0.18-QPSK-18876-12@0-15kHz-1000- 20000-PASS [email protected] 0.15-PASS [email protected] PASS Page 25 of 40 Report No.: 260105078SZN-002-Appendix B Band2-0.18-QPSK-19199-12@0-15kHz-30- 1000-PASS Band2-0.18-QPSK-19199-12@0-15kHz-1000- 20000-PASS [email protected] 0.15-PASS [email protected] PASS Band2-0.18-BPSK-18601-1@0-15kHz-30-1000- Band2-0.18-BPSK-18601-1@0-15kHz-1000- Page 26 of 40 Report No.: 260105078SZN-002-Appendix B PASS 20000-PASS [email protected] 0.15-PASS [email protected] PASS Band2-0.18-BPSK-18601-1@11-15kHz-30-1000- PASS Band2-0.18-BPSK-18601-1@11-15kHz-1000- 20000-PASS Page 27 of 40 Report No.: 260105078SZN-002-Appendix B [email protected] 0.15-PASS [email protected] PASS Band2-0.18-BPSK-18876-1@0-15kHz-30-1000- PASS Band2-0.18-BPSK-18876-1@0-15kHz-1000- 20000-PASS [email protected] 0.15-PASS [email protected] PASS Page 28 of 40 Report No.: 260105078SZN-002-Appendix B Band2-0.18-BPSK-19199-1@0-15kHz-30-1000- PASS Band2-0.18-BPSK-19199-1@0-15kHz-1000- 20000-PASS [email protected] 0.15-PASS [email protected] PASS Band2-0.18-BPSK-18876-1@11-15kHz-30-1000- Band2-0.18-BPSK-18876-1@11-15kHz-1000- Page 29 of 40 Report No.: 260105078SZN-002-Appendix B PASS 20000-PASS [email protected] 0.15-PASS [email protected] PASS Band2-0.18-BPSK-19199-1@11-15kHz-30-1000- PASS Band2-0.18-BPSK-19199-1@11-15kHz-1000- 20000-PASS Page 30 of 40 Report No.: 260105078SZN-002-Appendix B [email protected] 0.15-PASS [email protected] 30-PASS [email protected] 1000-PASS [email protected] 20000-PASS [email protected] 0.15-PASS [email protected] 30-PASS Page 31 of 40 Report No.: 260105078SZN-002-Appendix B [email protected] 1000-PASS [email protected] 20000-PASS [email protected] 0.15-PASS [email protected] 30-PASS [email protected] [email protected] Page 32 of 40 Report No.: 260105078SZN-002-Appendix B 1000-PASS 20000-PASS [email protected] 0.15-PASS [email protected] 30-PASS [email protected] 1000-PASS [email protected] 20000-PASS Page 33 of 40 Report No.: 260105078SZN-002-Appendix B [email protected] 0.15-PASS [email protected] PASS Band2-0.18-QPSK-18602-12@0-15kHz-30- 1000-PASS Band2-0.18-QPSK-18602-12@0-15kHz-1000- 20000-PASS [email protected] 0.15-PASS [email protected] PASS Page 34 of 40 Report No.: 260105078SZN-002-Appendix B Band2-0.18-QPSK-19198-12@0-15kHz-30- 1000-PASS Band2-0.18-QPSK-19198-12@0-15kHz-1000- 20000-PASS [email protected] 0.15-PASS [email protected] PASS Band2-0.18-BPSK-18602-1@0-15kHz-30-1000- Band2-0.18-BPSK-18602-1@0-15kHz-1000- Page 35 of 40 Report No.: 260105078SZN-002-Appendix B PASS 20000-PASS [email protected] 0.15-PASS [email protected] PASS Band2-0.18-BPSK-18602-1@11-15kHz-30-1000- PASS Band2-0.18-BPSK-18602-1@11-15kHz-1000- 20000-PASS Page 36 of 40 Report No.: 260105078SZN-002-Appendix B [email protected] 0.15-PASS [email protected] PASS Band2-0.18-BPSK-19198-1@0-15kHz-30-1000- PASS Band2-0.18-BPSK-19198-1@0-15kHz-1000- 20000-PASS [email protected] 0.15-PASS [email protected] PASS Page 37 of 40 Report No.: 260105078SZN-002-Appendix B Band2-0.18-BPSK-19198-1@11-15kHz-30-1000- PASS Band2-0.18-BPSK-19198-1@11-15kHz-1000- 20000-PASS Page 38 of 40 Report No.: 260105078SZN-002-Appendix B Frequency Stability for NB1 Test Result Voltage Band Op Mode SCS Bandwidth Modulation Channel Tones Voltage [Vdc] Tempe rature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict Band2 Stand- Alone 3.75kHz 0.18 QPSK 18876 1@0 VN NT -16.05 -0.008672 ±2.5 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 18876 1@0 VL NT -13.70 -0.007403 ±2.5 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 18876 1@0 VH NT -16.74 -0.009045 ±2.5 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 18876 1@47 VN NT -13.16 -0.007111 ±2.5 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 18876 1@47 VL NT 7.05 0.003809 ±2.5 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 18876 1@47 VH NT -7.25 -0.003917 ±2.5 PASS Band2 Stand- Alone 15kHz 0.18 QPSK 18876 1@0 VN NT 9.87 0.005250 ±2.5 PASS…

Text truncated - open the document above for the full version.

Page 1 of 40 Report No.: 260105078SZN-002-Appendix B Effective (Isotropic) Radiated Power Output Data for NB1 Test Result Band OpMode SCS BW Modulation Channel Tones Conducted POWER(dBm) EIRP (dBm) Verdict Band2 Stand-Alone 3.75kHz 0.18 BPSK 18601 1@0 19.19 22.69 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 18601 1@0 19.22 22.72 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 18601 1@47 19.22 22.72 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 18601 1@47 19.21 22.71 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 19199 1@0 19.76 23.26 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 19199 1@0 19.74 23.24 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 19199 1@47 19.74 23.24 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 18876 1@0 19.70 23.20 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 18876 1@0 19.65 23.15 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 18876 1@47 19.70 23.20 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 18876 1@47 19.69 23.19 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 19199 1@47 19.70 23.20 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 18601 1@0 19.23 22.73 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18601 1@0 19.25 22.75 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 18601 1@11 19.20 22.70 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18601 1@11 19.32 22.82 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 19199 1@0 19.79 23.29 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 19199 1@0 19.83 23.33 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 18876 1@0 19.80 23.30 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18876 1@0 19.68 23.18 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 18876 1@11 19.80 23.30 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18876 1@11 19.78 23.28 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 19199 1@11 19.84 23.34 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 19199 1@11 19.82 23.32 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18601 3@3 19.24 22.74 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 19199 3@3 19.76 23.26 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 18602 1@0 19.05 22.55 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 18602 1@0 19.07 22.57 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 18602 1@47 19.05 22.55 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 18602 1@47 19.04 22.54 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 19198 1@0 19.61 23.11 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 19198 1@0 19.63 23.13 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18876 3@3 19.61 23.11 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 19198 1@47 19.57 23.07 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 19198 1@47 19.63 23.13 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 18602 1@0 19.13 22.63 PASS Page 2 of 40 Report No.: 260105078SZN-002-Appendix B Band2 Stand-Alone 15kHz 0.18 QPSK 18602 1@0 19.13 22.63 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 18602 1@11 19.10 22.60 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18602 1@11 19.16 22.66 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 19198 1@0 19.68 23.18 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 19198 1@0 19.68 23.18 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 19198 1@11 19.74 23.24 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 19198 1@11 19.71 23.21 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18602 3@3 19.13 22.63 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 19198 3@3 19.63 23.13 PASS Page 3 of 40 Report No.: 260105078SZN-002-Appendix B Peak-to-Average Ratio(CCDF) for NB1 Test Result Band OpMode SCS BW Modulati on Channel Tones Result (dBm) Limit (dBm) Verdict Band2 Stand-Alone 3.75kHz 0.18 BPSK 18876 1@0 1.36 <=13 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 18876 1@0 1.28 <=13 PASS Band2 Stand-Alone 3.75kHz 0.18 BPSK 18876 1@47 1.31 <=13 PASS Band2 Stand-Alone 3.75kHz 0.18 QPSK 18876 1@47 0.96 <=13 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 18876 1@0 1.26 <=13 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18876 1@0 1.26 <=13 PASS Band2 Stand-Alone 15kHz 0.18 BPSK 18876 1@11 1.21 <=13 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18876 1@11 1.22 <=13 PASS Band2 Stand-Alone 15kHz 0.18 QPSK 18876 3@3 2.93 <=13 PASS Page 4 of 40 Report No.: 260105078SZN-002-Appendix B Test Graphs [email protected] [email protected] [email protected] [email protected] Band2-0.18-BPSK-18876-1@0-15kHz-PASS Band2-0.18-QPSK-18876-1@0-15kHz-PASS Page 5 of 40 Report No.: 260105078SZN-002-Appendix B Band2-0.18-BPSK-18876-1@11-15kHz-PASS Band2-0.18-QPSK-18876-1@11-15kHz-PASS Band2-0.18-QPSK-18876-3@3-15kHz-PASS Page 6 of 40 Report No.: 260105078SZN-002-Appendix B Emission Bandwidth for NB1 Test Result Band OpMode SCS BW Modulati on Channel Tones OBW(MH z) EBW(MHz ) Verdict Band2 Stand- Alone 3.75kHz 0.18 BPSK 18601 1@0 0.07419 0.0506 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 18601 1@0 0.09187 0.0558 PASS Band2 Stand- Alone 3.75kHz 0.18 BPSK 19199 1@0 0.07559 0.0504 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 19199 1@0 0.09010 0.0547 PASS Band2 Stand- Alone 15kHz 0.18 BPSK 18601 12@0 0.18566 0.3157 PASS Band2 Stand- Alone 15kHz 0.18 QPSK 18601 12@0 0.18619 0.2809 PASS Band2 Stand- Alone 3.75kHz 0.18 BPSK 18876 1@0 0.07555 0.0506 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 18876 1@0 0.09196 0.0544 PASS Band2 Stand- Alone 15kHz 0.18 BPSK 18876 12@0 0.18730 0.3005 PASS Band2 Stand- Alone 15kHz 0.18 BPSK 19199 12@0 0.18619 0.3144 PASS Band2 Stand- Alone 15kHz 0.18 QPSK 19199 12@0 0.18688 0.2845 PASS Band2 Stand- Alone 3.75kHz 0.18 BPSK 18602 1@0 0.07552 0.0539 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 18602 1@0 0.09269 0.0548 PASS Band2 Stand- Alone 3.75kHz 0.18 BPSK 19198 1@0 0.07461 0.0506 PASS Band2 Stand- Alone 3.75kHz 0.18 QPSK 19198 1@0 0.09048 0.0540 PASS Band2 Stand- Alone 15kHz 0.18 BPSK 18602 12@0 0.18633 0.3150 PASS Band2 Stand- Alone 15kHz 0.18 QPSK 18602 12@0 0.18693 0.3027 PASS Band2 Stand- Alone 15kHz 0.18 QPSK 18876 12@0 0.18754 0.2888 PASS Page 7 of 40 Report No.: 260105078SZN-002-Appendix B Band2 Stand- Alone 15kHz 0.18 BPSK…

Text truncated - open the document above for the full version.
