2BTBM-D100NDial Mini

Ulanzi Dial Mini Product Manual & Packaging Information 1. Packaging Information 1.1 Basic Product Information Product Name (Chinese): 桌搭小旋扭 Product Name (English): Dial Mini Model: D100N SKU: 1003 / 1019 Supplier Code: U367 EAN/UPC (69 Code): 6974774338062 Execution Standard: Q/ULZ0004-2024 (Audio & Video) Accessories Dial Mini Main Unit ×1 Type-A to Type-C Charging Cable (5V/1A, 1.5m) ×1 User Manual ×1 Quality Certificate ×1 Certification & Compatibility Certifications: CE, RoHS, FCC, Telec Supported Systems: Windows & macOS (Desktops & Laptops), iPadOS Software: Ulanzi Studio (PC/Mac software), Ulanzi Connect (Lighting control software) • • • • • • • • • • • • • • 1.2 Product Selling Points Software Edge: Save multiple presets without needing to keep the software open. Seamlessly switch presets via the dedicated POP button for rapid response. Custom Macros: Highly efficient creation process. Customize knob operations to perfectly adapt to video editing, volume/brightness control, color grading, and other scenarios. Desktop Aesthetic: Features a minimalist, Apple-inspired design with a premium, finely textured aluminum alloy finish. 2. Manual Information 2.1 Software Download & System Support Download Links: Ulanzi Studio Download: www.ulanzi.cn/download/UlanziDeck Ulanzi Studio UGC Site: www.ulanzistudio.com 2.2 Product Overview & Operations Button & Knob Operations: Knob: Supports 4 functions (Press, Rotate CW, Rotate CCW, Press & Rotate). Button: Function 1: POP function allows switching between presets/shortcuts. Function 2: Supports independent custom keybinding. Offline Default Functions & Factory Reset: You can change the offline functions via Ulanzi Studio (Offline means using the device without the software actively running). The factory default offline layout is as follows: Knob Press: Mute / Unmute Knob Clockwise (CW): Volume + Knob Counter-Clockwise (CCW): Volume - POP Button Actions: Copy, Paste, Cut, Undo, Redo, Screenshot, Open Task Switcher. Factory Reset: Press and hold the Knob + Mode Switch Button + Power on simultaneously for 3 seconds. The indicator light will flash 3 times (1 second on, 1 second off) to indicate a successful reset. • • • • • • • • • • • 2.3 Charging Instructions Red Light On: Currently Charging Green Light On: Charging Complete 2.4 Usage Instructions Download Software: Visit www.ulanzi.cn/download/UlanziDeck to download Ulanzi Studio. Connect Device: Turn on the device. It supports both Bluetooth and wired (USB-C) connections. Setup Operations: Launch the application to customize the Dial Mini. Drag and drop actions from the right-side plugin panel onto the left-side visual interface to assign single or multiple actions to the knob and buttons. Customize Keys: Configure specific hotkeys and personalize the knob/button behaviors through the software interface. 3. Specifications CategoryParameters Product NameDial Mini Desktop Knob ModelD100N Primary MaterialsABS+PC Bottom Shell, Aluminum Alloy Top Cover & Knob, Acrylic Frosted Base, Silicone Anti-Slip Pad Execution StandardQ/ULZ0004-2024 Battery Specifications3.7V ~ 300mAh Polymer Lithium Battery Product Power0.05 W (Max) Power SupplyType-C, 5V-2A Charging Time2 hours 30 minutes (0-100%) Battery Life20 hours (Continuous working time) Standby Power0.15mW Weight270g (Bare metal) • • 1. 2. 3. 4. Usage EnvironmentUse in a dry, ventilated indoor environment. Avoid contact with corrosive substances and keep away from fire/heat sources. Charge at least once a month during storage. Working Temp: 15°C ~ 45°C Storage Temp: -20°C ~ 65°C Bluetooth ParametersBLE 5.1, Transmission Distance ≥ 10M Bluetooth NameUlanzi Dial Mini Manufacturer: Shenzhen Weiji Technology Co., Ltd. Address: A17-5, Xinghe WORLD, No.1 Yabao Road, Nankeng Community, Bantian Street, Longgang District, Shenzhen Service Phone: 400-829-3882 4. Disclaimer 1. The operating temperature of this product must be strictly controlled between 15°C and 45°C. Do not use in high temperature, humid, dusty, or strong magnetic environments to avoid performance issues or damage. 2. The product has a built-in magnetic module. Keep it away from bank cards, magnetic cards, watches, and other items susceptible to magnetic fields to prevent data loss or equipment failure. 3. Do not disassemble, strike, or modify the product yourself. Doing so may damage internal components and will void the warranty. 4. Do not use non-original chargers or chargers that do not meet the specified requirements (5V/2A) to prevent safety hazards. 5. Failures caused by artificial damage (such as dropping or water ingress) or abnormal usage are not covered under warranty. 6. Do not forcefully bend or over-extend the luminous board beyond its maximum opening angle to avoid damaging the hinge structure. • • • • • • FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one o…

Text truncated - open the document above for the full version.

Shenzhen VIJIM Technology Co.,Ltd. 2026-08-29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BTBM-D100N) [Shenzhen VIJIM Technology Co.,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Jianguo Chen Manager Shenzhen VIJIM Technology Co., Ltd. Shenzhen VIJIM Technology Co.,Ltd. 2026-08-29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BTBM-D100N) [Shenzhen VIJIM Technology Co.,Ltd.] (“ the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Jianguo Chen Manager Shenzhen VIJIM Technology Co., Ltd.

Shenzhen VIJIM Technology Co., Ltd. Declaration on model difference We the undersigned hereby confirm that these models are identical, and all models have the same RF module and antenna, PCB layout, schematics and component. Only the models name are different. Product name FCC ID Model no. Dial Mini 2BTBM-D100N D100N, D100A, D100I Sincerely, Jianguo Chen Manager Shenzhen VIJIM Technology Co., Ltd.

Shenzhen VIJIM Technology Co., Ltd. 2026-08-29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (EUT Name: Dial Mini /Model: D100N, D100A, D100I /FCC ID: 2BTBM-D100N) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram, Operational Description, Schematics) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Jianguo Chen Manager Shenzhen VIJIM Technology Co., Ltd.

Shenzhen VIJIM Technology Co., Ltd. 2026-08-29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Guangdong Global Testing Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Jianguo Chen Manager Shenzhen VIJIM Technology Co., Ltd.

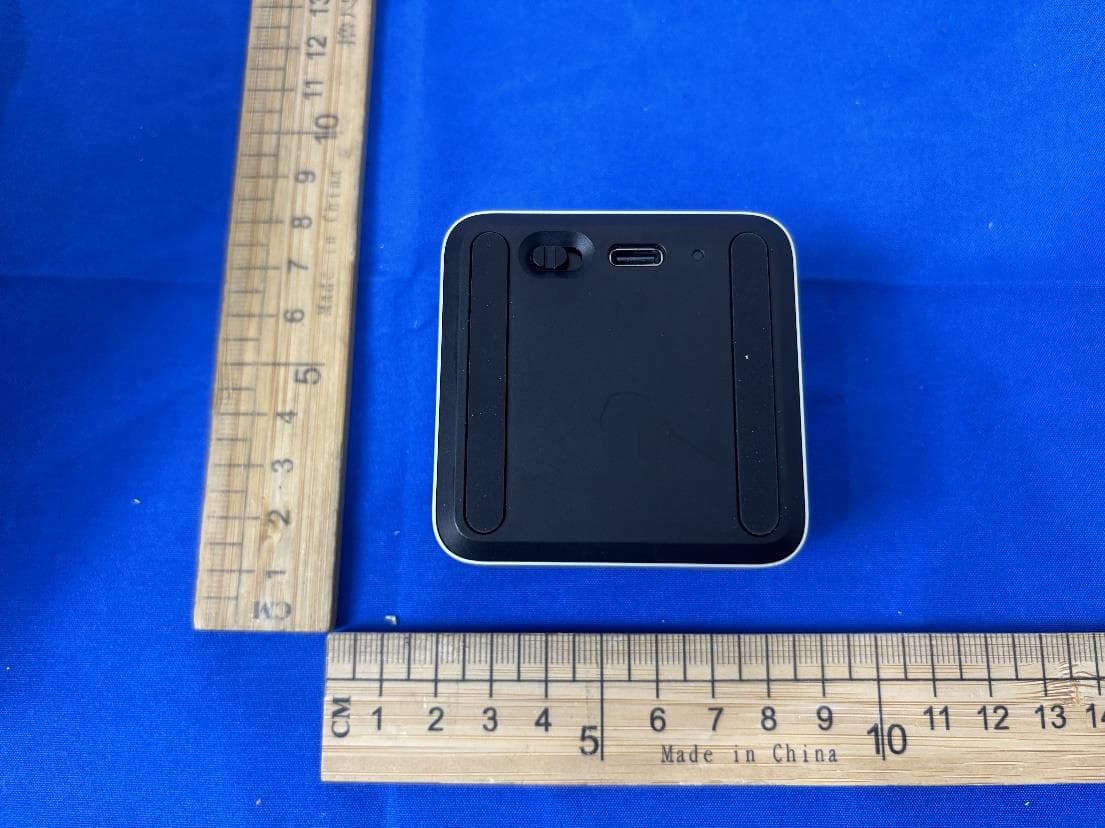

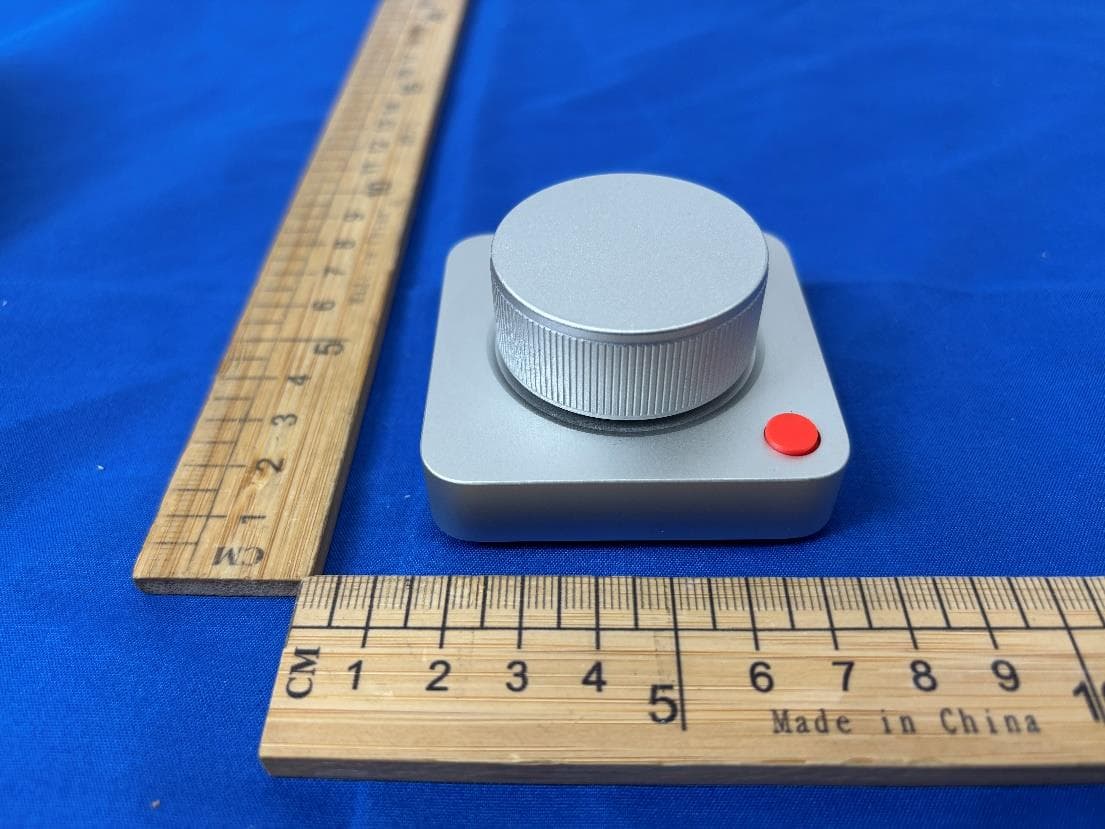

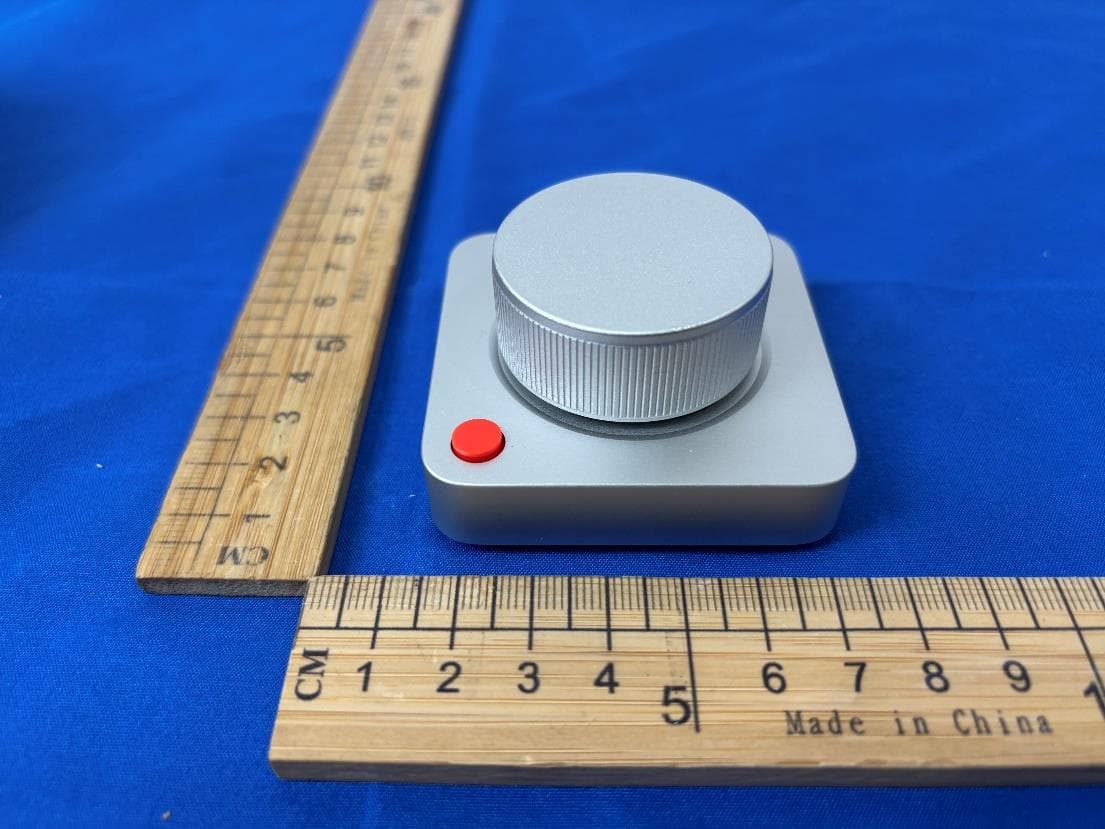

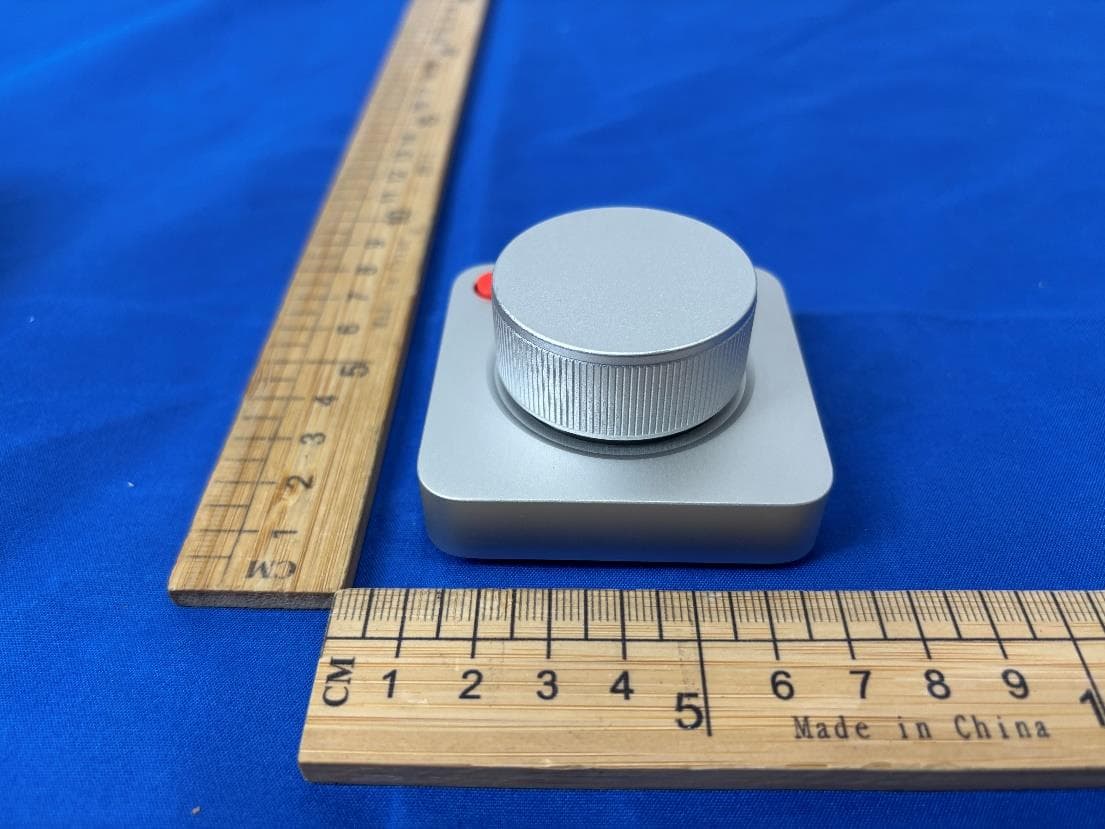

External Photographs View of EUT-1 View of EUT-2 Page 2 of 4 View of EUT-3 View of EUT-4 Page 3 of 4 View of EUT-5 View of EUT-6 Page 4 of 4 View of EUT-7

����/�/� 14.77mm 5.95mm 14.77mm 30.46mm 41.68mm 12.36mm ����/�/� 镭雕 3.90mm 3.90mm 11.77mm 2.50mm

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Antenna Page 2 of 3 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 3 Internal View of EUT-5

RF EXPOSURE EVALUATION EUT Specification FCC ID 2BTBM-D100N EUT Name Dial Mini Antenna gain (Max) -0.27 dBi Operation Frequency 2402-2480MHz Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK Max. output power -0.32 dBm(0.929mW) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Calculation Result 1-g SAR Verdict 2402 GFSK -0.32 0±1 1 0.390226 3 PASS Note: No need for SAR test Signature: Alan He Date: 2026-08-24

Dial Mini Antenna Test Report | Confidential SHENZHEN JIEXUNTONG WIRELESS TECHNOLOGY CO., LTD. Dial Mini Antenna Test Report June 24, 2026 This report is a confidential document of Shenzhen Jiexuntong Wireless Technology Co., Ltd. and its relevant customers. Please keep it confidential. Disclosure is prohibited without authorization. Dial Mini Antenna Test Report | Confidential Test Items and Equipment Test Item Test Parameters Test Equipment 1. S-parameters VSWR; Smith chart Network analyzer: Agilent 5071B 2. Passive test Efficiency Comprehensive test system; network analyzer: Agilent 5071B Microwave anechoic chamber: GTS Chamber Test equipment Dial Mini Antenna Test Report | Confidential Key Terms VSWR: The abbreviation for voltage standing wave ratio, defined as the ratio of reflected-wave amplitude to incident-wave amplitude. Under ideal conditions of complete impedance matching, VSWR is 1. In practical engineering, some reflection is always present; the greater the reflection, the greater the VSWR. Therefore, a VSWR value closer to 1 indicates better performance. Return Loss: RL is the ratio of the power of the reflected RF input signal to the power of the input signal. It is expressed in dB and is a negative quantity. Under ideal conditions, the antenna and RF circuit are completely matched and no power is reflected, so return loss approaches negative infinity. In practice, perfect matching is impossible and reflected power always exists. In the worst case, all input power is reflected and return loss is 0. For this parameter, a lower (more negative) value indicates better antenna performance. Effi: The ratio of the power radiated by the antenna (the power effectively converted into electromagnetic energy) to the power input to the antenna. It is always less than 100%. Gain: The ratio, under equal input power, of the power density produced by the actual antenna at a point in space to that produced by an ideal isotropic radiator at the same point. It quantitatively describes how strongly the antenna concentrates the input power for radiation. The unit is generally dBi. Smith chart: A chart showing the one-to-one relationship between impedance and reflection coefficient. Complex impedance is represented as a trajectory on the reflection-coefficient plane. TRP: Total Radiated Power. This is the surface integral (spherical average) over three-dimensional space of the effective isotropic radiated power, EIRP. It reflects the transmission characteristics of the mobile device in all directions. TIS: Total Isotropic Sensitivity. This is the surface integral (spherical average) over three-dimensional space of the effective isotropic sensitivity, EIS. It reflects the reception characteristics of the mobile device in all directions. Dial Mini Antenna Test Report | Confidential 1 / Complete Device / Anechoic Chamber Test Setup Complete device overview Antenna Dial Mini Antenna Test Report | Confidential 3 / Antenna VSWR Plots Before board edge After board edge Dial Mini Antenna Test Report | Confidential 4 / Matching Explanation E1 E2 E3 NC 0 ohm NC RF input -> E2 (0 ohm) -> Antenna Note: The antenna matching network was not modified. Dial Mini Antenna Test Report | Confidential 5 / 2.4 GHz Passive Efficiency and Gain Test Data Antenna end (before PCB) Freq (MHz) Gain (dBi) Efficiency (%) 2400 1.04 35.20 2410 1.03 36.44 2420 1.17 35.36 2430 1.14 36.91 2440 1.05 36.04 2450 1.10 35.64 2460 1.10 34.84 2470 1.44 35.16 2480 1.57 35.20 2490 1.55 35.29 2500 1.38 35.01 Board end (after PCB) Freq (MHz) Gain (dBi) Efficiency (%) 2400 -1.93 21.95 2410 -1.54 22.99 2420 -1.35 24.00 2430 -1.18 23.30 2440 -1.16 23.80 2450 -1.10 24.38 2460 -1.01 24.48 2470 -0.34 23.18 2480 -0.27 24.59 2490 -0.08 24.97 2500 0.19 26.46 Dial Mini Antenna Test Report | Confidential 6 / Passive Test 3D and 2D Plots - Antenna End (Before Board) Frequency: 2400 MHz Dial Mini Antenna Test Report | Confidential 6 / Passive Test 3D and 2D Plots - Antenna End (Before Board) Frequency: 2450 MHz Dial Mini Antenna Test Report | Confidential 6 / Passive Test 3D and 2D Plots - Antenna End (Before Board) Frequency: 2500 MHz Dial Mini Antenna Test Report | Confidential 7 / Remarks 1. The data above are passive test results at 2.4 GHz. 2. Please be informed. Contact us if you have any questions. Thank you. Dial Mini Antenna Test Report | Confidential THANK YOU

Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant1 14.88 8.27 10.75 NVNT BLE 1M 2440 Ant1 14.88 8.27 10.75 NVNT BLE 1M 2480 Ant1 14.88 8.27 10.75 2 / 22 Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 3 / 22 Duty Cycle NVNT BLE 1M 2480MHz Ant1 4 / 22 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Conducted Power (W) Limit Conducted(dBm) Verdict NVNT BLE 1M 2402 Ant1 -0.32 0.00093 30 Pass NVNT BLE 1M 2440 Ant1 -0.9 0.00081 30 Pass NVNT BLE 1M 2480 Ant1 -1.78 0.00066 30 Pass 5 / 22 Peak Power NVNT BLE 1M 2402MHz Ant1 Peak Power NVNT BLE 1M 2440MHz Ant1 6 / 22 Peak Power NVNT BLE 1M 2480MHz Ant1 7 / 22 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.5419 0.5 Pass NVNT BLE 1M 2440 Ant1 0.5715 0.5 Pass NVNT BLE 1M 2480 Ant1 0.5691 0.5 Pass 8 / 22 -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 9 / 22 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 10 / 22 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant1 1.0397 NVNT BLE 1M 2440 Ant1 1.0445 NVNT BLE 1M 2480 Ant1 1.0283 11 / 22 OBW NVNT BLE 1M 2402MHz Ant1 OBW NVNT BLE 1M 2440MHz Ant1 12 / 22 OBW NVNT BLE 1M 2480MHz Ant1 13 / 22 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -17.18 0 -17.18 8 Pass NVNT BLE 1M 2440 Ant1 -17.82 0 -17.82 8 Pass NVNT BLE 1M 2480 Ant1 -18.71 0 -18.71 8 Pass 14 / 22 PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 15 / 22 PSD NVNT BLE 1M 2480MHz Ant1 16 / 22 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -44.01 -20 Pass NVNT BLE 1M 2480 Ant1 -44.16 -20 Pass 17 / 22 Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission 18 / 22 Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission 19 / 22 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -48.37 -20 Pass NVNT BLE 1M 2440 Ant1 -48.16 -20 Pass NVNT BLE 1M 2480 Ant1 -46.54 -20 Pass 20 / 22 Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Emission 21 / 22 Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Emission 22 / 22 Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Emission Note: For all conducted spurious emissions measurements, the offset from cable loss and test system for whole test band was applied to the measurement result.

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For Dial Mini MODEL NUMBER: D100N, D100A, D100I REPORT NUMBER: E04A26080413F00801 ISSUE DATE: August 24, 2026 FCC ID: 2BTBM-D100N Prepared for Shenzhen VIJIM Technology Co., Ltd. A1705, Building A, Galaxy World, No.1 Yabao Road, Bantian Street, Longgang District, Shenzhen Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A26080413F00801 Page 2 of 43 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 August 24, 2026 Initial Issue REPORT NO.: E04A26080413F00801 Page 3 of 43 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2020, Clause 11.9.1.2 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 or 11.8.2 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247(d) FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass Note: 1. For ISED, this report is also performed according to ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 + Errata to C63.10a-2024 standards. 2. N/A: In this whole report not applicable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C, ISED RSS-247 Issue 4> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A26080413F00801 Page 4 of 43 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM CONDUCTED OUTPUT POWER ........................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ........................................................... 9 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................... 9 5.8. SETUP DIAGRAM .................................................................................................... 9 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 11 7. ANTENNA PORT TEST RESULTS ..................................................................................... 13 7.1. Conducted Output Power ........................................................................................ 13 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ....................................................... 14 7.3. Power Spectral Density ........................................................................................... 16 7.4. Conducted Band edge and spurious emission ........................................................ 17 7.5. Duty Cycle .............................................................................................................. 19 8. RADIATED TEST RESULTS ............................................................................................... 20 8.1. Radiated Band edge and Spurious Emission .......................................................... 26 9. ANTENNA REQUIREMENT ................................................................................................ 38 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 40 11. TEST DATA - APPENDIX A ................................................................................... 43 REPORT NO.: E04A26080413F00801 Page 5 of 43 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Shenzhen VIJIM Technology Co., Ltd. Address: A1705, Building A, Galaxy World, No.1 Yabao Road, Bantian Street, Longgang District, Shenzhen Manufacturer Information Company Name: Shenzhen VIJIM Technology Co.…

Text truncated - open the document above for the full version.

Setup Photographs AC Power Line Conducted Emission Radiated Band edge and Spurious Emission Page 2 of 3 Page 3 of 3
