2BTBU-Y006YMSmart Watch

Modle Smart Watch This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. XI FCC Statement Consult the dealer or an experienced radio/TV technician for help. 47

XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd. (Room412,4thFloor,Building8No.19JugongRoadXixingSubdistrictBinjiangDistrictHangzhou CityZhejiangProvince ， China) AttestationStatements NotCoveredEntityApplicant&NotCoveredEquipment To:FederalCommunicationsCommissionDate:December4,2025 7435OaklandMillsRoad, Columbia,MD21046,USA Ref:InformationRequiredbySection2.911(d)(5)(i)&(ii) FCCID:2BTBU-Y006YM XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd.(“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList,establishedpursuantto§ 1.50002ofreferencechapter,asanentityproducing“covered”communicationequipment.The equipmentforwhichauthorizationissoughtisnot“covered”telecommunicationsequipmentandvideo surveillanceequipmentproducedbyentitiesidentifiedontheCommission’sCoveredListthatprohibited fromreceivinganequipmentauthorizationpursuanttosection§2.903oftheFCCrules. Sincerelyyours, ApplicantSignature PrintedName:LiZhang Title:Manager Address:Room412,4thFloor,Building8No.19JugongRoadXixingSubdistrictBinjiangDistrictHangzhou CityZhejiangProvince，China Tel.:0571-82573681 Email:[email protected]

XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd. (Room412,4thFloor,Building8No.19JugongRoadXixingSubdistrictBinjiangDistrictHangzhou CityZhejiangProvince ， China) 1|Page AttestationStatements To:FederalCommunicationsCommissionDate:December4,2025 7435OaklandMillsRoad, Columbia,MD21046,USA Subject:AttestationofCompliancewithFCCCoveredListSoftwareRequirements FCCID:[2BTBU-Y006YM] ProductName:[SmartWatch] Thisletterservesasanattestationthattheequipmentidentifiedabove☐is/☒isnot(selectone)"covered" softwareasdefinedundertheFederalCommunicationsCommission(FCC)CoveredListrequirements,as outlinedinFCC22-84andKDB986446. Specifically,theundersignedcertifiesthattheequipmentforwhichauthorizationissought: 1.Doesnotcontaincybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab, Inc.oranyofitssuccessors,assignees,parents,subsidiaries,affiliates,oranyentitythathasrebranded orrelabeledsoftwareproducedbytheaforementionedentities. 2.Doesnothavethecapabilitytostore,run,ordeliveranysoftwareidentifiedontheFCCCoveredList, includingbutnotlimitedtocybersecurityandanti-virussoftware. Tosupportthisattestation,theappendixevaluationdocumentationhasbeenpreparedandisincludedinthe certificationfiling. Thisattestationisbasedonathoroughevaluationofthedevice'sdesign,functionality,andsoftware environment.Theundersignedaffirmsthattheinformationprovidedisaccurateandcompletetothebestof theirknowledge. Sincerelyyours, ApplicantSignature PrintedName:LiZhang Title:Manager Address:Room412,4thFloor,Building8No.19JugongRoadXixingSubdistrictBinjiangDistrictHangzhou CityZhejiangProvince，China Tel.:0571-82573681 Email:[email protected] XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd. (Room412,4thFloor,Building8No.19JugongRoadXixingSubdistrictBinjiangDistrictHangzhou CityZhejiangProvince ， China) 2|Page EvaluationregardingtotheCoveredListSoftware: Compliance Methodology EvaluationProcessResults Deviceis Inherent compliance ☒ TheChipset(s)usedislimitedtorun theCybersecurityoranti-virus software. compliance ☒ TheMemoryusedislimitedtorunthe Cybersecurityoranti-virussoftware. compliance ☒ Thereisstoragecapacitylimitationfor storeorinstalltheCybersecurityor anti-virussoftware. compliance ☒ Operatingsystemusedislimitedto run,installordelivertheCybersecurity oranti-virussoftware. compliance Deviceisnot Inherent compliance ☐ EvaluationBasedonSoftware BillofMaterials(SBoM) compliance ☐ EvaluationBasedonScanfor Softwareonthedevice ☐ EvaluationBasedonFilesystemscan ☐ EvaluationBasedonRunning softwarecheck SBOM(SoftwareBillofMaterials)[ForDeviceisnotInherentcompliance] SectionComponentNameVersionSupplier 1 2 3

XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd. (Room412,4thFloor,Building8No.19JugongRoadXixingSubdistrictBinjiangDistrictHangzhou CityZhejiangProvince ， China) U.S.AgentLetterofAttestation To:FederalCommunicationsCommission 7435OaklandMillsRoad,Columbia,MD21046,USA Date:Dec.9,25 Ref:AttestationStatement–Part2.911(d)(7)filing FCCID:[2BTBU-Y006YM] [XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd.](“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,[WeFaSelectionTradeTechnologyCo.,LTD](“theagent”)isour designatedU.S.agentforserviceofprocessfortheabovereferenceFCCID.Theapplicantaccepts tomaintainanagentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereither thegranteehaspermanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,ortheconclusionofanyCommission-relatedadministrativeorjudicialproceeding involvingtheequipment,whicheverislater.Theapplicantfurtheracknowledgesitisour responsibilitytoinformtheFCCwhenevertheagentinformationchanges. [WeFaSelectionTradeTechnologyCo.,LTD]("theagent)understanditistheagent'sobligationto acceptserviceofprocessintheUnitedStatesformattersrelatedtotheapplicableequipment,and atthephysicalU.S.addressandemailaddress. DesignatedU.S.Agent CompanyName:WeFaSelectionTradeTechnologyCo.,LTD FRN:0033767856 Address: 30N.GOULDST.STENSHERIDAN WY,SHERIDAN,WY82801,UnitedStates Signature: Tel:3023719847Email:[email protected] Applicant CompanyName: XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd. FRN ：0037673829 Address: Room412,4thFloor,Building8No.19Jugong RoadXixingSubdistrictBinjiangDistrictHangzhouCity ZhejiangProvince，China Signature: ContactPerson: LiZhang Tel:0571-82573681Email:[email protected]

XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd. We（XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd.）Produce modelY006YMandseriesmodels:Y006JM,theyaresameinsafety keyparts,circuitdiagramprinciple,structure,voltage,current,etc.,Only themodelnameandcoloraredifferent. Company：XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd. Date:2025-12-2 Signature:

XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd. (Room412,4thFloor,Building8No.19JugongRoadXixingSubdistrictBinjiangDistrict HangzhouCityZhejiangProvince ， China) (Dec.4,25) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestfor:FCCID:2BTBU-Y006YM PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestpermanent confidentialtreatmentoftheexhibitsaccompanyingthiscertificationapplicationasoutlinedbelow: BlockDiagram Schematics OperationalDescription  PartsList (Etc.) Sincerely, (Signature) Title:Manager Address:Room412,4thFloor,Building8No.19JugongRoadXixingSubdistrictBinjiangDistrict HangzhouCityZhejiangProvince，China Tel.:0571-82573681 Email:[email protected]

XiaoCola(Hangzhou)IntelligentTechnologyCo.,Ltd. (Room412,4thFloor,Building8No.19JugongRoadXixingSubdistrictBinjiangDistrict HangzhouCityZhejiangProvince ， China) (Dec.4,25) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:AgentAuthorizationforFCCID:2BTBU-Y006YM I,theundersigned,herebyauthorize(ShenzhenHaiyunStandardTechnicalCO.,Ltd.)toactonourbehalf inallmattersrelatingtothisapplicationforequipmentcertification. Anyactcarriedoutby(ShenzhenHaiyunStandardTechnicalCO.,Ltd.)shallhavethesameeffectasour ownandIacknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsofcertification, asspecifiedbyDERYCOMCERTIFICATIONSERVICES,INC.,stillresideswith(XiaoCola(Hangzhou) IntelligentTechnologyCo.,Ltd.). WecertifythatwearenotsubjecttoadenialoffederalbenefitsthatincludesFCCbenefitspursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.§862,andthatnopartytotheapplication,as definedin47CFR§1.2002(b),issubjecttoadenialoffederalbenefitsthatincludesFCCbenefits pursuanttothatsection. Sincerely, (Signature) (FullnameofcontactpersonlistedonFCC’swebsite)LiZhang (Title)Manager Tel:0571-82573681 Fax:0571-82573681 Email:[email protected]

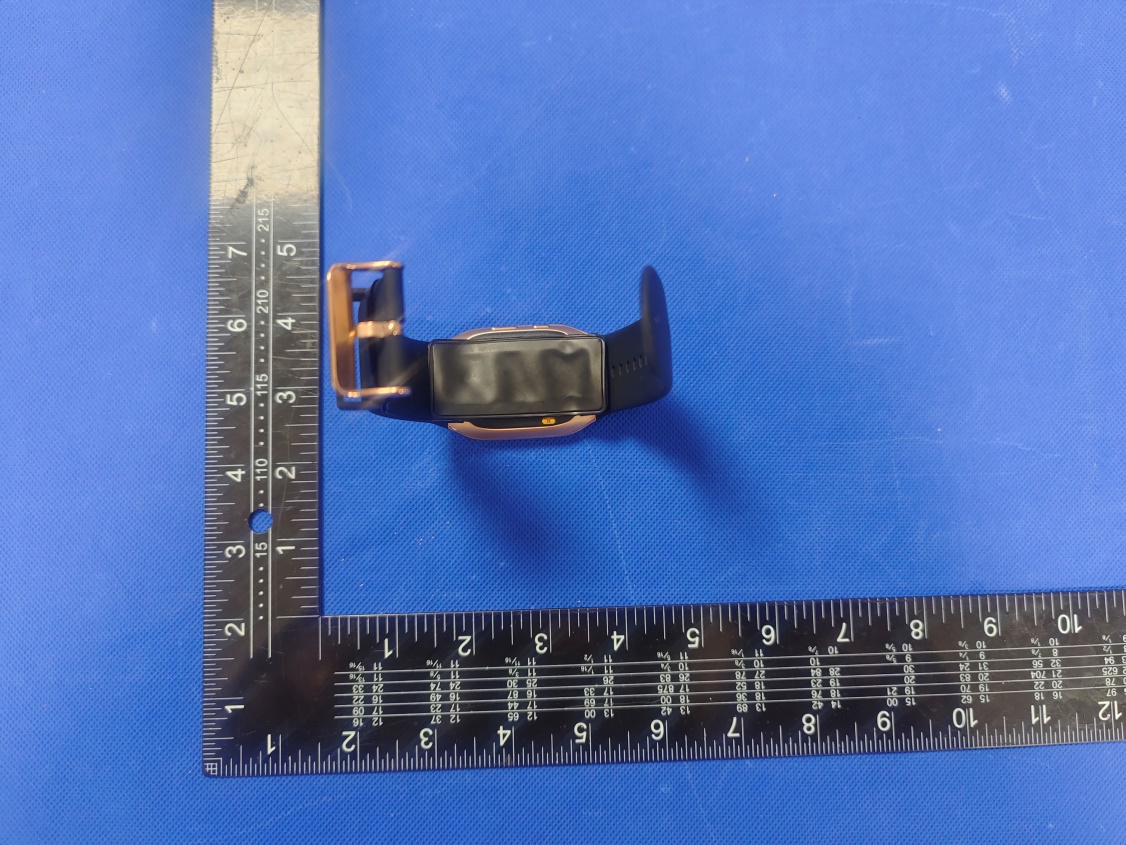

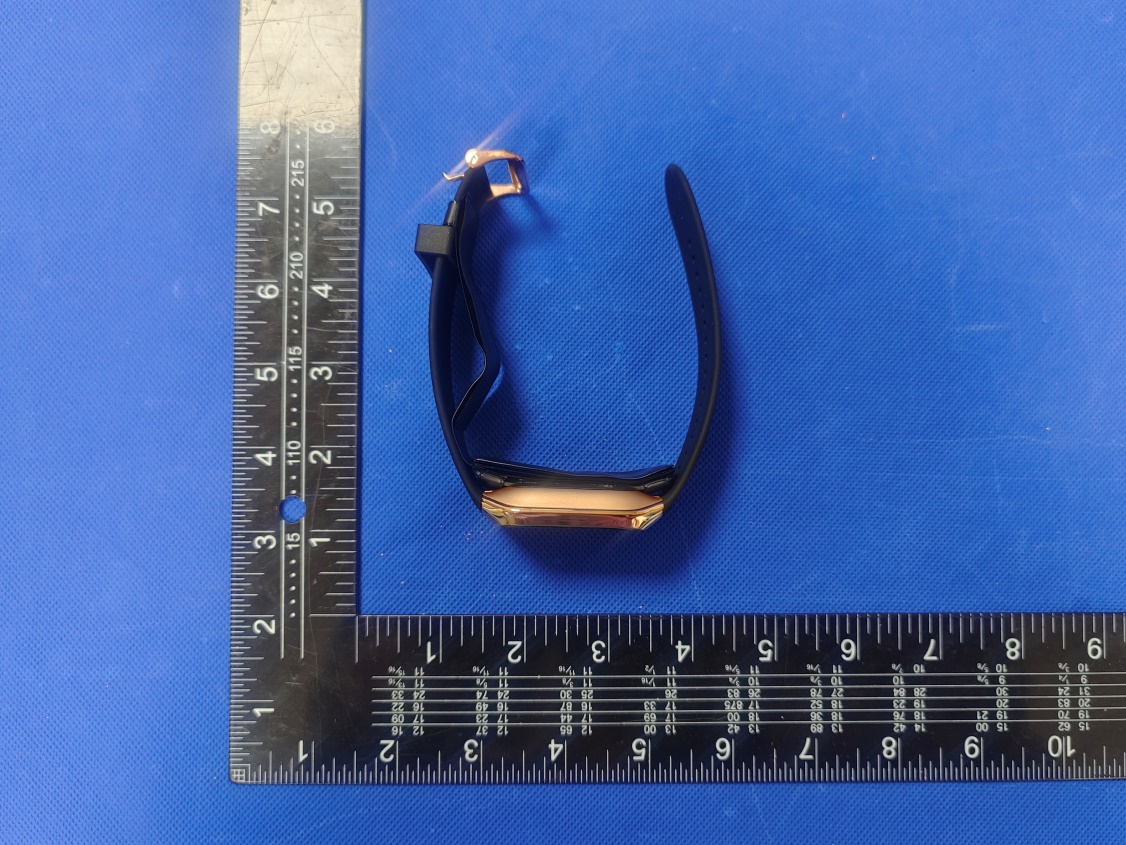

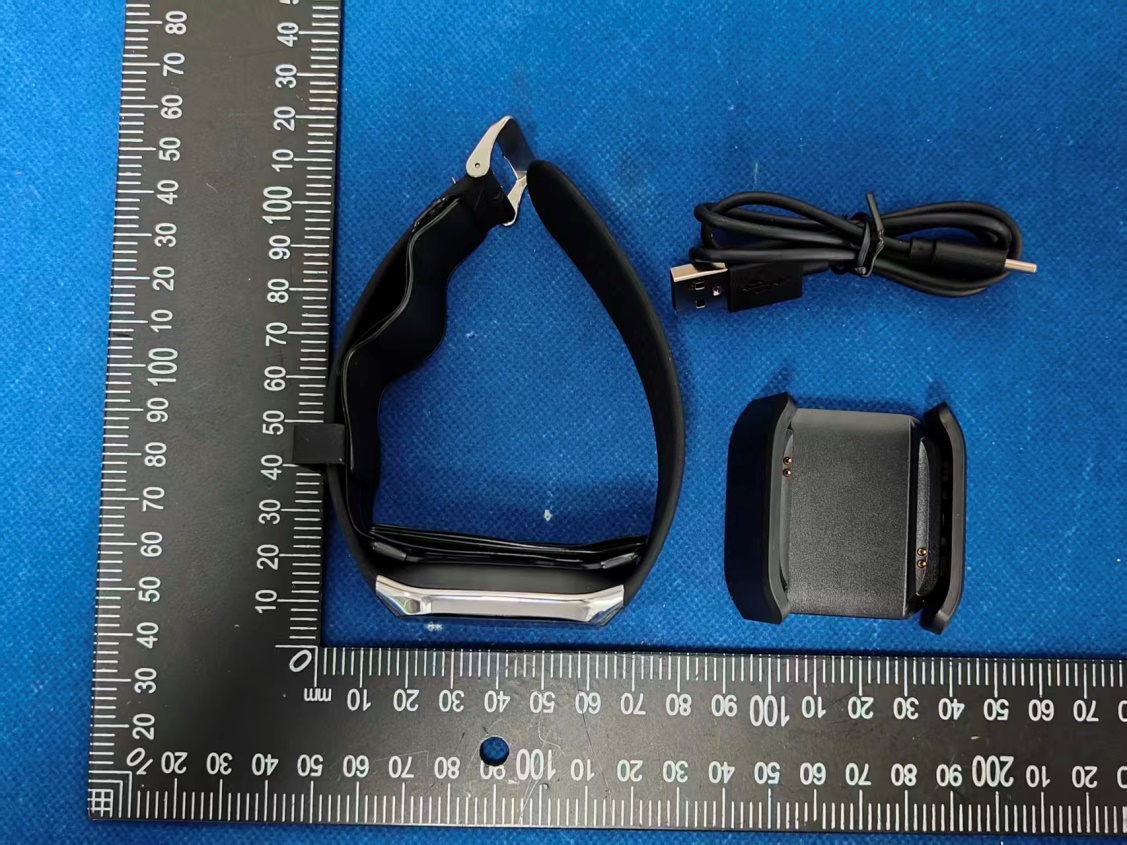

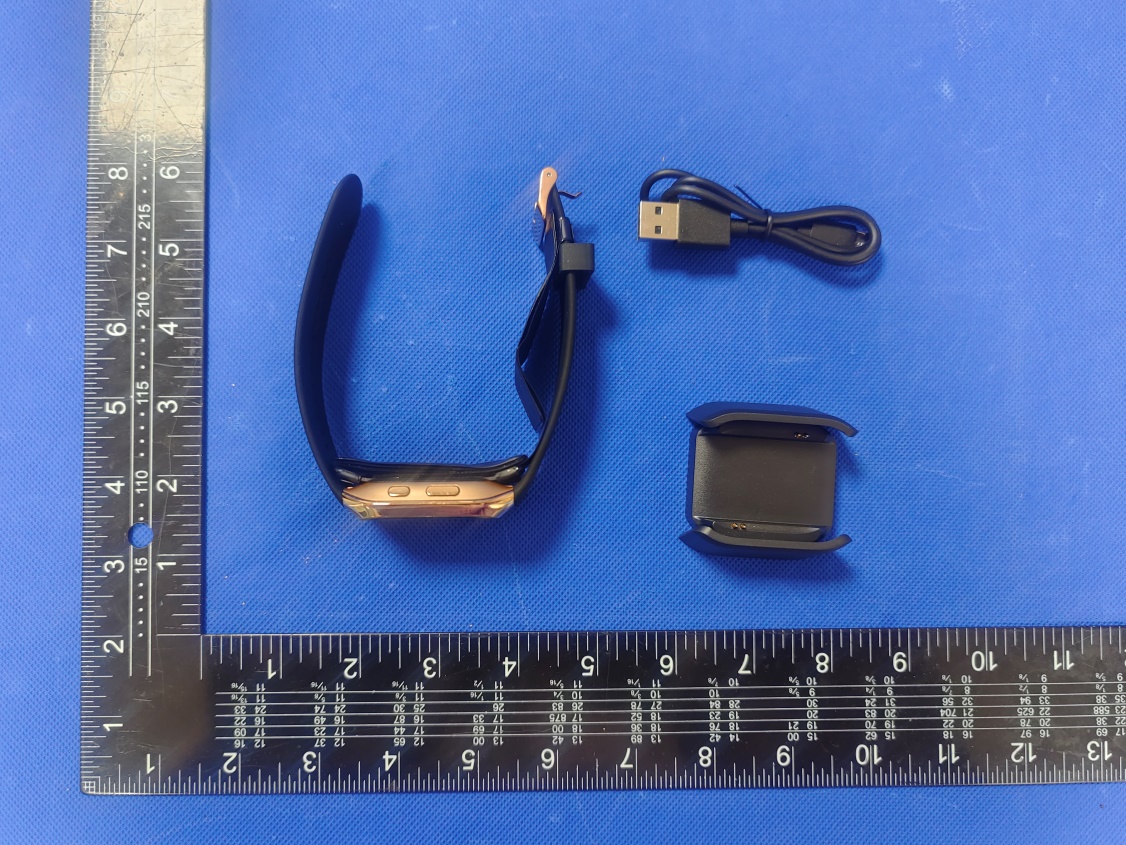

FCC ID: 2BTBU-Y006YM Page 1 / 9 EUT EXTERNAL PHOTO Model name: Y006YM EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 2 / 9 EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 3 / 9 EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 4 / 9 EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 5 / 9 Model name: Y006JM EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 6 / 9 EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 7 / 9 EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 8 / 9 EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 9 / 9 EUT Photo

Lable and Location

FCC ID: 2BTBU-Y006YM Page 1 / 5 EUT INTERNAL PHOTOS EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 2 / 5 EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 3 / 5 EUT Photo EUT Photo FCC ID: 2BTBU-Y006YM Page 4 / 5 EUT Photo EUT Photo BLE antenna FCC ID: 2BTBU-Y006YM Page 5 / 5 EUT Photo EUT Photo

HY- FCC 2.1093 Ver.1.1 Page 1 of 5 Report No.: RF251125012-01-002 FCC RF EXPOSURE REPORT FCC ID: 2BTBU-Y006YM Tes t Report No...........: RF251125012-01-002 Product(s) Name.........: Smart Watch Model(s)....................: Y006YM, Y006JM Trade Mark.................: N/A Applicant...................: Xiao Cola (Hangzhou) Intelligent Technology Co., Ltd. Address.....................: Room 412, 4th Floor, Building 8 No. 19 Jugong Road Xixing Subdistrict Binjiang District Hangzhou City Zhejiang Province, China Receipt Date..............: 2025.11.25 Test Date...................: 2025.11.26~2025. 11.27 Issued Date................: 2025.11.28 Standards..................: CFR47 FCC Part 1: Section 1.1310; CFR47 FCC Part 2: Section 2.1093; FCC KDB Publication 447498 D04; Testing Laboratory......: Shenzhen Haiyun Standard Technical Co., Ltd. Prepared By: Checked By: Approved By: Jason Huang Black Ding Tim Zhang HY-FCC 2.1093 Ver.1.1 Page 2 of 5 Report No.: RF251125012-01-002 History of this test report Original Report Issue Date: 2025.11.28 ● No additional attachment ○ Additional attachments were issued following record Attachment No. Issue Date Description HY-FCC 2.1093 Ver.1.1 Page 3 of 5 Report No.: RF251125012-01-002 1. MPE CALCULATION METHOD Limit Calculation Method ERP/EIRP = P T +G T −L C ERP/EIRP is the equivalent (or effective) radiated power [in same units as P T , typically dBW, dBm, or power spectral density (psd)], relative to either a dipole antenna (ERP) or an isotropic antenna (EIRP). P T is the transmitter output power, in dBW, dBm, or psd (power over a specified reference bandwidth). G T is the gain of the transmitting antenna, in dBd (ERP) or dBi (EIRP). L C is the signal attenuation in the connecting cable between the transmitter and the antenna, in dB. Table for Filed Antenna For BLE Antenna gain Antenna Type -0.5dBi SMD antenna HY-FCC 2.1093 Ver.1.1 Page 4 of 5 Report No.: RF251125012-01-002 2. TEST RESULTS Worst case as below Mode Output power to antenna (dBm) Ant gain (dBi) EIRP (dBm) ERP (dBm) ERP(mw) Distance (cm) Pth (mW) BLE 0.86 -0.5 0.36 -1.79 0.66 0.5 2.79 Note: 1. ERP = EIRP −2.15 dB 2. 0.66mW<2.79mw  Conclusion The SAR evaluation is not required HY-FCC 2.1093 Ver.1.1 Page 5 of 5 Report No.: RF251125012-01-002 Statement 1. The report is invalid without the official seal or special seal of Shenzhen Haiyun Standard Technical Co., Ltd. (hereinafter referred to as the unit). 2. The report is invalid without the signature of the approver. 3. The report is invalid if altered arbitrarily. 4. The report shall not be partially copied without the written approval of the unit. 5. The reported test results are only valid for the tested samples. 6. If there is any objection to the test report, it shall be submitted to the test unit within 15 days from the date of receiving the report, and the overdue shall not be accepted. Shenzhen Haiyun Standard Technical Co., Ltd. Address: Room 110, 111, 112, 113, 115, 116, Block B, Jinyuan Business Building, No. 302, Xixiang Avenue, Labor Community, Xixiang Street, Baoan District, Shenzhen, China Tel: 0755-26024411 Email: [email protected] （END OF REPORT）

AT1608-A2R4HAAT/LF REV:4 PAGE:1/11 ACX Advanced Ceramic X Features  Monolithic SMD with small, low-profile and light-weight type.  Wide bandwidth  RoHS compliant Applications 2400~2500MHz ISM Band Systems Specifications Part Number Frequency Range (MHz) Peak Gain (dBi typ.) Average Gain (dBi typ.) VSWR Impedance AT1608 -A2R4HAA_ 2400~2480 -0.5 (XZ-total) -2.0 (XZ-total) 3 max. 50  Q’ty/Reel (pcs) : 4,000 pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Storage Period : 12 months max. Power Capacity : 2W max. Part Number  Type AT : Antenna  Dimensions ( L × W ) 1.6× 0.8 mm  Material Code A  Frequency Range 2R4=2400MHz  Specification Code HAA  Packaging T: Tape & Reel B: Bulk  Soldering /LF=lead-free Terminal Configuration No.Terminal Name No. Terminal Name  Feeding Point  NC AT1608 Series Multilayer Chip Antenna AT 1608 - A 2R4 HAA          AT1608-A2R4HAAT/LF REV:4 PAGE:2/11 ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Typical Electrical Characteristics (T=25 o C) Test Board-Type A Mark L W T a Dimensions 1.6  0.1 0.8  0.1 0.4  0.1 0.25 0.1 Unit : mm L a W T Antenna 41mm 5mm No Ground Ground 17mm 50Feed Line 3mm AT1608-A2R4HAAT/LF REV:4 PAGE:3/11 ACX Advanced Ceramic X 2.22.42.62.82.03.0 -25 -20 -15 -10 -5 -30 0 freq, GHz dB(S(1,1)) m111 m115 m117 m111 freq= dB(S(1,1))=-30.964 2.440GHz m115 freq= dB(S(1,1))=-10.017 2.400GHz m117 freq= dB(S(1,1))=-11.029 2.480GHz Antenna Footprint with matching *Line width should be designed to match 50 characteristic impedance, depending on PCB material and thickness. Return Loss (with matching) (Matching circuit and component values will be different, depending on PCB layout) 1.8 nH 1.5pF 0.8mm 0.5mm 3.7mm 1.1mm 0.4mm Matching circuits 0.85mm 0.65mm 2.5mm 0.5mm 0.5mm 1.0mm 0.8mm 1.43mm 0.55mm AT1608-A2R4HAAT/LF REV:4 PAGE:4/11 ACX Advanced Ceramic X Radiation Patterns- (Antenna Efficiency: 48 %) Y :Φ(Phi)=90 o X :Φ(Phi)=0 o Z : θ(Theta)=0 o XY-plane @2440MHz Total YZ-plane @2440MHz Total XZ-plane @2440MHz Total AT1608-A2R4HAAT/LF REV:4 PAGE:5/11 ACX Advanced Ceramic X Test Board-Type B Antenna Footprint with matching *Line width should be designed to match 50 characteristic impedance, depending on PCB material and thickness. Ground 15mm Antenna 17mm 5mm No Ground 7mm 50Feed Line 8.2pF 1.5nH 0.8mm 0.5mm 5.2mm 1.1mm 2.4mm Matching circuits 0.85mm 0.65mm 2.0mm 0.5mm 0.8mm 1.43mm 0.55mm (Matching circuit and component values will be different, depending on PCB layout) AT1608-A2R4HAAT/LF REV:4 PAGE:6/11 ACX Advanced Ceramic X 2.22.42.62.82.03.0 -25 -20 -15 -10 -5 -30 0 freq, GHz dB(S(1,1)) m1 m2 m3 m1 freq= dB(S(1,1))=-11.802 2.480GHz m2 freq= dB(S(1,1))=-7.237 2.400GHz m3 freq= dB(S(1,1))=-19.172 2.440GHz Return Loss (with matching) AT1608-A2R4HAAT/LF REV:4 PAGE:7/11 ACX Advanced Ceramic X Radiation Patterns- (Antenna Efficiency: 26 %) Y :Φ(Phi)=90 o X :Φ(Phi)=0 o Z : θ(Theta)=0 o XY-plane @2440MHz Total YZ-plane @2440MHz Total XZ-plane @2440MHz Total AT1608-A2R4HAAT/LF REV:4 PAGE:8/11 ACX Advanced Ceramic X Taping Specifications Tape & Reel Dimensions (Unit: mm) vs. Quantity (pcs) Type A A’ B C D E F T Quantity/per reelTape material AT1608 4.0± 0.1 4.0± 0.1 0.95± 0.1 1.80± 0.1 2.0± 0.1 3.5± 0.1 8.0± 0.1 0.60± 0.03 4,000pcs Paper Reel Dimensions (Unit: mm) Leader and Trailer Tape Type W2 W3 W4 W5 AT1608 178±1 60±1 1.4±0.2 9.0±0.3 F A’ D E 1.75 ± 0.1 AB EMBOSS TA P E T C ∣ W2 13.5±0.5 2.3 ±0.5 Label Label: Customer’s Name, ACX P/N, Q’ty, Date, ACX Corp. W4 W5 W3 Trailer End Trailer (160 mm min.) Leader End Empty Compartments with Cover Tape (500 mm min.) AT1608-A2R4HAAT/LF REV:4 PAGE:9/11 ACX Advanced Ceramic X Peel-off Force Peel-off force should be in the range of 0.1 – 0.6 N at a peel-off speed of 300±10 mm/min . Storage Conditions (1) Temperature: 5 ~35°C, relative humidity (RH): 45~75%. (2) Non-corrosive environment Notes The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. Peeling Direction Top Cover Tape Carrier Tape <10 0 AT1608-A2R4HAAT/LF REV:4 PAGE:10/11 ACX Advanced Ceramic X Mechanical & Environmental Characteristics Item Requirements Procedure Solderability 1. No apparent damage 2. More than 95% of the terminal electrode shall be covered with new solder 1. Preheat: 120 5 o C 2. Solder: 245 5 o C for 5 1 sec Soldering strength (Termination Adhesion) 1. 1kg minimum 1. Solder specimen onto test jig. 2. Apply push force at 0.5mm/s until electrode pads are peeled off or ceramic are broken. Pushing force is applied to longitude direction. Deflection (Substrate Bending) 1. No apparent damage 1. Solder specimen onto test jig (FR4, 0.8mm) using the recommend soldering profile. 2. Apply a bending force of 2mm deflection. Heat/Humidity Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: 85 2 o C 2. Humidity: 90% ~ 95% RH 3. Duration: 1000±48hrs 4. Recovery: 1-2hrs Thermal shock (Temperature Cycle) 1. No apparent damage 2. Fulfill the electrical specification after test 1. One cycle/step 1：125 ± 5C for 30 min step 2：- 40 ± 5C for 30 min 2. No of cycles：100 3. Recovery:1-2 hrs Low Temperature Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: -40 5 o C 2. Duration: 500 ±24hrs 3. Recovery: 1-2hrs 90mm Pressure Rod R230 AT1608-A2R4HAAT/LF REV:4 PAGE:11/11 ACX Advanced Ceramic X Soldering Conditions Typical Soldering Profile for Lead-free Process Reflow Soldering : Notes The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. Temperature ( o C) Pre-heating 60-180s Time (s.) 20s max. 260 o C 150-200 o C 217 o C 60-150s. Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E…

Text truncated - open the document above for the full version.

HY-FCC part 15C-BLE Ver.1.1 Page 1 of 53 Report No.: RF251125012-01-001 RF TEST REPORT F CC ID: 2BTBU-Y006YM Test Report No...........: RF251125012-01-001 Product(s) Name.........: Smart Watch Model(s)....................: Y006YM, Y006JM Trade Mark.................: N/A Applicant...................: Xiao Cola (Hangzhou) Intelligent Technology Co., Ltd. Address.....................: Room 412, 4th Floor, Building 8 No. 19 Jugong Road Xixing Subdistrict Binjiang District Hangzhou City Zhejiang Province, China Receipt Date..............: 2025.11.25 Test Date...................: 2025.11.26~2025. 11.27 Issued Date................: 2025.11.28 Standards..................: 47 CFR FCC Part 15, Subpart C(Section 15.247) ANSI C63.10:2020 Testing Laboratory......: Shenzhen Haiyun Standard Technical Co., Ltd. Prepared By: Checked By: Approved By: Jason Huang Black Ding Tim Zhang HY-FCC part 15C-BLE Ver.1.1 Page 2 of 53 Report No.: RF251125012-01-001 Table of Contents REPORT ISSUED HISTORY 4 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 1.3 TEST ENVIRONMENT CONDITIONS 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 PARAMETERS OF TEST SOFTWARE 9 2.4 SUPPORT UNITS 9 3 . AC POWER LINE CONDUCTED EMISSIONS 10 3.1 LIMIT 10 3.2 TEST PROCEDURE 10 3.3 DEVIATION FROM TEST STANDARD 10 3.4 TEST SETUP 11 3.5 EUT OPERATING CONDITIONS 11 3.6 TEST RESULTS 11 4 . RADIATED EMISSIONS 12 4.1 LIMIT 12 4.2 TEST PROCEDURE 13 4.3 DEVIATION FROM TEST STANDARD 14 4.4 TEST SETUP 14 4.5 EUT OPERATING CONDITIONS 15 4.6 TEST RESULT - 9 KHZ TO 30 MHZ 15 4.7 TEST RESULT - 30 MHZ TO 1000 MHZ 15 4.8 TEST RESULT - ABOVE 1000 MHZ 15 5 . BANDWIDTH 16 5.1 LIMIT 16 5.2 TEST PROCEDURE 16 5.3 DEVIATION FROM STANDARD 16 5.4 TEST SETUP 16 5.5 EUT OPERATION CONDITIONS 16 5.6 TEST RESULTS 16 6 . MAXIMUM OUTPUT POWER 17 HY-FCC part 15C-BLE Ver.1.1 Page 3 of 53 Report No.: RF251125012-01-001 6.1 LIMIT 17 6.2 TEST PROCEDURE 17 6.3 DEVIATION FROM STANDARD 17 6.4 TEST SETUP 17 6.5 EUT OPERATION CONDITIONS 17 6.6 TEST RESULTS 17 7 . CONDUCTED SPURIOUS EMISSION 18 7.1 LIMIT 18 7.2 TEST PROCEDURE 18 7.3 DEVIATION FROM STANDARD 18 7.4 TEST SETUP 18 7.5 EUT OPERATION CONDITIONS 18 7.6 TEST RESULTS 18 8 . POWER SPECTRAL DENSITY 19 8.1 LIMIT 19 8.2 TEST PROCEDURE 19 8.3 DEVIATION FROM STANDARD 19 8.4 TEST SETUP 19 8.5 EUT OPERATION CONDITIONS 19 8.6 TEST RESULTS 19 9 . MEASUREMENT INSTRUMENTS LIST 20 10 . ANTENNA REQUIREMENT 21 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 22 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 25 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 26 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 29 APPENDIX E - BANDWIDTH 35 APPENDIX F - MAXIMUM OUTPUT POWER 40 APPENDIX G - CONDUCTED SPURIOUS EMISSION 43 APPENDIX H - POWER SPECTRAL DENSITY 50 HY-FCC part 15C-BLE Ver.1.1 Page 4 of 53 Report No.: RF251125012-01-001 REPORT ISSUED HISTORY Original Report Issue Date: 2025.11.28 ● No additional attachment ○ Additional attachments were issued following record Attachment No. Issue Date Description HY-FCC part 15C-BLE Ver.1.1 Page 5 of 53 Report No.: RF251125012-01-001 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PA SS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PA SS ------ 15.247(a)(2) Bandwidth APPENDIX E PA SS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PA SS ------ 15.247(d) Conducted Spurious Emission APPENDIX G PA SS ------ 15.247(e) Power Spectral Density APPENDIX H PA SS ------ 15.203 Antenna Requirement ------ PA SS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. HY-FCC part 15C-BLE Ver.1.1 Page 6 of 53 Report No.: RF251125012-01-001 1.1 TEST FACILITY Company: Shenzhen Haiyun Standard Technical Co., Ltd. Address: No. 110-113, 115, 116, Block B, Jinyuan Business Building, Bao'an District, Shenzhen, China CNAS Registration Number: CNAS L18252 CAB identifier CN0145 A2LA Certificate Number 6823.01 Telephone: 0755-26024411 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) Uncertainty Parameter Uncertainty Occupied Channel Bandwidth ±102kHz RF power conducted ±0.243dB Power Spectral Density ±0.743dB Conducted Spurious Emission ±1.328dB Conducted emission(9kHz~30MHz) AC main ±2.68dB Radiated emission(9kHz~30MHz) ±3.50dB Radiated emission (30MHz~1GHz) ±4.20dB Radiated emission (1GHz~18GHz) ±5.10dB Radiated emission (18GHz~40GHz) ±5.26dB Note: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance or non-compliance to the specification. 1.3 TEST ENVIRONMENT CONDITIONS Test Item Temperature Humidity Test Voltage Tested By AC Power Line Conducted Emissions 23.3°C 50% AC 120V/60Hz Keith Huang Radiated Emissions-9 kHz to 30 MHz 23.1°C 51% AC 120V/60Hz Lemon He Radiated Emissions-30 MHz to 1000 MHz 23.1°C 51% AC 120V/60Hz Lemon He Radiated Emissions-Above 1000 MHz 23.1°C 51% DC 3.7V Lemon He Bandwidth 23.6°C 54% DC 3.7V Freedom Zhuo Maximum Output Power 23.6°C 54% DC 3.7V Freedom Zhuo Conducted Spurious Emission 23.6°C 54% DC 3.7V Freedom Zhuo Power Spectral Density 23.6°C 54% DC 3.7V Freedom Zhuo Note: Adapter supply voltage AC 120V/60Hz. HY-FCC part 15C-BLE Ver.1.1 Page 7 of 53 Report No.: RF251125012-01-001 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Sample No. POC251125012-S001 Product name Smart Watch Model name Y006YM, Y006JM Test model Y006YM Model difference Only the mo…

Text truncated - open the document above for the full version.

FCC ID: 2BTBU-Y006YM Page 1 / 2 APPENDIX 1 PHOTOS OF TEST SETUP Radiated Spurious Emission,Below 1GHz Radiated Spurious Emission, Above 1GHz FCC ID: 2BTBU-Y006YM Page 2 / 2 Conducted Emission
