2BTCB-BIYOS0X25TWS Wireless headset

X25 丨Armour body Mega bass Bluetooth version: v5.3 Bluetooth connection range: ≥10m Make name: BIYOSOX25 Color: gun color Music time: about 5 hours (80%volume) Call time: about 4 hours (80%volume) Headphone standby time: 50 hours Control method: touch method Channel system: dual -channel Charging input interface: Type-C Frequency response: 100Hz ~ 20KHz Audio signal -to -noise ratio: ≥90db Microphone / mic: -42db ± 3 Charging input voltage: 5V Charging box battery capacity: 3.7V 300mAh Charging box battery full time: 2.5 hours Bluetooth operating frequency: 2.402GHz-2.480GHz Speaker unit: full -frequency speaker φ13mm@32 ohm Product Features ① New Bluetooth V5.3 chip, more stable connection; ② Zinc alloy metal body, suitable for super bass; ③ Ф 13MM dynamic coil unit, balanced tri-band performance; ④ Miniature, semi-in-ear design, comfortable to wear; ⑤ Super long standby time, long talk/listen to music, lasting use. (1) Pressing function operation Power on: open the charging box, and the headset will start automatically Shut down: put the headset into the charging box and close the cover Pairing mode: When the headset is turned on, it will automatically enter the pairing mode Pause/Play: Click the left or right ear Answer: click the left or right ear Hang up: double-click the left/right headset once Call rejection: press and hold 2S left ear or right ear Previous song: three-hit L-side earphone Next song: three-hit R-side earphone Volume increase: double-click to press the right headset Volume decrease: double-click to press the left headset SIRI (voice assistant): long touch left/right headset 2S (2) Charging warehouse indicator light 1. Indicator light for opening/closing the cover of the charging box: the green light for opening/closing the cover 2. Headphone in/out of charging box indicator light: green light flashes once 3. Charging indicator light for charging box: plug in the charging wire to charge the charging box, the orange light is always on, and the orange light is off after full charging 4. Reminder of low battery of charging box: the orange light will be on when the battery of charging box is low (3) Bluetooth connection operation 1. Please keep the distance between Bluetooth headset and mobile phone (or other connecting devices) within 1 meter, the closer the better; 2. Open the charging box, and the headset will automatically turn on and enter the pairing mode; 3. Turn on the Bluetooth function of the user's mobile phone (or other Bluetooth devices) and search or scan. At this time, the mobile phone will search all nearby Bluetooth devices, Select the name of the headset found: BIYOSO X25, and click the pairing to make a phone call and listen to music. Warranty Card Dear user, thank you very much for using the BIYOSO product, Please fill it out carefully and keep it properly. Warranty Policy 1. The postage for returns and exchanges with non quality issues shall be borne by the consumer, and the postage for reshipments shall be borne by the merchant. If there are invoices and gifts, please send them back together. 2. If you purchase from a local store, you can go to the local after-sales service center to enjoy the warranty service provided by our company within one year from the date of purchase. If there is no local after-sales service center, a dealer can be entrusted to provide replacement services. 3. The product you purchased, after being tested and confirmed by our company, can enjoy warranty services according to the following after-sales service commitment schedule; Product Type Service Policy Service Bluetooth Products & Audio Category Product quality reasons within 12 months from the next day of receipt Customer sent for repair Mobile Power Charging Category Product quality reasons within 12 months from the next day of receipt Customer sent for repair Data Cable & Car Holder Class Product quality reasons within 3 months from the next day of receipt Customer sent for repair Note: Random accessories are not covered by warranty Warranty Record Form Dealer Information User information User Name Contact number Mailing Address Email Warranty content Warranty date Non warranty regulations 1. Unauthorized maintenance, misuse, collision, negligence, misuse, accident, modification, or tearing, altering labels, anti-counterfeiting markings; 2. The original serial number label of the product is altered, replaced, or torn 3. The product does not have a serial number, and the product model and number on the quality assurance certificate do not match the actual product; 4. The product exceeds the warranty period specified by our company; 5. Abnormal use of the product causes external damage; 6. External packaging and accompanying gifts, services beyond the products promised by sales personnel, as well as additional configurations and gifts; 7. Improper storage: such as performance damage caused by prolonged exposure of products to abnormal humidity and temperature environments; 8. Failure to follow the operating instructions, misuse of artificial covers, self modification resulting in product damage, or damage caused by force majeure. Our company reserves the right to interpret the after-sales service regulations for this product. Mailbox：info@ biyoso.com Website: www.biyoso.com FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful int…

Text truncated - open the document above for the full version.

Dongguan Biyoso Digital Technology Co., Ltd. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: December 5, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BTCB-BIYOS0X25 Dongguan Biyoso Digital Technology Co., Ltd.(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Dongguan Biyoso Digital Technology Co., Ltd. FRN: 0037683091 Address: Room 701, No. 89 Shipai Longteng Road, Shipai Town, Dongguan City, Guangdong Province, China. Signature: Contact Person: Lemon.feng Tel: 18211307641 Email: [email protected]

Rev 1/26/2023 Dongguan Biyoso Digital Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 12-05-2025 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BTCB-BIYOS0X25 [Dongguan Biyoso Digital Technology Co., Ltd.] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Dongguan Biyoso Digital Technology Co., Ltd.] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Lemon.feng Rev 1/26/2023 Dongguan Biyoso Digital Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 12-05-2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BTCB-BIYOS0X25 [Dongguan Biyoso Digital Technology Co., Ltd.] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Lemon.feng

Dongguan Biyoso Digital Technology Co., Ltd. Date: December 5, 2025 Product Model Number: Biyoso X25 FCC ID: 2BTCB-BIYOS0X25 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. Contact Listed on FCC Wesbite Signature： By: Lemon.feng Title: Manager Email: [email protected] Telephone: 18211307641 On behalf of: Dongguan Biyoso Digital Technology Co., Ltd.

Dongguan Biyoso Digital Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: December 5, 2025 Subject; Request for Confidentiality FCC ID: 2BTCB-BIYOS0X25 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature： By: Lemon.feng Title: Manager

SymbolsLWTA Dimensions 1.60±0.200.80±0.200.80±0.200.30±0.10 NumberTerminalName ① INPUT ② NC Dimensions(Unit: mm) w ①② ( Side View) ( Bottom View) ( Top View) A T L Shenzhen HanyangAntenna Design Co. Ltd. 1.Bluetooth 2.Dual-band WLAN 3.ISM and UWB 1.Surfacemountedelementwithasmalldimensionof1.6×0.8×0.8mmmeetfutureminiaturizationtrend. 2.EmbeddedandLTCC(lowtemperatureco-firedceramic)technologyisabletointegratewithsystemdesign aswellasbeatifyingthehousingoffinalproduct. 3.Miniaturization,wideband,highstability,lowESR,andlowtolerance. 4.Dual-bandresonancesinthedominantandharmonicmodesenablesmultibandoperations. 5.Novelground-radiationtechniqueenablesradiationfromboththeantennaandthegroundplane. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 Features: Applications: RF chip ANT chipANT pattern PCB ground Mode-2 Mode-1 P/N: HY160808 SRF09 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page1 Antenna type：SMD ANT Layout-1 (3.5mm×6.5mm) ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page2 1.5 1 3.5 2.5 0201 footprint (E1) 0201 footprint (E2) 0603 footprint (ANT) RF Input/Output 6.5 0.5 0.5 0.5 1.5 3.5 2.5 0201 footprint (E3) 6.5 Top layer: Bottom layer: 0.5 0.5 RF chip E1 E3 E2 ANT Equivalentcircuit: P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 2.5 0201 footprint 0603 footprint 10 0.5 1.5 0201 footprint 1.5 3 2.5 10 1.5 2 0.5 0201 footprint Layout-2 (1.5mm×10mm) Top layer: Bottom layer: P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page3 RF Input/Output ElectricalCharacteristics: CharacteristicCurves: FeatureSpecification 1 Centralfrequency2.45GHz 2 Bandwidth>150MHz 3 Peak gain2.78dBi 4 VSWR<2 5 PolarizationLinear 6 AzimuthbeamwidthOmnidirectional 7 Impedance50Ω P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page5 RadiationPattern: Y-ZPlaneX-ZPlane coordinates： 深圳市宝安区前进二路宝运达物流信息大厦12A10/12A11 青岛市崂山区松岭路399号海信产业园A1号楼606 电话：0755-23069700 传真：0755-23069700 HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page5 RadiationPerformance: P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 深圳汉阳天线设计有限公司 Shenzhen Hanyang Antenna Design Co. Ltd. X-YPlane Frequency 2400MHz2450MHz2500MHz Avg.gain-1.92-1.35-1.56 Peakgain1.792.782.66 Efficiency74.5580.2576.98 Temperature：40±2°C Humidity：90~95%RH Duration：500h Recovery conditions：Room temperature Recovery Time：24h (Class1) or 48h (Class2) Test Temperature Operating Temperature Temperature RelativeHumidity 25°C±5°C -25°C~+125°C 5~40°C 20~70% Notenoughsolder Weak holding forcemay cause bad connection between the chipandPCB. RecommendedSolderingAmounts The optimal solder fillet amounts forre-flowsoldering 天线厚度 以下 The optimal solder fillet amounts for wavesoldering DependabilityTest Too much solder Cracks tend to occur due to large stress. MoistureProof OptimumSolderAmount forReflowSoldering Solderability At least 95% of the terminal electrode is covered by newsolder. Preheating conditions:80 to 120°C;10~30s. Solder Tem p e r at u r e :2 3 5 ±5°CDuration:2 ±0.5s , Solder Tempe r ature:24 5±5°CDu rat ion:2±0.5s P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page6 10±1S AppliedForce:5NDuration:10±1S Preheating conditions: up-category temperature, 1h Recovery time:24±1h InitialMeasurement Cycling Times: 5 times, 1 cycle, 4steps: Preheating80to120°C;10~30s.SolderTemperature:235±5°C;Duration:2±0.5s;SolderTemperature:245±5°C Duration:2±0.5s;Preheating100to200°C;10±2min. SolderTemperature:265±5°C;Duration:10±1s Cleanthecapacitorwithsolventandexamineitwitha10X(min.)microscope. RecoveryTime:24±2h Recoverycondition:Roomtemperature Test Board: Al 2 O 3 orPCBWarp:1mm Speed:0.5mm/sec. Unit:mm Themeasurementshouldbemadewiththeboardinthe bendingposition. Resistance to Soldering Heat ResistancetoFlexureofSubstrate Temperature CycleTest P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. …

Text truncated - open the document above for the full version.

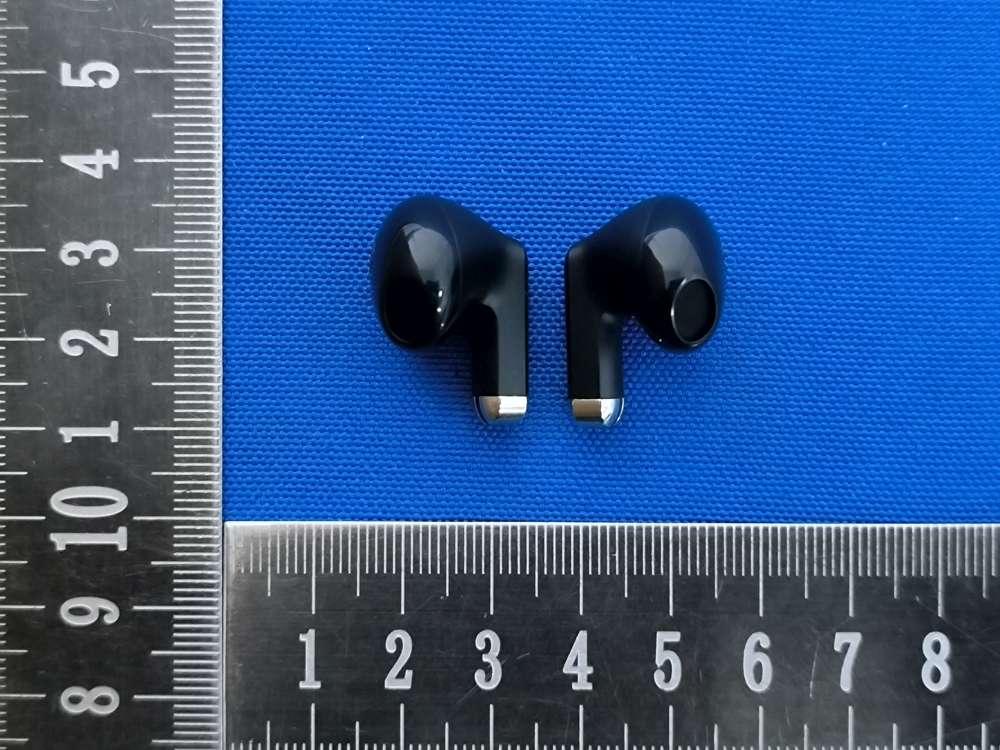

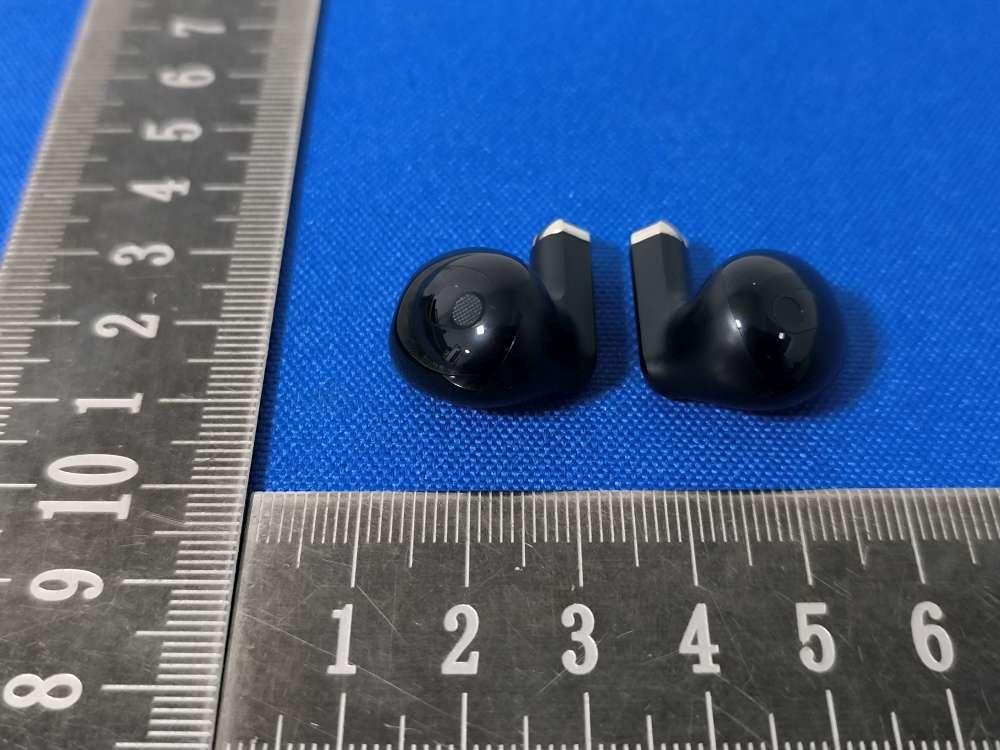

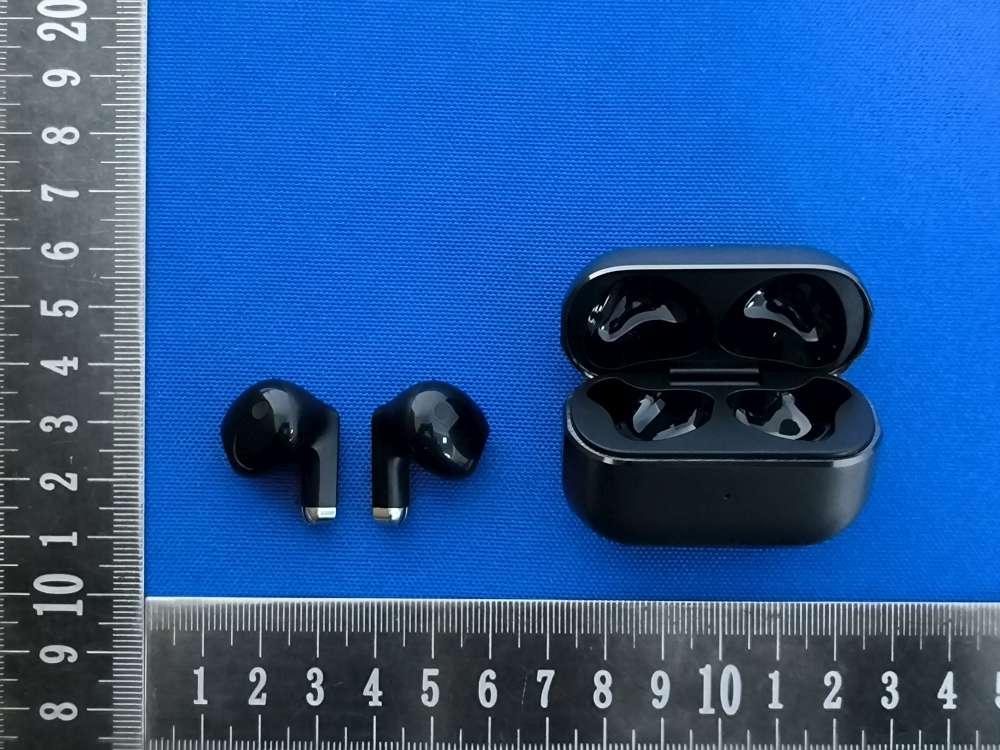

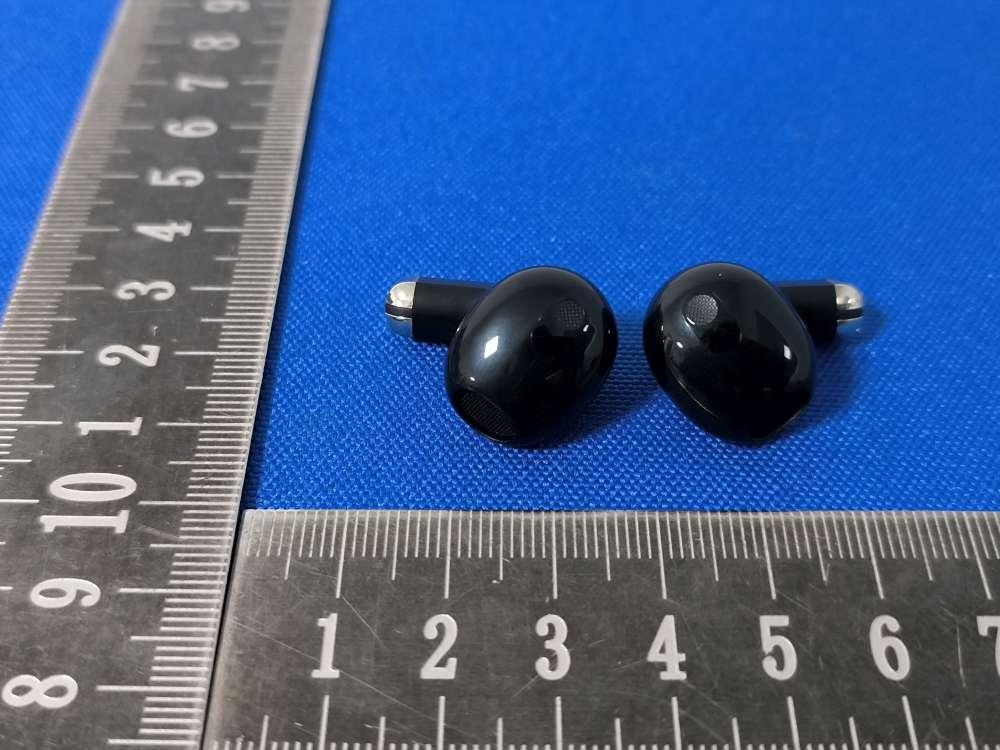

Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report Annex A. EUT External Photos Model: Biyoso X25 EUT View 1 EUT View 2 Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report EUT View 7

Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Labe Size: 0.5cm x 0.5cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report Annex B. EUT Internal Photos Model: Biyoso X25 EUT Internal View 1 EUT Internal View 2 SMD ANT SMD ANT Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report EUT Internal View 3 EUT Internal View 4 Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report EUT Internal View 5

FCC ID: 2BTCB-BIYOS0X25 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -1.85 -1(±1) 0 1 2402 5 0.3099677 3.0 So a SAR test is not required

Report No: SSP25110769-1E FCC Test Report Page 1 of 46 FCC TEST REPORT FCC ID: 2BTCB-BIYOS0X25 Report No. : SSP25110769-1E Applicant : Dongguan Biyoso Digital Technology Co., Ltd. Product Name : TWS Wireless headset Model Name : Biyoso X25 Test Standard : FCC Part 15.247 Date of Issue : 2025-12-01 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP25110769-1E FCC Test Report Page 2 of 46 Test Report Basic Information Applicant..................................: Dongguan Biyoso Digital Technology Co., Ltd. Address of Applicant...............: Room 701, No. 89 Shipai Longteng Road, Shipai Town, Dongguan City, Guangdong Province, China. Manufacturer..........................: DONGGUAN GENAI TECHNOLOGY CO., LTD Address of Manufacturer........: Room 901, NO.2BuilDing, NO.1, JiaopingRoad, TangxiaTown, Dongguan, City, Guangdong Province, China. Product Name.........................: TWS Wireless headset Brand Name.............................: - Main Model..............................: Biyoso X25 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2025-11-26 to 2025-11-27 Test Result...............................: PASS Tested By ................................: (Colin Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP25110769-1E FCC Test Report Page 3 of 46 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results .......................................................................................................................................... 22 7. Frequen…

Text truncated - open the document above for the full version.

Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz (Left earphone) Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report Radiated Emission Test View Above 1GHz (Left earphone) Report No: SSP25110769-1E FCC ID: 2BTCB-BIYOS0X25 Annex of Test Report
