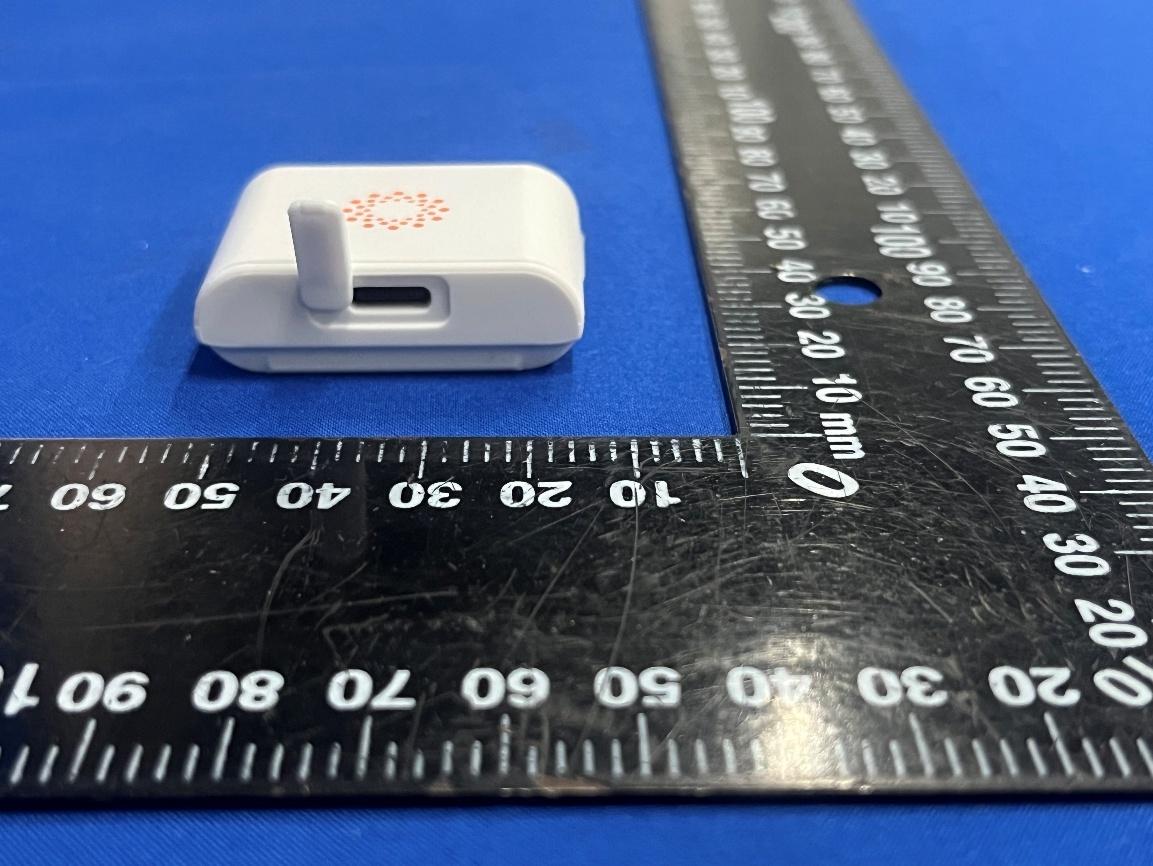

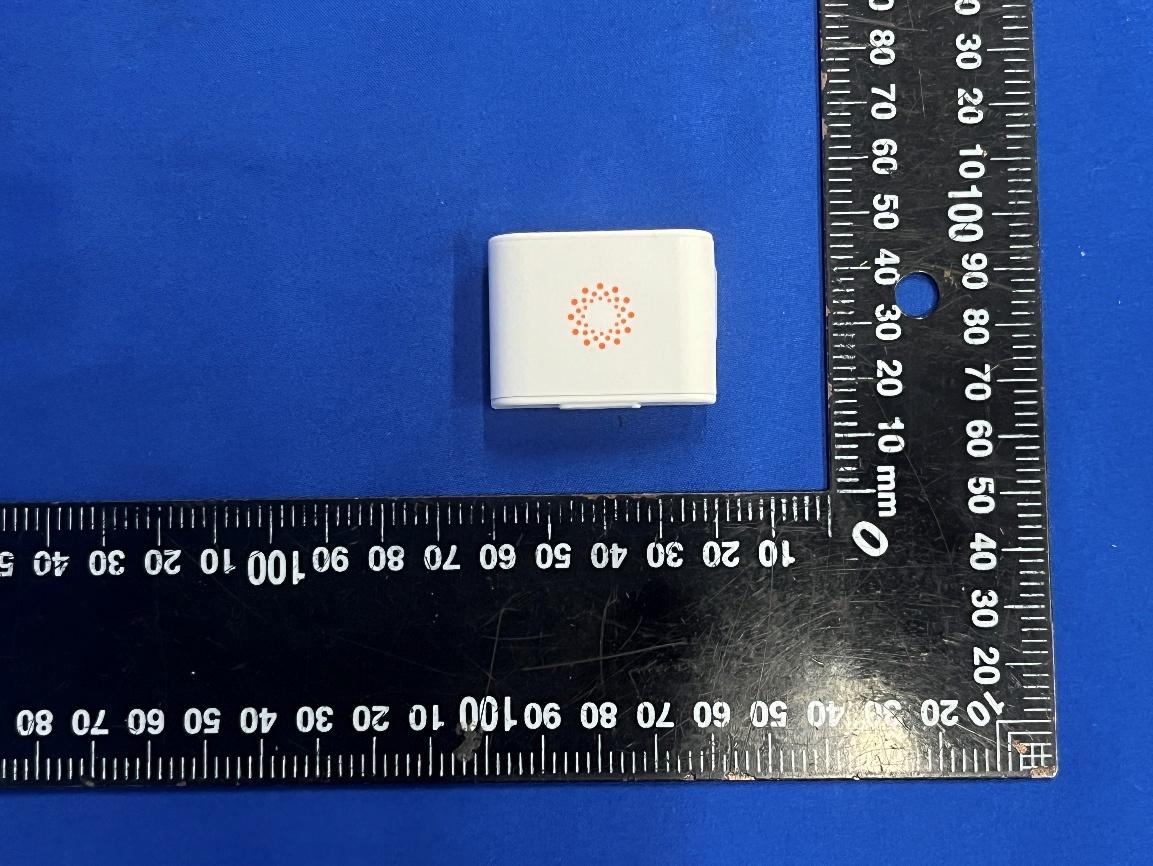

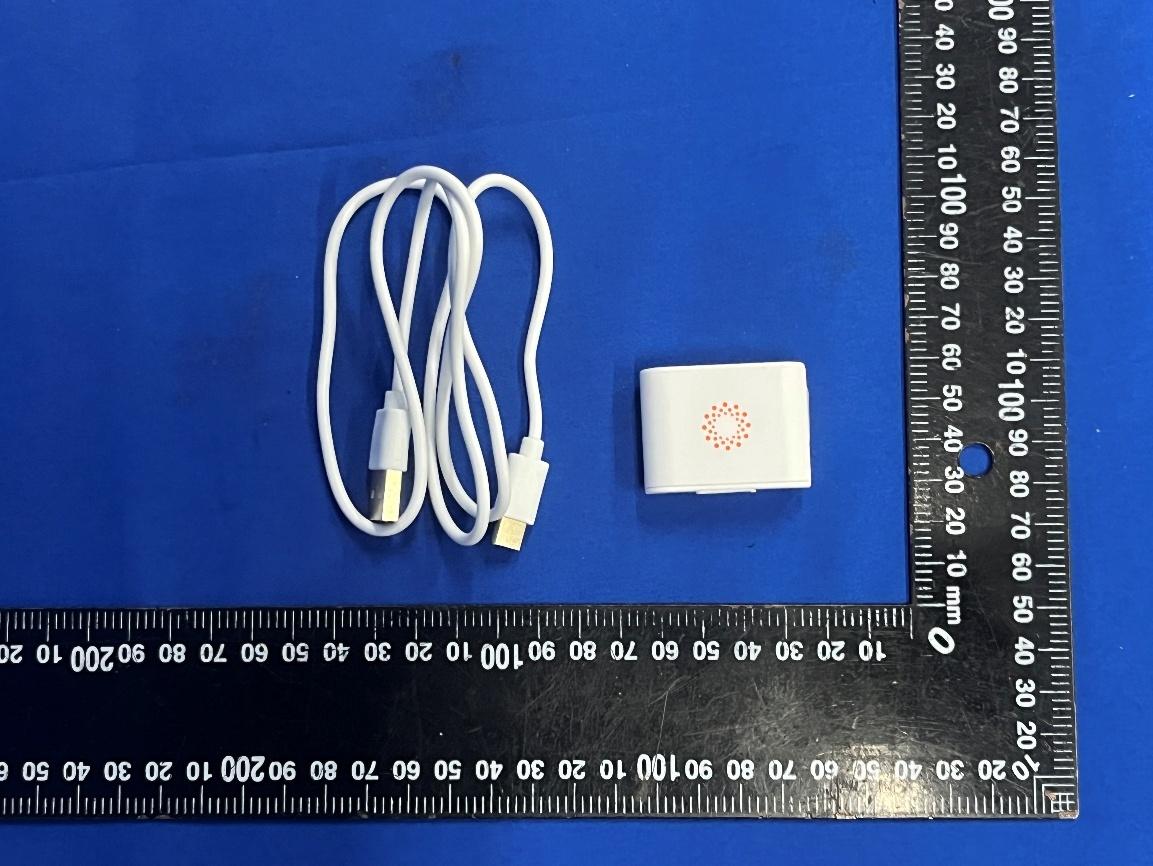

2BTEJ-MAVENPT01Pet Health Monitoring Sensor

Date: 2025-12-22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BTEJ-MAVENPT01) [Maven Pet Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Signature: Name: David Barroso Date: 2025-12-22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BTEJ-MAVENPT01) [Maven Pet Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Name: David Barroso

U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 FRN: 0033401605 Contact Name: Kenneth Young Telephone No: 313-395-3113 Email: [email protected] Signature: Date: 2025-12-22 Signed by (Printed Name/Title): Kenneth Young This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Maven Pet Inc. FRN: 0037690252 Grantee Code: 2BTEJ FCC ID: 2BTEJ-MAVENPT01 Contact Name: David Barroso Address: 800 N King Street Suite 304 2873 Wilmington, DE 19801 United States Telephone No: (646) 238-9529 Email: [email protected] Signature: Date: 2025-12-22 Signed by (Printed Name/Title): David Barroso Dec 2025

Date: 2025-12-22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Pet Health Monitoring Sensor / Pet Sensor / FCC ID: 2BTEJ-MAVENPT01) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagrams, Schematics, Operational Descriptions) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Signature: Name: David Barroso Applicant: Maven Pet Inc. Address: 800 N King Street Suite 304 2873 Wilmington, DE 19801 United States TEL: (646) 238-9529

Date: 2025-12-22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Eurofins Electrical Testing Service (Shenzhen) Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: David Barroso Applicant: Maven Pet Inc. Address: 800 N King Street Suite 304 2873 Wilmington, DE 19801 United States TEL: (646) 238-9529

Radiofrequency radiation exposure evaluation: mobile devices RESULT : Pass Test Specification Test item : Pet Health Monitoring Sensor Identification / Type No. : Pet Sensor FCC ID : 2BTEJ-MAVENPT01 IC : 34927-MAVENPT01 Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 D04 RSS-102 Issue 6 ➢ FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to KDB 447498 D04 a) EUT RF Exposure Evaluation operations, Worst Case mode Test Mode Conducted Power (dBm) Conducted Power (mW) ERP (dBm) ERP (mW) Minimum Separation Distances (cm) Limit (mW) BLE -0.04 0.991 -0.49 0.893 20 3060 2.4GHz band Wi-Fi 14.18 26.181 13.73 23.605 IC requirements: The EUT shall comply with the requirement of RSS-102 section 4 Exposure Limits. a) EUT RF Exposure Evaluation standalone operations, Worst Case mode Test Mode Maximum e.i.r.p (dBm) Maximum e.i.r.p (W) Limit (W) 2.4GHz band Wi-Fi 15.88 0.03873 2.68 BLE 1.66 0.00146 2.68 “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Part No. M310220 Wi-Fi / BT / Zigbee or S-Band Ceramic Antenna 2.4 GHz ; 1980 – 2020 / 2170 – 2200 MHz Supports: Wi-Fi applications, Bluetooth, Zigbee, WLAN, Satellite IoT DATASHEET Part No. M310220 Product: Wi-Fi/ Bluetooth S-Band Ceramic Antenna 9/26/2024Proprietary www.KYOCERA-AVX.com Electrical Specifications Typical performance on 40 x 60 mm PCB Mechanical Specifications & Ordering Part Number KEY BENEFITS Stay-in-Tune IMD antenna technology provides superior RF field containment, resulting in less interaction with surrounding components. Quicker Time-to-Market By optimizing antenna size, performance and emissions, customer and regulatory specifications are more easily met. Environmental Compliance Products are the latest RoHS version compliant. Ceramic Wi-Fi / Bluetooth Antenna or S-Band 2400 – 2485 MHz (Wi-Fi/BT) 1980 –2020 MHz (S-Band) 2170 –2200 MHz (S-Band) •Embedded design •Headsets, Tablets •Gateway, Access Point •Handheld •Telematics •Healthcare (FDA Class I) •M2M, Industrial devices •Smart Grid •OBD-II •Satellite IoT APPLICATIONS Ordering Part NumberM310220 Size (mm)3.00 x 1.50 x 1.08 MountingSurface mounted Weight (grams)0.1 Packaging Tape & Reel, M310220 – 1,000 pieces per reel Demo Board M310220-01 (2.4 GHz) M310220-03 (S-band) Additional Resources Download DXF, Gerber and 3D FIT Files KYOCERA AVX's series of Ceramic Isolated Magnetic Dipole (IMD) antennas deliver on the key needs of device designers for higher functionality and performance in smaller/thinner designs. These innovative antennas provide compelling advantages for Bluetooth ® enabled cell phones, media players and other mobile devices. Also covers S-Band for Satellite IoT applications. Real-World Performance and Implementation Ceramic antennas may look alike on the outside, but the important difference is inside. Other antennas may contain simple PiFA or monopole designs that interact with their surroundings, complicating layout or changing performance with use position. KYOCERA AVX's’ antennas utilize patented IMD technology to deliver a unique size and performance combination. Greater Flexibility KYOCERA AVX's first-in-class IMD technology enables you to develop concept designs that are more advanced and that deliver superior performance in reception critical applications. Frequency (MHz)2400 – 24851980-20202170-2200 Peak Gain1.7 dBi Average Efficiency67% VSWR Match2.0:1 max Feed Point Impedance50 ohms unbalanced PolarizationLinear Power Handling0.5 Watt CW Additional Resources Download Application Note and Simulation Files TDS-ANT-0047 | Rev 3 KYOCERA AVX Components Corporation tel +(1) 858.550.3820 email: [email protected] 1 Avx Blvd, Fountain Inn, SC 29644 © 2024 KYOCERA AVX Antenna Dimensions Typical antenna dimensions (mm) Pin #1 PinDescription 1 Feed 2 Ground Part NumberA (mm)B (mm)C (mm) M3102203.00 ± 0.21.50 ± 0.21.08 ± 0.1 DATASHEET | Part No. M310220 2.4 GHz KYOCERA AVX's Embedded Antenna Specifications KYOCERA AVX's produces a wide variety of standard and custom antennas to meet user needs. Pin #2 C B A TDS-ANT-0047 | Rev 3 tel +(1) 858.550.3820 email: [email protected] 1 Avx Blvd, Fountain Inn, SC 29644 © 2024 KYOCERA AVX 1 1.5 2 2.5 3 3.5 4 4.5 5 2400241024202430244024502460247024802490 VSWR Frequency (MHz) 0 10 20 30 40 50 60 70 80 90 100 2400241024202430244024502460247024802490 Efficiency (%) Frequency (MHz) VSWR, Efficiency Plots Typical performance on 40 x 60 mm PCB VSWR (2400 – 2490 MHz)Efficiency (2400 – 2490 MHz) 2.4 GHz KYOCERA AVX's’ Embedded Antenna Specifications KYOCERA AVX's produces a wide variety of standard and custom antennas to meet user needs. DATASHEET | Part No. M310220 -3 -2 -1 0 1 2 3 4 5 2400241024202430244024502460247024802490 Peak Gain (dBi) Frequency (MHz) Peak Gain (2400 – 2490 MHz) TDS-ANT-0047 | Rev 3 tel +(1) 858.550.3820 email: [email protected] 1 Avx Blvd, Fountain Inn, SC 29644 © 2024 KYOCERA AVX Antenna Radiation Patterns Typical performance on 40 x 60 mm PCB Measured @ 2440 MHz 2.4 GHz KYOCERA AVX's’ Embedded Antenna Specifications KYOCERA AVX's produces a wide variety of standard and custom antennas to meet user needs. DATASHEET | Part No. M310220 TDS-ANT-0047 | Rev 3 tel +(1) 858.550.3820 email: [email protected] 1 Avx Blvd, Fountain Inn, SC 29644 © 2024 KYOCERA AVX Antenna Outline 2.4 GHz KYOCERA AVX's’ Embedded Antenna Specifications KYOCERA AVX's produces a wide variety of standard and custom antennas to meet user needs. DATASHEET | Part No. M310220 Antenna Layout Typical layout dimensions (mm) P1 Antenna Outline Pin #1 Pin #2 Pin#Description 1 Feed 2 Ground Pin Descriptions Matching Network (Demo Board) ComponentValue KYOCERA AVX Part Number Tolerance P1 5.1pF 04023J5R1ABSTR ±0.05pF P2 2.7pF 04023J2R7ABSTR ±0.05pF P2 50Ω Transmission line *Actual matching values depend on customer design •Additional VIAS: Diam. 0.2mm to be placed around antenna, (no vias on transmission lines). •Via holes must be covered by solder mask Ant TDS-ANT-0047 | Rev 3 tel +(1) 858.550.3820 email: [email protected] 1 Avx Blvd, Fountain Inn, SC 29644 © 2024 KYOCERA AVX Antenna Demo Board Typical layout dimensions (mm) Part NumberA (mm)B (mm)C (mm) M310220-0160.040.030.0 DATASHEET | Part No. M310220 2.4 GHz KYOCERA AVX's’ Embedded Antenna Specifications KYOCERA AVX's produces a wide variety of standard and custom antennas to meet user needs. Side View Back View Front View A C B Front View TDS-ANT-0047 | Rev 3 tel +(1) 858.550.3820 email: [email protected] 1 Avx Blvd, Fountain Inn, SC 29644 © 2024 KYOCERA AVX S-Band KYOCERA AVX’s Embedded Antenna Specifications KYOCERA AVX's produces a wide variety of standard and custom antennas to meet user needs. Appendix 1 Appendix 1 gives instructions on how to achieve the S-Band (1980 – 2020 MHz, 2170 – 2200 MHz) Typical Characteristics, using 60 x 40 mm PCB. Electrical Specifications DATASHEET | Part No. M310220 Bands (MHz)1980-20202170-2200 Average Efficiency40%40% Return Lo…

Text truncated - open the document above for the full version.

Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.080 2407.960 2416.040 0.5 PASS 11B Ant1 2437 8.600 2432.480 2441.080 0.5 PASS 11B Ant1 2462 7.080 2458.000 2465.080 0.5 PASS 11G Ant1 2412 13.880 2405.400 2419.280 0.5 PASS 11G Ant1 2437 16.280 2428.880 2445.160 0.5 PASS 11G Ant1 2462 16.280 2453.880 2470.160 0.5 PASS 11N20SISO Ant1 2412 16.320 2403.880 2420.200 0.5 PASS 11N20SISO Ant1 2437 16.320 2428.880 2445.200 0.5 PASS 11N20SISO Ant1 2462 16.280 2453.880 2470.160 0.5 PASS Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.972 2405.5225 2418.4945 --- --- 11B Ant1 2437 12.986 2430.5599 2443.5459 --- --- 11B Ant1 2462 12.949 2455.5622 2468.5112 --- --- 11G Ant1 2412 17.152 2403.5606 2420.7126 --- --- 11G Ant1 2437 17.110 2428.5687 2445.6787 --- --- 11G Ant1 2462 17.235 2453.3856 2470.6206 --- --- 11N20SISO Ant1 2412 16.987 2403.5982 2420.5852 --- --- 11N20SISO Ant1 2437 17.170 2428.5312 2445.7012 --- --- 11N20SISO Ant1 2462 16.961 2453.5544 2470.5154 --- --- Test Graphs 11B-Ant1-2412 11B-Ant1-2437 11B-Ant1-2462 11G-Ant1-2412 11G-Ant1-2437 11G-Ant1-2462 11N20SISO-Ant1-2412 11N20SISO-Ant1-2437 11N20SISO-Ant1-2462 Appendix C: Maximum conducted output power Test Result TestMode Ant Freq [MHz] Conducted power [dBm] DC Factor [dB] Result [dBm] Limit [dBm] Gain [dBi] EIRP [dBm] EIRP Limit [dBm] Verdict 11B Ant1 2412 13.16 0.57 13.73 ≤30.00 1.70 15.43 ≤36.00 PASS 11B Ant1 2437 13.34 0.56 13.90 ≤30.00 1.70 15.6 ≤36.00 PASS 11B Ant1 2462 13.62 0.56 14.18 ≤30.00 1.70 15.88 ≤36.00 PASS 11G Ant1 2412 9.86 0.23 10.09 ≤30.00 1.70 11.79 ≤36.00 PASS 11G Ant1 2437 10.87 0.25 11.12 ≤30.00 1.70 12.82 ≤36.00 PASS 11G Ant1 2462 11.05 0.18 11.23 ≤30.00 1.70 12.93 ≤36.00 PASS 11N20SISO Ant1 2412 8.99 2.60 11.59 ≤30.00 1.70 13.29 ≤36.00 PASS 11N20SISO Ant1 2437 8.89 2.65 11.54 ≤30.00 1.70 13.24 ≤36.00 PASS 11N20SISO Ant1 2462 7.78 5.16 12.94 ≤30.00 1.70 14.64 ≤36.00 PASS Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -16.59 ≤8.00 PASS 11B Ant1 2437 -16.69 ≤8.00 PASS 11B Ant1 2462 -16.60 ≤8.00 PASS 11G Ant1 2412 -20.91 ≤8.00 PASS 11G Ant1 2437 -20.29 ≤8.00 PASS 11G Ant1 2462 -20.16 ≤8.00 PASS 11N20SISO Ant1 2412 -19.92 ≤8.00 PASS 11N20SISO Ant1 2437 -20.09 ≤8.00 PASS 11N20SISO Ant1 2462 -18.96 ≤8.00 PASS Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.89 -28.64 ≤-25.11 PASS 11B Ant1 High 2462 5.19 -44.85 ≤-24.81 PASS 11G Ant1 Low 2412 -0.96 -35.32 ≤-30.96 PASS 11G Ant1 High 2462 -2.36 -36.22 ≤-32.36 PASS 11N20SISO Ant1 Low 2412 -4.13 -35.5 ≤-34.13 PASS 11N20SISO Ant1 High 2462 -1.51 -35.24 ≤-31.51 PASS Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS 11G-Ant1-2462-PASS 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2462-PASS Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 0~Reference 5.66 5.66 --- PASS 11B Ant1 2412 30~1000 5.66 -58.24 ≤-24.34 PASS 11B Ant1 2412 1000~26500 5.66 -38.57 ≤-24.34 PASS 11B Ant1 2437 0~Reference 5.42 5.42 --- PASS 11B Ant1 2437 30~1000 5.42 -59.08 ≤-24.58 PASS 11B Ant1 2437 1000~26500 5.42 -39.16 ≤-24.58 PASS 11B Ant1 2462 0~Reference 3.77 3.77 --- PASS 11B Ant1 2462 30~1000 3.77 -58.52 ≤-26.23 PASS 11B Ant1 2462 1000~26500 3.77 -39.57 ≤-26.23 PASS 11G Ant1 2412 0~Reference -3.06 -3.06 --- PASS 11G Ant1 2412 30~1000 -3.06 -55.96 ≤-33.06 PASS 11G Ant1 2412 1000~26500 -3.06 -47.94 ≤-33.06 PASS 11G Ant1 2437 0~Reference -3.76 -3.76 --- PASS 11G Ant1 2437 30~1000 -3.76 -58.41 ≤-33.76 PASS 11G Ant1 2437 1000~26500 -3.76 -48.67 ≤-33.76 PASS 11G Ant1 2462 0~Reference -2.54 -2.54 --- PASS 11G Ant1 2462 30~1000 -2.54 -56.69 ≤-32.54 PASS 11G Ant1 2462 1000~26500 -2.54 -48.06 ≤-32.54 PASS 11N20SISO Ant1 2412 0~Reference -2.69 -2.69 --- PASS 11N20SISO Ant1 2412 30~1000 -2.69 -57.64 ≤-32.69 PASS 11N20SISO Ant1 2412 1000~26500 -2.69 -48.52 ≤-32.69 PASS 11N20SISO Ant1 2437 0~Reference -2.73 -2.73 --- PASS 11N20SISO Ant1 2437 30~1000 -2.73 -56.15 ≤-32.73 PASS 11N20SISO Ant1 2437 1000~26500 -2.73 -48.59 ≤-32.73 PASS 11N20SISO Ant1 2462 0~Reference -2.57 -2.57 --- PASS 11N20SISO Ant1 2462 30~1000 -2.57 -57.99 ≤-32.57 PASS 11N20SISO Ant1 2462 1000~26500 -2.57 -48.44 ≤-32.57 PASS Test Graphs 11B-Ant1-2412-0~Reference-PASS 11B-Ant1-2412-30~1000-PASS 11B-Ant1-2412-1000~26500-PASS 11B-Ant1-2437-0~Reference-PASS 11B-Ant1-2437-30~1000-PASS 11B-Ant1-2437-1000~26500-PASS 11B-Ant1-2462-0~Reference-PASS 11B-Ant1-2462-30~1000-PASS 11B-Ant1-2462-1000~26500-PASS

11G-Ant1-2412-0~Reference-PASS 11G-Ant1-2412-30~1000-PASS 11G-Ant1-2412-1000~26500-PASS 11G-Ant1-2437-0~Reference-PASS 11G-Ant1-2437-30~1000-PASS 11G-Ant1-2437-1000~26500-PASS 11G-Ant1-2462-0~Reference-PASS 11G-Ant1-2462-30~1000-PASS 11G-Ant1-2462-1000~26500-PASS 11N20SISO-Ant1-2412-0~Reference-PASS 11N20SISO-Ant1-2412-30~1000-PASS 11N20SISO-Ant1-2412-1000~26500-PASS 11N20SISO-Ant1-2437-0~Reference-PASS 11N20SISO-Ant1-2437-30~1000-PASS 11N20SISO-Ant1-2437-1000~26500-PASS 11N20SISO-Ant1-2462-0~Reference-PASS 11N20SISO-Ant1-2462-30~1000-PASS 11N20SISO-Ant1-2462-1000~26500-PASS Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Factor 11B Ant1 2412 32.43 36.95 87.77 0.57 11B Ant1 2437 32.43 36.90 87.89 0.56 11B Ant1 2462 32.44 36.90 87.91 0.56 11G Ant1 2412 5.40 5.69 94.90 0.23 11G Ant1 2437 5.40 5.72 94.41 0.25 11G Ant1 2462 5.40 5.63 95.91 0.18 11N20SISO Ant1 2412 5.40 9.83 54.93 2.60 11N20SISO Ant1 2437 5.40 9.93 54.38 2.65 11N20SISO Ant1 2462 1.93 6.33 30.49 5.16 Test Graphs NTNV-11B-Ant1-2412 NTNV-11B-Ant1-2437 NTNV-11B-Ant1-2462 NTNV-11G-Ant1-2412 NTNV-11G-Ant1-2437 NTNV-11G-Ant1-2462 NTNV-11N20SISO-Ant1-2412 NTNV-11N20SISO-Ant1-2437 NTNV-11N20SISO-Ant1-2462 Appendix H: Emissions in Restricted Bands Test Result Mode: B-2412 Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310 6.96 45.94 74.00 28.06 43.55 54.00 10.45 150 218 Vertical PASS 2 2320.16 7.18 48.16 74.00 25.84 43.62 54.00 10.38 150 218 Vertical PASS 3 2331.44 7.11 48.13 74.00 25.87 43.01 54.00 10.99 150 316 Vertical PASS 4 2352.24 7.33 48.50 74.00 25.50 44.25 54.00 9.75 150 218 Vertical PASS 5 2367.76 7.46 49.46 74.00 24.54 47.35 54.00 6.65 150 184 Vertical PASS 6 2390 8.28 47.45 74.00 26.55 44.93 54.00 9.07 150 351 Vertical PASS Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310 6.96 45.84 74.00 28.16 43.91 54.00 10.09 150 326 Horizontal PASS 2 2319.44 7.17 48.30 74.00 25.70 45.11 54.00 8.89 150 291 Horizontal PASS 3 2333.36 7.11 47.98 74.00 26.02 43.10 54.00 10.90 150 221 Horizontal PASS 4 2355.04 7.37 49.23 74.00 24.77 45.35 54.00 8.65 150 176 Horizontal PASS 5 2373.28 7.78 48.36 74.00 25.64 45.40 54.00 8.60 150 176 Horizontal PASS 6 2390 8.28 48.13 74.00 25.87 45.83 54.00 8.17 150 359 Horizontal PASS Mode: B-2462 Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5 7.53 54.45 74.00 19.55 46.53 54.00 7.47 150 197 Vertical PASS 2 2485.5625 7.57 56.20 74.00 17.80 45.90 54.00 8.10 150 215 Vertical PASS 3 2487.3775 7.59 56.39 74.00 17.61 42.77 54.00 11.23 150 173 Vertical PASS 4 2490.463 7.64 56.18 74.00 17.82 43.26 54.00 10.74 150 349 Vertical PASS 5 2494.027 7.68 56.99 74.00 17.01 43.54 54.00 10.46 150 248 Vertical PASS 6 2500 7.60 54.28 74.00 19.72 41.80 54.00 12.20 150 251 Vertical PASS Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5 7.53 54.22 74.00 19.78 46.23 54.00 7.77 150 280 Horizontal PASS 2 2484.787 7.59 56.49 74.00 17.51 44.76 54.00 9.24 150 184 Horizontal PASS 3 2487.3115 7.60 57.29 74.00 16.71 44.93 54.00 9.07 150 326 Horizontal PASS 4 2490.826 7.63 57.04 74.00 16.96 43.49 54.00 10.51 150 305 Horizontal PASS 5 2492.839 7.66 56.46 74.00 17.54 42.26 54.00 11.74 150 309 Horizontal PASS 6 2500 7.60 54.90 74.00 19.10 41.40 54.00 12.60 150 280 Horizontal PASS Mode: G-2412 Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310 6.96 46.03 74.00 27.97 43.90 54.00 10.10 150 251 Vertical PASS 2 2320.88 7.17 47.73 74.00 26.27 44.79 54.00 9.21 150 242 Vertical PASS 3 2339.36 7.14 48.60 74.00 25.40 45.82 54.00 8.18 150 324 Vertical PASS 4 2361.68 7.41 50.27 74.00 23.73 48.24 54.00 5.76 150 190 Vertical PASS 5 2370.64 7.61 48.70 74.00 25.30 46.85 54.00 7.15 150 172 Vertical PASS 6 2390 8.28 48.45 74.00 25.55 46.17 54.00 7.83 150 251 Vertical PASS Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310 6.96 46.02 74.00 27.98 43.26 54.00 10.74 150 176 Horizontal PASS 2 2317.84 7.14 48.06 74.00 25.94 43.61 54.00 10.39 150 257 Horizontal PASS 3 2343.44 7.25 48.29 74.00 25.71 44.71 54.00 9.29 150 274 Horizontal PASS 4 2360 7.37 48.16 74.00 25.84 45.55 54.00 8.45 150 257 Horizontal PASS 5 2374.32 7.81 48.97 74.00 25.03 46.09 54.00 7.91 150 344 Horizontal PASS 6 2390 8.28 49.38 74.00 24.62 46.43 54.00 7.57 150 239 Horizontal PASS Mode: G-2462 Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5 7.53 54.97 74.00 19.03 45.36 54.00 8.64 150 278 Vertical PASS 2 2485.4305 7.58 56.21 74.00 17.79 42.97 54.00 11.03 150 295 Vertical PASS 3 2489.176 7.64 56.03 74.00 17.97 41.75 54.00 12.25 150 320 Vertical PASS 4 2491.651 7.65 56.51 74.00 17.49 42.00 54.00 12.00 150 274 Vertical PASS 5 2493.9445 7.68 57.31 74.00 16.69 44.42 54.00 9.58 150 185 Vertical PASS 6 2500 7.60 54.96 74.00 19.04 41.70 54.00 12.30 150 271 Vertical PASS Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5 7.53 55.37 74.00 18.63 44.79 54.00 9.21 150 347 Horizontal PASS 2 248…

Text truncated - open the document above for the full version.

Page 1 of 28 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC & ISED Compliance Test Report for Product name: Pet Health Monitoring Sensor Model name: Pet Sensor FCC ID: 2BTEJ-MAVENPT01 IC:34927-MAVENPT01 Test Report Number: EFGX25090568-IE-02-E04 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8 Fax: +86-0755-82910749 Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 2 of 28 Content 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 6 2 Technical test 7 2.1 Summary of test results 7 2.2 Test environment 7 2.3 Measurement uncertainty 7 2.4 Test mode 8 2.5 Test equipment utilized 9 2.6 Auxiliary equipment used during test 10 2.7 Test software information 10 2.8 Test setup 11 2.9 Test results 13 3 Technical Requirement 14 3.1 Conducted emission AC power port 14 3.2 Duty cycle 15 3.3 6dB bandwidth 16 3.4 99% Occupied Bandwidth 17 3.5 DTS fundamental emission output power 18 3.6 Power spectral density 21 3.7 Conducted Band Edge & Conducted Spurious Emissions 24 3.8 Spurious emissions & Restricted Band 25 4 Test Setup Photos 28 5 External Photos 28 6 Internal Photos 28 7 Appendix 28 Test Report No.: EFGX25090568-IE-02-E04 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 3 of 28 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. Operator 2026-01-05 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2026-01-05 Albert Xu / Lab Manager Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX25090568-IE-02-E04 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 4 of 28 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : Maven Pet Inc. Address : 800 N King Street Suite 304 2873 Wilmington, DE 19801 United States Telephone : ./. Fax : ./. 1.4 Details of manufacturer Name : Maven Pet Inc. Address : 800 N King Street Suite 304 2873 Wilmington, DE 19801 United States Telephone : ./. Fax : ./. Test Report No.: EFGX25090568-IE-02-E04 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 5 of 28 1.5 Application details Date of receipt of application : 2025-11-13 Date of receipt of test item : 2025-11-13 Date of test : 2025-11-13 to 2026-01-05 Date of issue : 2026-01-05 1.6 Test item Product type : Pet Health Monitoring Sensor Test Model : Pet Sensor Sample ID : 251113-29-002 Brand : maven Serial number : ./. Hardware Version : HW-Wifi-01 Software / Firmware Version : SW-Wifi-01 Ratings : DC 3.7V Test voltage : DC 3.7V RadioTechnical data Radio Tech. : WLAN 2.4G Modulation : 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Antenna type : Internal antenna Maximum antenna gain : 1.7dBi Additional information : ./. The above sample(s) and sample information was/were submitted and identified on behalf of the applicant. Eurofins assures objectivity and impartiality of the test, and fulfills the obligation of confidentiality for applicant’s commercial infor- mation and technical documents. Test Report No.: EFGX25090568-IE-02-E04 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 6 of 28 1.7 Test standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators RSS-247 Issue 4 Digital Transmission Systems, Frequency Hopping Systems and Li- cence-Exempt Local Area Network Devices in 902-928 MHz, 2400- 2483.5 MHz, 5150-5350 MHz, and 5470-5895 MHz bands Test Method 1: ANSI C63.4-2014, American National Standard for Methods of Measurement of Radio-Noise Emis- s…

Text truncated - open the document above for the full version.

Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.716 2401.668 2402.384 0.5 PASS BLE_1M Ant1 2440 0.740 2439.656 2440.396 0.5 PASS BLE_1M Ant1 2480 0.736 2479.660 2480.396 0.5 PASS Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.1209 2401.4724 2402.5933 --- --- BLE_1M Ant1 2440 1.1878 2439.4449 2440.6327 --- --- BLE_1M Ant1 2480 1.1954 2479.4303 2480.6257 --- --- Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 BLE_1M-Ant1-2480 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] EIRP[dBm] EIRP Limit[dBm] Verdict BLE_1M Ant1 2402 -0.04 ≤30 1.66 ≤36 PASS BLE_1M Ant1 2440 -0.66 ≤30 1.04 ≤36 PASS BLE_1M Ant1 2480 -1.22 ≤…
