2BTFC-ZH-V17Induction Speaker

使用说明书 V17 感应式无线音箱 Inductive wireless speaker *使用前请仔细阅读本使用说明书，请妥善保管本使用说明书 操作说明 注意事项 1.长按 键2s开机，开机首先进入感应模式，即无需连接蓝牙，打开手机播放 软件，把手机放上支架上即可播放歌曲 2.单击 键进入蓝牙模式(即感应模式下一个模式)用手机搜索蓝牙名V17， 点击连接，成功后(弹窗需允许访问手机权限)确认即可同步手机时间 3.短按 键进入灯光切换 4.短按 键播放/暂停 5.短按 键下一曲，长按 键音量加大 6.短按 键上一曲，长按 键音量减小 1.开机后长按 键进入时钟设置，短按 , 加减时间，单击 键确认设置 并同时进入下一模式分钟调节，同样用 , 键对分钟进行调节，设置好后 单击 键确认并进入闹钟设置页面. 2.面板显示A1:OF(闹钟关闭），单击 或 键切换到A1:ON（闹钟开） 打开闹钟1，单击 键确认并进入闹钟时间设置，同样用 , 键调节所需 时间后，单击 键进行确认。 闹钟设置完后，系统自动进入闹铃选择设置，面板显示L-01或L-02（系统自带二 种铃声可供选择） ,此时可用 , 键循环选择闹铃，设置完成单击 键确认 后系统自动进入闹钟2设置。 3.面板显示A2:OF,单击 或 键切换到A2:ON打开闹钟2，闹钟2设置步骤 同闹钟1设置一致，当最后一个选项调节完成后按 键确认的同时系统会自动 保存并退出闹钟设置。 4.关闭闹钟按以上步骤选择A1:OF，A2:OF即可。 5.闹铃响起时单击 键关闭响铃，按其他任意键则进入贪睡模式，5分钟后会 再次响铃 时钟操作说明： 遵循下面的警告以防止伤人或损坏设备： 1.请勿让儿童或动物咀嚼或吞咽设备及配件； 2.请勿用设备戳刺眼睛、耳朵或其他身体部位，或将设备 放入嘴巴中； 3.请勿将设备存放在过热或过冷环境中，建议在温度介于 -5°C~40°C的环境中使用； 4.请勿在加热器、微波炉、烹饪设备或高压容器附近或内部 存放设备； 5.请勿摔落、挤压、撞击、刮伤设备； 6.请勿在雷雨天气室外使用设备； 7.请保持设备干燥； 8.避免无人长时间或过夜充电； 9.设备不得受水滴或水溅，设备上不应放置诸如花瓶一类的等 装满液体的物品； 10.注意如果电池更换不当会有爆炸危险，只能用同样类型 或等效类型的电池来更换。 产品参数： FCC 警告 功 率：5W 输 入：5V 1A 产品型号：V17充电接口：Type-c 蓝牙版本：V5.4灯 光：LED 电池容量：1200mAh播放方式：蓝牙/TF卡 感应/AUX Instruction Manual V17 Inductive wireless speaker *Please read this user manual carefully before use and keep it properly Operating Instructions Precautions 1.Press and hold the key for 2 seconds to turn on the device. When the device is turned on, it first enters the sensing mode, meaning there is no need to connect to Bluetooth. Just turn on your phone and play The software allows you to play songs simply by placing your phone on the stand 2.Single-click the key to enter the Bluetooth mode (i.e., the next mode after the sensing mode), and search for the Bluetooth name V17 with your mobile phone，Click the link. After success (the pop-up window requires permission to access the mobile phone), confirm to synchronize the mobile phone time 3.Press the key briefly to switch the lights 4.Press the key briefly to play/pause 5.Press the key briefly to start the next track, and press the key long to increase the volume 6.Press the key briefly to move on to the Previous track, and press the key long to reduce the volume Clock Operation Instructions： Follow the warnings below to prevent injury or damage to the equipment: Do not allow children or animals to chew or swallow the device and its accessories. 2. Do not use the device to poke your eyes, ears or other body parts, or put the device in your mouth. 3. Do not store the device in an environment that is too hot or too cold. It is recommended to use it in an environment with a temperature ranging from -5°C to 40°C. 4. Do not place near or inside heaters, microwave ovens, cooking equipment or high-pressure containers Store equipment; 5. Do not drop, squeeze, strike or scratch the equipment. 6. Do not use the equipment outdoors during thunderstorms. 7. Please keep the equipment dry; 8. Avoid charging for long periods or overnight when no one is around. 9. The equipment must not be exposed to water droplets or splashes. Items such as vases should not be placed on the equipment Items filled with liquid; 10. Please note that if the battery is not replaced properly, there is an explosion risk. Only the same type can be used Or replace it with an equivalent type of battery. 1.After turning on the machine, long press the key to enter the clock setting, short press , to increase or decrease the time, and click the key to confirm the setting And simultaneously enter the next mode, minute adjustment. Use the and keys to adjust the minute as well. After setting it up Click the key to confirm and enter the alarm clock setting page. 2.The panel displays A1:OF(alarm off). Click or the key to switch to A1:ON (alarm on). Turn on Alarm Clock 1, click the key to confirm and enter the alarm clock time setting. Use the and keys to adjust as needed After the time, click the key to confirm. After the alarm clock is set, the system automatically enters the alarm selection setting. The panel displays L-01 or L-02 (the system comes with two types of ringtones to choose from). At this time, you can use the and keys to select the alarm in a loop. After the setting is completed, click the key to confirm After that, the system automatically enters the alarm clock 2 setting. 3.The panel displays A2:OF. Click the or key to switch to A2:ON to turn on Alarm Clock 2. The setting steps for alarm Clock 2 Set in the same way as Alarm Clock 1. When the last option is adjusted, press the key to confirm and the system will automatically activate Save and exit the alarm Settings. 4.To turn off the alarm clock, follow the above steps and select A1:OF or A2:OF. 5.When the alarm rings, click the key to turn it off. Press any other key to enter the snooze mode. After 5 minutes, it will return Ring the bell again Product parameters FCC Warning Power efficiency: 5W Input: 5V 1A Product Model: V17Charging interface: Type-c Bluetooth version: V5.4Lighting: LED Battery capacity: 1200mAhPlayback method: Bluetooth /TF card Sensing /AUX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct th…

Text truncated - open the document above for the full version.

Shenzhen Zhonghe Network Technology co.,LTD Covered Equipment Certification Attestation Letter 12/8/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BTFC-ZH-V17 Shenzhen Zhonghe Network Technology co.,LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Zhonghe Network Technology co.,LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Zhonghe Network Technology co.,LTD (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Wenyi Liao Title: Manager Company Name: Shenzhen Zhonghe Network Technology co.,LTD Date: 12/8/2025

Shenzhen Zhonghe Network Technology co.,LTD U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: December 8, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BTFC-ZH-V17 Shenzhen Zhonghe Network Technology co.,LTD (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Shenzhen Zhonghe Network Technology co.,LTD FRN: 0037695582 Address: 906, Building 8, Hengda Fashion Huigu, Longhua Dalang, Shenzhen, China Signature: Contact Person: Wenyi Liao Tel: +86-13751001423 Email: [email protected]

DATE: December 8, 2025 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BTFC-ZH-V17 Product Name: Induction Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Wenyi Liao Title: Manager Company: Shenzhen Zhonghe Network Technology co.,LTD

Date: December 8, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Wenyi Liao Title: Manager Company: Shenzhen Zhonghe Network Technology co.,LTD

DATE: December 8, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Zhonghe Network Technology co.,LTD (906, Building 8, Hengda Fashion Huigu, Longhua Dalang, Shenzhen, China). <Signature> Name: Wenyi Liao Title: Manager Company: Shenzhen Zhonghe Network Technology co.,LTD

Shenzhen Zhonghe Network Technology co.,LTD Model Difference Statement FCC ID: 2BTFC-ZH-V17 DATE: December 8, 2025 Dear Sir/Madam, Added models ZH2036, KM-V17pro basis of the original product V17.The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Wenyi Liao Company name: Shenzhen Zhonghe Network Technology co.,LTD Address: 906, Building 8, Hengda Fashion Huigu, Longhua Dalang, Shenzhen, China

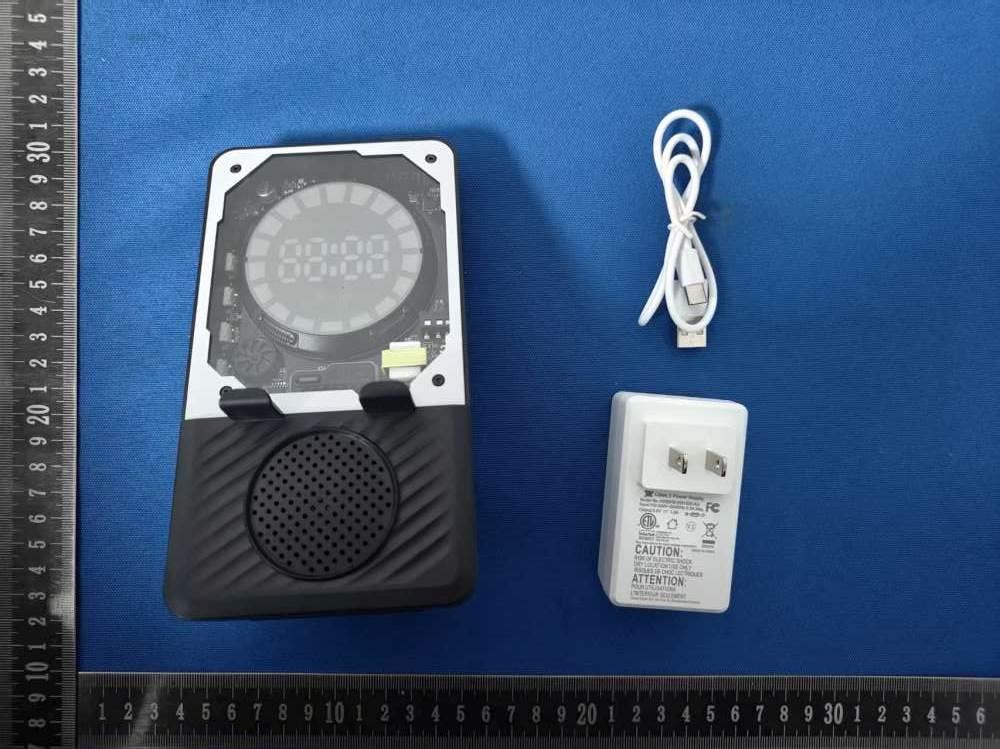

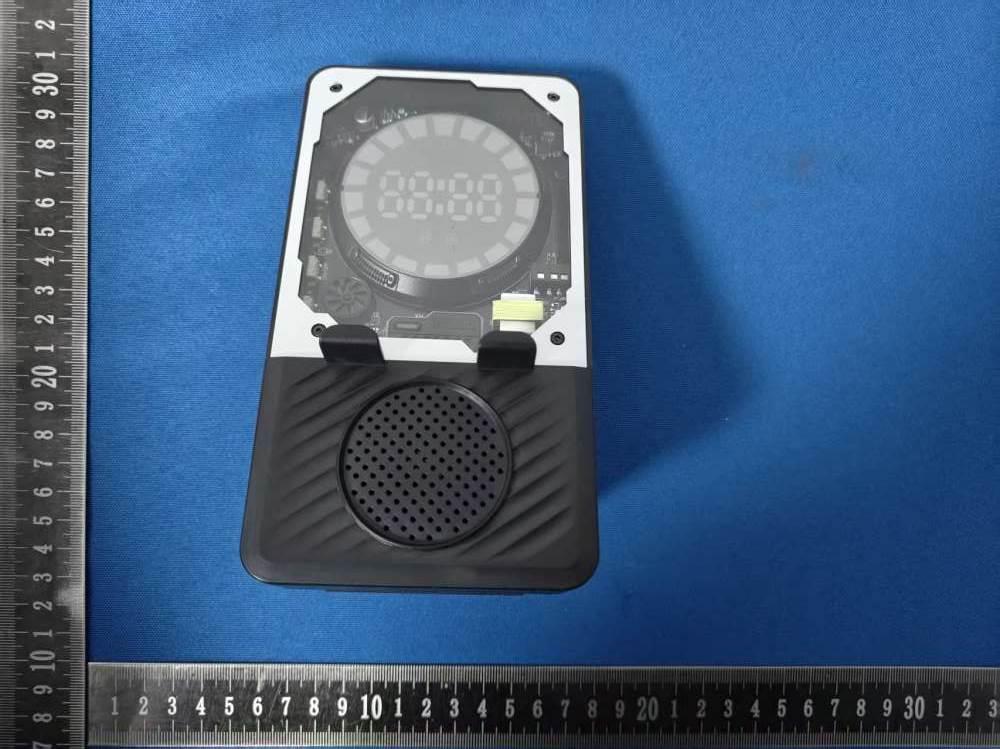

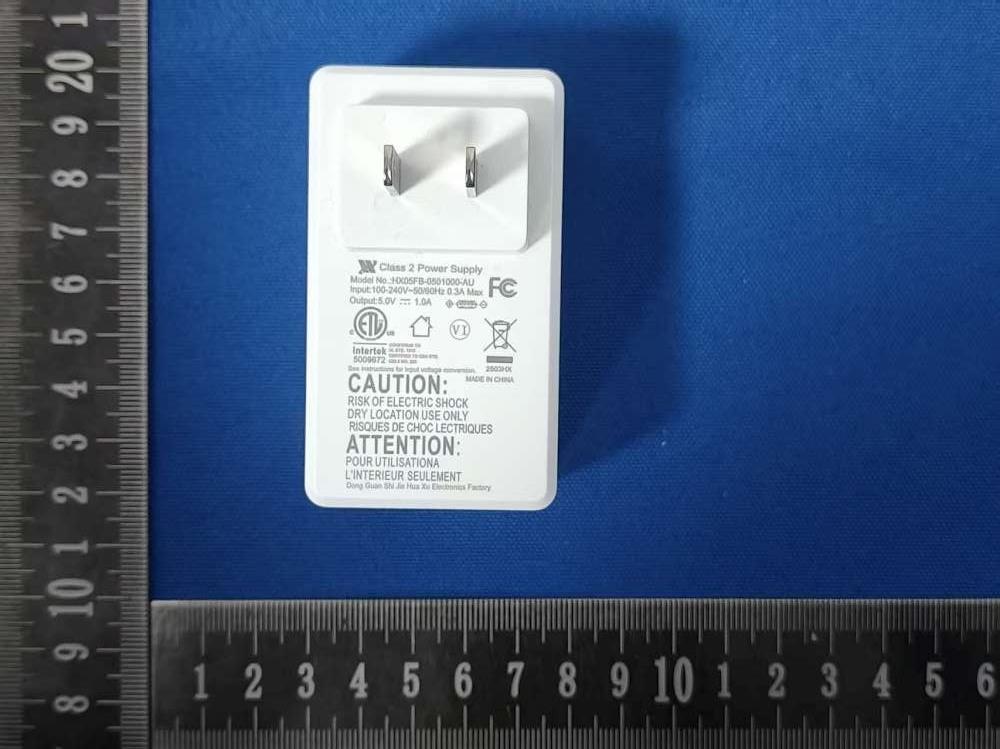

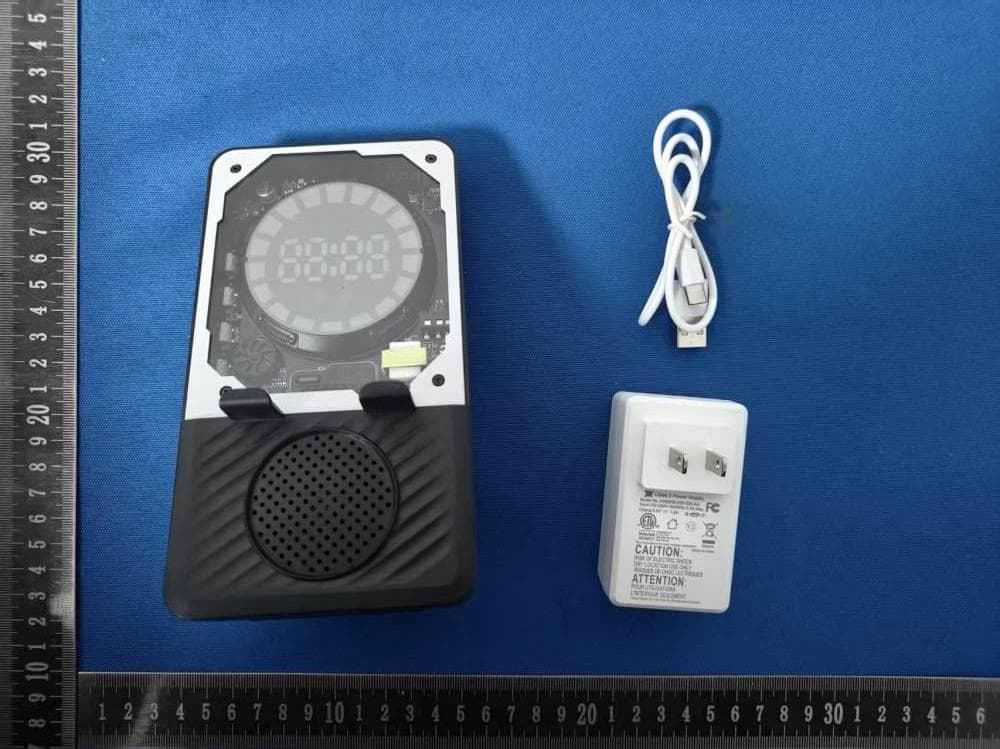

Report No: SSP25110763-1E FCC ID: 2BTFC-ZH-V17 Annex of Test Report Annex A. EUT External Photos Model: V17 EUT View 1 EUT View 2 Report No: SSP25110763-1E FCC ID: 2BTFC-ZH-V17 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25110763-1E FCC ID: 2BTFC-ZH-V17 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP25110763-1E FCC ID: 2BTFC-ZH-V17 Annex of Test Report EUT View 7 EUT View 8

Report No: SSP25110763-1E FCC ID: 2BTFC-ZH-V17 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Labe Size: 6mm * 3mm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: SSP25110763-1E FCC ID: 2BTFC-ZH-V17 Annex of Test Report Annex B. EUT Internal Photos Model: V17 EUT Internal View 1 EUT Internal View 2 Transmitter ANT Report No: SSP25110763-1E FCC ID: 2BTFC-ZH-V17 Annex of Test Report EUT Internal View 3 EUT Internal View 4

FCC ID: 2BTFC-ZH-V17 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -2.7 -2(±1) -1 0.79 2402 5 0.24487 3.0 So a SAR test is not required

Summary Inverted F Antenna Specification ITEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2400MHz 2500MHz 2400MHz 2400MHz 2500MHz -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Antenna type PCB Antenna Impedance 50 Ohm length and width 15.2*5.7mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Address 333 Kexing Road, Xiangzhou District, Zhuhai City, Guangdong Province Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400 -1.26174-30.0801-7.18716 2450 -0.765802-36.5604-7.48023 2500 -0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400 -5.2537-22.1424-12.4294 2450 -2.4652-24.5837-10.4702 2500 -1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Report No: SSP25110763-1E FCC Test Report Page 1 of 45 FCC TEST REPORT FCC ID: 2BTFC-ZH-V17 Report No. : SSP25110763-1E Applicant : Shenzhen Zhonghe Network Technology co.,LTD Product Name : Induction Speaker Model Name : V17 Test Standard : FCC Part 15.247 Date of Issue : 2025-12-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP25110763-1E FCC Test Report Page 2 of 45 Test Report Basic Information Applicant..................................: Shenzhen Zhonghe Network Technology co.,LTD Address of Applicant...............: 906, Building 8, Hengda Fashion Huigu, Longhua Dalang, Shenzhen, China Manufacturer..........................: Shenzhen Zhonghe Network Technology co.,LTD Address of Manufacturer........: 906, Building 8, Hengda Fashion Huigu, Longhua Dalang, Shenzhen, China Product Name.........................: Induction Speaker Brand Name.............................: - Main Model..............................: V17 Series Models..........................: ZH2036, KM-V17pro Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2025-11-27 to 2025-12-02 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP25110763-1E FCC Test Report Page 3 of 45 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results .......................................................................................................................................... 22 7. Frequency Hopping System ...................................…

Text truncated - open the document above for the full version.

Report No: SSP25110763-1E FCC ID: 2BTFC-ZH-V17 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP25110763-1E FCC ID: 2BTFC-ZH-V17 Annex of Test Report Radiated Emission Test View Above 1GHz
