2BTL3-SOFTLIGHTContact Fill Light

Contact Fill Light User Manual Thank you for choosing this Bluetooth fill light! To help you use the product better and fully unleash its functions, please read this manual carefully before use and keep it properly for future reference. I. Product Overview 1.1 Product Introduction This Bluetooth fill light is a multi-functional device integrating lighting and intelligent control. It can be connected to a mobile phone APP via Bluetooth technology to achieve various lighting effect adjustments, suitable for live streaming, shooting, video conferences, beauty fill lighting, and other scenarios. 1.2 Product Parameters  Input Voltage: 5V/1A  Battery Capacity: 2000mAh  Battery Life: Approximately 8 hours at minimum brightness, approximately 2 hours at maximum brightness  Color Temperature Range: 2700K - 6500K  Brightness Adjustment: 1%-100% stepless dimming 1.3 Product Accessories  1 × Bluetooth fill light  1 × USB-C charging cable  1 × User manual II. Usage Instructions 2.1 Power On and Off Long-press the power button on the back of the fill light for 2 seconds to turn it on. The default brightness is 50%, and the color temperature is 4000K. Long-press the power button again for 2 seconds to turn it off. 2.2 Brightness Adjustment Short-press the power button to switch brightness. Each press increases the brightness by 10% (10%→20%→...→100%). When reaching 100%, pressing again resets the brightness to 10%. Stepless dimming from 1% to 100% can also be achieved via the mobile phone APP for more precise operation. 2.3 Color Temperature Adjustment Double-press the power button to switch color temperatures, cycling through warm light (2700K), natural light (4000K), and cold light (6500K). Similarly, fine-tuning of color temperature can be realized on the mobile phone APP to meet lighting needs in different scenarios. 2.4 Bluetooth Connection and APP Control 1. Turn on the fill light and ensure it is in the power-on state. 2. Find the name of your Bluetooth fill light in the device list and click to connect. 3. After successful connection, you can freely set the fill light's brightness, color temperature, and lighting modes (such as gradient, flashing, breathing light, etc.) on the APP interface. You can also create and save personalized lighting schemes for quick recall next time. 4. 2.5 Bracket Usage Open the clip at the bottom of the foldable bracket, clamp it onto a suitable position such as a mobile phone, tablet, or desktop, then install the fill light into the slot at the top of the bracket. Adjust the angle and height of the bracket to find the optimal fill light position. III. Charging Instructions 1. When the fill light's battery is low, the indicator light will turn red and flash, requiring immediate charging. 2. Use the included USB-C charging cable to connect one end to the fill light's charging port and the other end to a power supply device such as a computer USB port, 5V/1A charger, or power bank. 3. During charging, the indicator light remains red; when fully charged, the indicator light turns green. The charging time is approximately 2-3 hours. 4. To ensure battery life, do not overcharge or allow the battery to drain completely. It is recommended to charge when the remaining battery is about 20%. IV. Maintenance and Care 1. When cleaning the fill light, turn off the power and disconnect the charging cable first. Gently wipe it with a clean, soft damp cloth. Avoid using corrosive cleaners such as alcohol or gasoline. 2. When not using the fill light for a long time, store it with a full charge and perform a charge-discharge cycle every month to prevent battery aging. 3. Avoid exposing the fill light to high-temperature, humid, or dusty environments to prevent affecting product performance and service life. 4. Do not disassemble the fill light privately. In case of a fault, contact after-sales service personnel for handling. V. Safety Precautions 1. Do not place the fill light near flammable or explosive items to avoid danger. 2. Do not let children use the fill light alone to prevent accidental swallowing of small parts or equipment damage caused by improper operation. 3. If the fill light smokes, emits an unusual odor, or overheats, stop using it immediately, disconnect the power, and contact after-sales service. 4. This product is for indoor use only. Do not use it in rain or humid environments. VI. Common Problems and Solutions Problem Phenomenon Possible Cause Solution The fill light fails to power on Battery exhausted or power button malfunction Connect to a charger and try powering on again; if the problem persists, contact after-sales service Bluetooth fails to connect Fill light Bluetooth not enabled, excessive distance, or outdated APP version Ensure the fill light is powered on and in a connectable state, keep the mobile phone and fill light within 10 meters, and update the APP to the latest version Unstable Low battery or poor Charge in a timely manner; Problem Phenomenon Possible Cause Solution light flickering contact check if the charging cable and interface are firmly connected, and re-plug if loose APP cannot control the fill light Bluetooth connection interrupted or APP abnormality Reconnect the fill light in the APP; close and reopen the APP. If the problem persists, uninstall and reinstall it (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference …

Text truncated - open the document above for the full version.

Rev 1/26/2023 Cambox Inc Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 12-16-2025 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BTL3-SOFTLIGHT [Cambox Inc] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Cambox Inc] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Angel Wang Rev 1/26/2023 Cambox Inc Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 12-16-2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BTL3-SOFTLIGHT [Cambox Inc] ce8rtifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Angel Wang

Cambox Inc U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: December 16, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BTL3-SOFTLIGHT Cambox Inc (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Cambox Inc FRN: 0037735065 Address: 1309 Coffeen Ave. STE 1200 Sheridan, WY 82801, United States Signature: Contact Person: Angel Wang Tel: 18024464572 Email: [email protected]

Page 1 of 3 1. General Inf ormation 1.1 Antenna Information Manufacturer: Cambox Inc Address of Manufacturer: 1309 Coffeen Ave. STE 1200 Sheridan, WY 82801, United States Product Name: 2.4GHz Antenna Model Name: SOFTLIGHT Frequency Range: 2400MHz - 2500MHz Type of Antenna: PCB Antenna Antenna Gain: 0dBi (Max.) Impedance: 50 ohm Antenna View: Length * Width (12mm * 5mm) Page 2 of 3 2. Antenna Specification inf ormation 2.1 Gain Frequency Peak Gain (dBi) Polarity 2400MHz 0 Horizontal 2400MHz -1.07 Vertical 2450MHz -1.21 Horizontal 2450MHz -1.48 Vertical 2500MHz -1.28 Horizontal 2500MHz -1.56 Vertical Page 3 of 3 2.2 Radiation Pattern View

Cambox Inc Date: December 16, 2025 Product Model Number: SOFTLIGHT FCC ID: 2BTL3-SOFTLIGHT To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Angel Wang Contact Listed on FCC Wesbite Title: Sales Manager Tel.: 18024464572 Email: [email protected] On behalf of: Cambox Inc

Cambox Inc Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: December 18, 2025 Subject; Request for Confidentiality FCC ID: 2BTL3-SOFTLIGHT To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Angel Wang Title: Sales Manager

Cambox Inc 1309 Coffeen Ave. STE 1200 Sheridan, WY 82801, United States Model Difference Statement DATE: December 16, 2025 Product Model Number: SOFTLIGHT FCC ID: 2BTL3-SOFTLIGHT Dear Sir/Madam, Added models SOFTLIGHT-Plus, SOFTLIGHT-Charging basis of the original product SOFTLIGHT The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Angel Wang Title: Manager Company name: Cambox Inc Address: 1309 Coffeen Ave. STE 1200 Sheridan, WY 82801, United States

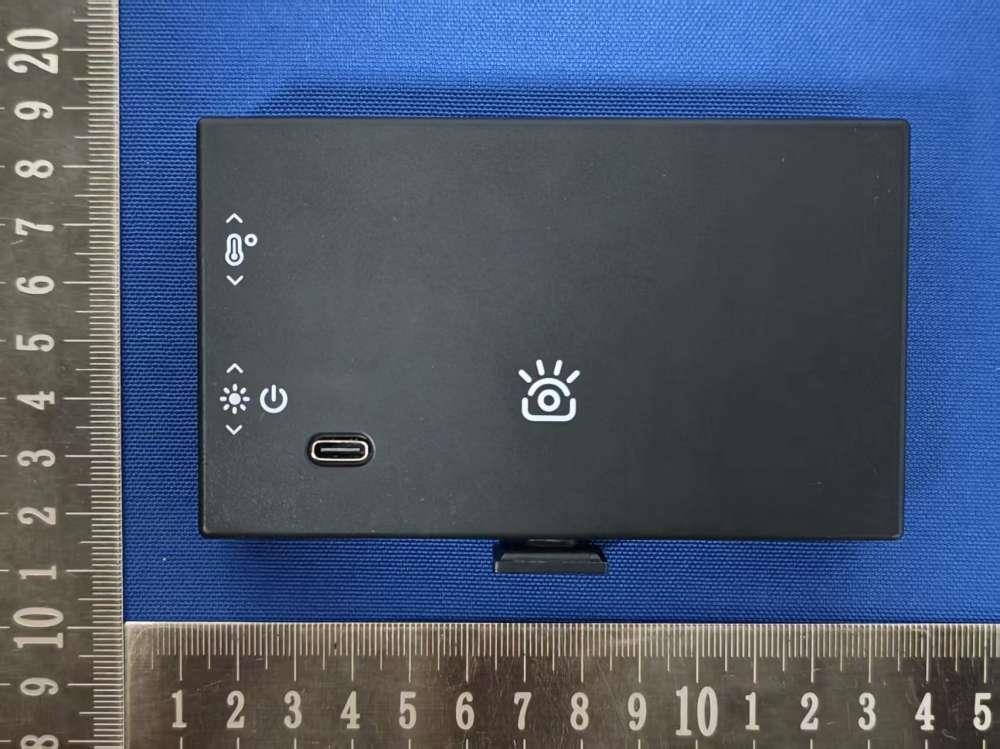

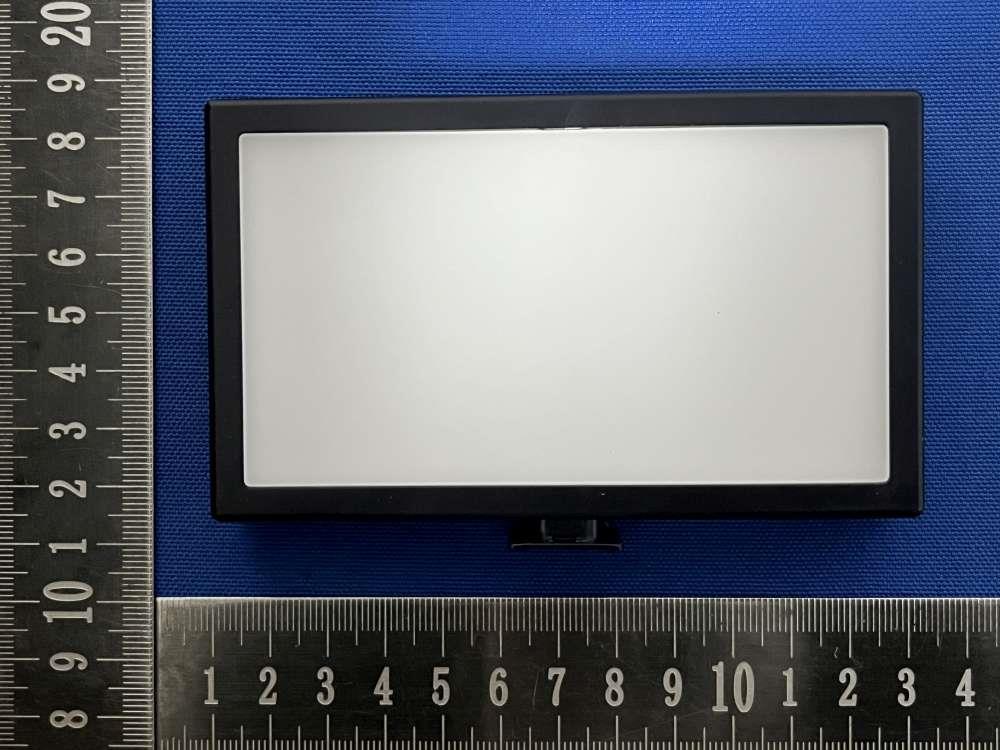

Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 1 of 10 Annex A. EUT External Photos EUT View 1 Model : Softlight EUT View 2 Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 2 of 10 EUT View 3 EUT View 4 Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 3 of 10 EUT View 5 EUT View 6 Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 4 of 10 EUT View 7

Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 10 of 10 Annex D. Label and Inf ormation FCC Label Sample Label Size: 3cm*1.5cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 5 of 10 Annex B. EUT Internal Photos EUT Internal View 1 EUT Internal View 2 Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 6 of 10 EUT Internal View 3 EUT Internal View 4 PCB Antenna Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 7 of 10 EUT Internal View 5

FCC ID: 2BTL3-SOFTLIGHT RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BLE Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -0.76 0(±1) 1 1.2589 2402 5 0.3902 3.0 So a SAR test is not required

Report No: SSP25110010-1E FCC Test Report Page 1 of 33 FCC TEST REPORT FCC ID: 2BTL3-SOFTLIGHT Report No. : SSP25110010-1E Applicant : Cambox Inc Product Name : Contact Fill Light Model Name : SOFTLIGHT Test Standard : FCC Part 15.247 Date of Issue : 2025-12-15 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP25110010-1E FCC Test Report Page 2 of 33 Test Report Basic Information Applicant..................................: Cambox Inc Address of Applicant...............: 1309 Coffeen Ave. STE 1200 Sheridan, Wyoming 82801, United States Manufacturer..........................: Shenzhen Yinghejie Technology Co., LTD Address of Manufacturer........: Building 106, the Fifth Industrial Zone, Masantou Community, Guangming New District, Shenzhen, China Product Name.........................: Contact Fill Light Brand Name.............................: iContact Camera Main Model..............................: SOFTLIGHT Series Models..........................: SOFTLIGHT-Plus, SOFTLIGHT-Charging Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2025-11-04 to 2025-11-07 Test Result...............................: PASS Tested By ................................: (Tate Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP25110010-1E FCC Test Report Page 3 of 33 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results .......................................................................................................................................... 22 7. Maximum Peak Co…

Text truncated - open the document above for the full version.

Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 8 of 10 Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View 1 Report No: SSP25110010-1E FCC ID: 2BTL3-SOFTLIGHT Annex of Test Report Page 9 of 10 Radiated Emission Test View 2
