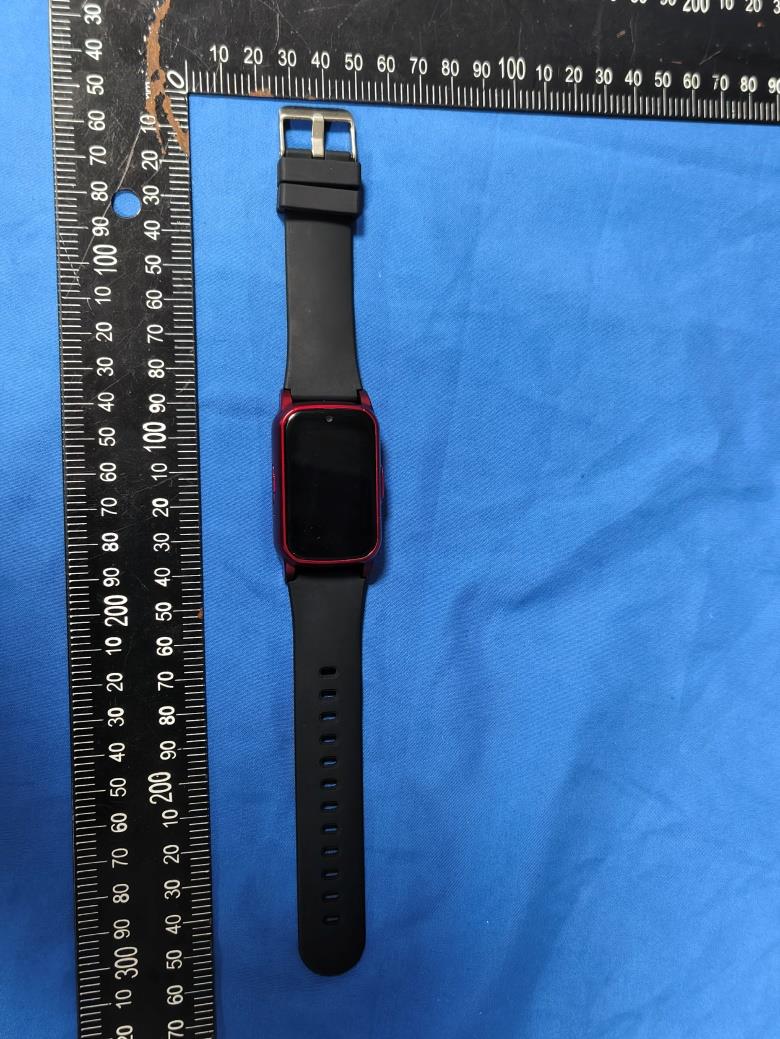

2BTL6-S5smart watch
Shenzhen Hongwei Crown Information Technology Co., LTD
Click to zoom
Application Details
- Equipment Class
- PCT - PCS Licensed Transmitter worn on body
- Date of Grant
- Jan 26, 2026
- Application Purpose
- Original Equipment
- Equipment Note
- smart watch
- Frequency Range
- 701.50000000 - 713.50000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
RF Exposure Info
Page 46 of 55 Report No.:STS2512239H01 System Check_2600Mhz Test Data:2026.01.08 DUT: Dipole 2600 MHz Communication System: UID 0, CW (0); Communication System Band: D2600 (2600.0 MHz); Frequency: 2600 MHz;Communication System PAR: 0 dB; PMF: 1 Medium parameters used: f = 2600 MHz; Ο = 1.96 S/m; Ξ΅ r = 39.38; Ο = 1000 kg/m 3 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2011) DASY Configuration: ο· Probe: EX3DV4 - SN3806; ConvF(6.14, 6.54, 6.73) @ 2600 MHz; Calibrated: 2025/9/11 ο· Sensor-Surface: 1.8mm (Mechanical Surface Detection), z = 1.0, 31.0 ο· Electronics: DAE3 Sn428; Calibrated: 2025/9/8 ο· Phantom: Twin-SAM V5.0 (30deg probe tilt); Type: QD 000 P40 CD ο· DASY52 52.10.3(1513); SEMCAD X 14.6.13(7474) Area Scan (4x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.14 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 72.11 V/m; Power Drift = -1.58 dB Peak SAR (extrapolated) = 11.3 W/kg SAR(1 g) = 5.625 W/kg; SAR(10 g) = 2.447 W/kg Smallest distance from peaks to all points 3 dB below = 9.6 mm Ratio of SAR at M2 to SAR at M1 = 49.4% Maximum value of SAR (measured) = 8.84 W/kg Page 47 of 55 Report No.:STS2512239H01 Appendix B. SAR Test Plots LTE B2_ Next to the mouth_5mm Test Data:2026.01.08 DUT: smart watch Communication System: UID 0, Generic LTE (0); Communication System Band: Band 2, E-UTRA/FDD (1850.0 - 1910.0 MHz); Frequency: 1900 MHz;Communication System PAR: 0 dB; PMF: 1 Medium parameters used: f = 1900 MHz; Ο = 1.38 S/m; Ξ΅ r = 40.31; Ο = 1000 kg/m 3 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2011) DASY Configuration: ο· Probe:EX3DV4 - SN3806; ConvF(6.85, 7.3, 7.51) @ 1900 MHz; Calibrated: 2025/9/11 ο· Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 ο· Electronics: DAE3 Sn428; Calibrated: 2025/9/8 ο· Phantom: Twin-SAM V5.0 (30deg probe tilt); Type: QD 000 P40 CD ο· DASY52 52.10.3(1513); SEMCAD X 14.6.13(7474) Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.755 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.74 V/m; Power Drift = -1.56 dB Peak SAR (extrapolated) = 1.69 W/kg SAR(1 g) = 0.744 W/kg; SAR(10 g) = 0.348 W/kg Smallest distance from peaks to all points 3 dB below = 9.8 mm Ratio of SAR at M2 to SAR at M1 = 56.2% Maximum value of SAR (measured) = 0.742 W/kg Page 48 of 55 Report No.:STS2512239H01 LTE B2_Back Side_0mm Test Data:2026.01.08 DUT: smart watch Communication System: UID 0, Generic LTE (0); Communication System Band: Band 2, E-UTRA/FDD (1850.0 - 1910.0 MHz); Frequency: 1900 MHz;Communication System PAR: 0 dB; PMF: 1 Medium parameters used: f = 1900 MHz; Ο = 1.38 S/m; Ξ΅ r = 40.31; Ο = 1000 kg/m 3 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2011) DASY Configuration: ο· Probe: EX3DV4 - SN3806; ConvF(6.85, 7.3, 7.51) @ 1900 MHz; Calibrated: 2025/9/11 ο· Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 ο· Electronics: DAE3 Sn428; Calibrated: 2025/9/8 ο· Phantom: Twin-SAM V5.0 (30deg probe tilt); Type: QD 000 P40 CD ο· DASY52 52.10.3(1513); SEMCAD X 14.6.13(7474) Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.19 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 35.91 V/m; Power Drift = -3.11 dB Peak SAR (extrapolated) = 6.15 W/kg SAR(1 g) = 2.85 W/kg; SAR(10 g) = 1.37 W/kg Smallest distance from peaks to all points 3 dB below = 9.4 mm Ratio of SAR at M2 to SAR at M1 = 58.5% Maximum value of SAR (measured) = 2.88 W/kg Page 49 of 55 Report No.:STS2512239H01 LTE B5_Next to the mouth_5mm Test Data:2026.01.08 DUT: smart watch Communication System: UID 0, Generic LTE (0); Communication System Band: Band 5, E-UTRA/FDD (824.0 - 849.0 MHz); Frequency: 829 MHz;Communication System PAR: 0 dB; PMF: 1 Medium parameters used (interpolated): f = 829 MHz; Ο = 0.88 S/m; Ξ΅ r = 41.75; Ο = 1000 kg/m 3 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2011) DASY Configuration: ο· Probe: EX3DV4 - SN3806; ConvF(8.2, 8.73, 8.98) @ 829 MHz; Calibrated: 2025/9/11 ο· Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 ο· Electronics: DAE3 Sn428; Calibrated: 2025/9/8 ο· Phantom: Twin-SAM V5.0 (30deg probe tilt); Type: QD 000 P40 CD ο· DASY52 52.10.3(1513); SEMCAD X 14.6.13(7474) Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0971 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.797 V/m; Power Drift = -3.13 dB Peak SAR (extrapolated) = 0.131 W/kg SAR(1 g) = 0.086 W/kg; SAR(10 g) = 0.048 W/kg Smallest distance from peaks to all points 3 dB below = 12.2 mm Ratio of SAR at M2 to SAR at M1 = 60.4% Maximum value of SAR (measured) = 0.0970 W/kg Page 50 of 55 Report No.:STS2512239H01 LTE B5_Back Side_0mm Test Data:2026.01.08 DUT: smart watch Communication System: UID 0, Generic LTE (0); Communication System Band: Band 12, E-UTRA/FDD (698.0 - 716.0 MHz); Frequency: 829 MHz;Communication System PAR: 0 dB; PMF: 1 Medium parameters used (interpolated): f = 829 MHz; Ο = 0.88 S/m; Ξ΅ r = 41.75; Ο = 1000 kg/m 3 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2011) DASY Configuration: ο· Probe: EX3DV4 - SN3806; ConvF(8.35, 8.89, 9.14) @ 829 MHz; Calibrated: 2025/9/11 ο· Sensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 ο· Electronics: DAE3 Sn428; Calibrated: 2025/9/8 ο· Phantom: Twin-SAM V5.0 (30deg probe tilt); Type: QD 000 P40 CD ο· DASY52 52.10.3(1513); SEMCAD X 14.6.13(7474) Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.140 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.32 V/m; Power Drift = -1.26 dB Peak SAR (extrapolated) = 0.291 W/kg SAR(1 g) = 0.141 W/kg; SAR(10 g) = 0.080 W/kg Smallest distance from peaks to all points 3 dB below = 9.3 mm Ratio of SAR at M2 to SAR at M1 = 49.8% Maximum value of SAR (measured) = 0.163 W/kg Page 51 of 55 Reportβ¦
Text truncated - open the document above for the full version.
Test Setup Photos
Page 1 of 2 Report No.: psi2601079-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix I Test Setup Photo FCC ID: 2BTL6-S5 Spurious Radiation Emissions Test (<1G) Spurious Radiation Emissions Test (οΌ1G) Page 2 of 2 Report No.: psi2601079-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Conducted emission Test ------End------
Test Setup Photos
SAR Setup photos for FCC ID: 2BTL6-S5 Front of Face(separation distance is 5mm) Wrist (separation distance is 0mm)
Test Report
Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Page 1 of 30 Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Baoβan District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2BTL6-S5 On Behalf of Shenzhen Hongwei Crown Information Technology Co., LTD smart watch Model No.: S5,S3,S8,S9,S10,S15,A67,A80,GS19,GS20,D1,D2,A6,C6,M10,Y68, Q6,Q8,K12,Y33 Prepared for : Shenzhen Hongwei Crown Information Technology Co., LTD Address : Room 603, Unit B, Building 2, Luhai Mingju, Xixiang, Bao 'an, Shenzhen, Guangdong Province, China Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Baoβan District, Shenzhen, Guangdong, China Report Number : psi2601079-C01-R01 Date of Receipt : Dec.05, 2025 Date of Test : Dec.08, 2025-Jan.22, 2026 Date of Report : January 23, 2025 Version Number : V0 Page 2 of 30 Report No.: psi2601079-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Baoβan District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1 TEST SUMMARY ......................................................................................................................................5 2 GENERAL INFORMATION .......................................................................................................................6 2.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................6 2.2 TEST FREQUENCY CHANNEL .................................................................................................................7 2.3 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................8 2.4 TEST METHODOLOGY ..........................................................................................................................8 2.5 TEST FACILITY.....................................................................................................................................8 2.6 ACCESSORIES OF DEVICE (EUT) .........................................................................................................8 2.7 TESTED SUPPORTING SYSTEM DETAILS ...............................................................................................8 2.8 TEST CONDITIONS ...............................................................................................................................8 2.9 MEASUREMENT UNCERTAINTY .............................................................................................................9 3 TEST INSTRUMENTS LIST ....................................................................................................................10 4 SYSTEM TEST CONFIGURATION ........................................................................................................12 4.1 TEST MODE .......................................................................................................................................12 4.2 CONFIGURATION OF TESTED SYSTEM .................................................................................................12 4.3 TRANSMITTER RADIATED POWER (EIRP/ERP) ...................................................................................13 4.4 PEAK-TO-AVERAGE RATIO .................................................................................................................15 4.5 OCCUPY BANDWIDTH .........................................................................................................................16 4.6 MODULATION CHARACTERISTIC ................................................................................................17 4.7 SPURIOUS EMISSIONS AT ANTENNA TERMINAL ....................................................................................17 4.8 BAND EDGE .......................................................................................................................................18 4.9 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ..................................................................19 4.10 FREQUENCY STABILITY ......................................................................................................................29 5 PHOTOS OF TEST SETUP.....................................................................................................................30 6 PHOTOS OF EUT ....................................................................................................................................30 Page 3 of 30 Report No.: psi2601079-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Baoβan District, Shenzhen, Guangdong, China TEST REPORT DECLARATION Applicant : Shenzhen Hongwei Crown Information Technology Co., LTD Address : Room 603, Unit B, Building 2, Luhai Mingju, Xixiang, Bao 'an, Shenzhen, Guangdong Province, China Manufacturer : Shenzhen Hongwei Crown Information Technology Co., LTD Address : Room 603, Unit B, Building 2, Luhai Mingju, Xixiang, Bao 'an, Shenzhen, Guangdong Province, China EUT Description : smart watch (A) Model No. : S5,S3,S8,S9,S10,S15,A67,A80,GS19,GS20,D1,D2,A6 ,C6,M10,Y68,Q6,Q8,K12,Y33 (B) Trademark : N/A Measurement Standard Used: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E FCC CFR Title 47 Part 27 ANSI C63.26:2015 Test Result: PASS The device described above is tested by Shenzhen PSI Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The test results are contained in this test reportβ¦
Text truncated - open the document above for the full version.
Test Report
Page 17 of 30 30.0MHz-1000.0MHz Band 12 5MHz/713.5/High QPSK 1@0 1000.0MHz-4000.0MHz Band 12 5MHz/713.5/High QPSK 1@0 4000.0MHz-7000.0MHz Band 12 5MHz/713.5/High QPSK 1@0 7000.0MHz-10000.0MHz Band 12 5MHz/713.5/High QPSK 1@0 30.0MHz-1000.0MHz Band 12 5MHz/713.5/High 16QAM 1@0 1000.0MHz-4000.0MHz Band 12 5MHz/713.5/High 16QAM 1@0 4000.0MHz-7000.0MHz Band 12 5MHz/713.5/High 16QAM 1@0 7000.0MHz-10000.0MHz Band 12 5MHz/713.5/High 16QAM 1@0 Page 18 of 30 30.0MHz-1000.0MHz Band 12 10MHz/704.0/Low QPSK 1@0 1000.0MHz-4000.0MHz Band 12 10MHz/704.0/Low QPSK 1@0 4000.0MHz-7000.0MHz Band 12 10MHz/704.0/Low QPSK 1@0 7000.0MHz-10000.0MHz Band 12 10MHz/704.0/Low QPSK 1@0 30.0MHz-1000.0MHz Band 12 10MHz/704.0/Low 16QAM 1@0 1000.0MHz-4000.0MHz Band 12 10MHz/704.0/Low 16QAM 1@0 4000.0MHz-7000.0MHz Band 12 10MHz/704.0/Low 16QAM 1@0 7000.0MHz-10000.0MHz Band 12 10MHz/704.0/Low 16QAM 1@0 Page 19 of 30 30.0MHz-1000.0MHz Band 12 10MHz/711.0/High QPSK 1@0 1000.0MHz-4000.0MHz Band 12 10MHz/711.0/High QPSK 1@0 4000.0MHz-7000.0MHz Band 12 10MHz/711.0/High QPSK 1@0 7000.0MHz-10000.0MHz Band 12 10MHz/711.0/High QPSK 1@0 30.0MHz-1000.0MHz Band 12 10MHz/711.0/High 16QAM 1@0 1000.0MHz-4000.0MHz Band 12 10MHz/711.0/High 16QAM 1@0 4000.0MHz-7000.0MHz Band 12 10MHz/711.0/High 16QAM 1@0 7000.0MHz-10000.0MHz Band 12 10MHz/711.0/High 16QAM 1@0 Page 20 of 30 5. Band edge Band Bandwidth (MHz) Channel Freq (MHz) Modulation RB Result Verdict 12 1.4 23017 699.7 QPSK 1@0 see graph PASS 12 1.4 23017 699.7 QPSK 1@5 see graph PASS 12 1.4 23017 699.7 QPSK 6@0 see graph PASS 12 1.4 23017 699.7 16QAM 1@0 see graph PASS 12 1.4 23017 699.7 16QAM 1@5 see graph PASS 12 1.4 23017 699.7 16QAM 6@0 see graph PASS 12 1.4 23173 715.3 QPSK 1@0 see graph PASS 12 1.4 23173 715.3 QPSK 1@5 see graph PASS 12 1.4 23173 715.3 QPSK 6@0 see graph PASS 12 1.4 23173 715.3 16QAM 1@0 see graph PASS 12 1.4 23173 715.3 16QAM 1@5 see graph PASS 12 1.4 23173 715.3 16QAM 6@0 see graph PASS 12 3.0 23025 700.5 QPSK 1@0 see graph PASS 12 3.0 23025 700.5 QPSK 1@14 see graph PASS 12 3.0 23025 700.5 QPSK 15@0 see graph PASS 12 3.0 23025 700.5 16QAM 1@0 see graph PASS 12 3.0 23025 700.5 16QAM 1@14 see graph PASS 12 3.0 23025 700.5 16QAM 15@0 see graph PASS 12 3.0 23165 714.5 QPSK 1@0 see graph PASS 12 3.0 23165 714.5 QPSK 1@14 see graph PASS 12 3.0 23165 714.5 QPSK 15@0 see graph PASS 12 3.0 23165 714.5 16QAM 1@0 see graph PASS 12 3.0 23165 714.5 16QAM 1@14 see graph PASS 12 3.0 23165 714.5 16QAM 15@0 see graph PASS 12 5.0 23035 701.5 QPSK 1@0 see graph PASS 12 5.0 23035 701.5 QPSK 1@24 see graph PASS 12 5.0 23035 701.5 QPSK 25@0 see graph PASS 12 5.0 23035 701.5 16QAM 1@0 see graph PASS 12 5.0 23035 701.5 16QAM 1@24 see graph PASS 12 5.0 23035 701.5 16QAM 25@0 see graph PASS 12 5.0 23155 713.5 QPSK 1@0 see graph PASS 12 5.0 23155 713.5 QPSK 1@24 see graph PASS 12 5.0 23155 713.5 QPSK 25@0 see graph PASS 12 5.0 23155 713.5 16QAM 1@0 see graph PASS 12 5.0 23155 713.5 16QAM 1@24 see graph PASS 12 5.0 23155 713.5 16QAM 25@0 see graph PASS 12 10.0 23060 704.0 QPSK 1@0 see graph PASS 12 10.0 23060 704.0 QPSK 1@49 see graph PASS 12 10.0 23060 704.0 QPSK 50@0 see graph PASS 12 10.0 23060 704.0 16QAM 1@0 see graph PASS 12 10.0 23060 704.0 16QAM 1@49 see graph PASS 12 10.0 23060 704.0 16QAM 50@0 see graph PASS 12 10.0 23130 711.0 QPSK 1@0 see graph PASS 12 10.0 23130 711.0 QPSK 1@49 see graph PASS 12 10.0 23130 711.0 QPSK 50@0 see graph PASS 12 10.0 23130 711.0 16QAM 1@0 see graph PASS 12 10.0 23130 711.0 16QAM 1@49 see graph PASS 12 10.0 23130 711.0 16QAM 50@0 see graph PASS Page 21 of 30 Band 12 1.4MHz/699.7/Low QPSK 1@0 Band 12 1.4MHz/699.7/Low QPSK 1@5 Band 12 1.4MHz/699.7/Low QPSK 6@0 Band 12 1.4MHz/699.7/Low 16QAM 1@0 Band 12 1.4MHz/699.7/Low 16QAM 1@5 Band 12 1.4MHz/699.7/Low 16QAM 6@0 Band 12 1.4MHz/715.3/High QPSK 1@0 Band 12 1.4MHz/715.3/High QPSK 1@5 Page 22 of 30 Band 12 1.4MHz/715.3/High QPSK 6@0 Band 12 1.4MHz/715.3/High 16QAM 1@0 Band 12 1.4MHz/715.3/High 16QAM 1@5 Band 12 1.4MHz/715.3/High 16QAM 6@0 / Band 12 1.4MHz/715.3/High 64QAM 6@0 Band 12 3MHz/700.5/Low QPSK 1@0 Band 12 3MHz/700.5/Low QPSK 1@14 Band 12 3MHz/700.5/Low QPSK 15@0 Page 23 of 30 Band 12 3MHz/700.5/Low 16QAM 1@0 Band 12 3MHz/700.5/Low 16QAM 1@14 / Band 12 3MHz/700.5/Low 16QAM 15@0 Band 12 3MHz/700.5/Low 64QAM 15@0 Band 12 3MHz/714.5/High QPSK 1@0 Band 12 3MHz/714.5/High QPSK 1@14 Band 12 3MHz/714.5/High QPSK 15@0 Band 12 3MHz/714.5/High 16QAM 1@0 Page 24 of 30 Band 12 3MHz/714.5/High 16QAM 1@14 Band 12 3MHz/714.5/High 16QAM 15@0 / Band 12 3MHz/714.5/High 64QAM 15@0 Band 12 5MHz/701.5/Low QPSK 1@0 Band 12 5MHz/701.5/Low QPSK 1@24 Band 12 5MHz/701.5/Low QPSK 25@0 Band 12 5MHz/701.5/Low 16QAM 1@0 Band 12 5MHz/701.5/Low 16QAM 1@24 Page 25 of 30 / Band 12 5MHz/701.5/Low 16QAM 25@0 Band 12 5MHz/701.5/Low 64QAM 25@0 Band 12 5MHz/713.5/High QPSK 1@0 Band 12 5MHz/713.5/High QPSK 1@24 Band 12 5MHz/713.5/High QPSK 25@0 Band 12 5MHz/713.5/High 16QAM 1@0 Band 12 5MHz/713.5/High 16QAM 1@24 Band 12 5MHz/713.5/High 16QAM 25@0 Page 26 of 30 / Band 12 5MHz/713.5/High 64QAM 25@0 Band 12 10MHz/704.0/Low QPSK 1@0 Band 12 10MHz/704.0/Low QPSK 1@49 Band 12 10MHz/704.0/Low QPSK 50@0 Band 12 10MHz/704.0/Low 16QAM 1@0 Band 12 10MHz/704.0/Low 16QAM 1@49 / Band 12 10MHz/704.0/Low 16QAM 50@0 Band 12 10MHz/704.0/Low 64QAM 50@0 Page 27 of 30 Band 12 10MHz/711.0/High QPSK 1@0 Band 12 10MHz/711.0/High QPSK 1@49 Band 12 10MHz/711.0/High QPSK 50@0 Band 12 10MHz/711.0/High 16QAM 1@0 Band 12 10MHz/711.0/High 16QAM 1@49 Band 12 10MHz/711.0/High 16QAM 50@0 Page 28 of 30 6. Frequency Stability Band Bandwidth (MHz) Channel Freq (MHz) Modulation RB Deviation (Hz) Deviation (ppm) Limit(ppm) Verdict Environment 12 10.0 23060 704.0 QPSK 50@0 -1.33 -0.00189 Β±2.5 PASS TN/VL 12 10.0 23060 704.0 QPSK 50@0 -4.36 -0.0062 Β±2.5 PASS TN/VN 12 10.0 23060 704.0 QPSK 50@0 -0.63 -0.00089 Β±2.5 PASS TN/VH 12 10.0 23060 704.0 QPSK 50@0 1.73 0.00246 Β±2.5 PASS -30Β°C/VN 12 10.0 23060 704.0 QPSK 50@0 -3.0 -0.00427 Β±2.5 PASS -20Β°C/VN 12 10.0 23060 704.0 QPSK 50@0β¦
Text truncated - open the document above for the full version.
Test Report
LTE Band 12 Test Data FCC ID: 2BTL6-S5 Table of Contents 1. Effective (Isotropic) Radiated Power Output Data ....................................................................................... 2 2. Peak to Average Ratio ......................................................................................................................................... 5 3. Occupied Bandwidth ........................................................................................................................................... 7 4. Unwanted Spurious Emission .......................................................................................................................... 11 5. Band edge .............................................................................................................................................................. 20 6. Frequency Stability ............................................................................................................................................. 28 Page 2 of 30 FCC LTE FDD Test Data 1. Effective (Isotropic) Radiated Power Output Data Band Bandwidth (MHz) Channel Freq (MHz) Modulation RB Conducted Power (dBm) ERP (dBm) ERP (W) ERP (Limit) (dBm) Verdict 12 1.4 23017 699.7 QPSK 1@0 21.42 18.88 0.0773 34.77 PASS 12 1.4 23017 699.7 QPSK 1@2 21.46 18.92 0.078 34.77 PASS 12 1.4 23017 699.7 QPSK 1@5 21.38 18.84 0.0765 34.77 PASS 12 1.4 23017 699.7 QPSK 3@0 21.44 18.9 0.0776 34.77 PASS 12 1.4 23017 699.7 QPSK 3@1 21.43 18.89 0.0775 34.77 PASS 12 1.4 23017 699.7 QPSK 3@2 21.44 18.9 0.0776 34.77 PASS 12 1.4 23017 699.7 QPSK 6@0 20.41 17.87 0.0613 34.77 PASS 12 1.4 23017 699.7 16QAM 1@0 20.41 17.87 0.0612 34.77 PASS 12 1.4 23017 699.7 16QAM 1@2 20.49 17.95 0.0624 34.77 PASS 12 1.4 23017 699.7 16QAM 1@5 20.4 17.86 0.0611 34.77 PASS 12 1.4 23017 699.7 16QAM 3@0 20.37 17.83 0.0607 34.77 PASS 12 1.4 23017 699.7 16QAM 3@1 20.4 17.86 0.0612 34.77 PASS 12 1.4 23017 699.7 16QAM 3@2 20.33 17.79 0.0602 34.77 PASS 12 1.4 23017 699.7 16QAM 6@0 19.39 16.85 0.0484 34.77 PASS 12 1.4 23095 707.5 QPSK 1@0 21.12 18.58 0.0721 34.77 PASS 12 1.4 23095 707.5 QPSK 1@2 21.15 18.61 0.0726 34.77 PASS 12 1.4 23095 707.5 QPSK 1@5 21.11 18.57 0.072 34.77 PASS 12 1.4 23095 707.5 QPSK 3@0 21.24 18.7 0.0741 34.77 PASS 12 1.4 23095 707.5 QPSK 3@1 21.24 18.7 0.0741 34.77 PASS 12 1.4 23095 707.5 QPSK 3@2 21.23 18.69 0.074 34.77 PASS 12 1.4 23095 707.5 QPSK 6@0 20.31 17.77 0.0598 34.77 PASS 12 1.4 23095 707.5 16QAM 1@0 19.81 17.27 0.0533 34.77 PASS 12 1.4 23095 707.5 16QAM 1@2 19.82 17.28 0.0535 34.77 PASS 12 1.4 23095 707.5 16QAM 1@5 19.82 17.28 0.0535 34.77 PASS 12 1.4 23095 707.5 16QAM 3@0 20.29 17.75 0.0596 34.77 PASS 12 1.4 23095 707.5 16QAM 3@1 20.3 17.76 0.0596 34.77 PASS 12 1.4 23095 707.5 16QAM 3@2 20.26 17.72 0.0591 34.77 PASS 12 1.4 23095 707.5 16QAM 6@0 19.33 16.79 0.0477 34.77 PASS 12 1.4 23173 715.3 QPSK 1@0 21.12 18.58 0.072 34.77 PASS 12 1.4 23173 715.3 QPSK 1@2 21.05 18.51 0.071 34.77 PASS 12 1.4 23173 715.3 QPSK 1@5 21.05 18.51 0.0709 34.77 PASS 12 1.4 23173 715.3 QPSK 3@0 21.17 18.63 0.0729 34.77 PASS 12 1.4 23173 715.3 QPSK 3@1 21.18 18.64 0.0731 34.77 PASS 12 1.4 23173 715.3 QPSK 3@2 21.18 18.64 0.0732 34.77 PASS 12 1.4 23173 715.3 QPSK 6@0 20.22 17.68 0.0586 34.77 PASS 12 1.4 23173 715.3 16QAM 1@0 19.7 17.16 0.052 34.77 PASS 12 1.4 23173 715.3 16QAM 1@2 19.81 17.27 0.0533 34.77 PASS 12 1.4 23173 715.3 16QAM 1@5 19.62 17.08 0.0511 34.77 PASS 12 1.4 23173 715.3 16QAM 3@0 20.16 17.62 0.0578 34.77 PASS 12 1.4 23173 715.3 16QAM 3@1 20.09 17.55 0.0568 34.77 PASS 12 1.4 23173 715.3 16QAM 3@2 20.13 17.59 0.0574 34.77 PASS 12 1.4 23173 715.3 16QAM 6@0 19.11 16.57 0.0454 34.77 PASS 12 3.0 23025 700.5 QPSK 1@0 21.39 18.85 0.0767 34.77 PASS 12 3.0 23025 700.5 QPSK 1@7 21.31 18.77 0.0754 34.77 PASS 12 3.0 23025 700.5 QPSK 1@14 21.26 18.72 0.0745 34.77 PASS 12 3.0 23025 700.5 QPSK 8@0 20.46 17.92 0.0619 34.77 PASS 12 3.0 23025 700.5 QPSK 8@4 20.45 17.91 0.0618 34.77 PASS 12 3.0 23025 700.5 QPSK 8@7 20.31 17.77 0.0599 34.77 PASS 12 3.0 23025 700.5 QPSK 15@0 20.44 17.9 0.0617 34.77 PASS 12 3.0 23025 700.5 16QAM 1@0 20.05 17.51 0.0564 34.77 PASS 12 3.0 23025 700.5 16QAM 1@7 20.0 17.46 0.0557 34.77 PASS 12 3.0 23025 700.5 16QAM 1@14 19.95 17.41 0.0551 34.77 PASS 12 3.0 23025 700.5 16QAM 8@0 19.58 17.04 0.0506 34.77 PASS 12 3.0 23025 700.5 16QAM 8@4 19.54 17.0 0.0501 34.77 PASS 12 3.0 23025 700.5 16QAM 8@7 19.49 16.95 0.0496 34.77 PASS 12 3.0 23025 700.5 16QAM 15@0 19.43 16.89 0.0488 34.77 PASS 12 3.0 23095 707.5 QPSK 1@0 21.38 18.84 0.0765 34.77 PASS 12 3.0 23095 707.5 QPSK 1@7 21.27 18.73 0.0747 34.77 PASS 12 3.0 23095 707.5 QPSK 1@14 21.21 18.67 0.0736 34.77 PASS 12 3.0 23095 707.5 QPSK 8@0 20.23 17.69 0.0588 34.77 PASS 12 3.0 23095 707.5 QPSK 8@4 20.25 17.71 0.059 34.77 PASS 12 3.0 23095 707.5 QPSK 8@7 20.26 17.72 0.0591 34.77 PASS 12 3.0 23095 707.5 QPSK 15@0 20.25 17.71 0.059 34.77 PASS 12 3.0 23095 707.5 16QAM 1@0 20.77 18.23 0.0666 34.77 PASS 12 3.0 23095 707.5 16QAM 1@7 20.63 18.09 0.0644 34.77 PASS 12 3.0 23095 707.5 16QAM 1@14 20.64 18.1 0.0645 34.77 PASS 12 3.0 23095 707.5 16QAM 8@0 19.33 16.79 0.0478 34.77 PASS 12 3.0 23095 707.5 16QAM 8@4 19.34 16.8 0.0479 34.77 PASS 12 3.0 23095 707.5 16QAM 8@7 19.3 16.76 0.0475 34.77 PASS 12 3.0 23095 707.5 16QAM 15@0 19.32 16.78 0.0477 34.77 PASS 12 3.0 23165 714.5 QPSK 1@0 21.15 18.61 0.0726 34.77 PASS Page 3 of 30 12 3.0 23165 714.5 QPSK 1@7 21.15 18.61 0.0727 34.77 PASS 12 3.0 23165 714.5 QPSK 1@14 21.12 18.58 0.0721 34.77 PASS 12 3.0 23165 714.5 QPSK 8@0 20.19 17.65 0.0582 34.77 PASS 12 3.0 23165 714.5 QPSK 8@4 20.15 17.61 0.0577 34.77 PASS 12 3.0 23165 714.5 QPSK 8@7 20.12 17.58 0.0573 34.77 PASS 12 3.0 23165 714.5 QPSK 15@0 20.17 17.63 0.058 34.77 PASS 12 3.0 23165 714.5 16QAM 1@0 20.14 17.6 0.0576 34.77 PASS 12 3.0 23165 714.5 16QAM 1@7 20.2 17.66 0.0583 34.77 PASS 12 3.0 23165 714.5 16QAM 1@14 20.08 17.54 0.0568 34.77 PASS 12 3.0 23165 714.5 16QAM 8@0 19.09 16.55 0.0452 34.77 PASS 12 3.0 23165 714.5 16QAM 8@4 1β¦
Text truncated - open the document above for the full version.
Test Report
Page 30 of 41 16000.0MHz-19000.0MHz Band 7 20MHz/2510.0/Low 16QAM 1@0 19000.0MHz-22000.0MHz Band 7 20MHz/2510.0/Low 16QAM 1@0 22000.0MHz-25000.0MHz Band 7 20MHz/2510.0/Low 16QAM 1@0 25000.0MHz-27000.0MHz Band 7 20MHz/2510.0/Low 16QAM 1@0 30.0MHz-1000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 1000.0MHz-4000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 4000.0MHz-7000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 7000.0MHz-10000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 Page 31 of 41 10000.0MHz-13000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 13000.0MHz-16000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 16000.0MHz-19000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 19000.0MHz-22000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 22000.0MHz-25000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 25000.0MHz-27000.0MHz Band 7 20MHz/2560.0/High QPSK 1@0 30.0MHz-1000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 1000.0MHz-4000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 Page 32 of 41 4000.0MHz-7000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 7000.0MHz-10000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 10000.0MHz-13000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 13000.0MHz-16000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 16000.0MHz-19000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 19000.0MHz-22000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 22000.0MHz-25000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 25000.0MHz-27000.0MHz Band 7 20MHz/2560.0/High 16QAM 1@0 Page 33 of 41 5. Band edge Band Bandwidth (MHz) Channel Freq (MHz) Modulation RB Result Verdict 7 5.0 20775 2502.5 QPSK 1@0 see graph PASS 7 5.0 20775 2502.5 QPSK 1@24 see graph PASS 7 5.0 20775 2502.5 QPSK 25@0 see graph PASS 7 5.0 20775 2502.5 16QAM 1@0 see graph PASS 7 5.0 20775 2502.5 16QAM 1@24 see graph PASS 7 5.0 20775 2502.5 16QAM 25@0 see graph PASS 7 5.0 21425 2567.5 QPSK 1@0 see graph PASS 7 5.0 21425 2567.5 QPSK 1@24 see graph PASS 7 5.0 21425 2567.5 QPSK 25@0 see graph PASS 7 5.0 21425 2567.5 16QAM 1@0 see graph PASS 7 5.0 21425 2567.5 16QAM 1@24 see graph PASS 7 5.0 21425 2567.5 16QAM 25@0 see graph PASS 7 10.0 20800 2505.0 QPSK 1@0 see graph PASS 7 10.0 20800 2505.0 QPSK 1@49 see graph PASS 7 10.0 20800 2505.0 QPSK 50@0 see graph PASS 7 10.0 20800 2505.0 16QAM 1@0 see graph PASS 7 10.0 20800 2505.0 16QAM 1@49 see graph PASS 7 10.0 20800 2505.0 16QAM 50@0 see graph PASS 7 10.0 21400 2565.0 QPSK 1@0 see graph PASS 7 10.0 21400 2565.0 QPSK 1@49 see graph PASS 7 10.0 21400 2565.0 QPSK 50@0 see graph PASS 7 10.0 21400 2565.0 16QAM 1@0 see graph PASS 7 10.0 21400 2565.0 16QAM 1@49 see graph PASS 7 10.0 21400 2565.0 16QAM 50@0 see graph PASS 7 15.0 20825 2507.5 QPSK 1@0 see graph PASS 7 15.0 20825 2507.5 QPSK 1@74 see graph PASS 7 15.0 20825 2507.5 QPSK 75@0 see graph PASS 7 15.0 20825 2507.5 16QAM 1@0 see graph PASS 7 15.0 20825 2507.5 16QAM 1@74 see graph PASS 7 15.0 20825 2507.5 16QAM 75@0 see graph PASS 7 15.0 21375 2562.5 QPSK 1@0 see graph PASS 7 15.0 21375 2562.5 QPSK 1@74 see graph PASS 7 15.0 21375 2562.5 QPSK 75@0 see graph PASS 7 15.0 21375 2562.5 16QAM 1@0 see graph PASS 7 15.0 21375 2562.5 16QAM 1@74 see graph PASS 7 15.0 21375 2562.5 16QAM 75@0 see graph PASS 7 20.0 20850 2510.0 QPSK 1@0 see graph PASS 7 20.0 20850 2510.0 QPSK 1@99 see graph PASS 7 20.0 20850 2510.0 QPSK 100@0 see graph PASS 7 20.0 20850 2510.0 16QAM 1@0 see graph PASS 7 20.0 20850 2510.0 16QAM 1@99 see graph PASS 7 20.0 20850 2510.0 16QAM 100@0 see graph PASS 7 20.0 21350 2560.0 QPSK 1@0 see graph PASS 7 20.0 21350 2560.0 QPSK 1@99 see graph PASS 7 20.0 21350 2560.0 QPSK 100@0 see graph PASS 7 20.0 21350 2560.0 16QAM 1@0 see graph PASS 7 20.0 21350 2560.0 16QAM 1@99 see graph PASS 7 20.0 21350 2560.0 16QAM 100@0 see graph PASS Page 34 of 41 Band 7 5MHz/2502.5/Low QPSK 1@0 Band 7 5MHz/2502.5/Low QPSK 1@24 Band 7 5MHz/2502.5/Low QPSK 25@0 Band 7 5MHz/2502.5/Low 16QAM 1@0 Band 7 5MHz/2502.5/Low 16QAM 1@24 Band 7 5MHz/2502.5/Low 16QAM 25@0 / Band 7 5MHz/2502.5/Low 64QAM 25@0 Band 7 5MHz/2567.5/High QPSK 1@0 Page 35 of 41 Band 7 5MHz/2567.5/High QPSK 1@24 Band 7 5MHz/2567.5/High QPSK 25@0 Band 7 5MHz/2567.5/High 16QAM 1@0 Band 7 5MHz/2567.5/High 16QAM 1@24 / Band 7 5MHz/2567.5/High 16QAM 25@0 Band 7 5MHz/2567.5/High 64QAM 25@0 Band 7 10MHz/2505.0/Low QPSK 1@0 Band 7 10MHz/2505.0/Low QPSK 1@49 Page 36 of 41 Band 7 10MHz/2505.0/Low QPSK 50@0 Band 7 10MHz/2505.0/Low 16QAM 1@0 Band 7 10MHz/2505.0/Low 16QAM 1@49 Band 7 10MHz/2505.0/Low 16QAM 50@0 / Band 7 10MHz/2505.0/Low 64QAM 50@0 Band 7 10MHz/2565.0/High QPSK 1@0 Band 7 10MHz/2565.0/High QPSK 1@49 Band 7 10MHz/2565.0/High QPSK 50@0 Page 37 of 41 Band 7 10MHz/2565.0/High 16QAM 1@0 Band 7 10MHz/2565.0/High 16QAM 1@49 / Band 7 10MHz/2565.0/High 16QAM 50@0 Band 7 10MHz/2565.0/High 64QAM 50@0 Band 7 15MHz/2507.5/Low QPSK 1@0 Band 7 15MHz/2507.5/Low QPSK 1@74 Band 7 15MHz/2507.5/Low QPSK 75@0 Band 7 15MHz/2507.5/Low 16QAM 1@0 Page 38 of 41 Band 7 15MHz/2507.5/Low 16QAM 1@74 Band 7 15MHz/2507.5/Low 16QAM 75@0 / Band 7 15MHz/2507.5/Low 64QAM 75@0 Band 7 15MHz/2562.5/High QPSK 1@0 Band 7 15MHz/2562.5/High QPSK 1@74 Band 7 15MHz/2562.5/High QPSK 75@0 Band 7 15MHz/2562.5/High 16QAM 1@0 Band 7 15MHz/2562.5/High 16QAM 1@74 Page 39 of 41 / Band 7 15MHz/2562.5/High 16QAM 75@0 Band 7 15β¦
Text truncated - open the document above for the full version.
