2BTO3-XC-WXC-QR001Embedded wireless charging

Embedded wireless charging 1.产品介绍Product Introduction 本产品是一款智能手机无线充电器，与QI标准的手机设备兼容，及时对手机进行无线 充电功能。 时尚外观设计，优美设计，宛如艺术品设计。 This product is a smartphone wireless charger, compatible with Qi-standard mobile devices, providing instant wireless charging. Featuring a stylish and elegant design, it resembles a work of art. 2. Product Specification 产品规格 Product Name: Embedded wireless charging Product Model: xc-wxc-qr001 Input：DC 5V/9V Otput Power：5W/7.5W/10W/15W Turning Distance：≤8mm Frequency:110~205KHZ Interface: Type-C Input Current: 9V / 3A Turning Distance:s 8mm 3.Accessories List 配件清单 Wireless charger * 1, Type-C cable* 1, Product manual*1 4.使用步骤Use Steps 1. Please connect the product to the 9V / 3A charging adapter throughthe Type-C interface and turn on the power. 2. Place your mobile phone, watch and earphone in the designatedcharging area to start charging. 5. Safety precautiOnS (please read it carefully and strictly abide by it) 注意事项 1. Keep the charger away from water or other liquids. 2. In order to ensure the maximum performance of the charger, please make sure touse the 9V /3A charging adapter for charging. 3. Do not disassemble parts without permission, which may cause product failure ordamage. 4. When using USB wiring, please pay attention to the wire position to avoid tripping. 5. Forcibly or violently pulling the USB power cable may cause wire damage. Pleasecontrol the plug to unplug. 6.Cleaning and maintenance 清洁与保养 1. Clean the cooling holes regularly to avoid blockage. 2. Clean the surface dirt with a soft cloth dipped with diluted neutral detergent, and thenwipe it dry with a dry cloth. 3. Do not expose the product to open fire or sunlight to avoid body deformation. 4. The ambient temperature shall be kept between 0-45 ° C. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.

Zhangzhou Xuchen Electronic Technology Co., Ltd. Building 8, No. 16, Jinhua Road, Jinfeng Industrial Development Zone, Xiangcheng District, Zhangzhou City, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/16 U.S. Agent Designation Zhangzhou Xuchen Electronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BTO3-XC-WXC-QR001): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Zhangzhou Xuchen Electronic Technology Co., Ltd. Zhangzhou Xuchen Electronic Technology Co., Ltd. with the FRN [0037751716] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Baoquan Zhuang Manager Zhangzhou Xuchen Electronic Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

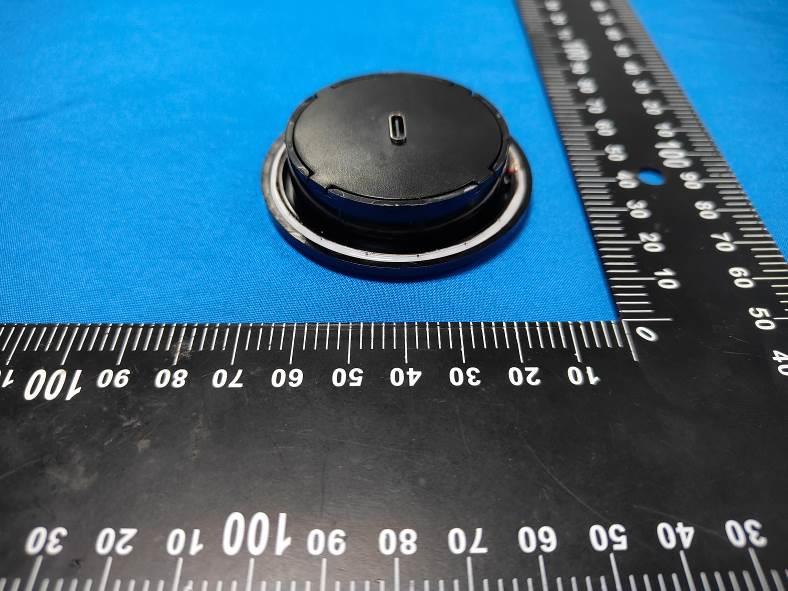

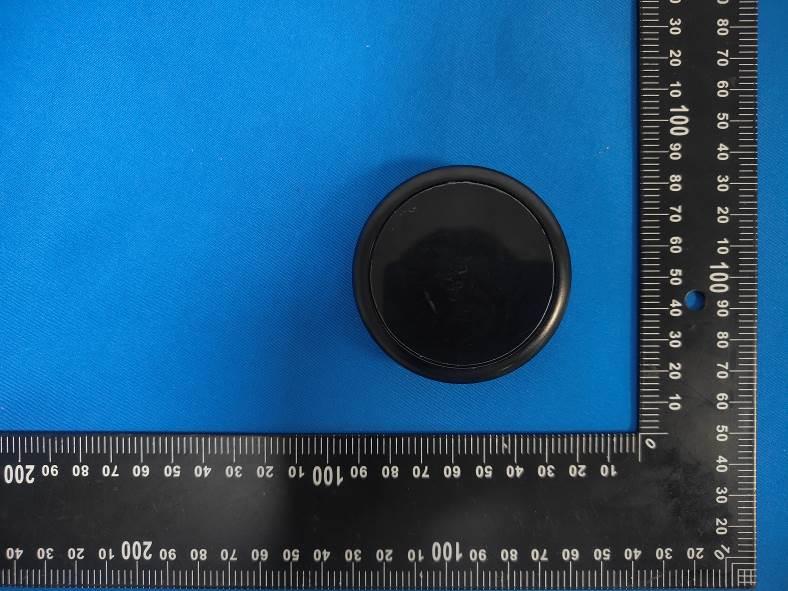

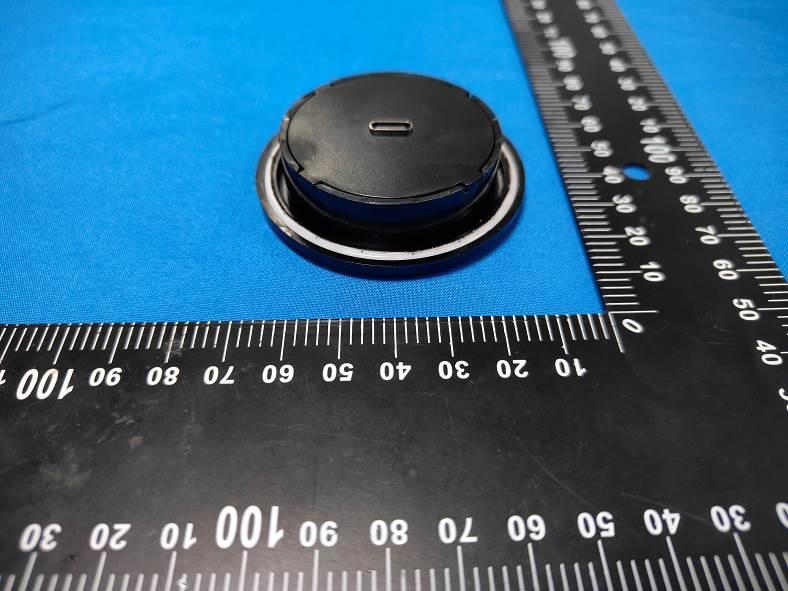

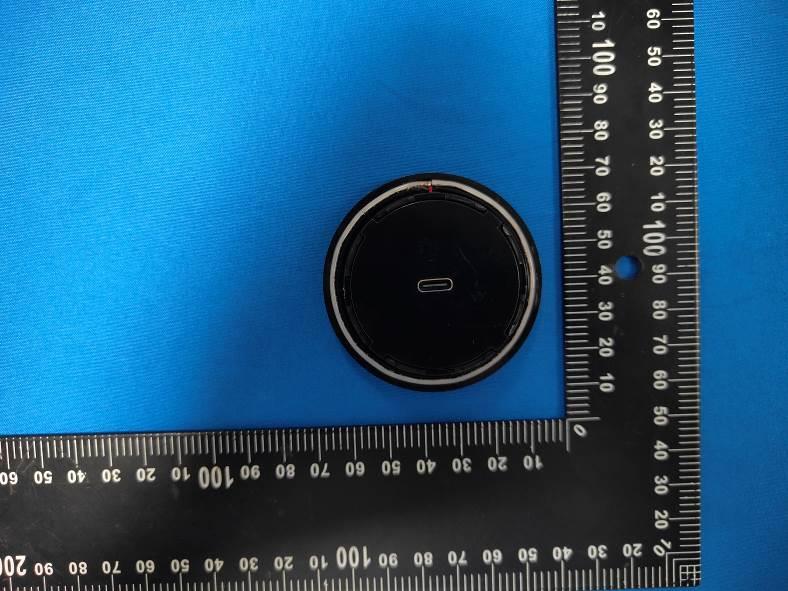

FCC: 2BTO3-XC-WXC-QR001 External Photos of the EUT xc-wxc-qr001 FCC: 2BTO3-XC-WXC-QR001 FCC: 2BTO3-XC-WXC-QR001 xc-wxc-qr002 FCC: 2BTO3-XC-WXC-QR001 FCC: 2BTO3-XC-WXC-QR001

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID: 2BTO3-XC-WXC-QR001

FCC: 2BTO3-XC-WXC-QR001 Internal Photos of the EUT xc-wxc-qr001 FCC: 2BTO3-XC-WXC-QR001 Coil Antenna FCC: 2BTO3-XC-WXC-QR001 FCC: 2BTO3-XC-WXC-QR001 xc-wxc-qr002 FCC: 2BTO3-XC-WXC-QR001 Coil Antenna FCC: 2BTO3-XC-WXC-QR001

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure-WPT Report Reference No. .................... : FCC ID. ........................................... : CTA25101101402 2BTO3-XC-WXC-QR001 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 17, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Zhangzhou Xuchen Electronic Technology Co., Ltd. Address ........................................... : Building 8, No. 16, Jinhua Road, Jinfeng Industrial Development Zone, Xiangcheng District, Zhangzhou City, China Test specification ........................... : FCC CFR 47 PART 1, § 1.1310 Standard ........................................... : KDB 680106 D01 Wireless Power Transfer v04 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Embedded wireless charging Manufacturer .................................... : Zhangzhou Xuchen Electronic Technology Co., Ltd. Trade Mark ....................................... : N/A Model/Type reference ...................... : xc-wxc-qr001 Listed Models .................................. : xc-wxc-qr002 Rating ............................................... : Input: DC 5V 2A, 9V 2A Wireless Output: 5W/7.5W/10W/15W Result ............................................... : PASS Report No.: CTA25101101402 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Embedded wireless charging Model /Type : xc-wxc-qr001 Listed Models : xc-wxc-qr002 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and appearance are different for these model. Applicant : Zhangzhou Xuchen Electronic Technology Co., Ltd. Address : Building 8, No. 16, Jinhua Road, Jinfeng Industrial Development Zone, Xiangcheng District, Zhangzhou City, China Manufacturer : Zhangzhou Xuchen Electronic Technology Co., Ltd. Address : Building 8, No. 16, Jinhua Road, Jinfeng Industrial Development Zone, Xiangcheng District, Zhangzhou City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101101402 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Description of the test mode .................................................................................... 5 2.4 Special Accessories ................................................................................................. 5 2.5 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 3.4 Equipments Used during the Test ........................................................................... 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Test setup ................................................................................................................ 8 4.3 Test Procedures....................................................................................................... 9 4.4 Equipment Approval Considerations of KDB 680106 D01v04 .................…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Loop coil antenna Model xc-wxc-qr001 Frequency range 110KHz - 205KHz Manufacturer Zhangzhou Xuchen Electronic Technology Co., Ltd. Address Building 8, No. 16, Jinhua Road, Jinfeng Industrial Development Zone, Xiangcheng District, Zhangzhou City, China ANT Peak Gain 0dBi 2. Antenna Photo: We statement that All measurements were performed radiated and therefore additional antenna gain documentation is not required.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. ..................... : FCC ID............................................. : CTA25101101401 2BTO3-XC-WXC-QR001 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 17, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Zhangzhou Xuchen Electronic Technology Co., Ltd. Address............................................ : Building 8, No. 16, Jinhua Road, Jinfeng Industrial Development Zone, Xiangcheng District, Zhangzhou City, China Test specification ........................... : Standard ........................................... : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a- 2024 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Embedded wireless charging Trade Mark ....................................... : N/A Manufacturer .................................... : Zhangzhou Xuchen Electronic Technology Co., Ltd. Model/Type reference ...................... : xc-wxc-qr001 Listed Models .................................. : xc-wxc-qr002 Modulation Type ............................... : ASK Operation Frequency ........................ : From 110KHz~205KHz Rating ............................................... : Input: DC 5V 2A, 9V 2A Wireless Output: 5W/7.5W/10W/15W Result ............................................... : PASS Report No.: CTA25101101401 Page 2 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Embedded wireless charging Model /Type : xc-wxc-qr001 Listed Models : xc-wxc-qr002 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and appearance are different for these model. Applicant : Zhangzhou Xuchen Electronic Technology Co., Ltd. Address : Building 8, No. 16, Jinhua Road, Jinfeng Industrial Development Zone, Xiangcheng District, Zhangzhou City, China Manufacturer : Zhangzhou Xuchen Electronic Technology Co., Ltd. Address : Building 8, No. 16, Jinhua Road, Jinfeng Industrial Development Zone, Xiangcheng District, Zhangzhou City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101101401 Page 3 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Description of the test mode 5 2.4 Special Accessories 5 2.5 Modifications 5 3 T E S T E N V I R O N M E N T ............................................................... 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Environmental conditions 6 3.4 Summary of measurement results 7 3.5 Statement of the measurement uncertainty 7 3.6 Equipments Used during the Test 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................. 9 4.1 AC Power Conducted Emission 9 4.2 Radiated Emission 12 4.3 The 20dB bandwidth 17 4.4 Antenna Requirement 18 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 19 6 PH O T O S O F T H E E U T ............................................................. 20 Report No.: CTA25101101401 Page 4 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C (Section 15.207): Conducted limits. FCC Rules and Regulations Part 15 Subpart C (Section 15.209): Radiated emission limits; general requirements. ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA25101101401 Page 5 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an Distri…

Text truncated - open the document above for the full version.

FCC: 2BTO3-XC-WXC-QR001 Test Setup Photos of the EUT
