2BTO7-N8PROFoldable LED Table Lamp

Multifunctional LED DESK LAMP User Manual Multifunctional LED DESK LAMP User Manual Foldable LED Table Lamp N8 Pro+ This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. -This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

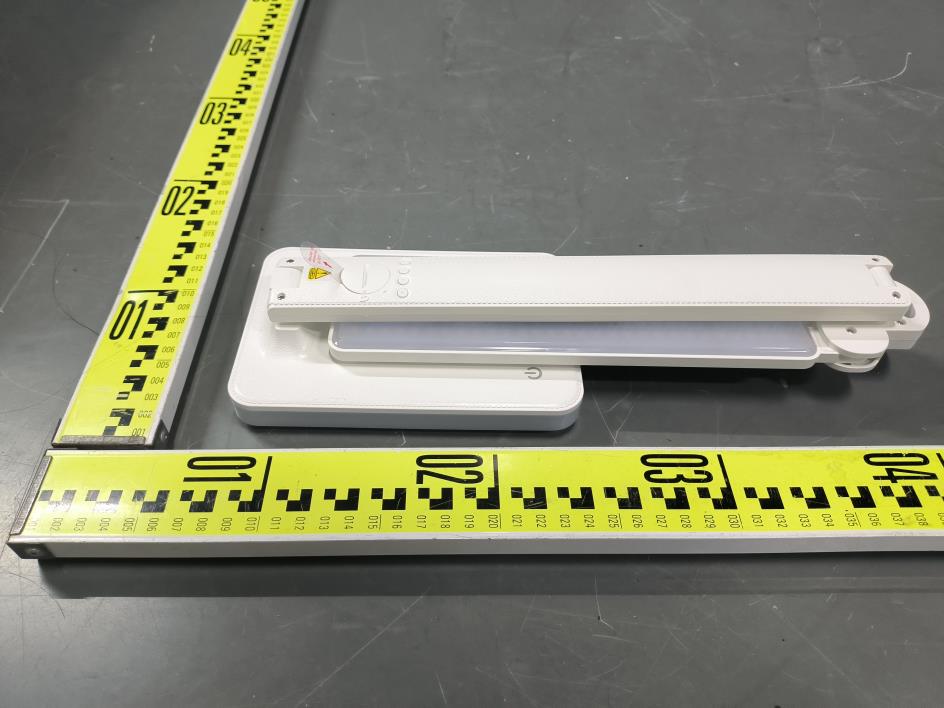

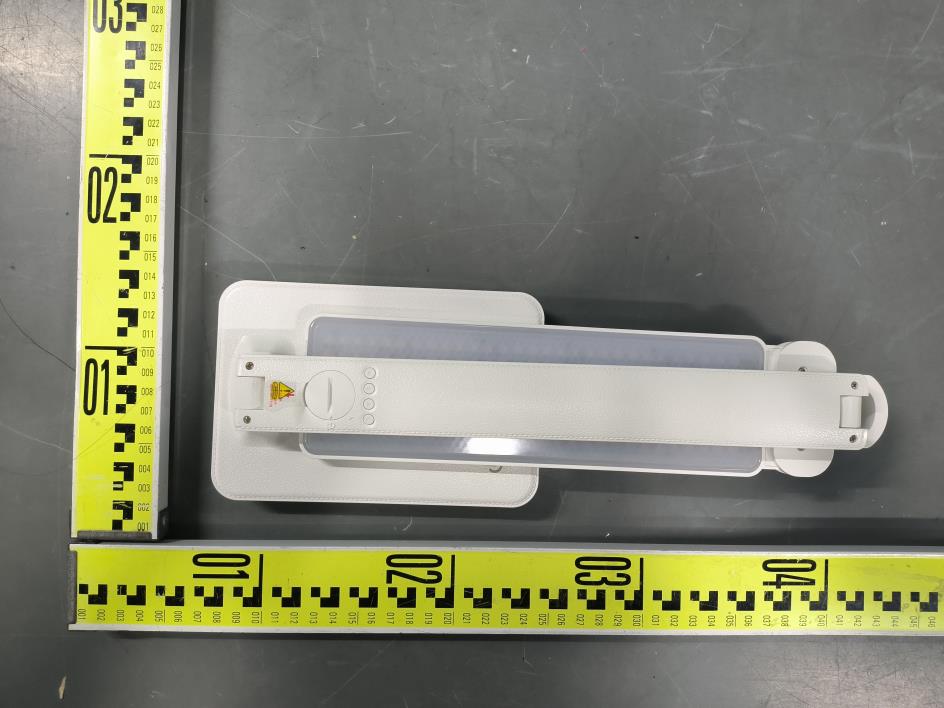

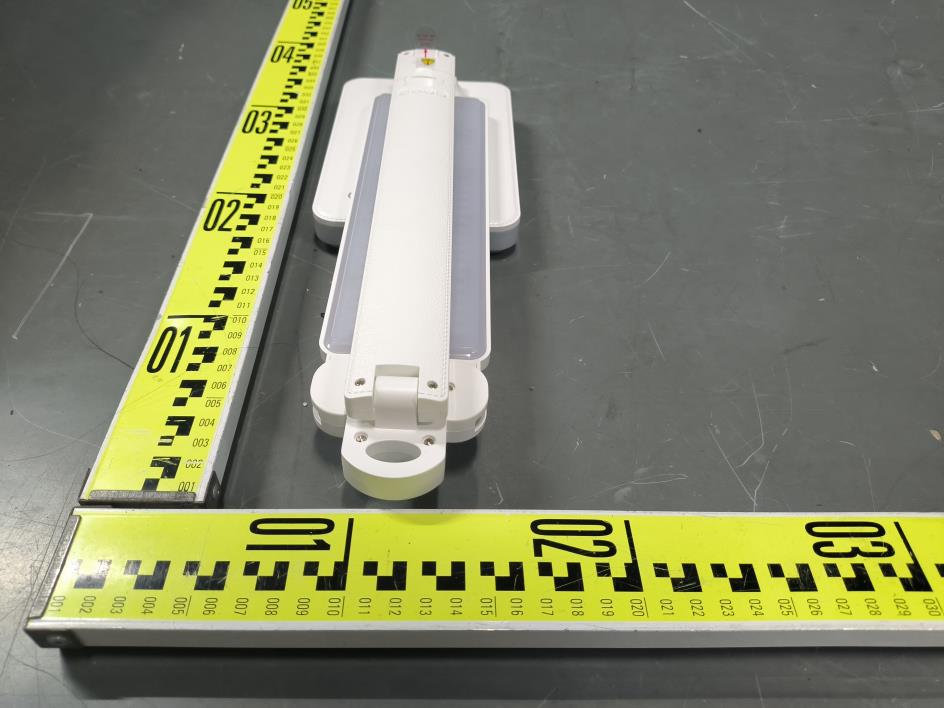

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

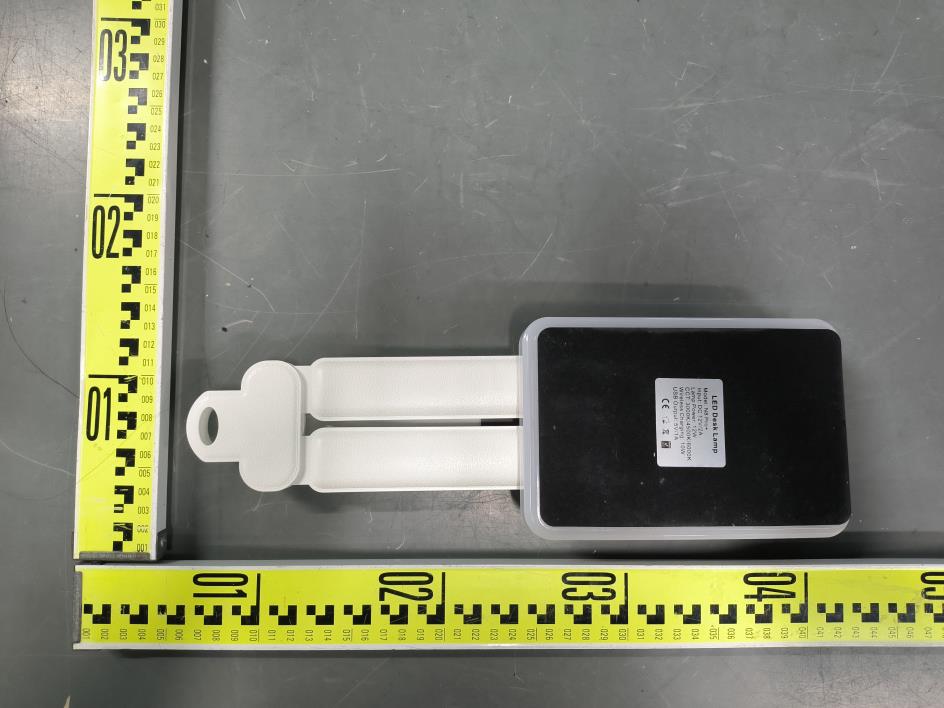

Size: 40*30mm M/N: N8 Pro+ FCC ID: 2BTO7-N8PRO Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. ANT Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

RF Exposure Evaluation FCC ID: 2BTO7-N8PRO Product: Foldable LED Table Lamp Trade Mark: N/A Model No.: N8 Pro+, N8 Pro, N7 Pro, N6 Pro, N5 Pro Model Difference: All models are same as the samples except model name and appearance color, they have the same structure and circuit. Transmitting mode Keep the EUT in continuously wireless charging mode Power supply: Input: DC12V/2A Wireless charging: 10W Adapter: Manufacturer: SHENZHEN WENHANG TECHNOLOGY CO.,LTD Model: WH030A-1202000U Input: 100-240V50/60Hz 0.8A Max Output: 12V2000mA 24W Date of Receipt: Dec. 04, 2025 Test Date: Dec. 04, 2025 - Dec. 13, 2025 Date of Report: Dec. 13, 2025 Mode1. Wireless Phone Output Mode(10W) Note: 1. We have evaluated 1%, 50% and 99% battery charging mode, and the worst mode (99%) is showed in this report. 1 Measuring Standard According to Part 2.1091 RF exposure is calculated. According KDB 680106 D01 WirelessPower Transfer v04. 2 Requirements ①According to the item 5 of KDB 680106 v04: ②Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. Yes; the device operate in the frequency range from 115 KHz to 205 KHz (2) Output power from each primary coil is less than or equal to 15 watts. Yes; the maximum output power of the primary coil is 15W. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. Yes; the transfer system includes only one primary coils. (4) Client device is placed directly in contact with the transmitter. Yes; Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, mobile exposure conditions only. (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away Yes, see test result in item 9. 3 Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) 4 Test Setup 5 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (20 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 v04. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 6 Description of Support Units Mobile phone (Provide by test lab): Manufacturer: SAMSUNG Model: Galaxy S21 5G 7 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 Oct. 25, 2025 Oct. 24, 2026 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 Oct. 25, 2025 Oct. 24, 2026 Field Probe ETS HI-6105 / Oct. 25, 2025 Oct. 24, 2026 Laser Data Interface ETS HI-6113 / Oct. 25, 2025 Oct. 24, 2026 8 Test Uncertainty E-Filed Strength(1Hz-400kHz) : ±0.08V/m H-Filed Strength(1Hz-400kHz) : ±0.02A/m uT : ±0.01 Note: The field intensity value A/m in the report is converted from uT, and the formula is as follows: 9 Test Result E-Filed Strength at 20 cm from the edges surrounding the EUT Frequency Range (MHz) Test Position A (V/m) Test Position B (V/m) Test Position C (V/m) Test Position D (V/m) Test Position E (V/m) Limits (V/m) 0.115-0.205 0.12 0.16 0.15 0.11 0.13 614 H-Filed Strength at 20 cm from the edges surrounding the EUT (uT) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E 0.115-0.205 0.536 0.641 0.625 0.633 0.658 Frequency Range (MHz) Test Position A (A/m) Test Position B (A/m) Test Position C (A/m) Test Position D (A/m) Test Position E (A/m) Limits (A/m) 0.115-0.205 0.429 0.513 0.500 0.506 0.526 1.63 10 Test Set-up Photo

SPECIFICATION FOR APPROVAL ■Product Apperance & Dimensions (Unit: mm) (Note: The picture is for reference only, the product is subject to the actual.) ■Product Electrical characteristics Parameter： Value Product name： Wireless charging coil module Product number： L5010A11-47KTY（PLGGOH） Ferrite type： Φ50*Φ5.3*0.8mm Coil type： 0.15*24P Coil Turns： 10TS Coil direction: CCW Inductance： 6.3μH ±10% Q Value： 20 (Min.) Testing Instrument： TH2816B @100kHz、1Vrms；TH2512B At 25°C Note： ■Contact Us For More Information。

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251204043R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 17 TEST REPORT FCC ID: 2BTO7-N8PRO Applicant: Nan'an Zhange Trading Co., Ltd. Address: 45 Houzhou, Genei Village Meishan Town, Nanan City Fujian Province 362321 Manufacturer: ZHONGSHAN NTF TECHNOLOGY CO.,LTD. Address: Floor 6, Building 3, No.27, YiHui ErLu, WuSha Industrial Park, HengLan, ZhongShan, China Product Name: Foldable LED Table Lamp Trade Mark: N/A Model Number: N8 Pro+, N8 Pro, N7 Pro, N6 Pro, N5 Pro Date of Receipt: Dec. 04, 2025 Test Date: Dec. 04, 2025 - Dec. 23, 2025 Date of Report: Dec. 23, 2025 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 Subpart C ANSI C63.10:2020 Test Result: Pass Report Number: DLE-251204043R Prepared (Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251204043R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 17 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ................................................................................................................................... 3 2. TEST SUMMARY ..................................................................................................................... 3 3. GENERAL INFORMATION .................................................................................................... 4 4. TEST INSTRUMENT USED ................................................................................................... 5 5. CONDUCTED EMISSION TEST ........................................................................................... 6 6. RADIATION EMISSION TEST ............................................................................................ 10 7. BANDWIDTH TEST ............................................................................................................... 16 8. ANTENNA REQUIREMENT ................................................................................................ 17 9. SETUP PHOTOGRAPHS ..................................................................................................... 17 10. EUT PHOTOGRAPHS ....................................................................................................... 17 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251204043R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 17 1. VERSION Version No. Date Description 00 Dec. 13, 2025 Original 2. TEST SUMMARY EMC Emission Test Item Section in CFR 47 Result Remark AC Power Line Conducted Emission 15.207 PASS Spurious Emission 15.209(a)(f) PASS 20dB Bandwidth 15.215 PASS Antenna requirement 15.203 PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test Lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251204043R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 17 3. GENERAL INFORMATION 3.1 Description of Device (EUT) Product Name: Foldable LED Table Lamp Trade Mark: N/A Model Number: N8 Pro+, N8 Pro, N7 Pro, N6 Pro, N5 Pro Test Model: N8 Pro+ Model Difference: All models are same as the samples except model name and appearance color, they have the same structure and circuit. Serial No.: N/A Hardware version: H1.0 Software version: S1.0 Operation Frequency: 115kHz ~ 205KHz Modulation type: MSK Antenna Type: Inductive loop coil Antenna Antenna gain: 0dBi Power supply: Input: DC12V/2A Wireless charging: 10W Adapter: Manufacturer: SHENZHEN WENHANG TECHNOLOGY CO.,LTD Model: WH030A-1202000U Input: 100-240V50/60Hz 0.8A Max Output: 12V2000mA 24W 3.2 Tested System Details None. 3.3 Block Diagram of Test Set-up 3.4 Test Mode Description Mode1. Wireless Phone Output Mode(10W) Note: 1. We have evaluated 1%, 50% and 99% battery charging mode, and the worst mode (99%) is showed in this report. 3.5 Test Auxiliary Equipment Mobile phone (Provide by test lab): Manufacturer: SAMSUNG Model: Galaxy S21 5G 3.6 Test Uncertainty Conducted Emission Uncertainty(150KHz-30MHz) : ±2.56dB 20dB Bandwidth : ±0.5kHz Radiated Emission Uncertainty(9KHz-1GHz) : ±3.24dB AC Mains EUT Adapter Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251204043R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 17 4. TEST INSTRUMENT USED For Conducted Emission Test (843 Shielded Room) Equipment Manufacturer Model Serial Last Cal. Next Cal. 843 Shielded Room YIHENG 843 Room 843 Nov. 05, 2023 Nov. 04, 2026 EMI Receiver R&S ESR 101421 Oct. 25, 2025 Oct. 24, 2026 LISN R&S ENV216 102417 Oct. 25, 2025 Oct. 24, 2026 Clamp COM-POWER CLA-050 431071 Oct. 25, 2025 Oct. 24, 2026 3-Loop Antenna DAZE ZN30401 13021 Oct. 25, 2025 Oct. 24, 2026 ISN T8 Schwarzbeck NTFM 8158 101135 Oct. 25, 2025 Oct. 24, 2026 ISN T5 Schwarzbeck NTFM 8158 101136 Oct. 25, 2025 Oct. 24, 2026 843 Cable 1# ChengYu CE Cable 001 Oct. 25, 2025 Oct. 24, 2026 843 Cable 1# ChengYu CE Cable 002 Oct. 25, 2025 Oct. 24, 2026 For Radiated Emission Test (966 chamber) Equipment Manufacturer Model Serial Last Cal. Next Cal. 966 Chamber YIHENG 966 Room 966 Nov. 05, 202…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Emission Photos ※※※※※ END OF REPORT ※※※※※
