2BTOD-P700ADIBO Smart Pickleball Pitching Machine

ADIBO TECHNOLOGY CO.,LIMITED (December 18, 2025) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BTOD-P700 [ADIBO TECHNOLOGY CO.,LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Yehua Qin ADIBO TECHNOLOGY CO.,LIMITED (December 18, 2025) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BTOD-P700 [ADIBO TECHNOLOGY CO.,LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Yehua Qin

ADIBO TECHNOLOGY CO.,LIMITED Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 [December 19, 2025] U.S. Agent Designation [ADIBO TECHNOLOGY CO.,LIMITED] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought FCC ID: 2BTOD-P700 Name and company of U.S. agent: [GLOCERTS TECHNOLOGY INC] Physical U.S. address of agent: [19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507] FRN of U.S. agent: [0036339737] Email address of U.S. agent: [[email protected]] Telephone of U.S.agent: (626) 588-8039 [GLOCERTS TECHNOLOGY INC] acknowledges their obligation to accept service of process on behalf of [ADIBO TECHNOLOGY CO.,LIMITED]. [ADIBO TECHNOLOGY CO.,LIMITED] with the FRN [0037750676] accepts its obligation to maintain an agent for service of process in the United States for no less than 1 year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Signature [Yehua Qin] [Huiying Fan] [Quality Manager] [Director] [ADIBO TECHNOLOGY CO.,LIMITED] [GLOCERTS TECHNOLOGY INC]

ADIBO TECHNOLOGY CO.,LIMITED (December 18, 2025) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (ADIBO Smart Pickleball Pitching Machine / P700 / FCC ID: 2BTOD-P700) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Yehua Qin Title: Quality Manager

ADIBO TECHNOLOGY CO.,LIMITED (December 18, 2025) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Yehua Qin Title: Quality Manager

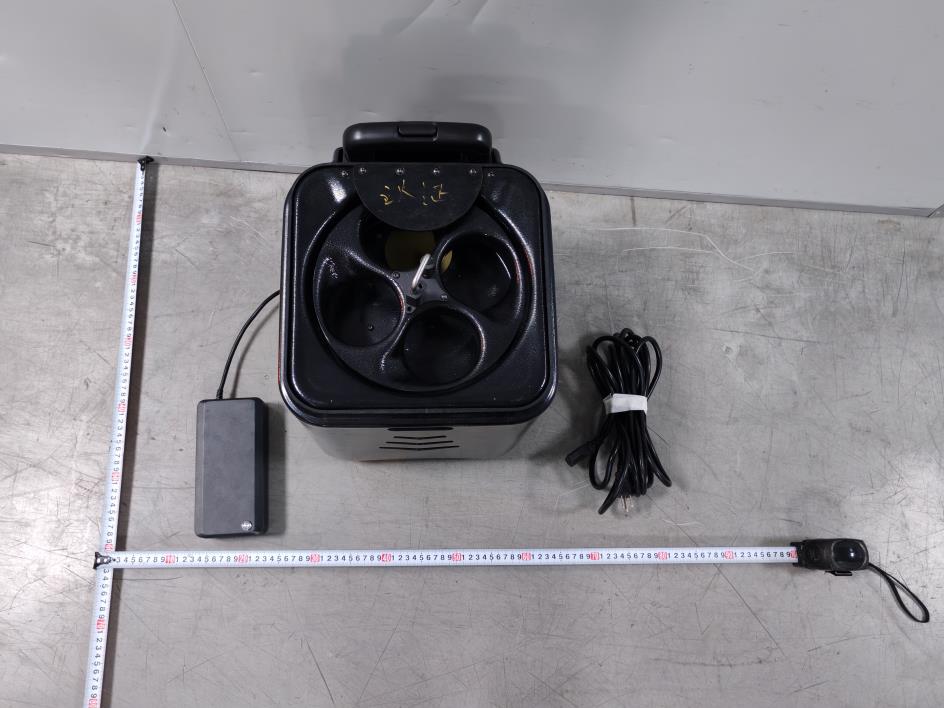

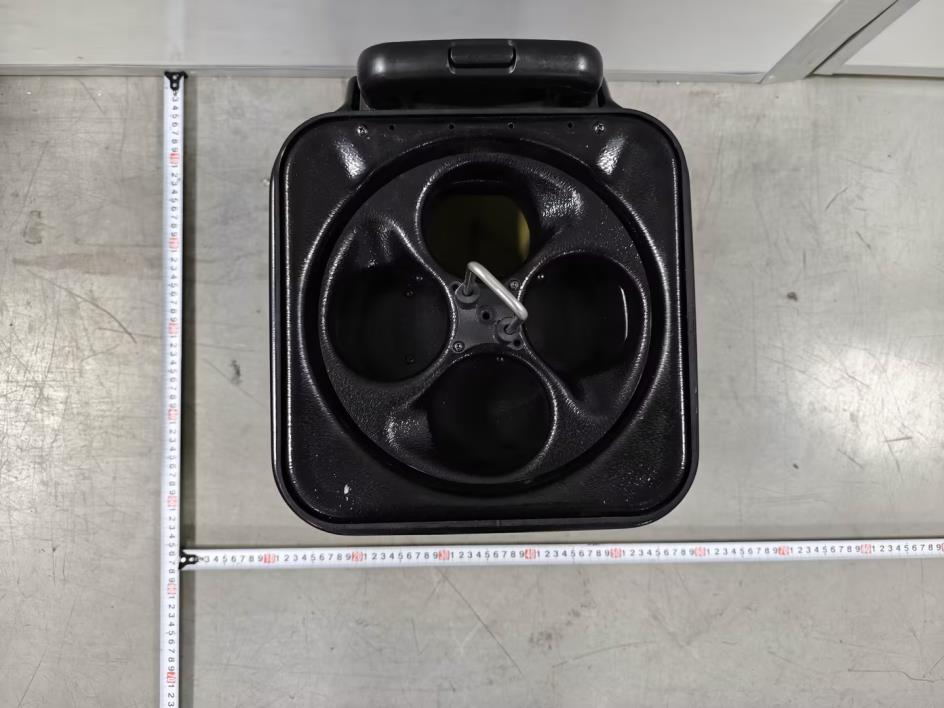

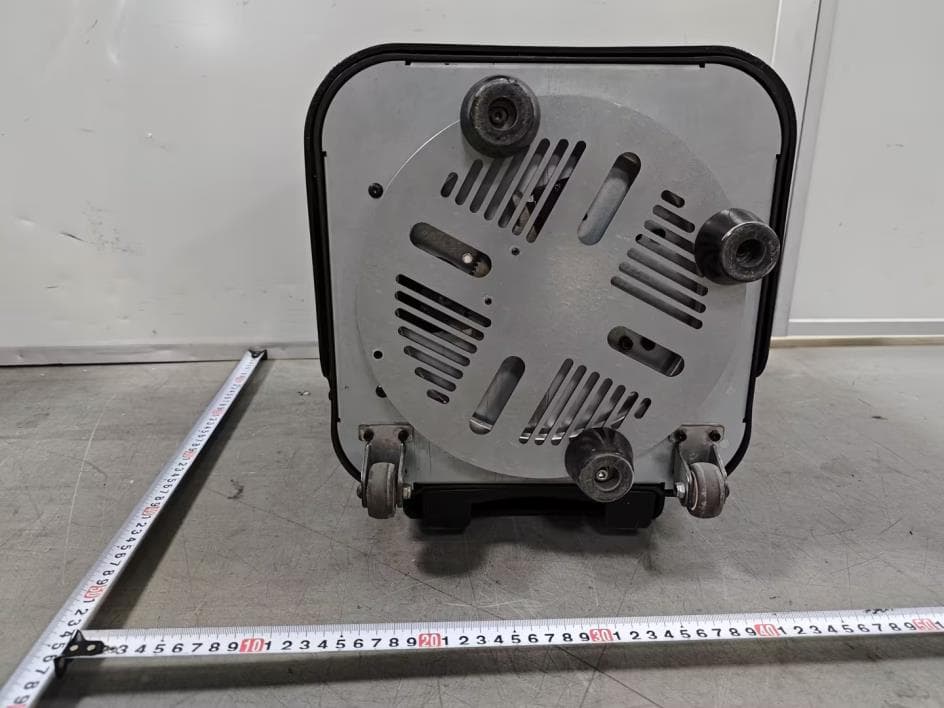

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: P700 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

FCC ID LABEL: Label Location: FCC ID: 2BTOD-P700 Model No.: P700 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device mus y interference received, including interference that may cause undesired operation.t accept an

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BTOD-P700 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BLE GFSK& MCH 0±1 1 1.2589 2.1330 (3.29dBi) 0.0005 1 Pass

2.4G黑色胶棒天线 型号: BW2.4JWX110-10KK 描述: 2.4G黑色胶棒天线 SMA内螺内孔接口 特性: 2400-2500MHz频率范围 SMA内螺内孔接口 结构: 可折叠 360º全向辐射 尺寸: 108mm x ⌀10mm 符合 RoHS & REACH 规定 天线规格书 蝙蝠无线 BAT WIRELESS 1 / 12 Antenna Datasheet www.batwireless.cn 目 录 July-1-2025-A01 2 / 13 蝙蝠无线 BAT WIRELESS www.batwireless.cn 1. 产品描述3 2. 产品规格4 3. 实物图5 4. 尺寸图6 5. 测试设备7-8 6. 性能数据9-10 6.1 电压驻波比9 6.2 回波损耗9 6.3 增益10 6.4 效率10 6.5 天线增益与效率10 7. 辐射模式图11-12 7.1 2D辐射模式图11 7.2 3D辐射模式图12 法律声明： 本着为用户提供更好服务的原则，深圳市蝙蝠无线技术有限公司（下称“蝙蝠无线”）在本手册中将尽可能地为用户 呈现详 实、准确的产品信息。但介于本手册的内容具有一定的时效性，蝙蝠无线不能完全保证该文档在任何时段的时效性与适 用性。 蝙蝠无线有权在没有通知的情况下对本手册上的内容进行更新，恕不另行通知。为了得到最新版本的信息，请尊敬的 用户定时 访问蝙蝠无线官方网站或者与蝙蝠无线工作人员联系。感谢您的包容与支持！ 版权声明：本产品手册所有内容（包括文字、图表、标识及设计）均受著作权法及国际版权条约保护。任何单位和个人未经我 司事先书面授权，不得以任何形式（包括电子、机械、影印等）复制、修改、传播、分发和使用本手册全部或部分内容。侵权 者将承担相应法律责任。保留所有权利。 商标声明：本手册中出现涉及到蝙蝠无线商品名称及企业标识均属我公司（含关联公司）合法所有。严禁任何未经授权的使用、 复制或仿冒行为。手册引用的第三方商标权利归相应权利人所有，其使用仅作说明目的，不构成商业关联或授权暗示。我公司 保留追究侵权法律责任的一切权利。 免责声明：本手册所载产品信息仅供参考，产品实际性能可能因使用环境、配置差异而有所不同。本公司不对手册内容的准确 性、完整性或适用性作任何明示或默示保证，亦不承担因使用或无法使用本手册内容而产生的直接或间接损失。用户应自行评 估产品适用性并遵循实际操作规范。最终解释权归本公司所有。 经典应用场景： 工业4.0：数控机床实时监控 智慧医疗：手术机器人控制 智能交通：轨道接触网监测 能源物联网：变电站巡检机器人 蝙蝠无线BW2.4JWX110-10KK是一款高性能全向天线，这种兼具高性能与便携性的天线，专为需要频繁移动或临时组网 的设备设计，采用优质塑胶外壳，可折叠，具备出色的信号接收与发射能力，为设备连接提供稳定可靠的支持。其紧凑轻便的 胶棒造型设计，易于安装和运输携带。 1. 产品描述 / Description www.batwireless.cn July-1-2025-A01 蝙蝠无线提供定制化服务以优化您的设备，我们拥有成熟的研发团队，能够迅速响应以满足您的需求。如果您有任何要 求，请联系我们的销售和 FAE。 3 / 12 零件编号说明 BW 公司 / Company 蝙蝠无线 / Bat Wireless 2.4 频段 / Frequency 2400-2500MHz / 2400-2500MHz J 名称 / Name 胶棒 / Rubber Antenna W 类型 / Type 外置 / External X 常数 / Constant X / X 110-10 大概尺寸 / Approximate Dimensions 110-10mm / 110-10mm K 特点 / Feature 可折叠 / Foldable K接口 / Connector SMA内螺内孔 / SMA Female BW2.4JWX110-10KK 蝙蝠无线 BAT WIRELESS 参数 / Parameters 典型值 / Typ.单位 / Unites 备注 / Notes 类型 / Antenna Type胶棒天线 / Rubber Antenna 频率 / Frequency Range2400-2500MHz 输入阻抗 / Input Impendence 50 Ω 驻波比 / V.S.W.R <1.5 增益 / Gain 3.3 dBi 极化方式 / Polarization Type垂直 / Vertical 功率容量 / Power Capacity 50W 雷电保护 / Lightning Protection - 工作电压 / DC Voltage -V 辐射体 / Radiator - 尺寸 / Dimensions 108 x ⌀10 mm 接口形式 / Connector Type SMA内螺内孔 / SMA Female 电缆型号 / Cable Type - 电缆长度 / Cable Length - mm 安装方式 / Mount way 旋拧 颜色 / Color黑色 材料 / Meterial ABS 重量 / Weight - g 防护等级 / Waterproof Rating - ROHS标准 / ROHS Complaint 符合 工作温度 / Operating Temperature -45~ +85 °C 存储温度 / Storage Temperature -45~ +85 °C 2. . 产品规格 / Specification www.batwireless.cn July-1-2025-A01 电气特性 / Electrical Characteristics 机械特性 / Mechanical Characteristics 环境特性 / Environmental Characteristics 4 / 12 蝙蝠无线 BAT WIRELESS 3. . 实物图 / Dimensions www.batwireless.cn July-1-2025-A01 5/ 12 蝙蝠无线 BAT WIRELESS 4. . 尺寸图 / Mechanical Drawing www.batwireless.cn July-1-2025-A01 6 / 13 蝙蝠无线 BAT WIRELESS Testing Capability / 测试能力 Description / 能力描述 Active measurement 有源测试 Capability /测试指标: TRP 、TIS 、EIRP 、EIS,. etc Mode /测试制式: 2G/3G/4G/5G 、Wi-Fi b/g/n/a/ac/ax 、BT 、NB-IOT 、 Cat-M(eMTC) 、GPS/BEIDOU/GLONASS 、ZigBee 、LoRa(Non- Signaling),.etc Pasive measurement 无源测试 Test category /测试类型: Gain 、Efficiency 、2D pattern 、3D pattern 、 Pattern roundness、Axial Ratio, ECC,Phase center,. etc Polarization /极化方式: Circular polarization, linear polarization, elliptical polarization DT-3500 Datasheet / 系统规格 Specification:Description Test Frequency /测试频域: 400MHz-8.5GMHz System Size /系统尺寸: L*W*H=4*3.5*3.5m Number of Probes /探头数目:23 (Probe) + 1 (link) Interval Angle /采样夹脚: 15º Sampling Diameter /采样直径: 2200mm Carring Capacity /承载能力: ≦40kg 5. . 测试设备 / Test Equipment Keysight/E5071C 网络分析仪 R&S/CMW500 综测仪 R&S/SMBV100B 信号源 www.batwireless.cn July-1-2025-A01 7 / 13 蝙蝠无线 BAT WIRELESS RF Link diaram of multi probe spherical near-field testing system 多探头球面近场测试系统射频链路图 RF Link Overview RF Link Passive measurement www.batwireless.cn July-1-2025-A01 RF Link Overview 总射频链路图 RF Link of Passive measurement 无源测试链路图 RF Link Overview 总射频链路图 RF Link of Passive measurement 无源测试链路图 8 / 13 蝙蝠无线 BAT WIRELESS www.batwireless.cn 6.1 电压驻波比 / VSWR July-1-2025-A01 6.2 回波损耗 / Return Loss 9 / 13 蝙蝠无线 BAT WIRELESS 6. . 性能数据 / Performance Data 6. . 性能数据 / Performance Data www.batwireless.cn 6.3 增益 / Gain July-1-2025-A01 6.4 效率 / Efficiency 10 / 13 蝙蝠无线 BAT WIRELESS 频率 / Frequency (MHz)240024502500 最大增益 / Gain (dBi) 2.723.293.06 效率 / Efficiency (%) 75.6874.373.45 6.5 天线增益与效率 0.00 10.00 20.00 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 2 4 0 0 . 0 2 4 0 5 . 0 2 4 1 0 . 0 2 4 1 5 . 0 2 4 2 0 . 0 2 4 2 5 . 0 2 4 3 0 . 0 2 4 3 5 . 0 2 4 4 0 . 0 2 4 4 5 . 0 2 4 5 0 . 0 2 4 5 5 . 0 2 4 6 0 . 0 2 4 6 5 . 0 2 4 7 0 . 0 2 4 7 5 . 0 2 4 8 0 . 0 2 4 8 5 . 0 2 4 9 0 . 0 2 4 9 5 . 0 2 5 0 0 . 0 Efficiency (%) -2.34 -1.34 -0.34 0.66 1.66 2.66 3.66 2 4 0 0 . 0 2 4 0 5 . 0 2 4 1 0 . 0 2 4 1 5 . 0 2 4 2 0 . 0 2 4 2 5 . 0 2 4 3 0 . 0 2 4 3 5 . 0 2 4 4 0 . 0 2 4 4 5 . 0 2 4 5 0 . 0 2 4 5 5 . 0 2 4 6 0 . 0 2 4 6 5 . 0 2 4 7 0 . 0 2 4 7 5 . 0 2 4 8 0 . 0 2 4 8 5 . 0 2 4 9 0 . 0 2 4 9 5 . 0 2 5 0 0 . 0 Efficiency (dBi)Gain (dBi) 7. . 辐射模式 / Radiation Patterns www.batwireless.cn July-1-2025-A01 7.1 2D 辐射模式图 / Radiation Patterns 11 / 13 蝙蝠无线 BAT WIRELESS www.batwireless.cn July-1-2025-A01 7.2 . 3D辐射模式图 / 3D Radiation Patterns 12 / 13 蝙蝠无线 BAT WIRELESS 版本： July-1-2025-A01 日期： 2025-7-1 备注： 首次更新 作者： Carly 文档记录 / Documentation www.batwireless.cn July-1-2025-A01 13 / 13 变更记录 / Change Log 蝙蝠无线 BAT WIRELESS Office Add：Room 1301, 13th Floor, No. 8 Langhua Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen 蝙蝠无线 BAT WIRELESS 地址：深圳市龙华区大浪街道新石社区浪花路8号1301 深圳市蝙蝠无线技术有限公司 Shenzhen Bat Wireless Technology Co,.Ltd Tel：+86-0755-21031236 Email：[email protected]

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 41 TEST REPORT Compiled by: Reviewed by: Approved by: Kai Chen Martin Feng Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Test item description: ADIBO Smart Pickleball Pitching Machine FCC ID: 2BTOD-P700 Trademark(s): N/A Model/Type reference: P700 Applicant’s name: ADIBO TECHNOLOGY CO.,LIMITED Address: 505, F5, BLD2, HUISHENGDA FACTORY BUILDING, QINGHU COMMUNITY, LONGHUA STREET, LONGHUA DISTRICT, SHENZHEN Manufacturer: ADIBO TECHNOLOGY CO.,LIMITED Address: 505, F5, BLD2, HUISHENGDA FACTORY BUILDING, QINGHU COMMUNITY, LONGHUA STREET, LONGHUA DISTRICT, SHENZHEN Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Oct. 31, 2025 Sample tested Date: Oct. 31, 2025 to Nov. 28, 2025 Issue Date: Nov. 28, 2025 Report No.: CTB25103114002RF01 Test Standards FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2020 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB25103114002RF01 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 41 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 11 6.1 Block Diagram Of Test Setup ......................................................................................................... 11 6.2 Limit ................................................................................................................................................ 11 6.3 Test procedure ............................................................................................................................... 11 6.4 Test Result ..................................................................................................................................... 13 7. RADIATED SPURIOUS EMISSION ............................................................................................. 15 7.1 Block Diagram Of Test Setup ......................................................................................................... 15 7.2 Limit ................................................................................................................................................ 15 7.3 Test procedure ............................................................................................................................... 16 7.4 Test Result ..................................................................................................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 24 8.1 Block Diagram Of Test Setup ......................................................................................................... 24 8.2 Limit ................................................................................................................................................ 24 8.3 Test procedure ............................................................................................................................... 24 8.4 Test Result ..................................................................................................................................... 25 9. COUDUCTED OUTPUT POWER ...........................................................................…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 2 Model: P700 Radiated Emission Below 1G Above 1G Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 2 Conducted emissions
