2BTOY-B009BBABY SWING

Instruction Manual Before installing and using, please follow the instructions carefully INDEX 02 03 04 05 06 07 08 09 Product Specifications Component List How to Assemble the Baby Swing Power Supply Remote Control Instructions Safety Instructions ................................................. 01 ............................................................ ............................... ............................................................... ......................................... ........................................................ 01 Cleaning and Washing Product Specifications Baby SwingProduct Name Product mode Input voltage Output voltage Applicable age Produc�on date Warning Warning Execu�ve standard B009A B009B 100-240V/50/60HZ0.3A 5-58VS100MA EN71-1 EN71-2 EN71-3 Marked on the body of the goods Do not use the non-matching adaptor (1) No short circuit of power terminals. (2) Keep the adaptor away from children while using. (3) Check the adaptor and accessories regularly, and if 0-9 Months 9KGS weight you find any damage, please stop using them. Seat cushion: The seat cushion is removable and washable. It is rec- ommended to wash by hand but not machine wash. A�er soaking it in water and adding so� detergent, use clean water to clean it,then wring out the water and place it flat out of direct sunlight to dry Inner filler: fireproof hard resin co�on. Warning! Machine washing, bleaching and tumble drying are prohibited. Motor ×1 Seat Cloth ×1 Foot Tubes ×2 Screws for Foot Tubes (3.5*12mm) ×4 Canopy with Mosquito Net ×1 Seat Tube Screws (6.0*12mm) ×4 02 How to assemble the baby swing (This should be done by an adult)1. Assembly method Please insert the plas�c on both sides of the base into two foot tubes, and �ghten the 4 screws (3.5*12mm) to 4 holes with the screwdriver. 03 2. Assembly method(This should be done by an adult) Expand the cradle tube and insert the plas�c plug into the tube. ( as illustrated ) Please lock in 4 (6.0 * 12mm) screws. ( as illustrated ) 04 Canopy in water. 05 Power Supply * * Power socket USB socket One: The standard power supply is the 5mm adapter supplied with the product to supply power, the adapter input voltage is AC100-240V, 50/60Hz; the output voltage is DC6V, 1.0A. Two: The power bank can be used for temporary power supply, but because the voltage is only 5V, there may be insufficient power, so long-term use is not recommended. Name Number Material A C B Base Canopy Pedestal Plas�c + Aluminum Tube Fabric+ Aluminum tube + Plas�c Fabric+ Plas�c Product Material Five swing modes Timer bu�on with three modes Bluetooth Touch sense swing Five swing modes Power on/off Power on/off Timer se�ng Built-in music/ Bluetooth music Previous song Next song Play/PauseVolume up Volume down AUTO mode Remote Control Instructions Panel 06 Timer Music Music AUTO Timer VOL- VOL+ VOL-VOL+ 1 34 2 5 STOP MUSIC 12345 Music play and pause (short press) Music switch bu�on (long press for 2 seconds) Volume control (long press for 3 seconds) AUTO Stop Stop 07 Top hole bo�om hole Through the tape form the top hole first and, then through the bo�om hole, harden the tape. Put the baby into the seat ,buckle up the seat belts Safety Instructions WARNING 1. Keep the seat belt on while using it. 2. Do not leave the child una�ended. 3. Applicable age: 0-9 months old. 4. The maximum weight for this product is 9 kg. 5. Do not move or li� the product by the mosquito net. 6. Do not move or li� the product when the child is in the seat. 7. Do not hang other items from the canopy except the supplied toys. 8. Do not place the product at a high posi�on (table top, stairs, or other high posi�on from the ground) as it may fall and cause injury. 9. It is dangerous to use this product on an elevated surface. 10. Do no tuse the product on so� surfaces (sofa, bed) to avoid falling and causing suffoca�on. 11. Do not use it for babies who can stand up independently to prevent hidden dangers, such as being entangled in the seat belt or strangled! 12. This product is not classified as a toy. 13. When the music player is connected, please make sure the volume is set to a low voice ini�ally. 14. Do not use if any parts are missing or broken. Never subs�tute parts. 15. Keep the product away from fire. 08 09 FALL AND STRANGULATION HAZARDS: Infants have suffered head injuries falling from swings and have strangled in straps. • ALWAYS use restraints. Adjust to fit snugly. • STOP using product when infant a�empts to climb out (approximately 9 months). • Stay near and watch baby during use. This product is not safe for sleep or unsupervised use. If baby falls asleep, remove baby as soon as possible and place baby on a firm, flat sleep surface such as a crib or bassinet. CAUTION To prevent ba�ery leaks, which can burn skin and eyes: • Always replace the en�re set of ba�eries at one �me. • Never mix old and new ba�eries, or ba�eries of different brands or types. • Remove ba�eries when storing product for a long �me. • Dispose of used ba�eries immediately. ALWAYS place swing on floor. Never use on any elevated surface. Taking safety into considera�on: the device will automa�cally shut down a�er one hour of opera�on without any bu�on presses while swinging or playing music. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the…

Text truncated - open the document above for the full version.

Zhongshan daidi technology co., ltd Room 307, No.1 Yintan 1st Road, Shinan District Street, Zhongshan, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/16 U.S. Agent Designation Zhongshan daidi technology co., ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BTOY-B009B): Name and company of U.S. agent: Bridgeport Advisory LLC Physical U.S. address of agent: 3330 W 38TH PL CHICAGO, IL 60632 United States FRN of U.S. agent: 0037566148 Email address of U.S. agent: [email protected] Bridgeport Advisory LLC acknowledges their obligation to accept service of process on behalf of Zhongshan daidi technology co., ltd Zhongshan daidi technology co., ltd with the FRN [0037751401] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Zhimin Liang Manager Zhongshan daidi technology co., ltd Signature Yong Liu Managing Member Bridgeport Advisory LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

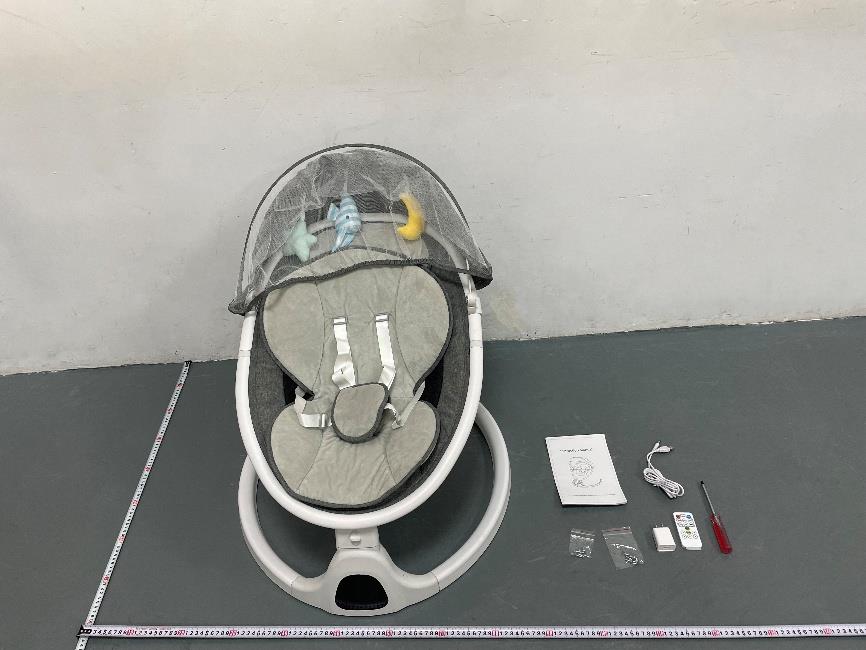

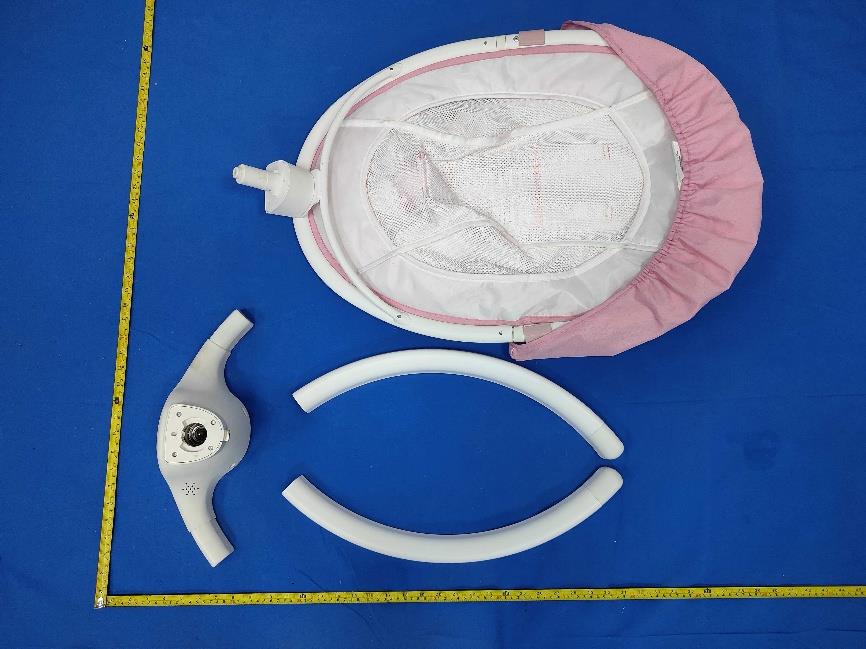

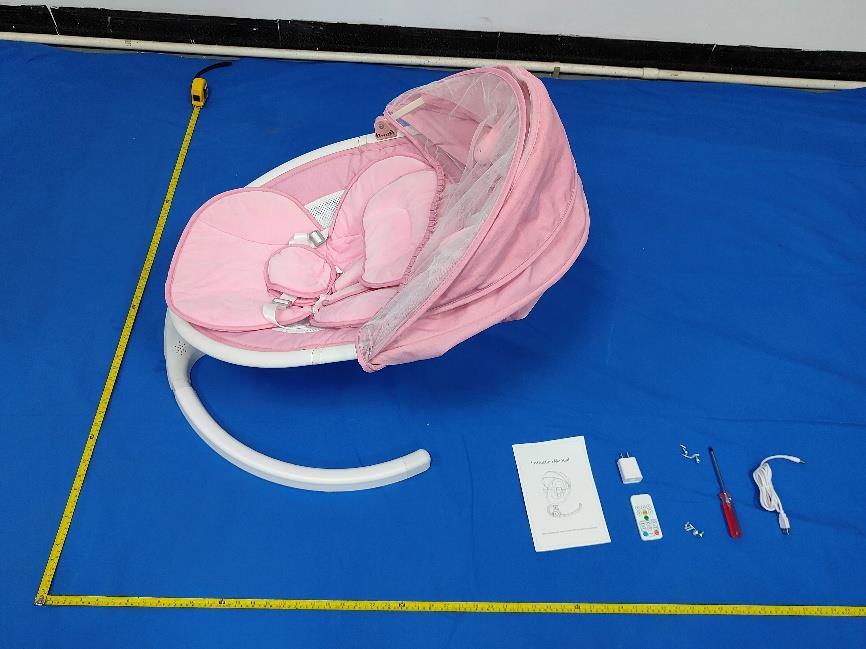

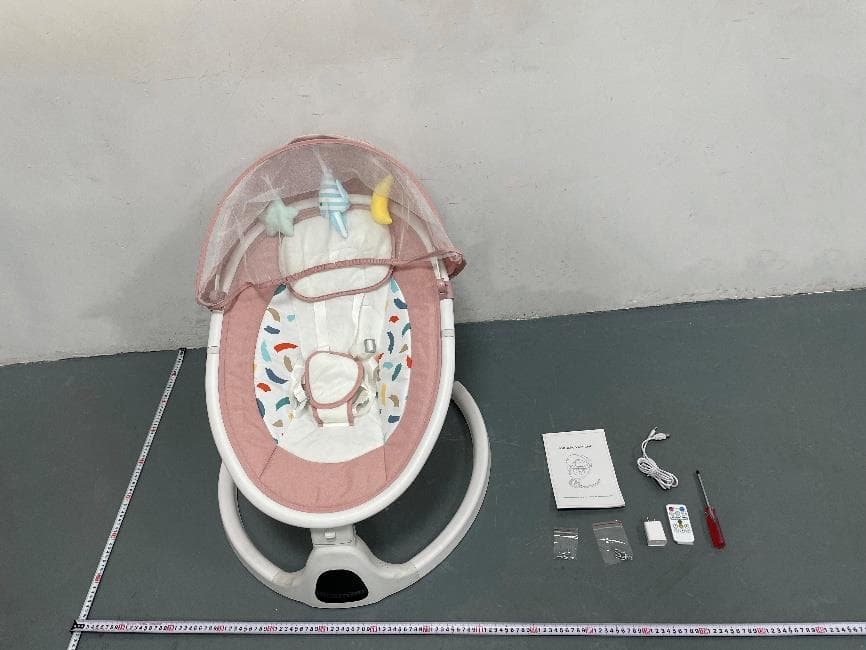

FCC ID: 2BTOY-B009B External Photos of the EUT FCC ID: 2BTOY-B009B FCC ID: 2BTOY-B009B FCC ID: 2BTOY-B009B FCC ID: 2BTOY-B009B FCC ID: 2BTOY-B009B

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BTOY-B009B This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2BTOY-B009B Internal Photos of the EUT FCC ID: 2BTOY-B009B FCC ID: 2BTOY-B009B FCC ID: 2BTOY-B009B ANT FCC ID: 2BTOY-B009B

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. .................... : FCC ID. ........................................... : CTA25120501902 2BTOY-B009B Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 11, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Zhongshan daidi technology co., ltd Address ........................................... : Room 307, No.1 Yintan 1st Road, Shinan District Street, Zhongshan, China Standard .......................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : BABY SWING Trade Mark ....................................... : N/A Manufacturer .................................... : Zhongshan daidi technology co., ltd Model/Type reference ...................... : B009B Listed Models ................................... : N/A Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25120501902 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : BABY SWING Model /Type : B009B Listed Models : N/A Applicant : Zhongshan daidi technology co., ltd Address : Room 307, No.1 Yintan 1st Road, Shinan District Street, Zhongshan, China Manufacturer : Zhongshan daidi technology co., ltd Address : Room 307, No.1 Yintan 1st Road, Shinan District Street, Zhongshan, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120501902 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25120501902 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human E…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.9 (Peak Gain XZ-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.5 1.9 -3.6 1.1 -3.0 6 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane Manufacturer:Zhongshan daidi technology co., ltd Address:Room 307, No.1 Yintan 1st Road, Shinan District Street, Zhongshan, China

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25120501901 2BTOY-B009B Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 11, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Zhongshan daidi technology co., ltd Address ............................................ : Room 307, No.1 Yintan 1st Road, Shinan District Street, Zhongshan, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : BABY SWING Trade Mark ....................................... : N/A Manufacturer .................................... : Zhongshan daidi technology co., ltd Model/Type reference ...................... : B009B Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25120501901 Page 2 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : BABY SWING Model /Type : B009B Listed Models : N/A Applicant : Zhongshan daidi technology co., ltd Address : Room 307, No.1 Yintan 1st Road, Shinan District Street, Zhongshan, China Manufacturer : Zhongshan daidi technology co., ltd Address : Room 307, No.1 Yintan 1st Road, Shinan District Street, Zhongshan, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25120501901 Page 3 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results .................................................................................................... 8 3.5 Statement of …

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BTOY-B009B Company : Zhongshan daidi technology co., ltd EUT : BABY SWING Model Number : B009B Report No. : CTA25120501901 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.939 2401.553 2402.492 --- --- 2441 0.948 2440.547 2441.495 --- --- 2480 0.948 2479.550 2480.498 --- --- 2DH5 Ant1 2402 1.272 2401.382 2402.654 --- --- 2441 1.281 2440.379 2441.660 --- --- 2480 1.314 2479.355 2480.669 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86502 2401.5752 2402.4402 --- --- 2441 0.87435 2440.5728 2441.4472 --- --- 2480 0.87015 2479.5721 2480.4422 --- --- 2DH5 Ant1 2402 1.1883 2401.4175 2402.6058 --- --- 2441 1.1871 2440.4167 2441.6038 --- --- 2480 1.1940 2479.4156 2480.6096 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.44 ≤20.97 PASS 2441 0.16 ≤20.97 PASS 2480 0.08 ≤20.97 PASS 2DH5 Ant1 2402 -0.39 ≤20.97 PASS 2441 -0.61 ≤20.97 PASS 2480 -0.71 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.16 ≥0.948 PASS 2DH5 Ant1 Hop 1.28 ≥0.876 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 313 0.122 ≤0.4 PASS DH3 Ant1 Hop 1.650 162 0.267 ≤0.4 PASS DH5 Ant1 Hop 2.890 110 0.318 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 311 0.121 ≤0.4 PASS 2DH3 Ant1 Hop 1.650 151 0.249 ≤0.4 PASS 2DH5 Ant1 Hop 2.900 109 0.316 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.16 -51.26 ≤-20.16 PASS High 2480 -0.35 -53.06 ≤-20.35 PASS Low Hop_2402 -3.92 -63.79 ≤-23.92 PASS High Hop_2480 -3.50 -59.7 ≤-23.5 PASS 2DH5 Ant1 Low 2402 -3.22 -53.83 ≤-23.22 PASS High 2480 -4.67 -63.49 ≤-24.67 PASS Low Hop_2402 -6.35 -63.19 ≤-26.35 PASS High Hop_2480 -5.10 -63.98 ≤-25.1 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.58 -0.58 --- PASS 30~1000 -0.58 -67.26 ≤-20.58 PASS 1000~26500 -0.58 -44.12 ≤-20.58 PASS 2441 Reference -1.11 -1.11 --- PASS 30~1000 -1.11 -67.02 ≤-21.11 PASS 1000~26500 -1.11 -42.26 ≤-21.11 PASS 2480 Reference -1.07 -1.07 --- PASS 30~1000 -1.07 -66.97 ≤-21.07 PASS 1000~26500 -1.07 -43.32 ≤-21.07 PASS 2DH5 Ant1 2402 Reference -4.52 -4.52 --- PASS 30~1000 -4.52 -58.92 ≤-24.52 PASS 1000~26500 -4.52 -49.11 ≤-24.52 PASS 2441 Reference -4.13 -4.13 --- PASS 30~1000 -4.13 -67.5 ≤-24.13 PASS 1000~26500 -4.13 -48.47 ≤-24.13 PASS 2480 Reference -4.12 -4.12 --- PASS 30~1000 -4.12 -67 ≤-24.12 PASS 1000~26500 -4.12 -50.23 ≤-24.12 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480

FCC ID: 2BTOY-B009B Test Setup Photos of the EUT FCC ID: 2BTOY-B009B
