V1.0a V1.6a CERIO Corporation CenOS 5.0 User Manual OW-500 Networking Product V1.0a V1.6a This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the user’s manual, may cause interference in which case user will be required to correct the interference at his own expense. V1.0a V1.6a Product Specifications Software Application Software Cerio CenOS 5.0 Software Core Standards & Hardware Specifications Network Standards Conformance IEEE 802.11 p/n/a/ac/ax compliant IEEE 802.11d/h/i/j/k/r/u/v and w IEEE 802.3 / IEEE 802.3u IEEE 802.3af/at Power Over Ethernet compliant IEEE 802.11Q VLAN IEEE 802.11r/k Fast Roaming IEEE 802.11e WMM IEEE 802.1x RADIUS IEEE 802.3az EEE Ethernet Configuration ETH1 : RJ45 10/100/1000M Ethernet Port x 1 ETH2 : RJ45 10/100/1000/2500M Ethernet Port x1 (Both supports Power over Ethernet 802.3af/at PoE in) Reset Button Reset to the factory default (Need to remove the waterproof protection screw plug) LED Indicators PWR (Power) ETH1: 1Gb (PoE In-1) ETH2: 2.5Gb (PoE In-2) 2.4GHz Signal 5GHz-1 Signal 5GHz-2 Signal x1 x1 x1 x1 x1 x1 Wireless Specifications Data Transfer Rate IEEE802.11b : 1 / 2 / 5.5 / 11Mbps (auto sensing) IEEE801.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps IEEE802.11n : 400Mbps (@ 40MHz 64QAM) IEEE802.11ac : 867Mbps (@ 80MHz 256QAM) IEEE802.11ax : 574Mbps(@ 40MHz 1024QAM) IEEE802.11ax : 1200Mbps(@ 80MHz 1024QAM) IEEE802.11ax : 2400Mbps(@ 160MHz 1024QAM) RF Spatial Streaming 2.4Ghz: SU-MIMO (2ss), DL MU-MIMO (2ss, 2 users), UL MU-MIMO (STA mode only, 2ss), DL-OFDMA (8 users), UL-OFDMA (4 users) 5Ghz-1: SU-MIMO (2ss), DL MU-MIMO (2ss, 2 users), UL MU-MIMO (STA mode only, 2ss), DL-OFDMA (8 users), UL-OFDMA (4 users) 5Ghz-2: DL MU-MIMO for HE160 and VHT160 (2ss, 2 users), UL MU-MIMO for HE160(2ss, 2 users), DL/UL MU-OFDMA (37 users) Frequency Range IEEE802.11nbg/ax : Supports 2.412 ~ 2.462 GHz IEEE802.11a/an/ac/ax : Supports 5.150 – 5.250 GHz Channel Spacing IEEE802.11b/g/n/ax : 20/40MHz IEEE802.11a/an/ac/ax: 20/40/80MHz Media Access Protocol OFDMA on top CSMA / CA , Spatial Reuse / BSS Color Modulation Method IEEE802.11b : DSSS (DBPK,DQPSK,CCK) IEEE802.11a/g/n : OFDM(64-QAM,16-QAM,QPSK,BPSK) IEEE802.11ac : OFDM (256-QAM, 64,-QAM, 16-QAM, QPSK,BPSK) IEEE802.11ax : OFDMA (1024-QAM, 256-QAM, 64,-QAM, 16-QAM, QPSK,BPSK) Operating Channels 2.4GHz : 1-11 5GHz : 36-48 Transmit Power Variation 2.4GHz : Max : 24± 1 dBm 5GHz-1 : Max : 24 ± 1 dBm 5GHz-2 : Max : 24 ± 1 dBm Receiver Sensitivity 2.4GHz : Max : -94 dBm 5GHz-1 : Max : -93 dBm 5GHz-2 : Max : -93 dBm V1.0a V1.6a Environmental & Mechanical Characteristics Operating Temperature -25 °C ~ 65 °C Storage Temperature -40 °C ~ 85°C Operating Humidity 10% - 95% Non-Condensing Storage Humidity 10% - 95% Non-Condensing Antenna 2.4GHz : 2 N-Type Connectors for 5dBi Antenna 5GHz-1 : 2 N-Type Connectors for 7dBi Antenna 5GHz-2 : 2 N-Type Connectors for 7dBi Antenna Vent Automatically adjustable Vent design Form Factor Desktop/Wall/Pole mounting installation ; Supports Adjustable Wall Mounting Installed Supports Fixed Wall Mounting Installed Supports Adjustable Pole Mounting Installed SUS304 M6 U-bolt / Diameter: 34mm~Ø54mm SUS304 O-type Hose Clamps/Diameter: Ø30mm~Ø90mm ESD Conductive: 6KV Air: 8KV Surge Protection Line to Line: 2KV Line to Ground: 6KV (The main unit provides a grounding port) Power Consumption 25Watt (Max ) Power Requirement PoE in : 52~56Vdc, 0.6A max. Dimensions ( W x D x H ) 241 x 201 x 84mm Housing Materials IP68 Rating / Die-Cast aluminum with Plastic Enclosure Unit Weight 2.25kg Production Location TW Certifications FCC, NCC, BSMI, ROHS Compliant Package Contents Package Contents Main Unit PoE Power supply Kit SUS304 Uniaxial Adjustable Bracket (OW-PKUR) SUS304 Fixed Mounting Bracket (OW-PKZR) Quick Installation Guide(Chinese/English) Warranty Card x1 x1 x1 x1 x2 x1 V1.0a V1.6a Content .................................................................................................................................................. 2 Product Specifications ........................................................................................................................................ 3 1-1. Device Preparations ................................................................................................................. 10 1-2. Login Web Page ....................................................................................................................... 12 2. Operating Mode Introduction ................................................................................................................... 13 2-1. Access Point Mode (Default Mode) .......................................................................................... 13 2-2. Client Bridge + Repeater Mode ................................................................................................. 14 2-3. WISP + Repeater AP Mode ....................................................................................................... 16 2-4. Router mode ........................................................................................................................... 16 2-5. CAP mode (Centralizes Access Point) ........................................................................................ 17 3. System Configuration ............................................................................................................................... 18 3-1. Management ........................................................................................................................... 18 3-2. Configure Time Server .............................................................…

Text truncated - open the document above for the full version.

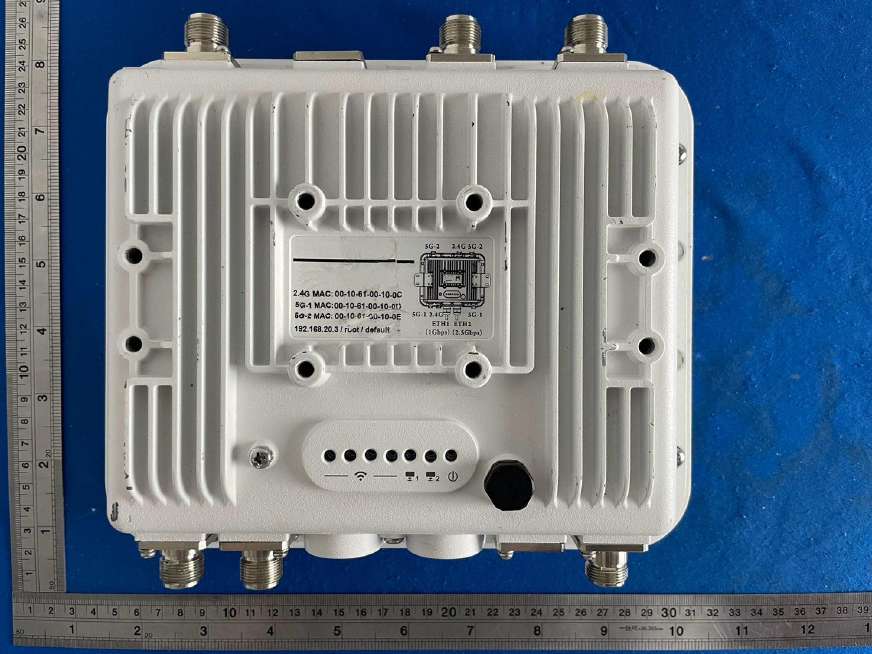

CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 1 of 27 Photographs of EUT CERIO / Networking Product / OW-500 Label position CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 2 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 3 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 4 of 27 CERIO / Networking Product / OW-500 For 2.4G Antenna A For 2.4G Antenna B For 5G Antenna F For 5G Antenna C For 5G Antenna D For 5G Antenna E CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 21 of 27 2.4G Antenna CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 22 of 27 5G Antenna CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 23 of 27 POE Adapter: Brand: SPC, Model: ZZU1588-060550-2A CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 24 of 27 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 25 of 27 POE Injector: Brand: CERIO, Model: NPE03GE-T CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 26 of 27 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 27 of 27 Stand

Back

CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 5 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 6 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 7 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 8 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 9 of 27 CERIO / Networking Product / OW-500 RF Chip(5G) CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 10 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 11 of 27 CERIO / Networking Product / OW-500 RF Chip(2.4G+5G) CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 12 of 27 CERIO / Networking Product / OW-500 RF Chip(2.4G) CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 13 of 27 CERIO / Networking Product / OW-500 RF Chip(5G) CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 14 of 27 C CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 15 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 16 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 17 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 18 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 19 of 27 CERIO / Networking Product / OW-500 CERPASS TECHNOLOGY CORP. Report No.: 25080270 Cerpass Technology Corp. Issued Date : Nov. 21, 2025 Page No. : 20 of 27 CERIO / Networking Product / OW-500

CERPASS TECHNOLOGY CORP. Report No.: 25080270-TRFCC03 CERPASS TECHNOLOGY CORP. Issued date : Nov. 21, 2025 T-FD-523-0 V1.1 Page No. : 1 of 11 FCC ID : 2BTPKOW4XX-5XX-6XX Radio Frequency Exposure Applicant : Cerio Corporation Address : 10F., No. 495, Zhongzheng Rd., Xindian Dist., New Taipei City 231613, Taiwan (R.O.C.) Equipment : Networking Product Model No. : OW-500 Series Model No. : OW-400, OW-450, CW-500, OW-550, OW-600, OW-650 Trade Name : CERIO FCC ID : 2BTPKOW4XX-5XX-6XX I HEREBY CERTIFY THAT : The sample was received on Sep. 02, 2025 and the testing was completed on Nov. 02, 2025 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 25080270-TRFCC03 CERPASS TECHNOLOGY CORP. Issued date : Nov. 21, 2025 T-FD-523-0 V1.1 Page No. : 2 of 11 FCC ID : 2BTPKOW4XX-5XX-6XX CONTENTS 1. Summary of Test Procedure and Test Results ...................................................................................... 4 1.1. Applicable Standards ................................................................................................................. 4 2. Test Configuration of Equipment under Test ......................................................................................... 5 2.1. Feature of Equipment under Test ............................................................................................... 5 2.2. General Information of Test ........................................................................................................ 7 2.3. Measurement Uncertainty .......................................................................................................... 8 3. Test Equipment and Ancillaries Used for Tests ..................................................................................... 8 4. Radio Frequency Exposure .................................................................................................................. 9 4.1. Applicable Standards ................................................................................................................. 9 4.2. EUT Specification ..................................................................................................................... 10 4.3. Result ....................................................................................................................................... 10 CERPASS TECHNOLOGY CORP. Report No.: 25080270-TRFCC03 CERPASS TECHNOLOGY CORP. Issued date : Nov. 21, 2025 T-FD-523-0 V1.1 Page No. : 3 of 11 FCC ID : 2BTPKOW4XX-5XX-6XX History of this test report Report No. Issued Date Description 25080270-TRFCC03 Nov. 21, 2025 Original CERPASS TECHNOLOGY CORP. Report No.: 25080270-TRFCC03 CERPASS TECHNOLOGY CORP. Issued date : Nov. 21, 2025 T-FD-523-0 V1.1 Page No. : 4 of 11 FCC ID : 2BTPKOW4XX-5XX-6XX 1. Summary of Test Procedure and Test Results 1.1. Applicable Standards FCC Rules and Regulations Part 2.1091 FCC Rule . Description of Test Result 2.1091 . Radio Frequency Exposure PASS *The lab has reduced the uncertainty risk factor from test equipment, environment and staff technicians which according to the standard on contract. Therefore, the test result will only be determined by standard requirement, measurement uncertainty evaluation is not considered. CERPASS TECHNOLOGY CORP. Report No.: 25080270-TRFCC03 CERPASS TECHNOLOGY CORP. Issued date : Nov. 21, 2025 T-FD-523-0 V1.1 Page No. : 5 of 11 FCC ID : 2BTPKOW4XX-5XX-6XX 2. Test Configuration of Equipment under Test 2.1. Feature of Equipment under Test Operation Frequency Range For IPQ6010: 2.4GHz:802.11b/g/n/ax: 2400-2483.5MHz 5GHz:802.11a/n/ac/ax:5150-5250MHz For QCN9072: 5GHz:802.11a/n/ac/ax:5150-5250MHz Center Frequency Range For IPQ6010: 2.4GHz:802.11b/g/n/ax: 2412MHz-2462MHz 5GHz:802.11a/n/ac/ax:5180-5240MHz For QCN9072: 5GHz:802.11a/n/ac/ax:5180-5240MHz Modulation Type For IPQ6010: 2.4GHz: 802.11b: CCK, DQPSK, DBPSK 802.11g/n: BPSK, QPSK, 16QAM, 64QAM, 256QAM 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 5GHz: 802.11a/n: BPSK, QPSK, 16QAM, 64QAM 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM For QCN9072: 5GHz: 802.11a/n: BPSK, QPSK, 16QAM, 64QAM 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM Modulation Technology OFDM、DSSS、OFDMA Data Rate For IPQ6010: 2.4GHz: 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0 – MCS15, HT20/40 802.11ax: MCS0 – MCS11, HE20/40 5GHz: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0 – MCS15, HT20/40 802.11ac: MCS0 – MCS9, HE20/40/80 802.11ax: MCS0 – MCS11, HE20/40/80 For QCN9072: 5GHz: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0 – MCS15, HT20/40 802.11ac: MCS0 – MCS9, HE20/40/80 802.11ax: MCS0 – MCS11, HE20/40/80 Antenna Type Omnidirectional Antenna CERPASS TECHNOLOGY CORP. Report No.: 25080270-TRFCC03 CERPASS TECHNOLOGY CORP. Issued date : Nov. 21, 2025 T-FD-523-0 V1.1 Page No. : 6 of 11 FCC ID : 2BTPKOW4XX-5XX-6XX Antenna Gain For IPQ6010: 2400-2500MHz: ANT A: 4.90dBi, ANT B: 4.90dBi 5150-5250MHz: ANT C: 5.37dBi, ANT D: 5.37dBi For QCN9072: 5150-5250MHz: ANT E: 5.37dBi, ANT F: 5.37dBi Antenna Cable Loss For IPQ6010: 2.4G:1.5dB 5G:1.5dB For QCN9072: 5G:1.5dB POE Injector Brand: CERIO Model: NPE03GE-T POE Adapter Brand: SPC Model: ZZU1588-060550-2A Note: 1. EUT not support TPC Function. 2. For more details, please refer to the User’s manual of the EUT. Difference description: Model No. Remark OW-500, OW-400, OW-450, CW-500, OW-550, OW-600, OW-650 Market segmentation. Note: OW-500 was the worst case, so it was used for the test result. CERPASS TECHNOLOGY CORP. Report No.: 25080270-TRFCC03 CERPASS TECHNOLOGY CORP. Iss…

Text truncated - open the document above for the full version.

N05FN-S 2.4Ghz Outdoor Omni 5dBi Antenna The N05FN-S is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. It supports 2.4 to 2.5 GHz Wi-Fi frequency. It includes an integrated N Plug (male) connector to simplify connection to your outdoor device. Electrical Test Brand: Cerio Antenna type: Omnidirectional Antenna Connector El ectrical Properties Impedance 50 ohm Frequency Range 0~6 GHz V.S.W.R ≦ 1.5 Working Voltage ≦1000 Vr ms Dielectric Withstanding ≦2500 Vrms Volta ge Insulation Resistance ≧5000 Megohms Contact Resistance Center contact: 1.0 Milliohms (Max.) Outer contact:1.0 Milliohms (Max.) Recommended coupling nut torque 6.0~10.0 in. lbs (0.68~1.13Nm) Coupling nut retention force ≧100 lbs (445N) Contact captivation axial ≧6.2 lbs (27.6N) Operating Temperature -65°C ~ +165°C Material Specifications Material Data Material Body Brass Center Contact Brass Insulator Teflon Cable Specification

N07AN-S 5Ghz Outdoor Omni 7dBi Antenna The N07AN-S is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. It supports 5.1 to 5.9 GHz Wi-Fi frequency. It includes an integrated N Plug (male) connector to simplify connection to your outdoor device. Electrical Test Brand: Cerio Antenna type: Omnidirectional Antenna Connector El ectrical Properties Impedance 50 ohm Frequency Range 0~6 GHz V.S.W.R ≦ 1.5 Working Voltage ≦1000 Vr ms Dielectric Withstanding ≦2500 Vrms Volta ge Insulation Resistance ≧5000 Megohms Contact Resistance Center contact: 1.0 Milliohms (Max.) Outer contact:1.0 Milliohms (Max.) Recommended coupling nut torque 6.0~10.0 in. lbs (0.68~1.13Nm) Coupling nut retention force ≧100 lbs (445N) Contact captivation axial ≧6.2 lbs (27.6N) Operating Temperature -65°C ~ +165°C Material Specifications Material Data Material Body Brass Center Contact Brass Insulator Teflon Cable Specification

CERPASS TECHNOLOGY CORP. Report No.: 25080270-TRFCC01 Cerpass Technology Corp. Issued date : Nov. 21, 2025 T-FD-508-0 Ver 1.8 Page No. : 1 of 78 FCC ID : 2BTPKOW4XX-5XX-6XX FCC RADIO TEST REPORT Applicant : Cerio Corporation Address : 10F., No. 495, Zhongzheng Rd., Xindian Dist., New Taipei City 231613, Taiwan (R.O.C.) Equipment : Networking Product Model No. : OW-500 Series Model No. : OW-400, OW-450, CW-500, OW-550, OW-600, OW-650 Trade Name : CERIO FCC ID : 2BTPKOW4XX-5XX-6XX I HEREBY CERTIFY THAT : The sample was received on Sep. 02, 2025 and the testing was completed on Oct. 31, 2025 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 25080270-TRFCC01 Cerpass Technology Corp. Issued date : Nov. 21, 2025 T-FD-508-0 Ver 1.8 Page No. : 2 of 78 FCC ID : 2BTPKOW4XX-5XX-6XX Contents 1. Summary of Test Procedure and Test Results ................................................................................ 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 9 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 10 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 11 4. Antenna Requirements ..................................................................................................................... 12 4.1 Standard Applicable ................................................................................................................. 12 4.2 Antenna Construction and Directional Gain ............................................................................. 12 5. Test of AC Power Line Conducted Emission ................................................................................. 13 5.1 Test Limit .................................................................................................................................. 13 5.2 Test Procedures ....................................................................................................................... 13 5.3 Typical Test Setup .................................................................................................................... 14 5.4 Test Result and Data ................................................................................................................ 15 5.5 Test Photographs ..................................................................................................................... 17 6. Test of Radiated Spurious Emission ............................................................................................... 18 6.1 Test Limit .................................................................................................................................. 18 6.2 Test Procedures ....................................................................................................................... 19 6.3 Typical Test Setup .................................................................................................................... 20 6.4 Test Result and Data (9KHz ~ 30MHz) .................................................................................... 21 6.5 Test Result and Data (30MHz ~ 1GHz) ................................................................................... 21 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 23 6.7 Restricted Bands of Operation ................................................................................................. 47 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 48 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 49 7. Test of Conducted Spurious Emission ........................................................................................... 51 7.1 Test Limit .................................................................................................................................. 51 7.2 Test Procedure ......................................................................................................................... 51 7.3 Test Setup Layout .................................................................................................................... 51 7.4 Test Result and Data ................................................................................................................ 51 8. On Time, Duty Cycle and Measurement methods ......................................................................... 64 8.1 Test Limit ..........................................................................................…
