2BTPZ-3401Digital IR Thermometer GO

Infrared Thermometer Instruction Manual OPERATION MANUAL DigitalIR Thermometer MU - TC034 -R.1.0. 2025-12 I. Overview This infrared thermometer uses non-contact infrared sensing technology to perform safe, accurate, fast, and reliable measurements of targets. This product is suitable for close-range, non-contact measurement of quartz glass products. The application scenario is indoors at altitudes below 2000m. II: Working Principle Any object with a temperature above absolute zero radiates infrared energy, which travels outward at the speed of light. The lens of an infrared thermometer collects and gathers the infrared energy onto the sensor, which generates a low voltage output. This voltage is proportional to the temperature of the target object, and the voltage is processed and displayed as a temperature value. III. Main Technical Parameters and Functions 1. Temperature measurement range: 94°C--371°C (201.2°F-700°F), 2. Accuracy: ± 3°C or ± 3%°C 3. °C/°F conversion selection function 4. Display resolution: 1°C or 1°F 5. Working environment: 0-40°C, relative humidity: 10%-90%RH 6. Storage temperature: -10°C to 40°C 7. Detection time: ≤0.5 seconds 8. Sensing distance between the sensor probe and the measuring point: 2-30cm 9. Screen resolution: 60*32 0.32” OLED 10. Lithium-ion polymer battery: 3.7Vdc, 2600mAh, 9.62Wh 11. TYPE C charging voltage: DC 5V 2A MAX 12. Wireless charging: Supports Qi protocol 13. Wireless charging dock with Type-C port: Supports QC2.0/3.0 and PD2.0/3.0 protocols. 14. Battery standby time is approximately 16 hours. 15. Automatic shutdown function (5 minutes). Four-function diagram 1. LED indicator lights 2. Silicone soft shell 3. Left and right function buttons 4. Left and right function buttons 5. Screen 6. Silicone soft band 7. Wireless charging dock 8. Wireless charging dock charging port (Main Interface) 1. Battery icon. 2. The top square indicates the on/off status of the internal RGB light, and the bottom square indicates the on/off status of the audible alarm. 3. LED switch. 4. LO/MD/HI represent the preset alarm temperature ranges, respectively. 5. Operating Instructions Temperature test 1. Press the left measurement button to power on the instrument for self-test and preparation. 2. Align the instrument probe with the target according to the range indicated by the LED light. If the target is within the measurement range, the screen will display the specific value. If the target is below the measurement range, it will display "LOW"; if it is above the measurement range, it will display "HOT". When the measured temperature exceeds the set value, an alarm will not sound immediately. The alarm will only sound when the temperature drops back to the set point, accompanied by three flashes of blue light. The alarm will stop when the temperature is 20°F below the set value and then exceeds it again. 3. After powering on, if the infrared measuring instrument is not operated for more than approximately 5 minutes, the instrument will automatically shut down. 4. When the low voltage symbol appears on the screen (the last line turns red), the instrument should be charged immediately. The input voltage is 5VDC and the current is 2000mA. The instrument will not operate while charging, and there will be no backlight display of the large charging icon. (The operating system manual is attached for reference.) 5. RGB lights: The RGB LEDs display different colors depending on the tested temperature range. Refer to the product details. Six: Cleaning 1. Use 91% or higher concentration isopropyl alcohol to clean the machine body. First apply it to a towel/cloth, making sure not to use too much. 2. Gently wipe the sensor lens with a cotton swab soaked in isopropyl alcohol . 7. Precautions 1. Do not allow the sensor to come into contact with the surface of a hot object; 2. Ensure the sensor is facing the bottom or side of the Banger; 3. The thermometer cannot measure through a transparent glass surface; it will measure the surface temperature of the glass. 4. Steam, dust, smoke, etc., can all affect the accuracy of the measurement. 5. Before using the thermometer, please inspect the casing. Never use a damaged instrument; check for any damage or missing plastic parts. 6. Never use the thermometer near explosive gases, vapors, or dust. 7. If the instrument is not used in accordance with the methods specified in this manual, the protective functions provided by the equipment may be ineffective. 8. Avoid exposure to electromagnetic fields generated by arc welding machines and induction heaters. 9. Avoid the effects of thermal shock (If a large change or sudden change in ambient temperature causes a large measurement error, wait 20-30 minutes before using the thermometer again to allow it to stabilize). 10. Do not place the thermometer near or on hot objects. Manufacture: Shenzhen Sancang Technology Co., Ltd Building A&B No. 6 Xiacun First Industrial Area Gongming Town Guangming District Shenzhen City, China FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that t…

Text truncated - open the document above for the full version.

Temp Chem, LLC May 13, 2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BTPZ-3401 [Temp Chem, LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Andrew Kottage Temp Chem, LLC May 13, 2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BTPZ-3401 [Temp Chem, LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Andrew Kottage

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company name: Temp Chem, LLC FRN: 0037758950 Contact Name: Andrew Kottage Address: 140 School St, Buffalo, NY 14217, USA Telephone No: +1 315-380-4788 Email: [email protected] Applicant: Company name: Temp Chem, LLC Grantee Code: 2BTPZ FCC ID: 2BTPZ-3401 FRN: 0037758950 Contact Name: Andrew Kottage Address: 140 School St, Buffalo, NY 14217, USA Telephone No: +1 315-380-4788 Fax No: / Email: [email protected] Temp Chem, LLC certifies that, as of the date of this filing of the application with the TCB, [Temp Chem, LLC] is our designated US agent for service of process for the above referenced FCC ID. Temp Chem, LLC accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [Temp Chem, LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2026-04-28 Applicant’s Name: Andrew Kottage US Agent’s Name: Andrew Kottage Title: Head of Operations Title: Head of Operations Signature: Signature:

Temp Chem, LLC 5/28/2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product Name: Digital IR Thermometer GO FCC ID: 2BTPZ-3401 Model(s): Dab Rite GO To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Schematic Diagram, Block Diagram, Operational Description) required to be submitted with this application be permanently withheld from public review. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market Please contact me if there is any information you may need. Sincerely, Signature: May 28, 2026 Name Andrew Kottage Position Head of Operations Company Name Temp Chem, LLC Address 140 School St, Buffalo, NY 14217, USA Tel +1 315-380-4788 Fax / Email [email protected]

Temp Chem, LLC 5/13/2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen PSI Testing Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely, Signature: May 13, 2026 Name Andrew Kottage Position Head of Operations Company Name Temp Chem, LLC Address 140 School St, Buffalo, NY 14217, USA Tel +1 315-380-4788 Fax / Email [email protected]

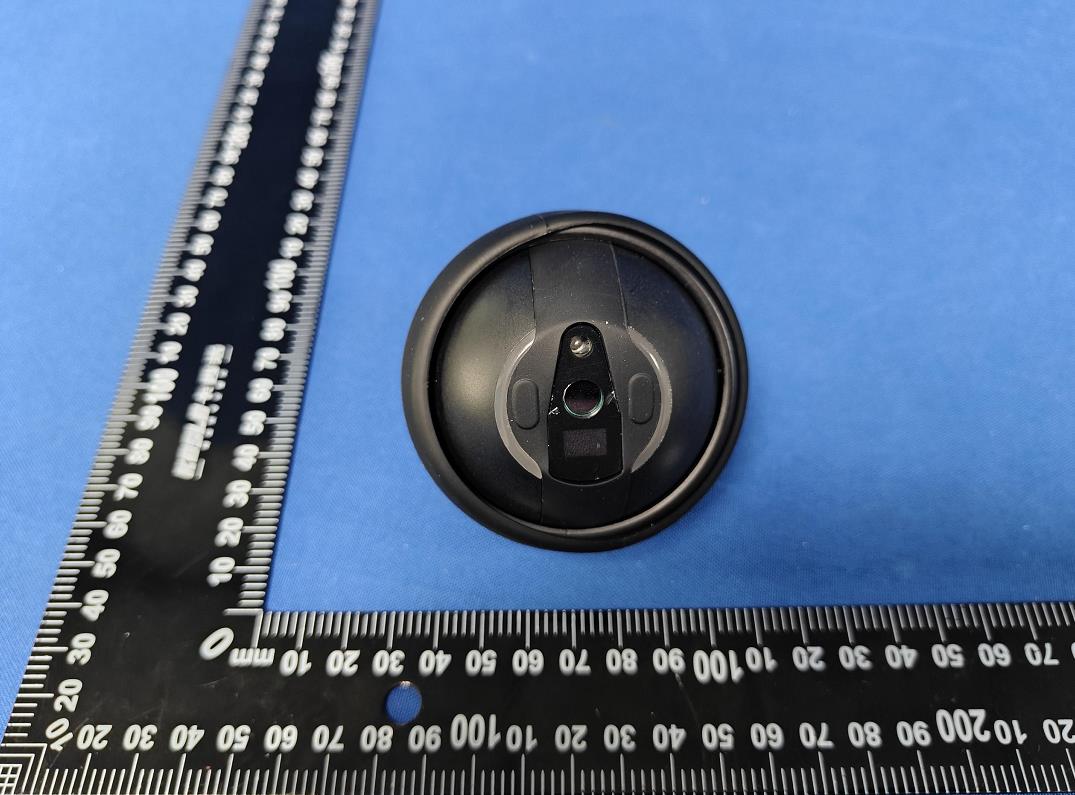

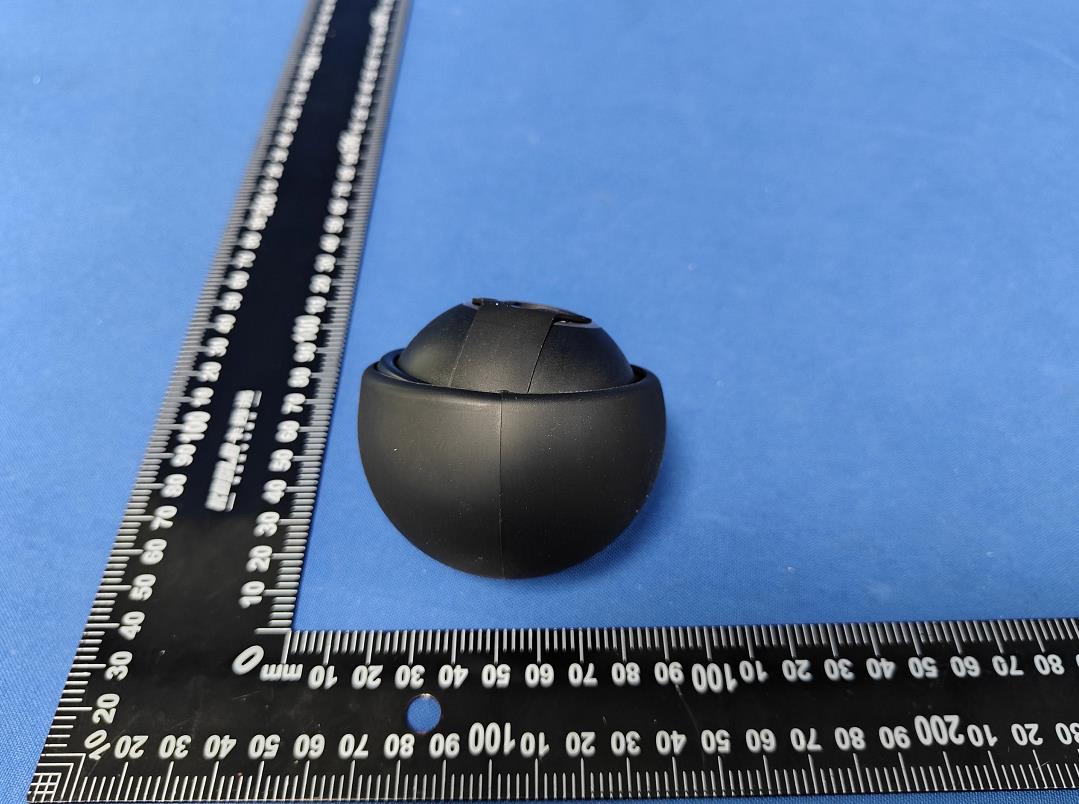

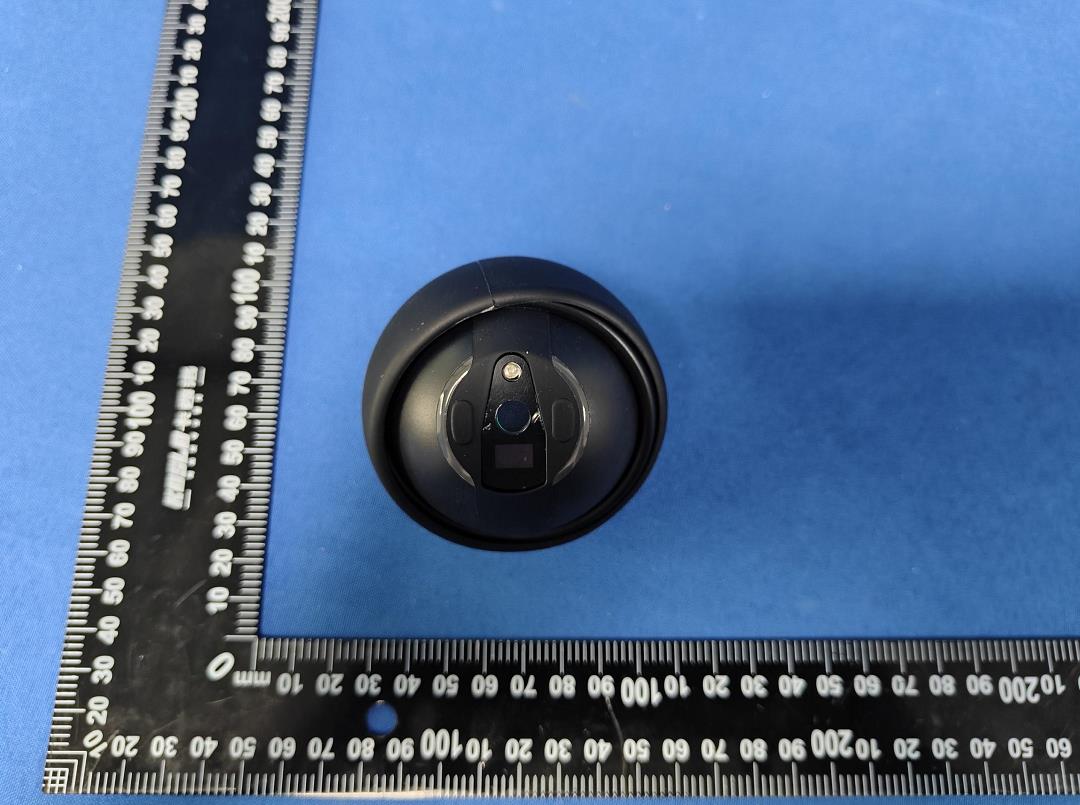

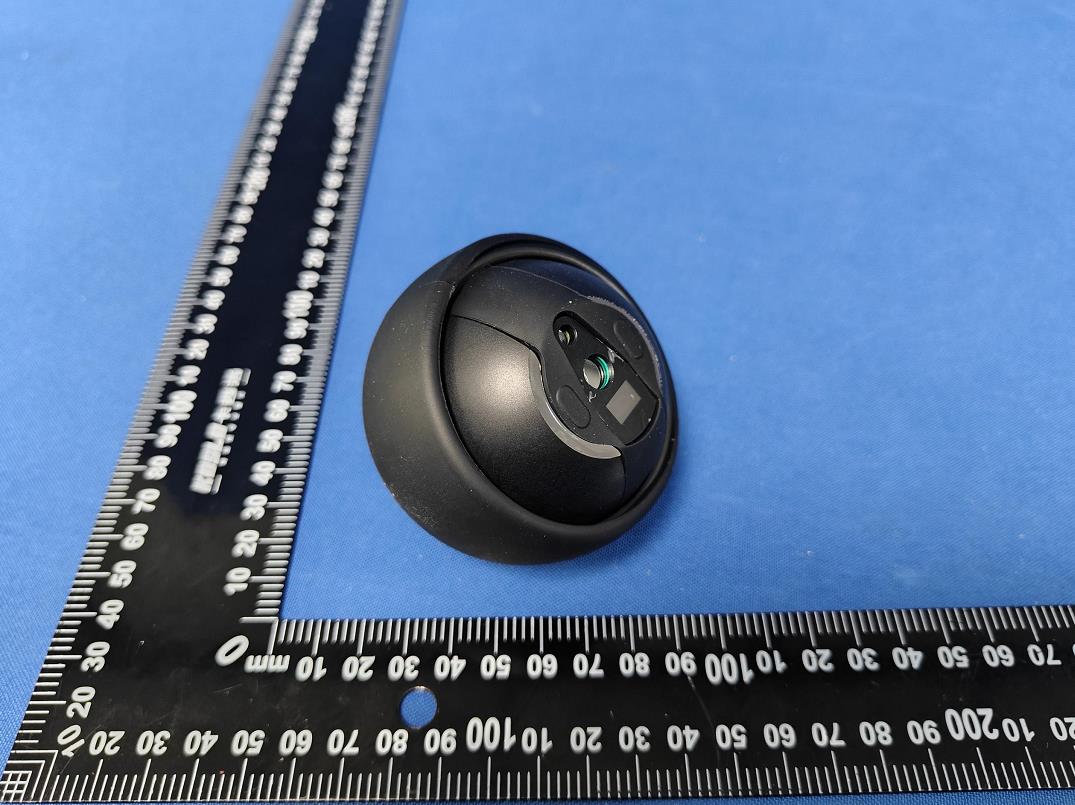

Page 1 of 4 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix II external photos FCC ID: 2BTPZ-3401 Page 2 of 4 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 3 of 4 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 4 of 4 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ------End------

Label and Location Material: Silk-screen Font color: White Size: L: 3cm*W: 1cm Label and Location W FCC ID: 2BTPZ-3401 IC ID: 34954-3401 Model No.: Dab Rite GO HVIN: Dab Rite GO L

Page 1 of 5 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix III internal photos FCC ID: 2BTPZ-3401 Note: WPT Coil ANT Receive only WPT Coil ANT Page 2 of 5 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 3 of 5 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China BT ANT Page 4 of 5 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 5 of 5 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ------End------

Page 1 of 2 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix IV MPE FCC ID: 2BTPZ-3401 Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) KDB Test Methodology: KDB 447498 D01 v06. 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Page 2 of 2 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China 3. Result Mode Frequency (MHz) Prediction distance (cm) RF output power(Max) (dBm) Tune-up power (Max) MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW BT LE 2402-2480 20 0.35 1 1.2589 0.0002 1 Yes BT EDR 2412-2462 20 1.96 2 1.5849 0.0003 1 Yes BT Antenna: max gain -0.58dBi, 0.87numeric) Therefore this device complies with FCC's RF radiation exposure limits for general population without SAR evaluation.

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Page 1 of 52 Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2BTPZ-3401 On Behalf of Temp Chem, LLC Digital IR Thermometer GO Model No.: Dab Rite GO Prepared for : Temp Chem, LLC Address : 140 School St, Buffalo, NY 14217, USA Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Report Number : psi2512080-C01-R04 Date of Receipt : December 11, 2025 Date of Test : December 12, 2025- December 23, 2025 Date of Report : December 23, 2025 Version Number : V0 Page 2 of 52 Report No.: psi2512080-C01-R04 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results ------------------------------------------------------------- 6 1.1. Description of Standards and Results ------------------------------------------------------- 6 2. General Information ------------------------------------------------------------------------------------ 7 2.1. Description of Device (EUT) ------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ------------------------------------------------------------------ 8 2.3. Tested Supporting System Details------------------------------------------------------------ 8 2.4. Block Diagram of Connection Between EUT and Simulators ------------------------- 8 2.5. Test Mode Description --------------------------------------------------------------------------- 9 2.6. Software test version and power setting information ------------------------------------ 9 2.7. Test Conditions ---------------------------------------------------------------------------------- 10 2.8. Test Facility --------------------------------------------------------------------------------------- 10 2.9. Measurement Uncertainty -------------------------------------------------------------------- 10 2.10. Test Equipment List----------------------------------------------------------------------------- 11 3. Spurious Emission ------------------------------------------------------------------------------------ 12 3.1. Test Limits ----------------------------------------------------------------------------------------- 12 3.2. Block Diagram of Test setup ----------------------------------------------------------------- 13 3.3. Test Procedure ----------------------------------------------------------------------------------- 14 3.4. Test Results--------------------------------------------------------------------------------------- 15 4. Power Line Conducted Emission ---------------------------------------------------------------- 21 4.1. Test Limits ----------------------------------------------------------------------------------------- 21 4.2. Test Procedure ----------------------------------------------------------------------------------- 21 4.3. Test Setup ----------------------------------------------------------------------------------------- 21 4.4. Test Results--------------------------------------------------------------------------------------- 22 5. Out-of-band Emissions ------------------------------------------------------------------------------ 25 5.1. Test Limits ----------------------------------------------------------------------------------------- 25 5.2. Test Procedure ----------------------------------------------------------------------------------- 25 5.3. Test Setup ----------------------------------------------------------------------------------------- 25 5.4. Test Results--------------------------------------------------------------------------------------- 25 6. Conducted Maximum Output Power ------------------------------------------------------------ 36 6.1. Test limits ------------------------------------------------------------------------------------------ 36 6.2. Test Procedure ----------------------------------------------------------------------------------- 36 6.3. Test Setup ----------------------------------------------------------------------------------------- 36 6.4. Test Results--------------------------------------------------------------------------------------- 36 7. Peak Power Spectral Density --------------------------------------------------------------------- 37 7.1. Test limits ------------------------------------------------------------------------------------------ 37 7.2. Test Procedure ----------------------------------------------------------------------------------- 37 7.3. Test Setup ----------------------------------------------------------------------------------------- 37 7.4. Test Results--------------------------------------------------------------------------------------- 37 8. Occupied Bandwidth --------------------------------------------------------------------------------- 41 8.1. Test limits ------------------------------------------------------------------------------------------ 41 8.2. Test Procedure ----------------------------------------------------------------------------------- 41 8.3. Test Setup ----------------------------------------------------------------------------------------- 41 8.4. Test Results--------------------------------------------------------------------------------------- 41 Page 3 of 52 Report No.: psi2512080-C01-R04 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China 9. Band Edge Test ------…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Page 1 of 2 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix I Test Setup Photo FCC ID: 2BTPZ-3401 Spurious Radiation Emissions Test (<1G) Spurious Radiation Emissions Test (＞1G) Page 2 of 2 Report No.: psi2512080-C01-R03 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Conducted emission Test ------End------
