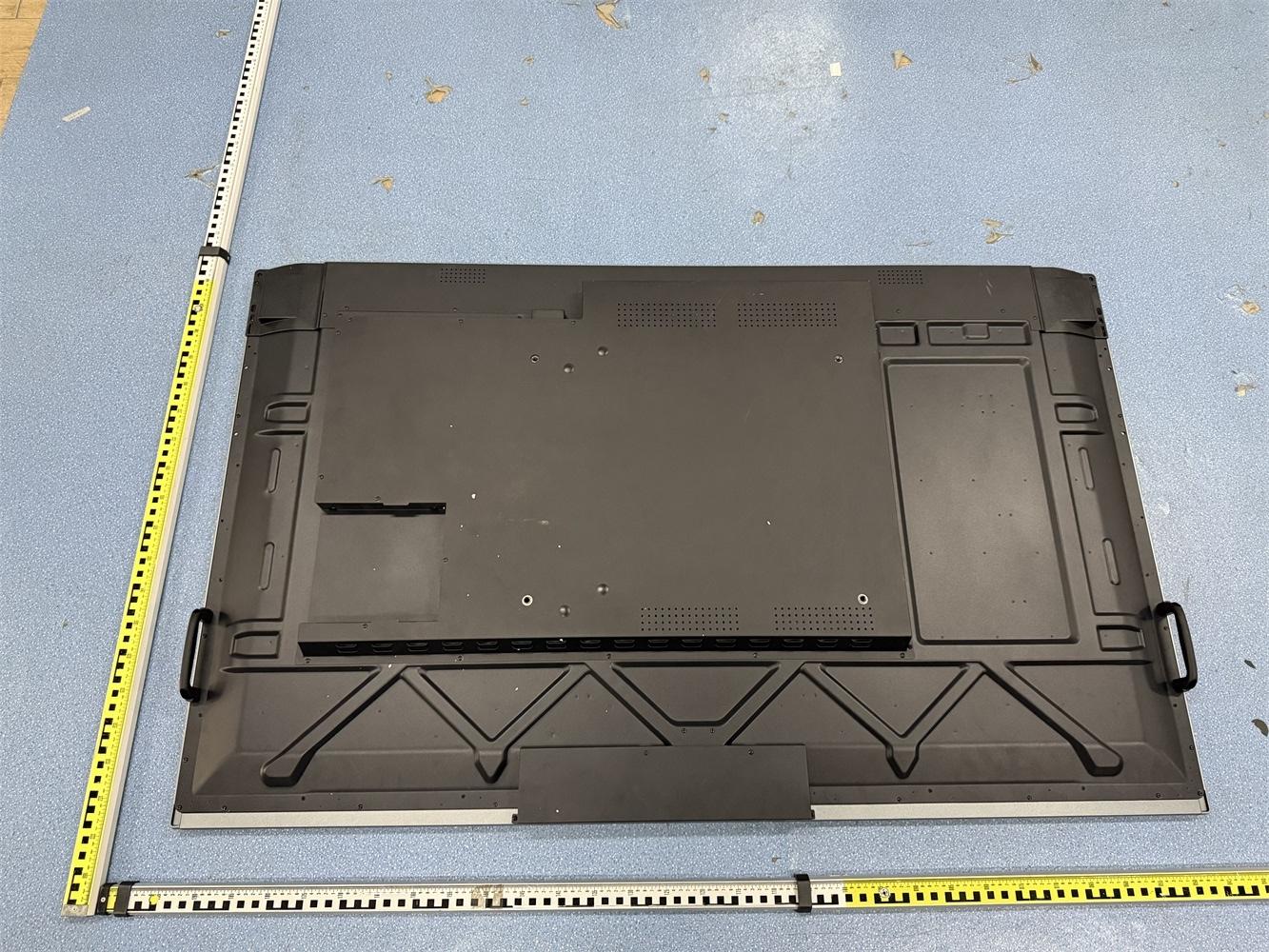

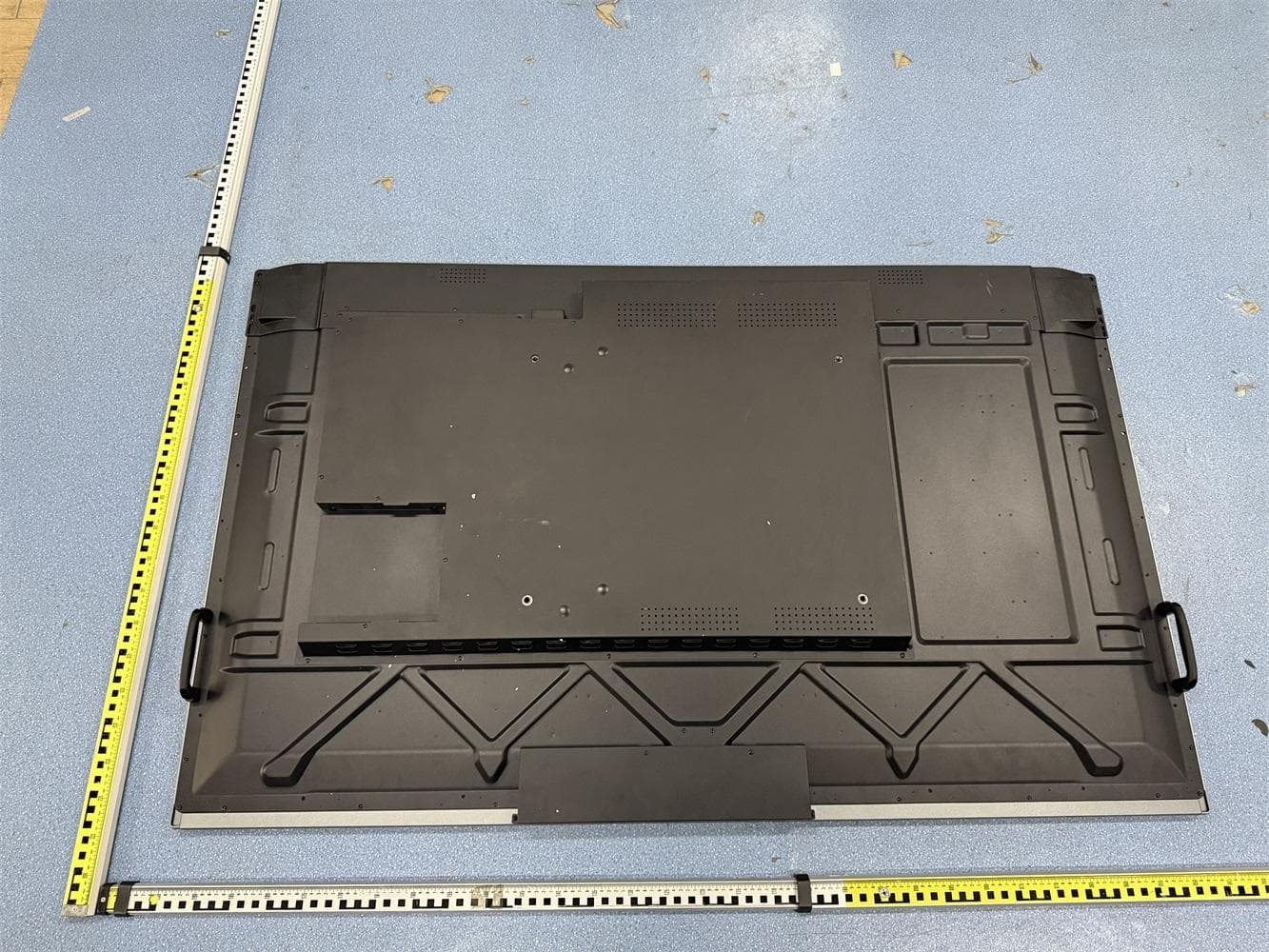

2BTQG-MZYIA86SCSmart Conference Flat Panel

Dazzle ViewV100 System Instruction Manual The final interpretation of all information in this document belongs to the company, and all unauthorized and permitted reproductions are not recognized and should be banned. 【This document may not fully reflect all recent changes to the product, whichever is the actual product.】 Revision History Company information: Address: 4th Floor, Building 33, No. 2519 Xingang East Road, Haizhu District, Guangzhou City, Guangdong ProvinceTelephone:020-84886280 Website: www.dazzleview-tech.com GuangZhou Dazzle View Intelligent Technology Co., Ltd Date Version Description Author 2023-11-11 Ver 1.0 First edition SiLing.Li 2024-03-18 Ver 1.1 Update SiLing.Li 2024-08-19 Ver 1.2 Update JieShan.Guo 2025-03-08 Ver 1.3 Updated whiteboard function and card manager usage JieShan.Guo GuangZhou Dazzle View Intelligent Technology Co., Ltd 1 Catalog 一 .System Description ........................................................ 3 1.1System Home Page ........................................................ 3 1.2 Sidebar ................................................................ 3 1.2.1 Function Int roduction .............................................. 3 1.3 Notification Panel ..................................................... 7 1.3.1 Pop up Introduction ................................................ 7 1.3.2 Function Introduction .............................................. 8 1.4 Status bar ............................................................ 12 1.5 Welshow ............................................................... 13 1.5.1 Entry method ...................................................... 13 1.5.2 Template .......................................................... 14 1.5.3 Text .............................................................. 15 1.5.4 Insert ............................................................ 16 1.5.5 Save .............................................................. 18 1.5.6 Reset ............................................................. 18 1.5.7 Scanning code sharing ............................................. 18 1.5.8 Show .............................................................. 19 1.6 System setting ........................................................ 20 1.6.1 Personalization ................................................... 20 1.6.2 Network ........................................................... 26 1.6.3 Intelligence ...................................................... 29 1.6.4System ............................................................. 35 二 .Software Description ........................................................ 38 2.1Writing Whiteboard ..................................................... 39 2.1.1 Interface Display ................................................. 39 2.1.2 Menu .............................................................. 39 2.1.3 Tools ............................................................. 44 2.1.4 Code scanning and sharing ......................................... 52 2.1.5 Common Function ................................................... 53 2.2 Document Management ................................................... 73 2.2.1 Interface I ntroduction ............................................ 73 2.2.2 Classification D isplay ............................................ 74 2.2.3 Extended Menu ..................................................... 77 2.2.4 Display Method .................................................... 79 2.2.5 Toolbar ........................................................... 80 2.3 VIP Reception ......................................................... 81 2.3.1Interface Description .............................................. 81 2.3.2 Functional A pplication ............................................ 82 2.4 Card Manager .......................................................... 85 2.4.1 Adding Users ...................................................... 85 2.4.2 Export List ....................................................... 86 2.4.3 Import List ....................................................... 87 2.4.4 Query List ........................................................ 88 2.4.5 Clear list ........................................................ 89 GuangZhou Dazzle View Intelligent Technology Co., Ltd 2 2.5 Multi-screen Interactive .............................................. 89 2.5.1 Application N ote .................................................. 89 2.5.2 Operating Instructions ............................................ 89 2.5.3 Special instructions for multi-screen interactive interface ....... 90 2.5 .4 Computer Screen ................................................... 91 2.6More Applications ...................................................... 93 2.6.1APK Application .................................................... 93 2.6 .2Floating Menu ...................................................... 93 GuangZhou Dazzle View Intelligent Technology Co., Ltd 3 一.System Description 1.1System Home Page After the boot is completed,the system will enter the main interface by default. 1.2 Sidebar 1.2.1 Function Introduction The sidebar is divided into left and right sidebars, click on the icon that is hovering on the left/right side of the screen, such as 、 to bring up the sidebar.The function keys in turn that are expanded are: return, home page, task, annotation, signal source, and notification center. The sidebar will be hidden automatically after 5S without any operation. GuangZhou Dazzle View Intelligent Technology Co., Ltd 4 1.Return Click the icon to return or exit the current page. 2.Home Click icon to enter system home page. 3.Task Click icon， to enter the task management interface, where you can select to open or close the application. (1) In multi task state, touch the task list area and slide up and down to view the task list. (2)Click the button to close the task. Click the button to clear all appl…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No. ................. : FCC ID. ......................................... : GTS20250918002-1-05 2BTQG-MZYIA86SC Compiled by ( position+printed name+signature): File administrators Peter Xiao Supervised by ( position+printed name+signature): Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Dec.15, 2025 Representative Laboratory Name ....................................................... : Shenzhen Global Test Service Co.,Ltd. Address ......................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ......................... : Shenzhen Yiduo Technology Co., Ltd. Dongguan Branch Address ......................................... : Room 201, Building 1, No. 7 Changlong Huayu Street, Huangjiang Town, Dongguan City, Guangdong Province, China Test specification ........................ : Standard ........................................ : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices TRF Originator .............................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : Smart Conference Flat Panel Trade Mark .................................... : N/A Manufacturer ................................. : Shenzhen Yiduo Technology Co., Ltd. Dongguan Branch Model/Type reference ...................... : MZYIA86SC Listed Models .............................. : N/A Hardware Version ........................ : N/A Software Version ........................... : N/A Rating ............................................ : AC100-240V, 50/60Hz, 5.0A Result ............................................ : PASS Report No.:GTS20250918002-1-05 Page 2 of 22 T E S T R E P O R T Test Report No. : GTS20250918002-1-05 Dec.15, 2025 ______________________________________________________________________________________________ Date of issue Equipment under Test : Smart Conference Flat Panel Model /Type : MZYIA86SC Listed model : N/A Applicant : Shenzhen Yiduo Technology Co., Ltd. Dongguan Branch Address : Room 201, Building 1, No. 7 Changlong Huayu Street, Huangjiang Town, Dongguan City, Guangdong Province, China Manufacturer : Shenzhen Yiduo Technology Co., Ltd. Dongguan Branch Address : Room 201, Building 1, No. 7 Changlong Huayu Street, Huangjiang Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.:GTS20250918002-1-05 Page 3 of 22 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1. 1.1 EUT CONFIGURATION ................................................................................................................................................. 4 1.2. PRODUCT DESCRIPTION .................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 6 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 6 2.2 TEST FACILITY .................................................................................................................................................................. 6 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 6 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 6 3. METHOD OF MEASUREMENT .................................................................................................................................... 7 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 7 3.2 REQUIREMENT ................................................................................................................................................................. 7 3.3 LIMIT ............................................................................................................................................................................. 7 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 8 3.5 ANTENNA INFORMATION ..................................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2BTQG-MZYIA86SC _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BTQG-MZYIA86SC _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20250918002-1-04 2BTQG-MZYIA86SC Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Dec.15, 2025 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen Yiduo Technology Co., Ltd. Dongguan Branch Address ............................................ : Room 201, Building 1, No. 7 Changlong Huayu Street, Huangjiang Town, Dongguan City, Guangdong Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.407: General technical requirements TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart Conference Flat Panel Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Yiduo Technology Co., Ltd. Dongguan Branch Model/Type reference ...................... : MZYIA86SC Listed Models .................................. : N/A Operation Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : AC100-240V, 50/60Hz, 5.0A Result ............................................... : PASS Report No.: GTS20250918002-1-04 Page 2 of 36 T E S T R E P O R T Test Report No. : GTS20250918002-1-04 Dec.15, 2025 ____________________________________________________________________________________ Date of issue Equipment under Test : Smart Conference Flat Panel Model /Type : MZYIA86SC Listed model : N/A Applicant : Shenzhen Yiduo Technology Co., Ltd. Dongguan Branch Address : Room 201, Building 1, No. 7 Changlong Huayu Street, Huangjiang Town, Dongguan City, Guangdong Province, China Manufacturer : Shenzhen Yiduo Technology Co., Ltd. Dongguan Branch Address : Room 201, Building 1, No. 7 Changlong Huayu Street, Huangjiang Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20250918002-1-04 Page 3 of 36 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 7 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 7 2.5. EUT operation mode .............................................................................................................................. 7 2.6. Block Diagram of Test Setup ................................................................................................................. 8 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 8 2.8. EUT Exercise Software .......................................................................................................................... 8 2.9. Special Accessories ............................................................................................................................... 8 2.10. External I/O Cable ................................................................................................................................ 8 2.11. Modifications ........................................................................................................................................ 8 3. TEST ENVIRONMENT ..................................................................................................................................... 9 3.1. Address of the test laboratory ................................................................................................................ 9 3.2. Test Facility ..........................…

Text truncated - open the document above for the full version.

FCC ID: 2BTQG-MZYIA86SC 1 Case No. : GTS20250918002-1-04 Ambient Condition: 22 °C, 47 %RH According Standard: ■Part15E Test Date:2025.10.11-2025.12.12Test Engineer: Evan ouyang Appendix E.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.490 5736.7124 5753.2024 --- --- 5785 16.558 5776.6678 5793.2258 --- --- 5825 16.573 5816.6831 5833.2561 --- --- 11N20SISO Ant1 5745 17.640 5736.1375 5753.7775 --- --- 5785 17.681 5776.1273 5793.8083 --- --- 5825 17.722 5816.0959 5833.8179 --- --- 11N40SISO Ant1 5755 36.337 5736.9078 5773.2448 --- --- 5795 36.573 5776.7450 5813.3180 --- --- 11AC20SISO Ant1 5745 17.715 5736.0954 5753.8104 --- --- 5785 17.693 5776.0876 5793.7806 --- --- 5825 17.744 5816.0599 5833.8039 --- --- 11AC40SISO Ant1 5755 36.291 5736.8006 5773.0916 --- --- 5795 36.332 5776.8099 5813.1419 --- --- 11AC80SISO Ant1 5775 75.532 5737.0437 5812.5757 --- --- FCC ID: 2BTQG-MZYIA86SC 2 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2BTQG-MZYIA86SC 3 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCC ID: 2BTQG-MZYIA86SC 4 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCC ID: 2BTQG-MZYIA86SC 5 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCC ID: 2BTQG-MZYIA86SC 6 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCC ID: 2BTQG-MZYIA86SC 7 11AC80SISO_Ant1_5775 FCC ID: 2BTQG-MZYIA86SC 8 Appendix E.2: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.280 5736.800 5753.080 0.5 PASS 5785 16.320 5776.800 5793.120 0.5 PASS 5825 16.280 5816.800 5833.080 0.5 PASS 11N20SISO Ant1 5745 17.560 5736.160 5753.720 0.5 PASS 5785 17.560 5776.160 5793.720 0.5 PASS 5825 17.560 5816.160 5833.720 0.5 PASS 11N40SISO Ant1 5755 35.120 5737.400 5772.520 0.5 PASS 5795 35.440 5777.400 5812.840 0.5 PASS 11AC20SISO Ant1 5745 17.440 5736.160 5753.600 0.5 PASS 5785 17.600 5776.120 5793.720 0.5 PASS 5825 17.640 5816.120 5833.760 0.5 PASS 11AC40SISO Ant1 5755 35.360 5737.160 5772.520 0.5 PASS 5795 35.680 5777.400 5813.080 0.5 PASS 11AC80SISO Ant1 5775 75.040 5737.400 5812.440 0.5 PASS FCC ID: 2BTQG-MZYIA86SC 9 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2BTQG-MZYIA86SC 10 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCC ID: 2BTQG-MZYIA86SC 11 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCC ID: 2BTQG-MZYIA86SC 12 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCC ID: 2BTQG-MZYIA86SC 13 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCC ID: 2BTQG-MZYIA86SC 14 11AC80SISO_Ant1_5775 FCC ID: 2BTQG-MZYIA86SC 15 Appendix E.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant1 5745 2.07 2.27 91.19 0.40 0.48 5785 2.07 2.26 91.59 0.38 0.48 5825 2.07 2.26 91.59 0.38 0.48 11N20SISO Ant1 5745 1.92 2.13 90.14 0.45 0.52 5785 1.92 2.15 89.30 0.49 0.52 5825 1.92 2.08 92.31 0.35 0.52 11N40SISO Ant1 5755 0.94 1.17 80.34 0.95 1.06 5795 0.95 1.18 80.51 0.94 1.05 11AC20SISO Ant1 5745 0.20 0.45 44.44 3.52 5.00 5785 0.20 0.45 44.44 3.52 5.00 5825 0.20 0.45 44.44 3.52 5.00 11AC40SISO Ant1 5755 0.12 0.37 32.43 4.89 8.33 5795 0.11 0.37 29.73 5.27 9.09 11AC80SISO Ant1 5775 0.07 0.32 21.88 6.60 14.29 FCC ID: 2BTQG-MZYIA86SC 16 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2BTQG-MZYIA86SC 17 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCC ID: 2BTQG-MZYIA86SC 18 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCC ID: 2BTQG-MZYIA86SC 19 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCC ID: 2BTQG-MZYIA86SC 20 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCC ID: 2BTQG-MZYIA86SC 21 11AC80SISO_Ant1_5775 FCC ID: 2BTQG-MZYIA86SC 22 Appendix E.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq (MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 10.40 91.19 0.40 10.80 ≤30.00 PASS 5785 11.61 91.59 0.38 11.99 ≤30.00 PASS 5825 12.88 91.59 0.38 13.26 ≤30.00 PASS 11N20SIS O Ant1 5745 10.29 90.14 0.45 10.74 ≤30.00 PASS 5785 11.45 89.30 0.49 11.94 ≤30.00 PASS 5825 12.81 92.31 0.35 13.16 ≤30.00 PASS 11N40SIS O Ant1 5755 10.03 80.34 0.95 10.98 ≤30.00 PASS 5795 11.12 80.51 0.94 12.06 ≤30.00 PASS 11AC20SI SO Ant1 5745 5.78 44.44 3.52 9.30 ≤30.00 PASS 5785 7.06 44.44 3.52 10.58 ≤30.00 PASS 5825 8.20 44.44 3.52 11.72 ≤30.00 PASS 11AC40SI SO Ant1 5755 4.79 32.43 4.89 9.68 ≤30.00 PASS 5795 5.76 29.73 5.27 11.03 ≤30.00 PASS 11AC80SI SO Ant1 5775 3.93 21.88 6.60 10.53 ≤30.00 PASS FCC ID: 2BTQG-MZYIA86SC 23 Appendix E.5: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5745 -3.30 ≤30.00 PASS 5785 -2.18 ≤30.00 PASS 5825 -0.94 ≤30.00 PASS 11N20SISO Ant1 5745 -3.77 ≤30.00 PASS 5785 -2.33 ≤30.00 PASS 5825 -1.18 ≤30.00 PASS 11N40SISO Ant1 5755 -5.68 ≤30.00 PASS 5795 -4.78 ≤30.00 PASS 11AC20SISO Ant1 5745 -4.37 ≤30.00 PASS 5785 -2.93 ≤30.00 PASS 5825 -2.13 ≤30.00 PASS 11AC40SISO Ant1 5755 -5.96 ≤30.00 PASS 5795 -4.43 ≤30.00 PASS 11AC80SISO Ant1 5775 -7.59 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factorand RBW Factoriscompensatedinthegraph. FCC ID: 2BTQG-MZYIA86SC 24 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2BTQG-MZYIA86SC 25 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCC ID: 2BTQG-MZYIA86SC 26 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCC ID: 2BTQG-MZYIA86SC 27 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCC ID: 2BTQG-MZYIA86SC 28 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCC ID: 2BTQG-MZYIA86SC 29 11AC80SISO_Ant1_5775 FCC ID: 2BTQG-MZYIA86SC 30 Appendix E.6:Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5650~5700 -39.87 ≤-26.96 PASS 5700~5720 -33.87 ≤1…

Text truncated - open the document above for the full version.

FCC ID: 2BTQG-MZYIA86SC 1 Case No. : GTS20250918002-1-04 Ambient Condition: 22 °C, 48 %RH According Standard: ■Part15E Test Date:2025.10.11-2025.12.12Test Engineer: Evan ouyang Appendix E.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant0 5745 16.790 5736.6379 5753.4279 --- --- 5785 17.111 5776.4897 5793.6007 --- --- 5825 17.485 5816.3314 5833.8164 --- --- 11N20SISO Ant0 5745 17.842 5736.0833 5753.9253 --- --- 5785 18.249 5775.9137 5794.1627 --- --- 5825 18.473 5815.8029 5834.2759 --- --- 11N40SISO Ant0 5755 37.015 5736.6520 5773.6670 --- --- 5795 37.353 5776.5494 5813.9024 --- --- 11AC20SISO Ant0 5745 17.688 5736.1076 5753.7956 --- --- 5785 17.698 5776.1191 5793.8171 --- --- 5825 17.803 5816.0509 5833.8539 --- --- 11AC40SISO Ant0 5755 36.402 5736.7362 5773.1382 --- --- 5795 36.420 5776.6728 5813.0928 --- --- 11AC80SISO Ant0 5775 76.016 5736.8879 5812.9039 --- --- FCC ID: 2BTQG-MZYIA86SC 2 Test Graphs 11A_Ant0_5745 11A_Ant0_5785 11A_Ant0_5825 FCC ID: 2BTQG-MZYIA86SC 3 11N20SISO_Ant0_5745 11N20SISO_Ant0_5785 FCC ID: 2BTQG-MZYIA86SC 4 11N20SISO_Ant0_5825 11N40SISO_Ant0_5755 11N40SISO_Ant0_5795 FCC ID: 2BTQG-MZYIA86SC 5 11AC20SISO_Ant0_5745 11AC20SISO_Ant0_5785 FCC ID: 2BTQG-MZYIA86SC 6 11AC20SISO_Ant0_5825 11AC40SISO_Ant0_5755 11AC40SISO_Ant0_5795 FCC ID: 2BTQG-MZYIA86SC 7 11AC80SISO_Ant0_5775 FCC ID: 2BTQG-MZYIA86SC 8 Appendix E.2: Min emission bandwidth Test Result TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant0 5745 16.320 5736.800 5753.120 0.5 PASS 5785 16.320 5776.800 5793.120 0.5 PASS 5825 16.040 5816.800 5832.840 0.5 PASS 11N20SISO Ant0 5745 17.280 5736.200 5753.480 0.5 PASS 5785 17.360 5776.360 5793.720 0.5 PASS 5825 17.560 5816.160 5833.720 0.5 PASS 11N40SISO Ant0 5755 35.120 5737.400 5772.520 0.5 PASS 5795 35.120 5777.400 5812.520 0.5 PASS 11AC20SISO Ant0 5745 17.640 5736.120 5753.760 0.5 PASS 5785 17.560 5776.160 5793.720 0.5 PASS 5825 17.680 5816.080 5833.760 0.5 PASS 11AC40SISO Ant0 5755 36.080 5736.760 5772.840 0.5 PASS 5795 35.120 5777.400 5812.520 0.5 PASS 11AC80SISO Ant0 5775 75.360 5737.400 5812.760 0.5 PASS FCC ID: 2BTQG-MZYIA86SC 9 Test Graphs 11A_Ant0_5745 11A_Ant0_5785 11A_Ant0_5825 FCC ID: 2BTQG-MZYIA86SC 10 11N20SISO_Ant0_5745 11N20SISO_Ant0_5785 FCC ID: 2BTQG-MZYIA86SC 11 11N20SISO_Ant0_5825 11N40SISO_Ant0_5755 11N40SISO_Ant0_5795 FCC ID: 2BTQG-MZYIA86SC 12 11AC20SISO_Ant0_5745 11AC20SISO_Ant0_5785 FCC ID: 2BTQG-MZYIA86SC 13 11AC20SISO_Ant0_5825 11AC40SISO_Ant0_5755 11AC40SISO_Ant0_5795 FCC ID: 2BTQG-MZYIA86SC 14 11AC80SISO_Ant0_5775 FCC ID: 2BTQG-MZYIA86SC 15 Appendix E.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant0 5745 2.07 2.29 90.39 0.44 0.48 5785 2.06 2.28 90.35 0.44 0.49 5825 2.07 2.30 90.00 0.46 0.48 11N20SISO Ant0 5745 1.92 2.09 91.87 0.37 0.52 5785 1.92 2.15 89.30 0.49 0.52 5825 1.92 2.16 88.89 0.51 0.52 11N40SISO Ant0 5755 0.95 1.18 80.51 0.94 1.05 5795 0.94 1.14 82.46 0.84 1.06 11AC20SISO Ant0 5745 0.20 0.45 44.44 3.52 5.00 5785 0.20 0.45 44.44 3.52 5.00 5825 0.20 0.46 43.48 3.62 5.00 11AC40SISO Ant0 5755 0.11 0.37 29.73 5.27 9.09 5795 0.12 0.41 29.27 5.34 8.33 11AC80SISO Ant0 5775 0.07 0.33 21.21 6.73 14.29 FCC ID: 2BTQG-MZYIA86SC 16 Test Graphs 11A_Ant0_5745 11A_Ant0_5785 11A_Ant0_5825 FCC ID: 2BTQG-MZYIA86SC 17 11N20SISO_Ant0_5745 11N20SISO_Ant0_5785 FCC ID: 2BTQG-MZYIA86SC 18 11N20SISO_Ant0_5825 11N40SISO_Ant0_5755 11N40SISO_Ant0_5795 FCC ID: 2BTQG-MZYIA86SC 19 11AC20SISO_Ant0_5745 11AC20SISO_Ant0_5785 FCC ID: 2BTQG-MZYIA86SC 20 11AC20SISO_Ant0_5825 11AC40SISO_Ant0_5755 11AC40SISO_Ant0_5795 FCC ID: 2BTQG-MZYIA86SC 21 11AC80SISO_Ant0_5775 FCC ID: 2BTQG-MZYIA86SC 22 Appendix E.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq (MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant0 5745 10.90 90.39 0.44 11.34 ≤30.00 PASS 5785 11.95 90.35 0.44 12.39 ≤30.00 PASS 5825 12.52 90.00 0.46 12.98 ≤30.00 PASS 11N20SIS O Ant0 5745 10.80 91.87 0.37 11.17 ≤30.00 PASS 5785 11.73 89.30 0.49 12.22 ≤30.00 PASS 5825 12.32 88.89 0.51 12.83 ≤30.00 PASS 11N40SIS O Ant0 5755 10.24 80.51 0.94 11.18 ≤30.00 PASS 5795 11.06 82.46 0.84 11.90 ≤30.00 PASS 11AC20SI SO Ant0 5745 6.02 44.44 3.52 9.54 ≤30.00 PASS 5785 7.44 44.44 3.52 10.96 ≤30.00 PASS 5825 8.44 43.48 3.62 12.06 ≤30.00 PASS 11AC40SI SO Ant0 5755 5.20 29.73 5.27 10.47 ≤30.00 PASS 5795 6.36 29.27 5.34 11.70 ≤30.00 PASS 11AC80SI SO Ant0 5775 4.23 21.21 6.73 10.96 ≤30.00 PASS FCC ID: 2BTQG-MZYIA86SC 23 Appendix E.5: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant0 5745 -2.83 ≤30.00 PASS 5785 -1.73 ≤30.00 PASS 5825 -1.35 ≤30.00 PASS 11N20SISO Ant0 5745 -3.50 ≤30.00 PASS 5785 -2.25 ≤30.00 PASS 5825 -1.53 ≤30.00 PASS 11N40SISO Ant0 5755 -5.69 ≤30.00 PASS 5795 -4.77 ≤30.00 PASS 11AC20SISO Ant0 5745 -3.89 ≤30.00 PASS 5785 -2.66 ≤30.00 PASS 5825 -1.51 ≤30.00 PASS 11AC40SISO Ant0 5755 -4.94 ≤30.00 PASS 5795 -3.58 ≤30.00 PASS 11AC80SISO Ant0 5775 -6.82 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factorand RBW Factoriscompensatedinthegraph. FCC ID: 2BTQG-MZYIA86SC 24 Test Graphs 11A_Ant0_5745 11A_Ant0_5785 11A_Ant0_5825 FCC ID: 2BTQG-MZYIA86SC 25 11N20SISO_Ant0_5745 11N20SISO_Ant0_5785 FCC ID: 2BTQG-MZYIA86SC 26 11N20SISO_Ant0_5825 11N40SISO_Ant0_5755 11N40SISO_Ant0_5795 FCC ID: 2BTQG-MZYIA86SC 27 11AC20SISO_Ant0_…
