2BTSC-6013DVWMicrophone Unit (Wireless)

Microphoneunit(wireless)installationmanual Microphoneunit(wireless)installationmanual InterfaceDescription SideView ①Speakbutton ②Microphonepolestatuslight ③Sidelight Greenlightisfastchargingindicator:Itissolidonduringfastchargingprocess,itis offduringslowchargingprocess. Redlightischargingindicator:itblinksduringchargingprocess,itissolidonafterit isfullycharged. ④Type-Cinterface:Usedforcharging.(canbeusedforupdatingprogram) ⑤3.5mmaudiointerface:Reserved. ⑥Volumebutton+、-:Reserved. ⑦TouchScreen Microphoneunit(wireless)installationmanual BottomView ①Powerswitch Microphoneunit(wireless)installationmanual UsagePrecautions Aboutbatterypower: Thebatteryiconintheupperrightcornerofthescreenshowsthebatterylevelor chargingstatus.Whenyouturnonorusethemicrophone,itmaytakealongtimeto fullycharge. Whenthebatteryisbelow30%,themicrophonewillprompt"Lowbattery,please chargeassoonaspossible"; Whenthebatteryisbelow10%,themicrophonewillprompt"Insufficientbattery, pleasechargeintime"; Whenthechargeisbelow1%,themicrophonewillprompt"Deadbattery,thesystem willshutdownautomatically". Aboutchargingthebattery: Tochargethemicrophone,pleasefollowoneofthefollowingoperation(Itis recommendedchargingwiththemicrophoneoff.) (1)ItisrecommendedtouseamatchingUSBchargingboxandchargingcable connecttoType-Cinterfaceofmicrophone.Itcanbefullychargedwithin4.5hours usingUSBchargingbox. (2)Useachargingcableandcompatiblepoweradaptertoaccessthemicrophone Type-Cinterface.Forfastcharging,apoweradapterwithaminimumoutputof18W isrequired. AboutBatteryLife: (1)Whenthedeviceisnotinuse,itisadvisedtoturnthepowerswitchatthebottom toOFF. (2)Allrechargeablebatteriesareconsumables,andasthebatterychemicalage increasesandunderspecialcircumstances(lowtemperature,hightemperature,etc.), theperformanceofthebatterywillbereduced. Microphoneunit(wireless)installationmanual Aboutscreenbrightness: Whenthedeviceisidle,thescreenbrightnesswilldecreaseafter 1min/5mins/10minstoreducepowerconsumptionandextendstandbytime. Wiring Microphoneunit(wireless)installationmanual AppearanceInstallationDimensionDiagram(unit:mm) InstallationDiagram Microphoneunit(wireless)installationmanual Specifications,FunctionalComponentsandParameters Power, PowerConsumption Lithiumbatterypowersupply, microphoneunitpowerconsumption≤3W AudioEncodingFormatPCM/OPUS AudioSampling,Bitrate48Khz,16bit,64Kbps-128kbps SNR(Signaltonoiseratio), Frequencyresponse ≥83dB、40Hz-18KHz Serverfilebroadcast SNR(signaltonoiseratio), frequencyresponse ≥90dB、40Hz-18KHz NetworkProtocolWiFiProtocol Screen4inchCapacitivetouchscreen ScreenResolution480*480（RGB） Headphoneoutputinterface∅3.5mmStereojack StorageBuilt-inSPIFLASH ConnectionmethodConnectviaAP MicrophoneGooseneckmicrophone DirectionalpropertySupercardioid Operatingtemperature, Operatinghumidity 0-45°C,≤90％(noncondensing) Dimension168*103*289mm ShellmaterialABS+PC Microphoneunit(wireless)installationmanual PackingList FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

(SPON Communications Co., Ltd.) (2025.12.31) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2BTSC-6013DVW) [SPON Communications Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Yuan min (SPON Communications Co., Ltd.) (2025.12.31) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BTSC-6013DVW) [SPON Communications Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Yuan min

SPON Communications Co., Ltd. 2025.12.31 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Microphone Unit (Wireless) Trademark: N/A MODEL : LCM-6013DVW-L, LCM-GB6013DVW-L, LCM-ES6013DVW-L, LCM- IT6013DVW-L, LCS-5256CW, LCS-5256CW-L, LCS-5256DW, LCS-5256DW-L, LCS-5257CW, LCS-5257CW-L, LCS-5257DW, LCS-5257DW-L, LCM- 6013CVW-J, LCM-6013DVW-J, LCS-5256CW-XL, LCS-5256DW-XL, LCS- 5257CW-XL, LCS-5257D-XL, LCM-GB6013CVW-L, LCM-ES6013CVW-L, LCM- IT6013CVW-L, LCM-RU6013CVW-L, LCM-6013DVW-XL, LCM-6013DVW-XXL, LCM-6013DVW-XXXL, LCM-6013CVW-XL, LCM-6013CVW-XXL, LCM- 6013CVW-XXXL, LCM-6013CVW-L, LCM-6013DVW-J FCC ID : 2BTSC-6013DVW To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Yuan min/ Manager Contact information / address: NO.70, Nantang Road, Lugu Street, High-tech Development Zone, Changsha City, China

SPON Communications Co., Ltd. 2025.12.31 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen STS Test Services Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Yuan min/ Manager Contact information / address: NO.70, Nantang Road, Lugu Street, High-tech Development Zone, Changsha City, China

SPON Communications Co., Ltd. Model Difference 2025-12-31 EUT NAME: Microphone Unit (Wireless) FCC ID: 2BTSC-6013DVW MODEL : LCM-6013DVW-L, LCM-GB6013DVW-L, LCM-ES6013DVW-L, LCM- IT6013DVW-L, LCS-5256CW, LCS-5256CW-L, LCS-5256DW, LCS-5256DW-L, LCS-5257CW, LCS-5257CW-L, LCS-5257DW, LCS-5257DW-L, LCM-6013CVW-J, LCM-6013DVW-J, LCS-5256CW-XL, LCS-5256DW-XL, LCS-5257CW-XL, LCS- 5257D-XL, LCM-GB6013CVW-L, LCM-ES6013CVW-L, LCM-IT6013CVW-L, LCM- RU6013CVW-L, LCM-6013DVW-XL, LCM-6013DVW-XXL, LCM-6013DVW-XXXL, LCM-6013CVW-XL, LCM-6013CVW-XXL, LCM-6013CVW-XXXL, LCM-6013CVW-L, LCM-6013DVW-J All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Yuan min / Manager Contact information / address: NO.70, Nantang Road, Lugu Street, High-tech Development Zone, Changsha City, China

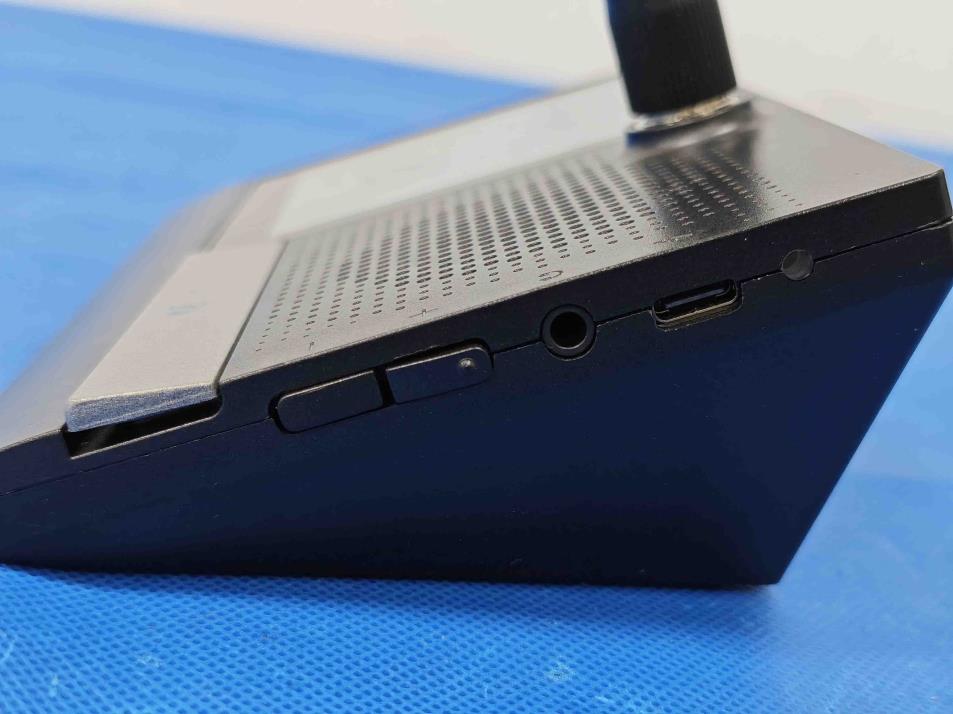

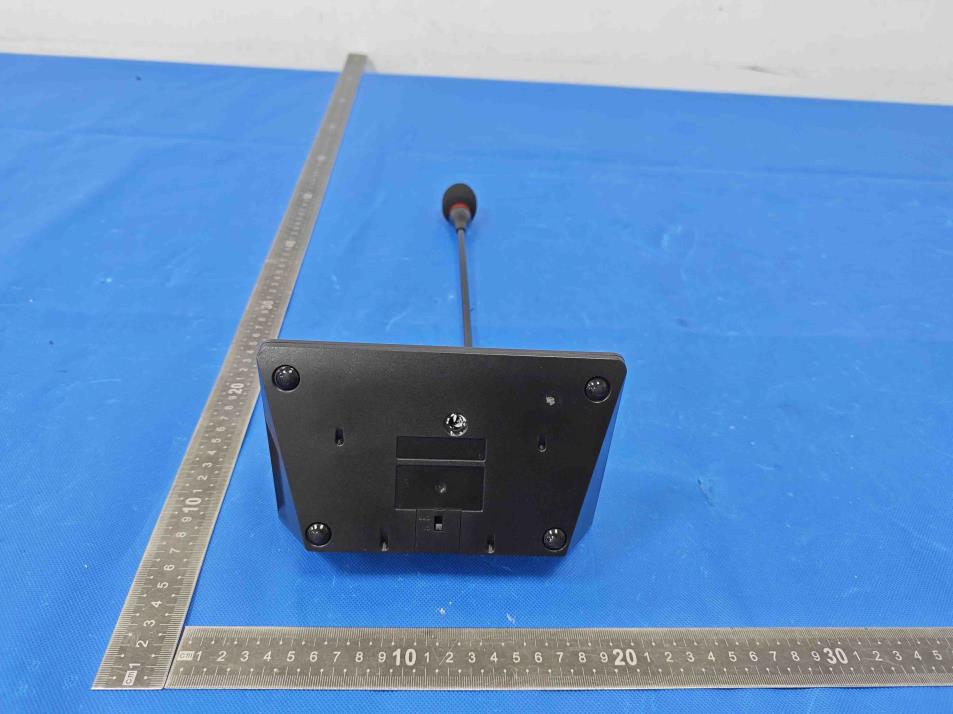

Page 1 of 9 Report No.: STS2512375 External Photos Page 2 of 9 Report No.: STS2512375 Page 3 of 9 Report No.: STS2512375 Page 4 of 9 Report No.: STS2512375

Size:40*20mm Microphone Unit (Wireless) FCC ID: 2BTSC-6013DVW This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label location

Page 5 of 9 Report No.: STS2512375 Internal Photos Antenna Page 6 of 9 Report No.: STS2512375 Page 7 of 9 Report No.: STS2512375 Page 8 of 9 Report No.: STS2512375 Page 9 of 9 Report No.: STS2512375

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.: STS2512375H01 Issued for SPON Communications Co., Ltd. NO.70, Nantang Road, Lugu Street, High-tech Development Zone, Changsha City, China Product Name: Microphone Unit (Wireless) Brand Name: N/A Model Name: LCM-6013DVW-L Series Model(s): More models Ref. the 1.1 FCC ID: 2BTSC-6013DVW Test Standard: FCC 47CFR §2.1093 Page 2 of 9 Report No.: STS2512375H01 TEST REPORT Applicant’s Name ................. : SPON Communications Co., Ltd. Address ................................. : NO.70, Nantang Road, Lugu Street, High-tech Development Zone, Changsha City, China Manufacturer's Name ........... : SPON Communications Co., Ltd. Address ................................. : NO.70, Nantang Road, Lugu Street, High-tech Development Zone, Changsha City, China Product Description Product Name ........................ : Microphone Unit (Wireless) Brand Name .......................... : N/A Model Name .......................... : LCM-6013DVW-L Series Model(s) ...................... : More models Ref. the 1.1 Test Standards ..................... : FCC 47CFR §2.1093 447498 D01 Interim General RF Exposure Guidance v06 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 21 Oct. 2025 Date (s) of performance of tests ............. : 21 Oct. 2025 to 22 Dec. 2025 Date of Issue .......................................... : 22 Dec. 2025 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.: STS2512375H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 6 2. FCC 47CFR §2.1093 REQUIREMENT 7 2.1 TEST STANDARDS 7 2.2 LIMIT 7 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2512375H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 22 Dec. 2025 STS2512375H01 ALL Initial Issue Page 5 of 9 Report No.: STS2512375H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Microphone Unit (Wireless) Brand Name N/A Model Name LCM-6013DVW-L Series Model(s) LCM-GB6013DVW-L, LCM-ES6013DVW-L, LCM-IT6013DVW-L, LCS-5256CW, LCS-5256CW-L, LCS-5256DW, LCS-5256DW-L, LCS-5257CW, LCS-5257CW-L, LCS-5257DW, LCS-5257DW-L, LCM-6013CVW-J, LCM-6013DVW-J, LCS-5256CW-XL, LCS-5256DW-XL, LCS-5257CW-XL, LCS-5257D-XL, LCM-GB6013CVW-L, LCM-ES6013CVW-L, LCM-IT6013CVW-L, LCM-RU6013CVW-L, LCM-6013DVW-XL, LCM-6013DVW-XXL, LCM-6013DVW-XXXL, LCM-6013CVW-XL, LCM-6013CVW-XXL, LCM-6013CVW-XXXL, LCM-6013CVW-L, LCM-6013DVW-J Model Difference All the model are the same circuit and RF module, except model names. Product Description The EUT is a Microphone Unit (Wireless) Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz 802.11n40:2422~2452MHz 802.11a/ n(HT20)/ac(VHT20): 5.180GHz-5.240GHz 802.11n(HT40)/ac(VHT40): 5.190GHz-5.230GHz 802.11ac(VHT80): 5.210GHz 802.11a/ n(HT20)/ac(VHT20): 5.745GHz-5.825GHz 802.11a/ n(HT40)/ac(VHT40): 5.755GHz-5.795GHz 802.11ac(VHT80): 5.775GHz Modulation Type: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM, 64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM, 64-QAM 802.11a(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11ac(OFDM): BPSK,QPSK,16-QAM,64-QAM,256-QAM Bit Rate of Transmitter: 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20MHz): 65/58.5/52/39/26/19.5/13/6.5Mbps 802.11n(40MHz): 135/121.5/108/81/54/40.5/37/13.5Mbps 802.11a: 6,9,12,18,24,36,48,54Mbps; 802.11n(HT20/HT40):MCS0-MCS15; 802.11ac (VHT20): NSS1, MCS0-MCS8 802.11ac (VHT40/VHT80):NSS1, MCS0-MCS9 Number of Channel: 802.11b/g/n20: 11CH 802.11n40: 7CH Page 6 of 9 Report No.: STS2512375H01 4 channels for 802.11a/n20/ac20 in the 5180-5240MHz band ; 2 channels for 802.11 n40/ac40 in the 5190-5230MHz band ; 1 channels for 802.11 ac80 in the 5210MHz band ; 5 channels for 802.11a/n20/ac20 in the 5745-5825MHz band ; 2 channels for 802.11 n40/ac40 in the 5755-5795MHz band ; 1 channels for 802.11 ac80 in the 5775MHz band Antenna Type: PCB antenna Antenna Gain (dBi): WLAN 2.4GHz: 1.26 U-NII-1: 5.45 U-NII-3: 6.6 Power Rating DC 3.7V from battery, DC 5V from USB Adapter N/A Battery DC 3.7V Hardware Version N/A Software Version N/A 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 7 of 9 Report No.: STS2512375H01 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Page 8 of 9 Report No.: STS2512375H01 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 5…

Text truncated - open the document above for the full version.

REPORT No.: SZ24070012E01-a 、．．． ， TEST REPORT APPLICANT SPON Communications Co.,Ltd. PRODUCT NAME A ntenna MODEL NAME N/A TRADE NAME SPON BRAND NAME SPON STANDARD(S) IEEE Std 149-2021 RECEIPT DATE 2024-07-01 TEST DATE 2024-07-02 ISSUE DATE 2024-07-04 Edited by: 。四句叫叫 Guo Penghua(Rappo同eur) Appro ved by: 协�飞啡 Chi Shide(Supervisor) NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd.,the test repo同shallnot be 『eproducedexcept in full without prior written permission of the company. The test results apply only to the pa『ticularsample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. M。RLA Shen .. � B阳，Sci Shenzhen , GuangD。ng Pr。vince,P. R. China Tel: 86-755-36698555 Http://www.morlab.cn Fax: 86-75岳36698525 整望 E-mail: servic坦＠m。rlab.cn Page 1 of 13 REPORT No.: SZ24070012E01-a DIRECT。RY 1. Technical Information“.................·“..............“..................................“......“...................... 3 1.1. Applicant and Manufacturer lnformati。n............“.............................·“...................... 3 1.2. Equipment Under Test (EUT) Description ...............................I I I I I I I I I I I I I I I I I I I I I I I I 1111111..... 3 2. Test Results ........................................................................................................................ 4 2.1. Applied Reference Documents ..................................................................................... 4 2.2. Test Conditions ............................................................................................................... 4 2.3. Measurement Uncertainty ............................................................................................. 4 2.4. Test Results lists ............................................................................................................. 5 Annex A Test Setup Photos ..................................................................................................6 Annex B Figures ..................................................................................................................... 7 1. 20 Radiation Pattern......................................................................................................... 7 2. 30 Radiation Pattern .........................................................................................·”.............. 8 Annex C EUT Photos ........................................................................................................... 12 Annex D General Information ............................................................................................. 13 1.1 Identification of the Responsible Testing Laboratory .............................................. 13 1.2 Identification of the Responsible Testing Location ..................................................13 1.3 Test Equipments Utilized ．．．．.....................................圄....................................................13 1.4 Test Software Utilized .................................................................................................... 13 Change History Version Date 1.0 MORLAB 2024-07-04 Shenzhen Morlab Communications Technology Co., Ltd.,FL. T毡 ， BuildingA, F eiYang Science Park, NoβLongChang Road ， 日lock67,BaoAn Distric t, ShenZhen , GuangDong Provin田 ， P.R. China Reas。n f。r change First edition Tel: 86-755-36698555 Fax: 86-755-36698525 Http：阳ww.morlab.cn E-mail: servi出＠morlab.cn Page2。f 13 REPORT No.: SZ24070012E01-a N。te: Pr。vide by applicant. 1.1. Applicant and Manufacturer Information Applicant: SPON Communications c。.Ltd. Applicant Address: No.70, Nantang R。ad, High-tech z。ne, Changsha, China. Manufacturer: SPON Communications c。.Ltd. Manufacturer Address: No.70, Nantang Road, High-tech Zone, Changsha, China. 1.2. Equipment Under Test (EUT) Description Wireless Type N/A Test frequency band 2400M Hz-2500M Hz/5150MHz-5850MHz IMEI N/A Sample number 1# Shenzhen Morlab Communications Technology Co., Ltd.,FL. T毡 ， BuildingA, F eiYang Science Park, NoβLongChang Road ， 日lock67,BaoAn Distric t, Tel: 86-755-36698555 Fax: 86-755-36698525 MORLAB ShenZhen , GuangDong Provin田 ， P.R. China Http：阳ww.morlab.cn E-mail: servi出＠morlab.cn Page3。f 13 2.1. Applied Reference Documents Leading reference documents for testing: No. I Identity REPORT No.: SZ24070012E01-a Document Title IEEE Std 149-2021 IEEE Recommended Practice for Antenna Measurements 2.2. Test Conditions Test Environment c。nditi。ns: Relative Humidity(%): Temperature( ° C): 2.3. Measurement Uncertainty 25-75 10 -30 The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement ” （GUM) published by ISO. When the test result is a critical value.we will use the measurement uncertainty give the judgment result based 。n the 95% Confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd.,FL. T毡 ， BuildingA, F eiYang Science Park, NoβLongChang Road,Block67, BaoAn District, ShenZhen , GuangDong Provin田 ， P.R. China Tel: 86-755-36698555 Http:/lwww.morlab.cn Fax: 86-755-36698525 E-mail: servi但＠morlab.cn Page4。f 13 2.4. Test Results lists 2.4.1.Gain and Efficiency Frequency Gain(dBi) 2400MHz -0.13 2410MHz -0.27 2420MHz -0.27 2430MHz -0.42 2440MHz -0.28 2450MHz 0.04 2460MHz 0.21 2470MHz 0.31 2480MHz 0.44 2490MHz 0.77 2500MHz 1.26 5150MHz 4.78 5200MHz 5.27 5250MHz 5.45 5300MHz 4.98 5350MHz 4.68 5400MHz 3.87 5450MHz 4.62 5500MHz 6.83 5550MHz 4.22 5600MHz 4.48 5650MHz 4.63 5700MHz 4.97 5750MHz 5.69 5800MHz 6.54 5850MHz 6.60 MORLAB Shenzhen Morlab Communications Technology Co., Ltd.,FL. T毡 ， BuildingA, F eiYang Science Park, NoβLongChang Road ， 日lock67,BaoAn Distric t, ShenZhen , GuangDong Provin田 ， P.R. China REPORT No.: SZ24070012E01-a Efficiency 19.72% 21.42% 22.58% 22.42% 22.94% 24.47% 26.38% 27.47% 27.48% 28.62% 31.43% 71.10% 70.04% 76.40% 73.92% 72.73% 71.27% 71.48% 65.60% …

Text truncated - open the document above for the full version.

Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5180 Ant1 100 0 NVNT n20 5180 Ant1 100 0 NVNT n40 5190 Ant1 100 0 NVNT ac20 5180 Ant1 100 0 NVNT ac40 5190 Ant1 100 0 NVNT ac80 5210 Ant1 100 0 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Test Graphs Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT ac20 5180MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Duty Cycle NVNT ac40 5190MHz Ant1 Duty Cycle NVNT ac80 5210MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 6.64 24 Pass NVNT a 5200 Ant1 6.91 24 Pass NVNT a 5240 Ant1 6.93 24 Pass NVNT n20 5180 Ant1 5.37 24 Pass NVNT n20 5200 Ant1 5.81 24 Pass NVNT n20 5240 Ant1 5.96 24 Pass NVNT n40 5190 Ant1 4.28 24 Pass NVNT n40 5230 Ant1 4.44 24 Pass NVNT ac20 5180 Ant1 5.76 24 Pass NVNT ac20 5200 Ant1 5.64 24 Pass NVNT ac20 5240 Ant1 5.34 24 Pass NVNT ac40 5190 Ant1 3.69 24 Pass NVNT ac40 5230 Ant1 4.12 24 Pass NVNT ac80 5210 Ant1 3.82 24 Pass Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Test Graphs Power NVNT a 5180MHz Ant1 Power NVNT a 5200MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Power NVNT a 5240MHz Ant1 Power NVNT n20 5180MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Power NVNT n20 5200MHz Ant1 Power NVNT n20 5240MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Power NVNT n40 5190MHz Ant1 Power NVNT n40 5230MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Power NVNT ac20 5180MHz Ant1 Power NVNT ac20 5200MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Power NVNT ac20 5240MHz Ant1 Power NVNT ac40 5190MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Power NVNT ac40 5230MHz Ant1 Power NVNT ac80 5210MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 18.27 Pass NVNT a 5200 Ant1 18.528 Pass NVNT a 5240 Ant1 18.272 Pass NVNT n20 5180 Ant1 19.313 Pass NVNT n20 5200 Ant1 19.415 Pass NVNT n20 5240 Ant1 19.255 Pass NVNT n40 5190 Ant1 41.114 Pass NVNT n40 5230 Ant1 40.795 Pass NVNT ac20 5180 Ant1 19.33 Pass NVNT ac20 5200 Ant1 19.405 Pass NVNT ac20 5240 Ant1 19.311 Pass NVNT ac40 5190 Ant1 40.604 Pass NVNT ac40 5230 Ant1 41.015 Pass NVNT ac80 5210 Ant1 80.273 Pass Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Test Graphs -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 -26dB Bandwidth NVNT ac20 5180MHz Ant1 -26dB Bandwidth NVNT ac20 5200MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 -26dB Bandwidth NVNT ac20 5240MHz Ant1 -26dB Bandwidth NVNT ac40 5190MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 -26dB Bandwidth NVNT ac40 5230MHz Ant1 -26dB Bandwidth NVNT ac80 5210MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.326 5200 16.328 5240 16.336 n20 5180 17.53 5200 17.542 5240 17.54 n40 5190 36.018 5230 36.016 ac20 5180 17.549 5200 17.549 5240 17.54 ac40 5190 36.049 5230 36.022 ac80 5210 74.637 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Test Graphs OBW NVNT a 5180MHz Ant1 OBW NVNT a 5200MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 OBW NVNT a 5240MHz Ant1 OBW NVNT n20 5180MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 OBW NVNT n20 5200MHz Ant1 OBW NVNT n20 5240MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 OBW NVNT n40 5190MHz Ant1 OBW NVNT n40 5230MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 OBW NVNT ac20 5180MHz Ant1 OBW NVNT ac20 5200MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 OBW NVNT ac20 5240MHz Ant1 OBW NVNT ac40 5190MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 OBW NVNT ac40 5230MHz Ant1 OBW NVNT ac80 5210MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 -6.46 11 Pass NVNT a 5200 Ant1 -6.27 11 Pass NVNT a 5240 Ant1 -6.38 11 Pass NVNT n20 5180 Ant1 -8.11 11 Pass NVNT n20 5200 Ant1 -7.74 11 Pass NVNT n20 5240 Ant1 -7.27 11 Pass NVNT n40 5190 Ant1 -11.99 11 Pass NVNT n40 5230 Ant1 -11.66 11 Pass NVNT ac20 5180 Ant1 -8.05 11 Pass NVNT ac20 5200 Ant1 -7.76 11 Pass NVNT ac20 5240 Ant1 -8.07 11 Pass NVNT ac40 5190 Ant1 -12.51 11 Pass NVNT ac40 5230 Ant1 -11.93 11 Pass NVNT ac80 5210 Ant1 -15.37 11 Pass Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Test Graphs PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 PSD NVNT a 5240MHz Ant1 PSD NVNT n20 5180MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 PSD NVNT n20 5200MHz Ant1 PSD NVNT n20 5240MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 PSD NVNT n40 5190MHz Ant1 PSD NVNT n40 5230MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 PSD NVNT ac20 5180MHz Ant1 PSD NVNT ac20 5200MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 PSD NVNT ac20 5240MHz Ant1 PSD NVNT ac40 5190MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 PSD NVNT ac40 5230MHz Ant1 PSD NVNT ac80 5210MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-1 Band Edge Condition Mo…

Text truncated - open the document above for the full version.

Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5745 Ant1 100 0 NVNT n20 5745 Ant1 100 0 NVNT n40 5755 Ant1 100 0 NVNT ac20 5745 Ant1 100 0 NVNT ac40 5755 Ant1 100 0 NVNT ac80 5775 Ant1 100 0 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Test Graphs Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Duty Cycle NVNT n40 5755MHz Ant1 Duty Cycle NVNT ac20 5745MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Duty Cycle NVNT ac40 5755MHz Ant1 Duty Cycle NVNT ac80 5775MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 6.92 29.4 Pass NVNT a 5785 Ant1 6.62 29.4 Pass NVNT a 5825 Ant1 6.3 29.4 Pass NVNT n20 5745 Ant1 5.73 29.4 Pass NVNT n20 5785 Ant1 5.4 29.4 Pass NVNT n20 5825 Ant1 5.49 29.4 Pass NVNT n40 5755 Ant1 4.69 29.4 Pass NVNT n40 5795 Ant1 4.39 29.4 Pass NVNT ac20 5745 Ant1 5.69 29.4 Pass NVNT ac20 5785 Ant1 5.39 29.4 Pass NVNT ac20 5825 Ant1 5.33 29.4 Pass NVNT ac40 5755 Ant1 4.68 29.4 Pass NVNT ac40 5795 Ant1 4.49 29.4 Pass NVNT ac80 5775 Ant1 3.53 29.4 Pass Note: Limit=30-(6.6-6)=29.4 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Test Graphs Power NVNT a 5745MHz Ant1 Power NVNT a 5785MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Power NVNT a 5825MHz Ant1 Power NVNT n20 5745MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Power NVNT n20 5785MHz Ant1 Power NVNT n20 5825MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Power NVNT n40 5755MHz Ant1 Power NVNT n40 5795MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Power NVNT ac20 5745MHz Ant1 Power NVNT ac20 5785MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Power NVNT ac20 5825MHz Ant1 Power NVNT ac40 5755MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 Power NVNT ac40 5795MHz Ant1 Power NVNT ac80 5775MHz Ant1 Report No.: STS2512375W02_Appendix 5G WIFI_U-NII-3 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidt…

Text truncated - open the document above for the full version.
