2BTUD-TD80Thermal Receipt Printer

ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: Jan. 16, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2BTUD-TD80 ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Wu Minyan Title: Manager Address: A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China Tel.: 18027650336 Email: [email protected]

ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China 1 | P a g e Attestation Statements To: Federal Communications Commission Date: Jan. 16, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: 2BTUD-TD80 Product Name: Thermal Receipt Printer This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature Printed Name: Wu Minyan Title: Manager Address: A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China Tel.: 18027650336 Email: [email protected] ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ The Memory used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. Compliance ☒ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Compliance Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) See attached “SBoM“ Note:The SBoM content is limited to the scope of covered list software (e.g. antivirus and cybersecurity software). ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026-1-12 U.S. Agent Designation ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BTUD-TD80): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 FRN of U.S. agent: 0036339737 GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD. ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD with the FRN 0037779709 accepts its obligation to maintain an agent for service of process in the United States for no less than 1 year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Signature Minyan Wu Huiying Fan Manager Te l : 18027650336 Email: [email protected] Director Tel: (626) 588-8039 Email: [email protected] ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD GLOCERTS TECHNOLOGY INC

ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China Date: 2026/1/16 Dear Sir/Madam, We, ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD, Hereby declares the following statement, PCB board, circuit, structure and internal of these model(s) are the same, Only model name is different for these model: Product name: Thermal Receipt Printer FCC ID: 2BTUD-TD80 Model no.: TD80, TD-401, TD-402S, TP-110, TD-403T, TP-210, TP-220, TD-403TP, TD-403TH, TP-120, TD-401H, TD-403TC, TD-403THC, TD-403THP, TD-404, TP-130T, TD-403TR, TD-301, TD-302, TP-310, TP-230, TD-301H, TD-302H, TD-201, TP-840, TD-407N, TD-201H, TD-406T, TD-304, TI-402, TP-810T, TP-820, TD801, TD802, TD803, TD-303, TD-405R, TI-401R, TD58, TP-830 Sincerely, Name/Title： Wu Minyan / Manager Company: ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD Address: A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China Phone: 18027650336 Fax: N/A E-Mail: [email protected]

ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China January 16, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID: 2BTUD-TD80 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Pursuant to DA 04-1705, the applicant also requests temporary confidential treatment of the exhibits outlined below for a period of 45 days from the date of equipment authorization and prior to marketing in the United States to prevent the premature release of any sensitive information. Applicant is aware of their responsibility to notify DERYCOM in the event information regarding the product or the product is made available to the public before the requested period has expired. ⎯ User Manual ⎯ Internal Photos Sincerely, Title: Manager Address: A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China Tel.: 18027650336 Email: [email protected]

ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD A1, 3rd Floor, Building 4, No.58 Ruigang Road, Baijiao Town, Doumen District, Zhuhai City, China January 16, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID: 2BTUD-TD80 I, the undersigned, hereby authorize Shenzhen Tongzhou Testing Co.,Ltd. to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by Shenzhen Tongzhou Testing Co.,Ltd. shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with ZHUHAI YEMA INTELLIGENT EQUIPMENT CO., LTD. We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Wu Minyan Manager Tel: 18027650336 Fax: N/A Email: [email protected]

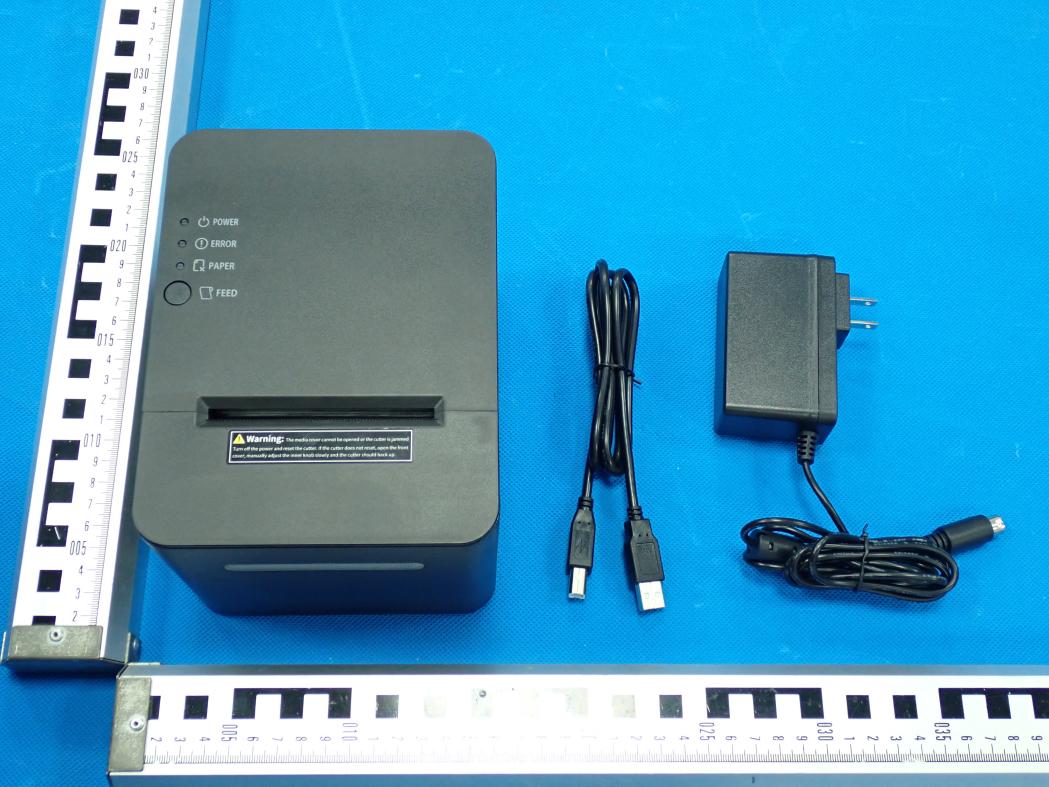

Report No.: TZ0032251213PH02 Page 1 of 4 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0032251213PH02 Page 2 of 4 External Photo 3 External Photo 4 Report No.: TZ0032251213PH02 Page 3 of 4 External Photo 5 External Photo 6 Report No.: TZ0032251213PH02 Page 4 of 4 External Photo 7 External Photo 8

Label Location FCC ID: 2BTUD-TD80

FCC ID: 2BTUD-TD80 Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). FCC ID: 2BTUD-TD80 Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Results BLE RF Exposure at Separation distance (cm): 20 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR- based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] BLE_1M Ant1 2402 21 20.5 1 0 21.5 141.25 3060.00 BLE_1M Ant1 2440 0.6 0 1 0 1 1.26 3060.00 BLE_1M Ant1 2480 1.89 1.5 1 0 2.5 1.78 3060.00 2.4G RF Exposure at Separation distance (cm): 20 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR- based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] 11B Ant1 2412 13.95 13.5 1 2.63 14.98 31.48 3060.00 11B Ant1 2437 14.27 14 1 2.63 15.48 35.32 3060.00 11B Ant1 2462 12.42 12 1 2.63 13.48 22.28 3060.00 11G Ant1 2412 11.61 11 1 2.63 12.48 17.70 3060.00 11G Ant1 2437 13.87 13.5 1 2.63 14.98 31.48 3060.00 11G Ant1 2462 15.66 15 1 2.63 16.48 44.46 3060.00 11N20SISO Ant1 2412 11.98 11.5 1 2.63 12.98 19.86 3060.00 11N20SISO Ant1 2437 13.8 13.5 1 2.63 14.98 31.48 3060.00 11N20SISO Ant1 2462 15.65 15 1 2.63 16.48 44.46 3060.00 11N40SISO Ant1 2422 12.18 11.5 1 2.63 12.98 19.86 3060.00 11N40SISO Ant1 2437 15.84 15.5 1 2.63 16.98 49.89 3060.00 11N40SISO Ant1 2452 16.14 15.5 1 2.63 16.98 49.89 3060.00 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

-1- SPECIFICATIONFORAPPROVAL CUSTOMER ： CUSTOMERPARTNO： SUPPLIER：ShenzhenFeasycomCo.,Ltd PRODUCTMODEL：FYT-01-7 PRODUCTNAME：FYT-01-7WIFI2.4GAntennaM01-0601360R0A PRODUCTCODE ： F12E00008A5 CUSTOMERSIGNATURE​:CUSTOMERSEAL: SUPPLIERSIGNATURE:SUPPLIERSEAL: NOTE:PLEASERETURNTHISCOPYASACERTIFICATIONOFYOURAPPROVAL Preparedby: DongChunling Date: 2023.08.19 Add：​ Rm508,BuildingA,FenghuangZhigu,No.50, TiezaiRoad,Xixiang,BaoanDistrict,Shenzhen, 518100,China. Tel:​86-755-27924639 - 2 - VERSION INFORMATION VersionDATE REVISION DESCRIPTION PREPAREDCHECKEDAPPROVED V1.02 02 3. 0 8. 19Original Issue Dong Chunling Huang Wenhua Chen Jianyou Shenzhen Feasycom Co., LTD - 3 - PERFORMANCE PARAMETER 1. Electrical Characteristics 1Frequency Range2400 - 2500MHz 2VSWR≤ 3 3Maximum Gain2.63 dBi 4Maximum efficiency42.01% 5Impedance50Ω 6PolarizationLinear polarization 7Interface typeFirst generation terminal 2. Mechanical parameters 1Measure FPC: 50.85 * 8.5 mm/ Cable: 100.0 mm*Φ 1.13 mm 2ColorBlack 3. Environment Condition 1Working Temperature-30 °C ~ 80 °C Shenzhen Feasycom Co., LTD - 4 - Testing CURVE 1. Performance test 1.1 VSWR Data list F req2.42.452.5 V SWR1. 351. 081.22​ ​ Shenzhen Feasycom Co., LTD - 5 - Testing CURVE 2. Passive testing 2.1 Efficiency and Gain Shenzhen Feasycom Co., LTD - 6 - Testing CURVE Efficiency and Gain Data list Freq(MHz)Efficiency(%)Gain (dBi) 240034.852.45 241037.752.63 242037.312.29 243036.762.01 244037.291.89 245038.771.97 246037.771.79 2470381.76 248038.621.88 249039.511.97 250042.012.2 Shenzhen Feasycom Co., LTD - 7 - Testing CURVE 2.2 3D Map 2420 MHz Gain =2.29dBi 2450 MHz Gain =1.97dBi Shenzhen Feasycom Co., LTD - 8 - 2480 MHz Gain =1.88dBi 2D Figure 2420 MHz Gain =2.29dBi Shenzhen Feasycom Co., LTD - 9 - 2450 MHz Gain =1.97dBi 2480 MHz Gain =1.88dBi 3. Active testing ( None ) Shenzhen Feasycom Co., LTD - 10 - SCHWDULE DRAWING 5 0～10 ±0.10 10～18 ±0.15 18～30 ±0.20 30～40 ±0.25 Third Angle 40～ ±0.30 Approved by Part No. Date Designed by Checked by Scale mm Location Project Material Part Name Unit RF Angle 1:1 深 圳 摩 天 射 频 技 术 有 限 公 司 ShenZhen MyAntenna RF Technology Co.,Ltd DWG No. Date A0 Rev New drawing Description Date 20230411 Remark No. Name Material ColorTreatment AmountRemark 1 1 1 2 FPC 2.4G Antenna FYT-01-7 M01-0601360R0A IPEX 1 FYT-01 2.4G 1 2 1.ALL MATERIALS ARE RoHS COMPLIANT. REMARKS： Coaxial Cable BLACK BLACK Shenzhen Feasycom Co., LTD - 11 - Packing DIAGRAM 0～10 ±0.05 10～18 ±0.10 18～30 ±0.12 30～40 ±0.15 Third Angle 40～ ±0.20 Approved by 5 Part No. Date Designed by Checked by Scale mm Project Material Part Name Unit RF Angle 1:1 ShenZhen MyAntenna RF Technology Co.,Ltd Date 0.03 0.02 0.04 0.02 ±0.5° Treatment Color FYT-1 Packaging information: 1. Place 200PCS of finished antenna products into a 185 * 120PE bag. 2. Stick the PE bag label and QC PASS label on the upper left corner. 2. Each box is filled with 50 PE bags containing finished antenna products, with a total of 10000pcs of antennas in each box, The box size and quantity can be adjusted according to the actual production situation. 3. Then stick the outer box label and ROHS label on the upper left corner of the long side of the cardboard box. 4. Finally, seal the box in a "well" shape with two horizontal and vertical packaging straps. M01-0601360R0A WIFI-1 天线 K1 Passed Q.C. FYT-01 2.4G Shenzhen Feasycom Co., LTD - 12 - ANTENNA PHYSICAL DIAGRAM Shenzhen Feasycom Co., LTD - 13 - Certificate of Acceptance Sample Size Inspection Report Project nameFYT-01-7 Antenna type FPC Antenna Test date 2023-0 8 - 19 Check List Module Test Item Test criteria Result​ Remark ​ 12345 Cable No scratches, cracks, connector terminals should be free of rust, looseness, deformation, port direction, etc. The connector terminals should be free of rust, looseness, deformation, port direction, etc. FPC Color The color is consistent with the specification, no color difference , wrong color and other defects Performance Testing VSWR ​ ≤ 3 Dimensions 50.85±0.2 10 0.0±3 8.5±0.2 Remark Approved by: Yang Yongcheng Reviewer: Chen JianyouInspector: Dong Chunling Shenzhen Feasycom Co., LTD - 14 - QC Engineering Drawing File No. MA-QCW-2 308 - 31 File nameFYT-01-7 Antenna Prepared byLi Ling VersionAReviewer Xu Maoyuan Release date202 3. 08. 19 Effective date 202 3. 08. 19 Page number 1/1Approval Xu Maoyuan Serial No. Process Process Name Process Parameters/Quality Characteristics Use Equipment Fixture Testing Equipment Inspection Method Check Frequency Usage RecordResponsible Related Documents 1 Incoming inspection Inspection standards/drawings Caliper/Visual AQL Sampling IQC Inspection Report IQC 2 Material Kitting Production order////Pick List Warehouse keeper 3 Unboxing & Qty Check Delivery Note////Delivery NoteOperator 4 Coax Soldering Technical Documents/ Drawings/BOM /ManualVisual Full inspection Production daily report Operator 5 First Article Visual Inspection Sealed sample/VisualVisual/ IPQC first article inspection IPQC Shenzhen Feasycom Co., LTD - 15 - record 6 First Article Performanc e Testing The product meets the requirements of the design specification / Network Analyzer test Visual / IPQC first piece inspection record IPQC 7Inspection IPQC process inspection regulations /VisualVisual2H IPQC process inspection records IPQC 8 Appearance inspection Technical documents / drawings / appearance criteria /VisualVisual Full inspection Production daily report Inspector 9Test Technical documents / drawings / Network Analyzer test Visual Full inspection Production daily report Operator 10 Packaging (bagging) quantity check Drawings /BOM//Visual Full inspection Production daily report Operator 11InspectionIPQC Procedures/VisualVisual2H IPQC process inspection records IPQC 12Stock InProduction Order//// Product Inventory Order Warehouse keeper 13 Pre- shipment Inspection Shipping NoticeNetwork Analyzer Measure- ment AQL Sampling /OQC Shenzhen Feasycom Co., LTD - 16 - Note:Indicates operation and processing;Indicates confirmation, inspection, jud…

Text truncated - open the document above for the full version.

Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 1 of 48 Appendix Test Data for WLAN(2. 4G) (Conducted Measurement) Product Name: Thermal Receipt Printer Trade Mark: Snaprint Test Model: TD80 FCC ID: 2BTUD-TD80 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11B Ant1 2412 9.080 2407.480 2416.560 0.5 PASS 11B Ant1 2437 10.040 2431.960 2442.000 0.5 PASS 11B Ant1 2462 7.800 2457.960 2465.760 0.5 PASS 11G Ant1 2412 16.520 2403.720 2420.240 0.5 PASS 11G Ant1 2437 16.400 2428.760 2445.160 0.5 PASS 11G Ant1 2462 16.360 2453.800 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.720 2403.120 2420.840 0.5 PASS 11N20SISO Ant1 2437 17.280 2428.200 2445.480 0.5 PASS 11N20SISO Ant1 2462 17.200 2453.520 2470.720 0.5 PASS 11N40SISO Ant1 2422 35.680 2403.840 2439.520 0.5 PASS 11N40SISO Ant1 2437 36.320 2418.840 2455.160 0.5 PASS 11N40SISO Ant1 2452 35.600 2434.400 2470.000 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 2 of 48 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 3 of 48 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 4 of 48 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 5 of 48 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 6 of 48 11N20SISO-Ant1-2462-PASS 11N40SISO-Ant1-2422-PASS Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 7 of 48 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 8 of 48 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Channel Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11B Ant1 2412 13.347 2405.3983 2418.7453 --- --- 11B Ant1 2437 13.345 2430.3514 2443.6964 --- --- 11B Ant1 2462 13.325 2455.3773 2468.7023 --- --- 11G Ant1 2412 17.127 2403.5294 2420.6564 --- --- 11G Ant1 2437 17.130 2428.4470 2445.5770 --- --- 11G Ant1 2462 17.118 2453.4651 2470.5831 --- --- 11N20SISO Ant1 2412 18.090 2402.9688 2421.0588 --- --- 11N20SISO Ant1 2437 17.993 2428.0800 2446.0730 --- --- 11N20SISO Ant1 2462 18.215 2452.9596 2471.1746 --- --- 11N40SISO Ant1 2422 36.807 2403.6880 2440.4950 --- --- 11N40SISO Ant1 2437 36.952 2418.5986 2455.5506 --- --- 11N40SISO Ant1 2452 37.080 2433.6422 2470.7222 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 9 of 48 Test Graphs 11B-Ant1-2412 11B-Ant1-2437 Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 10 of 48 11B-Ant1-2462 11G-Ant1-2412 Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 11 of 48 11G-Ant1-2437 11G-Ant1-2462 Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 12 of 48 11N20SISO-Ant1-2412 11N20SISO-Ant1-2437 Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 13 of 48 11N20SISO-Ant1-2462 11N40SISO-Ant1-2422 Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 14 of 48 11N40SISO-Ant1-2437 11N40SISO-Ant1-2452 Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 15 of 48 Appendix C-2: Maximum Peak conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Power [dBm] Conducted Limit [dBm] Verdict 11B Ant1 2412 13.95 ≤30.00 PASS 11B Ant1 2437 14.27 ≤30.00 PASS 11B Ant1 2462 12.42 ≤30.00 PASS 11G Ant1 2412 11.61 ≤30.00 PASS 11G Ant1 2437 13.87 ≤30.00 PASS 11G Ant1 2462 15.66 ≤30.00 PASS 11N20SISO Ant1 2412 11.98 ≤30.00 PASS 11N20SISO Ant1 2437 13.80 ≤30.00 PASS 11N20SISO Ant1 2462 15.65 ≤30.00 PASS 11N40SISO Ant1 2422 12.18 ≤30.00 PASS 11N40SISO Ant1 2437 15.84 ≤30.00 PASS 11N40SISO Ant1 2452 16.14 ≤30.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) + Duty Cycle Factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 16 of 48 Appendix C-2: Maximum Average conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Power [dBm] Conducted Limit [dBm] Verdict 11B Ant1 2412 11.87 ≤30.00 PASS 11B Ant1 2437 9.98 ≤30.00 PASS 11B Ant1 2462 10.94 ≤30.00 PASS 11G Ant1 2412 12.32 ≤30.00 PASS 11G Ant1 2437 9.22 ≤30.00 PASS 11G Ant1 2462 11.34 ≤30.00 PASS 11N20SISO Ant1 2412 10.94 ≤30.00 PASS 11N20SISO Ant1 2437 10.76 ≤30.00 PASS 11N20SISO Ant1 2462 11.23 ≤30.00 PASS 11N40SISO Ant1 2422 10.68 ≤30.00 PASS 11N40SISO Ant1 2437 11.84 ≤30.00 PASS 11N40SISO Ant1 2452 11.42 ≤30.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) + Duty Cycle Factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 17 of 48 Appendix D: Maximum Average power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict 11B Ant1 2412 -11.62 ≤8.00 PASS 11B Ant1 2437 -12.93 ≤8.00 PASS 11B Ant1 2462 -12.58 ≤8.00 PASS 11G Ant1 2412 -14.54 ≤8.00 PASS 11G Ant1 2437 -14.97 ≤8.00 PASS 11G Ant1 2462 -13.64 ≤8.00 PASS 11N20SISO Ant1 2412 -14.53 ≤8.00 PASS 11N20SISO Ant1 2437 -14.29 ≤8.00 PASS 11N20SISO Ant1 2462 -13.79 ≤8.00 PASS 11N40SISO Ant1 2422 -13.37 ≤8.00 PASS 11N40SISO Ant1 2437 -14.49 ≤8.00 PASS 11N40SISO Ant1 2452 -13.15 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) + Duty Cycle Factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 18 of 48 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 19 of 48 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 20 of 48 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0032251213FRF03 Page 21 of 48 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS Appendix …

Text truncated - open the document above for the full version.

Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 1 of 23 Appendix Test Data for BLE (Conducted Measurement) Product Name: Thermal Receipt Printer Trade Mark: Snaprint Test Model: TD80 FCC ID: 2BTUD-TD80 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 0.632 2401.660 2402.292 0.5 PASS BLE_1M Ant1 2440 0.652 2439.644 2440.296 0.5 PASS BLE_1M Ant1 2480 0.660 2479.636 2480.296 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 2 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 3 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 4 of 23 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 1.0182 2401.4606 2402.4788 --- --- BLE_1M Ant1 2440 1.0154 2439.4631 2440.4785 --- --- BLE_1M Ant1 2480 1.0131 2479.4636 2480.4767 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 5 of 23 Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 6 of 23 BLE_1M-Ant1-2480 Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 7 of 23 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict BLE_1M Ant1 2402 -2.34 ≤30 PASS BLE_1M Ant1 2440 0.60 ≤30 PASS BLE_1M Ant1 2480 1.89 ≤30 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 8 of 23 Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 9 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 10 of 23 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict BLE_1M Ant1 2402 -18.20 ≤8.00 PASS BLE_1M Ant1 2440 -15.00 ≤8.00 PASS BLE_1M Ant1 2480 -13.68 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 11 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 12 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 13 of 23 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 -3.12 -49.95 ≤-23.12 PASS BLE_1M Ant1 High 2480 0.70 -48.61 ≤-19.3 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 14 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0032251213FRF02 Page 15 of 23 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 2402 0~Reference -3.12 -3.12 --- PASS BLE_1M Ant1 2402 30~1000 -3.12 -57.98 ≤-23.12 PASS BLE_1M Ant1 2402 1000~26500 -3.12 -38.03 ≤-23.12 PASS BLE_1M Ant1 2440 0~Reference -0.57 -0.57 --- PASS BLE_1M Ant1 2440 30~1000 -0.57 -54.17 ≤-20.57 PASS BLE_1M Ant1 2440 1000~26500 -0.57 -38.1 ≤-20.57 PASS BLE_1M Ant1 2480 0~Reference 1.21 1.21 --- PASS BLE_1M Ant1 2480 30~1000 1.21 -53.38 ≤-18.79 PASS BLE_1M Ant1 2480 1000~26500 1.21 -36.92 ≤-18.79 PASS Note: offset(dB) in Reference test plots = cable loss(dB) + attenuator factor(dB); For spurious emissions plots from 30MHz to 26.5GHz, the cable loss and attenuator factors have been set in the 'Input Correction' of the Spectrum Analyzer during the test. Appendix Test Data of the Report No.:…

Text truncated - open the document above for the full version.
