2BTV5-RECKONRECKON SMART WATCH

BRG RECKON 1 Package Contents Watch Body Charging Cable Watch Strap User Guide Note: The watch will automatically turn on when connected to the charger. It remains on by default. 2 Upper ① ③Select Lower② ④Back Button Functions ①Upper button • Short press to move the cursor upward • Long press to open the map ② Lower button •Press and hold for 1.5 seconds or swipe up from the bottom edge to enter Glance/Quick Cards. •Short press (0.3 seconds) to access All Apps. •When not on the main watch face interface, short press (0.3 seconds) to move the cursor downward. ③ Select •Press and hold for 3 seconds when the watch is powered off to display the startup interface. •Press and hold for 3 seconds on any interface to bring up the shutdown/restart confirmation screen. •On the home screen, short press (0.3 seconds) to enter the sports application list interface. •On non-home screen interfaces, short press to move forward or make a selection. •This button functions as a simplified key when the watch enters power-saving or sleep mode. ④ Back •Press on the home screen to enter the control panel.Returns to the previous interface. •Swipe right to return to the previous interface. Note： press any button to light up the watch screen when the display is off 3 Notes: 1. For better user experience, please use the most recent version of the app. 2. The operating system needs to be iOS 15.0, Android 7.0 or above. 3. Do not pair the watch directly through your phone's Bluetooth. Use the app and follow its instructions to pair your watch correctly. Pairing the Watch Reckon is a must-have app for this watch. It provides scientific sleep and workout guidance and personalized health services to help you start a healthy lifestyle. 1. Use your mobile phone to scan the QR code to download and install the app, or search for the app in the Google Play Store or Apple App Store and then download and install the app. 2. Open the app, register an new account and log in. 3. Follow the guided steps in the app to pair your watch. Download the app 4 Charging the Watch 1. Connect the Charging Cable to a power adapter or computer. Ensure the connection is secure for proper charging. 2. Align the watch with the charging cable. Please note the orientation and position of the watch, ensuring that the metal contacts on its back are securely connected to the charging cable. 3. When charging starts, the watch screen displays the charging progress. Notes: 1. Please use the charging cable provided with the watch. Ensure the cable is completely dry before charging. 2. To ensure the best charging speed, it is recommended to use a power adapter with a charging current of 1A or above. Assembling and Disassembling the Watch Strap 1. Take the strap out of the packaging box, ensuring the short strap is on top and the long strap is on the bottom, with the correct orientation. 2. Align the strap's metal connector with the spring bar, gently press the locking button to latch it onto the spring bar, then release the button to secure the strap. 3. Ensure the strap is firmly attached before wearing. 6 Wearing the Watch 1. In order to ensure the accuracy of heart rate, blood oxygen, and other measurements, please wear your watch at a distance of at least one finger away from the wrist bone, and keep the strap at a comfortable snugness. 2. For optimal heart rate accuracy during workouts, wear the watch snugly (avoiding wrist movement) and position it at least a finger's width away from your wrist bone. You may slightly loosen the band post-workout for comfort. 3. When measuring blood oxygen saturation, wear the watch correctly. Avoid wearing the watch on the wrist joint, keep your arm flat, maintain comfortable (appropriately tight) fitting between the watch and the skin of your wrist, and keep your arm still throughout the measurement process. Note: Factors such as arm sag, arm sway, arm hair, and tattoos can cause measurement inaccuracies. 7 View product certification information on the watch's Settings > System > Regulation page. Device requirements: Devices installed with Android 7.0 or iOS 15.0 or above OS versions Package Contents: Watch body, Watch strap, Charging Cable Instruction manual Please refer to the watch user interface to see the software version. ROM:32GB eMMC Display Technology:AMOLED Working temperature: -20°C - 50°C Charging temperature: -10°C - 45°C Water resistance rating: 10 ATM Bluetooth frequency: 2402-2480 MHz Basic Parameters Product name: RECKON Smart Watch Model number:BW-RECKON-BLK197-01 Input: DC 5V 650 mA MAX Wi-Fi: 2.4 GHz/5GHz 802.11a/b/g/n/ac/ax Wi-Fi frequency: 2412–2462 MHz/ 5180-5240MH z/ 5745-5825MHz Bluetooth version: V5.4 Battery Safety 1. This device is equipped with a built-in battery that cannot be removed or replaced. Do not disassemble or modify the battery by yourself. 2. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. 3. Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas. 4. A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. 5. Do not use power adapters or data cables that are not properly certified or incompatible, as this may damage the watch and accessories, or cause Diving Safety 1. Under normal usage conditions, this device has a maximum diving display depth of 45 meters and is intended only for recreational diving and freediving purposes. It must not be used for technical diving, cave diving, mixed-gas diving, or other high-risk scenarios. 2. The diving features of this device are intended for use by certified divers only. Please ensure you have received professional training and understand how to operate the device before use. General users conducting breath-hold training, breath-hold testing, or engaging in any diving activities must be accompanied by a…

Text truncated - open the document above for the full version.

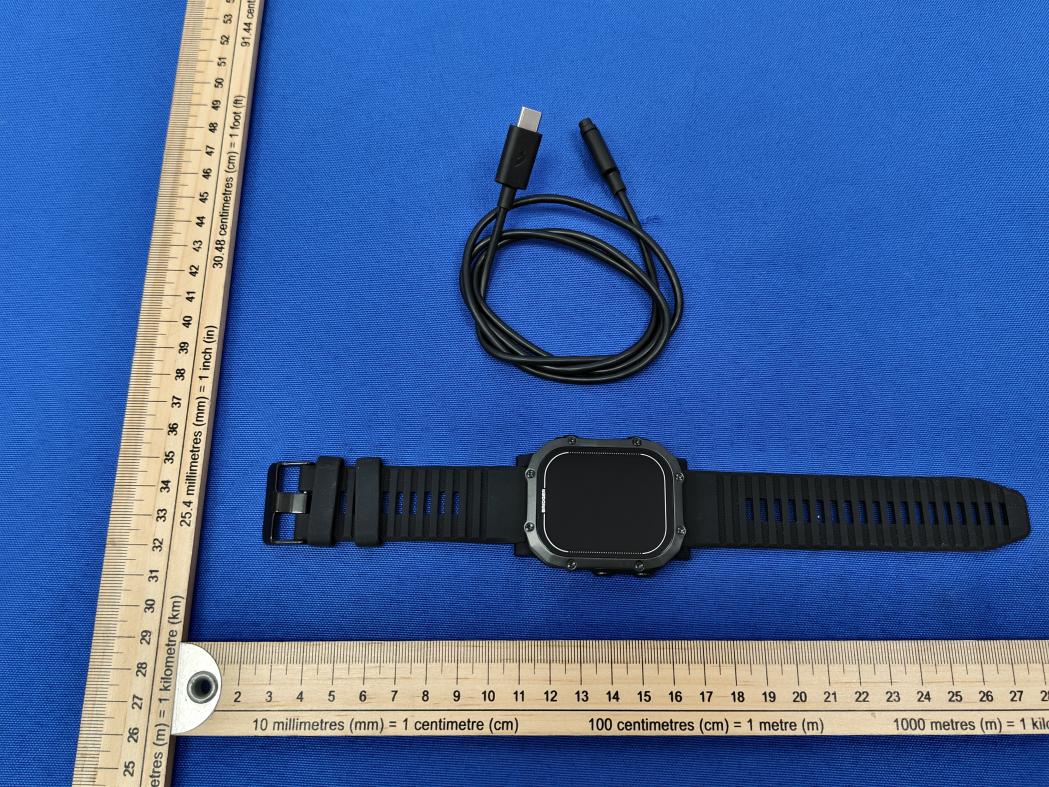

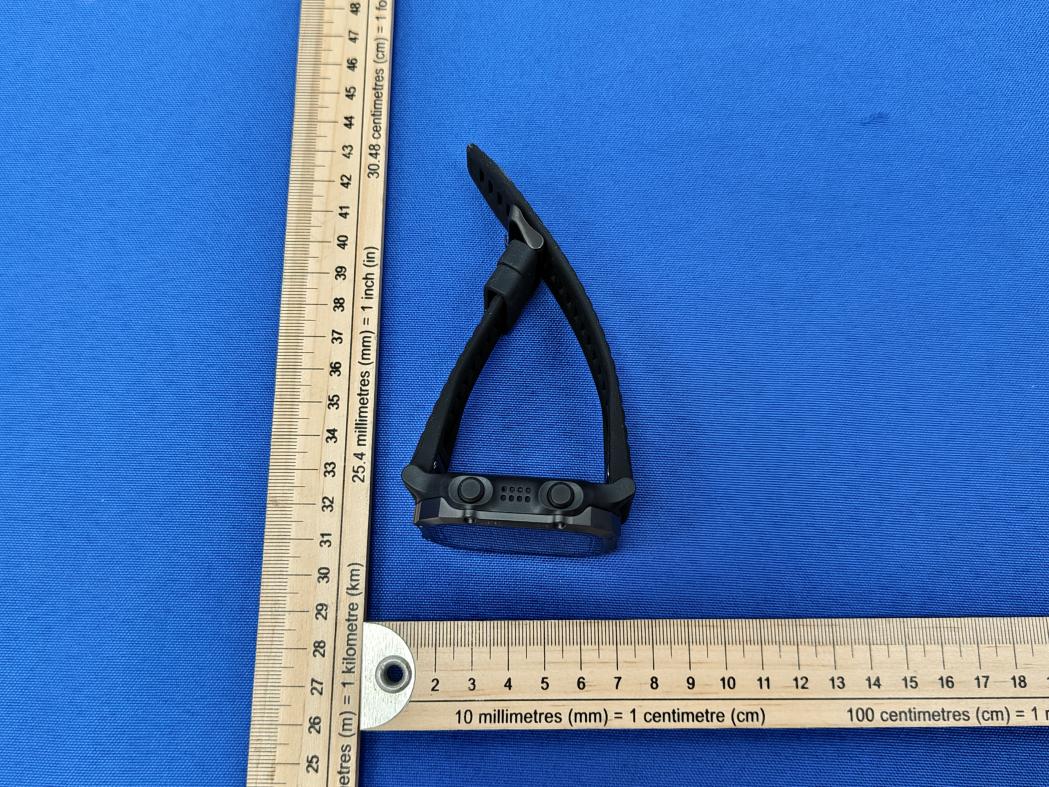

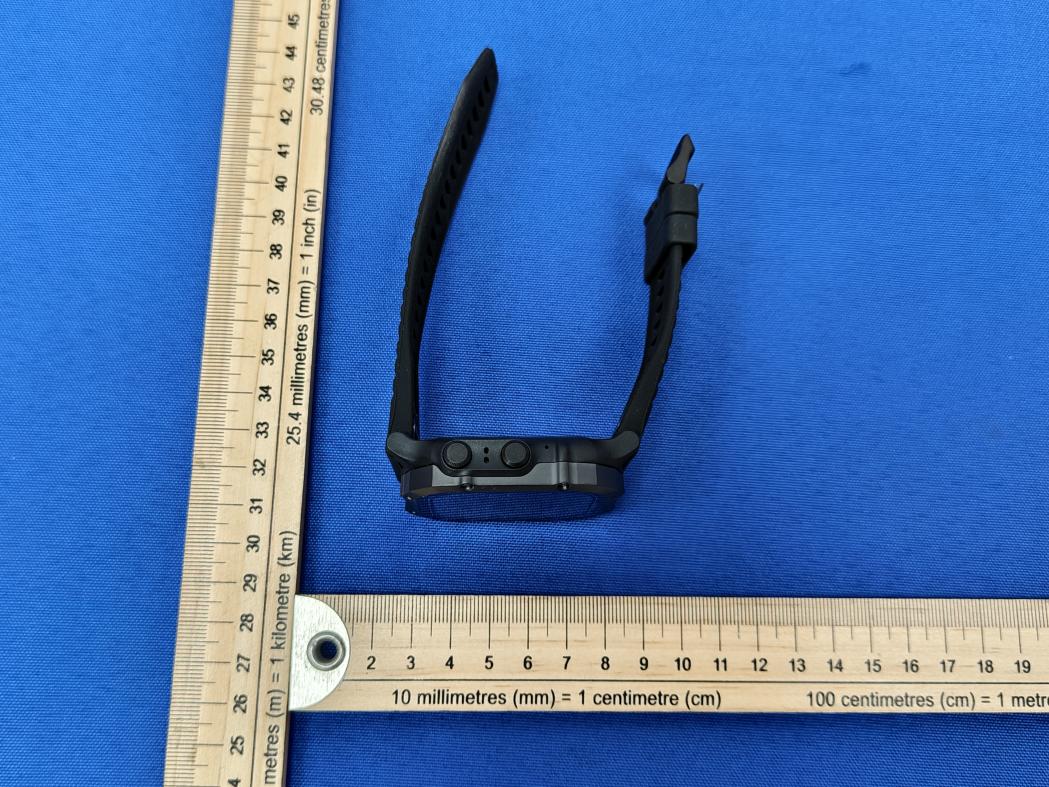

FCC ID: 2BTV5-RECKON Page 1 of 4 Report No.: CTL2511216011-WF External Photos of EUT External Photos of EUT FCC ID: 2BTV5-RECKON Page 2 of 4 Report No.: CTL2511216011-WF FCC ID: 2BTV5-RECKON Page 3 of 4 Report No.: CTL2511216011-WF FCC ID: 2BTV5-RECKON Page 4 of 4 Report No.: CTL2511216011-WF
