2BTX8-SC-A10WPet feeder

English Deutsch Français Españo Italiano Language 01-10 11-20 41-50 21-30 31-40 ItemSpecification Product NameAutomatic Pet Feeder Power SupplyAdapter 5V 1A; 3 × No. 1 alkaline dry batteries MaterialABS plastic, stainless steel (optional) Feeding Settings Up to 10 scheduled meals per day, up to 12 portions per meal Portion Size Clock Display24-hour format Recording Duration Up to 10 seconds (recording via app; plays during feeding) Applicable Food Dry pet food with kibble size 2 – 15 mm Operating Environment Indoor use, dry, dust-free, above – 10°C Notes Product specifications may change without prior notice; batteries sold separately The bottom of the unit includes a battery compartment (requires three No. 1 batteries), a power port (for connecting the adapter), and anti-slip pads to enhance stability and prevent the devicefrom moving during use. 2.2BottomoftheMainUnit 2.1ProductOverview This product is an automatic feeder designed specifically for dispensing dry pet food. It supports scheduled feeding, manualfeeding , and remote control via mobile app. It is also equipped with a backup battery compartment to ensure continuous operation in daily use as well as during unexpected power outages. 2.ProductIntroduction 2.3ProductSpecifications 5 ± 2 g per portion; suitable kibble size: 2 – 15 mm (reference value; varies by food type) - 2 - 3.2InstallingtheFoodTray Before using the feeder for the first time, perform a feeding test: 1.Add a small amount of dry food into the food container (recommended 50–100g). 2.Press the Manual Feeding Button on the control panel to check whether food is dispensed normally. 3.Observe whether the dispensing amount meets expectations. If no food is dispensed or dispensing is abnormal, refer to“FAQ and Troubleshooting”for diagnosis. 1.Slightly tilt the device backward so the guard plate and tray align with the recessed mounting area. 2.Gen tly press the tray downward until you hear a “ click, ” indicating it is securely installed. 3.After installation, lightly pullthe traytoensure it is firmly fixed to prevent it from falling off during feeding. 3.1FeedingTest 3.3PowerSupplyMethods 1.Adapter Power Supply (For Daily Use): Connect one end of the adapter to the device ’ s power port and the other end to a household outlet. The power indicator light will turn on, indicating normal power supply. 2.Battery Power Supply (Emergency Backup): Open the battery compartment cover at the bottom of the device and insert three No. 1 alkaline dry batteries according to the polarity markings, then close the cover. Batteries are only used during power outages; for daily use, it is recommended to use the adapter . 3.Note: Lithium-ion batteries are strictly prohibited to avoid leakage or device damage. 3.BeforeUse - 3 - Indicator LightFunctionOperating Status Power Indicator (Blue) Indicates the normal status of the feeder 1. Slow blue blink: 1.5 s on / 1.5 s off (repeated) 2. Fast blue blink: 0.5 s on / 0.5 s off—attempting to connect torouter 3. Solid blue: network connected successfully, feeder operating normally Low Power Indicator (Red) Shows battery status 1. Battery mode 2.If switch detection fails: 1.5 s on / 1.5 s off (repeated) Power-on Status Blue light solid after 2 seconds, starts blinking after 3 seconds, blue indicat or flashes once per second Standby Status Blue light flashes once per second FunctionButtonDescriptionDiagram Button NameButton Function Long press to lock—one“beep”; long press again to unlock—two“beep-beep”sounds Short press once to manually dispense one portion Whenyoulong-pressto reset, the devicewillemit a quickthree-beepsound(‘di-di-di’). 4.1IndicatorLightDescription Note: 4.OperatingInstructions Recording function (record audio through the app) - 4 - Download the App:Scan the QR code on the device or in the manual to open the download page, or visit the official website: ht tps://d. xmeye.net/iCSee_Home “Xiaofeng Butler” app (formerly“Jlink” 4.2AppDownloadandInstallation ; please do not download the old version). The app is continuously updated; please refer to the actual app interface. Installation and Login: After installation, open the app. Supported login methods include: Apple ID, WeChat account, direct mobile number login, or registering a new account. Preparation: After logging in, ensure that the device is connectedto the power supply (adapter output 5V 1A) and that your smartphone is connected to a 2.4 GHz Wi-Fi network (the device does not support 5 GHz networks). - 5 - Mobile Phone Operation: Turn on Bluetooth on your phone and ensure it is connected to the same 2.4GHz Wi-Fi network as the device. Open the “ Xiaofeng Butler ” app, tap the “ + ” icon on the homepage, and select“AddDevice”. Bluetooth willautomatically detect nearby devices. Find the corresponding feeder model (e.g.,“ Adabta-XXX”) and tapto select it. 1.Network Configuration: Enter the current Wi-Fi password and tap “ Confirm”. The app will display the connection progress. 2.Connection Confirmation:If successful, the device ’ s green light will remain on, and the app will display“Connection Complete”.If unsuccessful, follow the app’s instructions to check the Wi-Fi password and device distance (recommended within 6 meters), then retry the operation. The app is continuously updated; please refer to the actual app interface. 4.3 First-time Connection Between Mobile Phone and App - 6 - The app is continuously updated; please refer to the actual app interface. Open the “Xiaofeng Butler” app a nd go to the feeder device page to access the feeding interface, which includes three main functions: 1.Add Cover: Tap the “Add Cover ” button. You can choose from:Buil t-in system images.Take a real-time photo of your pet.Select a photo fro m your phone’s album. Set the chosen image as the device cover to help easily identify the feeder 2.Recording Function: Tap the record icon (or go to Settings → Recording) to enter the recording interface. Tap “Start Recording” to record a voice messa…

Text truncated - open the document above for the full version.

Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. Room 206, Building A, No. 6, Zhu Gu Shi Ailian Industrial Zone, Wulian Community, Longgang Sub-district, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/31 U.S. Agent Designation Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BTX8-SC-A10W): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. with the FRN [0037801982] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature songfei Wang Manager Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

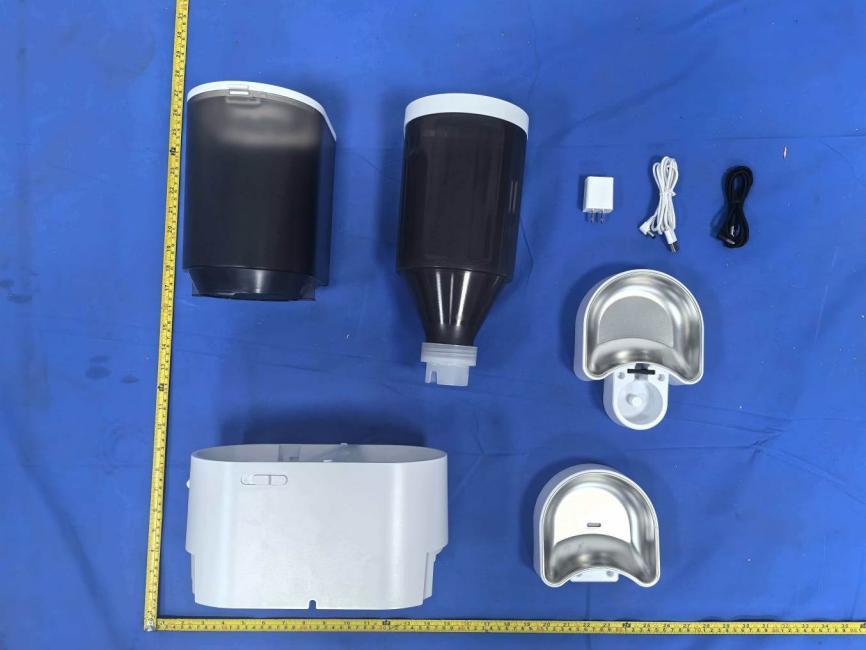

FCC ID: 2BTX8-SC-A10W External Photos of the EUT FCC ID: 2BTX8-SC-A10W FCC ID: 2BTX8-SC-A10W

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BTX8-SC-A10W

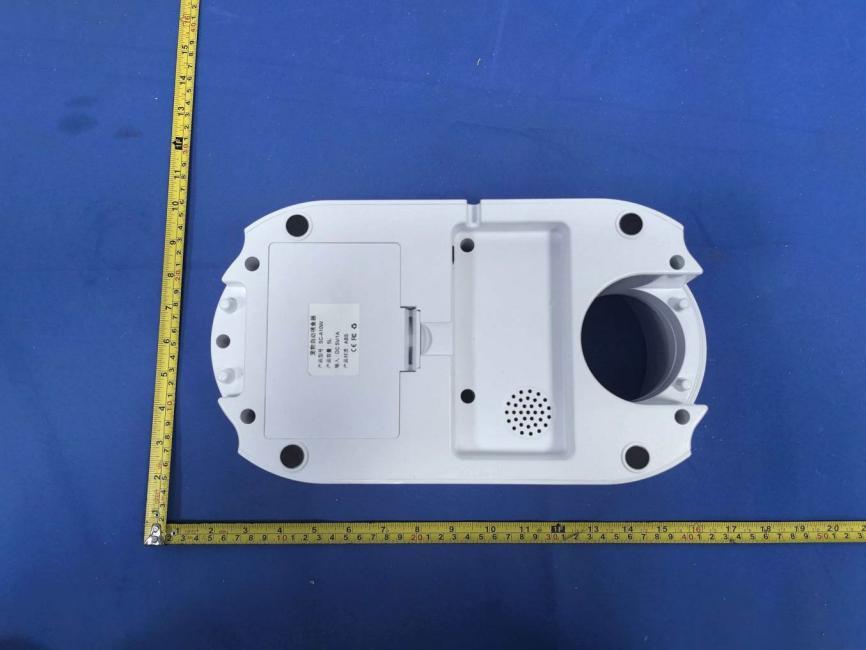

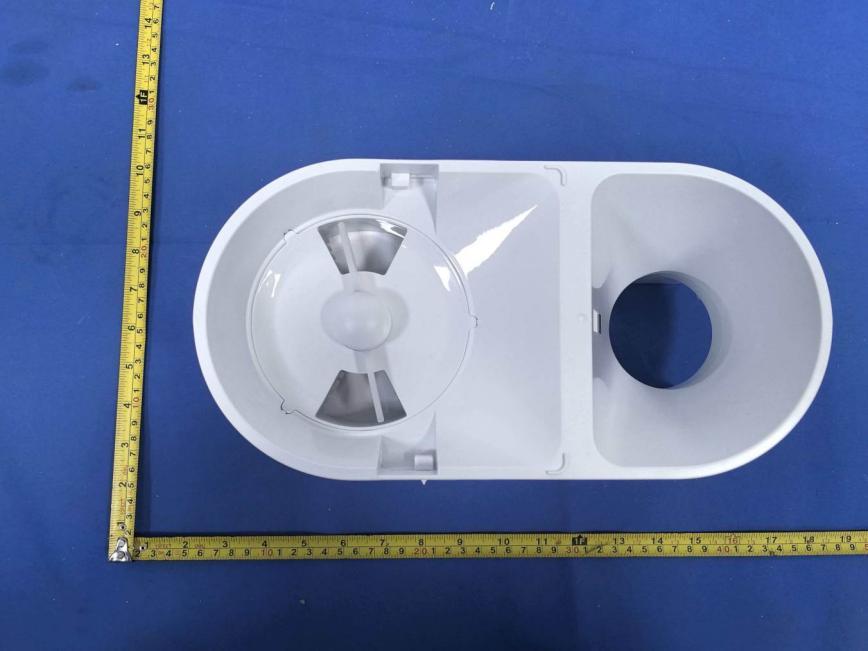

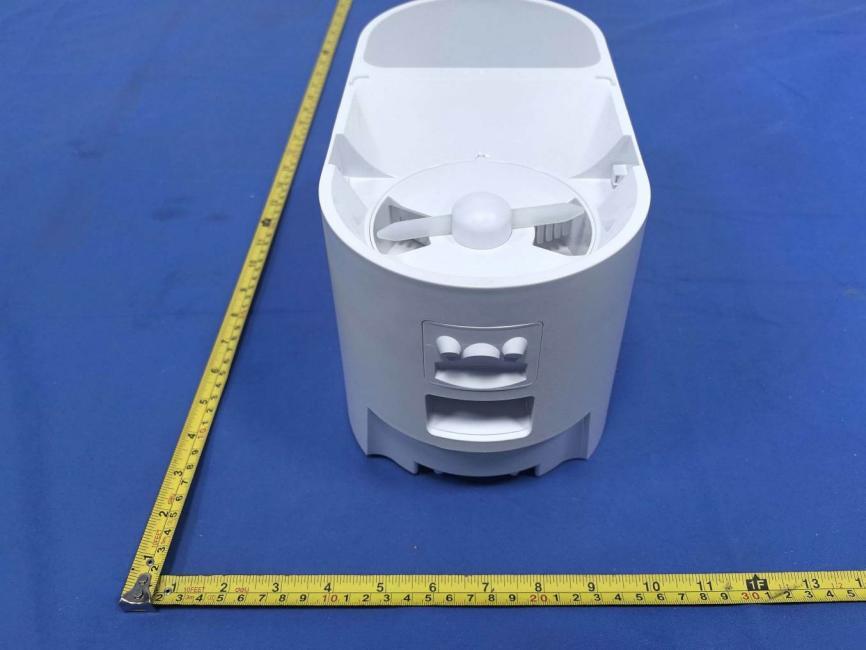

FCC ID: 2BTX8-SC-A10W Internal Photos of the EUT FCC ID: 2BTX8-SC-A10W ANT FCC ID: 2BTX8-SC-A10W

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .................... : FCC ID. ........................................... : CTA25122301802 2BTX8-SC-A10W Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 29, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. Address ........................................... : Room 206, Building A, No. 6, Zhu Gu Shi Ailian Industrial Zone, Wulian Community, Longgang Sub-district, Longgang District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Pet feeder Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen XinzhichongIntelligent Manufacturing Technology Co., Ltd Model/Type reference ...................... : SC-A10W Listed Models ................................... : Refer to page 2 Rating ............................................... : DC 4.5V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25122301802 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Pet feeder Model /Type : SC-A10W Listed Models : SC-A10K, SC-A10V, SC-A20K, SC-A20W, SC-A20V, SC-A30K, SC-A30W, SC-A30V Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. Address : Room 206, Building A, No. 6, Zhu Gu Shi Ailian Industrial Zone, Wulian Community, Longgang Sub-district, Longgang District, Shenzhen, China Manufacturer : Shenzhen XinzhichongIntelligent Manufacturing Technology Co., Ltd Address : 1/F, No. 25-3 Wulian Road, Longxi Community, Longgang Subdistrict, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25122301802 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Re…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model SC-A10W Frequency range 2400-2500MHz Manufacturer Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. Address Room 206, Building A, No. 6, Zhu Gu Shi Ailian Industrial Zone, Wulian Community, Longgang Sub-district, Longgang District, Shenzhen, China ANT Peak Gain 1.0 dBi 2. Antenna Photo: Length :14.93mm Width:5.92mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25122301801 2BTX8-SC-A10W Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 29, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. Address ............................................ : Room 206, Building A, No. 6, Zhu Gu Shi Ailian Industrial Zone, Wulian Community, Longgang Sub-district, Longgang District, Shenzhen, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Pet feeder Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen XinzhichongIntelligent Manufacturing Technology Co., Ltd Model/Type reference ...................... : SC-A10W Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 4.5V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25122301801 Page 2 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Pet feeder Model /Type : SC-A10W Listed Models : SC-A10K, SC-A10V, SC-A20K, SC-A20W, SC-A20V, SC-A30K, SC-A30W, SC-A30V Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. Address : Room 206, Building A, No. 6, Zhu Gu Shi Ailian Industrial Zone, Wulian Community, Longgang Sub-district, Longgang District, Shenzhen, China Manufacturer : Shenzhen XinzhichongIntelligent Manufacturing Technology Co., Ltd Address : 1/F, No. 25-3 Wulian Road, Longxi Community, Longgang Subdistrict, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25122301801 Page 3 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Addr…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BTX8-SC-A10W Company : Shenzhen Mao Gou Yi Jia Qin Pet Technology Co., Ltd. EUT : Pet feeder Model Number : SC-A10W Report No. : CTA25122301801 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 16.040 2404.080 2420.120 0.5 PASS 2437 16.040 2428.960 2445.000 0.5 PASS 2462 16.200 2453.960 2470.160 0.5 PASS 11N20SISO Ant1 2412 15.560 2403.480 2419.040 0.5 PASS 2437 18.200 2428.160 2446.360 0.5 PASS 2462 18.280 2452.680 2470.960 0.5 PASS 11N40SISO Ant1 2422 36.960 2403.520 2440.480 0.5 PASS 2437 35.360 2419.000 2454.360 0.5 PASS 2452 36.560 2433.920 2470.480 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.375 2405.3548 2418.7298 --- --- 2437 13.365 2430.3519 2443.7169 --- --- 2462 13.391 2455.3207 2468.7117 --- --- 11G Ant1 2412 16.768 2403.6914 2420.4594 --- --- 2437 16.711 2428.6970 2445.4080 --- --- 2462 16.729 2453.6659 2470.3949 --- --- 11N20SISO Ant1 2412 18.951 2402.5971 2421.5481 --- --- 2437 18.898 2427.5631 2446.4611 --- --- 2462 18.918 2452.5660 2471.4840 --- --- 11N40SISO Ant1 2422 37.498 2403.3683 2440.8663 --- --- 2437 37.450 2418.3680 2455.8180 --- --- 2452 37.481 2433.4024 2470.8834 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.14 ≤30.00 PASS 2437 14.41 ≤30.00 PASS 2462 14.46 ≤30.00 PASS 11G Ant1 2412 14.02 ≤30.00 PASS 2437 14.18 ≤30.00 PASS 2462 14.30 ≤30.00 PASS 11N20SISO Ant1 2412 13.74 ≤30.00 PASS 2437 14.37 ≤30.00 PASS 2462 14.55 ≤30.00 PASS 11N40SISO Ant1 2422 14.43 ≤30.00 PASS 2437 14.48 ≤30.00 PASS 2452 14.49 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.25 ≤8.00 PASS 2437 -10.71 ≤8.00 PASS 2462 -10.86 ≤8.00 PASS 11G Ant1 2412 -16.74 ≤8.00 PASS 2437 -17.21 ≤8.00 PASS 2462 -16.77 ≤8.00 PASS 11N20SISO Ant1 2412 -17.64 ≤8.00 PASS 2437 -17.96 ≤8.00 PASS 2462 -17.34 ≤8.00 PASS 11N40SISO Ant1 2422 -20.81 ≤8.00 PASS 2437 -20.38 ≤8.00 PASS 2452 -20.56 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.99 -48.63 ≤-18.01 PASS High 2462 2.14 -53.85 ≤-17.86 PASS 11G Ant1 Low 2412 -1.60 -33.53 ≤-21.6 PASS High 2462 -1.26 -57.25 ≤-21.26 PASS 11N20SIS O Ant1 Low 2412 -2.05 -34.02 ≤-22.05 PASS High 2462 -1.99 -57.76 ≤-21.99 PASS 11N40SIS O Ant1 Low 2422 -5.35 -33.67 ≤-25.35 PASS High 2452 -5.09 -56.68 ≤-25.09 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.91 1.91 --- PASS 30~1000 1.91 -67.85 ≤-18.09 PASS 1000~26500 1.91 -54.91 ≤-18.09 PASS 2437 Reference 1.17 1.17 --- PASS 30~1000 1.17 -67.78 ≤-18.83 PASS 1000~26500 1.17 -54.69 ≤-18.83 PASS 2462 Reference 1.34 1.34 --- PASS 30~1000 1.34 -67.82 ≤-18.66 PASS 1000~26500 1.34 -55.3 ≤-18.66 PASS 11G Ant1 2412 Reference -1.96 -1.96 --- PASS 30~1000 -1.96 -68.41 ≤-21.96 PASS 1000~26500 -1.96 -54.95 ≤-21.96 PASS 2437 Reference -2.08 -2.08 --- PASS 30~1000 -2.08 -68 ≤-22.08 PASS 1000~26500 -2.08 -53.78 ≤-22.08 PASS 2462 Reference -2.11 -2.11 --- PASS 30~1000 -2.11 -67.48 ≤-22.11 PASS 1000~26500 -2.11 -55.02 ≤-22.11 PASS 11N20SISO Ant1 2412 Reference -2.13 -2.13 --- PASS 30~1000 -2.13 -67.09 ≤-22.13 PASS 1000~26500 -2.13 -54.96 ≤-22.13 PASS 2437 Reference -2.11 -2.11 --- PASS 30~1000 -2.11 -67.33 ≤-22.11 PASS 1000~26500 -2.11 -55.36 ≤-22.11 PASS 2462 Reference -2.41 -2.41 --- PASS 30~1000 -2.41 -67.54 ≤-22.41 PASS 1000~26500 -2.41 -54.61 ≤-22.41 PASS 11N40SISO Ant1 2422 Reference -5.60 -5.60 --- PASS 30~1000 -5.60 -68.29 ≤-25.6 PASS 1000~26500 -5.60 -53.66 ≤-25.6 PASS 2437 Reference -5.29 -5.29 --- PASS 30~1000 -5.29 -68.03 ≤-25.29 PASS 1000~26500 -5.29 -55.09 ≤-25.29 PASS 2452 Reference -5.34 -5.34 --- PASS 30~1000 -5.34 -67.67 ≤-25.34 PASS 1000~26500 -5.34 -54.57 ≤-25.34 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference

31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 8.36 8.40 99.52 2437 8.35 8.40 99.40 2462 8.36 8.40 99.52 11G Ant1 2412 0.15 0.20 75.00 2437 0.15 0.20 75.00 2462 0.15 0.20 75.00 11N20SISO Ant1 2412 0.27 0.32 84.38 2437 0.27 0.31 87.10 2462 0.26 0.31 83.87 11N40SISO Ant1 2422 0.15 0.20 75.00 2437 0.16 0.21 76.19 2452 0.16 0.21 76.19 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452

FCC ID: 2BTX8-SC-A10W Test Setup Photos of the EUT FCC ID: 2BTX8-SC-A10W
