2BTYM-TSCQ05Fiber optic kit

product manual 9555LS2 cintillation meteor integrated machine Scan to download the APP APP name: LED LAMP Thank you for choosing the new generation of LED light source device produced by our company. By reading this manual, you can understand the characteristics and use method of this light source device faster. Product schematic diagram product model 9555-LS2 Light source color RGBW product name Scintillation meteor integrated machine Meteor color White light (default) input voltage DC 12V 3A Flashering function turntable power 32W Max Coupling caliber 20mm*2 Body size 95*55*180mm Body material aluminium control method Mobile phone APP + remote control Product application Flashing / star + meteor Security matters 1: When using the machine, please confirm that the power supply voltage used and the voltage used in the product match. 2: Non-professional personnel shall not disassemble this product at will to avoid causing danger. 3: This machine is not waterproof, need to be kept dry, please choose the suitable environment for use. product model Product profile The light source machine is mainly composed of RGBW light source + 10LED meteor light source, the light source is driven by constant current / constant voltage circuit, can be controlled through the mobile phone APP or remote control, can achieve a variety of colors, a variety of modes, rich functions, convenient operation, one machine can realize the function effect of stars + meteor. Side A: RGBW light source has built-in turntable flicker function. When the motor pulls the turntable, the light from the light source will illuminate the fiber irregularly through the moving hole, making the other end of the fiber flicker effect; flicker turntable can be reduced by the remote control S + / S-key. Side B: 10LED flows in order, and multiple meteor can be made with multiple optical fibers (the production method is introduced in the back), the speed and tail of the meteor can be adjusted by remote control or mobile phone APP; 10LED in addition to the meteor mode, there are random flash mode, audio rhythm mode, which can add dynamic effect to the conventional star light. Remote control function Remote control unlock code operation: Within 3 seconds on the light source machine, immediately hold down the remote control NO key not to put the remote control, RGBW light source flash several times to unlock the code success, the remote control can only lock the code, other remote control is invalid Mobile phone APP control 1: Please search for "LED LAMP" in the major application markets or scan the QR code to download the APP; 2: When the installation pop-up request, please click: "agree", "allow", otherwise some functions cannot be used; 3: The Bluetooth function of the mobile phone must be enabled, and the Android also needs to open the location function and allow permission; 4: After the APP is installed, the light source machine is connected to the power supply and can directly open the APP for operation; 5: Enter the home page interface for the first time, manually refresh the pull- down interface, and APP automatically add the device icon; 6: Select the equipment icon "LED BLE" and enter the light source machine control interface; 7: More operation skills, you can check the LED Bluetooth controller instructions or APP operation tutorial; Note: Do not search or match on the Bluetooth end of the mobile phone, directly call the APP will automatically search and connect. (APP QR code in the body shell or instructions, support Apple and Android system) Introduction to optical fiber application Optical fiber coupling docking Schematic diagram of the starry sky top installation 10LED meteor installation method: First, understand the motion direction and order of 10LED light source, and mark the sequence number, use the light of the light source to the end with multiple optical fibers, install according to the sequence number order, and can form a meteor (as shown in the picture). In the figure, the long meteor consists of 50 points (50 optical fibers), 50 points are divided into 10 sections (5 points in each segment). 5 optical fibers are drawn from each light source and installed in sequence to form a long meteor; the total length is determined according to the point distance, and the general point distance is 1-2CM. The short-bar meteor consists of 20 dots in Fig (Draw 2 optical fibers from each light source and install them in sequence) The fabrication of the variable-speed meteor shown in Fig (The distance of the point changes, and the flow speed also changes.) FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)…

Text truncated - open the document above for the full version.

Shenzhen Changqian Trading Co., Ltd. January 5, 2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BTYM-TSCQ05 [Shenzhen Changqian Trading Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Xinxin Li Shenzhen Changqian Trading Co., Ltd. January 5, 2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BTYM-TSCQ05 [Shenzhen Changqian Trading Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Xinxin Li

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: Companyname:HOPEKCORPORATIONINC FRN:0034562900 ContactName:PeterDavis Address:16755CoyoteBushDrUnit84,SanDiego,CA92127UnitedStates TelephoneNo:561-235-6113 Email:[email protected] Applicant: Companyname:ShenzhenChangqianTradingCo.,Ltd. GranteeCode:2BTYM FCCID:2BTYM-TSCQ05 FRN:0037806205 ContactName:XinxinLi Address:Building110,DingtaiFenghua,1085QianhaiRoad,FenghuaCommunity, NanshanStreet,NanshanDistrict,ShenzhenCity,China TelephoneNo:86-18145811170 FaxNo:/ Email:[email protected] ShenzhenChangqianTradingCo.,Ltd.certifiesthat,asofthedateofthisfilingofthe applicationwiththeTCB,[HOPEKCORPORATIONINC]isourdesignatedUSagentforservice ofprocessfortheabovereferencedFCCID.ShenzhenChangqianTradingCo.,Ltd.accepts tomaintainanagentfornolessthanoneyearafterthegranteehasterminatedallmarketingand importationortheconclusionofanycommissionrelatedproceedinginvolvingequipment. [HOPEKCORPORATIONINC]accepts,asofthedateofthefilingoftheapplication,the obligationofthedesignatedUSagentforserviceofprocessfortheabovereferenceFCCID. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. Date:2026-01-05 Applicant’sName:XinxinLiUSAgent’sName:PeterDavis Title:ManagerTitle:Manager Signature:Signature:

Shenzhen Changqian Trading Co., Ltd. Difference Description We Shenzhen Changqian Trading Co., Ltd. state: Product name: Fiber optic kit Model(s): TSCQ05, TSCQ01, TSCQ02, TSCQ03, TSCQ04, TSCQ06, TSCQ07, TSCQ08, TSCQ09, TSCQ10 All the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Signature: January 5, 2026 Name: Xinxin Li Position: Manager Company Name: Shenzhen Changqian Trading Co., Ltd. Address: Building 110, Dingtai Fenghua, 1085 Qianhai Road, Fenghua Community, Nanshan Street, Nanshan District, Shenzhen City, China Tel: 86-18145811170 Fax: / Email: [email protected]

Shenzhen Changqian Trading Co., Ltd. 1/5/2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product Name: Fiber optic kit FCC ID: 2BTYM-TSCQ05 Model(s): TSCQ05 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Schematic Diagram, Block Diagram, Operational Description) required to be submitted with this application be permanently withheld from public review. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market Please contact me if there is any information you may need. Sincerely, Signature: January 5, 2026 Name Xinxin Li Position Manager Company Name Shenzhen Changqian Trading Co., Ltd. Address Building 110, Dingtai Fenghua, 1085 Qianhai Road, Fenghua Community, Nanshan Street, Nanshan District, Shenzhen City, China Tel 86-18145811170 Fax / Email [email protected]

Shenzhen Changqian Trading Co., Ltd. 1/5/2026 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen PSI Testing Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely, Signature: January 5, 2026 Name Xinxin Li Position Manager Company Name Shenzhen Changqian Trading Co., Ltd. Address Building 110, Dingtai Fenghua, 1085 Qianhai Road, Fenghua Community, Nanshan Street, Nanshan District, Shenzhen City, China Tel 86-18145811170 Fax / Email [email protected]

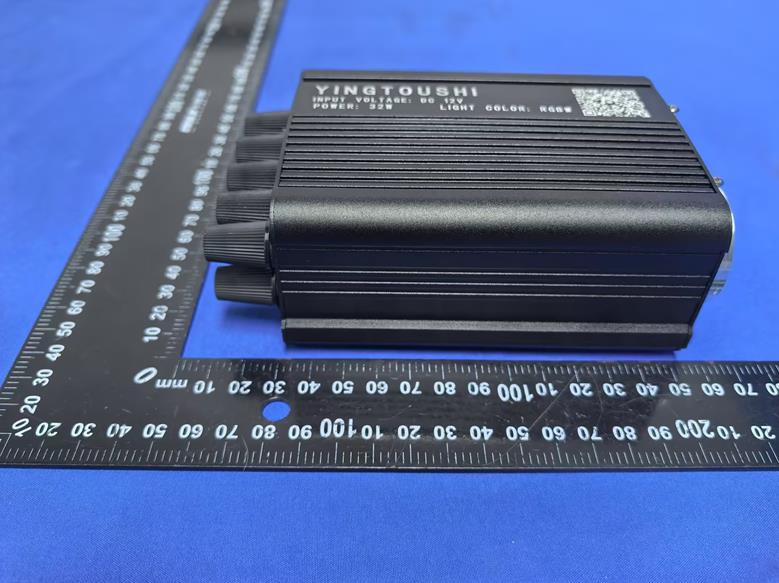

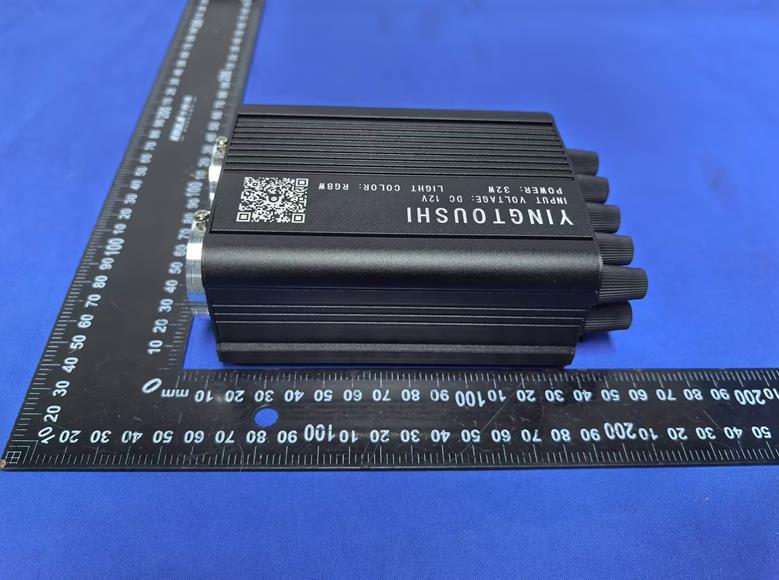

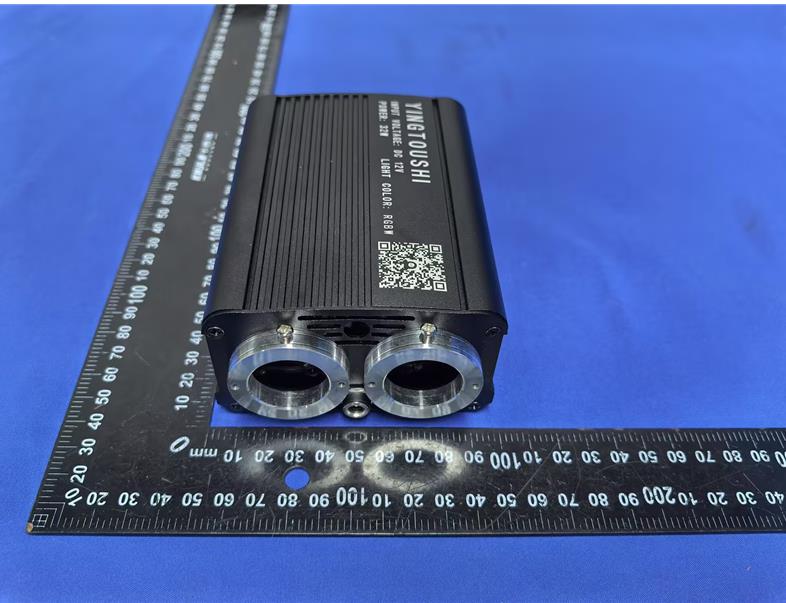

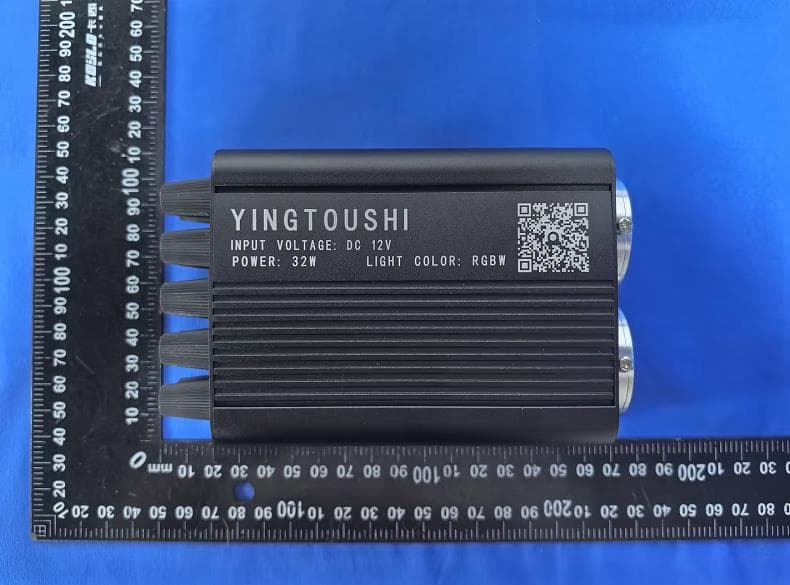

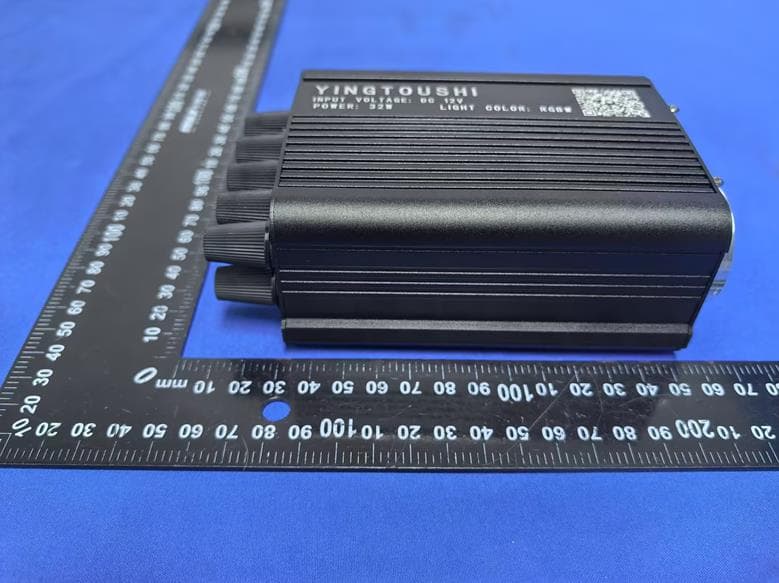

Page 1 of 4 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix II external photos FCC ID: 2BTYM-TSCQ05 Page 2 of 4 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 3 of 4 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 4 of 4 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ------End------

Label and Location Material: Silk-screen Font color: White Size: L: 2cm*W: 0.6cm Label and Location W FCC ID: 2BTYM-TSCQ05 Model No.: TSCQ05 L

Page 1 of 4 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix III internal photos FCC ID: 2BTYM-TSCQ05 BT ANT Page 2 of 4 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 3 of 4 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Page 4 of 4 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China ------End------

Page 1 of 2 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix IV MPE FCC ID: 2BTYM-TSCQ05 Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) KDB Test Methodology: KDB 447498 D01 v06. 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Page 2 of 2 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China 3. Result Mode Frequency (MHz) Prediction distance (cm) RF output power(Max) (dBm) Tune-up power (Max) MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW BT LE 2402-2480 20 1.29 2 1.5849 0.0005 1 Yes BT Antenna: max gain 2.1dBi, 1.62numeric) Therefore this device complies with FCC's RF radiation exposure limits for general population without SAR evaluation.

1 Antenna specification 1、Antenna introduction The Bluetooth module antenna is directly used on the PCB. Manufacturer： Shenzhen xlw technolog9y Address： A436, Huafeng Internet Creative Park, No.107 Gong He Industrial Road, Xix iang, Bao'An, Shenzhen, 518102, China 2、Antenna shape 3、Antenna parameter The Bluetooth antenna operates at 2402-2480 MHz and generates resonance in this band. The table below shows the main parameters of the antenna. Frequency(MHz) 2402 ~ 2480 MHz VSWR ≤ 2.0 Impedance 50 Ohm Nominal Gain (Peak) 2.1dBi 2 4、Antenna gain report Gain&Efficiency frequency (MHz) gain (dBi) mingain (dBi) efficiency (dBi) efficiency (%) lowerhemisphere gain Upper Avg Gain Theta0°~180° 2400 -0.23 -24.73 -5.85 25.98 -0.23 -7.05 -6.71 2410 0.21 -24.63 -5.52 28.03 0.21 -6.75 -6.36 2420 0.3 -25.53 -5.62 27.40 0.3 -6.84 -6.41 2430 1.33 -25 -5.09 30.94 1.33 -6.58 -5.87 2440 2 -23.22 -4.45 35.92 2 -5.82 -5.19 2450 2.1 -20.76 -4.2 38.02 2.1 -5.48 -4.94 2460 1.76 -21.85 -4.39 36.35 1.76 -5.53 -5.1 2470 1.66 -21.72 -4.29 37.25 1.66 -5.33 -4.96 2480 1.11 -25.08 -4.62 34.55 1.11 -5.61 -5.27 2490 1.04 -29.25 -4.52 35.30 1.04 -5.52 -5.17 2500 0.74 -31.22 -4.78 33.30 0.74 -5.81 -5.41 2.4G 2.44G 2.48G 3 4 5 6

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Page 1 of 52 Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2BTYM-TSCQ05 On Behalf of Shenzhen Changqian Trading Co., Ltd. Fiber optic kit Model No.: TSCQ05, TSCQ01, TSCQ02, TSCQ03, TSCQ04, TSCQ06, TSCQ07, TSCQ08, TSCQ09, TSCQ10 Prepared for : Shenzhen Changqian Trading Co., Ltd. Address : Building 110, Dingtai Fenghua, 1085 Qianhai Road, Fenghua Community, Nanshan Street, Nanshan District, Shenzhen City, China Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Report Number : psi2512168-C01-R01 Date of Receipt : December 18, 2025 Date of Test : December 19, 2025- December 26, 2025 Date of Report : December 29, 2025 Version Number : V0 Page 2 of 52 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results ------------------------------------------------------------- 6 1.1. Description of Standards and Results ------------------------------------------------------- 6 2. General Information ------------------------------------------------------------------------------------ 7 2.1. Description of Device (EUT) ------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ------------------------------------------------------------------ 8 2.3. Tested Supporting System Details------------------------------------------------------------ 8 2.4. Block Diagram of Connection Between EUT and Simulators ------------------------- 8 2.5. Test Mode Description --------------------------------------------------------------------------- 9 2.6. Software test version and power setting information ------------------------------------ 9 2.7. Test Conditions ---------------------------------------------------------------------------------- 10 2.8. Test Facility --------------------------------------------------------------------------------------- 10 2.9. Measurement Uncertainty -------------------------------------------------------------------- 10 2.10. Test Equipment List----------------------------------------------------------------------------- 11 3. Spurious Emission ------------------------------------------------------------------------------------ 12 3.1. Test Limits ----------------------------------------------------------------------------------------- 12 3.2. Block Diagram of Test setup ----------------------------------------------------------------- 13 3.3. Test Procedure ----------------------------------------------------------------------------------- 14 3.4. Test Results--------------------------------------------------------------------------------------- 15 4. Power Line Conducted Emission ---------------------------------------------------------------- 21 4.1. Test Limits ----------------------------------------------------------------------------------------- 21 4.2. Test Procedure ----------------------------------------------------------------------------------- 21 4.3. Test Setup ----------------------------------------------------------------------------------------- 21 4.4. Test Results--------------------------------------------------------------------------------------- 22 5. Out-of-band Emissions ------------------------------------------------------------------------------ 25 5.1. Test Limits ----------------------------------------------------------------------------------------- 25 5.2. Test Procedure ----------------------------------------------------------------------------------- 25 5.3. Test Setup ----------------------------------------------------------------------------------------- 25 5.4. Test Results--------------------------------------------------------------------------------------- 25 6. Conducted Maximum Output Power ------------------------------------------------------------ 36 6.1. Test limits ------------------------------------------------------------------------------------------ 36 6.2. Test Procedure ----------------------------------------------------------------------------------- 36 6.3. Test Setup ----------------------------------------------------------------------------------------- 36 6.4. Test Results--------------------------------------------------------------------------------------- 36 7. Peak Power Spectral Density --------------------------------------------------------------------- 37 7.1. Test limits ------------------------------------------------------------------------------------------ 37 7.2. Test Procedure ----------------------------------------------------------------------------------- 37 7.3. Test Setup ----------------------------------------------------------------------------------------- 37 7.4. Test Results--------------------------------------------------------------------------------------- 37 8. Occupied Bandwidth --------------------------------------------------------------------------------- 41 8.1. Test limits ------------------------------------------------------------------------------------------ 41 8.2. Test Procedure ----------------------------------------------------------------------------------- 41 8.3. Test Setup ----------------------------------------------------------------------------------------- 41 8.4. Test Results--------------------------------------------------------------------------------------- 41 Page 3 of 52 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected]…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix I Test Setup Photo FCC ID: 2BTYM-TSCQ05 Spurious Radiation Emissions Test (<1G) Spurious Radiation Emissions Test (＞1G) Page 2 of 2 Report No.: psi2512168-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Conducted emission Test ------End------
