2BTYX-GLASSESWMagic AI Glasses

4. Quick Voice Commands 5. Basic Functions 1.Photo Capture: Take a photo by single-clicking the right button on the glasses. 2.Video Recording: Start video recording by double-clicking the right button. 3.Audio Recording: Start voice recording by triple-clicking the right button. 4.Music Playback: Supports playing music from the smartphone. 3. Indicator Light Instructions Safety Warnings 1.Do not charge the glasses in wet or humid environments. 2.Ensure that the charging port of the glasses and the charger surface are clean and making full contact. 3.When not in use, store the glasses in a dry and ventilated place, away from direct sunlight. Use a glasses case or protective pouch to prevent collisions, squeezing, or scratches and to reduce the risk of damage. 4.Use the original charger to charge the glasses. Avoid using inferior chargers to prevent safety issues such as overheating or fire caused by improper charging. Avoid overcharging and over-discharging. Charge the device promptly when the battery level is below 20%, and unplug the charger once fully charged. Periodically perform a full charge and discharge to maintain battery performance. 5.Keep the glasses away from strong magnetic fields and high-temperature environments, as they may interfere with the electronic components, affect normal operation, or damage the battery and internal parts. Avoid such environments during use and storage. 6.Regularly check and update the software and firmware of the smart glasses to obtain new features, improve performance, and fix vulnerabilities. Ensure sufficient battery level and a stable network during updates to avoid interruptions that may cause device malfunction. 2. Button Definitions Single Click Wake AI Voice Assistant (when powered on) Single Click (during AI playback): Interrupt and exit Long Press 10s Hard reset Single Click Take photo / Stop video / Stop recording / Answer call / Hang up Double Click Start video / Reject call Triple Click Start audio recording Long Press 3s Power On/Off Single Tap Play/Pause music Double Tap Next track Triple Tap Previous track Swipe forward Volume + Swipe backward Volume – Both Buttons (Left + Right) Long Press 6s Restore factory settings Left Button Right Button Right Touch Area -Slider No. Product Button Instructions 1 Right Button 2 Right Touch Area - Slider 3 Right Speaker 4 Charging Port 5 Indicator Light 6 Left Button 7 Right Speaker Flash 2 times Power off Flash 5 times Low battery Continuous flashing: Charging / Factory reset Flash 2 times: Power on Quick flash 3 times Connecting Always on Fully charged / Firmware upgrade in progress Flash 1 time Photo taken Flash every 5 seconds Video recording Red Light Blue Light Fill Light: 3.Voice Notifications: The glasses support voice prompts such as memory alerts, low battery warnings, and other system notifications. 4.AI Voice Assistant: Wake the AI voice assistant by briefly pressing the left button and interact with the AI model through conversation. 5.Smart Navigation: Supports starting navigation by sending a destination through AI voice commands, or by setting an address in the app. 7. Special Features 1. Meeting Assistant: Instantly captures, organizes, and saves speech and text information during meetings or events. 2. Simultaneous Interpretation: Converts the speaker’s language into the target language in real time and plays it back. 3. One-Click Translation: Quickly converts text or voice content into different languages, enabling easy communication across language barriers. 4. Face-to-Face Translation: Provides real-time translation for conversations. 5. Bluetooth Network Sharing: After connecting to a shared Bluetooth network, the device can independently access and interact with the AI model. Precautions 1. Avoid using this product in high-temperature, humid, or strong magnetic environments to prevent performance issues or reduced lifespan. 2. This product is a precision electronic device. Do not expose it to impacts, squeezing, or dropping, as such actions may damage internal components and affect normal use. Please store the glasses properly and avoid contact with hard objects. 3. Keep the lenses clean. Use a clean, soft cloth to gently wipe them. Avoid using chemical solvents or rough materials to clean the lenses. 4. Our company reserves the right to modify the contents of this manual without prior notice. Differences in features between software versions are normal. Basic Specifications Product Type: Fashion Eyewear Product Name: MagicAI Glasses W Body Material: TR90 Camera Resolution: 8MP Bluetooth: Bluetooth 5.2 Built-in Storage: 16GB Battery Capacity: 265mAh Charging: 4PIN Magnetic Connector Charging Time: Approximately 4 hours 1. Download & Connect 1) Download and install the “Memories” app on your smartphone.Search “Memories” in the app store or scan the QR code to download. 2. Connect the Glasses 1) Power on the glasses: Press and hold the right button for 3 seconds until the startup tone sounds. 2) Open the “Memories” app, search for the device, and connect via the Bluetooth name of the glasses. 3) Successfully entered the interface (as shown below). Currently available in the App Store, Google Play, and Official Website for Thailand, Japan, Macau China, Hong Kong China, Philippines, and Malaysia. Official Website: https://whlmemories.com/ Service Hotline: 0852-31043175 MandarinEnglish 1Wake Word Hey MagicHey Magic 2 Voice-activated Photo Capture 拍张照片take a picture 3 Voice-activated Video Recording 打开录像take a video 4 Voice-activated Audio Recording 打开录音take a record 5 Voice-activated Call Answering 接听电话Take the call 6 Voice-activated Call Hanging Up 我正在忙I’m busy now 7Volume + 声音大一点 Increase the volume 8Volume - 声音小一点 reduce the volume Voice Commands No.Scenarios After connecting via Bluetooth, the glasses will automatically play the phone’s music.(If no music player is open on the phone, a voice prompt will remind: “Please open phone music.”) 5.Call Handling:Single click to …

Text truncated - open the document above for the full version.

WHL Holding Limited Covered Equipment Certification Attestation Letter 5/29/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BTYX-GLASSESW WHL Holding Limited (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. WHL Holding Limited (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. WHL Holding Limited (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Xingyu Zhang Title: Vice President Company Name: WHL Holding Limited Date: 5/29/2026

WHL Holding Limited 29TH FLOOR ENTERTAINMENT BUILDING 30 QUEEN'S ROAD CENTRAL CENTRAL Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026-5-27 U.S. Agent Designation WHL Holding Limited acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BTYX- GLASSESW): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 FRN of U.S. agent: 0036339737 GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of WHL Holding Limited. WHL Holding Limited with the FRN 0037806460 accepts its obligation to maintain an agent for service of process in the United States for no less than 1 year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Signature Xingyu Zhang Huiying Fan Vice President Te l : +852 6359 5680 Email: [email protected] Director Tel: (626) 588-8039 Email: [email protected] WHL Holding Limited GLOCERTS TECHNOLOGY INC

WHL Holding Limited DATE: May 29, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongzhou Testing Co.,Ltd. (1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with WHL Holding Limited (29TH FLOOR ENTERTAINMENT BUILDING, 30 QUEEN’S ROAD CENTRAL CENTRAL Hong Kong, China) <Signature> Name: Xingyu Zhang Title: Vice President Applicant Company: WHL Holding Limited

Date: May 29, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Xingyu Zhang Title: Vice President Company: WHL Holding Limited

DATE: May 29, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BTYX-GLASSESW Product Name: Magic AI Glasses Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Xingyu Zhang Title: Vice President Company: WHL Holding Limited

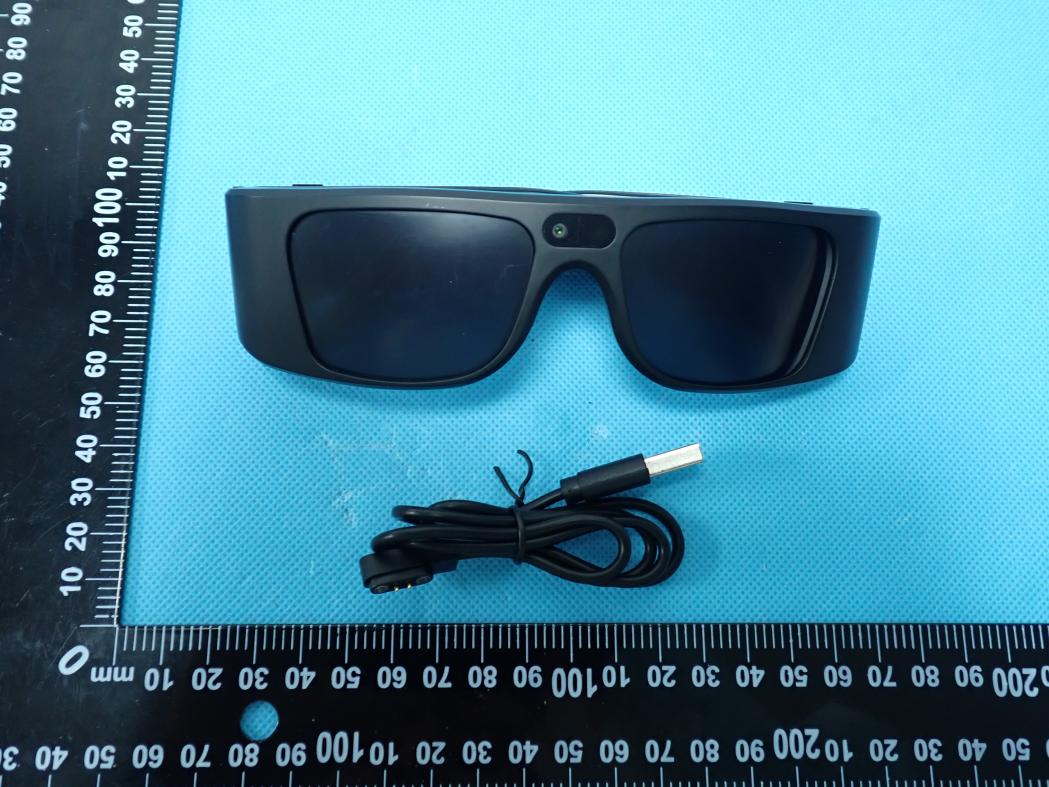

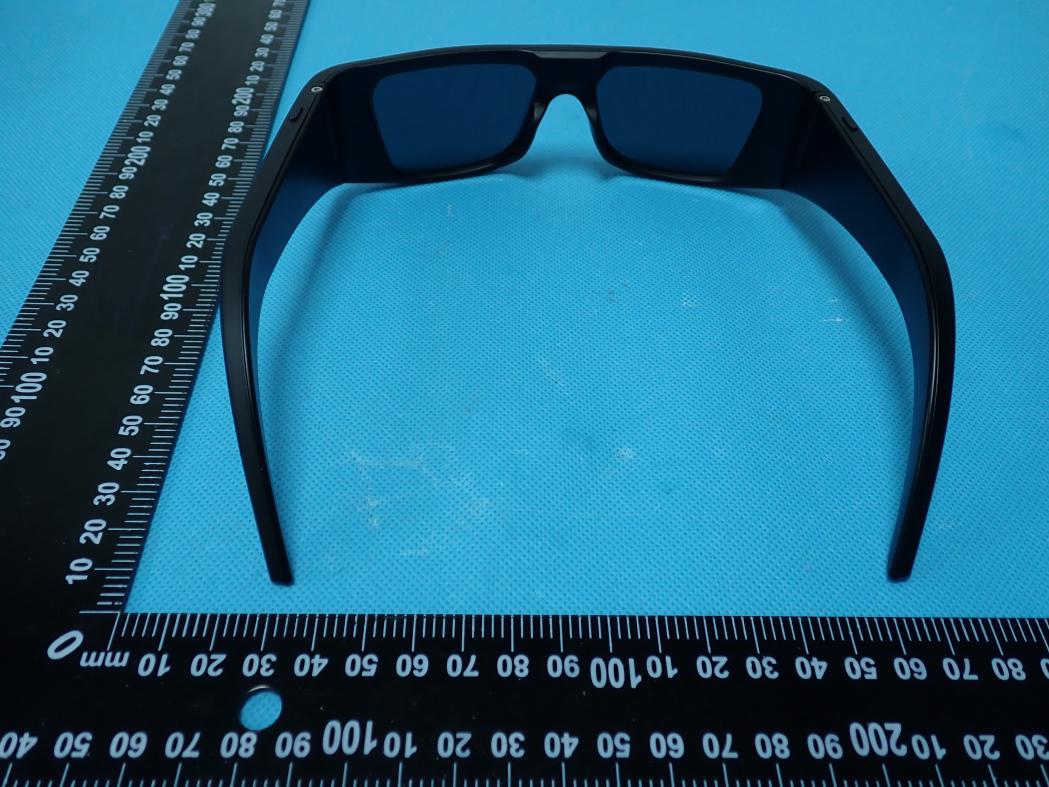

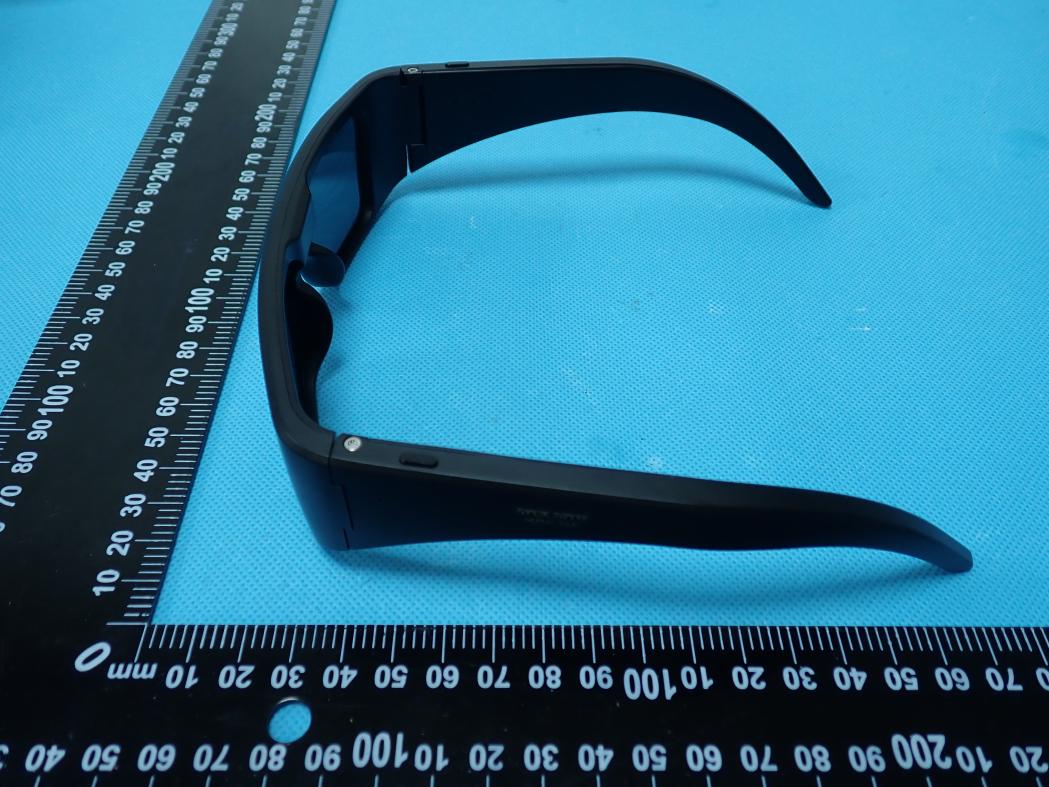

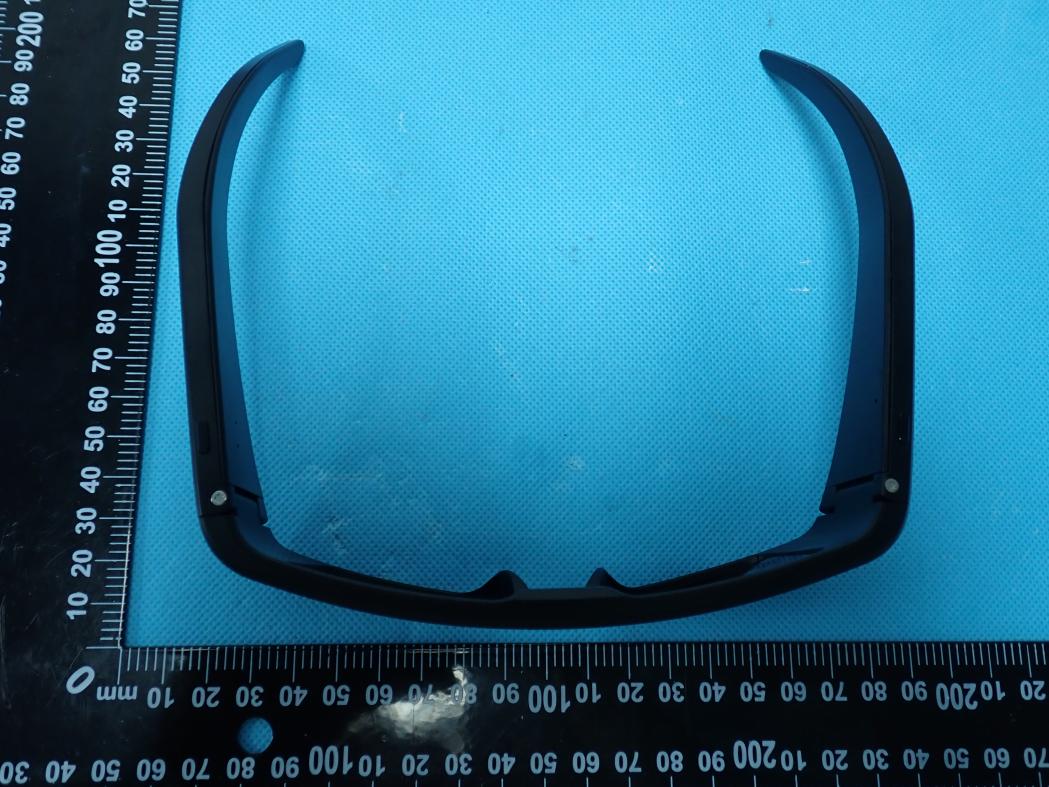

Report No.: TZ0032260407PH02 Page 1 of 4 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0032260407PH02 Page 2 of 4 External Photo 3 External Photo 4 Report No.: TZ0032260407PH02 Page 3 of 4 External Photo 5 External Photo 6 Report No.: TZ0032260407PH02 Page 4 of 4 External Photo 7 External Photo 8

The size of the label is 15mm*10mm with White forecolor. The size of the logo is 5mm*5mm. FCC ID: 2BTYX-GLASSESW

Report No.: TZ0032260407PH03 Page 1 of 5 Internal Photographs of EUT Internal Photo 1 Internal Photo 2 Report No.: TZ0032260407PH03 Page 2 of 5 Internal Photo 3 Internal Photo 4 Bluetooth Wifi antenna Report No.: TZ0032260407PH03 Page 3 of 5 Internal Photo 5 Internal Photo 6 Report No.: TZ0032260407PH03 Page 4 of 5 Internal Photo 7 Internal Photo 8 Report No.: TZ0032260407PH03 Page 5 of 5 Internal Photo 9

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BTYX-GLASSESW This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BTYX-GLASSESW This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Conducted Power including Tune Up Calculation Value for 1g SAR Exemption Limit for 1g SAR Target Power [dBm] Tolerance ±[dB] [dBm] [mW] DH5 Ant1 2402 -0.52 -1 1 0 1.00 0.31 3 DH5 Ant1 2441 1.86 1.5 1 2.5 1.78 0.56 3 DH5 Ant1 2480 0.98 0.5 1 1.5 1.41 0.44 3 2DH5 Ant1 2402 0.14 -0.5 1 0.5 1.12 0.35 3 2DH5 Ant1 2441 1.57 1 1 2 1.58 0.50 3 2DH5 Ant1 2480 0.79 0.5 1 1.5 1.41 0.44 3 3DH5 Ant1 2402 0.64 0 1 1 1.26 0.39 3 3DH5 Ant1 2441 1.09 0.5 1 1.5 1.41 0.44 3 3DH5 Ant1 2480 0.16 -0.5 1 0.5 1.12 0.35 3 11B Ant1 2412 7.86 7.5 1 8.5 7.08 2.20 3 11B Ant1 2437 7.98 7.5 1 8.5 7.08 2.21 3 11B Ant1 2462 7.72 7 1 8 6.31 1.98 3 11G Ant1 2412 7.23 6.5 1 7.5 5.62 1.75 3 11G Ant1 2437 7.58 7 1 8 6.31 1.97 3 11G Ant1 2462 6.88 6.5 1 7.5 5.62 1.76 3 11N20SISO Ant1 2412 8.03 7.5 1 8.5 7.08 2.20 3 11N20SISO Ant1 2437 7.51 7 1 8 6.31 1.97 3 11N20SISO Ant1 2462 6.69 6 1 7 5.01 1.57 3 11N40SISO Ant1 2422 8.01 7.5 1 8.5 7.08 2.20 3 11N40SISO Ant1 2437 7.59 7 1 8 6.31 1.97 3 11N40SISO Ant1 2452 7.27 7 1 8 6.31 1.98 3 Note: 1. Calculation Value = [(max. power of channel, mW) / (min. test separation distance, mm)] ·[√f(GHz)]. Conclusion: The SAR evaluation is not required.

Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 53 of 54 NTNV-11N20SISO-Ant1-2462 NTNV-11N40SISO-Ant1-2422 Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 54 of 54 NTNV-11N40SISO-Ant1-2437 NTNV-11N40SISO-Ant1-2452

Report No.: TZ0032260407FRF03 Page 1 of 37 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0032260407FRF03 Product Name : Magic AI Glasses Model/Type reference : Magic AI Glasses W FCC ID : 2BTYX-GLASSESW Prepared for : WHL Holding Limited 29TH FLOOR ENTERTAINMENT BUILDING, 30 QUEEN’S ROAD CENTRAL CENTRAL Hong Kong, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020+Cor. 1-2023 Date of Test : 2026-04-24 ~ 2026-05-12 Date of Issue : 2026-05-13 Prepared by : Lena Wen Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0032260407FRF03 Page 2 of 37 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-05-13 Valid Initial release Report No.: TZ0032260407FRF03 Page 3 of 37 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ....................................................... 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 5 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ............................................... 10 5. T E S T R E S U L T .................................................................... 11 5.1. On Time and Duty Cycle ....................................................................................................... 11 5.2. Maximum Conducted Output Power Measurement ........................................................... 12 5.3. Power Spectral Density Measurement ................................................................................ 13 5.4. 6 dB Spectrum Bandwidth and Occupied Channel Bandwidth Measurement ............... 14 5.5. Radiated Emissions Measurement ...................................................................................... 15 5.6. Conducted Spurious Emissions and Band Edges Test .................................................... 25 5.7. Power Line Conducted Emissions ...................................................................................... 26 5.8. Band-Edge Measurements for Radiated Emissions .......................................................... 29 5.9. Antenna Requirements ......................................................................................................... 35 6. L I S T O F M E A S U R I N G E Q U I P M E N T ......................................... 36 7. T E S T S E T U P P H O T O G R A P H S O F E U T ..................................... 37 8. E X T E R I O R P H O T O G R A P H S O F T H E E U T ................................. 37 9. I N T E R I O R P H O T O G R A P H S O F T H E E U T .................................. 37 Report No.: TZ0032260407FRF03 Page 4 of 37 1. G E N E R A L I N F O R M …

Text truncated - open the document above for the full version.

让无线电波助力未来生活 1 爱宝科技 TG3211-1_AI376W天线性能报告 Preparation：苏工 Date：2026.03.12 Version：V1.0 报告版本: Report version 日期 Date 内容 Content V1.02026.03.12 WIFI天线性能报告 主天线设计频段: main antenna design spectrum WIFI:2412~2472MHz 天线类型: Type of antenna N/A 副天线设计频段: Deputy antenna design spectrum N/A 天线类型: Type of antenna N/A 分集天线频段: Frequency diversity antenna N/A 天线类型: Type of antenna N/A z+ Y+ X+ 样机测试摆放 H =XY E1=XZ E2=YZ 自由空间测试 FreqEffiGain (MHz)(%)(dBi) 240037.60.5 241039.070.67 242034.640.11 243038.670.36 244039.380.75 245039.470.82 246038.310.74 247035.720.61 248036.651.07 249034.930.92 250033.70.54 BAND 信道 TRPTIS WIFI 11B 1Mbps11Mbps 1 13.58-84.92 7 14.04-84.34 13 14.58-84.46

Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 1 of 54 Appendix Test Data for WLAN(2. 4G) (Conducted Measurement) Product Name: Magic AI Glasses Trade Mark: MAGIC MAN 2 WORLD TOUR Test Model: Magic AI Glasses W FCC ID: 2BTYX-GLASSESW Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 11B Ant1 2437 10.160 2431.920 2442.080 0.5 PASS 11B Ant1 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 16.320 2403.880 2420.200 0.5 PASS 11G Ant1 2437 16.280 2428.840 2445.120 0.5 PASS 11G Ant1 2462 16.320 2453.880 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.280 2403.360 2420.640 0.5 PASS 11N20SISO Ant1 2437 17.200 2428.400 2445.600 0.5 PASS 11N20SISO Ant1 2462 17.160 2453.440 2470.600 0.5 PASS 11N40SISO Ant1 2422 35.840 2404.160 2440.000 0.5 PASS 11N40SISO Ant1 2437 35.600 2419.160 2454.760 0.5 PASS 11N40SISO Ant1 2452 36.400 2433.840 2470.240 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 2 of 54 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 3 of 54 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 4 of 54 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 5 of 54 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 6 of 54 11N20SISO-Ant1-2462-PASS 11N40SISO-Ant1-2422-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 7 of 54 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 8 of 54 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Channel Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11B Ant1 2412 14.941 2404.5574 2419.4984 --- --- 11B Ant1 2437 14.786 2429.5345 2444.3205 --- --- 11B Ant1 2462 14.916 2454.6029 2469.5189 --- --- 11G Ant1 2412 16.742 2403.7073 2420.4493 --- --- 11G Ant1 2437 16.733 2428.5838 2445.3168 --- --- 11G Ant1 2462 16.854 2453.6027 2470.4567 --- --- 11N20SISO Ant1 2412 17.909 2403.1123 2421.0213 --- --- 11N20SISO Ant1 2437 17.780 2428.0767 2445.8567 --- --- 11N20SISO Ant1 2462 17.923 2453.0949 2471.0179 --- --- 11N40SISO Ant1 2422 36.162 2403.9804 2440.1424 --- --- 11N40SISO Ant1 2437 36.143 2418.9210 2455.0640 --- --- 11N40SISO Ant1 2452 36.436 2433.8122 2470.2482 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 9 of 54 Test Graphs 11B-Ant1-2412 11B-Ant1-2437 Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 10 of 54 11B-Ant1-2462 11G-Ant1-2412 Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 11 of 54 11G-Ant1-2437 11G-Ant1-2462 Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 12 of 54 11N20SISO-Ant1-2412 11N20SISO-Ant1-2437 Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 13 of 54 11N20SISO-Ant1-2462 11N40SISO-Ant1-2422 Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 14 of 54 11N40SISO-Ant1-2437 11N40SISO-Ant1-2452 Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 15 of 54 Appendix C: Maximum Average conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Power [dBm] Conducted Limit [dBm] Verdict 11B Ant1 2412 7.86 ≤30.00 PASS 11B Ant1 2437 7.98 ≤30.00 PASS 11B Ant1 2462 7.72 ≤30.00 PASS 11G Ant1 2412 7.23 ≤30.00 PASS 11G Ant1 2437 7.58 ≤30.00 PASS 11G Ant1 2462 6.88 ≤30.00 PASS 11N20SISO Ant1 2412 8.03 ≤30.00 PASS 11N20SISO Ant1 2437 7.51 ≤30.00 PASS 11N20SISO Ant1 2462 6.69 ≤30.00 PASS 11N40SISO Ant1 2422 8.01 ≤30.00 PASS 11N40SISO Ant1 2437 7.59 ≤30.00 PASS 11N40SISO Ant1 2452 7.27 ≤30.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) + Duty Cycle Factor(dB) Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 16 of 54 Appendix D: Maximum Average power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict 11B Ant1 2412 -22.29 ≤8.00 PASS 11B Ant1 2437 -21.62 ≤8.00 PASS 11B Ant1 2462 -22.10 ≤8.00 PASS 11G Ant1 2412 -20.49 ≤8.00 PASS 11G Ant1 2437 -19.69 ≤8.00 PASS 11G Ant1 2462 -21.25 ≤8.00 PASS 11N20SISO Ant1 2412 -21.45 ≤8.00 PASS 11N20SISO Ant1 2437 -19.71 ≤8.00 PASS 11N20SISO Ant1 2462 -21.02 ≤8.00 PASS 11N40SISO Ant1 2422 -19.78 ≤8.00 PASS 11N40SISO Ant1 2437 -21.26 ≤8.00 PASS 11N40SISO Ant1 2452 -22.42 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) + Duty Cycle Factor(dB) Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 17 of 54 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 18 of 54 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 19 of 54 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 20 of 54 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 21 of 54 11N20SISO-Ant1-2462-PASS 11N40SISO-Ant1-2422-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 22 of 54 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS Appendix Test Data of the Report No.: TZ0032260407FRF03 Page 23 of 54 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency.[M Hz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 Low 2412 0.39 -46.91 ≤-29.61 PASS 11B Ant1 High 2462 0.69 -48.43 ≤-29.31 PASS 11G Ant1 Low 2412 -1.10 -39.83 ≤-31.1 PASS 11G Ant1 High 2462 -2.14 -49 ≤-32.14 PASS 11N20SIS O Ant1 Low 2412 -0.84 -37.24 ≤-30.84 PASS 11N20SIS O Ant1 High 2462 -0.42 -48.43 ≤…

Text truncated - open the document above for the full version.

Report No.: TZ0032260407PH01 Page 1 of 2 Test Setup Photos of the EUT Conducted Emission Radiated Emission Below 1GHz Report No.: TZ0032260407PH01 Page 2 of 2 Radiated Emission Above 1GHz RF Conducted Test
