YK-7000 User Manual CONTENT I. GeneralDescription...........................................................................................................................1 1.1ProductExample.................................................................................................................1 1.2HomeInstallationDiagram....................................................................................................1 II. Set up SmartLife APP .......................................................................................................................2 2.1DownloadAPP - SmartLife ..................................................................................................2 2.2ConnectPanel to SmartLife APP .........................................................................................2 2.3Settingson APP ....................................................................................................................6 III. Set up the SecurityDevices..............................................................................................................8 3.1SecurityPanel .......................................................................................................................8 3.2Entry Sensor.......................................................................................................................13 3.3MotionSensor.....................................................................................................................15 3.4Controller............................................................................................................................16 3.5MultifunctionButton---Doorbell/SOSButton.......................................................................16 IV.Learn to Use the SecurityPanel .............................................................................................17 4.1Main Interface.....................................................................................................................17 4.2Menu Introduction...............................................................................................................18 4.2.1CONNECTION----Accessory......................................................................................18 4.2.2Phone.........................................................................................................................21 4.2.3Security.......................................................................................................................23 4.2.4Settings.......................................................................................................................24 V. Troubleshootingand Maintenance..................................................................................................25 VI.HazardousSubstanceDeclaration..........................................................................................26 VII.WarrantyRules .......................................................................................................................26 VIII.FCC Declares..........................................................................................................................27 1 / 27 I. GeneralDescription 1.1 ProductExample SecurityPanel The centralhub of the securitysystem. This 7-inchsecuritypanel has multipleupgrades:1024X600PXhigh-definitionIPS screen, built-in5000mAHlithiumbattery.Built-inloudersiren and buzzer,up to 120dB.Added 12V/1A,Typc-5V/2Achargingport. 8 wired sensorzones,suitablefor familieswith pre-installedembeddedlines. It also connectsall your accessoriesto the app, so you can controlyour home from anywhere. 1.2 HomeInstallationDiagram MotionSensor Doorbell Button Controller SecurityPanel Entry Sensor SOS Button 2 / 27 II. Set up SmartLife APP 2.1 DownloadAPP - SmartLife (1) iOS users,pleasescan the Apple APP QR code. (2) Androidusers,pleasescan the QR code of GooglePlayto download. (3) After downloadingthe APP, pleaseenableall usagepermissionsfor the APP in the phonesettings. (4) Sign up or Log in to your APP account. 2.2 ConnectPanel to SmartLife APP Steps: (1) For first-timeuse, pleaseconnectthe securitypanelto the powersupply,and turn the backup Note: (1) This securitypanel only supports2.4GHzWiFinetworksonly. Make sure your routeris set up correctlyand can connectto the Internet. (2) Whenaddingthe securitypanel to the SmartLife APP, pleaseturn on the mobilephone WiFi and Bluetooth, and confirmthat the mobilephoneis connectedto the 2.4GHzfrequency band. Note: Turn on the panel,choosea language,and scan the QR code on the panel to download; Users can also search"SmartLife" in major global APP storesor scan the QR code below to download. 3 / 27 batteryswitchon the back of the panelto the “ON ” position,then enter the operationguide interface. If you have enteredthe main interfaceor want to reset the WiFi, pleaseclick "C onn ection"---"WiFi", and enter the defaultuser code: 1234. OperationGuideInterface--- PressWiFi Icon (2) Press “Airlink” to enter the WiFi pairingmode. 4 / 27 (3)On the APP:Open the "SmartLife" APP and enter the "Home"interface. A. Click the"+"on the upper right cornerof the interfaceand select"Add Device". B. Press “Add ” on the discoveringdevice’s area. C. Input the 2.4GhzWiFi name and password,and click "Next". 5 / 27 D. Pairedsuccessfully (4) You can remotecontrolthe alarm systemon the APP. 6 / 27 2.3 Settingson APP 2.3.1Add Device Click Accessories,press “ + ”, and then triggerthe accessoryto completethe pairing. 2.3.2RenameDevice Accessorynamescan only be renamedon the APP, just press “Sub devicename ” to edit the name. 7 / 27 2.3.3ShareDevice A securitypanel can only be pairedwith one APP account,but you can shareit with multiplefamily membersto managetogether. 2.3.4Other Settings Press Setting,and can directlymodifythe settingsin the securitypanel on the APP. Throughthe APP, you can remotelycontrolthe securitypanel.You can also set the arm …

Text truncated - open the document above for the full version.

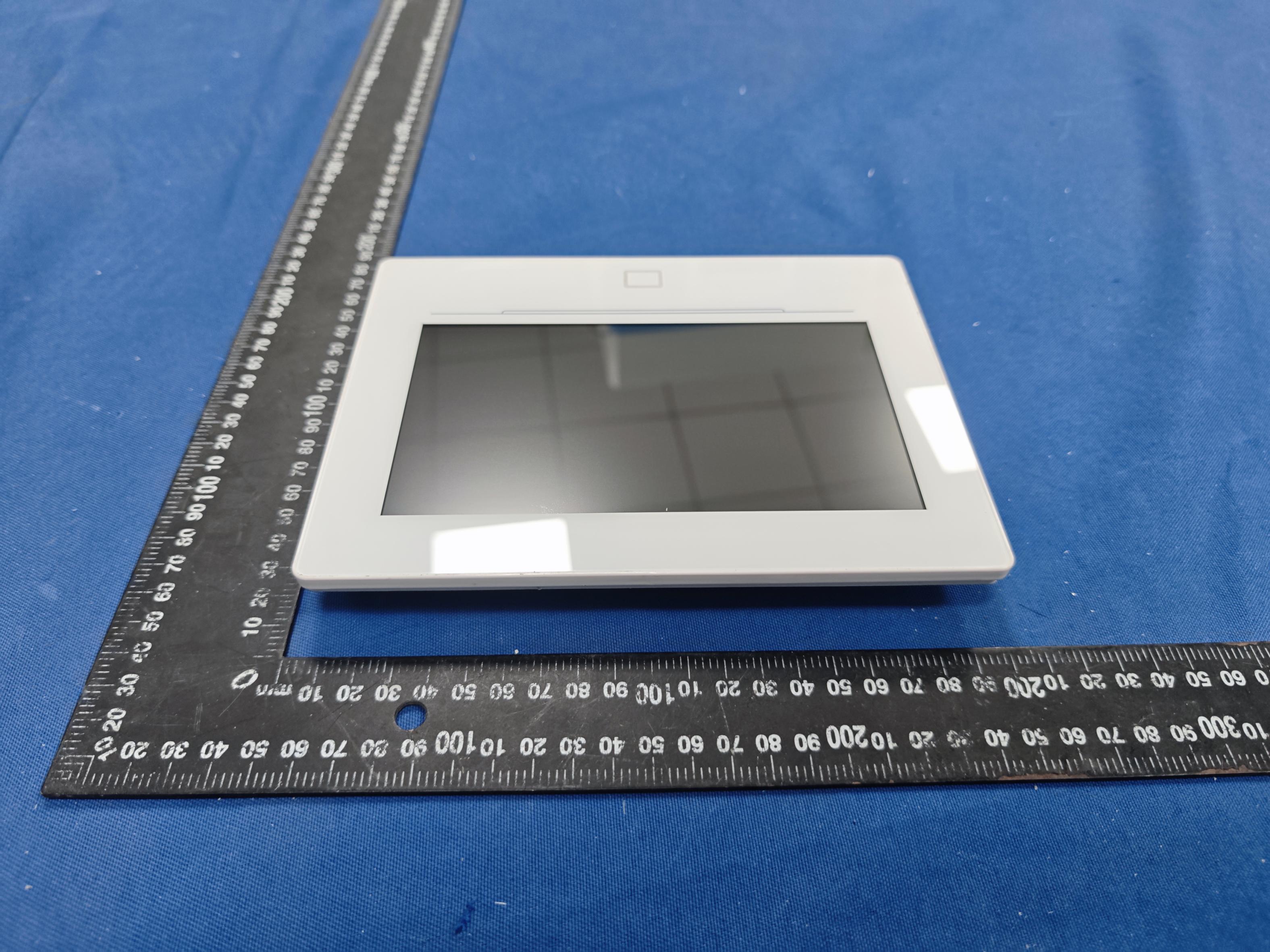

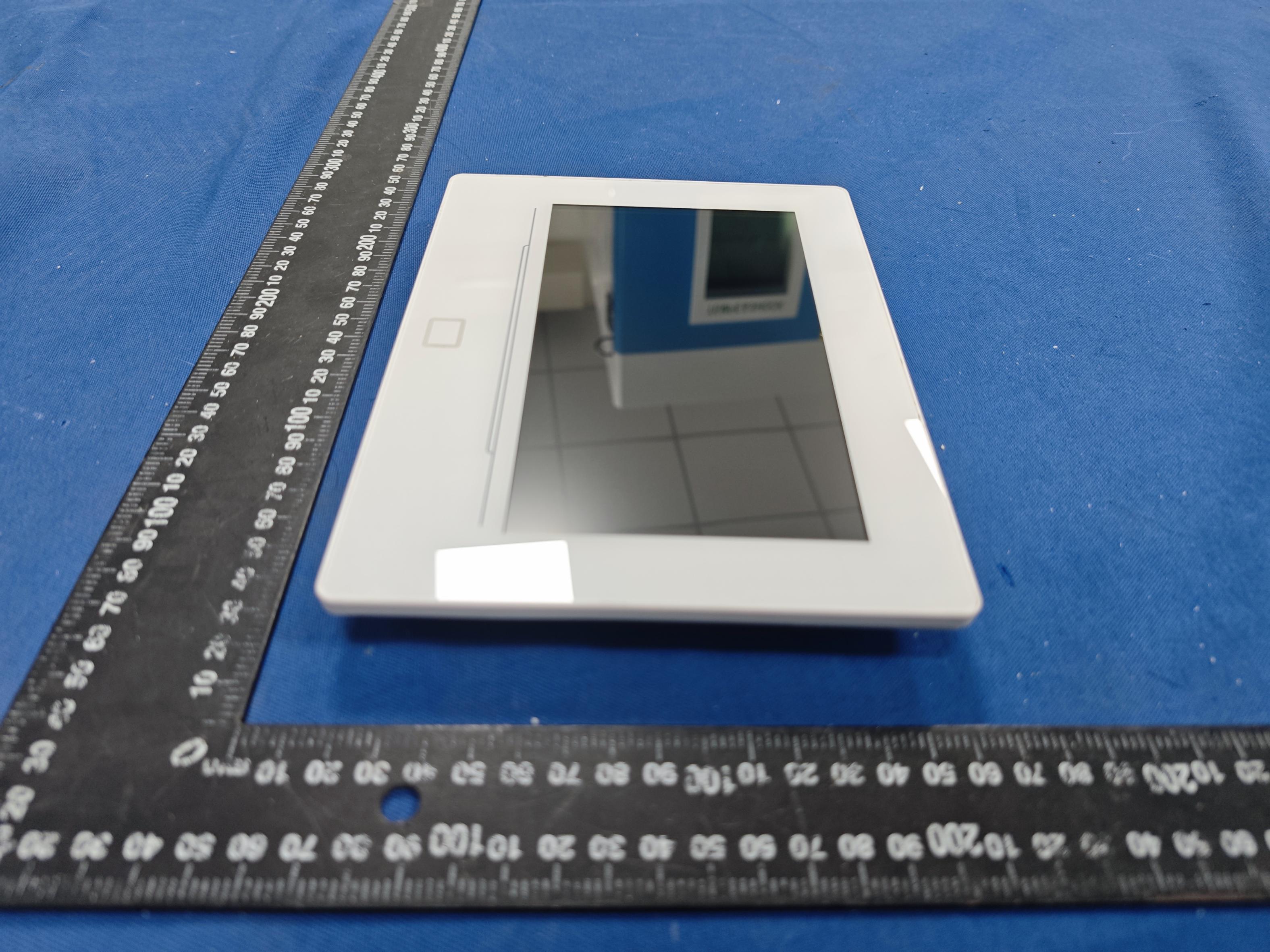

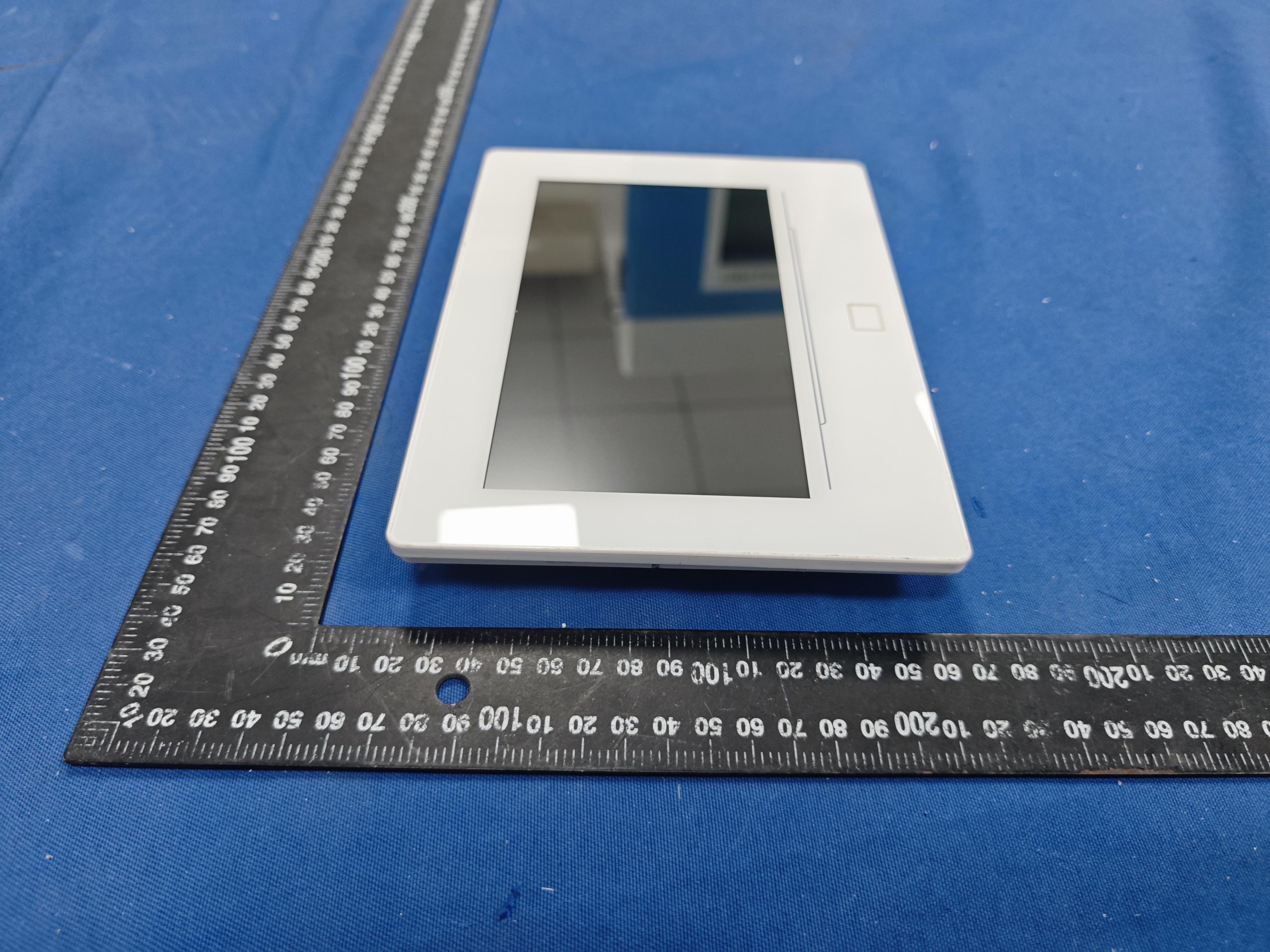

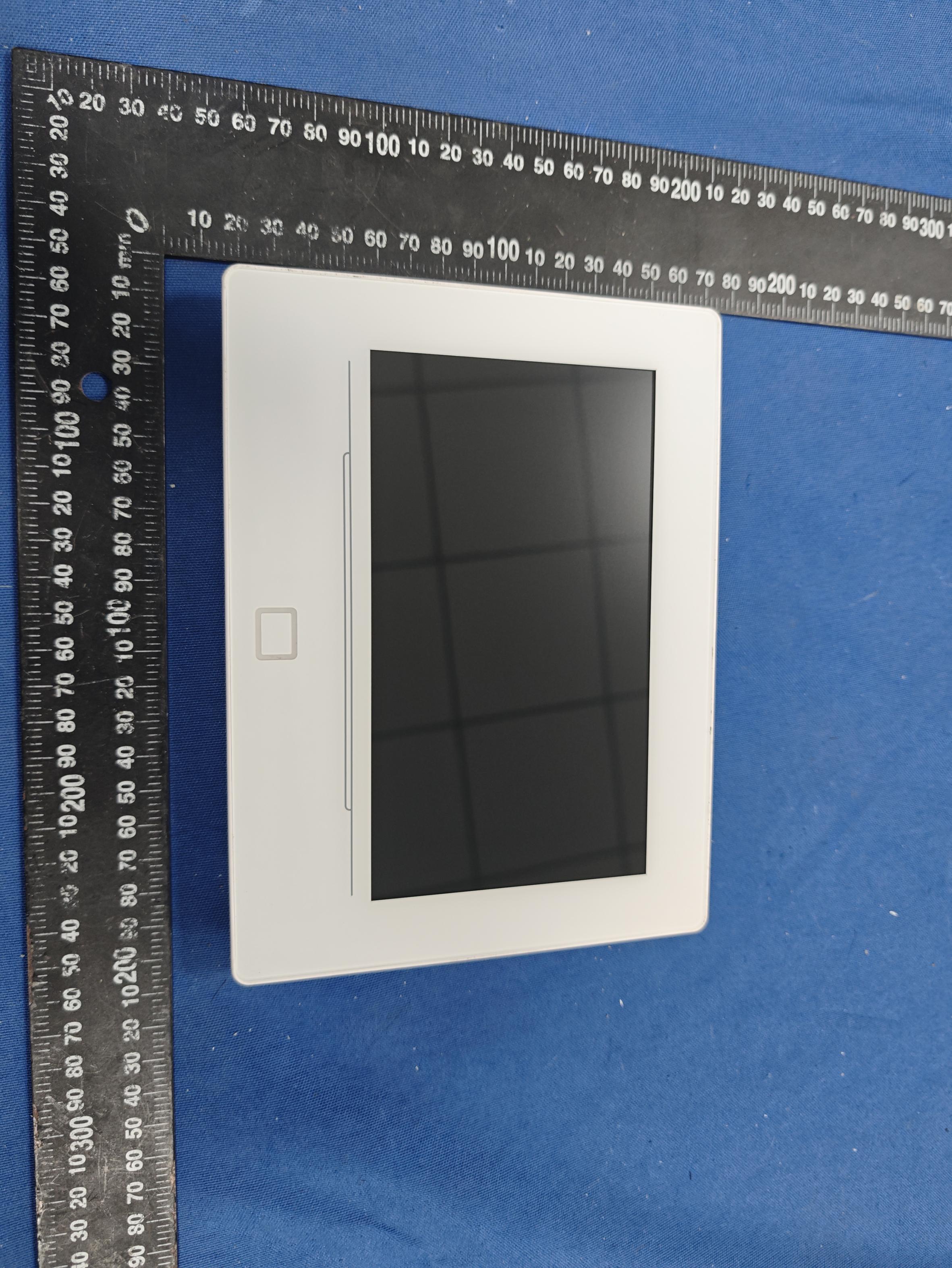

FCCID:2BTZQ-YK-7000 ExternalPhotosoftheEUT Fig.1 Fig.2 FCCID:2BTZQ-YK-7000 Fig.3 Fig.4 FCCID:2BTZQ-YK-7000 Fig.5 Fig.6

FCCID:2BTZQ-YK-7000 labelandlocation Fig.1 FCCID:2BTZQ-YK-7000 AlarmsystemHost Model:YK-7000 Input:DC5V ShenzhenYookingTechnologyCo.,Ltd.

FCCID:2BTZQ-YK-7000 InternalPhotosoftheEUT Fig.1 Fig.2 WIFI2.4G Antenna FCCID:2BTZQ-YK-7000 Fig.3 Fig.4 FCCID:2BTZQ-YK-7000 Fig.5

ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. 101#,BuildingK&BuildingT,TheSecondIndustrialZone,JiazitangCommunity, FenghuangStreet,GuangmingDistrict,Shenzhen,China RFExposureevaluation ReportReferenceNo........................: FCCID.................................................: GRCTR251202013-02 FCCID:2BTZQ-YK-7000 Compiledby (position+printedname+signature) .. : TestingEngineerJimmyWang Supervisedby (position+printedname+signature)..: ProjectEngineerKelleyZhang Approvedby (position+printedname+signature)..: ManagerSamWang Dateofissue.........................................:Dec.30,2025 TestingLaboratoryName................:ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. Address ................................................. : 101#,BuildingK&BuildingT,TheSecondIndustrialZone, JiazitangCommunity,FenghuangStreet,GuangmingDistrict, Shenzhen,China Applicant’sname ............................... :ShenzhenYookingTechnologyCo.,Ltd. Address ................................................. : 15F,YongfuBuilding,State.ownedEnterprisesMansionShangbu SouthRoad,FutianDistrict,shenzhen,Guangdong Testspecification .............................. : Standard................................................: 47CFR§2.1091 KDB447498D01v06 ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerand sourceofthematerial.ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.takesno responsibilityforandwillnotassumeliabilityfordamagesresultingfromthereader'sinterpretationofthe reproducedmaterialduetoitsplacementandcontext. Testitemdescription ........................ :AlarmsystemHost TradeMark............................................: / Manufacturer.........................................: ShenzhenYookingTechnologyCo.,Ltd. Model/Typereference.........................: YK-7000 ListedModels......................................: YK-7100,YK-7200 HardwareVersion ............................... :V1.0 SoftwareVersion .................................. :V1.0 Frequency..............................................From2412-2462MHz Ratings...................................................:DC5VPoweredbyadapteror 3.7V5000mAh(ByLi-ionrechargeablebattery) Result.....................................................:PASS ReportNo.:GRCTR251202013-02Page2of9 TESTREPORT EquipmentunderTest:AlarmsystemHost Model/Type:YK-7000 ListedModels:YK-7100,YK-7200 Applicant : ShenzhenYookingTechnologyCo.,Ltd. Address: 15F,YongfuBuilding,State.ownedEnterprisesMansionShangbu SouthRoad,FutianDistrict,shenzhen,Guangdong Manufacturer : ShenzhenYookingTechnologyCo.,Ltd. Address: 15F,YongfuBuilding,State.ownedEnterprisesMansionShangbu SouthRoad,FutianDistrict,shenzhen,Guangdong TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GRCTR251202013-02Page3of9 Contents 1.SUMMARY...............................................................................................................................................4 1.1.GeneralRemarks.........................................................................................................................................4 1.2.ProductDescription....................................................................................................................................4 1.3.EquipmentUnderTest................................................................................................................................4 1.4.ShortdescriptionoftheEquipmentunderTest(EUT)............................................................................4 1.5.EUTconfiguration........................................................................................................................................4 1.6.Modifications................................................................................................................................................5 2.TESTENVIRONMENT.......................................................................................................................6 2.1.Addressofthetestlaboratory...................................................................................................................6 2.2.TestFacility..................................................................................................................................................6 2.3.Environmentalconditions...........................................................................................................................6 2.4.Statementofthemeasurementuncertainty.............................................................................................6 3.METHODOFMEASUREMENT.....................................................................................................8 3.1.ApplicableStandard....................................................................................................................................8 3.2.Limit...............................................................................................................................................................8 3.3.MPECalculationMethod.............................................................................................................................8 3.4.AntennaInformation....................................................................................................................................9 3.5.ManufacturingTolerance............................................................................................................................9 4.EVALUATIONRESULT....................................................................................................................9 5.CONCLUSION..........................................................................…

Text truncated - open the document above for the full version.

Antennaspec FCCID:2BTZQ-YK-7000 1.AntennaDescription: AntennatypePCBAntenna ModelT1-3S Frequencyrange2400MHz~2500MHz ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd AddressRoom701,Building3,MoreCenter,No.87GuDun Road.Hangzhou,Zhejiang,China 2.AntennaPhoto: Unit:mm 3.AntennaEfficiencyandGain: 4.2DRadiationPattern 5.3DRadiationPattern

ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. 101#,BuildingK&BuildingT,TheSecondIndustrialZone,JiazitangCommunity, FenghuangStreet,GuangmingDistrict,Shenzhen,China FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo. ....................... : FCCID.................................................: GRCTR251202013-01 2BTZQ-YK-7000 Compiledby (position+printedname+signature)..: TestingEngineerJimmyWang Supervisedby (position+printedname+signature) .. : ProjectEngineerKelleyZhang Approvedby (position+printedname+signature)..: ManagerSamWang Dateofissue ......................................... :Dec.30,2025 TestingLaboratoryName ................ :ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. Address.................................................: 101#,BuildingK&BuildingT,TheSecondIndustrialZone,Jiazitang Community,FenghuangStreet,GuangmingDistrict,Shenzhen,China Applicant’sname...............................:ShenzhenYookingTechnologyCo.,Ltd. Address ................................................. : 15F,YongfuBuilding,State.ownedEnterprisesMansionShangbu SouthRoad,FutianDistrict,shenzhen,Guangdong Testspecification..............................: Standard................................................:FCCPart15.247 ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen GUORENCertificationTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwill notassumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription........................:AlarmsystemHost TradeMark............................................: / Manufacturer.........................................: ShenzhenYookingTechnologyCo.,Ltd. Model/Typereference ......................... : YK-7000 ListedModels ...................................... : YK-7100,YK-7200 FirmwareVersion.................................:V1.0 HardwareVersion................................:V1.0 ModulationType..................................:DSSS/OFDM OperationFrequency..........................:From2412-2462MHz Rating.....................................................: DC5VPoweredbyadapteror 3.7V5000mAh(ByLi-ionrechargeablebattery) Result.....................................................:PASS ReportNo.:GRCTR251202013-01Page 2 of 40 TESTREPORT EquipmentunderTest:AlarmsystemHost Model/Type:YK-7000 ListedModels:YK-7100,YK-7200 Applicant : ShenzhenYookingTechnologyCo.,Ltd. Address: 15F,YongfuBuilding,State.ownedEnterprisesMansionShangbu SouthRoad,FutianDistrict,shenzhen,Guangdong Manufacturer : ShenzhenYookingTechnologyCo.,Ltd. Address: 15F,YongfuBuilding,State.ownedEnterprisesMansionShangbu SouthRoad,FutianDistrict,shenzhen,Guangdong TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GRCTR251202013-01Page 3 of 40 Contents 1TESTSTANDARDS..............................................................................................................................4 2SUMMARY.................................................................................................................................................5 2.1GeneralRemarks..........................................................................................................................................5 2.2ProductDescription.....................................................................................................................................5 2.3ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................5 2.4EquipmentUnderTest.................................................................................................................................5 2.5EUTconfiguration.........................................................................................................................................6 2.6EUToperationmode.....................................................................................................................................6 2.7BlockDiagramofTestSetup.......................................................................................................................6 2.8RelatedSubmittal(s)/Grant(s)...................................................................................................................6 2.9Modifications.................................................................................................................................................6 3TESTENVIRONMENT........................................................................................................................7 3.1Addressofthetestlaboratory....................................................................................................................7 3.2TestFacility...................................................................................................................................................7 3.3Environmentalconditions............................................................................................................................7 3.4TestDescription............................................................................................................................................7 3.5Statementofthemeasurementuncertainty..............................................................................................8 3.6EquipmentsUsedduringtheTest..............................................................................................................8 4TESTCONDITIONSANDRESULTS.......................................................................................10 4.1ACPowerConductedEmission........................................…

Text truncated - open the document above for the full version.

ReportNo.:GRCTR251202013-01Page 32 of 40 Band-edgeMeasurementsforRFConductedEmissions: 802.11b LeftbandedgeRightbandedge 802.11g LeftbandedgeRightbandedge ReportNo.:GRCTR251202013-01Page 33 of 40 802.11n(HT20) LeftbandedgeRightbandedge ReportNo.:GRCTR251202013-01Page 34 of 40 4.7AntennaRequirement StandardApplicable Forintentionaldevice,accordingtoFCC47CFRSection15.203: Anintentionalradiatorshallbedesignedtoensurethatnoantennaotherthanthatfurnishedbythe responsiblepartyshallbeusedwiththedevice.Theuseofapermanentlyattachedantennaorofanantenna thatusesauniquecouplingtotheintentionalradiator,themanufacturermaydesigntheunitsothatabroken antennacanbereplacedbytheuser,buttheuseofastandardantennajackorelectricalconnectoris prohibited. FCCCFRTitle47Part15SubpartCSection15.247(c)(1)(I): (i)Systemsoperatinginthe2400-2483.5MHzbandthatisusedexclusivelyforfixed.Point-to-pointoperations mayemploytransmittingantennaswithdirectionalgaingreaterthan6dBiprovidedthemaximumconducted outputpoweroftheintentionalradiatorisreducedby1dBforevery3dBthatthedirectionalgainofthe antennaexceeds6dBi. TestResult: Themaximumgainofantennawas1.68dBi. Remark:Theantennagainisprovidedbythecustomer,ifthedataprovidedbythecustomerisnotaccurate, ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.doesnotassumeanyresponsibility. ReportNo.:GRCTR251202013-01Page 35 of 40 5TestSetupPhotosoftheEUT ReportNo.:GRCTR251202013-01Page 36 of 40 ReportNo.:GRCTR251202013-01Page 37 of 40 6PhotosoftheEUT ReportNo.:GRCTR251202013-01Page 38 of 40 ReportNo.:GRCTR251202013-01Page 39 of 40 WIFI2.4G Antenna ReportNo.:GRCTR251202013-01Page 40 of 40 **********************EndofReport**********************

FCCID:2BTZQ-YK-7000 TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 FCCID:2BTZQ-YK-7000 TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3 TestSetupPhoto(s)ofRFMeasurement Fig.4
