2BU2F-PAOTSCAN01POATScan

PAOTScan OxidativeStressDiagnosis https://www.paotscan.io/fr/[email protected]+33383534630 forabetterlife INSTRUCTIONSMANUAL OxidativeStressDiagnosis DEVICESPECIFICATIONS 1.Turn on/turnoff: On: Press3secs Off:Press0.5secs 2.Powerindicators: lessthan15 Steadyred Batterylow, batterylife minutes Flashingorange Batterycharging Steadygreen Batterycharged Powerindicator: Batterybarin%. Wificonnectionindicator: Pressfor3seconds Bluetoothconnection indicator: Pressformorethan3seconds Charging Devicenot connectedtowifi 5.WifiandBluetoothconnection mode Modescanonlybechangedwhenthe PAOTScanisOFF. Press4secfor wifimode Presslongerthan4secfor bluetoothmode 3.Charging Chargingtime:4h Useasuitablecharger Powersupplyspecifications:5VDC (+/-10%)-1A.Donotapplyavoltage higherthan13VDC,asthismaydestroy thesensor. 4.Indicatorlights Liquidmeasuringbottle On/Offbutton USB-Calimentation OxidativeStressDiagnosis Optimumoperatingconditions CheckPAOTSCANchargelevel Downloadacompatibleapplication ofCheckavailability communications Wifienabled available Bluetoothenabled Mobilenetwork Geolocationenabled Ensuresufficient proximity betweensensorandcellphone Operatingtime:15h (non- Operatingtemperature:5-40°C Operatinghumidity:0-98% condensing) Communicationfrequency:2.4GHz TECHNICALSPECIFICATIONS Parametersmeasured Oxidativestressby: PAOTScore(TotalAntioxidantPower) POTScore(TotalOxidizingPower) Accuracy PAOTmeasurementrange:0-130 POTmeasurementrange:0-20 Measurementerror:<10%. Dimensions 10cmx 9cmx 4cm Weight:150g OxidativeStressDiagnosis WARNINGS DonotuseifT°>45°CDonot exposetosunlight Donotusenearsourcesofheator flammablematerials Donotuseinheavyrain Donotimmerseinliquids Donotknockordamageyour device Donotdisassembletheproduct Donotinsertforeignobjectsinto theopenings Donotleavewithinthereachofchildren declaresthatthisdeviceconformsto itsspecifications. Failuretocomplywiththeconditionsof usemaycompromisethesafetyofthe product. Weacceptnoresponsibilityforanydamage resultingfromfailuretocomplywiththese warningsand instructions. OXYSTRESSTECHNOLOGIES Cleanthedeviceusingaslightlydamp wipe.Between eachsample,rinsethechamberwith2mLofdistilled water.Do not use anysolvent otherthanwater. OxidativeStressDiagnosis Normal environmentalconditions •Indoor use only •Altitude up to 3000 m •Temperaturebetween5 and 40°C •Relative humiditybetween30% and 70% •Main supplyvoltage fluctuation <5% •Pollution degree2 compliant Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the OxidativeStressDiagnosis equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on OxidativeStressDiagnosis 68% Connectto Wi-Fi Paotscan F4:12:FA:67:CC:C6 Code:tzdj7xcb thenenteryour Wi-Ficredentials ScantheQRcodeonthedevice ConnecttothePAOTSCANnetwork Enterthecodedisplayedonthedeviceinthe “password”field Youare connected! FIRSTWIFICONNECTION OxidativeStressDiagnosis WIFINETWORKCONNECTION ScantheQRcodeon thedevicescreen ChooseyourWi-Finetworkandconnect Pressandholdthe“on”buttonfor3seconds OxidativeStressDiagnosis LIQUIDMANUAL Pressthe onbuttonfor 3secondsto switchonthedevice Logontohttps://mypaotscan.combyscanning theQRcodeonthe device'sscreen Connectthedevicebyselecting“Connect” then“launch”. Enterthenameofthesamplebeingtested Selectparameter[parametername]and method[methodname]. Enterthecharacteristicsofthesample OxidativeStressDiagnosis Clickon“next” Addtheappropriatereactionmedium(Food;loxy,..) thenruntheanalysis Add50ulofyoursample Clickon“check channelsvalues”thenselect thecorrespondingchannel Attheendoftheanalysis,clickon “save”.“sendit”and “end”. Yourresults canthenbeviewedon thefollowinglogo: https://www.paotscan.io/fr/ [email protected] +33383534630 OxidativeStressDiagnosis Formoreinfo…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZSAR-TRF-01-A04 Rev. A/0 Aug 16,2024 Report No.: SZCR251200552601 Page: 1 of 3 Appendix B Detailed Test Results 1. WIFI WIFI 2.4G 2. BT BT Date: 2026/1/8 Test Laboratory: SGS-SAR Lab POATScan WIFI 2.4G 802.11b 6CH Top side 0mm DUT: POATScan; Communication System: UID 0, WI-FI(2.4GHz) (0); Frequency: 2437 MHz;Duty Cycle: 1:1.001 Medium: HSL;Medium parameters used: f = 2437 MHz; σ = 1.827 S/m; ε r = 38.82; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3836; ConvF(7.24, 7.24, 7.24); Calibrated: 2025/12/19 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn760; Calibrated: 2025/8/29 Phantom: SAM5; Type: SAM Twin; Serial: 1673 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Scan/Area Scan (11x12x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.155 W/kg Configuration/Scan/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.885 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.230 W/kg SAR(1 g) = 0.106 W/kg; SAR(10 g) = 0.048 W/kg Smallest distance from peaks to all points 3 dB below = 5.4 mm Ratio of SAR at M2 to SAR at M1 = 43.5% Maximum value of SAR (measured) = 0.152 W/kg 0 dB = 0.155 W/kg = -8.09 dBW/kg Date: 2026/1/8 Test Laboratory: SGS-SAR Lab POATScan B LE 1M 39C H Top s ide 0m m DUT: POATScan; Communication System: UID 0, BLE (0); Frequency: 2480 MHz;Duty Cycle: 1:1 Medium: HSL;Medium parameters used: f = 2480 MHz; σ = 1.856 S/m; ε r = 38.726; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3836; ConvF(7.24, 7.24, 7.24); Calibrated: 2025/12/19 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn760; Calibrated: 2025/8/29 Phantom: SAM5; Type: SAM Twin; Serial: 1673 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Scan/Area Scan (11x12x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0746 W/kg Configuration/Scan/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.907 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.137 W/kg SAR(1 g) = 0.049 W/kg; SAR(10 g) = 0.020 W/kg Smallest distance from peaks to all points 3 dB below = 6.2 mm Ratio of SAR at M2 to SAR at M1 = 44.5% Maximum value of SAR (measured) = 0.0887 W/kg 0 dB = 0.0746 W/kg = -11.27 dBW/kg - End of the Appendix -

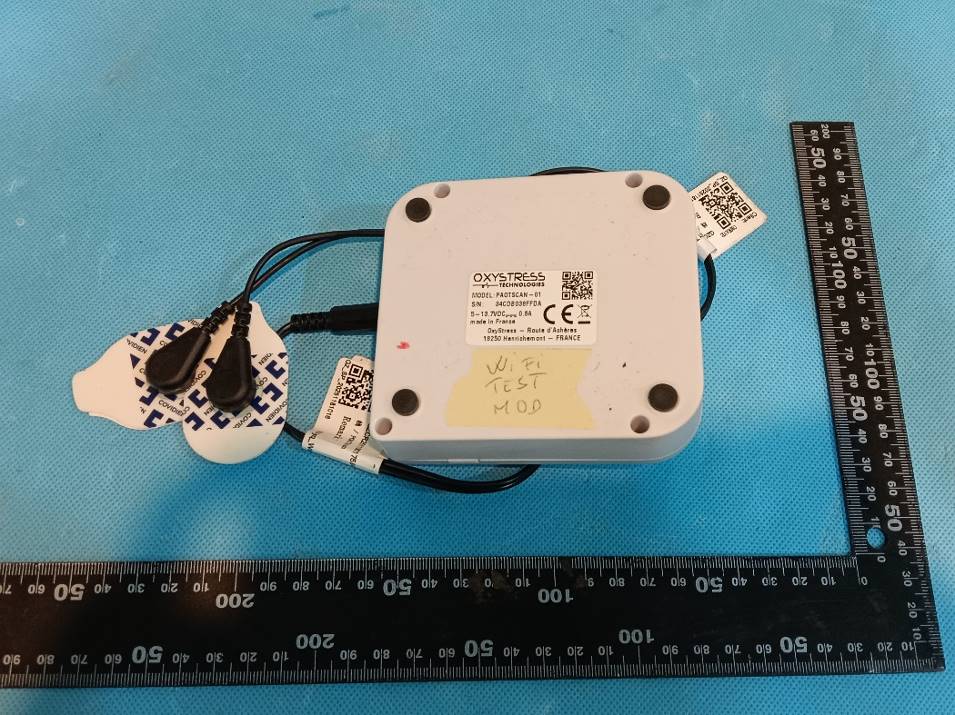

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 1 of 5 Appendix Test Setup Photo for GZCR251100175802 & 03 Test Model No.: PAOTSCAN-01 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 2 of 5 Test Setup Photo Conducted Emissions at AC Power Line (150kHz-30MHz) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 3 of 5 Radiated Emissions which fall in the restricted bands & Radiated Spurious Emissions Above 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 4 of 5 Radiated Spurious Emissions Below 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 5 of 5 - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175803 Page: 1 of 63 FCC ID: 2BU2F-PAOTSCAN01 TEST REPORT Application No.: GZCR2511001758AT Applicant: TERA Sensor Address of Applicant: 1200 av Olivier PERROY, ROUSSET, 13790, France Manufacturer: OMWAVE Address of Manufacturer: 18 Chemin de la Violette - 31240 L'Union – FRANCE Factory: OMWAVE Address of Factory: 18 Chemin de la Violette - 31240 L'Union – FRANCE Product Name: POATScan Model No.: PAOTSCAN-0 Trade Mark: Oxystress Technologie Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2025-11-11 Date of Test: 2025-11-21 to 2025-11-28 Date of Issue: 2025-12-03 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175803 Page: 2 of 63 Revision Record Version Report No. Date Remark 01 GZCR251100175803 2025-12-03 Original Authorized for issue by: Luke Lin/Project Engineer Approved By Vico Cui/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175803 Page: 3 of 63 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2020) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2020) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2020) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2020) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Conducted Peak Output Power ANSI C63.10 (2020) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2020) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2020) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2020) Section 6.10.4 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2020) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175803 Page: 4 of 63 3 Contents Page 1 Cover Page ................................................................................................................................................. 1 2 Test Summary ............................................................................................................................................ 3 3 Contents ..................................................................................................................................................... 4 4 General Information ................................................................................................................................... 6 4.1 Details of E.U.T. .................................................................................................................................. 6 4.2 Description of Support Units ............................................................................................................... 6 4.3 Measurement Uncertainty ................................................................................................................... 7 4.4 Test Location ....................................................................................................................................... 7 4.5 Test Facility ......................................................................................................................................... 8 4.6 Deviation from Standards .................................................................................................................... 8 4.7 Abnormalities from Standard Conditions ............................................................................................ 8 5 Equipment List ........................................................................................................................................... 9 6 Radio Spectrum Technical Requirement .............................................................................................. 12 6.1 Antenna Requirement ....................................................................................................................... 12 6.1.1 Test Requirement: ........................................................................................................................ 12 6.1.2 Conclusion .................................................................................................................................... 12 7 Radio Spectrum Matter Test Results ..................................................................................................... 13 7.1 Conducted Emissions at AC Power Line (150kHz-30MHz) .............................................................. 13 7.1.1 E.U.T. Operation ........................................................................................................................... 13 7.1.2 Test Mode Description .................................................................................................................. 13 7.1.3 Test Setup Diagram ...................................................................................................................... 14 7.1.4 Measure…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 86 of 95 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 87 of 95 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 88 of 95 5.2.2 CSE and Band edge 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 89 of 95 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 90 of 95 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 91 of 95 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 92 of 95 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 93 of 95 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 94 of 95 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 95 of 95 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV - End of the Report -

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 1 of 95 FCC ID: 2BU2F-PAOTSCAN01 TEST REPORT Application No.: GZCR2511001758AT Applicant: TERA Sensor Address of Applicant: 1200 av Olivier PERROY, ROUSSET, 13790, France Manufacturer: OMWAVE Address of Manufacturer: 18 Chemin de la Violette - 31240 L'Union – FRANCE Factory: OMWAVE Address of Factory: 18 Chemin de la Violette - 31240 L'Union – FRANCE Product Name: POATScan Model No.: PAOTSCAN-0 Trade Mark: Oxystress Technologie Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2025-11-11 Date of Test: 2025-11-21 to 2025-11-28 Date of Issue: 2025-12-03 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 2 of 95 Revision Record Version Report No. Date Remark 01 GZCR251100175802 2025-12-03 Original Authorized for issue by: Luke Lin/Project Engineer Approved By Vico Cui/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 3 of 95 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2020) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2020) Section 11.12 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2020) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2020) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Conducted Peak Output Power ANSI C63.10 (2020) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2020) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2020) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2020) Section 6.10.4 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2020) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.1 Report No.: GZCR251100175802 Page: 4 of 95 3 Contents Page 1 Cover Page ................................................................................................................................................. 1 2 Test Summary ............................................................................................................................................ 3 3 Contents ..................................................................................................................................................... 4 4 General Information ................................................................................................................................... 6 4.1 Details of E.U.T. .................................................................................................................................. 6 4.2 Description of Support Units ............................................................................................................... 6 4.3 Measurement Uncertainty ................................................................................................................... 7 4.4 Test Location ....................................................................................................................................... 7 4.5 Test Facility ......................................................................................................................................... 8 4.6 Deviation from Standards .................................................................................................................... 8 4.7 Abnormalities from Standard Conditions ............................................................................................ 8 5 Equipment List ........................................................................................................................................... 9 6 Radio Spectrum Technical Requirement .............................................................................................. 12 6.1 Antenna Requirement ....................................................................................................................... 12 6.1.1 Test Requirement: ........................................................................................................................ 12 6.1.2 Conclusion .................................................................................................................................... 12 7 Radio Spectrum Matter Test Results ..................................................................................................... 13 7.1 Conducted Emissions at AC Power Line (150kHz-30MHz) .............................................................. 13 7.1.1 E.U.T. Operation ........................................................................................................................... 13 7.1.2 Test Mode Description .................................................................................................................. 13 7.1.3 Test Setup Diagram ...................................................................................................................... 14 7.1.4 Measurem…

Text truncated - open the document above for the full version.

Paotscan - Antenna specification ModelIntegrated antenna Reference A15257-2G4 Wave Pattern2,4 GHz (see chart) Antenna gain4,3 dBi Name and address of ManufacturerSafe PCB Antenna size15 * 11,5 *1,6 mm OMWAVE 18 chemin de la Violette - Bat C1 - 31240 L'Union France Test Report OTA Test Results for Frequency 2400.000 MHz OTA Evaluation Results: Total Radiated Power-1.70 dBm Peak EIRP4.33 dBm Directivity6.03 dBi Efficiency-1.70 dB Efficiency67.59 % Gain4.33 dBi NHPRP 45°-3.56 dBm NHPRP 45° / TRP-1.85 dB NHPRP 45° / TRP65.24 % NHPRP 30°-5.29 dBm NHPRP 30° / TRP-3.59 dB NHPRP 30° / TRP43.77 % NHPRP 22.5°-6.55 dBm NHPRP 22.5° / TRP-4.85 dB NHPRP 22.5° / TRP32.71 % UHRP-3.24 dBm UHRP / TRP-1.54 dB UHRP / TRP70.18 % LHRP-6.96 dBm LHRP / TRP-5.26 dB LHRP / TRP29.82 % Front/Back Ratio9.89 PhiBW171.4 deg PhiBW Up129.7 deg PhiBW Down41.7 deg ThetaBW80.0 deg ThetaBW Up39.9 deg ThetaBW Down40.1 deg Boresight Phi45 deg Boresight Theta45 deg Maximum Power4.33 dBm Minimum Power-11.30 dBm Average Power-1.41 dBm Max/Min Ratio15.63 dB Max/Avg Ratio5.74 dB Min/Avg Ratio-9.89 dB Best Single Value3.68 dBm Best PositionPhi = 30 deg; Theta = 60 deg; Pol = Ver board 15 - 2400-2480 MHz1 / 12 07-07-201020:01:24 Antenna KitTexas InstrumentsDN611 Richard WallaceRev: A RP_2400.000_tot Azimuth (deg) Elevation 0 deg (dB) Elevation 15 deg (dB) Elevation 30 deg (dB) Elevation 45 deg (dB) Elevation 60 deg (dB) Elevation 75 deg (dB) Elevation 90 deg (dB) Elevation 105 deg (dB) Elevation 120 deg (dB) Elevation 135 deg (dB) Elevation 150 deg (dB) Elevation 165 deg (dB) Elevation 180 deg (dB) 0.000.130.261.320.961.591.571.731.170.33-1.68-4.21-9.33-5.84 15.000.431.112.422.643.362.942.861.67-0.17-2.17-4.56-9.45-5.35 30.000.671.973.223.983.833.262.180.71-1.52-3.14-4.71-9.77-5.14 45.000.662.703.764.333.472.590.67-1.20-2.42-3.43-4.16-9.68-5.47 60.000.763.173.833.982.311.08-1.62-3.13-3.08-3.70-3.90-9.03-5.43 75.000.873.283.753.020.55-1.47-4.65-4.98-4.34-3.97-3.35-7.83-5.39 90.000.883.173.642.20-0.63-3.66-6.12-6.83-5.86-4.32-3.20-6.94-5.14 105.000.852.803.791.73-0.52-4.50-7.87-8.69-7.50-5.42-3.27-6.01-4.56 120.000.782.423.972.050.13-4.88-8.61-7.31-7.60-7.25-3.52-5.40-4.03 135.001.022.354.042.540.95-4.46-8.26-6.25-7.57-8.44-4.76-4.96-3.79 150.001.412.443.662.951.29-3.41-7.24-6.49-6.94-7.98-6.76-4.94-3.79 165.001.612.422.832.440.28-3.07-6.43-6.46-5.10-8.61-9.15-5.42-3.76 180.001.681.931.510.71-1.78-5.03-7.76-6.75-4.36-8.83-11.30-6.04-3.87 195.001.631.12-0.26-2.43-4.28-7.10-6.65-7.14-5.39-7.02-11.13-6.83-4.49 210.001.350.03-2.08-4.69-4.97-4.66-3.28-3.82-4.33-5.39-8.33-7.02-4.99 225.001.15-0.89-3.23-4.14-3.73-2.97-2.37-2.28-3.49-5.57-6.00-6.91-5.00 240.000.90-1.44-3.34-3.63-3.00-2.31-2.63-2.71-5.00-6.83-4.99-6.37-4.99 255.000.83-1.63-3.56-4.26-3.63-2.75-3.37-3.53-7.50-7.32-4.36-6.30-5.17 270.000.79-1.78-3.72-5.54-4.84-3.87-4.64-4.85-8.30-6.19-3.95-6.91-5.93 285.000.43-2.22-3.75-6.52-5.24-4.34-4.79-5.46-7.19-5.00-3.37-7.91-6.42 300.00-0.02-2.65-3.61-7.01-5.70-4.01-4.57-4.88-5.86-4.45-2.87-9.01-7.11 315.00-0.34-2.74-3.14-7.02-5.95-4.10-4.75-5.05-4.73-4.30-2.92-10.03-7.23 330.00-0.44-2.33-1.90-5.66-5.01-4.58-4.37-5.00-3.02-3.89-3.01-10.41-6.92 345.00-0.31-1.25-0.33-2.81-1.78-2.30-1.25-2.33-0.72-2.42-3.27-9.84-6.14 360.000.02-0.140.890.030.640.801.000.550.14-1.40-3.55-9.29-5.84 RP_2400.000_hor Azimuth (deg) Elevation 0 deg (dB) Elevation 15 deg (dB) Elevation 30 deg (dB) Elevation 45 deg (dB) Elevation 60 deg (dB) Elevation 75 deg (dB) Elevation 90 deg (dB) Elevation 105 deg (dB) Elevation 120 deg (dB) Elevation 135 deg (dB) Elevation 150 deg (dB) Elevation 165 deg (dB) Elevation 180 deg (dB) 0.0-6.33-7.74-10.01-17.39-18.10-12.82-9.34-6.18-5.64-8.61-8.98-13.83-6.86 15.0-5.78-6.23-9.06-12.35-17.09-12.83-7.88-5.80-6.66-10.18-9.26-13.84-6.78 30.0-4.69-3.80-5.26-6.10-10.78-11.94-7.96-7.04-8.80-11.53-9.31-14.00-7.77 45.0-3.46-1.25-1.80-3.20-7.19-10.61-8.36-9.51-9.78-11.37-8.30-15.22-9.66 60.0-2.210.570.21-1.61-5.46-9.41-9.18-10.61-9.62-10.50-8.47-16.15-12.00 75.0-1.111.801.74-0.32-4.00-8.00-9.66-11.07-10.43-10.20-8.62-14.68-13.20 90.0-0.572.322.490.52-2.98-7.67-9.57-12.99-12.19-9.33-7.65-11.89-11.17 105.0-0.532.072.700.51-2.91-8.19-10.31-14.14-14.25-8.94-5.78-9.02-8.44 120.0-1.021.092.08-0.32-3.68-8.79-10.97-12.85-20.34-10.80-5.13-7.40-6.43 135.0-1.59-0.390.77-2.24-4.65-9.04-11.26-10.13-13.53-12.70-5.91-6.01-5.36 150.0-2.20-1.77-1.06-3.61-5.27-8.23-10.73-8.19-8.15-9.55-7.53-5.52-4.77 165.0-3.32-2.83-2.62-3.55-4.91-7.28-9.86-8.17-6.67-9.03-9.63-5.70-4.39 180.0-4.21-3.39-3.66-3.68-4.54-7.18-8.83-9.72-7.87-11.40-12.25-6.32-4.65 195.0-4.82-4.21-4.78-5.47-5.71-8.46-9.40-11.36-11.19-13.20-12.00-7.42-5.95 210.0-4.88-5.40-6.86-8.32-9.07-10.73-10.93-11.28-14.42-13.44-10.37-8.41-7.78 225.0-4.11-6.92-8.89-9.65-9.16-10.21-11.14-11.44-16.60-19.66-10.22-8.89-9.86 240.0-3.21-7.39-9.95-9.51-7.72-9.07-9.77-13.16-16.57-18.74-11.10-8.71-11.58 255.0-2.21-6.93-11.26-10.37-8.05-8.43-9.17-14.60-15.85-17.66-11.90-8.86-14.19 270.0-1.49-6.03-11.76-11.22-8.74-8.25-8.92-12.32-16.63-19.56-10.47-9.28-16.22 285.0-1.43-5.44-10.88-11.81-9.88-8.61-8.62-9.74-15.49-13.62-8.12-9.75-13.92 300.0-2.02-5.36-9.07-12.42-11.65-9.79-8.54-8.56-11.52-9.35-6.83-10.39-11.83 315.0-3.07-5.74-7.96-12.49-14.33-10.84-8.45-8.14-7.82-7.41-6.44-11.33-9.98 330.0-4.38-6.35-7.45-12.13-15.36-12.22-8.84-7.92-6.02-7.26-6.62-12.39-8.49 345.0-5.72-7.27-8.13-12.93-15.37-12.41-9.03-7.55-5.23-7.78-7.31-13.06-7.18 360.0-6.22-7.77-10.03-15.51-16.55-12.39-9.11-6.65-5.50-8.31-8.25-13.40-6.75 RP_2400.000_ver Azimuth (deg) Elevation 0 deg (dB) Elevation 15 deg (dB) Elevation 30 deg (dB) Elevation 45 deg (dB) Elevation 60 deg (dB) Elevation 75 deg (dB) Elevation 90 deg (dB) Elevation 105 deg (dB) Elevation 120 deg (dB) Elevation 135 deg (dB) Elevation 150 deg (dB) Elevation 165 deg (dB) Elevation 180 deg (dB) 0.0-0.98-0.490.990.891.541.411.370.29-0.93-2.66-5.96-11.24-12.66 15.0-0.750.222.102.503.322.832.480.81-1.27-2.91-6.36-11.41-10.85 30.0-0.820.642.563.533.683.121.74-0.09-2.42-3.83-6.55-11.84-8.57 45.0-1.460.452.343.…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZSAR-TRF-01 Rev. A/2 Report No.: SZCR251200552601 Page: 1 of 40 Keny Xu EMC Laboratory Manager SAR TEST REPORT Application No.:SZCR2512005526AT Applicant: TERA Sensor Address of Applicant: 1200 avenue Olivier Perroy Manufacturer: OMWAVE Address of Manufacturer: 18 Chemin de la Violette - 31240 L'Union - FRANCE EUT Description: POATScan Model No.: PAOTSCAN-01 Trade Mark: Oxystress Technologies FCC ID:2BU2F-PAOTSCAN01 Standards:FCC 47CFR §2.1093 Date of Receipt:2026-01-06 Date of Test:2026-01-08 Date of Issue:2026-01-12 Test Result :PASS * *In the configuration tested, the EUT detailed in this report complied with the s…

Text truncated - open the document above for the full version.
