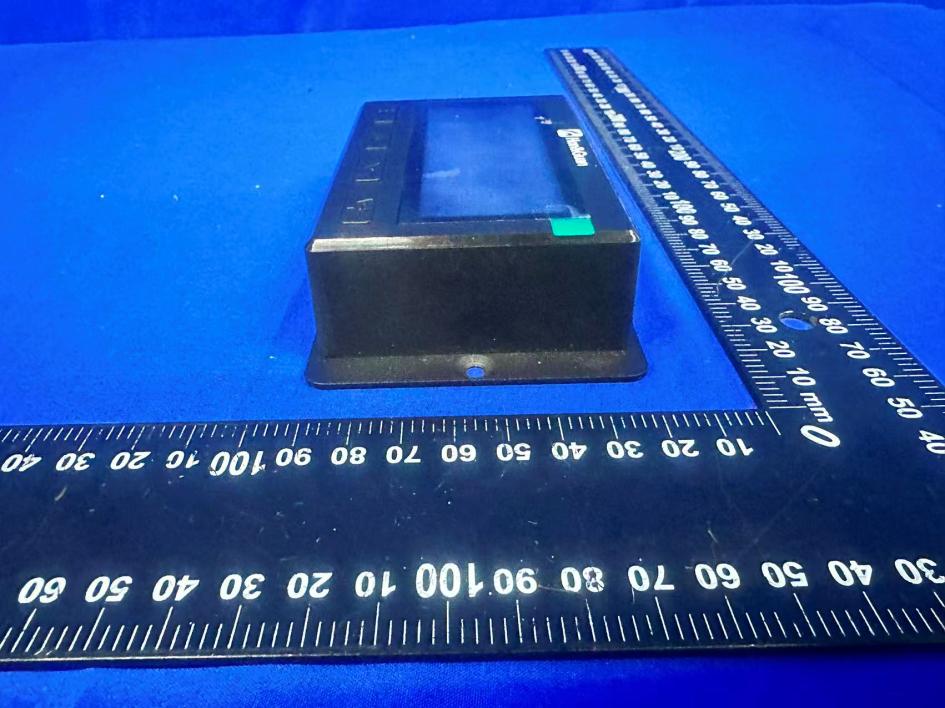

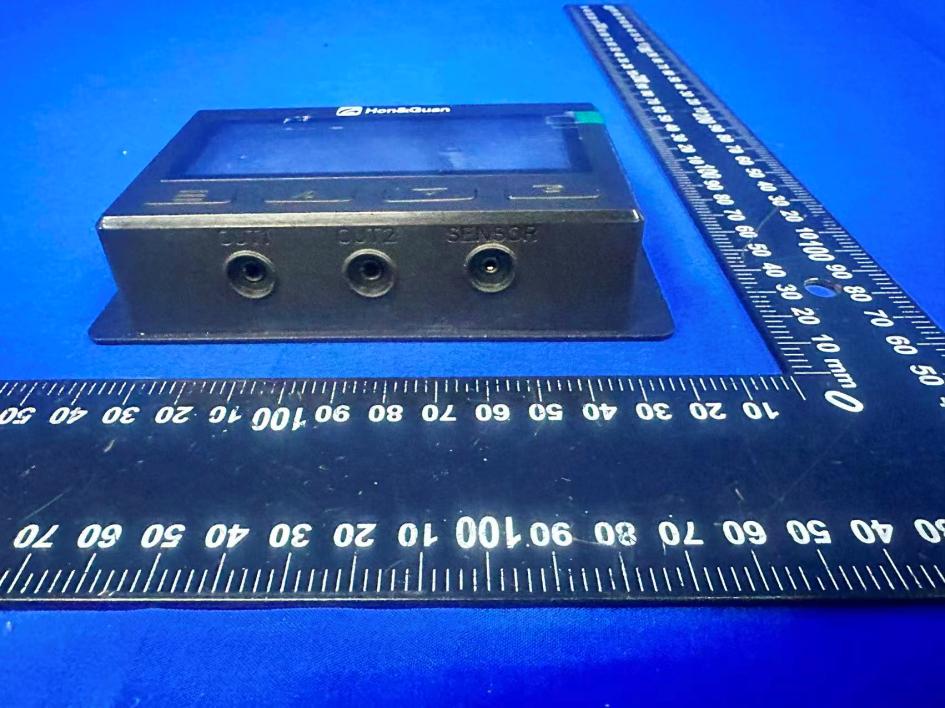

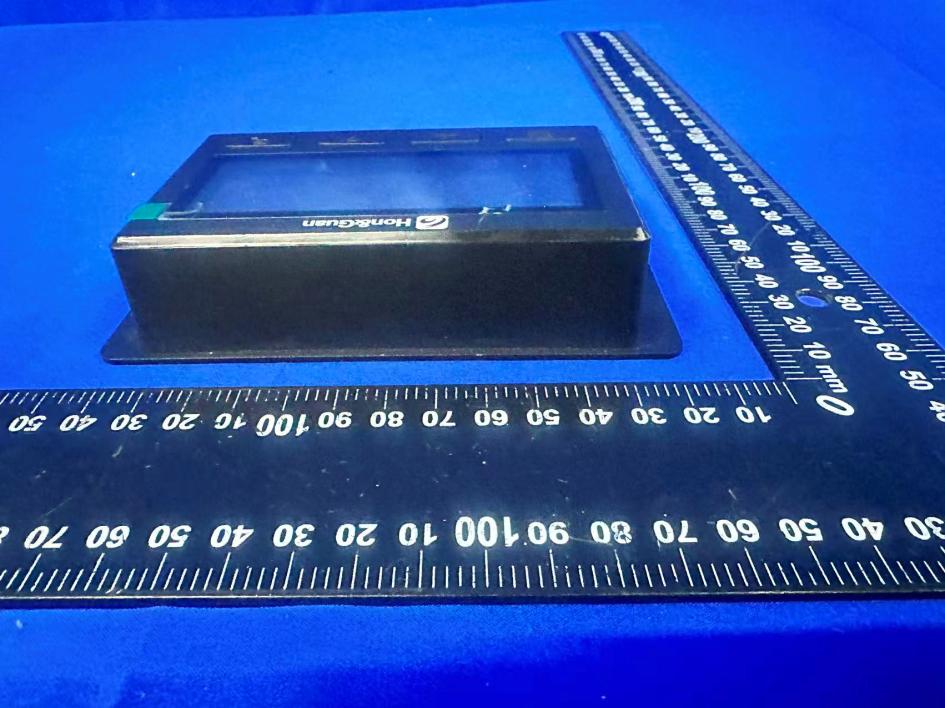

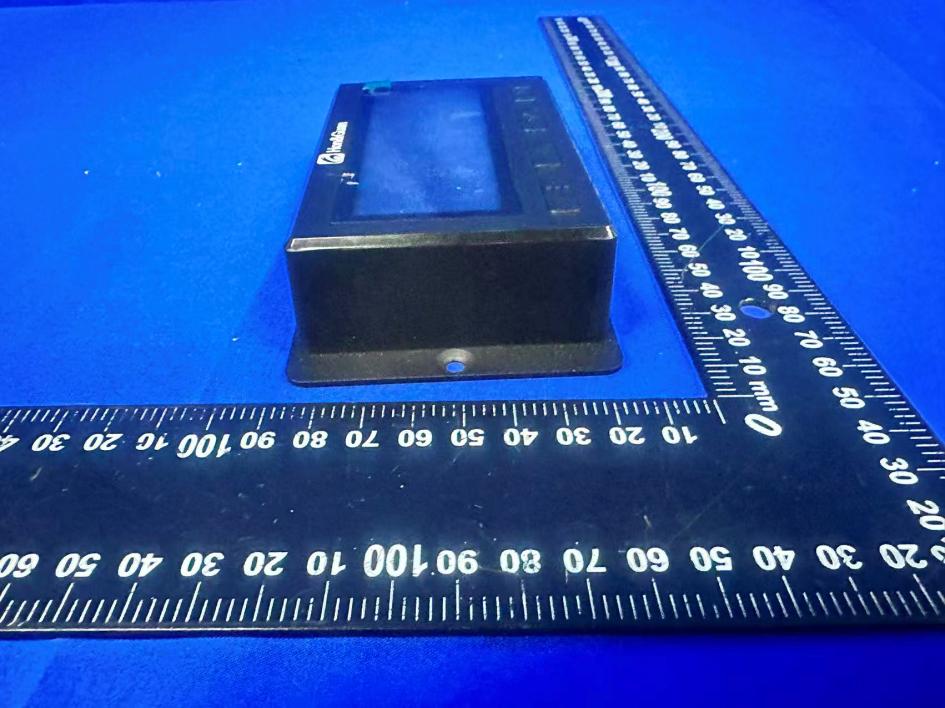

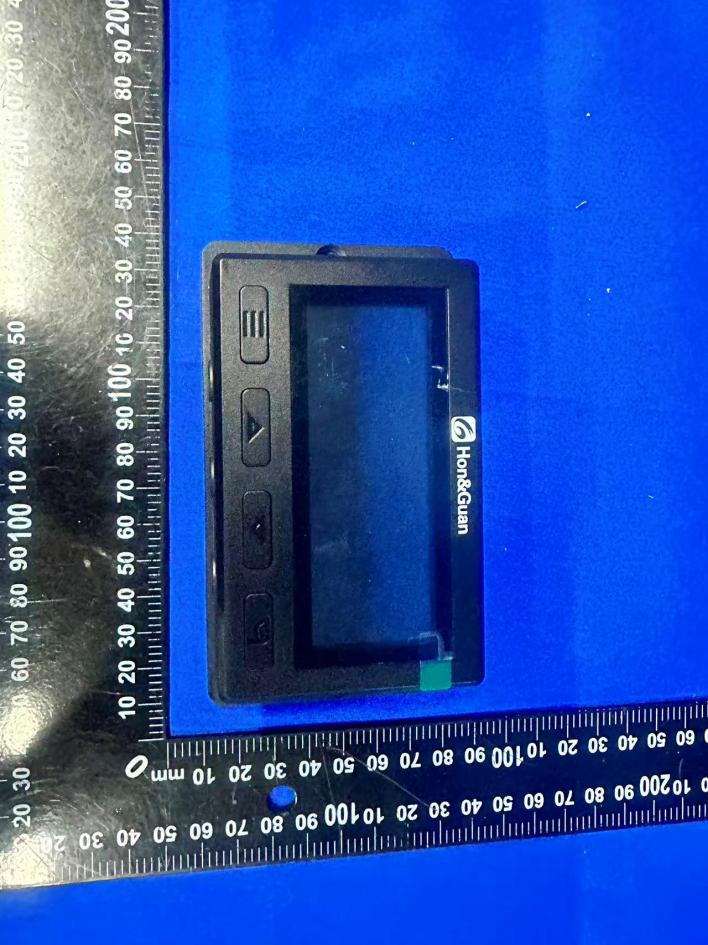

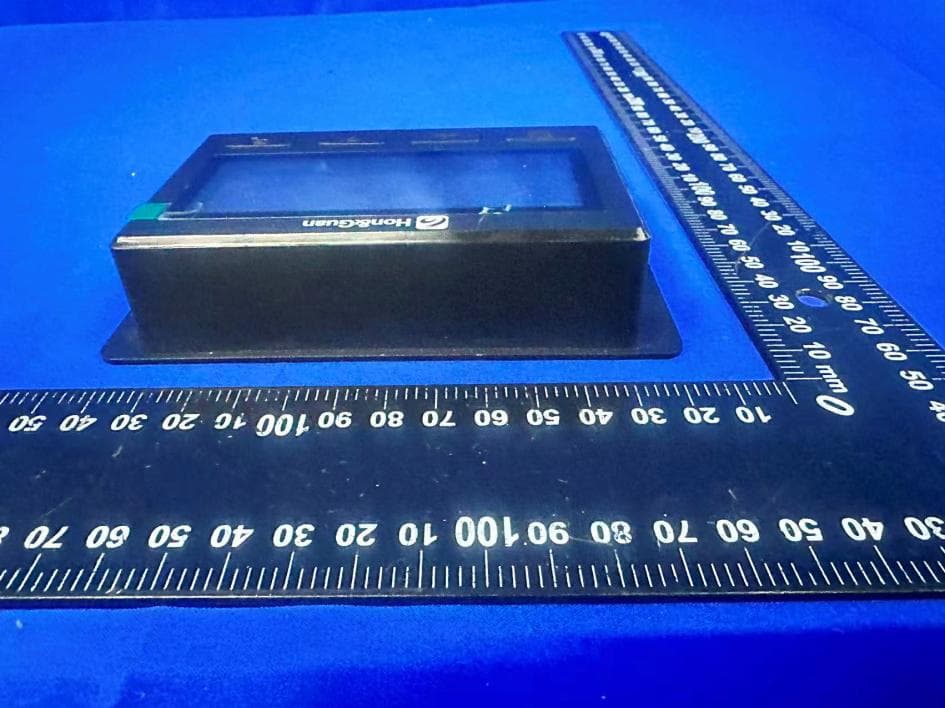

2BU2WH20260306GHF3ESMART CONTROLLER

印刷制作说明 (非印刷页) 技术要求: 1.内容正确，图文清晰，位置准确： 2.成品不准有破损、裂纹污迹等影响美观缺陷； 3.具体页数、尺寸、内容、字体、字号、按设计图纸； 4.A5版面双面黑白印刷，80g以上铜版纸或者双胶纸。 5.装订方式骑马订/折页或者胶装，。 6.打样确认后方可批量印制。 SKUSKU1~SKU12 叶子类目内联管道风机 厂家型号HF-100PE 子SKU1XLGDFSEC4YCPTTHB5001V110XLGDFSTZEC4Y5T0GM001V2 2XLGDFSEC6YCP7J6RQ001V111XLGDFSTZEC6YPZX10001V2 3XLGDFSEC8YCPW5AL9001V112XLGDFSTZEC8YEEW4E001V2 4XLGDFSTZEC4Y5T0GM001V1 5XLGDFSTZEC6YPZX10001V1 6XLGDFSTZEC8YEEW4E001V1 7XLGDFSEC4YCPTTHB5001V2 8XLGDFSEC6YCP7J6RQ001V2 9XLGDFSEC8YCPW5AL9001V2 InlineDuctFan Model:HF-100PE&HF-150PE&HF-200PE -1- VEVORSupportCenter 1 HF-100PE(US)2 HF-150PE(US) 6inch 3 HF-200PE(US)4 HF-100PE(US) SET4inch 5 HF-150PE(US)6 HF-200PE(US) SET8inch 7 HF-100PE(EU)8HF-150PE(EU) 9 HF-200PE(EU)10 HF-100PE(EU) SET 11 HF-150PE(EU) SET 12 HF-200PE(EU) SET -2- Model:HF-100PE&HF-150PE&HF-200PE Productpicturesareforreferenceonly,pleaserefertotherealthing. Thisistheoriginalinstruction,pleasereadallmanualinstructionscarefully beforeoperating.VEVORreservesaclearinterpretationofouruser manual.Theappearanceoftheproductshallbesubjecttotheproductyou received.Pleaseforgiveusthatwewon'tinformyouagainifthereareany technologyorsoftwareupdatesonourproduct. InlineDuctFan -3- Warning-Toreducetheriskofinjury,usermustread instructionsmanualcarefully. ThisdevicecomplieswithPart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions:(1)Thisdevicemay notcauseharmfulinterference,and(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethatmay causeundesiredoperation. ThisproductissubjecttotheprovisionsofEuropeanDirective 2012/19/EC.Thesymbolshowingawheeliebincrossed throughindicatesthattheproductrequiresseparaterefuse collectionintheEuropeanUnion.Thisappliestotheproduct andallaccessoriesmarkedwiththissymbol,Productsmarked assuchmaynotbediscardedwithnormaldomesticwaste.but itmustbetakentoacollectionpointforrecyclingelectricaland electronicdevices. SAFETYPRECAUTIONS WARNING Improperoperationmaycausepersonalinjury. Improperoperationmaycausedamagetothe machine. Improperoperationmaycauseotherstoobject damage. Thesymbolindicatesthattheusershouldpayhigh attentiontoandpayattentiontothedrawingshowsthe situationtobenoted,andtheleftfigureshows"Be carefulofelectricshock" Disconnectthefanwhenmovingfromonelocationto another. Donotuseapowersupplythatdoesnotmeetthe ratedvoltage. -4- Theuseofnon-compliantpowersuppliescancause fireorelectricshock. Ifthemachineemitssmoke,odor,motornoise,and otherabnormalconditions,Pleasedonotuseit.Itmay causefireorelectricshock. Donotdisassemble,repairorrectifythemachine duringuse.Doingsomayresultinfireorelectricshock andpersonalinjury. BECAREFUL DONOTusethefaninawindow.Rainmaycreatean electricalhazard. Donotdamageorarbitrarilychangetheoriginalpower cord,anddonotbend,forciblypull,bindorpressthe powercordunderheavyobjects.Thiswilldamagethe powercord,causingelectricleakagefireorelectric shock Ifthemachineisnotusedforalongtime,please unplugthepowercordfromthesocket Ifthepowercordisdamaged,contactyourlocal servicecenteroraqualifiedelectriciantoinstallan appropriatereplacementcordtopreventanyinjuryor damage Neverinsertfingers,pencils,oranyotherobject throughtheguardwhenthefanisrunning. -5- Whenthepowercordisunpluggedfromthesocket, theplugshouldbeunplugged.Donotpullthepower cordtoforciblypullthewire,whichmaycausedamage tothewireandleadtoleakageorelectricshock. Pleasedisconnectthepowersupplywhencleaning. AnyChangesormodificationsnotexpresslyapproved bythepartyresponsibleforcompliancecouldvoidthe user'sauthoritytooperatetheequipment. Thisequipmenthasbeentestedandfoundtocomply withthelimitsforaClassBdigitaldevice,pursuantto part15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmful interferenceinaresidentialinstallation.This equipmentgeneratesusesandcanradiateradio frequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,there isnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescause harmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentand receiver. -Connecttheequipmentintoanoutletonacircuit differentfromthattowhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TV technicianforhelp. -6- Theantenna(s)usedforthistransmittermustbe installedtoprovideaseparationdistanceofatleast20 cmfromallpersonsandmustnotbecollocatedor operatinginconjunctionwithanyotherantennaor transmitter,End-Usersmustbeprovidedwith transmitteroperationconditionsforsatisfyingRF exposurecompliance. PRODUCTDESCRIPTION TECHNICALPARAMETER BrandVEVOR ModelHF-100PEHF-150PEHF-200PE Voltage AC110V~240 V AC110V~240 V AC110V~240 V Frequency50/60Hz50/60Hz50/60Hz Power25W60W164W PRODUCTSTRUCTUREDIAGRAM -7- INSTALLATION Step1： UnscrewandloosenthemetalringsusingaPhillipsscrewdriverandpliers.See the(Fig.1.) Removethemotorboxfromtheflangebracket.Removethewindcirclebetween themotorboxandtheintakeflange.Seethe(Fig.2.) 3.Usetheflangebrackettosetyourdesiredfanposition.Markthefourmounting holes.Seethe(Fig.3.) 4.Drillfourholesintothemarkedlocations.Makesureyourmountingareais structurallysoundandfreefromobstruction.Seethe(Fig.4.) Fig.1.Fig.3. Fig.2.Fig.4. Step2: Ifyouaremountingontoanythingotherthanwoodsupportor -8- stud,inserttheincludedfourwallanchorsintothedrilledmountingholes.Youmay needtouseahammertosecurethemthroughtheholes.Seethe(Fig.5.) Pastethecushionontotheflangebrackettoensurethatthehole ofthecushionisalignedwiththeholeoftheflangebracket.Seethe(Fig.6.) Aligntheflangebracket’sholeswiththewallanchors.Screwin fourwoodscrewswithascrewdriverordrilltosecuretheflangebracket.Makesure itsairflowarrowispointinginyourdesireddirection.Seethe(Fig.7.) Placethewindcirclebackintotheintakeflangeandrepositionthemetalclamps overtheflangesifapplicable.Seethe(Fig.8.) Fig.5. Fig.6. Fig.7. Fig.8. S…

Text truncated - open the document above for the full version.

U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 FRN: 0033401605 Contact Name: Kenneth Young Telephone No: 313-395-3113 Email: [email protected] Signature: Signed by (Printed Name/Title): Kenneth Young This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Guangdong Hongguan Electric Appliance Co., Ltd. FRN: 038107223 Grantee Code: 2BU2W FCC ID: 2BU2WH20260306GHF3E Contact Name: Luosi Wei Address: Building 1, No. 43 Xingang Road, Jianghai District, Jiangmen, Guangdong Province, China Telephone No: 13242908918 Email: [email protected] Signature: Date: 2026-03-12 Signed by (Printed Name/Title): Luosi Wei

Radiofrequency radiation exposure evaluation: mobile devices RESULT : Pass Test Specification Test item : SMART CONTROLLER Identification / Type No. : WSDKZQ-014 FCC ID : 2BU2WH20260306GHF3E Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 D04 ➢ FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. RF Exposure Evaluation Result RF exposure evaluation method is based on KDB 447498 D01, this calculation is based on the conducted power, maximum power and antenna gain with provides the minimum separation distance. The formula shown below is from OET Bulletin 65 Edition 97-01 Per KDB 447498 D01: S = PG/(4πR 2 ) S = Power Density (mW/m 2 ) P = RF output Power (mW) G = EUT Antenna gain (numeric) R = Separation distance between radiator and human body (cm) From the minimum separation distance, R=20cm Test mode Max. RF Output Power (dBm) Antenna Gain (dBi) Max EIRP (dBm) Max EIRP (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Result 2.4G WLAN 14.70 2.54 17.24 52.966 0.0105 1 Pass BLE -3.35 2.54 -0.81 0.829 0.00016 1 Pass The product does not support simultaneous transmitting. “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.692 2401.652 2402.344 0.5 PASS 2440 0.664 2439.664 2440.328 0.5 PASS 2480 0.660 2479.668 2480.328 0.5 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0509 2401.4786 2402.5295 --- --- 2440 1.0542 2439.4766 2440.5308 --- --- 2480 1.0708 2479.4661 2480.5369 --- --- Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.35 ≤30 PASS 2440 -4.14 ≤30 PASS 2480 -6.05 ≤30 PASS Test Graphs Peak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -20.08 ≤8.00 PASS 2440 -21.02 ≤8.00 PASS 2480 -22.96 ≤8.00 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -4.13 -36.66 ≤-24.13 PASS High 2480 -7.09 -45.63 ≤-27.09 PASS Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -4.17 -4.17 --- PASS 30~1000 -4.17 -54.24 ≤-24.17 PASS 1000~26500 -4.17 -50.54 ≤-24.17 PASS 2440 Reference -5.20 -5.20 --- PASS 30~1000 -5.20 -55.76 ≤-25.2 PASS 1000~26500 -5.20 -40.68 ≤-25.2 PASS 2480 Reference -7.17 -7.17 --- PASS 30~1000 -7.17 -55.25 ≤-27.17 PASS 1000~26500 -7.17 -36.62 ≤-27.17 PASS Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] BLE_1M Ant1 2402 2.13 2.50 85.20 2440 2.12 2.50 84.80 2480 2.12 2.50 84.80 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix H: Emissions in Restricted Bands Test Result Mode: BLE Channel: 2402 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 2315.5413 38.42 41.28 2.86 74.00 32.72 150 55 PK Horizontal PASS 2 2331.5800 37.80 40.57 2.77 74.00 33.43 150 194 PK Horizontal PASS 3 2346.8388 38.64 41.59 2.95 74.00 32.41 150 37 PK Horizontal PASS 4 2364.6813 38.55 41.53 2.98 74.00 32.47 150 5 PK Horizontal PASS 5 2381.6625 38.45 41.48 3.03 74.00 32.52 150 153 PK Horizontal PASS 6 2388.1138 38.14 41.08 2.94 74.00 32.92 150 145 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: BLE Channel: 2402 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 2316.1263 39.46 42.34 2.88 74.00 31.66 150 318 PK Vertical PASS 2 2321.8788 39.32 42.20 2.88 74.00 31.80 150 177 PK Vertical PASS 3 2330.0525 38.49 41.30 2.81 74.00 32.70 150 265 PK Vertical PASS 4 2357.7263 38.32 41.27 2.95 74.00 32.73 150 323 PK Vertical PASS 5 2379.1763 38.64 41.69 3.05 74.00 32.31 150 218 PK Vertical PASS 6 2388.3413 38.21 41.15 2.94 74.00 32.85 150 218 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: BLE Channel: 2480 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 2484.3000 39.10 42.58 3.48 74.00 31.42 150 111 PK Horizontal PASS 2 2487.8500 39.41 42.88 3.47 74.00 31.12 150 125 PK Horizontal PASS 3 2491.9000 38.19 41.75 3.56 74.00 32.25 150 186 PK Horizontal PASS 4 2493.9500 37.52 41.11 3.59 74.00 32.89 150 54 PK Horizontal PASS 5 2497.7000 38.56 42.14 3.58 74.00 31.86 150 360 PK Horizontal PASS 6 2499.4000 37.87 41.37 3.50 74.00 32.63 150 307 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: BLE Channel: 2480 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 2484.3500 38.27 41.76 3.49 74.00 32.24 150 92 PK Vertical PASS 2 2487.1000 38.04 41.57 3.53 74.00 32.43 150 114 PK Vertical PASS 3 2491.2000 38.11 41.66 3.55 74.00 32.34 150 114 PK Vertical PASS 4 2493.5000 37.98 41.56 3.58 74.00 32.44 150 0 PK Vertical PASS 5 2495.4500 38.14 41.70 3.56 74.00 32.30 150 53 PK Vertical PASS 6 2497.5000 37.51 41.09 3.58 74.00 32.91 150 108 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Appendix I: Spurious emissions Test Result Sweep the whole frequency band through the range from 9kHz to the 10th harmonic of the carrier, the Emissions in the frequency band 18GHz-26.5GHz are more than 20dB below the limit are not reported. During the test, the Radiates Emission from 9kHz to 1GHz was performed in all modes with all channels, the test data of the worst-case condition was recorded in this report. QP Final Data List NO. Freq. [MHz] Factor [dB/m] QP Value [dBμV/m] QP Limit [dBμV/m] QP Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 62.0100 -15.61 25.60 40.00 14.40 100 197 Vertical PASS 2 123.9688 -15.61 26.16 43.50 17.34 100 259 Vertical PASS 3 188.5950 -16.63 27.77 43.50 15.73 100 185 Vertical PASS 4 236.8525 -16.73 36.18 46.00 9.82 100 278 Vertical PASS 5 300.6300 -13.94 28.37 46.00 17.63 100 40 Vertical PASS 6 504.0875 -9.74 28.32 46.00 17.68 200 236 Vertical PASS QP Final Data List NO. Freq. [MHz] Factor [dB/m…

Text truncated - open the document above for the full version.

EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC Compliance Test Report for Product name: SMART CONTROLLER Model name: WSDKZQ-014 FCC ID: 2BU2WH20260306GHF3E Test Report Number: EFGX26020226-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8 Fax: +86-0755-82910749 Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 1 of 26 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 5 2 Technical test 6 2.1 Summary of test results 6 2.2 Test environment 6 2.3 Measurement uncertainty 6 2.4 Test mode 7 2.5 Test equipment utilized 8 2.6 Auxiliary equipment used during test 9 2.7 Test software information 9 2.8 Test setup 10 2.9 Test results 12 3 Technical Requirement 13 3.1 Conducted emission AC power port 13 3.2 Duty cycle 14 3.3 6dB bandwidth 15 3.4 99% Occupied Bandwidth 16 3.6 Conducted Peak output power 17 3.7 Power spectral density 18 3.8 Conducted Spurious Emissions 19 3.9 Band edge 20 3.10 Spurious radiated emissions for transmitter 23 4 Test Setup Photos 26 5 External Photo 26 6 Internal Photos 26 7 Appendix 26 Test Report No.: EFGX26020226-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 3 of 26 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. Operator: 2026-03-12 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2026-03-12 Albert Xu / Lab Manager Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX26020226-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 4 of 26 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : Guangdong Hongguan Electric Appliance Co., Ltd. Address : Building 1, No. 43 Xingang Road, Jianghai District, Jiang- men, Guangdong Province, China Telephone : ./. Fax : ./. 1.4 Details of manufacturer Name : Guangdong Hongguan Electric Appliance Co., Ltd. Address : Building 1, No. 43 Xingang Road, Jianghai District, Jiang- men, Guangdong Province, China Telephone : ./. Fax : ./. Test Report No.: EFGX26020226-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 5 of 26 1.5 Application details Date of receipt of application : 2026-03-02 Date of receipt of test item : 2026-03-02 Date of test : 2026-03-02 to 2026-03-12 Date of issue : 2026-03-12 1.6 Test item Product type : SMART CONTROLLER Test Model : WSDKZQ-014 Sample ID : 260303-15-001 Brand : ./. Serial number : ./. Ratings : Input: 10VDC Test voltage : DC 10V RadioTechnical data Frequency range : 2402MHz – 2480MHz Radio Tech. : Bluetooth Low Energy Frequency channel : 40 Channels Modulation : GFSK Antenna type : PCB antenna Maximum antenna gain : 2.54 dBi Additional information : ./. The above sample(s) and sample information was/were submitted and identified on behalf of the applicant. Eurofins assures objectivity and impartiality of the test, and fulfills the obligation of confidentiality for applicant’s commercial infor- mation and technical documents. 1.7 Test standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Test Method 1: ANSI C63.4-2014, American National Standard for Methods of Measurement of Radio-Noise Emis- sions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2: ANSI C63.10-2020, American National Standard for Testing Unlicensed Wireless Devices. 3: KDB558074 D01 15.247 Meas Guidance v05r02 Test Report No.: EFGX26020226-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 6 of 26 2 Technical test 2.1 Summary…

Text truncated - open the document above for the full version.

QP Final Data List NO. Freq. [MHz] Factor [dB/m] QP Value [dBμV/m] QP Limit [dBμV/m] QP Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 75.5900 -17.54 14.73 40.00 25.27 200 91 Horizontal PASS 2 142.8838 -14.60 20.39 43.50 23.11 100 266 Horizontal PASS 3 217.9375 -17.51 28.60 46.00 17.40 200 150 Horizontal PASS 4 233.5788 -16.93 34.00 46.00 12.00 200 150 Horizontal PASS 5 408.0575 -11.27 29.06 46.00 16.94 100 234 Horizontal PASS 6 503.9662 -9.75 28.86 46.00 17.14 100 323 Horizontal PASS Mode: 802.11b Channel: 2412 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1460.8000 39.94 39.87 -0.07 74.00 34.13 150 339 PK Horizontal PASS 2 4824.0000 59.40 44.49 -14.91 74.00 29.51 150 100 PK Horizontal PASS 3 6995.0000 52.08 42.66 -9.42 74.00 31.34 150 107 PK Horizontal PASS 4 8449.5000 51.34 44.23 -7.11 74.00 29.77 150 61 PK Horizontal PASS 5 12038.5000 47.59 45.82 -1.77 74.00 28.18 150 1 PK Horizontal PASS 6 16102.0000 45.67 48.61 2.94 74.00 25.39 150 154 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: 802.11b Channel: 2412 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1248.4000 37.90 37.37 -0.53 74.00 36.63 150 120 PK Vertical PASS 2 1852.0000 36.71 37.99 1.28 74.00 36.01 150 308 PK Vertical PASS 3 4824.0000 56.59 41.68 -14.91 74.00 32.32 150 148 PK Vertical PASS 4 5847.5000 55.18 42.99 -12.19 74.00 31.01 150 71 PK Vertical PASS 5 8766.0000 50.88 44.22 -6.66 74.00 29.78 150 79 PK Vertical PASS 6 12230.5000 47.84 46.39 -1.45 74.00 27.61 150 32 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: 802.11b Channel: 2412 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1514.4000 38.11 38.21 0.10 74.00 35.79 150 250 PK Horizontal PASS 2 3617.0000 55.66 36.09 -19.57 74.00 37.91 150 68 PK Horizontal PASS 3 4874.0000 59.62 45.42 -14.20 74.00 28.58 150 75 PK Horizontal PASS 4 8374.5000 50.78 43.55 -7.23 74.00 30.45 150 121 PK Horizontal PASS 5 11072.5000 48.15 45.13 -3.02 74.00 28.87 150 268 PK Horizontal PASS 6 13677.5000 47.84 48.43 0.59 74.00 25.57 150 114 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: 802.11b Channel: 2437 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1328.0000 38.73 38.19 -0.54 74.00 35.81 150 96 PK Vertical PASS 2 1840.4000 37.64 38.97 1.33 74.00 35.03 150 110 PK Vertical PASS 3 2927.6000 39.44 45.15 5.71 74.00 28.85 150 82 PK Vertical PASS 4 4874.0000 56.36 42.16 -14.20 74.00 31.84 150 14 PK Vertical PASS 5 6498.5000 53.36 43.34 -10.02 74.00 30.66 150 347 PK Vertical PASS 6 8786.5000 52.40 45.75 -6.65 74.00 28.25 150 84 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: 802.11b Channel: 2462 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1235.8000 37.18 36.72 -0.46 74.00 37.28 150 188 PK Horizontal PASS 2 1728.8000 38.82 39.47 0.65 74.00 34.53 150 23 PK Horizontal PASS 3 4924.0000 58.61 44.93 -13.68 74.00 29.07 150 104 PK Horizontal PASS 4 8755.5000 51.14 44.51 -6.63 74.00 29.49 150 332 PK Horizontal PASS 5 11457.5000 47.38 44.99 -2.39 74.00 29.01 150 180 PK Horizontal PASS 6 17653.5000 46.59 50.69 4.10 74.00 23.31 150 302 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: 802.11b Channel: 2462 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1161.2000 46.01 45.70 -0.31 74.00 28.30 150 131 PK Vertical PASS 2 1261.0000 44.73 44.29 -0.44 74.00 29.71 150 127 PK Vertical PASS 3 1309.6000 42.41 42.12 -0.29 74.00 31.88 150 131 PK Vertical PASS 4 1515.6000 42.74 42.84 0.10 74.00 31.16 150 131 PK Vertical PASS 5 4924.0000 56.70 43.02 -13.68 74.00 30.98 150 255 PK Vertical PASS 6 8781.5000 53.26 46.73 -6.53 74.00 27.27 150 122 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: 802.11g Channel: 2412 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1113.0000 38.76 38.22 -0.54 74.00 35.78 150 118 PK Horizontal PASS 2 4825.0000 55.48 40.60 -14.88 74.00 33.40 150 108 PK Horizontal PASS 3 6339.0000 52.56 42.07 -10.49 74.00 31.93 150 124 PK Horizontal PASS 4 8732.5000 50.06 43.68 -6.38 74.00 30.32 150 179 PK Horizontal PASS 5 11679.0000 47.45 45.50 -1.95 74.00 28.50 150 63 PK Horizontal PASS 6 17373.5000 46.69 50.88 4.19 74.00 23.12 150 108 PK Horizontal PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: 802.11g Channel: 2412 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1060.8000 40.10 39.72 -0.38 74.00 34.28 150 102 PK Vertical PASS 2 4820.5000 54.50 39.45 -15.05 74.00 34.55 150 153 PK Vertical PASS 3 6369.0000 52.17 41.76 -10.41 74.00 32.24 150 5 PK Vertical PASS 4 9807.0000 48.90 44.48 -4.42 74.00 29.52 150 269 PK Vertical PASS 5 13813.5000 46.48 47.62 1.14 74.00 26.38 150 12 PK Vertical PASS 6 17795.5000 47.85 52.05 4.20 74.00 21.95 150 348 PK Vertical PASS Note:(1)Level=Reading+Factor (2)Margin=Limit-Level Mode: 802.11g Channel: 2437 Test Graph Suspected Data List NO. Frequency [MHz] Reading [dBμV/m] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Det Polarity Verdict 1 1132.4000 36.64 36.26 -0.38 74.00 37.74 150 237 PK Horizontal PASS 2 4871.5000 55.79 41.53 -14.26 …

Text truncated - open the document above for the full version.

Page 1 of 28 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC Compliance Test Report for Product name: SMART CONTROLLER Model name: WSDKZQ-014 FCC ID: 2BU2WH20260306GHF3E Test Report Number: EFGX26020226-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8 Fax: +86-0755-82910749 Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 2 of 28 Content 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 6 2 Technical test 7 2.1 Summary of test results 7 2.2 Test environment 7 2.3 Measurement uncertainty 7 2.4 Test mode 8 2.5 Test equipment utilized 9 2.6 Auxiliary equipment used during test 10 2.7 Test software information 10 2.8 Test setup 11 2.9 Test results 13 3 Technical Requirement 14 3.1 Conducted emission AC power port 14 3.2 Duty cycle 15 3.3 6dB bandwidth 16 3.4 99% Occupied Bandwidth 17 3.5 DTS fundamental emission output power 18 3.6 Power spectral density 21 3.7 Conducted Band Edge & Conducted Spurious Emissions 24 3.8 Spurious emissions & Restricted Band 25 4 Test Setup Photos 28 5 External Photos 28 6 Internal Photos 28 7 Appendix 28 Test Report No.: EFGX26020226-IE-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 3 of 28 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. Operator 2026-03-12 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2026-03-12 Albert Xu / Lab Manager Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX26020226-IE-01-E02 Eurofins Electrical T…

Text truncated - open the document above for the full version.
