2BU3D-BLES-2L-12High Security Seal

Quick Start Guide BLESecure Cable Seal Introduction This guide will preview the product specifications as well as guide you through Product activation of the cable seal. Quick Start Guide 1. Confirm the Tracker (Hub) device being used on a shipment is turned ON and active. The ‘Status Rcvd’ in the platform will turn green once the Tracker is active and reporting. (see picture below) Figure 1: Tracker Device Card 2. There are 2 ways to activate the seal: a. Apply the activation tool to the seal. There will be 15 audible beeps along with a blinking red LED to indicate the seal is broadcasting. This will create an instance of the BLESecure seal in your account within the platform. Please confirm the seal is visible on the platform before proceeding. It may take several minutes for the seal to become visible in the platform. b. Locking the cable seal will activate the seal. There will be 15 audible beeps along with a blinking red LED to indicate the seal is broadcasting. Prior to locking, please see below Sections 4-6 for installation instructions. This will create an instance of the BLESecure seal in your account within the platform. Please confirm the seal is visible on the platform before proceeding. It may take several minutes for the seal to become visible in the platform. Below is an example of how the seal will appear under Tracking → Devices. The initial state of the BLESecure seal will show ‘OPEN’ under Seal Status unless activation was completed by locking the seal, in which case, the state will show ‘CLOSED.’ Note: If the seal does not beep or the red led does not illuminate, then set aside and use a different seal. Figure 2. BLESecure Seal Figure 3. BLE Seal Card 3. Record the last 6 digits of the BLE Seal ID and the last 4-6 digits of the Tracker device. Then create a Shipment via the TrackSecure Platform and add the Tracker and the BLE seal(s) to the shipment. 4. At installation on the truck/trailer/container, please ensure that the container doors are closed securely. 5. Locate the hasp or valve to secure and insert the cable into the cable seal through opening. Next, push the cable through the seal body pushing down until the cable exits the bottom and there is approximately 2 inches of cable exposed. (See Sample Cable seal Installation Pictures below under #6) 6. Make sure the cable is fully secured into the blue cable seal body. Figure 4. 12” Sample Cable Seal Installation Picture Troubleshooting Issue: Cable loose ● Possible Cause: Not fully inserted into the housing engaging the lock. ● Solution: Make sure the cable is fully inserted and pull from the bottom Issue: Seal is not visible in the platform ● Possible Cause: No power from battery ● Solution: Replace with new seal Issue: Seal is not visible in the platform ● Possible Cause: Tracker/Hub has not been turned ON ● Solution: Turn on Tracker/Hub and wait a few minutes for seal to be Detected Issue: When activating there is not audible beeps or flashing red LED ● Possible Cause: No power from battery ● Solution: Replace with new seal Product Specifications ● Product Name: BLESecure Cable Seal ● Material: ABS housing, steel cable ● Dimensions (Standard Body): ○ 12”: 1.75”(L) × 1.88”(W) × 0.69”(T) ● Communications: Bluetooth 5.0 ● Battery: CR2032 3V Lithium ● Beacon Rate: ○ 10 seconds during normal operation ○ 1 second during a Tamper and/Cut state FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Canadian ISED Notice / Avis ISED Canadien This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1) This device may not cause interference. 2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

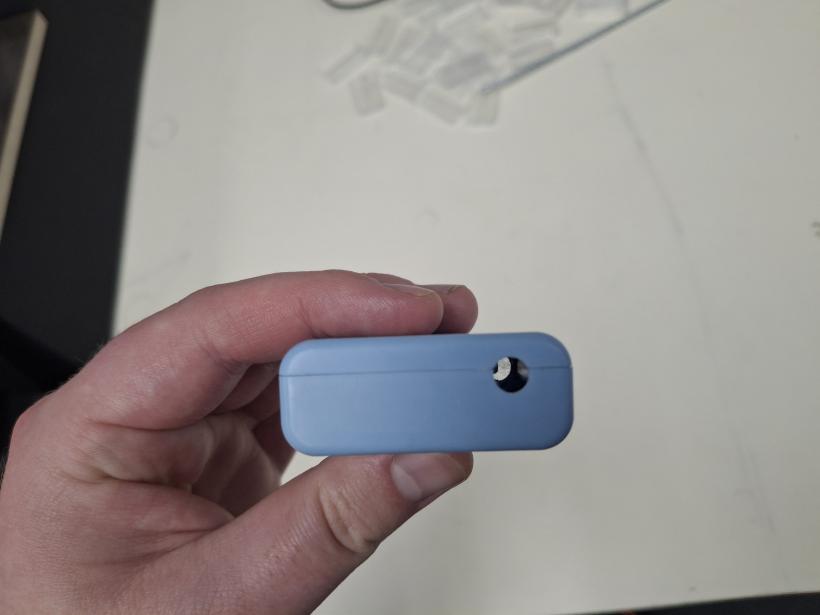

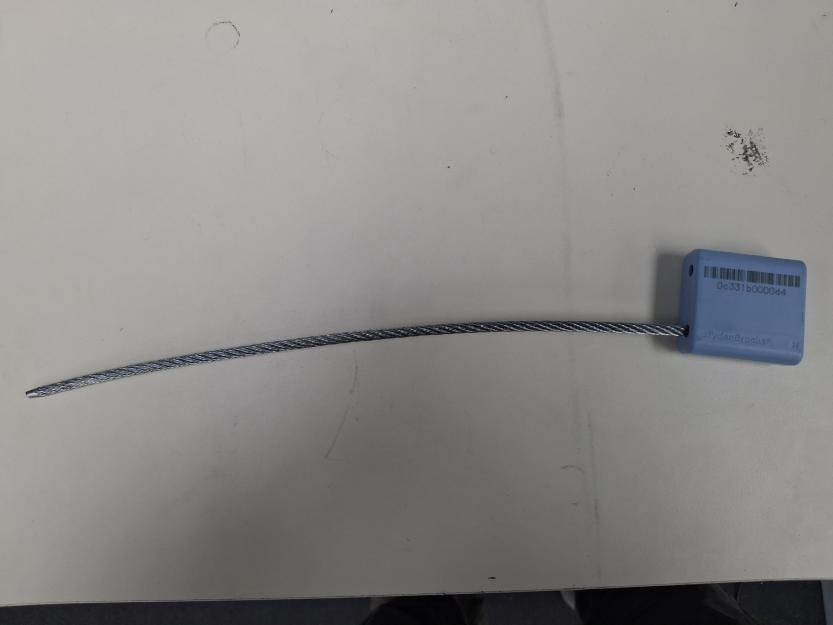

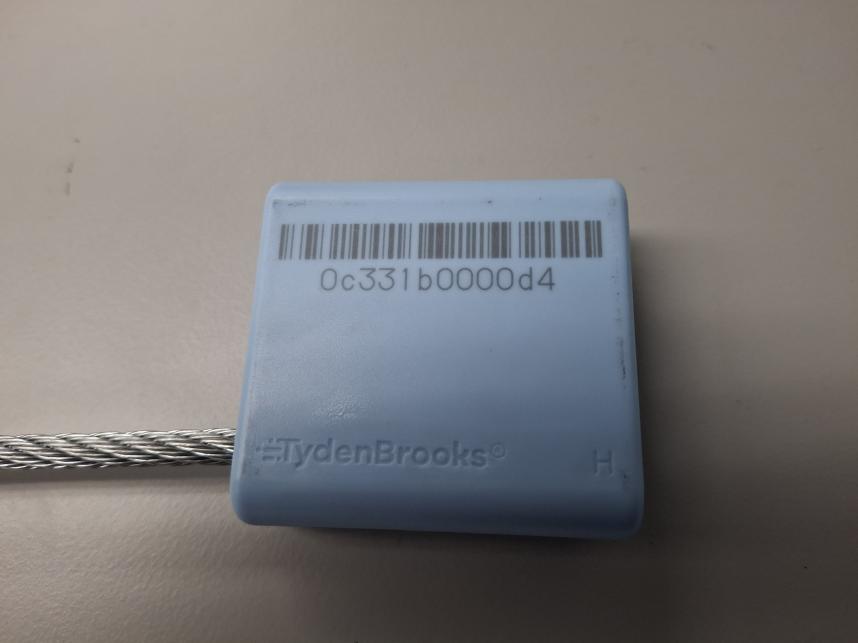

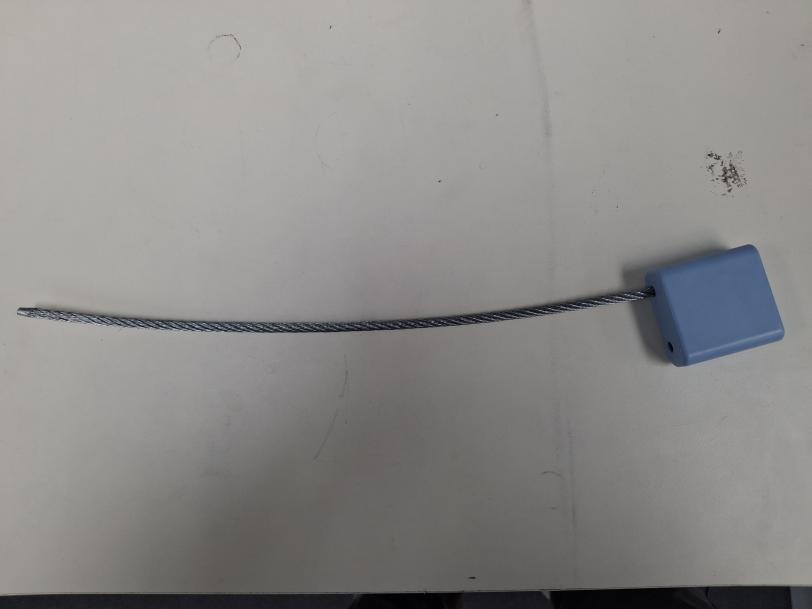

External Images of BLESecure 2.0

.750 1.50 .177 .457 .570 .040 .317 .168 .381 .213 .400 .136 .160 .445 .612 ADDITIONAL NOTES: LABEL THICKNESS SHALL BE NO GREATER THAN 0.005 INCHES.1. PRODUCT NAME "BLEsecure" IS IN ARIAL 8PT FONT REGULAR.2. ALL OTHER TEXT IS IN ARIAL 6PT FONT REGULAR.3. TYDENBROOKS LOGO SHALL HAVE DIMENTIONS 0.72" X 0.14" AND SHALL MAINTAIN ASPECT RATIO.4. BLUETOOTH LOGO SHALL HAVE DIMENTIONS 0.22" X 0.22" AND SHALL MAINTAIN ASPECT RATIO.5. CE LOGO SHALL HAVE DIMENTIONS 0.31" X 0.22" AND SHALL MAINTAIN ASPECT RATIO.6. WEEE LOGO SHALL HAVE DIMENTIONS 0.19" X 0.27" AND MAINTAIN ASPECT RATIO.7. ALL TEXT AND LOGOS SHALL BE IN BLACK WITH NO COLOR WITH RESIN RIBBON.8. REGULATORY LOGOS SHALL ONLY BE ADDED ONCE TYDENBROOKS RECIEVES APROVAL FOR CERTIFICATION.9. FCC ID, IC, AND PRODUCT MODEL ARE SUBJECT TO APPROVAL BY REGULATORS10. LABEL SHALL BE PERMANENTLY AFFIXED TO THE SEAL USING ADHESIVE11. CRITICAL DIMENSION MAXIMUM DIMENSION C M PROPERTY OF TYDENBROOKS This document represents technical data and know-how constituting proprietary information of TydenBrooks. Disclosure, copy, or use thereof is forbidden except by express written permission from the TydenBrooks. THIRD ANGLE PROJECTION ITEM # PR-10005931 DRAWN BY MODEL BY APPROVED BY DESCRIPTION MATERIAL TREATMENT SCALE REVISION DRAWING # DATE TOLERANCES UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN US INCHES DECIMALS XX .01 XXX .005 XXXX .0005 FRACTIONS 1/64 ANGLES 0-30' BLE REGULATORY LABEL HEAT TRANSFER PAPER WATERPROOF 1 awallace awallace 11/5/2025 4:1 PR-100059311 OF 1 SHEET AA BB CC DD EE FF GG HH JJ 16 16 15 15 14 14 13 13 12 12 11 11 10 10 9 9 8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1

BLESecure 2.0 Label Location Label shall be placed centered on Seal on non-marked side of seal (Reverse).

BLESecure 2.0 Internal Images

FCC Part 1 Subpart I FCC Part 2 Subpart J RSS 102 ISSUE 6 RF EXPOSURE REPORT FOR HIGH SECURITY SEAL MODEL NUMBER: -BLES-2L-12 FCC ID: 2BU3D-BLES-2L-12 IC: 35332-BLES2L12 REPORT NUMBER: R16227428-E2 ISSUE DATE: 2026-05-07 Prepared for TYDENBROOKS SPG 180 MAYS ST. TALLAPOOSA, GA 30176, USA Prepared by UL LLC 12 LABORATORY DR. DURHAM, NC 27713 USA TEL: (919) 549-1400 REPORT NO: R16227428-E2 DATE: 2026-05-07 FCC ID: 2BU3D-BLES-2L-12 IC: 35332-BLES2L12 Page 2 of 8 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., Durham, NC 27713 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Rev. Issue Date Revisions Revised By V1 2026-04-21 Initial Issue Charles Moody V2 2026-04-28 Revised Model Charles Moody V3 2026-05-04 Updated Model and Antenna Gain Chandler Stanley V4 2026-05-07 Updated Separation Distance Chandler Stanley V5 2026-05-07 Updated Tables Chandler Stanley REPORT NO: R16227428-E2 DATE: 2026-05-07 FCC ID: 2BU3D-BLES-2L-12 IC: 35332-BLES2L12 Page 3 of 8 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., Durham, NC 27713 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. DECISION RULES AND MEASUREMENT UNCERTAINTY .............................................. 6 5.1. METROLOGICAL TRACEABILITY ............................................................................. 6 5.2. DECISION RULES ..................................................................................................... 6 6. DEVICE UNDER TEST ....................................................................................................... 6 7. FCC PORTABLE DEVICE TEST EXCLUSION CONSIDERATIONS ................................. 7 7.1. FCC Stand-alone test exclusion KDB 447498 D01 v6. ............................................... 7 7.2. ISED CANADA ........................................................................................................... 8 REPORT NO: R16227428-E2 DATE: 2026-05-07 FCC ID: 2BU3D-BLES-2L-12 IC: 35332-BLES2L12 Page 4 of 8 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., Durham, NC 27713 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: TydenBrooks SPG 180 Mays St. Tallapoosa, GA 30176, USA EUT DESCRIPTION: High Security Seal MODEL: -BLES-2L-12 SERIAL NUMBER: N/A SAMPLE RECEIPT DATE: 2026-01-27, 2026-03-23 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J RSS 102 ISSUE 6 Complies Complies UL LLC. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. All samples tested were in good operating condition throughout the entire test program. Measurement Uncertainties are published for informational purposes only and were not taken into account unless noted otherwise. This document may not be altered or revised in any way unless done so by UL LLC. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC. will constitute fraud and shall nullify the document. Approved & Released For UL LLC By: Prepared By: Michael Antola Charles Moody Senior Staff Engineer Operations Leader Consumer, Medical and IT Segment Consumer, Medical and IT Segment UL LLC UL LLC REPORT NO: R16227428-E2 DATE: 2026-05-07 FCC ID: 2BU3D-BLES-2L-12 IC: 35332-BLES2L12 Page 5 of 8 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., Durham, NC 27713 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 2. TEST METHODOLOGY All calculations were made in accordance with FCC Parts 1.1310, 2.1091, 2.1093, KDB 447498 D01 v06, KDB 447498 D03 V01, IEEE Std C95.1-2005, and IEEE Std C95.3-2002, IC Safety Code 6 and RSS 102 Issue 6. 3. REFERENCES Refer to UL report R16227428-E1 for the BLE test results. 4. FACILITIES AND ACCREDITATION UL LLC is accredited by A2LA, certification # 0751.06, for all testing performed within the scope of this report. Testing was performed at the locations noted below. Address ISED CABID ISED Company Number FCC Registration ☐ Building: 12 Laboratory Dr Durham, NC 27713, U.S.A US0067 2180C 825374 ☒ Building: 2800 Perimeter Park Dr. Suite B Morrisville, NC 27560, U.S.A 27265 REPORT NO: R16227428-E2 DATE: 2026-05-07 FCC ID: 2BU3D-BLES-2L-12 IC: 35332-BLES2L12 Page 6 of 8 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., Durham, NC 27713 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 5. DECISION RULES AND MEASUREMENT UNCERTAINTY 5.1. METROLOGICAL TRACEABILITY The measuring equipment utilized to perform the tests documented in this report has been calibrated in accordance with the manufacturer's recommendations, and is traceable to recognized national standards. 5.2. DECISION RULES For all tests where the applicable U LAB <= U MAX the Decision Rule is based on Simple Acceptance in accordance with ISO G…
