2BU3XFLYSYNC-LITEUSB Dongle

FlySync Lite USB Dongle User Manual 1. Overview The FlySync Lite USB Dongle, launched by Collins Aerospace, is a lightweight device that integrates USB flash drive storage and wireless data transfer capabilities, designed specifically for Electronic Flight Bags (EFBs) and mobile office scenarios. It can function as a standard USB flash drive for data storage, or it can transfer files from its database unit to the EFB via its built-in Wi-Fi hotspot, eliminating the need for an external network. 2. Features  Dual-function design: Supports both USB flash drive storage mode and wireless hotspot transmission mode.  Manual transfer mechanism: Users can choose which files to send via the accompanying software.  USB 2.0 interface, plug and play.  802.11b/g/n wireless standard, stable transmission on the 2.4GHz band.  16GB built-in storage, meeting basic data storage and transmission needs.  USB powered, no external power supply required.  Low power consumption design, rated power consumption of only 1.5W.  Supports batch transfer between multiple devices, improving work efficiency.  WPA2 encryption, ensuring data transmission security.  IP54 protection rating, adaptable to various working environments.  FCC certified, compliant with international standards. 3. Hardware Specifications Item Parameter Product Name USB Dongle Product Model FlySync Lite Color Black Shell material ABS plastic Storage capacity 16GB Wireless standards 802.11b/g/n（2.4GHz） Wireless transmission rate 802.11n up to 150 Mbps USB interface USB 2.0 Power supply USB powered Rated power consumption 1.5W Dimension 84 × 26 × 13 mm Weight 20g 4. Functions and performance Functional Classification Item Directions Storage function USB flash drive mode Simply plug it into your computer and it will function as a standard USB flash drive, supporting file read and write operations. File system Supports FAT32 format Hot-swap Support Transmission function Transmission mode After inserting a database cell and selecting the file using the accompanying software, FlySync Lite automatically creates a Wi-Fi hotspot. Connection method After the Electronic Flight Bag (EFB) connects to the FlySync Lite hotspot, it automatically receives and transfers files. Batch transfer Supports multiple EFB connections to receive files simultaneously. Data security Supports WPA2 encryption Compatible systems PC, MAC, iOS Transmission distance In open environments, it can reach 30 meters. Automatic synchronization Once the file is selected, it will be automatically pushed to all EFBs. Supported devices DBU-5000, etc. 5. Usage Environment Item Parameter Operating temperature 0°C to 65°C Storage temperature -20°C to 70°C (recommended) Protection level IP54 (dustproof, splashproof) 6. Packaging and Accessories Item content Packaging contents FlySync Lite × 1 User Manual × 1 Authentication information FCC 7. Application scenarios Flight data synchronization to the electronic flight bag (EFB): Rapidly distribute flight data to the flight deck from an electronic flight bag (EFB). Standard USB flash drive for everyday storage 8. Operating Instructions 8.1 Wireless transmission mode 8.1.1 Sending end operations a) Insert FlySync Lite into the USB port of the Data Base Unit. b) Open the accompanying transfer software c) Select the file or folder to be transferred. d) Click "Start Transfer," and FlySync Lite will automatically create an encrypted Wi-Fi hotspot. 8.1.2 Receiver operation: a) Search for Wi-Fi networks on EFB b) Connect to the Wi-Fi hotspot created by FlySync Lite (name and password can be found on the product label). c) After a successful connection, the file will be automatically transferred to EFB. d) Supports simultaneous connections from multiple EFBs, with files synchronously pushed to all receiving ends. 8.1.3 Transmission complete a) After the transfer is complete, disconnect the Wi-Fi connection from FlySync Lite on the EFB. b) Unplug FlySync Lite from the Data Base Unit. 8.2 USB flash drive mode a) Plug the FlySync Lite into the computer's USB port. b) The system automatically recognizes it as a removable disk. c) Files can be copied, pasted, and deleted directly. 9. Precautions a) Do not use in environments with high temperature, high humidity, or strong electromagnetic interference for extended periods. b) Ensure good contact of the USB interface during use and avoid frequent plugging and unplugging. c) Wireless transmission distance is affected by the environment. It is recommended to keep EFB as close as possible to FlySync Lite and avoid obstruction when using it. d) This product does not support 5GHz band wireless networks. e) In transmission mode, please ensure that the device has sufficient power to avoid transmission interruption. f) For first-time users, it is recommended to install the accompanying software for full functionality support. 10. FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning t…

Text truncated - open the document above for the full version.

Company: AVIC Leihua Rockwell Collins Avionics Company Add.: 1st Floor, Building A5, No. 777, West Jianzhu Road, Binhu District, Wuxi City, Jiangsu Province, China Tel: +86-17751521136 Fax: NA E-mail: [email protected] FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 The chip ESP32-S3 installed in our product USB Dongle (model name: FlySync Lite. FCC ID: 2BU3XFLYSYNC-LITE ), only activate 2.4GHz Wi-Fi: 2412-2462 MHz (802.11b/g/n20), 2422-2452 MHz (802.11n40) (802.11b/g/n20/n40), the other frequency is disabled by using the software and the end users cannot activate it. Please contact me if there is need for any additional clarification or information. Signature: Printed Name: Bopie Lu Title: Engineering Project Assistant

U.S. AGENT LETTER OF ATTESTATION Date: 2026-04-15 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BU3XFLYSYNC-LITE AVIC Leihua Rockwell Collins Avionics Company certifies that, as of the date of the filing of the application, Iconsigh is our designated U.S. agent for service of process for the above referenced FCC ID. AVIC Leihua Rockwell Collins Avionics Company accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Address: 2310 Homestead Road, Suite C1, Los Altos, CA 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: AVIC Leihua Rockwell Collins Avionics Company Address: 1st Floor, Building A5, No. 777, West Jianzhu Road, Binhu District, Wuxi City, Jiangsu Province, China FRN: 0038113627 Tel: +86-17751521136 Email: [email protected] Signed by (printed name): Bopie Lu Signature: 沪凶

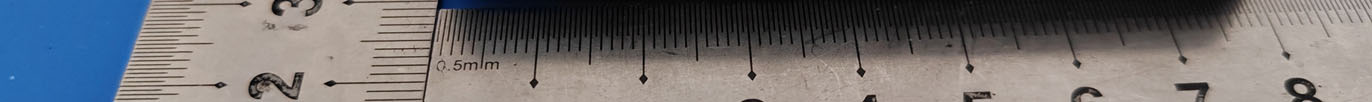

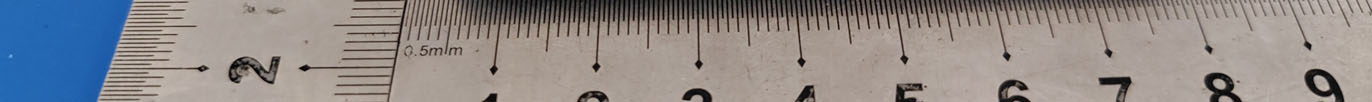

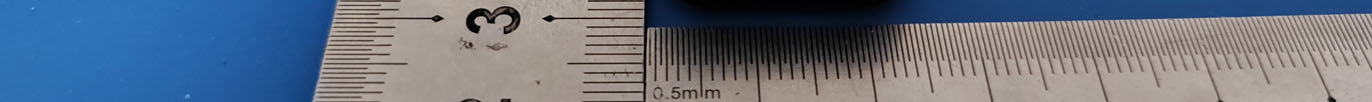

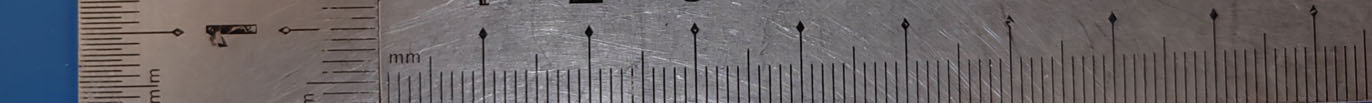

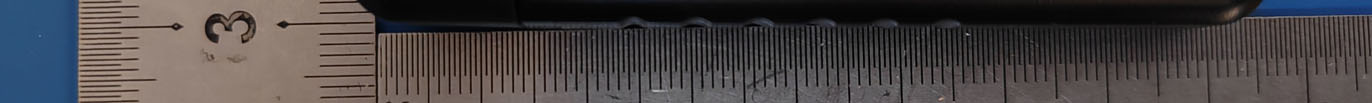

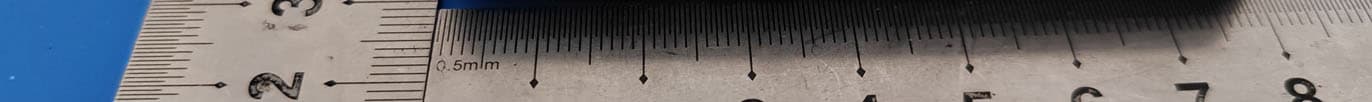

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB260202001 1 / 3 EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB260202001 2 / 3 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB260202001 3 / 3

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB260202001 1 / 3 EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB260202001 2 / 3 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB260202001 3 / 3 Wi‐Fi Antenna

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB260202001-00B Page 16 of 82 FCC §1.1307(b) & §2.1093 - RF EXPOSURE Applicable Standard According to§2.1093and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f (GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result Mode Frequency Range (MHz) Tune-up Conducted average power★ Calculated Distance (mm) Calculated Value Threshold (1-g SAR) SAR Test Exclusion (dBm) (mW) 2.4G Wi-Fi 2412-2462 9.5 8.91 5 2.8 3.0 Yes Note: 1. For the above tune up power were declared by the manufacturer. Conclusion: The device meets the exemption requirement.

OTA TEST REPORT Eurofins TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Xu Ying Approved by: Xu Kai Eurofins TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 Applicant Espressif System (Shanghai) Co.,Ltd Product ESP32-C3-WROOM-02 Model ESP-ANT B Report No. Y2102A0260-T3V2 Issue Date February 19, 2025 Only For AVIC Leihua Rockwell Collins Avionics Company OTA Test Report Report No: Y2102A0260-T3V2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 14 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. Test Laboratory ................................................................................................................................ 4 1.1. Notes of the Test Report ...................................................................................................... 4 1.2. Test Facility .......................................................................................................................... 4 1.3. Testing Location ................................................................................................................... 4 1.4. Laboratory Environment ...................................................................................................... 4 2. General Description of Equipment under Test ................................................................................. 5 2.1. Applicant and Manufacturer Information.............................................................................. 5 2.2. General information ............................................................................................................. 5 2.3. Test Date .............................................................................................................................. 5 2.4. Receiving Date ..................................................................................................................... 5 2.5. Applied Standards ................................................................................................................ 6 3. Test Conditions................................................................................................................................. 7 3.1. Test Configuration ................................................................................................................ 7 3.2. Test Measurement ............................................................................................................... 7 4. Test Results ...................................................................................................................................... 8 4.1. Gain and Efficiency .............................................................................................................. 8 5. Equipment List .................................................................................................................................. 9 ANNEX A: 3-D Pattern Plots ....................................................................................................................... 10 ANNEX B: 2-D Pattern Plots ....................................................................................................................... 11 ANNEX C: The EUT Appearance, Antenna plots and Test Configuration ................................................. 12 C.1 EUT Appearance ..................................................................................................................... 12 C.2 Antenna plots ........................................................................................................................... 13 C.3 Test Configuration ................................................................................................................... 14 Only For AVIC Leihua Rockwell Collins Avionics Company OTA Test Report Report No: Y2102A0260-T3V2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 14 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Version Revision description Issue Date Rev.0 Initial issue of report. March 9, 2021 Rev.1 Update information in Page 6 and 14. September 21, 2022 Rev.2 Update description. February 19, 2025 Note: This revised report (Report No. Y2102A0260-T3V2) supersedes and replaces the previously issued report (Report No. Y2102A0260-T3V1). Please discard or destroy the previously issued report and dispose of it accordingly. Only For AVIC Leihua Rockwell Collins Avionics Company OTA Test Report Report No: Y2102A0260-T3V2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 14 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of Eurofins TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test Facility A2LA (Certificate Number: 3857.01) Eurofins TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3. Testing Location Company: Eurofins TA Technology (Shanghai) Co., Ltd. Address: Building 3, No.…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S. Government. Page 1 of 82 FCC PART 15.247 TEST REPORT For AVIC Leihua Rockwell Collins Avionics Company 1st Floor, Building A5, No. 777, West Jianzhu Road, Binhu District, Wuxi City, Jiangsu Province, China FCC ID: 2BU3XFLYSYNC-LITE R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t N a m e: U S B D o n gl e Report Number: RKSB260202001-00B Report Date: 2026-05-14 Reviewed By: Bard Liu Approved By: Kyle Xu Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu Province, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB260202001-00B Page 2 of 82 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 11 EXTERNAL I/O CABLE................................................................................................................................................ 11 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 11 SUMMARY OF TEST RESULTS ............................................................................................................................. 13 TEST EQUIPMENT LIST ......................................................................................................................................... 14 FCC §1.1307(b) & §2.1093 - RF EXPOSURE ........................................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 MEASUREMENT RESULT ............................................................................................................................................ 16 CONCLUSION: THE DEVICE MEETS THE EXEMPTION REQUIREMENT. ........................................................................... 16 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 17 APPLICABLE STANDARD ............................................................................................................................................ 17 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 17 FCC §15.207 (a) - AC LINE CONDUCTED EMISSIONS ...................................................................................... 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST SYSTEM SETUP .................................................................................................................................................. 18 EMI TEST RECEIVER SETUP ....................................................................................................................................... 18 TEST PROCEDURE ...................................................................................................................................................... 19 TEST RESULTS SUMMARY .......................................................................................................................................... 19 TEST DATA: SEE APPENDIX ....................................................................................................................................... 19 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS............................................................................. 20 APPLICABLE STANDARD ..................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB260202001 1 / 3 EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions (Front View) Conducted Emissions (Left View) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB260202001 2 / 3 Radiated Emissions (Below 30 MHz) Radiated Emissions (30MHz-1GHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB260202001 3 / 3 Radiated Spurious Emissions (1-18 GHz) Radiated Spurious Emissions (18-25 GHz)
