2BU5D-GO2AJSmart Watch

The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. 48_[model] US_Agent_2.911(d)(7) - U, V05 Kiza Ventures Inc 93 Cougarstone Terrace SW, Calgary, Alberta, T3H 5A1 Canada Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: Apr. 27, 26 U.S. Agent Designation Kiza Ventures Inc acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BU5D-GO2AJ) Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] Telephone of U.S.agent: (626) 588-8039 GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Kiza Ventures Inc. Kiza Ventures Inc with the FRN [0038132346] accepts its obligation to maintain an agent for service of process in the United States for no less than 1 year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Signature Ameen Ashik Khwaja Huiying Fan Manager Director Kiza Ventures Inc GLOCERTS TECHNOLOGY INC

Kiza Ventures Inc 93 Cougarstone Terrace SW, Calgary, Alberta, T3H 5A1 Canada Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: Apr. 27, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2BU5D-GO2AJ Kiza Ventures Inc (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Ameen Ashik Khwaja Title: Manager Address: 93 Cougarstone Terrace SW, Calgary, Alberta, T3H 5A1 Canada Tel.: 1 403 8262 103 Email: [email protected]

Kiza Ventures Inc 93 Cougarstone Terrace SW, Calgary, Alberta, T3H 5A1 Canada 1 | P a g e Attestation Statements To: Federal Communications Commission Date: Apr. 27, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: 2BU5D-GO2AJ Product Name: Smart Watch This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature Printed Name: Ameen Ashik Khwaja Title: Manager Address: 93 Cougarstone Terrace SW, Calgary, Alberta, T3H 5A1 Canada Tel.: 1 403 8262 103 Email: [email protected] Kiza Ventures Inc 93 Cougarstone Terrace SW, Calgary, Alberta, T3H 5A1 Canada 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ The Memory used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. Compliance ☒ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Compliance Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) See attached “SBoM“ Note:The SBoM content is limited to the scope of covered list software (e.g. antivirus and cybersecurity software). ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

TCB CALL página 1 File FCC ID: 2BU5D-GO2AJ Please upload an exhibit that explains how does the TCB verify the new agent information: 1- Is the address of the agent a valid physical US mailing address (not a US post office box, not a virtual mailbox, not P.O. Boxes, not a vacant lot, not a public building, etc.) ○ We have checked if the address exists in a real and potential building (Google maps) + official US register, after this verification and the evidence below we can guarantee the following: not a US post office box not a virtual mailbox not P.O. Boxes not a vacant lot not a public building(note) ► We checked the FCC FRN Search based on the information provided by the grantee. On the official register from : https://bizfileonline.sos.ca.gov/search/business TCB CALL página 2 TCB CALL página 3 TCB CALL página 4 TCB CALL página 5 In google: TCB CALL página 6 Bank information TCB CALL página 7 TCB CALL página 8 TCB CALL página 9 TCB CALL página 10 GOLOCERTS TECHNOLOGY INC ADDRESS PROFF Water Bill TCB CALL página 11 TCB CALL página 12 TCB CALL página 13 TCB CALL página 14 TCB CALL página 15 TCB CALL página 16 ► CONCLUSION by TCB: The ASOP defined and provided by grantee is VALID and confirmed. Therefore the exhibit "C5266091_X23_Ed1_US_Agent_Letter" included in the file is ok. 2- Is the agent physically located at that valid US address such that the agent can be legally served at that address? Yes , check above 3- Has the listed agent clearly agreed in writing to serve as the agent for the grantee at that address? Yes, it is included in the exhibit "C5266091_X23_Ed1_US_Agent_Letter" >

C5266091_X10_Ed.2 1/1 Kiza Ventures Inc Office of Managering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: Apr. 27, 26 Subject: Request for Confidentiality FCC ID: 2BU5D-GO2AJ To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Ameen Ashik Khwaja Title: Manager

C5266091_X8_Ed.1 1/1 Letter of Authorization Kiza Ventures Inc Company: Kiza Ventures Inc Address: 93 Cougarstone Terrace SW, Calgary, Alberta, T3H 5A1 Canada Product Name: Smart Watch Model Number: GO2AJ FCC Identifier: 2BU5D-GO2AJ We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Ameen Ashik Khwaja Date: Apr. 27, 26 Title: Manager Signature of applicant:

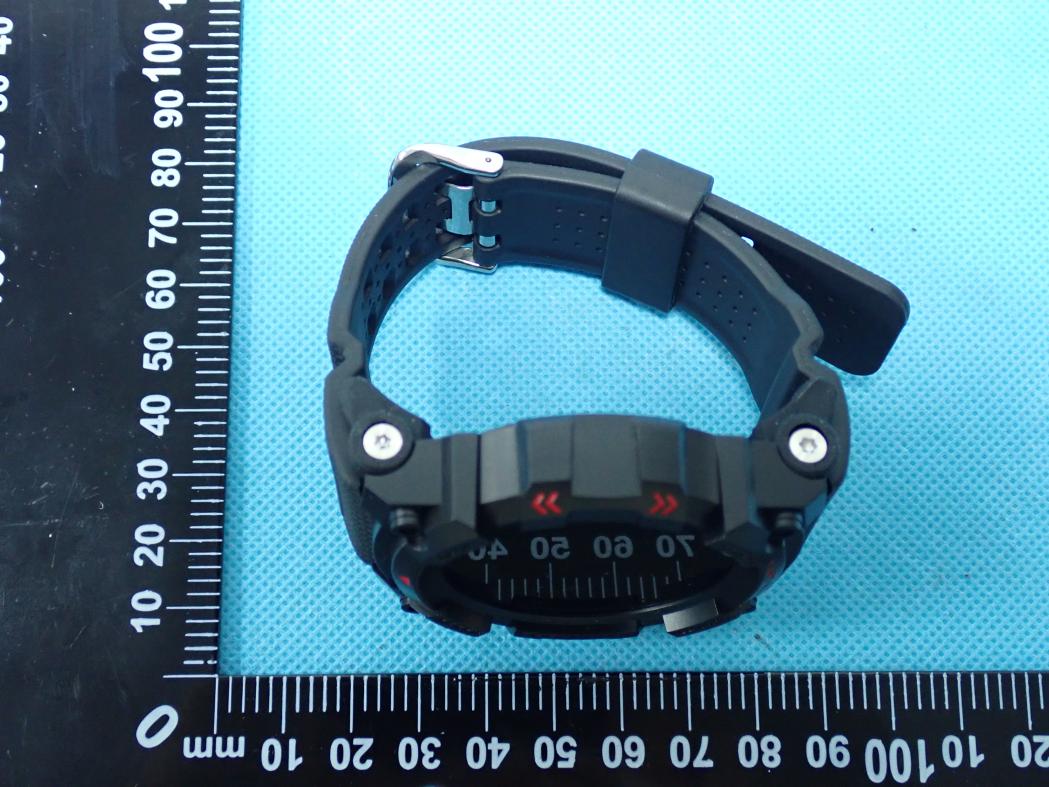

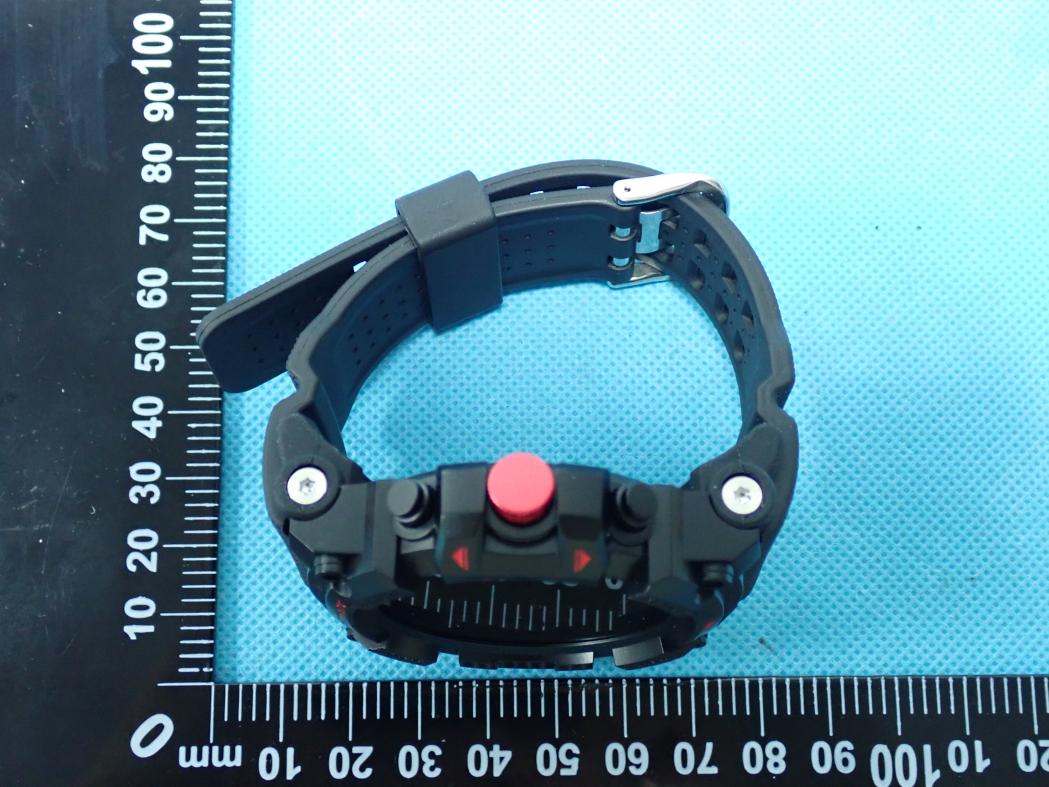

Report No.: TZ0384260201PH02 Page 1 of 4 Exterior Photographs of EUT Figure 1 Figure 2 Report No.: TZ0384260201PH02 Page 2 of 4 Figure 3 Figure 4 Report No.: TZ0384260201PH02 Page 3 of 4 Figure 5 Figure 6 Report No.: TZ0384260201PH02 Page 4 of 4 Figure 7

Label Location The size of the logo is 5mm*5mm. FCC ID: 2BU5D-GO2AJ

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BU5D-GO2AJ This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BU5D-GO2AJ This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Results BLE: RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR-based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] BLE_1M Ant1 2402 0.92 0.5 1 0.17 1.5 1.41 2.79 BLE_1M Ant1 2440 1.11 0.5 1 0.17 1.5 1.41 2.75 BLE_1M Ant1 2480 0.49 0 1 0.17 1 1.26 2.72 BLE_2M Ant1 2402 1.05 0.5 1 0.17 1.5 1.41 2.79 BLE_2M Ant1 2440 1.33 1 1 0.17 2 1.58 2.75 BLE_2M Ant1 2480 0.62 0 1 0.17 1 1.26 2.72 EDR: RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR-based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] DH5 Ant1 2402 0.99 0.5 1 0.17 1.5 1.41 2.79 DH5 Ant1 2441 1.15 0.5 1 0.17 1.5 1.41 2.75 DH5 Ant1 2480 0.61 0 1 0.17 1 1.26 2.72 2DH5 Ant1 2402 1.78 1.5 1 0.17 2.5 1.78 2.79 2DH5 Ant1 2441 1.86 1.5 1 0.17 2.5 1.78 2.75 2DH5 Ant1 2480 1.26 1 1 0.17 2 1.58 2.72 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Report No.: TZ0384260201FRF01 Page 1 of 41 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0384260201FRF01 Product Name : Smart Watch Model/Type reference : GO2AJ FCC ID : 2BU5D-GO2AJ Prepared for : Kiza Ventures Inc 93 Cougarstone Terrace SW, Calgary, Alberta, T3H 5A1 Canada Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020+Cor1-2023 Date of Test : 2026-04-23 ~ 2026-04-26 Date of Issue : 2026-04-26 Prepared by : Nancy Li Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0384260201FRF01 Page 2 of 41 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-04-26 Valid Initial release Report No.: TZ0384260201FRF01 Page 3 of 41 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 5 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 6 2. T E S T M E T H O D O L O G Y ............................................................ 7 2.1. EUT Configuration .................................................................................................................. 7 2.2. EUT Exercise ........................................................................................................................... 7 2.3. Test Sample ............................................................................................................................. 7 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 8 3.1. Justification ............................................................................................................................. 8 3.2. EUT Exercise Software ........................................................................................................... 8 3.3. Special Accessories ............................................................................................................... 8 3.4. Block Diagram/Schematics .................................................................................................... 8 3.5. Equipment Modifications ....................................................................................................... 8 3.6. Test Setup ................................................................................................................................ 8 4. S U M M A R Y O F T E S T R E S U L T S ................................................. 9 5. M E A S U R E M E N T R E S U L T S ...................................................... 10 5.1. Maximum Peak Conducted Output Power ......................................................................... 10 5.2. Frequency Separation and 20 Db Bandwidth .................................................................... 11 5.3. Number of Hopping Frequency ........................................................................................... 12 5.4. Time of Occupancy (Dwell Time) ......................................................................................... 13 5.5. Conducted Spurious Emissions and Band Edges Test .................................................... 15 5.6. Restricted Band Emission Limit .......................................................................................... 16 5.7. AC Power line conducted emissions .................................................................................. 29 5.8. Band-edge measurements for radiated emissions ........................................................... 32 5.9. Pseudorandom frequency hopping sequence ................................................................... 38 5.10. Antenna requirement ............................................................................................................ 39 6. S U M M A R Y O F T E S T E Q U I P M E N T ............................................ 40 7. T E S T S E T U P P H O T O G R A P H S ................................................. 41 8. E X T E R N A L P H O T O S O F T H E E U T ............................................ 41 9. I N T E R I O R P H O T O S O F T H E E U T ........…

Text truncated - open the document above for the full version.

Shenzhen First Line Cable Co., Ltd. Address: Building 21, Wanfeng Industrial City, Shajing Street, Bao'an District, Shenzhen City 天线规格承认书 Antenna Specification for Approval 客户名称 CustomerName：深圳市魔样科技有限公司 产品名称： ProductName： 2.4G天线 全长25mm红色 客户型号： ProductName: 产品料号： Part NO.: C10- 35- 2.5 制 表 ： WriteBy：庄杰彬 日 期： IssuedDate: 2021- 10-08 客 户: 工程R& D Dept 采购Business Dept 承认 Approved By 一线通 研发R& D Dept 工程 Engineer Dept 审核 Approval 庄彩虹 庄杰彬 庄杰彬 Product Specification A. ElectricalCharacteristics Frequency 2400MHz ~2500MHz VSWR<3.0 Efficiency >30% Impedance 50 Ohm Polarization Line Gain 0.17DBi B. Material & MechanicalCharacteristics Material of Radiator Cu Cable Type 1.0 19P Connector Type : NO Dimension C. Environmental Operation Temperature - 30 °C ~ + 80 °C Storage Temperature - 30 ° C~+ 85 °C Test Equipment & Conditions 1. NetworkAnalyzers: Agilent 8753D 5071C 2. Communications TestSet: Agilent E5525C 3. 3D Chamber TestSystem Effiency& Gain Radiation Pattern: 2440 2450 2500

Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 1 of 38 Appendix Test Data for BT(BR/EDR) (Conducted Measurement) Product Name: Smart Watch Trade Mark: / Test Model: GO2AJ FCC ID: 2BU5D-GO2AJ Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 20db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.954 2401.553 2402.507 --- --- DH5 Ant1 2441 0.954 2440.559 2441.513 --- --- DH5 Ant1 2480 0.960 2479.559 2480.519 --- --- 2DH5 Ant1 2402 1.308 2401.364 2402.672 --- --- 2DH5 Ant1 2441 1.326 2440.358 2441.684 --- --- 2DH5 Ant1 2480 1.281 2479.397 2480.678 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 2 of 38 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 3 of 38 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 4 of 38 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 5 of 38 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.86335 2401.5870 2402.4503 --- --- DH5 Ant1 2441 0.87742 2440.5839 2441.4613 --- --- DH5 Ant1 2480 0.86658 2479.5861 2480.4527 --- --- 2DH5 Ant1 2402 1.1784 2401.4362 2402.6146 --- --- 2DH5 Ant1 2441 1.1861 2440.4288 2441.6149 --- --- 2DH5 Ant1 2480 1.1811 2479.4304 2480.6115 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 6 of 38 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 7 of 38 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 8 of 38 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 9 of 38 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict DH5 Ant1 2402 0.99 ≤30 PASS DH5 Ant1 2441 1.15 ≤30 PASS DH5 Ant1 2480 0.61 ≤30 PASS 2DH5 Ant1 2402 1.78 ≤20.97 PASS 2DH5 Ant1 2441 1.86 ≤20.97 PASS 2DH5 Ant1 2480 1.26 ≤20.97 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 10 of 38 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 11 of 38 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 12 of 38 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 13 of 38 Appendix D: Carrier frequency separation Test Result Test Mode Antenna Frequency [MHz] Result [MHz] Limit [MHz] Verdict DH5 Ant1 Hop 0.99 ≥0.960 PASS 2DH5 Ant1 Hop 1.14 ≥0.884 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 14 of 38 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 15 of 38 Appendix E: Time of occupancy Test Result Test Mode Antenna Frequency [MHz] Burst Width [ms] TotalHops [Num] Result [s] Limit [s] Verdict DH5 Ant1 Hop 2.884 80 0.231 ≤0.4 PASS 2DH5 Ant1 Hop 2.889 90 0.26 ≤0.4 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 16 of 38 Test Graphs DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 17 of 38 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 18 of 38 Appendix F: Number of hopping channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 19 of 38 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 20 of 38 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch.Name Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 0.67 -43.67 ≤-19.33 PASS DH5 Ant1 High 2480 0.16 -48.14 ≤-19.84 PASS DH5 Ant1 Low Hop_2402 -0.53 -45.62 ≤-20.53 PASS DH5 Ant1 High Hop_2480 -0.32 -48.44 ≤-20.32 PASS 2DH5 Ant1 Low 2402 0.06 -44.55 ≤-19.94 PASS 2DH5 Ant1 High 2480 0.19 -48.12 ≤-19.81 PASS 2DH5 Ant1 Low Hop_2402 -1.22 -46.55 ≤-21.22 PASS 2DH5 Ant1 High Hop_2480 -0.21 -47.86 ≤-20.21 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 21 of 38 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 22 of 38 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 23 of 38 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 24 of 38 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Appendix Test Data of the Report No.: TZ0384260201FRF01 Page 25 of 38 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference 0.44 0.44 --- PASS DH5 Ant1 2402 30~1000 0.44 -63.22 ≤-19.56 PASS DH5 Ant1 2402 1000~26500 0.44 -34.85 ≤-19.56 PASS DH5 Ant1 2441 0~Reference 0.03 0.03 --- PASS DH5 Ant1 2441 30~1000 0.03 -62.88 ≤-19.97 PASS DH5 Ant1 2441 1000~26500 0.03 -32.57 ≤-19.97 PASS DH5 Ant1 2480 0~Reference 0.07 0.07 --- PASS DH5 Ant1 2480 30~1000 0.07 -61.65 ≤-19.93 PASS DH5 Ant1 2480 1000~26500 0.07 -36.42 ≤-19.93 PASS 2DH5 Ant1 2402 0~Reference 0.15 0.15 --- PASS 2DH5 Ant1 2402 30~1000 0.15 -62…

Text truncated - open the document above for the full version.

Report No.: TZ0384260201PH01 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0384260201PH01 Page 2 of 2 Conducted Emission RF Conducted Test
