2BU5U-HFY528-4KEYRF remote control

规格说明书 Specifications Manual 无线遥控器 RF remote control 瑞影银幕无锡有限公司 Regent Screen (WuXi) CO.,Ltd NO. 165 DONG LANG ROAD, YANIGJIAN TOWN, XISHAN DISTRICT 目 录 一 、概述 ................................. Summary 二、产品特性 .............................. Features 三、应用范围 .............................. Application scope 四、发码格式说明 .......................... Explanation of code transmission format 一 、概述 Summary 学习码遥控器、是一款采用 EV1527/PT2240 等芯片编码的发射装置。是一 种 性价比高、应用广泛的无线遥控编码方式。产品有百万种不同地址编码，有4 个固定按键值，可通固定的键值最多组合生成15个不同的按键。产品有不同外 壳的可选择，可开模订做或按客户的发射格式进行开发，满足不同客户的需求。 The learning code remote control is a transmitting device encoded with chips such as EV1527/PT2240. It is a cost effective and widely applicable wireless remote control encoding method. The product has millions of different address codes and 4 fixed key values, which can generate up to 15 different keys by combining the fixed key values. The product offers different shell options, and can be developed by opening molds for customization or according to the customer’s transmission format to meet different customer needs. 二 、 产品特性 Product Features 发射频率：常用315MHZ/433.92MHZ ( 可做其他频率) Transmission Frequency: 315MHZ/433.92MHZ (Other frequency available) 频率偏差： ±0.2MHZ Frequency Deviation: ±0.2MHZ 调制方式：ASK (调幅) Modulation Mode: ASK 工作电流：18MA(12V 供电)/10MA(3V_6V 供电) Operating current: 18MA (12V) /10MA (3V 6V) 静态电流：OUA Quiescent current: OUA 发射功率：10-15 MW Tx:10-15MW 发射距离：空旷约50米 Trans Dist: about 50m （open） 编码芯片：EV1527/PT2240/HS1527 等 Enc chips: EV1527/PT2240/HS1527, etc 三、 应用范围 Application scope (1)卷帘门，卷帘窗控制器； Roller shutter door and window control (2)道闸门，伸缩门控制器； Boom & retractable gate Ctrl (3) 客车门控制系统； Bus door control system (4) 远程控制系统； Remote control system (5) 智能家居系统； Smart home system (6) 遥控开门机； Remote door opener (7) 无线安防报警器； Wireless security alarm system (8) 遥控窗帘机； Remote curtain opener (9) 无线工业控制器； Wireless industrial controller (10) RGB 灯条，灯带，照明灯具控制； Smart RGB Led strip control system and lighting fixture control 四 、发码格式说明 Code sending format specification 以下仅提供1-2种常见电阻的发射脉宽数据，不同的振荡电阻，发射的脉 宽 会有差异，具体以样品为准。 1-2 common resistance pulse width data are listed below. Pulse width varies by oscillation resistance; refer to the sample for specifics. 芯片/电阻 Chip /Resistor 同步头时间 Synchronization header time 高电平时间 High level time 低电平时间 Low level time EV1527/330K 10.5MS 1MS 360US EV1527/270K 8.6MS 840MS 280US HS1527/270M 10.5MS 1MS 360US 学习码遥控器是一款24位数据的遥控器,前面20位是遥控器的地址数据, 后4位是遥控器的键值.前20位实现百万组不同的地址编码,遥控器地址 同步头时间 百万不 重 复.后4位 无 组 合 的 情 况 下 键 值 分 别 是8 4 2 1 ( 1 6进制),遥控器 键值固定 不变. The 24-bit learning code remote uses 20 bits for unique address (millions of combinations) and 4 fixed hexadecimal key values (8421 format) 学习码遥控器需通过单片机解码，从而实现遥控的一对一的控制。用前遥 控器与接收控制端需要进行遥控配对操作。如下图 MCU 的第5脚外接学 习键， 按下学习键5脚有高低电平变化的时候，程序认为是学习配对状态 ，立即按遥控 器，配对完成，程序退出配对状态。也可通过上电前几秒为 学习状态，按遥控器 任意键，来完成配对。配对为了更直观的看到效果， 如下图的MCU 第三脚可接 一 个 LED 来进行指示，当第五脚有电平变化， 进入学习状态时，可以点亮 LED 来指示，学习成功后 LED 可以闪烁几次 来进行指示。以上二个方法是我们遥控 行业常用的配对方式，程序员也可 以根据自己产品的特点，设计不同的操作方法， 以上仅供参考。 The learning code remote control needs to decode via a microcontroller to achieve one-to-one remote control. Before use, the remote control and the receiving control terminal need to be paired. As shown in the figure, the 5th pin of the MCU is externally connected to a learning button. When the 5th pin has high-low level changes due to pressing the learning button, the program considers it as the learning pairing state. Press the remote control immediately to complete the pairing, and the program exits the pairing state. Alternatively, the learning state can be entered within the first few seconds after power-on, and pairing can be completed by pressing any key on the remote control. For a more intuitive display of the pairing effect, the 3rd pin of the MCU as shown in the figure can be connected to an LED for indication. When the 5th pin has a level change and enters the learning state, the LED can be lit for indication. After successful learning, the LED can flash several times for indication. The above two methods are commonly used pairing methods in the remote control industry. Programmers can also design different operation methods according to the characteristics of their products. The above is for reference only. 地址码：38 CF3 单片机解码在样品的脉宽的基础上，程序放宽正负20%。避免遥控不灵敏或 无 法遥控的现象 The microcontroller decoding relaxes the program by ±20% based on the sample pulse width to avoid remote control insensitivity or failure. 输出编码的格式：Output the encoding format 同步 CO-C19(100万组) D0 D1 D2 D3 同步 ： k——124LCK 12LCK 4LCK 12LCK CLOCK 定 义 ： 1LCK=8 4LCK 个OSC DATA(H): 4LCK K0-K3 按键组合表：K0-K3 (K0-K3 Key Combination Table) K3 K2 K1 K0 D3 D2 D1 D0 0 0 0 1 0 0 0 1 0 0 1 0 0 0 1 0 0 0 1 1 0 0 1 1 0 1 0 0 0 1 0 0 0 1 0 1 0 1 0 1 0 1 1 0 0 1 1 0 0 1 1 1 0 1 1 1 1 0 0 0 1 0 0 0 1 0 0 1 1 0 0 1 1 0 1 0 1 0 1 0 1 0 1 1 1 0 1 1 1 1 0 0 1 1 0 0 1 1 0 1 1 1 0 1 1 1 1 0 1 1 1 0 1 1 1 1 1 1 1 1 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and o…

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BU5U-HFY528-4KEY HFY528-4KEY We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2026-3-16 Signature Date: 2026-3-16 Company Name: GLOCERTS TECHNOLOGY INC Regent Screen (WuXi) Co.,Ltd FRN: 0036339737 0038137279 Contact Name: Huiying Fan Yong Liang Address: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 No.165,DongLangRoad,YangjianT won,XishanDistrict,Wuxi,Jiangsu, China Phone: (626) 588-8039 18626349585 Email: [email protected] [email protected]

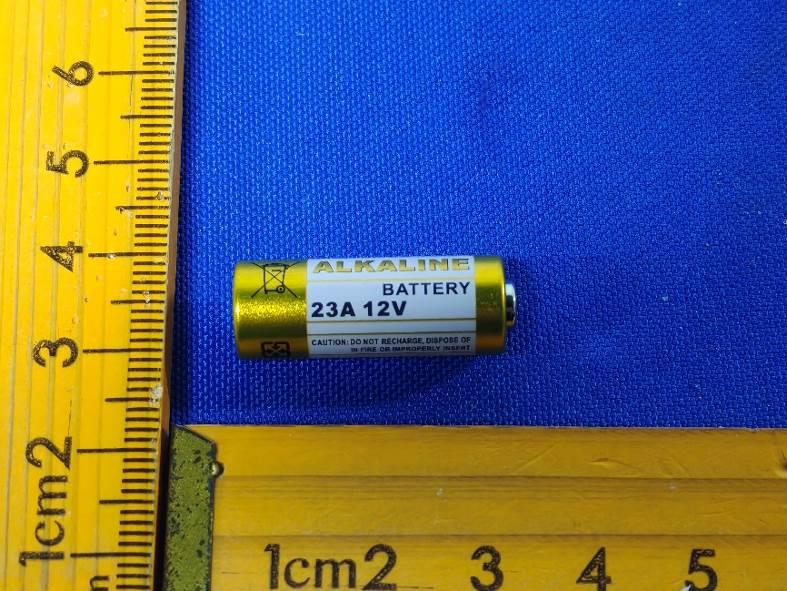

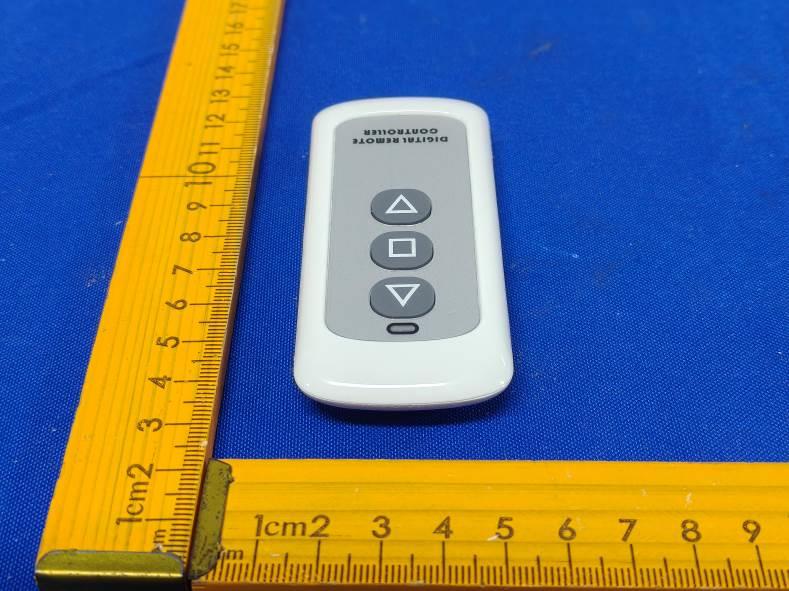

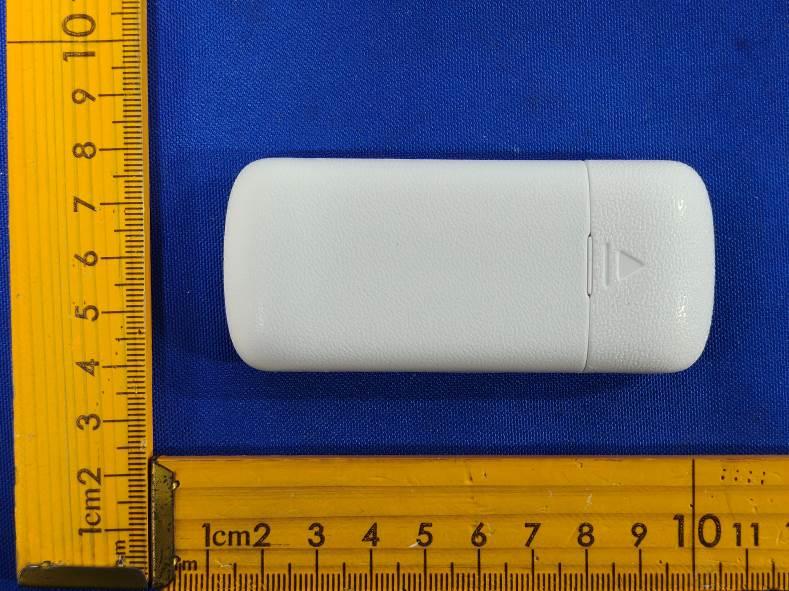

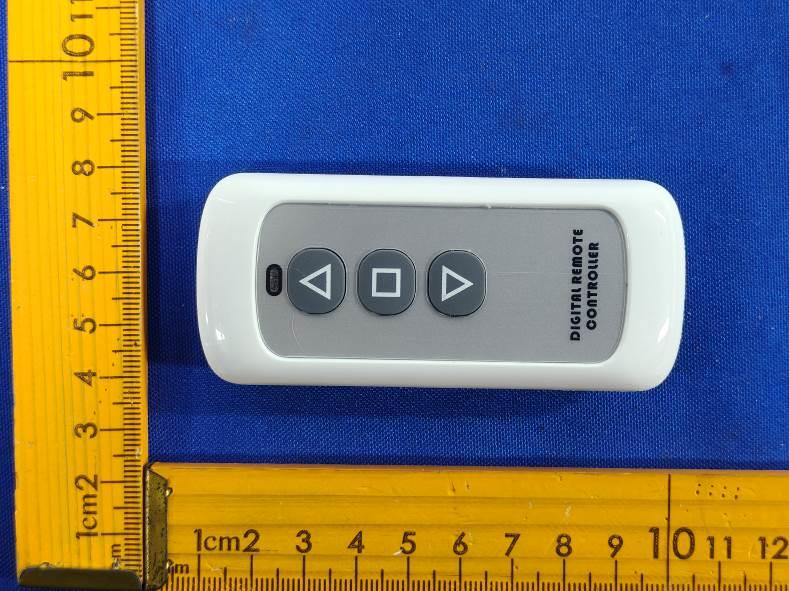

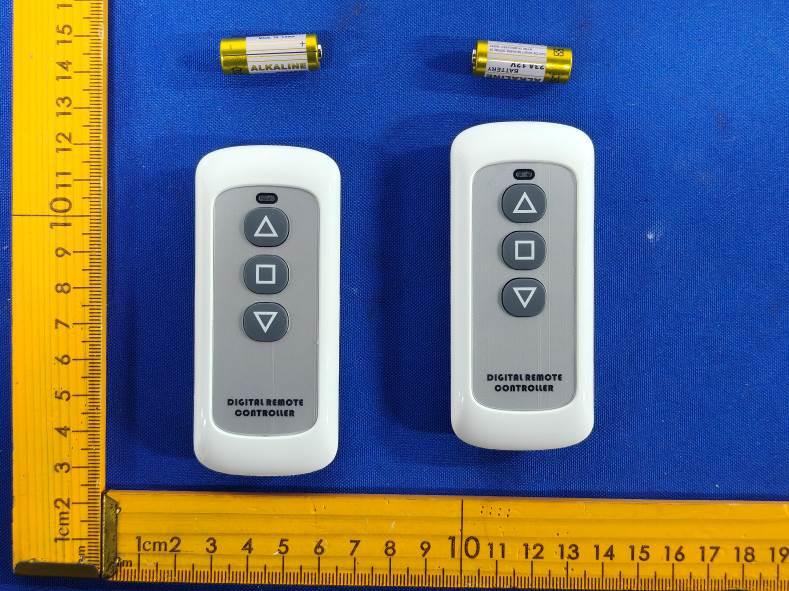

Page 1 of 3 FCC ID: 2BU5U-HFY528-4KEY External photos Page 2 of 3 FCC ID: 2BU5U-HFY528-4KEY Page 3 of 3 FCC ID: 2BU5U-HFY528-4KEY

Label FCC ID: 2BU5U-HFY528-4KEY

Page 1 of 1 FCC ID: 2BU5U-HFY528-4KEY Internal Photo PCB ANT

Page 1 of 7 Report No.: AiTSZ-260309003FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : RF remote control Brand Name : N/A Model : HFY528-4KEY Series Model : N/A FCC ID : 2BU5U-HFY528-4KEY Applicant : Regent Screen (WuXi) Co.,Ltd Address : No.165,DongLangRoad,YangjianTwon,XishanDistrict,Wuxi, Jiangsu, China Manufacturer : Regent Screen (WuXi) Co.,Ltd Address : No.165,DongLangRoad,YangjianTwon,XishanDistrict,Wuxi, Jiangsu, China Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Mar.09, 2026 Date of Test : Mar.09, 2026~ Mar.13, 2026 Issued Date : Mar.13, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 7 Report No.: AiTSZ-260309003FW2 Report Revise Record Report Version Issued Date Notes M0 Mar.13, 2026 Initial Release Page 3 of 7 Report No.: AiTSZ-260309003FW2 Contents 1 GENERAL INFORMATION .......................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................... 6 2.1 APPLICABLE STANDARD.................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTSZ-260309003FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: RF remote control Model/Type reference: HFY528-4KEY Serial Model: N/A Power Supply: DC 12V battery Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-260309003-1(Normal sample) AiTSZ-260309003-2(Engineer sample) SRD : Operation frequency: 315MHz Modulation: ASK Channel number: 1 Antenna type: PCB antenna Antenna gain: 1.5dBi(max) Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual.. Page 5 of 7 Report No.: AiTSZ-260309003FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 1.4 Measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may …

Text truncated - open the document above for the full version.

Page 1 of 25 Report No.: AiTSZ-260309003FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : RF remote control Brand Name : N/A Model : HFY528-4KEY Series Model : N/A FCC ID : 2BU5U-HFY528-4KEY Applicant : Regent Screen (WuXi) Co.,Ltd Address : No.165,DongLangRoad,YangjianTwon,XishanDistrict,Wuxi, Jiangsu, China Manufacturer : Regent Screen (WuXi) Co.,Ltd Address : No.165,DongLangRoad,YangjianTwon,XishanDistrict,Wuxi, Jiangsu, China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.231 Date of Receipt : Mar.09, 2026 Date of Test : Mar.09, 2026~ Mar.13, 2026 Issued Date : Mar.13, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 25 Report No.: AiTSZ-260309003FW1 Report Revise Record Report Version Issued Date Notes M0 Mar.13, 2026 Initial Release Page 3 of 25 Report No.: AiTSZ-260309003FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENGENERAL INFORMATION ................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 7 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 7 3 TEST CONDITIONS AND RESULTS .............................................................................................................................. 9 3.1 CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 11 3.3 20DB BANDWIDTH ..................................................................................................................................................... 18 3.4 DEACTIVATION TIME ................................................................................................................................................... 19 3.5 ANTENNA REQUIREMENT ............................................................................................................................................. 20 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 21 5 PHOTOS OF EUT ..................................................................................................................................................... 22 Page 4 of 25 Report No.: AiTSZ-260309003FW1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.231: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10: 2020: American National Standard for Testing Unlicensed Wireless Devices 1.2 Test Summary FCC Requirements FCC Part 15.207 Conducted Emission N/A FCC Part 15.231(a)(2) Automatically Deactivate PASS FCC Part 15.231(b) Electric Field Strength of Fundamental Emission PASS FCC Part 15.205 &15.209& 15.231(b) Electric Field Strength of Spurious Emission PASS FCC Part 15.231(c) -20dB bandwidth PASS Page 5 of 25 Report No.: AiTSZ-260309003FW1 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limite…

Text truncated - open the document above for the full version.

Shenzhen Huafangyuan Electronics Co., Ltd. Address: Rooms 201 & 205, Building 2, Fukang Road, Pinghu Community, Pinghu Subdistrict, Longgang District, Shenzhen, Guangdong Province, P.R. China 天线规格书 产品名称： 528-4KEY-31 5MHZ 中心频率 输入阻抗 天线类型 基材 拓扑结构 峰值增益 315MHz 士 1 M H z 50 Q 士5% PC B板载 天线 PCB A nt e n n a FR-4 (E =4. 4, tan l>�O. 0 2) L 型 L C 匹 配 网 络 �1. 5 dBi 工作带宽 (V邓R�2.0) : �20 MHz (305 - 325 MHz) ' 6寸 We, Regent Screen (WuXi) Co.,Ltd, states that All measurements were performed radiated and therefore additional antenna gain documentation is not required.

Page 1 of 1 FCC ID: 2BU5U-HFY528-4KEY
