2BU69-P70Fully automatic anti-theft lock - Tuya Wifi

AUTOMATIC SMART LOCK Installation and Setup Instructions 19 Operating menu ( 2 ) Record Query 4.Information query2.Record query1、Sequential search 4.Information query2.Record query 1、Sequential search Enter the time you want to search (Time is month and year) ① Sequential Search Note: Sequential query is to start with the current latest information and go down, press key 8 to query the next one and key 2 to query the previous one. ② Search By Time Fully automatic anti-theft lock - Tuya Wifi P70 0102 Parameters Size (mm) Camera Facial Display Screen Code Card Doorbell Locked key Indicator light Cylinder cover (Cylinder+Type-C) Front handle Unlocking Button Locked Button Camera display Camera touch button Handle Anti-lock knob Rear panel component Camera lens Decorative cover Fingerprint (Concealed) Hole Speaker hole 70 23 75 32 420 27 67 67 423 03 Door lock installation Cylinder installation Front panel Tapping stud Rear Base Plate + Silicone Pad Panel positioning screw Lithium battery Camera screen Tapping screw Rear panel Mortise Decorative cover Knob tail Cylinder positioning screw Spindle Spindle spring Cylinder Mortise positioning stud Length of lock cylinder tail protruding from door panel: 18-21mm Cylinder Cylinder screw Cable hole Spindle hole Cable hole Spindle hole 1.1 Installation of the cylinder: install the lock cylinder to the position as shown in the picture, use a M5 screw to fix the cylinder, check the length of the tail shaft of the cylinder, the length of the protruding door plate: 18-21mm, need to cut off the excess part. Screw 04 1.2.1 Screw the Tapping stud and positioning stud to the front panel, and then lead the connect- ing wires of the front panel and the camera through the door panel to the indoor direction, align the position of the lock cylinder, and install it into the front panel. 1.2.2 first load the spindle suitable for the door thickness (hit point near the end of the door towards the outside), the front panel is adjusted, with two M5 screws through the rear plate to fix the front panel, before tightening the screws, be sure to adjust the spindle and the cylinder to the center of the corresponding round hole in the rear plate position. 05 Front panel installation-1Front panel installation-2 Screw Spindle 06 Front panel Tapping stud Positioning stud Cable hole Spindle hole 1.3.2 Fix the rear panel with three M5 screws, rotate the rear handle and anti-lock knob to see if it rotates smoothly (if it does not rotate smoothly, please refer to 1.2 Installation Steps to adjust the rear bottom plate so that the spindle and the cylinder are in the center of the rear bottom plate hole). 1.3.1 First, cut the cylinder tail to the appropriate length according to the door thickness, insert the connectors of the front panel and the camera with the corresponding connectors of the rear panel, load the spindle spring (big end facing inward), align the holes, and load the rear panel. 07 Rear panel installation-1 Rear panel installation-2 Spindle spring Panel positioning screw 08 1.3.3 load the lithium battery, cover the battery cover and decorative cover, test whether the mechanical key can open and close the lock normally, test whether the door lock can be used normally. (The factory lock defaults to the left, if the direction is not right, please refer to the manual to set the locking direction) 09 Rear panel installation-3Appendix 1-2 Lithium battery Camera screen Decorative cover 10 Attachment-1: Emergency spare key and emergency charging method (as shown above) If there is an emergency situation such as forgetting the password, running out of battery power or abnormal circuitry that prevents you from unlocking the door, you can use the emergency spare key to unlock the door or use the rechargeable battery for emergency power supply to unlock the door. 1. Press and hold this button with your thumb downward. 2. Turn the handle to the left/right about 60 degrees 3. Return the handle to the right after use. Attachment-2: Battery cover removal and mounting operation Attention: Since there is an electronic part of the cat's eye module inside the battery cover, be careful to prevent the battery cover from falling off during operation. Emergency power port Cylinder hole 60° 1. Press the two holes of the battery cover at the same time to make the top end of the battery cover pop up; 2. After the battery cover pops up, remove the battery in an upward direction. Attachment-3.2 Unscrew the fixing screws, remove the geared motor, put the motor back in alignment with the corresponding positioning marks, and tighten the fixing screws; Note: Make sure that the damping pads do not fall off during operation. Note: Ensure that the damping pads do not fall off during operation. 72 mortise position 68 mortise position 85 mortise position Vibration dampener Motor Screw Attachment-3.1 The panel is engraved with the corresponding positioning mark of each lock body, installation attention to distinguish; 1112 Appendix 3 (switching installation operation of locks 68, 72, 85)Parameters Fingerprint Capture head resolution Rejection rate False recognition rate Fingerprint collection range Card type User capacities Operating record Battery life Operating voltage Static power consumption Recognition time Keypad type OLED display External emergency power Antistatic capability Storage temperature Operating temperature Environmental humidity Self-learning capacitive fingerprint head 508dpi ＜0.1% ＜0.001％ ±180° M1 Rolling 600 Unlocking ≥3000 times 7.0V~8.4V,low voltage alarm voltage6.8±0.2V ≤200uA(Average power consumption) ≤3s,(Including the whole process of fingerprint acquisition, comparison and unlocking signal output.) Touch sensitive 0.96’’ LCD 5V1A Type-c ≥8KV(contact)≥15KV(contactless) －25°C ～ 80°C －25°C ～ 70°C 15%RH～ 93%RH Total capacity 250 groups: up to 100 fingerprints, up to 100 passwords, up to 50 faces, up to 100 cards. Administrator ID range 000-009, general user ID range 010-249 功能与操作 13…

Text truncated - open the document above for the full version.

Zhongshan Jianxin Intelligent Technology Co., LTD Covered Equipment Certification Attestation Letter 3/10/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BU69-P70 Zhongshan Jianxin Intelligent Technology Co., LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Zhongshan Jianxin Intelligent Technology Co., LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Zhongshan Jianxin Intelligent Technology Co., LTD (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature>: Name: Jack Bu Title: Manager Company: Zhongshan Jianxin Intelligent Technology Co., LTD Date: 3/10/2026

Zhongshan Jianxin Intelligent Technology Co., LTD * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 3/2/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BU69-P70 FRN of applicant: 0038148953 Per section 2.911(d)(7) of the FCC rules, [Zhongshan Jianxin Intelligent Technology Co., LTD] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Herland International Trading Inc FCC Registration Number (FRN): 0036324101 Physical U.S. Company Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Contact Person: Jianfeng Gao Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Jack bu Title: Manager Company Name: Zhongshan Jianxin Intelligent Technology Co., LTD Date: 3/2/2026 Agent Signed (if different from Applicant): Signed: Printed name: Jianfeng Gao Title: Manager Company Name: Herland International Trading Inc Date: 3/2/2026

Zhongshan Jianxin Intelligent Technology Co., LTD 2026-02-25 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen DL Testing Technology Co., Ltd.（101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China）to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Zhongshan Jianxin Intelligent Technology Co., LTD（1st Floor, Building D, No. 1-1, Industrial Avenue, Jidong 2nd Community, Xiaolan Town, Zhongshan City） <Signature>: Name: Jack Bu Title: Manager Company: Zhongshan Jianxin Intelligent Technology Co., LTD

Zhongshan Jianxin Intelligent Technology Co., LTD 2026-02-25 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature>: Name: Jack Bu Title: Manager Company: Zhongshan Jianxin Intelligent Technology Co., LTD

Zhongshan Jianxin Intelligent Technology Co., LTD 2026-02-25 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BU69-P70 Product Name: Fully automatic anti-theft lock - Tuya Wifi Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Jack Bu Title: Manager Company: Zhongshan Jianxin Intelligent Technology Co., LTD

Zhongshan Jianxin Intelligent Technology Co., LTD 2BU69-P70 Product Similarity Declaration Applicant: Zhongshan Jianxin Intelligent Technology Co., LTD Address: 1st Floor, Building D, No. 1-1, Industrial Avenue, Jidong 2nd Community, Xiaolan Town, Zhongshan City Manufacturer: Zhongshan Jianxin Intelligent Technology Co., LTD Address: 1st Floor, Building D, No. 1-1, Industrial Avenue, Jidong 2nd Community, Xiaolan Town, Zhongshan City Product Name: Fully automatic anti-theft lock - Tuya Wifi Trade Mark: N/A Model Number: P70, P20, P20Ai, P30, P60, P80, P90 We (Zhongshan Jianxin Intelligent Technology Co., LTD) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), All models are the same as the samples except for the model name and appearance color. <Signature>: Name: Jack Bu Title: Manager Company: Zhongshan Jianxin Intelligent Technology Co., LTD

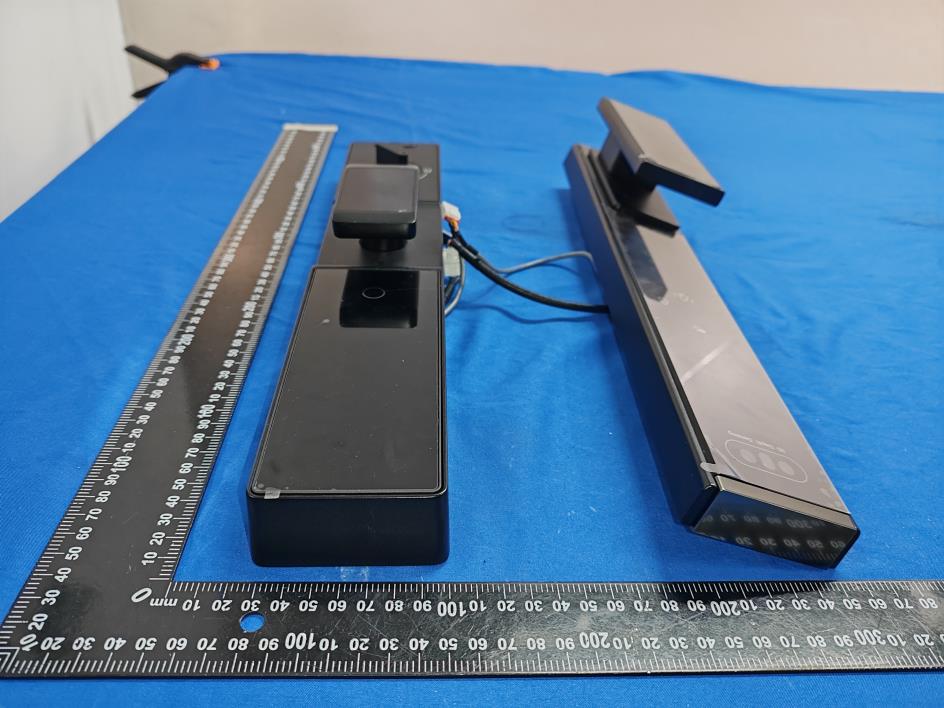

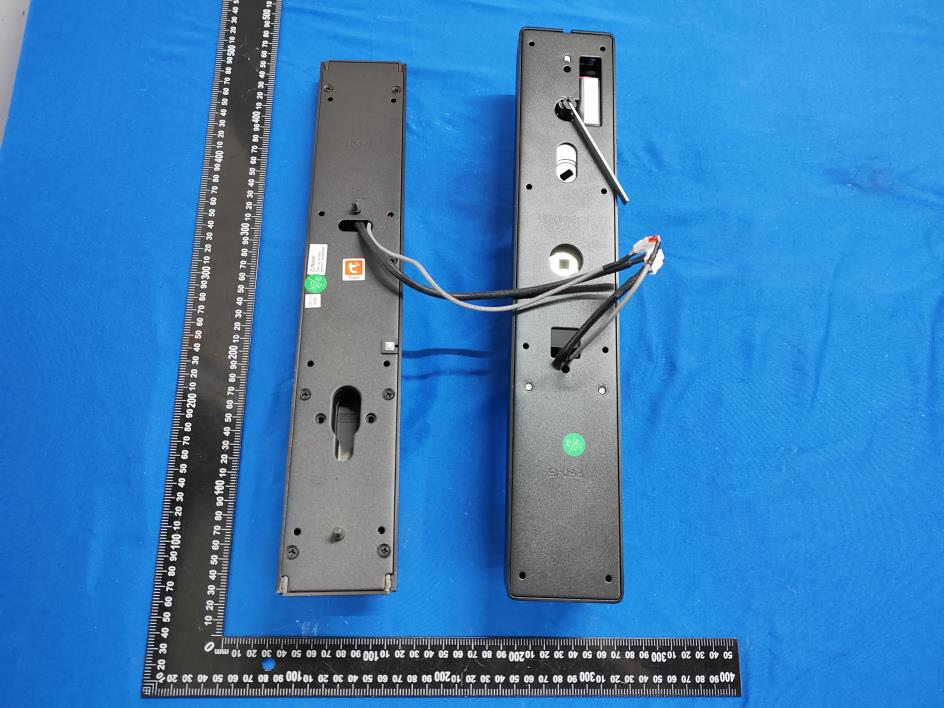

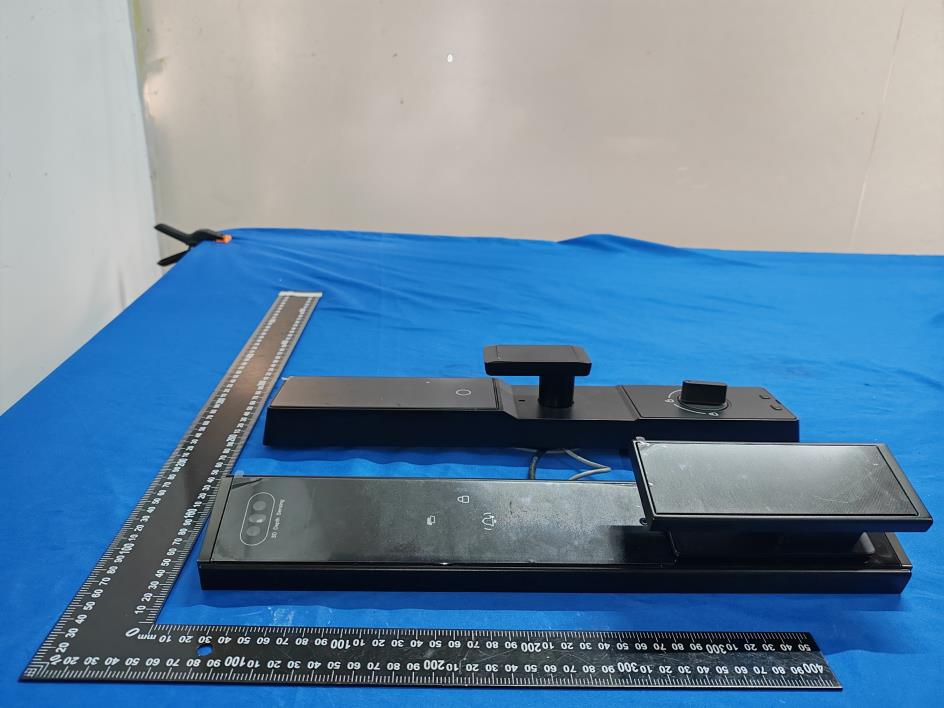

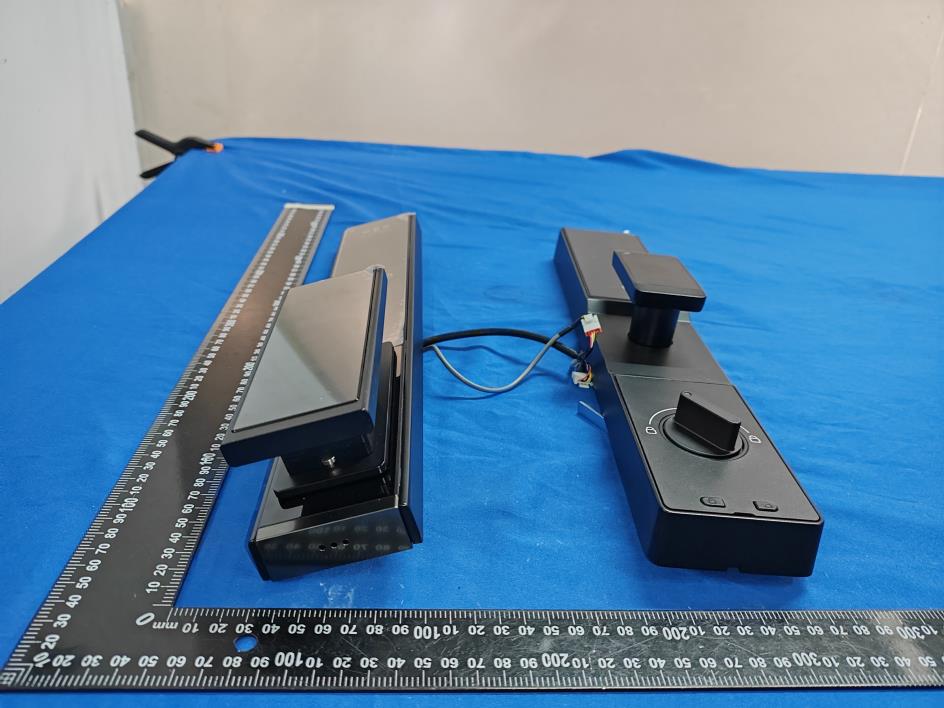

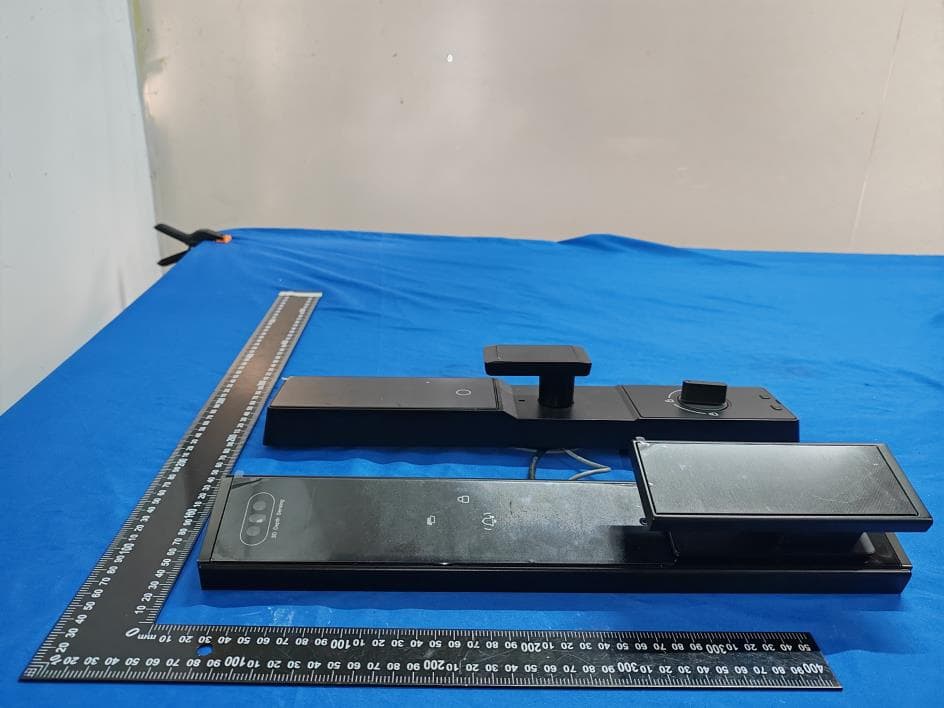

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size: 22*18mm Model.: P70 FCC ID: 2BU69-P70 Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. NFC ANT WIFI ANT Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BU69-P70 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in KDB 447498 D01 V06 and 1.1307(b) and 2.1091 Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Test Result of RF Exposure Evaluation For BLE Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 19.24 83.946 0.0353 1.0 PASS Remark: antenna gain=3.25dBi For NFC Field strength (dBuV/m) Max Output power (dBm) Max Output power (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 65.60 -29.6 0.0011 0.0000002 1.0 PASS Remark: antenna gain=0dBi For Simultaneous transmitting, 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits =0.0353/1 + 0.0000002/1 = 0.0353002< 1 Since the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in the device is ≤ 1.0, the EUT is considered to satisfy MPE compliance for simultaneous transmission operations.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260105060R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 52 FCC Part 15C Test Report FCC ID: 2BU69-P70 Applicant: Zhongshan Jianxin Intelligent Technology Co., LTD Address: 1st Floor, Building D, No. 1-1, Industrial Avenue, Jidong 2nd Community, Xiaolan Town, Zhongshan City Manufacturer: Zhongshan Jianxin Intelligent Technology Co., LTD Address: 1st Floor, Building D, No. 1-1, Industrial Avenue, Jidong 2nd Community, Xiaolan Town, Zhongshan City Product Name: Fully automatic anti-theft lock - Tuya Wifi Trade Mark: N/A Model Number: P70, P20, P20Ai, P30, P60, P80, P90 Date of Receipt: Jan. 05, 2026 Test Date: Jan. 05, 2026 - Jan. 19, 2026 Date of Report: Jan. 19, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-260105060R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260105060R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 52 Table of Contents Page 1. . SUMMARY OF TEST RESULTS 4 1.1. MEASUREMENT UNCERTAINTY 4 2. . GENERAL INFORMATION 5 2.1. GENERAL DESCRIPTION OF EUT 5 2.2. DESCRIPTION OF TEST MODES 6 2.3. BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4. DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5. TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6. EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3. . EMC EMISSION TEST 9 3.1. CONDUCTED EMISSION MEASUREMENT 9 3.1.1. POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2. TEST PROCEDURE 9 3.1.3. DEVIATION FROM TEST STANDARD 9 3.1.4. TEST SETUP 10 3.1.5. EUT OPERATING CONDITIONS 10 3.1.6. TEST RESULTS 10 3.2. RADIATED EMISSION MEASUREMENT 13 3.2.1. RADIATED EMISSION LIMITS 13 3.2.2. TEST PROCEDURE 14 3.2.3. DEVIATION FROM TEST STANDARD 14 3.2.4. TEST SETUP 14 3.2.5. EUT OPERATING CONDITIONS 15 3.2.6. TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7. TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8. TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 29 3.4.1 APPLICABLE STANDARD 29 3.4.2 TEST PROCEDURE 29 3.4.3 DEVIATION FROM STANDARD 29 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260105060R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 52 Table of Contents Page 3.4.4 TEST SETUP 29 3.4.5 EUT OPERATION CONDITIONS 29 3.4.6 TEST RESULTS 29 4. . AVERAGE OUTPUT POWER 34 4.1. APPLIED PROCEDURES / LIMIT 34 4.1.1. TEST PROCEDURE 34 4.1.2. DEVIATION FROM STANDARD 34 4.1.3. TEST SETUP 34 4.1.4. EUT OPERATION CONDITIONS 34 4.1.5. TEST RESULTS 35 5. . POWER SPECTRAL DENSITY TEST 38 5.1. APPLIED PROCEDURES / LIMIT 38 5.1.1. TEST PROCEDURE 38 5.1.2. DEVIATION FROM STANDARD 38 5.1.3. TEST SETUP 38 5.1.4. EUT OPERATION CONDITIONS 38 5.1.5. TEST RESULTS 39 6. . 6DB BANDWIDTH TEST 42 6.1. APPLIED PROCEDURES / LIMIT 42 6.1.1. TEST PROCEDURE 42 6.1.2. DEVIATION FROM STANDARD 42 6.1.3. TEST SETUP 42 6.1.4. EUT OPERATION CONDITIONS 42 6.1.5. TEST RESULTS 43 7. . DUTY CYCLE TEST SIGNAL 48 7.1. APPLIED PROCEDURES / LIMIT 48 7.1.1. TEST PROCEDURE 48 7.1.2. DEVIATION FROM STANDARD 48 7.1.3. TEST SETUP 48 7.1.4. EUT OPERATION CONDITIONS 48 7.1.5. TEST RESULTS 49 8. . ANTENNA REQUIREMENT 52 8.1. STANDARD REQUIREMENT 52 8.2. EUT ANTENNA 52 9. . TEST SEUUP PHOTO 52 10. . EUT PHOTO 52 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260105060R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 52 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.209, 15.205 Band Edge Emission PASS 15.247(d) Conducted Spurious Emissions PASS 15.247(b) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2% 9 Power Spectral Density ±2.45dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260105060R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 52 2.. GENERAL INFORMATION 2.1. GENERAL DESCRIPTION OF EUT Product Name: Fully automatic anti-theft lock - Tuya Wifi Trade Mark: N/A Model Number: P70, P20, P20Ai, P30, P60, P80, P90 Test Model: P70 Mod…

Text truncated - open the document above for the full version.

_______________________________________________________________________________________________________________ Antenna Specification Manufacture：TUYA Product Name：PCB Antenna Antenna Type：PCB Test Date：2024.6.28 Tested by：Zhang Yinhua Approved by：Licco _______________________________________________________________________________________________________________ Content 1.General Description.........................................................................................................1 2.Test Configurations.........................................................................................................2 2.1 Test Environment......................................................................................................2 2.2 Test Equipment.........................................................................................................2 2.3 Test Principle............................................................................................................2 3.Test Results.....................................................................................................................3 3.1 Gain and Efficiency...................................................................................................3 3.2 Radiation Pattern......................................................................................................4 4.Antenna Dimensions......................................................................................................6 5.EUT Photo........................................................................................................................6 6.Test Setup Photo............................................................................................................7 _______________________________________________________________________________________________________________ 1.GeneralDescription Manufacturer Hangzhou Tuya Information Technology Co.,Ltd Address Room301, Building1, Huace Center, Xihu District, Hangzhou City, Zhejiang Province, China Test Location Room106, Building 3, Letong Science Park, No. 500, Qiuyi Road, Binjiang District, Hangzhou Product Name PCB Antenna Product model N/A AntennaType PCB Antenna TestItems Gain; Efficiency; Radiation Pattern Test Frequency 2400-2500MHz Test Standard ANSI/IEEE Std 149-1979 _______________________________________________________________________________________________________________ 2.Test Configurations 2.1 Test Environment Temperature (°C) 25 Humidity (%RH) 60 Atmospheric Pressure (kPa) 100.5 2.2 Test Equipment Test System TEM 24 Multi-probe Microwave Chamber Test Instrument Agilent E5071B 2.3 Test Principle _______________________________________________________________________________________________________________ 3.TestResults 3.1GainandEfficiency _______________________________________________________________________________________________________________ 3.2 Radiation Pattern _______________________________________________________________________________________________________________ _______________________________________________________________________________________________________________ 4.Antenna Dimensions 5.EUT Photo

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※
