2BU6L-DP-10ASmart WiFi Digital Picture Frame

KPK U E U se r M a n u a l M o d e l : D P - 10 S m ar t W i F i D i g i t a l P i c t ur e F r a m e A h a n k y o u f o r c h oos i n g o u r p ro d u c t . E n su r e t h o r ou g h r e a d i n g o f t h e man u g l b e f o r e c o nnec t i n g t o p ow e r an d p ow e r i n g o n t h e d e v i c e FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen shi zhi long tao ke ji you xian gong si Xixiangjiedao yantianshequ jinhailu huichaokeji dasha509 Shenzhenshi baoanqu guang dong sheng 518000 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/03/16 U.S. Agent Designation Shenzhen shi zhi long tao ke ji you xian gong si acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BU6L-DP-10A): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen shi zhi long tao ke ji you xian gong si with the FRN [0038143442] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Manager Sally Wang Shenzhen shi zhi long tao ke ji you xian gong si Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

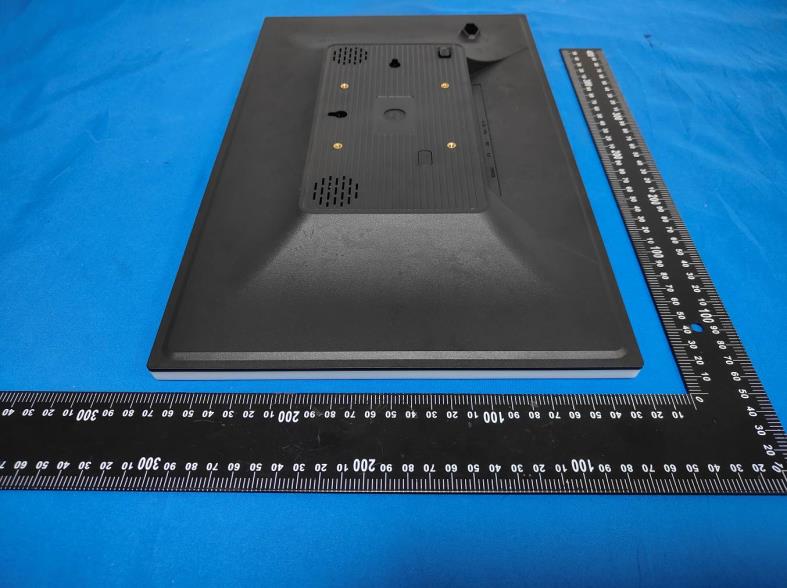

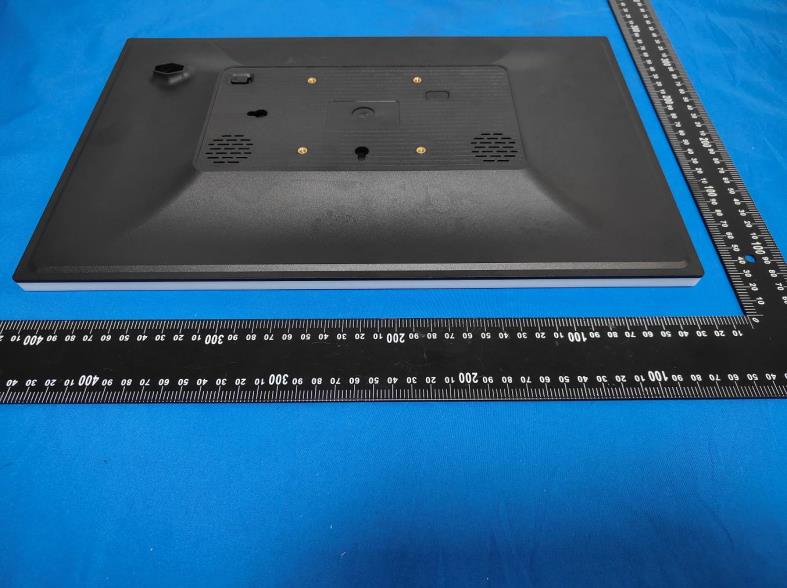

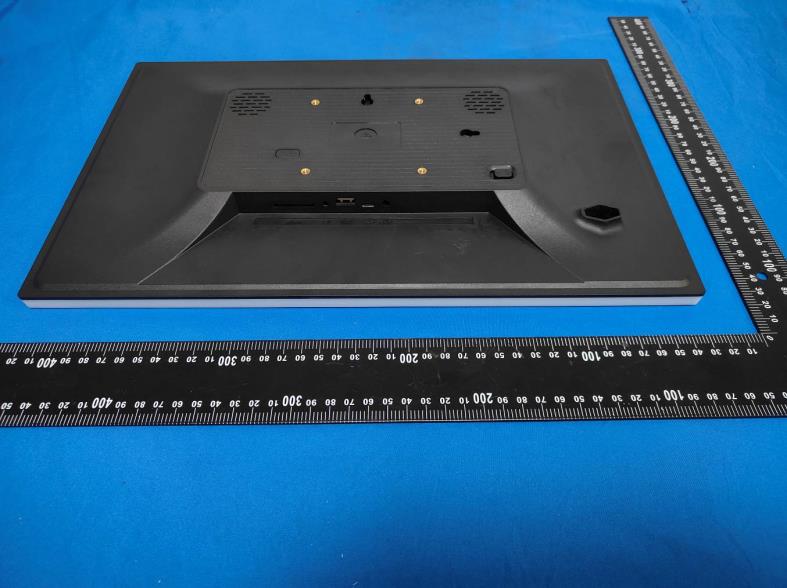

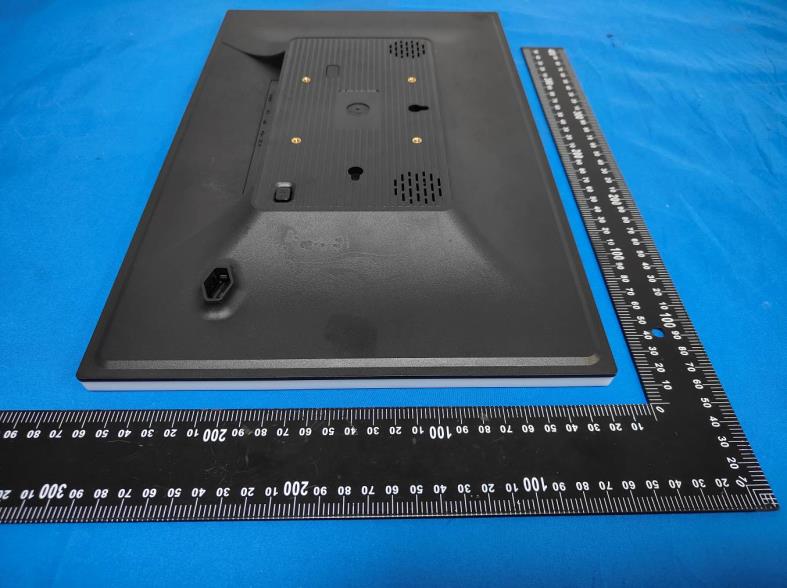

FCC ID: 2BU6L-DP-10A External Photos of the EUT FCC ID: 2BU6L-DP-10A FCC ID: 2BU6L-DP-10A

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BU6L-DP-10A

FCC ID: 2BU6L-DP-10A Internal Photos of the EUT FCC ID: 2BU6L-DP-10A 2.4G WIFI ANT FCC ID: 2BU6L-DP-10A

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .................... : FCC ID. ........................................... : CTA26030901002 2BU6L-DP-10A Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 12, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen shi zhi long tao ke ji you xian gong si Address ........................................... : Xixiangjiedao yantianshequ jinhailu huichaokeji dasha509 Shenzhenshi baoanqu guang dong sheng 518000 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart WiFi Digital Picture Frame Trade Mark ....................................... : KPKUE Manufacturer .................................... : Shenzhen shi zhi long tao ke ji you xian gong si Model/Type reference ...................... : DP-10A Listed Models ................................... : N/A Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA26030901002 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart WiFi Digital Picture Frame Model /Type : DP-10A Listed Models : N/A Applicant : Shenzhen shi zhi long tao ke ji you xian gong si Address : Xixiangjiedao yantianshequ jinhailu huichaokeji dasha509 Shenzhenshi baoanqu guang dong sheng 518000 China Manufacturer : Shenzhen shi zhi long tao ke ji you xian gong si Address : Xixiangjiedao yantianshequ jinhailu huichaokeji dasha509 Shenzhenshi baoanqu guang dong sheng 518000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26030901002 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26030901002 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai …

Text truncated - open the document above for the full version.

Acknowledgment Client: Dazhou Project Name: Digital Photo Frame Frequency band:WIFI/2.4G date: 2026.3.5 Version：R:A R & D Structure: Wang Gong by:Reviewed Wei Chunyan by:Approved Chen Qinmin Reviewed by: Wei Chunyan by:Reviewed Wei Chunyan HDZX-J 2066 BLACK LINE LENGTH 120mm generation terminal 2.4G WIFI antenna Customer Review: Customer Approval: Manufacturer: Shenzhen shi zhi long tao ke ji you xian gong si Address：Xixiangjiedao yantianshequ jinhailu huichaokeji dasha509 Shenzhenshi baoanqu guang dong sheng 518000 China 第2页- contents contents ........................................................................................................................................................................... 1 1. PROJECT INFORMATION AND ELECTRICAL SPECIFICATION ................................. 3 1-1 Project picture ............................................................................................................................................................ 3 1-2 Frequency Band: ........................................................................................................................................................ 3 1-3 Impedance matching .................................................................................................................................................. 3 Physical diagram corresponding to antenna model HDZX-J 2066 BLACK LINE LENGTH 120mm generation terminal 2.4G WIFI antenna 2.VSWR ...............................................................................................................................3 2-1 Measuring Method: .................................................................................................................................................... 3 2-2 S11 parameter values .............................................................................................................................................. 4 3. EFFICIENCY AND GAIN ..............................................................................................4 3-1 Efficiency/Peak Gain- WIFI ...................................................................................................................................... 5 4. THE PRODUCTION INDEX.............................................................................................6 第3页- 1. Project information and Electrical Specification Those specifications were specially defined for WIFI/BT model, and all characteristics were measured under the model’s handset testing jig . 1-1 Project picture 1-2 Frequency Band: Frequency Band MHz WiFi/BT 2400-2500 Antenna gain 1.5db cable loss 0.5dbm 1-3 Impedance matching Antenna original matching 2.VSWR 2-1 Measuring Method: 1. A 50Ωcoaxial cable is connected to the antenna. Then this cable 第4页- is connected to a network analyzer to measure the VSWR, 2. Keeping this jig away from metal at least 20cm. Test schematic shown below： 2-2 S11 parameter values Frequency (MHZ) 2400 2500 Standing wave 1.3 1.4 2. Efficiency and Gain 3. *measuring and test instruments: 第5页- Microwave anechoic chamber, Agilent network analyzer, Agilent spectrum analyzer, 8960 integrated tester, standard antenna *test method: Equipment the H plane is placed at the center of the turntable and fixed on the same horizontal line with the center of the horn antenna. 3-1 Efficiency/Peak Gain- WIFI 第6页- 4. The production index During mass production of antenna, the standing wave ratio is taken as the mass production test standard. According to the difference of the project itself, the following standards are given: Frequency mass production standard WIFI /BT(2400-2500MHZ) VSWR (mass production) < VSWR (design sample) + +0.5

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26030901001 2BU6L-DP-10A Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 12, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen shi zhi long tao ke ji you xian gong si Address ............................................ : Xixiangjiedao yantianshequ jinhailu huichaokeji dasha509 Shenzhenshi baoanqu guang dong sheng 518000 China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Smart WiFi Digital Picture Frame Trade Mark ....................................... : KPKUE Manufacturer .................................... : Shenzhen shi zhi long tao ke ji you xian gong si Model/Type reference ...................... : DP-10A Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA26030901001 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart WiFi Digital Picture Frame Model /Type : DP-10A Listed Models : N/A Applicant : Shenzhen shi zhi long tao ke ji you xian gong si Address : Xixiangjiedao yantianshequ jinhailu huichaokeji dasha509 Shenzhenshi baoanqu guang dong sheng 518000 China Manufacturer : Shenzhen shi zhi long tao ke ji you xian gong si Address : Xixiangjiedao yantianshequ jinhailu huichaokeji dasha509 Shenzhenshi baoanqu guang dong sheng 518000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26030901001 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditi…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BU6L-DP-10A Company : Shenzhen shi zhi long tao ke ji you xian gong si EUT : Smart WiFi Digital Picture Frame Model Number : DP-10A Report No. : CTA26030901001 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.160 2431.960 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.640 2404.240 2419.880 0.5 PASS 2437 15.720 2429.040 2444.760 0.5 PASS 2462 15.720 2454.040 2469.760 0.5 PASS 11N20SISO Ant1 2412 16.920 2403.440 2420.360 0.5 PASS 2437 16.560 2428.600 2445.160 0.5 PASS 2462 16.640 2453.480 2470.120 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.393 2405.3447 2418.7377 --- --- 2437 13.386 2430.3366 2443.7226 --- --- 2462 13.408 2455.3068 2468.7148 --- --- 11G Ant1 2412 16.867 2403.6830 2420.5500 --- --- 2437 16.794 2428.6518 2445.4458 --- --- 2462 16.857 2453.5932 2470.4502 --- --- 11N20SISO Ant1 2412 17.905 2403.0600 2420.9650 --- --- 2437 17.876 2428.0880 2445.9640 --- --- 2462 17.887 2453.0830 2470.9700 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.25 ≤30.00 PASS 2437 14.41 ≤30.00 PASS 2462 14.51 ≤30.00 PASS 11G Ant1 2412 14.17 ≤30.00 PASS 2437 14.37 ≤30.00 PASS 2462 14.49 ≤30.00 PASS 11N20SISO Ant1 2412 14.16 ≤30.00 PASS 2437 14.33 ≤30.00 PASS 2462 14.40 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.01 ≤8.00 PASS 2437 -11.10 ≤8.00 PASS 2462 -11.58 ≤8.00 PASS 11G Ant1 2412 -17.00 ≤8.00 PASS 2437 -17.57 ≤8.00 PASS 2462 -17.09 ≤8.00 PASS 11N20SISO Ant1 2412 -16.06 ≤8.00 PASS 2437 -16.54 ≤8.00 PASS 2462 -16.71 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.81 -46.6 ≤-18.19 PASS High 2462 2.48 -54.52 ≤-17.53 PASS 11G Ant1 Low 2412 -2.16 -34.21 ≤-22.16 PASS High 2462 -1.90 -56.88 ≤-21.9 PASS 11N20SIS O Ant1 Low 2412 -2.17 -33.74 ≤-22.17 PASS High 2462 -2.22 -57.19 ≤-22.22 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.27 1.27 --- PASS 30~1000 1.27 -68.14 ≤-18.73 PASS 1000~26500 1.27 -55.43 ≤-18.73 PASS 2437 Reference 1.82 1.82 --- PASS 30~1000 1.82 -68.05 ≤-18.18 PASS 1000~26500 1.82 -55.09 ≤-18.18 PASS 2462 Reference 1.58 1.58 --- PASS 30~1000 1.58 -68.04 ≤-18.42 PASS 1000~26500 1.58 -54.24 ≤-18.42 PASS 11G Ant1 2412 Reference -2.30 -2.30 --- PASS 30~1000 -2.30 -35.42 ≤-22.3 PASS 1000~26500 -2.30 -54.32 ≤-22.3 PASS 2437 Reference -2.26 -2.26 --- PASS 30~1000 -2.26 -67.96 ≤-22.26 PASS 1000~26500 -2.26 -55 ≤-22.26 PASS 2462 Reference -2.26 -2.26 --- PASS 30~1000 -2.26 -68.38 ≤-22.26 PASS 1000~26500 -2.26 -54.6 ≤-22.26 PASS 11N20SISO Ant1 2412 Reference -3.59 -3.59 --- PASS 30~1000 -3.59 -67.05 ≤-23.59 PASS 1000~26500 -3.59 -54.6 ≤-23.59 PASS 2437 Reference -2.32 -2.32 --- PASS 30~1000 -2.32 -67.76 ≤-22.32 PASS 1000~26500 -2.32 -54.73 ≤-22.32 PASS 2462 Reference -2.30 -2.30 --- PASS 30~1000 -2.30 -68.49 ≤-22.3 PASS 1000~26500 -2.30 -55.18 ≤-22.3 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.15 0.19 78.95 1.03 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.22 81.82 0.87 5.56 2437 0.17 0.22 77.27 1.12 5.88 2462 0.18 0.22 81.82 0.87 5.56 35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437

37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462 39 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequency[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.98 2.00 0.03 37.25 ≤54 PASS AV 2386.060 -54.71 2.00 0.03 42.52 ≤54 PASS AV 2390.000 -56.89 2.00 0.03 40.34 ≤54 PASS Peak 2310.000 -52.02 2.00 0.00 45.18 ≤74 PASS Peak 2385.540 -46.54 2.00 0.00 50.66 ≤74 PASS Peak 2390.000 -49.73 2.00 0.00 47.47 ≤74 PASS High 2462 AV 2483.500 -56.09 2.00 0.03 41.14 ≤54 PASS AV 2488.290 -55.02 2.00 0.03 42.21 ≤54 PASS AV 2500.000 -58.26 2.00 0.03 38.97 ≤54 PASS Peak 2483.500 -49.09 2.00 0.00 48.11 ≤74 PASS Peak 2486.860 -45.98 2.00 0.00 51.22 ≤74 PASS Peak 2500.000 -51.02 2.00 0.00 46.18 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.95 2.00 1.03 38.28 ≤54 PASS AV 2383.850 -58.65 2.00 1.03 39.58 ≤54 PASS AV 2390.000 -58.98 2.00 1.03 39.25 ≤54 PASS Peak 2310.000 -51.33 2.00 0.00 45.87 ≤74 PASS Peak 2344.980 -48.9 2.00 0.00 48.30 ≤74 PASS Peak 2390.000 -52.94 2.00 0.00 44.26 ≤74 PASS High 2462 AV 2483.500 -58.95 2.00 1.25 39.50 ≤54 PASS AV 2486.530 -58.33 2.00 1.25 40.12 ≤54 PASS AV 2500.000 -59.37 2.00 1.25 39.08 ≤54 PASS Peak 2483.500 -50.89 2.00 0.00 46.31 ≤74 PASS Peak 2498.630 -48.87 2.00 0.00 48.33 ≤74 PASS Peak 2500.000 -50.79 2.00 0.00 46.41 ≤74 PASS 11N20SISO Ant1 Low 2412 AV 2310.000 -59.46 2.00 0.87 38.61 ≤54 PASS AV 2388.010 -58.52 2.00 0.87 39.55 ≤54 PASS AV 2390.000 -59.1 2.00 0.87 38.97 ≤54 PASS Peak 2310.000 -52.05 2.00 0.00 45.15 ≤74 PASS Peak 2384.630 -48.49 2.00 0.00 48.71 ≤74 PASS Peak 2390.000 -51.22 2.00 0.00 45.98 ≤74 PASS High 2462 AV 2483.500 -58.3 2.00 0.87 39.77 ≤54 PASS AV 2484.770 -58.24 2.00 0.87 39.83 ≤54 PASS AV 2500.000 -59.24 2.00 0.87 38.83 ≤54 PASS Peak 2483.500 -50.05 2.00 0.00 47.15 ≤74 PASS Peak 2490.490 -48.25 2.00 0.00 48.95 ≤74 PASS Peak 2500.000 -51.35 2.00 0.00 45.85 ≤74 PASS 40 Note: The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 41 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 42 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 43 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 44 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 45 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak

FCC ID: 2BU6L-DP-10A Test Setup Photos of the EUT FCC ID: 2BU6L-DP-10A
