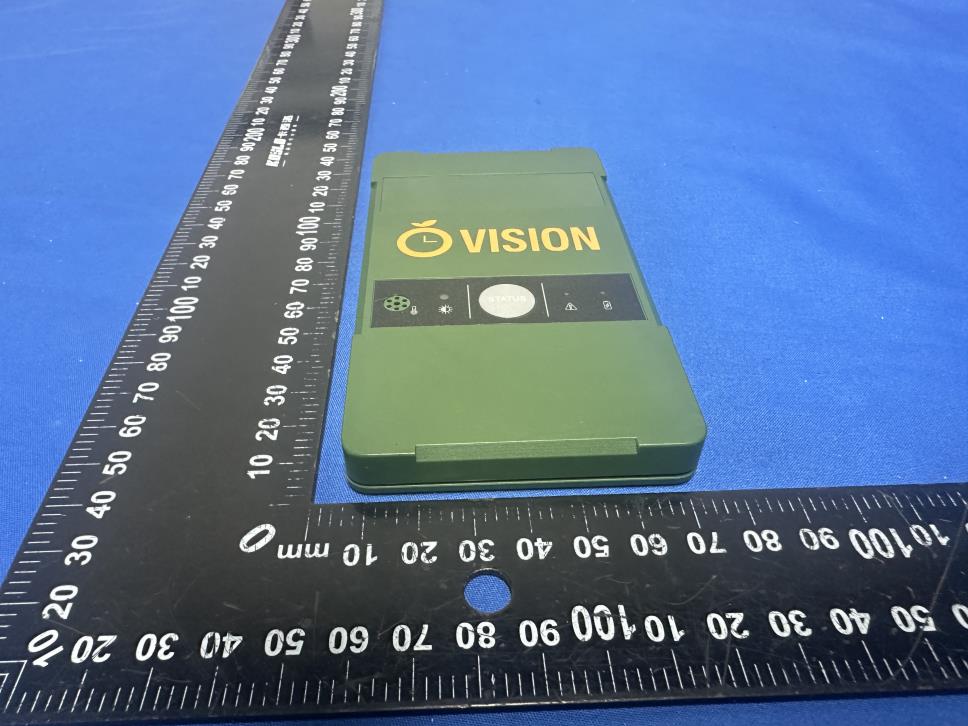

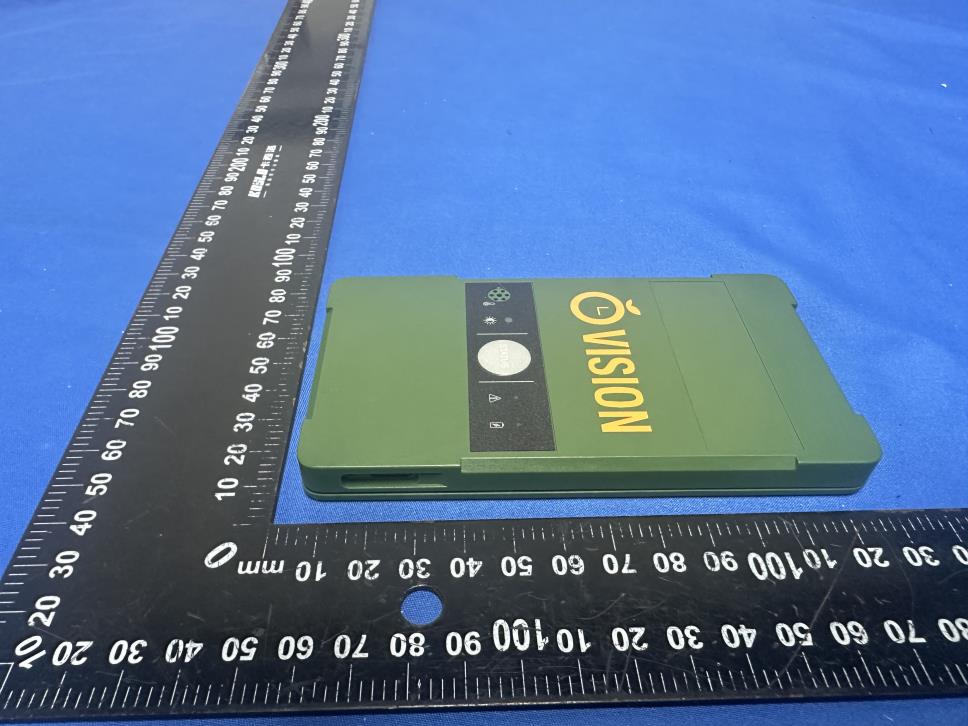

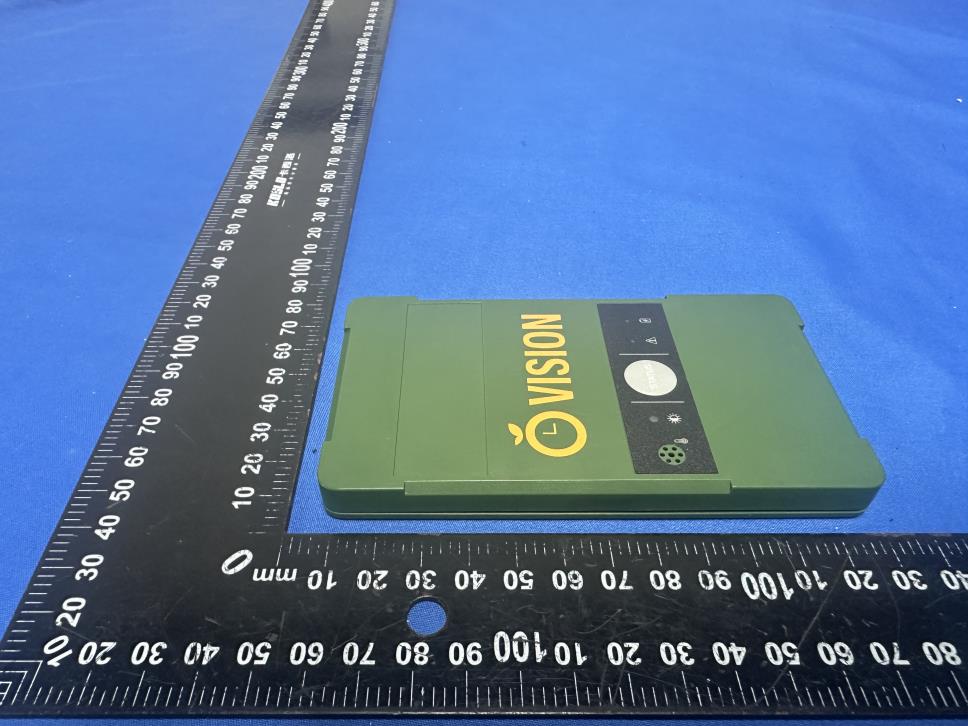

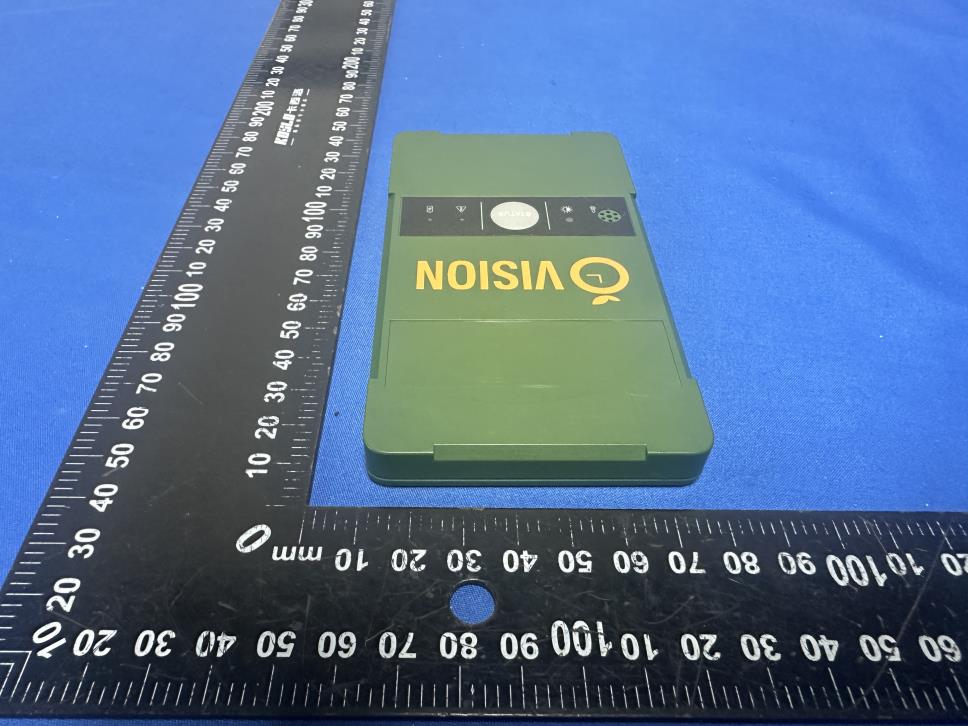

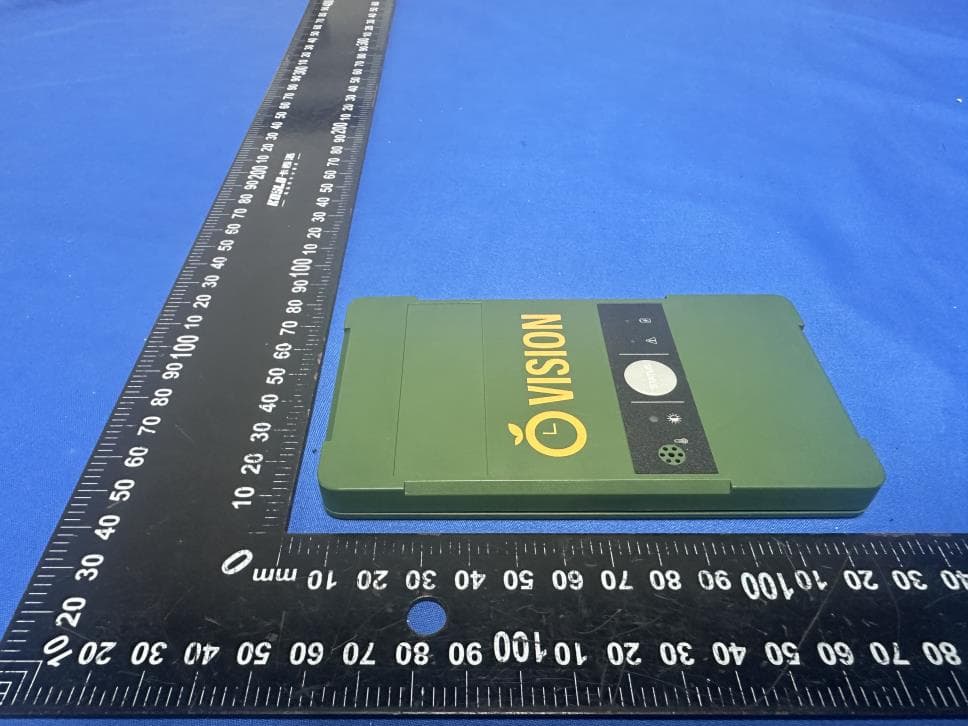

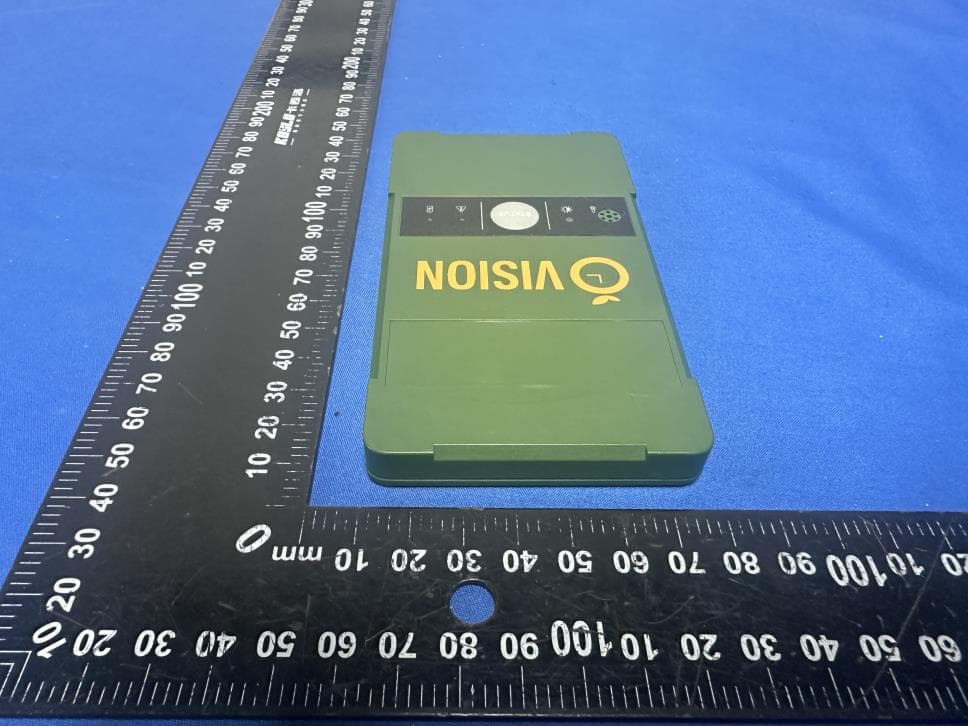

SFVision V1.2 – User Manual 1. Product Description The SFVision V1.2 is a cellular IoT tracking device designed to monitor produce and perishable goods during transportation and storage. The device automatically collects environmental and motion data and transmits it to the SaveFruit platform using LTE Cat-1 connectivity. No configuration is required by the user. The device arrives fully set up and ready for use. 2. Getting Started Powering On Press and hold the main button until the LED turns on. The LED will flash slowly to indicate that the device is active and connected. Normal Operation Once powered on, the device automatically connects to the cellular network and begins collecting and transmitting data. No user action is required. 3. LED Indicators Slow Flashing: Device is on and operating normally Solid or rapid flashing: Temporary network search or startup process 4. Safety Information Do not disassemble, crush, or modify the device. Do not expose the device to fire, high heat, or liquids. Discontinue use if the device is damaged. 5. Changes and Modifications Warning Changes or modifications not expressly approved by Postharvest Applied Sciences SAPI DE CV may void the user’s authority to operate the equipment. 6. Device Label Information The device label includes the following information: Model: SFVision V1.2 Brand: SAVEFRUIT FCC ID: 2BU8HRGGAVON0310 7. Support Information Postharvest Applied Sciences SAPI DE CV Phone: +52 614 551 0384 Email: [email protected] 8. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user ‘s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information (MPE) This device has been tested and meets applicable limits for Radio Frequency (RF) exposure. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Page 1 / 221 psi2604092-C01-R02 Attachment Test Data Transmitter Conducted Output Power And ERP/EIRP Test Result Band Bandwidth (MHz) Channel Freq (MHz) Modulation RB Conducte d Power (dBm) Antenna gain(dBi) ERP/EIRP (dBm) ERP/EIRP (Limit) (dBm) Verdict 2 1.4 18607 1850.7 QPSK 1@0 23.45 2.97 26.42 33.01 PASS 2 1.4 18607 1850.7 QPSK 1@2 22.88 2.97 25.85 33.01 PASS 2 1.4 18607 1850.7 QPSK 1@5 23.54 2.97 26.51 33.01 PASS 2 1.4 18607 1850.7 QPSK 3@0 22.91 2.97 25.88 33.01 PASS 2 1.4 18607 1850.7 QPSK 3@1 23.65 2.97 26.62 33.01 PASS 2 1.4 18607 1850.7 QPSK 3@2 23.44 2.97 26.41 33.01 PASS 2 1.4 18607 1850.7 QPSK 6@0 22.97 2.97 25.94 33.01 PASS 2 1.4 18607 1850.7 16QAM 1@0 23.51 2.97 26.48 33.01 PASS 2 1.4 18607 1850.7 16QAM 1@2 23.52 2.97 26.49 33.01 PASS 2 1.4 18607 1850.7 16QAM 1@5 22.97 2.97 25.94 33.01 PASS 2 1.4 18607 1850.7 16QAM 3@0 23.38 2.97 26.35 33.01 PASS 2 1.4 18607 1850.7 16QAM 3@1 23.58 2.97 26.55 33.01 PASS 2 1.4 18607 1850.7 16QAM 3@2 23.37 2.97 26.34 33.01 PASS 2 1.4 18607 1850.7 16QAM 6@0 23.03 2.97 26.00 33.01 PASS 2 1.4 18900 1880.0 QPSK 1@0 23.07 2.97 26.04 33.01 PASS 2 1.4 18900 1880.0 QPSK 1@2 23.53 2.97 26.50 33.01 PASS 2 1.4 18900 1880.0 QPSK 1@5 22.95 2.97 25.92 33.01 PASS 2 1.4 18900 1880.0 QPSK 3@0 23.09 2.97 26.06 33.01 PASS 2 1.4 18900 1880.0 QPSK 3@1 23.76 2.97 26.73 33.01 PASS 2 1.4 18900 1880.0 QPSK 3@2 23.58 2.97 26.55 33.01 PASS 2 1.4 18900 1880.0 QPSK 6@0 23.22 2.97 26.19 33.01 PASS 2 1.4 18900 1880.0 16QAM 1@0 23.30 2.97 26.27 33.01 PASS 2 1.4 18900 1880.0 16QAM 1@2 23.39 2.97 26.36 33.01 PASS 2 1.4 18900 1880.0 16QAM 1@5 23.26 2.97 26.23 33.01 PASS 2 1.4 18900 1880.0 16QAM 3@0 23.34 2.97 26.31 33.01 PASS 2 1.4 18900 1880.0 16QAM 3@1 23.22 2.97 26.19 33.01 PASS 2 1.4 18900 1880.0 16QAM 3@2 23.38 2.97 26.35 33.01 PASS 2 1.4 18900 1880.0 16QAM 6@0 23.14 2.97 26.11 33.01 PASS 2 1.4 19193 1909.3 QPSK 1@0 23.37 2.97 26.34 33.01 PASS 2 1.4 19193 1909.3 QPSK 1@2 23.15 2.97 26.12 33.01 PASS 2 1.4 19193 1909.3 QPSK 1@5 23.33 2.97 26.30 33.01 PASS 2 1.4 19193 1909.3 QPSK 3@0 23.30 2.97 26.27 33.01 PASS 2 1.4 19193 1909.3 QPSK 3@1 23.22 2.97 26.19 33.01 PASS 2 1.4 19193 1909.3 QPSK 3@2 23.31 2.97 26.28 33.01 PASS 2 1.4 19193 1909.3 QPSK 6@0 23.26 2.97 26.23 33.01 PASS 2 1.4 19193 1909.3 16QAM 1@0 23.29 2.97 26.26 33.01 PASS 2 1.4 19193 1909.3 16QAM 1@2 23.46 2.97 26.43 33.01 PASS 2 1.4 19193 1909.3 16QAM 1@5 23.15 2.97 26.12 33.01 PASS 2 1.4 19193 1909.3 16QAM 3@0 23.31 2.97 26.28 33.01 PASS 2 1.4 19193 1909.3 16QAM 3@1 23.37 2.97 26.34 33.01 PASS 2 1.4 19193 1909.3 16QAM 3@2 23.18 2.97 26.15 33.01 PASS 2 1.4 19193 1909.3 16QAM 6@0 23.23 2.97 26.20 33.01 PASS 2 3.0 18615 1851.5 QPSK 1@0 23.44 2.97 26.41 33.01 PASS 2 3.0 18615 1851.5 QPSK 1@7 23.31 2.97 26.28 33.01 PASS 2 3.0 18615 1851.5 QPSK 1@14 23.17 2.97 26.14 33.01 PASS 2 3.0 18615 1851.5 QPSK 8@0 23.17 2.97 26.14 33.01 PASS 2 3.0 18615 1851.5 QPSK 8@4 23.22 2.97 26.19 33.01 PASS 2 3.0 18615 1851.5 QPSK 8@7 23.27 2.97 26.24 33.01 PASS 2 3.0 18615 1851.5 QPSK 15@0 23.15 2.97 26.12 33.01 PASS 2 3.0 18615 1851.5 16QAM 1@0 23.34 2.97 26.31 33.01 PASS 2 3.0 18615 1851.5 16QAM 1@7 23.16 2.97 26.13 33.01 PASS 2 3.0 18615 1851.5 16QAM 1@14 23.17 2.97 26.14 33.01 PASS 2 3.0 18615 1851.5 16QAM 8@0 23.22 2.97 26.19 33.01 PASS 2 3.0 18615 1851.5 16QAM 8@4 23.25 2.97 26.22 33.01 PASS 2 3.0 18615 1851.5 16QAM 8@7 23.14 2.97 26.11 33.01 PASS 2 3.0 18615 1851.5 16QAM 15@0 23.39 2.97 26.36 33.01 PASS 2 3.0 18900 1880.0 QPSK 1@0 23.30 2.97 26.27 33.01 PASS 2 3.0 18900 1880.0 QPSK 1@7 23.37 2.97 26.34 33.01 PASS 2 3.0 18900 1880.0 QPSK 1@14 23.32 2.97 26.29 33.01 PASS 2 3.0 18900 1880.0 QPSK 8@0 23.29 2.97 26.26 33.01 PASS 2 3.0 18900 1880.0 QPSK 8@4 23.13 2.97 26.10 33.01 PASS 2 3.0 18900 1880.0 QPSK 8@7 23.22 2.97 26.19 33.01 PASS 2 3.0 18900 1880.0 QPSK 15@0 23.27 2.97 26.24 33.01 PASS 2 3.0 18900 1880.0 16QAM 1@0 23.19 2.97 26.16 33.01 PASS 2 3.0 18900 1880.0 16QAM 1@7 23.20 2.97 26.17 33.01 PASS 2 3.0 18900 1880.0 16QAM 1@14 23.34 2.97 26.31 33.01 PASS 2 3.0 18900 1880.0 16QAM 8@0 23.23 2.97 26.20 33.01 PASS 2 3.0 18900 1880.0 16QAM 8@4 23.17 2.97 26.14 33.01 PASS 2 3.0 18900 1880.0 16QAM 8@7 23.36 2.97 26.33 33.01 PASS 2 3.0 18900 1880.0 16QAM 15@0 23.24 2.97 26.21 33.01 PASS 2 3.0 19185 1908.5 QPSK 1@0 23.31 2.97 26.28 33.01 PASS 2 3.0 19185 1908.5 QPSK 1@7 23.33 2.97 26.30 33.01 PASS 2 3.0 19185 1908.5 QPSK 1@14 23.31 2.97 26.28 33.01 PASS 2 3.0 19185 1908.5 QPSK 8@0 23.16 2.97 26.13 33.01 PASS Page 2 / 221 2 3.0 19185 1908.5 QPSK 8@4 23.37 2.97 26.34 33.01 PASS 2 3.0 19185 1908.5 QPSK 8@7 23.37 2.97 26.34 33.01 PASS 2 3.0 19185 1908.5 QPSK 15@0 23.28 2.97 26.25 33.01 PASS 2 3.0 19185 1908.5 16QAM 1@0 23.41 2.97 26.38 33.01 PASS 2 3.0 19185 1908.5 16QAM 1@7 23.46 2.97 26.43 33.01 PASS 2 3.0 19185 1908.5 16QAM 1@14 23.45 2.97 26.42 33.01 PASS 2 3.0 19185 1908.5 16QAM 8@0 23.36 2.97 26.33 33.01 PASS 2 3.0 19185 1908.5 16QAM 8@4 23.14 2.97 26.11 33.01 PASS 2 3.0 19185 1908.5 16QAM 8@7 23.36 2.97 26.33 33.01 PASS 2 3.0 19185 1908.5 16QAM 15@0 23.30 2.97 26.27 33.01 PASS 2 5.0 18625 1852.5 QPSK 1@0 23.29 2.97 26.26 33.01 PASS 2 5.0 18625 1852.5 QPSK 1@12 23.29 2.97 26.26 33.01 PASS 2 5.0 18625 1852.5 QPSK 1@24 23.34 2.97 26.31 33.01 PASS 2 5.0 18625 1852.5 QPSK 12@0 23.42 2.97 26.39 33.01 PASS 2 5.0 18625 1852.5 QPSK 12@6 23.25 2.97 26.22 33.01 PASS 2 5.0 18625 1852.5 QPSK 12@11 23.15 2.97 26.12 33.01 PASS 2 5.0 18625 1852.5 QPSK 25@0 23.32 2.97 26.29 33.01 PASS 2 5.0 18625 1852.5 16QAM 1@0 23.14 2.97 26.11 33.01 PASS 2 5.0 18625 1852.5 16QAM 1@12 23.31 2.97 26.28 33.01 PASS 2 5.0 18625 1852.5 16QAM 1@24 23.40 2.97 26.37 33.01 PASS 2 5.0 18625 1852.5 16QAM 12@0 23.44 2.97 26.41 33.01 PASS 2 5.0 18625 1852.5 16QAM 12@6 23.18 2.97 26.15 33.01 PASS 2 5.0 18625 1852.5 16QAM 12@11 23.16 2.97 26.13 33.01 PASS 2 5.0 18625 1852.5 16QAM 25@0 23.17 2.97 26.14 33.01 PASS 2 5.0 18900 1880.0 QPSK 1@0 23.38 2.97 26.35 33.01 PASS 2 5.0 18900 1880.0 QPSK 1@12 23.25 2.97 26.22 33.01 PASS 2 5.0 18900 1880.0 QPSK 1@24 23.27 2.97 26.24 33.01 PASS …

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: psi2604092-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix I Test Setup Photo FCC ID: 2BU8HRGGAVON0310 Spurious Radiation Emissions Test (<1G) Spurious Radiation Emissions Test (＞1G) Page 2 of 2 Report No.: psi2604092-C01-R01 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Radio Frequency Direct Connection Test ------End------

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Page 1 of 30 Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao’an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2BU8HRGGAVON0310 On Behalf of POSTHARVEST APPLIED SCIENCES SAPI DE CV SaveFruit Vision Model No.: SFVision V1.2 Prepared for : POSTHARVEST APPLIED SCIENCES SAPI DE CV Address : AVE TECNOLOGICO 4101 L24, CHIHUAHUA, Mexico Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao’an District, Shenzhen, Guangdong, China Report Number : psi2604092-C01-R02 Date of Receipt : April 7, 2026 Date of Test : April 8, 2026-April 10, 2026 Date of Report : April 10, 2026 Version Number : V0 Page 2 of 30 Report No.: psi2604092-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao’an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1 TEST SUMMARY ......................................................................................................................................5 2 GENERAL INFORMATION .......................................................................................................................6 2.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................6 2.2 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................7 2.3 TEST METHODOLOGY ..........................................................................................................................7 2.4 TEST FACILITY.....................................................................................................................................7 2.5 ACCESSORIES OF DEVICE (EUT) .........................................................................................................7 2.6 TESTED SUPPORTING SYSTEM DETAILS ...............................................................................................7 2.7 TEST CONDITIONS ...............................................................................................................................7 2.8 MEASUREMENT UNCERTAINTY .............................................................................................................8 3 TEST INSTRUMENTS LIST ......................................................................................................................9 4 SYSTEM TEST CONFIGURATION ........................................................................................................10 4.1 TEST MODE .......................................................................................................................................10 4.2 CONFIGURATION OF TESTED SYSTEM .................................................................................................10 4.3 TRANSMITTER RADIATED POWER (EIRP/ERP) ...................................................................................11 4.4 PEAK-TO-AVERAGE RATIO .................................................................................................................14 4.5 OCCUPY BANDWIDTH .........................................................................................................................15 4.6 MODULATION CHARACTERISTIC ................................................................................................16 4.7 OUT OF BAND EMISSION AT ANTENNA TERMINALS ................................................................................16 4.8 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ..................................................................17 4.9 FREQUENCY STABILITY ......................................................................................................................29 5 PHOTOS OF TEST SETUP.....................................................................................................................30 6 PHOTOS OF EUT ....................................................................................................................................30 Page 3 of 30 Report No.: psi2604092-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao’an District, Shenzhen, Guangdong, China TEST REPORT DECLARATION Applicant : POSTHARVEST APPLIED SCIENCES SAPI DE CV Address : AVE TECNOLOGICO 4101 L24, CHIHUAHUA, Mexico Manufacturer : POSTHARVEST APPLIED SCIENCES SAPI DE CV Address : AVE TECNOLOGICO 4101 L24, CHIHUAHUA, Mexico EUT Description : SaveFruit Vision (A) Model No. : SFVision V1.2 (B) Trademark : SAVEFRUIT Measurement Standard Used: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E FCC CFR Title 47 Part 27 ANSI C63.26:2015 Test Result: PASS The device described above is tested by Shenzhen PSI Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The test results are contained in this test report and Shenzhen PSI Testing Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen PSI Testing Co., Ltd. Tested by (name + signature).........: Felix Pang Test Engineer Approved by (name + signature).......: Simple Guan Project Manager Date of issue.............................: April 10, 2026 Page 4 of 30 Report No.: psi2604092-C01-R02 Shenzh…

Text truncated - open the document above for the full version.

Page 199 / 221 Band4 5MHz 16QAM 20175 25RB#0 VH NT -0.0049 ±2.5 PASS Band4 5MHz 16QAM 20375 25RB#0 VL NT 0.0171 ±2.5 PASS Band4 5MHz 16QAM 20375 25RB#0 VN NT 0.0175 ±2.5 PASS Band4 5MHz 16QAM 20375 25RB#0 VH NT 0.0197 ±2.5 PASS Band4 10MHz QPSK 20000 50RB#0 VL NT 0.0217 ±2.5 PASS Band4 10MHz QPSK 20000 50RB#0 VN NT -0.0162 ±2.5 PASS Band4 10MHz QPSK 20000 50RB#0 VH NT -0.0047 ±2.5 PASS Band4 10MHz QPSK 20175 50RB#0 VL NT -0.0142 ±2.5 PASS Band4 10MHz QPSK 20175 50RB#0 VN NT -0.0217 ±2.5 PASS Band4 10MHz QPSK 20175 50RB#0 VH NT 0.0046 ±2.5 PASS Band4 10MHz QPSK 20350 50RB#0 VL NT -0.0246 ±2.5 PASS Band4 10MHz QPSK 20350 50RB#0 VN NT -0.0127 ±2.5 PASS Band4 10MHz QPSK 20350 50RB#0 VH NT -0.0215 ±2.5 PASS Band4 10MHz 16QAM 20000 50RB#0 VL NT -0.0118 ±2.5 PASS Band4 10MHz 16QAM 20000 50RB#0 VN NT -0.0304 ±2.5 PASS Band4 10MHz 16QAM 20000 50RB#0 VH NT 0.0204 ±2.5 PASS Band4 10MHz 16QAM 20175 50RB#0 VL NT 0.0169 ±2.5 PASS Band4 10MHz 16QAM 20175 50RB#0 VN NT 0.0138 ±2.5 PASS Band4 10MHz 16QAM 20175 50RB#0 VH NT 0.0071 ±2.5 PASS Band4 10MHz 16QAM 20350 50RB#0 VL NT 0.0052 ±2.5 PASS Band4 10MHz 16QAM 20350 50RB#0 VN NT -0.0182 ±2.5 PASS Band4 10MHz 16QAM 20350 50RB#0 VH NT 0.0073 ±2.5 PASS Band4 15MHz QPSK 20025 75RB#0 VL NT -0.0084 ±2.5 PASS Band4 15MHz QPSK 20025 75RB#0 VN NT -0.0258 ±2.5 PASS Band4 15MHz QPSK 20025 75RB#0 VH NT -0.0188 ±2.5 PASS Band4 15MHz QPSK 20175 75RB#0 VL NT 0.0226 ±2.5 PASS Band4 15MHz QPSK 20175 75RB#0 VN NT 0.0219 ±2.5 PASS Band4 15MHz QPSK 20175 75RB#0 VH NT 0.0188 ±2.5 PASS Band4 15MHz QPSK 20325 75RB#0 VL NT 0.0210 ±2.5 PASS Band4 15MHz QPSK 20325 75RB#0 VN NT 0.0203 ±2.5 PASS Band4 15MHz QPSK 20325 75RB#0 VH NT 0.0236 ±2.5 PASS Band4 15MHz 16QAM 20025 75RB#0 VL NT 0.0252 ±2.5 PASS Band4 15MHz 16QAM 20025 75RB#0 VN NT 0.0235 ±2.5 PASS Band4 15MHz 16QAM 20025 75RB#0 VH NT 0.0189 ±2.5 PASS Band4 15MHz 16QAM 20175 75RB#0 VL NT 0.0219 ±2.5 PASS Band4 15MHz 16QAM 20175 75RB#0 VN NT -0.0215 ±2.5 PASS Band4 15MHz 16QAM 20175 75RB#0 VH NT 0.0082 ±2.5 PASS Band4 15MHz 16QAM 20325 75RB#0 VL NT -0.0051 ±2.5 PASS Band4 15MHz 16QAM 20325 75RB#0 VN NT 0.0087 ±2.5 PASS Band4 15MHz 16QAM 20325 75RB#0 VH NT -0.0089 ±2.5 PASS Band4 20MHz QPSK 20050 100RB#0 VL NT -0.0042 ±2.5 PASS Band4 20MHz QPSK 20050 100RB#0 VN NT 0.0177 ±2.5 PASS Band4 20MHz QPSK 20050 100RB#0 VH NT -0.0089 ±2.5 PASS Band4 20MHz QPSK 20175 100RB#0 VL NT -0.0174 ±2.5 PASS Band4 20MHz QPSK 20175 100RB#0 VN NT -0.0216 ±2.5 PASS Band4 20MHz QPSK 20175 100RB#0 VH NT 0.0249 ±2.5 PASS Band4 20MHz QPSK 20300 100RB#0 VL NT 0.0255 ±2.5 PASS Band4 20MHz QPSK 20300 100RB#0 VN NT 0.0152 ±2.5 PASS Band4 20MHz QPSK 20300 100RB#0 VH NT 0.0107 ±2.5 PASS Band4 20MHz 16QAM 20050 100RB#0 VL NT 0.0264 ±2.5 PASS Band4 20MHz 16QAM 20050 100RB#0 VN NT 0.0119 ±2.5 PASS Band4 20MHz 16QAM 20050 100RB#0 VH NT 0.0031 ±2.5 PASS Band4 20MHz 16QAM 20175 100RB#0 VL NT -0.0111 ±2.5 PASS Page 200 / 221 Band4 20MHz 16QAM 20175 100RB#0 VN NT 0.0089 ±2.5 PASS Band4 20MHz 16QAM 20175 100RB#0 VH NT -0.0138 ±2.5 PASS Band4 20MHz 16QAM 20300 100RB#0 VL NT -0.0236 ±2.5 PASS Band4 20MHz 16QAM 20300 100RB#0 VN NT -0.0220 ±2.5 PASS Band4 20MHz 16QAM 20300 100RB#0 VH NT -0.0221 ±2.5 PASS Page 201 / 221 Temperature Band Bandwidth Modulation Channel RB Configure Voltage [Vdc] Temperat ure (°C) Deviation (ppm) Limit (ppm) Verdict Band4 1.4MHz QPSK 19957 6RB#0 NV -30 0.0174 ±2.5 PASS Band4 1.4MHz QPSK 19957 6RB#0 NV -20 -0.0080 ±2.5 PASS Band4 1.4MHz QPSK 19957 6RB#0 NV 0 0.0174 ±2.5 PASS Band4 1.4MHz QPSK 19957 6RB#0 NV 10 -0.0087 ±2.5 PASS Band4 1.4MHz QPSK 19957 6RB#0 NV 20 -0.0115 ±2.5 PASS Band4 1.4MHz QPSK 20175 6RB#0 NV -30 0.0175 ±2.5 PASS Band4 1.4MHz QPSK 20175 6RB#0 NV -20 0.0119 ±2.5 PASS Band4 1.4MHz QPSK 20175 6RB#0 NV 0 0.0161 ±2.5 PASS Band4 1.4MHz QPSK 20175 6RB#0 NV 10 0.0092 ±2.5 PASS Band4 1.4MHz QPSK 20175 6RB#0 NV 20 0.0125 ±2.5 PASS Band4 1.4MHz QPSK 20393 6RB#0 NV -30 0.0062 ±2.5 PASS Band4 1.4MHz QPSK 20393 6RB#0 NV -20 0.0099 ±2.5 PASS Band4 1.4MHz QPSK 20393 6RB#0 NV 0 -0.0051 ±2.5 PASS Band4 1.4MHz QPSK 20393 6RB#0 NV 10 -0.0355 ±2.5 PASS Band4 1.4MHz QPSK 20393 6RB#0 NV 20 -0.0080 ±2.5 PASS Band4 1.4MHz 16QAM 19957 6RB#0 NV -30 -0.0102 ±2.5 PASS Band4 1.4MHz 16QAM 19957 6RB#0 NV -20 -0.0043 ±2.5 PASS Band4 1.4MHz 16QAM 19957 6RB#0 NV 0 0.0074 ±2.5 PASS Band4 1.4MHz 16QAM 19957 6RB#0 NV 10 0.0046 ±2.5 PASS Band4 1.4MHz 16QAM 19957 6RB#0 NV 20 -0.0047 ±2.5 PASS Band4 1.4MHz 16QAM 20175 6RB#0 NV -30 0.0154 ±2.5 PASS Band4 1.4MHz 16QAM 20175 6RB#0 NV -20 0.0068 ±2.5 PASS Band4 1.4MHz 16QAM 20175 6RB#0 NV 0 0.0181 ±2.5 PASS Band4 1.4MHz 16QAM 20175 6RB#0 NV 10 -0.0051 ±2.5 PASS Band4 1.4MHz 16QAM 20175 6RB#0 NV 20 0.0041 ±2.5 PASS Band4 1.4MHz 16QAM 20393 6RB#0 NV -30 -0.0075 ±2.5 PASS Band4 1.4MHz 16QAM 20393 6RB#0 NV -20 0.0075 ±2.5 PASS Band4 1.4MHz 16QAM 20393 6RB#0 NV 0 0.0070 ±2.5 PASS Band4 1.4MHz 16QAM 20393 6RB#0 NV 10 -0.0071 ±2.5 PASS Band4 1.4MHz 16QAM 20393 6RB#0 NV 20 0.0054 ±2.5 PASS Band4 3MHz QPSK 19965 15RB#0 NV -30 0.0057 ±2.5 PASS Band4 3MHz QPSK 19965 15RB#0 NV -20 0.0148 ±2.5 PASS Band4 3MHz QPSK 19965 15RB#0 NV 0 -0.0144 ±2.5 PASS Band4 3MHz QPSK 19965 15RB#0 NV 10 -0.0098 ±2.5 PASS Band4 3MHz QPSK 19965 15RB#0 NV 20 -0.0161 ±2.5 PASS Band4 3MHz QPSK 20175 15RB#0 NV -30 0.0304 ±2.5 PASS Band4 3MHz QPSK 20175 15RB#0 NV -20 0.0044 ±2.5 PASS Band4 3MHz QPSK 20175 15RB#0 NV 0 0.0066 ±2.5 PASS Band4 3MHz QPSK 20175 15RB#0 NV 10 0.0104 ±2.5 PASS Band4 3MHz QPSK 20175 15RB#0 NV 20 0.0127 ±2.5 PASS Band4 3MHz QPSK 20385 15RB#0 NV -30 -0.0085 ±2.5 PASS Band4 3MHz QPSK 20385 15RB#0 NV -20 -0.0121 ±2.5 PASS Band4 3MHz QPSK 20385 15RB#0 NV 0 -0.0437 ±2.5 PASS Band4 3MHz QPSK 20385 15RB#0 NV 10 -0.0092 ±2.5 PASS Band4 3MHz QPSK 20385 15RB#0 NV 20 -0.0248 ±2.5 PASS Band4 3MHz 16QAM 19965 15RB#0 NV -30 0.0102 ±2.5 PASS Band4 3MHz 16QAM 19965 15RB#0 NV -20 0.0077 ±2.5 PASS Band4 3MHz 16QAM 19965 15RB#0 NV 0 0.0102 ±2.5 PASS Band4 3MHz 16QAM 19965 15RB#0 NV 10 0.0037 ±2.5 PASS Band4 3MHz 16QAM 19965 15RB#0 NV 20 0.0071 ±2.5 PASS Pag…

Text truncated - open the document above for the full version.

Page 177 / 221 Band 7 5MHz/2567.5/High QPSK 1@0 Band 7 5MHz/2567.5/High QPSK 1@24 Band 7 5MHz/2567.5/High QPSK 25@0 Band 7 5MHz/2567.5/High 16QAM 1@0 Band 7 5MHz/2567.5/High 16QAM 1@24 Band 7 5MHz/2567.5/High 16QAM 25@0 Band 7 10MHz/2505.0/Low QPSK 1@0 Band 7 10MHz/2505.0/Low QPSK 1@49 Page 178 / 221 Band 7 10MHz/2505.0/Low QPSK 50@0 Band 7 10MHz/2505.0/Low 16QAM 1@0 Band 7 10MHz/2505.0/Low 16QAM 1@49 Band 7 10MHz/2505.0/Low 16QAM 50@0 Band 7 10MHz/2565.0/High QPSK 1@0 Band 7 10MHz/2565.0/High QPSK 1@49 Band 7 10MHz/2565.0/High QPSK 50@0 Band 7 10MHz/2565.0/High 16QAM 1@0 Page 179 / 221 Band 7 10MHz/2565.0/High 16QAM 1@49 Band 7 10MHz/2565.0/High 16QAM 50@0 Band 7 15MHz/2507.5/Low QPSK 1@0 Band 7 15MHz/2507.5/Low QPSK 1@74 Band 7 15MHz/2507.5/Low QPSK 75@0 Band 7 15MHz/2507.5/Low 16QAM 1@0 Band 7 15MHz/2507.5/Low 16QAM 1@74 Band 7 15MHz/2507.5/Low 16QAM 75@0 Page 180 / 221 Band 7 15MHz/2562.5/High QPSK 1@0 Band 7 15MHz/2562.5/High QPSK 1@74 Band 7 15MHz/2562.5/High QPSK 75@0 Band 7 15MHz/2562.5/High 16QAM 1@0 Band 7 15MHz/2562.5/High 16QAM 1@74 Band 7 15MHz/2562.5/High 16QAM 75@0 Band 7 20MHz/2510.0/Low QPSK 1@0 Band 7 20MHz/2510.0/Low QPSK 1@99 Page 181 / 221 Band 7 20MHz/2510.0/Low QPSK 100@0 Band 7 20MHz/2510.0/Low 16QAM 1@0 Band 7 20MHz/2510.0/Low 16QAM 1@99 Band 7 20MHz/2510.0/Low 16QAM 100@0 Band 7 20MHz/2560.0/High QPSK 1@0 Band 7 20MHz/2560.0/High QPSK 1@99 Band 7 20MHz/2560.0/High QPSK 100@0 Band 7 20MHz/2560.0/High 16QAM 1@0 Page 182 / 221 Band 7 20MHz/2560.0/High 16QAM 1@99 Band 7 20MHz/2560.0/High 16QAM 100@0 Band 66 1.4MHz/1710.7/Low QPSK 1@0 Band 66 1.4MHz/1710.7/Low QPSK 1@5 Band 66 1.4MHz/1710.7/Low QPSK 6@0 Band 66 1.4MHz/1710.7/Low 16QAM 1@0 Band 66 1.4MHz/1710.7/Low 16QAM 1@5 Band 66 1.4MHz/1710.7/Low 16QAM 6@0 Page 183 / 221 Band 66 1.4MHz/1779.3/High QPSK 1@0 Band 66 1.4MHz/1779.3/High QPSK 1@5 Band 66 1.4MHz/1779.3/High QPSK 6@0 Band 66 1.4MHz/1779.3/High 16QAM 1@0 Band 66 1.4MHz/1779.3/High 16QAM 1@5 Band 66 1.4MHz/1779.3/High 16QAM 6@0 Band 66 3MHz/1711.5/Low QPSK 1@0 Band 66 3MHz/1711.5/Low QPSK 1@14 Page 184 / 221 Band 66 3MHz/1711.5/Low QPSK 15@0 Band 66 3MHz/1711.5/Low 16QAM 1@0 Band 66 3MHz/1711.5/Low 16QAM 1@14 Band 66 3MHz/1711.5/Low 16QAM 15@0 Band 66 3MHz/1778.5/High QPSK 1@0 Band 66 3MHz/1778.5/High QPSK 1@14 Band 66 3MHz/1778.5/High QPSK 15@0 Band 66 3MHz/1778.5/High 16QAM 1@0 Page 185 / 221 Band 66 3MHz/1778.5/High 16QAM 1@14 Band 66 3MHz/1778.5/High 16QAM 15@0 Band 66 5MHz/1712.5/Low QPSK 1@0 Band 66 5MHz/1712.5/Low QPSK 1@24 Band 66 5MHz/1712.5/Low QPSK 25@0 Band 66 5MHz/1712.5/Low 16QAM 1@0 Band 66 5MHz/1712.5/Low 16QAM 1@24 Band 66 5MHz/1712.5/Low 16QAM 25@0 Page 186 / 221 Band 66 5MHz/1777.5/High QPSK 1@0 Band 66 5MHz/1777.5/High QPSK 1@24 Band 66 5MHz/1777.5/High QPSK 25@0 Band 66 5MHz/1777.5/High 16QAM 1@0 Band 66 5MHz/1777.5/High 16QAM 1@24 Band 66 5MHz/1777.5/High 16QAM 25@0 Band 66 10MHz/1715.0/Low QPSK 1@0 Band 66 10MHz/1715.0/Low QPSK 1@49 Page 187 / 221 Band 66 10MHz/1715.0/Low QPSK 50@0 Band 66 10MHz/1715.0/Low 16QAM 1@0 Band 66 10MHz/1715.0/Low 16QAM 1@49 Band 66 10MHz/1715.0/Low 16QAM 50@0 Band 66 10MHz/1775.0/High QPSK 1@0 Band 66 10MHz/1775.0/High QPSK 1@49 Band 66 10MHz/1775.0/High QPSK 50@0 Band 66 10MHz/1775.0/High 16QAM 1@0 Page 188 / 221 Band 66 10MHz/1775.0/High 16QAM 1@49 Band 66 10MHz/1775.0/High 16QAM 50@0 Band 66 15MHz/1717.5/Low QPSK 1@0 Band 66 15MHz/1717.5/Low QPSK 1@74 Band 66 15MHz/1717.5/Low QPSK 75@0 Band 66 15MHz/1717.5/Low 16QAM 1@0 Band 66 15MHz/1717.5/Low 16QAM 1@74 Band 66 15MHz/1717.5/Low 16QAM 75@0 Page 189 / 221 Band 66 15MHz/1772.5/High QPSK 1@0 Band 66 15MHz/1772.5/High QPSK 1@74 Band 66 15MHz/1772.5/High QPSK 75@0 Band 66 15MHz/1772.5/High 16QAM 1@0 Band 66 15MHz/1772.5/High 16QAM 1@74 Band 66 15MHz/1772.5/High 16QAM 75@0 Band 66 20MHz/1720.0/Low QPSK 1@0 Band 66 20MHz/1720.0/Low QPSK 1@99 Page 190 / 221 Band 66 20MHz/1720.0/Low QPSK 100@0 Band 66 20MHz/1720.0/Low 16QAM 1@0 Band 66 20MHz/1720.0/Low 16QAM 1@99 Band 66 20MHz/1720.0/Low 16QAM 100@0 Band 66 20MHz/1770.0/High QPSK 1@0 Band 66 20MHz/1770.0/High QPSK 1@99 Band 66 20MHz/1770.0/High QPSK 100@0 Band 66 20MHz/1770.0/High 16QAM 1@0 Page 191 / 221 Band 66 20MHz/1770.0/High 16QAM 1@99 Band 66 20MHz/1770.0/High 16QAM 100@0 Page 192 / 221 Frequency Stability Test Result Voltage Band Bandwidth Modulation Channel RB Configure Voltage [Vdc] Temperat ure (°C) Deviation (ppm) Limit (ppm) Verdict Band2 1.4MHz QPSK 18607 6RB#0 VL NT 0.0177 ±2.5 PASS Band2 1.4MHz QPSK 18607 6RB#0 VN NT -0.0075 ±2.5 PASS Band2 1.4MHz QPSK 18607 6RB#0 VH NT 0.0174 ±2.5 PASS Band2 1.4MHz QPSK 18900 6RB#0 VL NT -0.0087 ±2.5 PASS Band2 1.4MHz QPSK 18900 6RB#0 VN NT -0.0113 ±2.5 PASS Band2 1.4MHz QPSK 18900 6RB#0 VH NT 0.0182 ±2.5 PASS Band2 1.4MHz QPSK 19193 6RB#0 VL NT 0.0119 ±2.5 PASS Band2 1.4MHz QPSK 19193 6RB#0 VN NT 0.0153 ±2.5 PASS Band2 1.4MHz QPSK 19193 6RB#0 VH NT 0.0095 ±2.5 PASS Band2 1.4MHz 16QAM 18607 6RB#0 VL NT 0.0130 ±2.5 PASS Band2 1.4MHz 16QAM 18607 6RB#0 VN NT 0.0059 ±2.5 PASS Band2 1.4MHz 16QAM 18607 6RB#0 VH NT 0.0096 ±2.5 PASS Band2 1.4MHz 16QAM 18900 6RB#0 VL NT -0.0044 ±2.5 PASS Band2 1.4MHz 16QAM 18900 6RB#0 VN NT -0.0353 ±2.5 PASS Band2 1.4MHz 16QAM 18900 6RB#0 VH NT -0.0072 ±2.5 PASS Band2 1.4MHz 16QAM 19193 6RB#0 VL NT -0.0104 ±2.5 PASS Band2 1.4MHz 16QAM 19193 6RB#0 VN NT -0.0039 ±2.5 PASS Band2 1.4MHz 16QAM 19193 6RB#0 VH NT 0.0068 ±2.5 PASS Band2 3MHz QPSK 18615 15RB#0 VL NT 0.0049 ±2.5 PASS Band2 3MHz QPSK 18615 15RB#0 VN NT -0.0046 ±2.5 PASS Band2 3MHz QPSK 18615 15RB#0 VH NT 0.0156 ±2.5 PASS Band2 3MHz QPSK 18900 15RB#0 VL NT 0.0071 ±2.5 PASS Band2 3MHz QPSK 18900 15RB#0 VN NT 0.0177 ±2.5 PASS Band2 3MHz QPSK 18900 15RB#0 VH NT -0.0055 ±2.5 PASS Band2 3MHz QPSK 19185 15RB#0 VL NT 0.0037 ±2.5 PASS Band2 3MHz QPSK 19185 15RB#0 VN NT -0.0072 ±2.5 PASS Band2 3MHz QPSK 19185 15RB#0 VH NT 0.0078 ±2.5 PASS Band2 3MHz 16QAM 18615 15RB#0 VL NT 0.0071 ±2.5 PASS Band2 3MHz 16QAM 18615 15RB#0 VN NT -0.0079 ±2.5 PASS Band2 3MHz 16QAM 18615 15RB#0 VH NT 0.0051 ±2.5…

Text truncated - open the document above for the full version.

Page 150 / 221 5 3.0 20635 847.5 16QAM 1@14 see graph PASS 5 3.0 20635 847.5 16QAM 15@0 see graph PASS 5 5.0 20425 826.5 QPSK 1@0 see graph PASS 5 5.0 20425 826.5 QPSK 1@24 see graph PASS 5 5.0 20425 826.5 QPSK 25@0 see graph PASS 5 5.0 20425 826.5 16QAM 1@0 see graph PASS 5 5.0 20425 826.5 16QAM 1@24 see graph PASS 5 5.0 20425 826.5 16QAM 25@0 see graph PASS 5 5.0 20625 846.5 QPSK 1@0 see graph PASS 5 5.0 20625 846.5 QPSK 1@24 see graph PASS 5 5.0 20625 846.5 QPSK 25@0 see graph PASS 5 5.0 20625 846.5 16QAM 1@0 see graph PASS 5 5.0 20625 846.5 16QAM 1@24 see graph PASS 5 5.0 20625 846.5 16QAM 25@0 see graph PASS 5 10.0 20450 829.0 QPSK 1@0 see graph PASS 5 10.0 20450 829.0 QPSK 1@49 see graph PASS 5 10.0 20450 829.0 QPSK 50@0 see graph PASS 5 10.0 20450 829.0 16QAM 1@0 see graph PASS 5 10.0 20450 829.0 16QAM 1@49 see graph PASS 5 10.0 20450 829.0 16QAM 50@0 see graph PASS 5 10.0 20600 844.0 QPSK 1@0 see graph PASS 5 10.0 20600 844.0 QPSK 1@49 see graph PASS 5 10.0 20600 844.0 QPSK 50@0 see graph PASS 5 10.0 20600 844.0 16QAM 1@0 see graph PASS 5 10.0 20600 844.0 16QAM 1@49 see graph PASS 5 10.0 20600 844.0 16QAM 50@0 see graph PASS 7 5.0 20775 2502.5 QPSK 1@0 see graph PASS 7 5.0 20775 2502.5 QPSK 1@24 see graph PASS 7 5.0 20775 2502.5 QPSK 25@0 see graph PASS 7 5.0 20775 2502.5 16QAM 1@0 see graph PASS 7 5.0 20775 2502.5 16QAM 1@24 see graph PASS 7 5.0 20775 2502.5 16QAM 25@0 see graph PASS 7 5.0 21425 2567.5 QPSK 1@0 see graph PASS 7 5.0 21425 2567.5 QPSK 1@24 see graph PASS 7 5.0 21425 2567.5 QPSK 25@0 see graph PASS 7 5.0 21425 2567.5 16QAM 1@0 see graph PASS 7 5.0 21425 2567.5 16QAM 1@24 see graph PASS 7 5.0 21425 2567.5 16QAM 25@0 see graph PASS 7 10.0 20800 2505.0 QPSK 1@0 see graph PASS 7 10.0 20800 2505.0 QPSK 1@49 see graph PASS 7 10.0 20800 2505.0 QPSK 50@0 see graph PASS 7 10.0 20800 2505.0 16QAM 1@0 see graph PASS 7 10.0 20800 2505.0 16QAM 1@49 see graph PASS 7 10.0 20800 2505.0 16QAM 50@0 see graph PASS 7 10.0 21400 2565.0 QPSK 1@0 se…
