2BUD4-LC08Bluetooth remote shutter

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Henan Ligan Qicheyongpin Youxiangongsi Room 306, 3rd Floor, Unit 2, Building 7, Pengyutianxia City, East Side of the Northern Section of Leshan Avenue, Zhumadian City, Henan Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/14 U.S. Agent Designation Henan Ligan Qicheyongpin Youxiangongsi acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BUD4-LC08): Name and company of U.S. agent: DAME INC Physical U.S. address of agent: 19 Preston St, Unit 1, Goffstown NH 03045 NH, NH 3045 United States FRN of U.S. agent: 0036816189 Email address of U.S. agent: [email protected] DAME INC acknowledges their obligation to accept service of process on behalf of Henan Ligan Qicheyongpin Youxiangongsi Henan Ligan Qicheyongpin Youxiangongsi with the FRN [0037865615] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Xia Li Manager Henan Ligan Qicheyongpin Youxiangongsi Signature Liangshu Zhang manager DAME INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

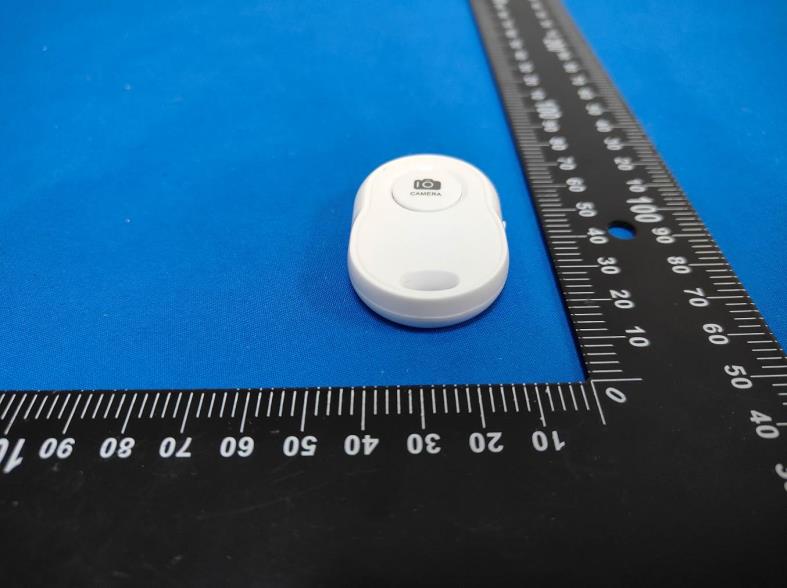

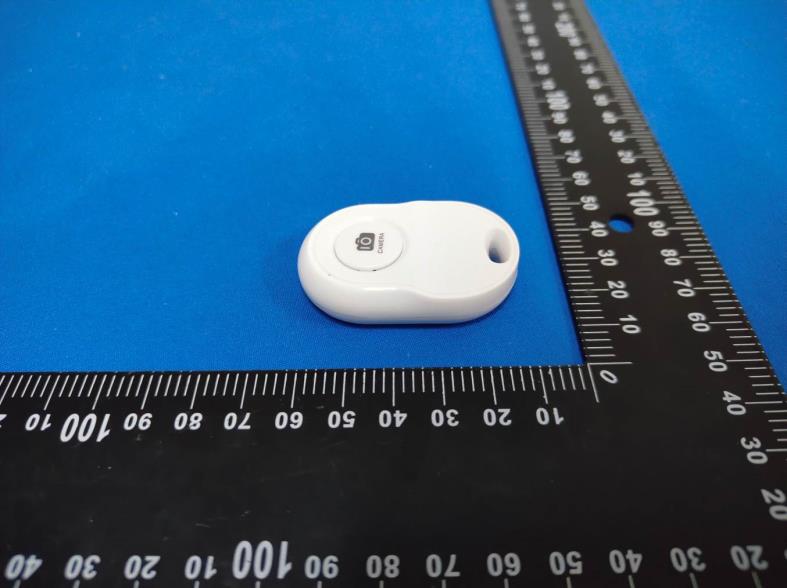

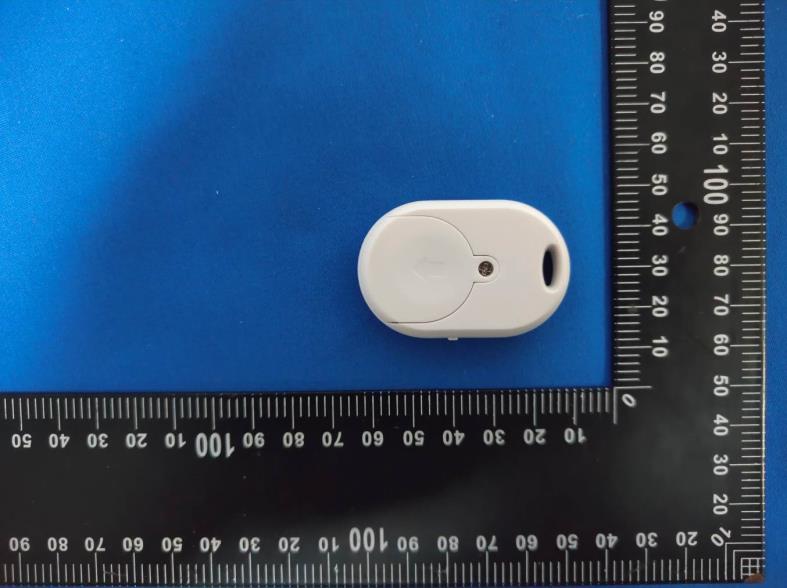

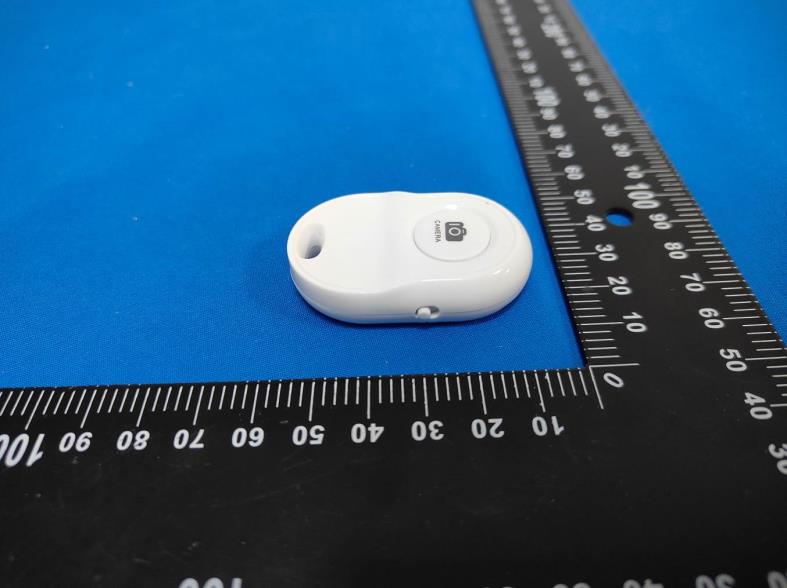

FCC ID: 2BUD4-LC08 External Photos of the EUT FCC ID: 2BUD4-LC08

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BUD4-LC08

FCC ID: 2BUD4-LC08 Internal Photos of the EUT FCC ID: 2BUD4-LC08 FCC ID: 2BUD4-LC08 BLE ANT

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ........................................... : CTA26010400902 2BUD4-LC08 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jan. 09, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Henan Ligan Qicheyongpin Youxiangongsi Address ............................................ : Room 306, 3rd Floor, Unit 2, Building 7, Pengyutianxia City, East Side of the Northern Section of Leshan Avenue, Zhumadian City, Henan Province, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Bluetooth remote shutter Trade Mark ....................................... : ASHUTB Manufacturer .................................... : Henan Ligan Qicheyongpin Youxiangongsi Model/Type reference ....................... : LC08 Listed Models ................................... : AB Shutter 3 Rating ............................................... : DC 3.0V From battery Result ................................................ : PASS Report No.: CTA26010400902 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth remote shutter Model /Type : LC08 Listed Models : AB Shutter 3 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Henan Ligan Qicheyongpin Youxiangongsi Address : Room 306, 3rd Floor, Unit 2, Building 7, Pengyutianxia City, East Side of the Northern Section of Leshan Avenue, Zhumadian City, Henan Province, China Manufacturer : Henan Ligan Qicheyongpin Youxiangongsi Address : Room 306, 3rd Floor, Unit 2, Building 7, Pengyutianxia City, East Side of the Northern Section of Leshan Avenue, Zhumadian City, Henan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26010400902 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion .........................................................................................................…

Text truncated - open the document above for the full version.

ANT6： GianandEfficiency Frequency (MHz) Efficiency(%)Gain(dBi) 230042.680.78 232046.241.56 234044.622.23 236044.442.69 238042.813.27 240046.293.85 242056.894.41 244060.274.33 246057.593.73 248055.543.66 250056.504.05 252050.263.52 254047.763.49 3Dand1DRadiationPatterns Total P o w e r ( d B m ) -14 8 -10 -6 -2 2 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 Cut1 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -12 Max: 6 0 180 30 210 60 240 90270 120 300 150 330 Cut2 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -14 Max: 6 0 180 30 210 60 240 90270 120 300 150 330 Cut3 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -8 Max: 6 0 180 30 210 60 240 90270 120 300 150 330 Manufacturer:Henan Ligan Qicheyongpin Youxiangongsi Address:Room 306, 3rd Floor, Unit 2, Building 7, Pengyutianxia City, East Side of the Northern Section of Leshan Avenue, Zhumadian City, Henan Province, China

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26010400901 2BUD4-LC08 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Jan. 09, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Henan Ligan Qicheyongpin Youxiangongsi Address ...........................................: Room 306, 3rd Floor, Unit 2, Building 7, Pengyutianxia City, East Side of the Northern Section of Leshan Avenue, Zhumadian City, Henan Province, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Bluetooth remote shutter Trade Mark ......................................: ASHUTB Manufacturer ...................................: Henan Ligan Qicheyongpin Youxiangongsi Model/Type reference .....................: LC08 Listed Models ..................................: AB Shutter 3 Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: DC 3.0V From battery Result ..............................................: PASS Report No.: CTA26010400901 Page 2 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth remote shutter Model /Type : LC08 Listed Models : AB Shutter 3 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Henan Ligan Qicheyongpin Youxiangongsi Address : Room 306, 3rd Floor, Unit 2, Building 7, Pengyutianxia City, East Side of the Northern Section of Leshan Avenue, Zhumadian City, Henan Province, China Manufacturer : Henan Ligan Qicheyongpin Youxiangongsi Address : Room 306, 3rd Floor, Unit 2, Building 7, Pengyutianxia City, East Side of the Northern Section of Leshan Avenue, Zhumadian City, Henan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26010400901 Page 3 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility..........................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BUD4-LC08 Company : Henan Ligan Qicheyongpin Youxiangongsi EUT : Bluetooth remote shutter Model Number : LC08 Report No. : CTA26010400901 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.648 2401.692 2402.340 0.5 PASS 2440 0.640 2439.692 2440.332 0.5 PASS 2480 0.656 2479.688 2480.344 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0067 2401.5215 2402.5282 --- --- 2440 1.0145 2439.5157 2440.5302 --- --- 2480 1.0117 2479.5193 2480.5310 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.31 ≤30 PASS 2440 -3.64 ≤30 PASS 2480 -3.69 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.27 ≤8.00 PASS 2440 -19.38 ≤8.00 PASS 2480 -19.57 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -4.00 -56.58 ≤-24 PASS High 2480 -3.79 -56.12 ≤-23.79 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -4.77 -4.77 --- PASS 30~1000 -4.77 -68.46 ≤-24.77 PASS 1000~26500 -4.77 -48.34 ≤-24.77 PASS 2440 Reference -4.48 -4.48 --- PASS 30~1000 -4.48 -68.1 ≤-24.48 PASS 1000~26500 -4.48 -49.74 ≤-24.48 PASS 2480 Reference -5.20 -5.20 --- PASS 30~1000 -5.20 -68.11 ≤-25.2 PASS 1000~26500 -5.20 -47.38 ≤-25.2 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m ] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.52 4.41 1.80 40.89 ≤54 PASS AV 2382.845 -58.85 4.41 1.80 42.56 ≤54 PASS AV 2390.000 -59.99 4.41 1.80 41.42 ≤54 PASS Peak 2310.000 -51.58 4.41 0.00 48.03 ≤74 PASS Peak 2381.690 -48.82 4.41 0.00 50.79 ≤74 PASS Peak 2390.000 -51.73 4.41 0.00 47.88 ≤74 PASS High 2480 AV 2483.500 -58.33 4.41 1.80 43.08 ≤54 PASS AV 2483.920 -58.33 4.41 1.80 43.08 ≤54 PASS AV 2500.000 -59.5 4.41 1.80 41.91 ≤54 PASS Peak 2483.500 -49.67 4.41 0.00 49.94 ≤74 PASS Peak 2484.960 -47.21 4.41 0.00 52.4 ≤74 PASS Peak 2500.000 -51.32 4.41 0.00 48.29 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

FCC ID: 2BUD4-LC08 Test Setup Photos of the EUT
