2BUDJ-SSHUB01Audio HUB

© 2026 Biner Inc. All rights reserved. | Page 1SSHUB User Manual v1.0 SSHUB Audio Hub User Manual Model:SSHUB001 Manufacturer:Biner Inc. Power Input: Document Version:v1.0 (January 2026) DC 24V / 6.25A © 2026 Biner Inc. All rights reserved. | Page 2SSHUB User Manual v1.0 Table of Contents 1. Introduction .................................................. 3 2. Hardware Overview .................................................. 3 3. Functional Features .................................................. 4 4. Bluetooth Setup and Operation .................................................. 4 5. USB and Audio Signal Routing .................................................. 5 6. LED Status Indicators .................................................. 6 7. Power and Charging .................................................. 6 8. Installation and Configuration .................................................. 7 9. CLI and Control Interfaces .................................................. 7 10. Troubleshooting .................................................. 8 11. Technical Specifications .................................................. 9 12. Appendix .................................................. 10 © 2026 Biner Inc. All rights reserved. | Page 3SSHUB User Manual v1.0 1. Introduction Purpose SSHUB enables routing of audio (media or voice) from mobile phones (Android/iOS) to laptops (Windows/macOS/Linux) via USB connection. It also supports USB data pass-through and Bluetooth audio connectivity. Use Cases • Developers testing mobile audio interfaces • QA teams for USB/Bluetooth integration testing • Automated USB port power control • Multi-device audio and data management © 2026 Biner Inc. All rights reserved. | Page 4SSHUB User Manual v1.0 2. Hardware Overview SSHUB includes the following key hardware components: ComponentQuantityDescription USB-C Port to Phone4For connecting Android/iOS devices USB Reset Button4For hard-reset of individual USB ports Bluetooth Module (QCC51xx or similar) 4A2DP + HFP capable 3.5mm TRRS Jack4Audio in/out (Mic + Headphone combo) BT Pairing Button4Manually enter Bluetooth pairing mode USB-C PC Port1Connects to PC (data, audio, CLI control) Note: 4 additional backup USB ports are available if primary ports are damaged. © 2026 Biner Inc. All rights reserved. | Page 5SSHUB User Manual v1.0 3. Functional Features USB-C (PC Port) Provides: • USB audio interface (UAC) • USB data tunneling for mobile debugging • UART/CLI control interface USB Power Control Supported Via: • Serial commands • uhubctl open-source CLI tool: https://github.com/mvp/uhubctl Key Features: • Simultaneous data + audio support • Fast charging on all ports • Audio routing priority: - If 3.5mm jack is connected → use analog input - Else → use Bluetooth connection 4. Bluetooth Setup and Operation Profiles Supported: • A2DP (Advanced Audio Distribution Profile): For high-quality music streaming • HFP (Hands-Free Profile): For call audio • Optional: PBAP, HID Operation Flow: 1. Press BT Pair Button to enter pairing mode - LED flashes Blue n 2. Use mobile phone to search and connect - Once paired, LED turns Green n 3. Audio streaming will occur via HFP or A2DP depending on context © 2026 Biner Inc. All rights reserved. | Page 6SSHUB User Manual v1.0 Serial Control Commands via UART: • Enter pairing mode • Rename BT module • Disconnect/reconnect • Power on/off module • Dump activity logs • Update firmware Connection Priority: When a 3.5mm audio jack is connected, the wired connection takes priority over Bluetooth. When no audio jack is present, Bluetooth audio connection is automatically activated. © 2026 Biner Inc. All rights reserved. | Page 7SSHUB User Manual v1.0 5. USB and Audio Signal Routing USB-C (PC Port): • Recognized as USB Audio Device by the host PC • Routes audio from Bluetooth or 3.5mm TRRS Jack 3.5mm Jack Input: • Accepts TRRS headset (mic + audio) • Audio converted to digital and sent to PC via USB USB-C (Phone Ports): Allow full USB data communication between phone and PC while routing audio in parallel. Priority Handling: 1. If 3.5mm TRRS is plugged in → use analog audio 2. If not → default to Bluetooth module 6. LED Status Indicators Bluetooth Module LEDs ColorStatus n Solid BlueBluetooth power ON n Blinking BlueBluetooth pairing mode n GreenPaired with device System Power LED ColorDescription n RedPower connected, system off n GreenPower connected, system on USB Port LED © 2026 Biner Inc. All rights reserved. | Page 8SSHUB User Manual v1.0 ColorDescription n GreenPort powered and active © 2026 Biner Inc. All rights reserved. | Page 9SSHUB User Manual v1.0 7. Power and Charging Power Supply Options: • Primary Power: USB from PC via PC Port • Optional Power: External DC supply (24V/6.25A recommended) Charging Features: • All USB ports support Fast Charging • Fallback charging available when no data connection is active 8. Installation and Configuration Setup Steps: 1. Connect USB-C PC Port to your laptop 2. Connect smartphone to any USB-C (Phone) port 3. Optional: Connect 3.5mm TRRS headset for analog audio input 4. Power on the device or ensure laptop supplies power via USB 5. Run control software or serial CLI if needed 6. Use BT Pair Button if Bluetooth audio connectivity is desired © 2026 Biner Inc. All rights reserved. | Page 10SSHUB User Manual v1.0 9. CLI and Control Interfaces Command Interface Options: • UART (Serial over USB) • uhubctl (for USB power toggle) Sample Serial Commands: BT.PAIR BT.RENAME="SSHUB_BT01" BT.CONNECT=1 BT.POWER=ON uhubctl Examples: # Turn off port 3 uhubctl -l 1-1 -p 3 -a off # Turn on port 3 uhubctl -l 1-1 -p 3 -a on 10. Troubleshooting ProblemSolution No audio on PCCheck audio routing priority (Jack > BT). Verify USB audio device is recognized. BT not pairingEnsure BT module is powered. Press Pair button and wait for blinking blue LED. USB port unresponsiveUse Reset button or power cycle the device. Check cable connection, update drivers if…

Text truncated - open the document above for the full version.

BINER INC B-1147ho, 218, Hyangdong-ro, Deogyang-gu, Goyang-si, Gyeonggi-do South Korea Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/21 U.S. Agent Designation BINER INC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BUDJ-SSHUB01): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of BINER INC BINER INC with the FRN [0037860632] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Ko young hun Manager BINER INC Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

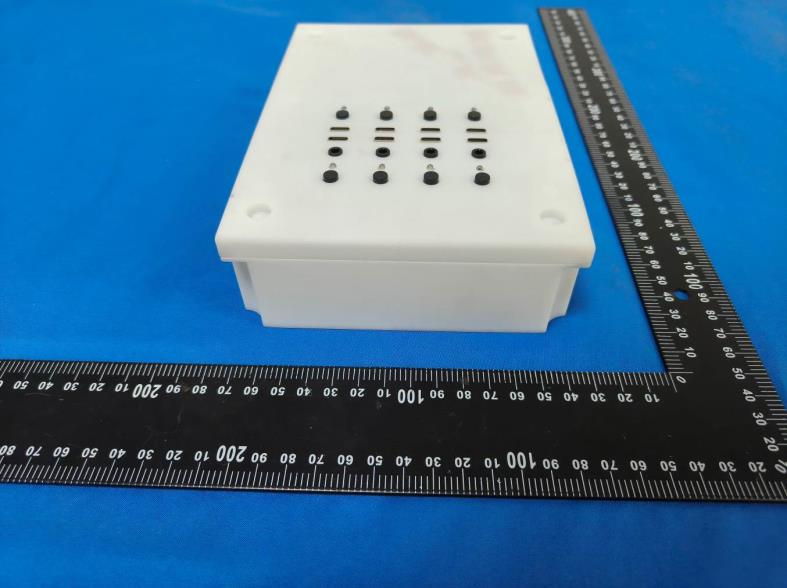

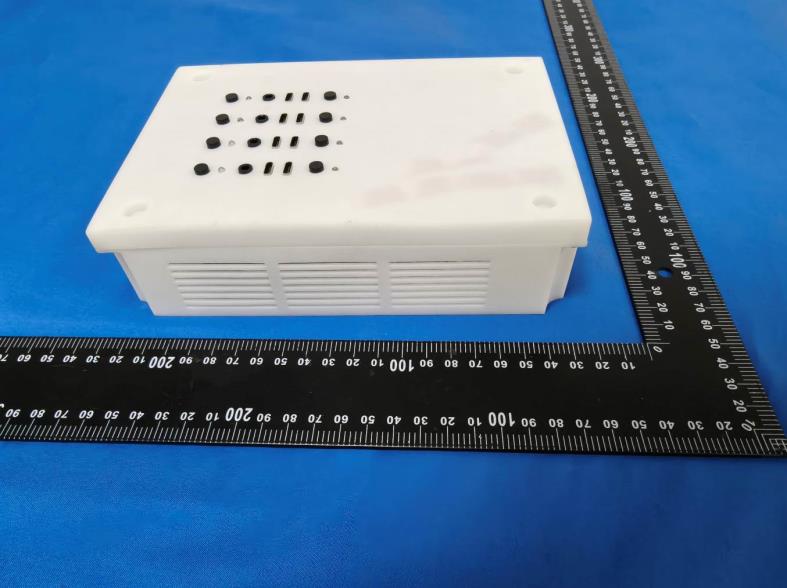

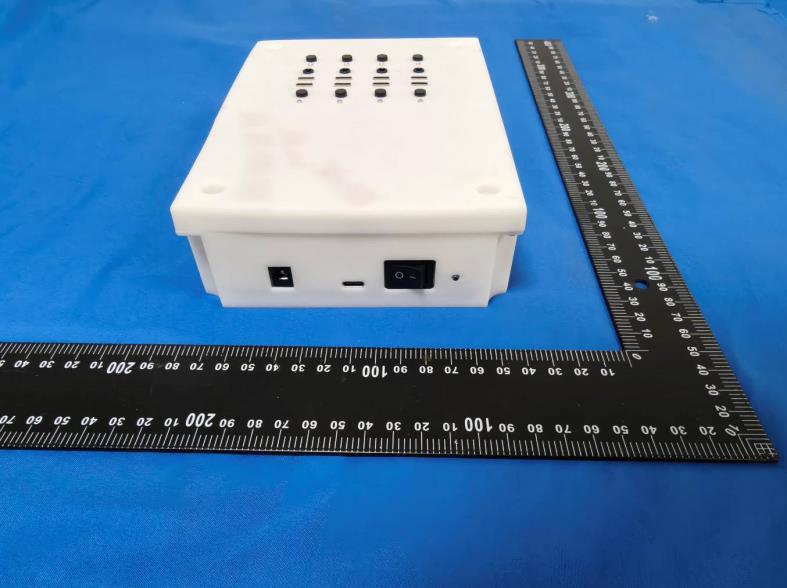

FCC ID:2BUDJ-SSHUB01 External Photos of the EUT FCC ID:2BUDJ-SSHUB01 FCC ID:2BUDJ-SSHUB01

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BUDJ-SSHUB01

FCC ID:2BUDJ-SSHUB01 Internal Photos of the EUT FCC ID:2BUDJ-SSHUB01 FCC ID:2BUDJ-SSHUB01 BT Module1 ANT BT Module4 ANT BT Module3 ANT BT Module2 ANT FCC ID:2BUDJ-SSHUB01 FCC ID:2BUDJ-SSHUB01

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .................... : FCC ID. ........................................... : CTA26010601403 2BUDJ-SSHUB01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 15, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : BINER INC Address ........................................... : B-1147ho, 218, Hyangdong-ro, Deogyang-gu, Goyang-si, Gyeonggi-do South Korea Standard .......................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Audio HUB Trade Mark .......................................: N/A Manufacturer .....................................: BINER INC Model/Type reference .......................: SSHUB-001 Listed Models ....................................: N/A Rating................................................: DC 24.0V From external circuit Result ................................................: PASS Report No.: CTA26010601403 Page 2 of 11 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Audio HUB Model /Type : SSHUB-001 Listed Models : N/A Applicant : BINER INC Address : B-1147ho, 218, Hyangdong-ro, Deogyang-gu, Goyang-si, Gyeonggi-do South Korea Manufacturer : BINER INC Address : B-1147ho, 218, Hyangdong-ro, Deogyang-gu, Goyang-si, Gyeonggi-do South Korea Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26010601403 Page 3 of 11 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 9 4.4 Manufacturing tolerance ........................................................................................ 10 4.5 Standalone MPE Result ......................................................................................... 10 4.6 Simultaneous Transmission for MPE Result ......................................................... 11 5 Conclusion ......................................................................................................................... 11 Report No.: CTA26010601403 Page 4 of 11 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels w…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PIFA antenna Model SSHUB-001 Frequency range 2400-2500MHz Manufacturer BINER INC Address B-1147ho, 218, Hyangdong-ro, Deogyang-gu, Goyang- si, Gyeonggi-do South Korea ANT Peak Gain 3 dBi 2. Antenna Photo: Length :40.37mm Width:10.65mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26010601402 2BUDJ-SSHUB01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 15, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : BINER INC Address ............................................ : B-1147ho, 218, Hyangdong-ro, Deogyang-gu, Goyang-si, Gyeonggi-do South Korea Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Audio HUB Trade Mark ....................................... : N/A Manufacturer .................................... : BINER INC Model/Type reference ...................... : SSHUB-001 Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 24.0V From external circuit Result ............................................... : PASS Report No.: CTA26010601402 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Audio HUB Model /Type : SSHUB-001 Listed Models : N/A Applicant : BINER INC Address : B-1147ho, 218, Hyangdong-ro, Deogyang-gu, Goyang-si, Gyeonggi-do South Korea Manufacturer : BINER INC Address : B-1147ho, 218, Hyangdong-ro, Deogyang-gu, Goyang-si, Gyeonggi-do South Korea Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26010601402 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results .................................................................................................... 8 3.5 Statement of the measurement uncertainty ................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BUDJ-SSHUB01 Company : BINER INC EUT : Audio HUB Model Number : SSHUB-001 Report No. : CTA26010601402 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.960 2401.547 2402.507 --- --- 2441 0.951 2440.550 2441.501 --- --- 2480 0.960 2479.544 2480.504 --- --- 2DH5 Ant1 2402 1.281 2401.379 2402.660 --- --- 2441 1.326 2440.349 2441.675 --- --- 2480 1.320 2479.352 2480.672 --- --- 3DH5 Ant1 2402 1.290 2401.376 2402.666 --- --- 2441 1.287 2440.376 2441.663 --- --- 2480 1.284 2479.379 2480.663 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86827 2401.5789 2402.4472 --- --- 2441 0.87232 2440.5747 2441.4470 --- --- 2480 0.86693 2479.5747 2480.4416 --- --- 2DH5 Ant1 2402 1.1902 2401.4160 2402.6062 --- --- 2441 1.1797 2440.4189 2441.5986 --- --- 2480 1.1880 2479.4165 2480.6045 --- --- 3DH5 Ant1 2402 1.1808 2401.4210 2402.6018 --- --- 2441 1.1986 2440.4131 2441.6117 --- --- 2480 1.1863 2479.4170 2480.6033 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Module 1 Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.06 ≤20.97 PASS 2441 -0.26 ≤20.97 PASS 2480 -0.30 ≤20.97 PASS 2DH5 Ant1 2402 -0.81 ≤20.97 PASS 2441 -1.19 ≤20.97 PASS 2480 -1.09 ≤20.97 PASS 3DH5 Ant1 2402 -0.83 ≤20.97 PASS 2441 -1.16 ≤20.97 PASS 2480 -1.15 ≤20.97 PASS Module 2 Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.15 ≤20.97 PASS 2441 -0.08 ≤20.97 PASS 2480 -0.49 ≤20.97 PASS 2DH5 Ant1 2402 -0.37 ≤20.97 PASS 2441 -1.36 ≤20.97 PASS 2480 -1.45 ≤20.97 PASS 3DH5 Ant1 2402 -0.98 ≤20.97 PASS 2441 -1.42 ≤20.97 PASS 2480 -1.35 ≤20.97 PASS Module 3 Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.41 ≤20.97 PASS 2441 -0.28 ≤20.97 PASS 2480 -0.33 ≤20.97 PASS 2DH5 Ant1 2402 -0.43 ≤20.97 PASS 2441 -1.27 ≤20.97 PASS 2480 -1.18 ≤20.97 PASS 3DH5 Ant1 2402 -1.09 ≤20.97 PASS 2441 -1.29 ≤20.97 PASS 2480 -1.18 ≤20.97 PASS 13 Module 4 Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.36 ≤20.97 PASS 2441 -0.24 ≤20.97 PASS 2480 -0.38 ≤20.97 PASS 2DH5 Ant1 2402 -0.54 ≤20.97 PASS 2441 -1.17 ≤20.97 PASS 2480 -1.32 ≤20.97 PASS 3DH5 Ant1 2402 -0.99 ≤20.97 PASS 2441 -0.94 ≤20.97 PASS 2480 -0.87 ≤20.97 PASS 14 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.986 ≥0.960 PASS 2DH5 Ant1 Hop 1.028 ≥0.884 PASS 3DH5 Ant1 Hop 1.116 ≥0.860 PASS 15 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 16 17 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.407 318 0.129 ≤0.4 PASS DH3 Ant1 Hop 1.662 150 0.249 ≤0.4 PASS DH5 Ant1 Hop 2.910 112 0.326 ≤0.4 PASS 2DH1 Ant1 Hop 0.405 317 0.128 ≤0.4 PASS 2DH3 Ant1 Hop 1.661 163 0.271 ≤0.4 PASS 2DH5 Ant1 Hop 2.916 101 0.295 ≤0.4 PASS 3DH1 Ant1 Hop 0.407 317 0.129 ≤0.4 PASS 3DH3 Ant1 Hop 1.662 162 0.269 ≤0.4 PASS 3DH5 Ant1 Hop 2.915 102 0.297 ≤0.4 PASS 18 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 19 DH5_Ant1_Hop 20 2DH1_Ant1_Hop 2DH3_Ant1_Hop 21 2DH5_Ant1_Hop 22 3DH1_Ant1_Hop 3DH3_Ant1_Hop 23 3DH5_Ant1_Hop 24 25 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 26 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 27 28 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.54 -56.81 ≤-20.54 PASS High 2480 -0.78 -57.38 ≤-20.78 PASS Low Hop_2402 -3.89 -56.87 ≤-23.89 PASS High Hop_2480 -4.19 -56.77 ≤-24.19 PASS 2DH5 Ant1 Low 2402 -4.70 -57.08 ≤-24.7 PASS High 2480 -5.08 -57.87 ≤-25.08 PASS Low Hop_2402 -6.34 -57.69 ≤-26.34 PASS High Hop_2480 -4.85 -57.29 ≤-24.85 PASS 3DH5 Ant1 Low 2402 -3.87 -56.68 ≤-23.87 PASS High 2480 -3.93 -56.61 ≤-23.93 PASS Low Hop_2402 -4.24 -57.82 ≤-24.24 PASS High Hop_2480 -6.93 -57.79 ≤-26.93 PASS 29 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 30 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 31 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 32 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 33 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 34 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.97 -0.97 --- PASS 30~1000 -0.97 -68.02 ≤-20.97 PASS 1000~26500 -0.97 -42.95 ≤-20.97 PASS 2441 Reference -0.72 -0.72 --- PASS 30~1000 -0.72 -67.47 ≤-20.72 PASS 1000~26500 -0.72 -45.47 ≤-20.72 PASS 2480 Reference -1.50 -1.50 --- PASS 30~1000 -1.50 -68.14 ≤-21.5 PASS 1000~26500 -1.50 -44.84 ≤-21.5 PASS 2DH5 Ant1 2402 Reference -5.65 -5.65 --- PASS 30~1000 -5.65 -67.61 ≤-25.65 PASS 1000~26500 -5.65 -47.53 ≤-25.65 PASS 2441 Reference -6.99 -6.99 --- PASS 30~1000 -6.99 -68.62 ≤-26.99 PASS 1000~26500 -6.99 -46.69 ≤-26.99 PASS 2480 Reference -7.54 -7.54 --- PASS 30~1000 -7.54 -68.71 ≤-27.54 PASS 1000~26500 -7.54 -49.01 ≤-27.54 PASS 3DH5 Ant1 2402 Reference -5.66 -5.66 --- PASS 30~1000 -5.66 -61.45 ≤-25.66 PASS 1000~26500 -5.66 -51.52 ≤-25.66 PASS 2441 Reference -6.12 -6.12 --- PASS 30~1000 -6.12 -68.29 ≤-26.12 PASS 1000~26500 -6.12 -51.72 ≤-26.12 PASS 2480 Reference -4.81 -4.81 --- PASS 30~1000 -4.81 -67.99 ≤-2…

Text truncated - open the document above for the full version.

40 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 41 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 42 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 43 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 44 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 45 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 46 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 3DH5 Ant1 2402 2.91 3.74 77.81 1.09 --- --- 2441 2.92 3.74 78.07 1.08 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 47 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 48 2DH5_Ant1_2402 2DH5_Ant1_2441 49 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 50 3DH5_Ant1_2480 51 Appendix J: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(M Hz) Detecto r Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m ] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -60.36 3.00 1.10 38.94 ≤54 PASS AV 2378.750 -58.58 3.00 1.10 40.72 ≤54 PASS AV 2390.000 -59.29 3.00 1.10 40.01 ≤54 PASS Peak 2310.000 -50.95 3.00 0.00 47.25 ≤74 PASS Peak 2373.395 -48.05 3.00 0.00 50.15 ≤74 PASS Peak 2390.000 -51.37 3.00 0.00 46.83 ≤74 PASS High 2480 AV 2483.500 -58.35 3.00 1.10 40.95 ≤54 PASS AV 2483.920 -58.32 3.00 1.10 40.98 ≤54 PASS AV 2500.000 -59.16 3.00 1.10 40.14 ≤54 PASS Peak 2483.500 -50.39 3.00 0.00 47.81 ≤74 PASS Peak 2484.480 -43.98 3.00 0.00 54.22 ≤74 PASS Peak 2500.000 -50.41 3.00 0.00 47.79 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -60.28 3.00 1.09 39.01 ≤54 PASS AV 2371.610 -58.76 3.00 1.09 40.53 ≤54 PASS AV 2390.000 -59.92 3.00 1.09 39.37 ≤54 PASS Peak 2310.000 -51.68 3.00 0.00 46.52 ≤74 PASS Peak 2362.370 -48.53 3.00 0.00 49.67 ≤74 PASS Peak 2390.000 -50.47 3.00 0.00 47.73 ≤74 PASS High 2480 AV 2483.500 -58.47 3.00 1.10 40.83 ≤54 PASS AV 2483.520 -58.47 3.00 1.10 40.83 ≤54 PASS AV 2500.000 -58.96 3.00 1.10 40.34 ≤54 PASS Peak 2483.500 -50.67 3.00 0.00 47.53 ≤74 PASS Peak 2497.520 -48.73 3.00 0.00 49.47 ≤74 PASS Peak 2500.000 -51.23 3.00 0.00 46.97 ≤74 PASS 3DH5 Ant1 Low 2402 AV 2310.000 -60.05 3.00 1.09 39.24 ≤54 PASS AV 2370.035 -58.78 3.00 1.09 40.51 ≤54 PASS AV 2390.000 -59.61 3.00 1.09 39.68 ≤54 PASS Peak 2310.000 -52.75 3.00 0.00 45.45 ≤74 PASS Peak 2383.790 -48.83 3.00 0.00 49.37 ≤74 PASS Peak 2390.000 -50.96 3.00 0.00 47.24 ≤74 PASS High 2480 AV 2483.500 -58.53 3.00 1.09 40.76 ≤54 PASS AV 2486.400 -58.52 3.00 1.09 40.77 ≤54 PASS AV 2500.000 -59.79 3.00 1.09 39.5 ≤54 PASS Peak 2483.500 -51.94 3.00 0.00 46.26 ≤74 PASS Peak 2491.040 -48.16 3.00 0.00 50.04 ≤74 PASS Peak 2500.000 -51.09 3.00 0.00 47.11 ≤74 PASS 52 Note：The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 53 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV 54 DH5_Ant1_High_2480_Peak 2DH5_Ant1_Low_2402_AV 55 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV 2DH5_Ant1_High_2480_Peak 56 3DH5_Ant1_Low_2402_A…
