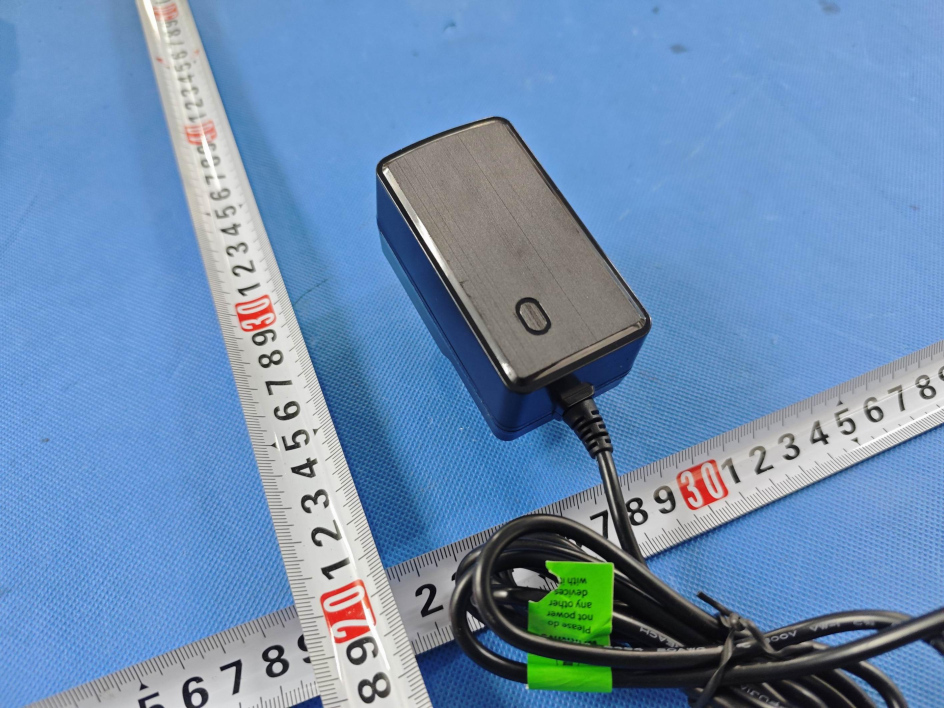

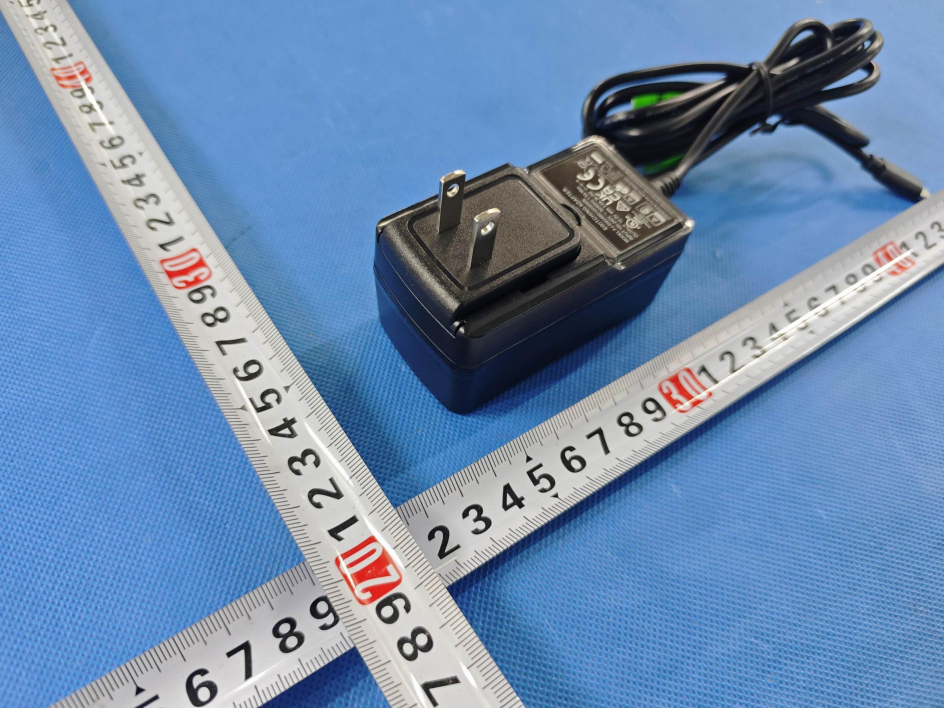

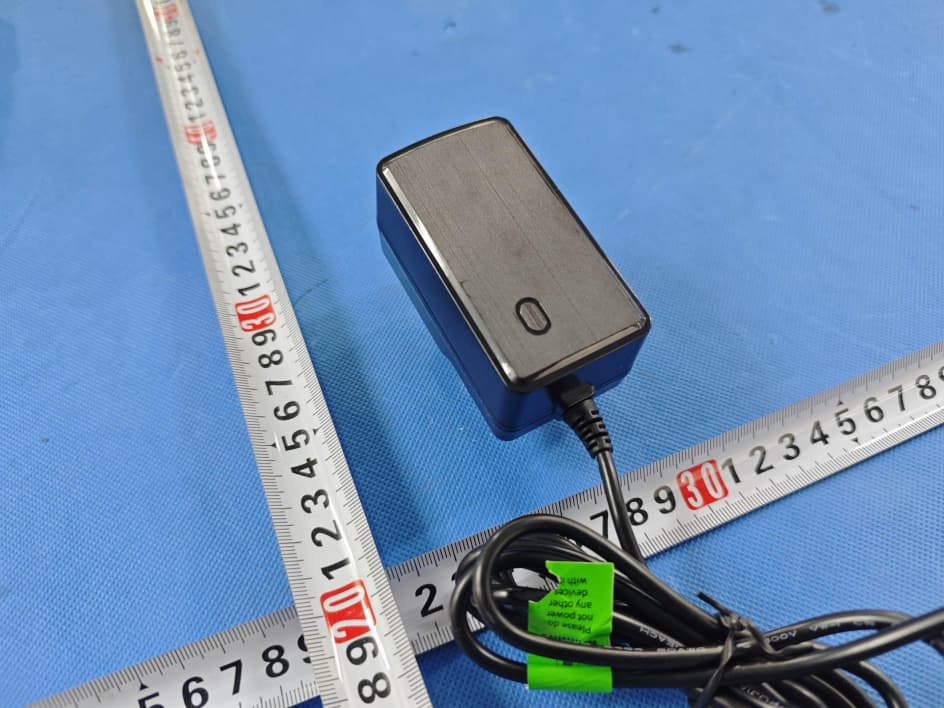

2BUF8-F1515.6 PC Tablet

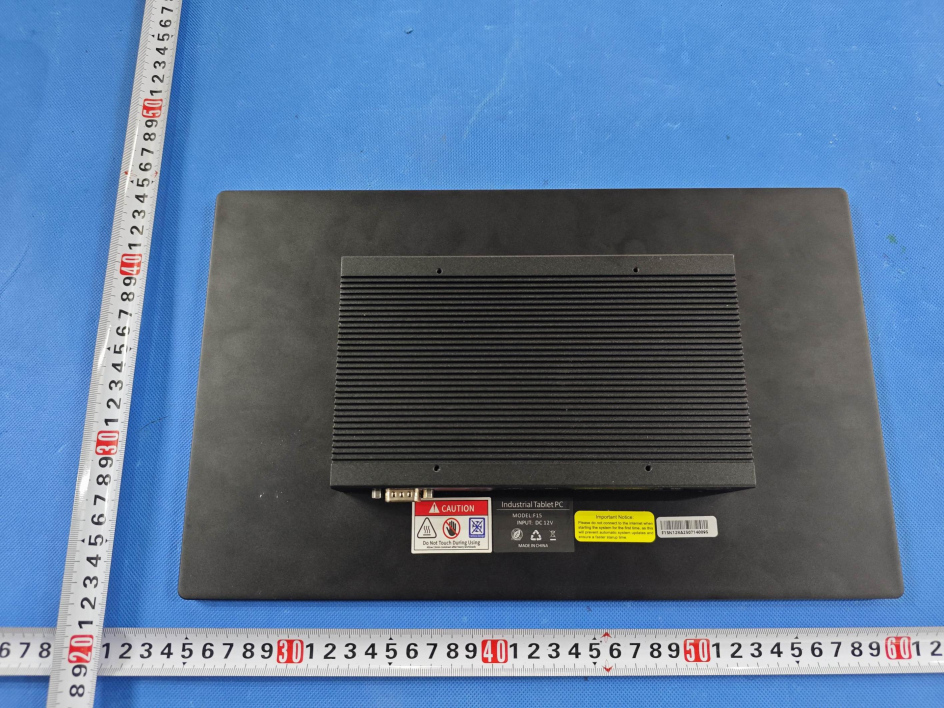

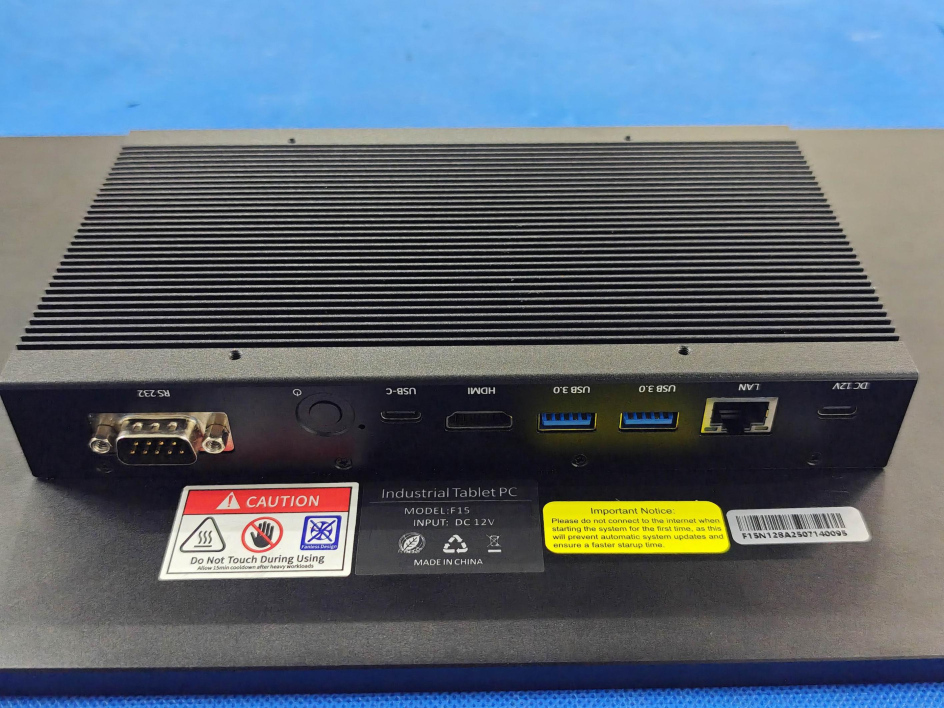

Welcome to use your F15 F 15 w ill start automatically after you press and hold the power button for 3 seconds Front Panel Back Panel Left Panel Right Panel Top Panel Bottom Panel LOCK USB3.0x2 Earphone Micro SD DC 12V HDMI LAN Switch USB3.0x2 USB-C 15.6 Inch Industrial PC Specification and featur es(1) NAME F15 Form Fac tor 15.6" touch industrial PC Dimensions 358.9×222×38.1mm Weight 1.5k g Scr een Size 15.6" Scr een Resolution 1920*1200 Touch Module G+G Multi-Touch Ba tter yOp tional(lithium polymer) Sys tem V ersionWindows 11 CPU Type Intel Celeron N5095 CPU Speed2.0GHz ~ 2.9GHz GPU TypeInt el UHD Graphics Memory8GB Spe ak erBuilt -in WIFI WiFi 5 Blue too th Blue too th 5.0 Ethernet Ne twork 1000Mbps Gigabit Lan USB Interf ac e USB3.0 x 4 USB-C USB-C charge x 1 SD c ar d SD Card r eader ×1 Audio Jack 3.5mm headphone HDMI HDMI 2.0 ×1 Power On/Off Supprot Wak e up on Lan Wak e up on Lan by RJ45 PXE Pr eboo t E xecution Environment CE/F CC Support Specification and featur es(2) Stor ag eeMMC 128GB Support Team: [email protected] FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Page 1 of 27 Report No.: AiTDG-260513002W8 Note:This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited. If there is a need to alter or revise this document, the right belongs to Dongguan Yaxu (AiT) Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Dongguan Yaxu (AiT) Technology Limited No. 22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China TEST REPORT Product Name:15.6 PC Tablet Brand Name:N/A Model:F15 Series Model: F11, F11R, F13, F13R, F15R, F21, F21R FCC ID:2BUF8-F15 Applicant:SHENZHEN GOLE INTELLIGENT EQUIPMENT CO., LTD Address: Room 604, 6/F, Bldg. 2, Runzhi R&D Center, No. 5 Runfang Road, Zone 70, Xingdong Community, Xin ‘an Street, Bao ‘an District, Shenzhen, China Manufacturer:SHENZHEN GOLE INTELLIGENT EQUIPMENT CO., LTD Address: Room 604, 6/F, Bldg. 2, Runzhi R&D Center, No. 5 Runfang Road, Zone 70, Xingdong Community, Xin ‘an Street, Bao ‘an District, Shenzhen, China Standard(s):FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt:May 13, 2026 Date of Test:May 13, 2026~ May 27, 2026 Issued Date:May 28, 2026 Issued By: Dongguan Yaxu (AiT) Technology Limited No. 22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China Tel.: +86-769-8202 0499Fax.: +86-769-8202 0495 Reviewed by:Approved by: Emiya LinSimba Huang Page 2 of 27 Report No.: AiTDG-260513002W8 Report Revise Record Report VersionIssued DateNotes M0May 28, 2026Initial Release Page 3 of 27 Report No.: AiTDG-260513002W8 Contents 1 TEST SUMMARY..........................................................................................................................................................4 1.1TESTSTANDARDS..........................................................................................................................................................4 1.2TESTSUMMARY........................................................................................................................................................... 4 1.3TESTFACILITY...............................................................................................................................................................5 1.4MEASUREMENT UNCERTAINTY........................................................................................................................................ 6 2 GENERAL INFORMATION.............................................................................................................................................7 2.1ENVIRONMENTAL CONDITIONS........................................................................................................................................7 2.2GENERALDESCRIPTION OFEUT......................................................................................................................................7 2.3DESCRIPTION OFTESTMODES ANDTESTFREQUENCY........................................................................................................8 2.4SPECIALACCESSORIES....................................................................................................................................................9 2.5EQUIPMENTLIST FOR THETEST...................................................................................................................................... 9 3 TEST CONDITIONS AND RESULTS...............................................................................................................................11 3.1CONDUCTEDEMISSIONSTEST.......................................................................................................................................11 3.2RADIATEDEMISSIONS ANDBANDEDGE.........................................................................................................................14 3.3MAXIMUMPEAKCONDUCTEDOUTPUTPOWER............................................................................................................. 21 3.4POWERSPECTRALDENSITY..........................................................................................................................................22 3.56DB BANDWIDTH.......................................................................................................................................................23 3.6OUT-OF-BANDEMISSIONS...........................................................................................................................................24 3.7ANTENNAREQUIREMENT.............................................................................................................................................26 4 TEST SETUP PHOTOGRAPHS OF EUT..........................................................................................................................27 5 PHOTOS OF EUT........................................................................................................................................................27 Page 4 of 27 Report No.: AiTDG-260513002W8 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247:Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10:2020:American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02:Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spreda Spectrum System, and Hybrid System Devices Operating Under Section 15.247 of the FCC Rules 1.2 Test Summary Test ItemSec…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BUF8-F15 Dongguan Yaxu (AiT) Technology Limited No. 22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2BUF8-F15 Dongguan Yaxu (AiT) Technology Limited No. 22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission RF Conduction ------End------

Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 77 of 84 g 2437MHz Ant2 Ref g 2437MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 78 of 84 g 2462MHz Ant2 Ref g 2462MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 79 of 84 n20 2412MHz Ant2 Ref n20 2412MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 80 of 84 n20 2437MHz Ant2 Ref n20 2437MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 81 of 84 n20 2462MHz Ant2 Ref n20 2462MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 82 of 84 n40 2422MHz Ant2 Ref n40 2422MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 83 of 84 n40 2437MHz Ant2 Ref n40 2437MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 84 of 84 n40 2452MHz Ant2 Ref n40 2452MHz Ant2 Emission ---The End---

Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 53 of 84 b 2462MHz Ant2 Ref b 2462MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 54 of 84 g 2412MHz Ant2 Ref g 2412MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 55 of 84 g 2462MHz Ant2 Ref g 2462MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 56 of 84 n20 2412MHz Ant2 Ref n20 2412MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 57 of 84 n20 2462MHz Ant2 Ref n20 2462MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 58 of 84 n40 2422MHz Ant2 Ref n40 2422MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 59 of 84 n40 2452MHz Ant2 Ref n40 2452MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 60 of 84 6 Conducted RF Spurious Emission 6.1 Test Result ModeFrequency (MHz)AntennaMax Value (dBc)Limit (dBc)Verdict b2412Ant1-44.26-20Pass b2437Ant1-44.95-20Pass b2462Ant1-44.41-20Pass g2412Ant1-39.39-20Pass g2437Ant1-39.53-20Pass g2462Ant1-35.91-20Pass n202412Ant1-35.62-20Pass n202437Ant1-33.48-20Pass n202462Ant1-32.43-20Pass n402422Ant1-31.32-20Pass n402437Ant1-32.34-20Pass n402452Ant1-31.7-20Pass b2412Ant2-45.43-20Pass b2437Ant2-43.86-20Pass b2462Ant2-43.24-20Pass g2412Ant2-39.24-20Pass g2437Ant2-36.85-20Pass g2462Ant2-37.52-20Pass n202412Ant2-33.67-20Pass n202437Ant2-33.01-20Pass n202462Ant2-32.29-20Pass n402422Ant2-31.42-20Pass n402437Ant2-29.15-20Pass n402452Ant2-31.84-20Pass Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 61 of 84 6.2 Test Graphs Test Graphs b 2412MHz Ant1 Ref b 2412MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 62 of 84 b 2437MHz Ant1 Ref b 2437MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 63 of 84 b 2462MHz Ant1 Ref b 2462MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 64 of 84 g 2412MHz Ant1 Ref g 2412MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 65 of 84 g 2437MHz Ant1 Ref g 2437MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 66 of 84 g 2462MHz Ant1 Ref g 2462MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 67 of 84 n20 2412MHz Ant1 Ref n20 2412MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 68 of 84 n20 2437MHz Ant1 Ref n20 2437MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 69 of 84 n20 2462MHz Ant1 Ref n20 2462MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 70 of 84 n40 2422MHz Ant1 Ref n40 2422MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 71 of 84 n40 2437MHz Ant1 Ref n40 2437MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 72 of 84 n40 2452MHz Ant1 Ref n40 2452MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 73 of 84 b 2412MHz Ant2 Ref b 2412MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 74 of 84 b 2437MHz Ant2 Ref b 2437MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 75 of 84 b 2462MHz Ant2 Ref b 2462MHz Ant2 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 76 of 84 g 2412MHz Ant2 Ref g 2412MHz Ant2 Emission

Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 26 of 84 g 2437MHz Ant2 g 2462MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 27 of 84 n20 2412MHz Ant2 n20 2437MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 28 of 84 n20 2462MHz Ant2 n40 2422MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 29 of 84 n40 2437MHz Ant2 n40 2452MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 30 of 84 4 Maximum Power Spectral Density Level 4.1 Test Result ModeFrequency (MHz)ANT1 Conducted PSD (dBm/3-100kHz) ANT2 Conducted PSD (dBm/3-100kHz) SUM Conducted PSD (dBm/3-100kHz) Limit (dBm/3kHz) Verdict b2412-9.99-10.05/≤8Pass b2437-9.9-10.07/≤8Pass b2462-10.34-10.27/≤8Pass g2412-15.86-15.95/≤8Pass g2437-15.93-16.03/≤8Pass g2462-16.47-16.29/≤8Pass n202412-20.59-21.03-17.79≤8Pass n202437-20.76-20.72-17.73≤8Pass n202462-21.35-21.13-18.23≤8Pass n402422-23.96-24.3-21.12≤8Pass n402437-24.49-24.38-21.42≤8Pass n402452-24.49-24.46-21.46≤8Pass Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 31 of 84 4.2 Test Graphs Test Graphs PSD b 2412MHz Ant1 PSD b 2437MHz Ant1 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 32 of 84 PSD b 2462MHz Ant1 PSD b 2412MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 33 of 84 PSD b 2437MHz Ant2 PSD b 2462MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 34 of 84 PSD g 2412MHz Ant1 PSD g 2437MHz Ant1 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 35 of 84 PSD g 2462MHz Ant1 PSD g 2412MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 36 of 84 PSD g 2437MHz Ant2 PSD g 2462MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 37 of 84 PSD n20 2412MHz Ant1 PSD n20 2437MHz Ant1 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 38 of 84 PSD n20 2462MHz Ant1 PSD n20 2412MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 39 of 84 PSD n20 2437MHz Ant2 PSD n20 2462MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 40 of 84 PSD n40 2422MHz Ant1 PSD n40 2437MHz Ant1 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 41 of 84 PSD n40 2452MHz Ant1 PSD n40 2422MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 42 of 84 PSD n40 2437MHz Ant2 PSD n40 2452MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 43 of 84 5 Band Edge 5.1 Test Result ModeFrequency (MHz)AntennaMax Value (dBc)Limit (dBc)Verdict b2412Ant1-54.95-20Pass b2462Ant1-56.88-20Pass g2412Ant1-50.34-20Pass g2462Ant1-48.97-20Pass n202412Ant1-47.08-20Pass n202462Ant1-43.22-20Pass n402422Ant1-44.62-20Pass n402452Ant1-44.01-20Pass b2412Ant2-55.62-20Pass b2462Ant2-55.89-20Pass g2412Ant2-52.02-20Pass g2462Ant2-49.17-20Pass n202412Ant2-47.85-20Pass n202462Ant2-46.86-20Pass n402422Ant2-43.99-20Pass n402452Ant2-42.83-20Pass Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 44 of 84 5.2 Test Graphs Test Graphs b 2412MHz Ant1 Ref b 2412MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 45 of 84 b 2462MHz Ant1 Ref b 2462MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 46 of 84 g 2412MHz Ant1 Ref g 2412MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 47 of 84 g 2462MHz Ant1 Ref g 2462MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 48 of 84 n20 2412MHz Ant1 Ref n20 2412MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 49 of 84 n20 2462MHz Ant1 Ref n20 2462MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 50 of 84 n40 2422MHz Ant1 Ref n40 2422MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 51 of 84 n40 2452MHz Ant1 Ref n40 2452MHz Ant1 Emission Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 52 of 84 b 2412MHz Ant2 Ref b 2412MHz Ant2 Emission

Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 1 of 84 Appendix RF test data for WIFI2.4G Product Name: 15.6 PC Tablet Trade Mark: N/A Test Model: F15 Environmental Conditions Temperature: 25.2  C Relative Humidity:52.5% ATM Pressure:100.0 kPa Test Engineer:Emiya lin Supervised by:Simba Haung Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 2 of 84 Contents Page COVER PAGE 1 Duty Cycle........................................................................................................................................................................................ 3 1.1Test Result..........................................................................................................................................................................3 1.2Test Graphs.........................................................................................................................................................................4 2 Maximum Conducted Output Power............................................................................................................................................... 16 2.1Test Result........................................................................................................................................................................16 3 -6dB Bandwidth...............................................................................................................................................................................17 3.1Test Result........................................................................................................................................................................17 3.2Test Graphs.......................................................................................................................................................................18 4 Maximum Power Spectral Density Level.........................................................................................................................................30 4.1Test Result........................................................................................................................................................................30 4.2Test Graphs.......................................................................................................................................................................31 5 Band Edge......................................................................................................................................................................................43 5.1Test Result........................................................................................................................................................................43 5.2Test Graphs.......................................................................................................................................................................44 6 Conducted RF Spurious Emission.................................................................................................................................................. 60 6.1Test Result........................................................................................................................................................................60 6.2Test Graphs.......................................................................................................................................................................61 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 3 of 84 1 Duty Cycle 1.1 Test Result ModeFrequency (MHz)AntennaDuty Cycle (%)Correction Factor 1/T (kHz) b2412Ant189.060.50.12 b2437Ant189.040.50.12 b2462Ant189.070.50.12 b2412Ant289.070.50.12 b2437Ant289.080.50.12 b2462Ant289.070.50.12 g2412Ant189.060.50.12 g2437Ant189.040.50.12 g2462Ant189.070.50.12 g2412Ant289.070.50.12 g2437Ant289.080.50.12 g2462Ant289.070.50.12 n202412Ant156.452.480.79 n202437Ant156.232.50.79 n202462Ant156.282.50.79 n202412Ant256.262.50.78 n202437Ant256.382.490.79 n202462Ant256.32.490.78 n402422Ant139.374.051.59 n402437Ant139.214.071.56 n402452Ant139.374.051.59 n402422Ant239.354.051.59 n402437Ant239.374.051.59 n402452Ant239.354.051.59 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 4 of 84 1.2 Test Graphs Test Graphs Duty Cycle b 2412MHz Ant1 Duty Cycle b 2437MHz Ant1 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 5 of 84 Duty Cycle b 2462MHz Ant1 Duty Cycle b 2412MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 6 of 84 Duty Cycle b 2437MHz Ant2 Duty Cycle b 2462MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 7 of 84 Duty Cycle g 2412MHz Ant1 Duty Cycle g 2437MHz Ant1 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 8 of 84 Duty Cycle g 2462MHz Ant1 Duty Cycle g 2412MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 9 of 84 Duty Cycle g 2437MHz Ant2 Duty Cycle g 2462MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 10 of 84 Duty Cycle n20 2412MHz Ant1 Duty Cycle n20 2437MHz Ant1 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 11 of 84 Duty Cycle n20 2462MHz Ant1 Duty Cycle n20 2412MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 12 of 84 Duty Cycle n20 2437MHz Ant2 Duty Cycle n20 2462MHz Ant2 Dongguan Yaxu (AiT) Technology Limited Report No.: AiTDG-260513002W9 FCC ID: 2BUF8-F15 Page 13 of 84 Duty Cycle n40 2422MHz Ant1 Duty Cycle n40 2437MHz Ant1 Dongguan Yaxu (AiT) Technology Limited Report No.:…

Text truncated - open the document above for the full version.

Dongguan Yaxu (AiT) Technology Limited Report No.:AiTDG-260513002W8 FCC ID: 2BUF8-F15 Page 1 of 21 Appendix RF test data for BLE Product Name: 15.6 PC Tablet Trade Mark: N/A Test Model: F15 Environmental Conditions Temperature: 25.2  C Relative Humidity:52.5% ATM Pressure:100.0 kPa Test Engineer:Emiya lin Supervised by:Simba Haung Dongguan Yaxu (AiT) Technology Limited Report No.:AiTDG-260513002W8 FCC ID: 2BUF8-F15 Page 2 of 21 Contents Page COVER PAGE 1 Duty Cycle........................................................................................................................................................................................ 3 1.1 Test Result............................................................................................................................................................................3 1.2 Test Graphs...........................................................................................................................................................................4 2 Maximum Conducted Output Power................................................................................................................................................. 6 2.1 Test Result............................................................................................................................................................................6 2.2 Test Graphs...........................................................................................................................................................................7 3 -6dB Bandwidth.................................................................................................................................................................................9 3.1 Test Result............................................................................................................................................................................9 3.2 Test Graphs.........................................................................................................................................................................10 4 Maximum Power Spectral Density Level.........................................................................................................................................12 4.1 Test Result..........................................................................................................................................................................12 4.2 Test Graphs.........................................................................................................................................................................13 5 Band Edge......................................................................................................................................................................................15 5.1 Test Result..........................................................................................................................................................................15 5.2 Test Graphs.........................................................................................................................................................................16 6 Conducted RF Spurious Emission.................................................................................................................................................. 18 6.1 Test Result..........................................................................................................................................................................18 6.2 Test Graphs.........................................................................................................................................................................19 Dongguan Yaxu (AiT) Technology Limited Report No.:AiTDG-260513002W8 FCC ID: 2BUF8-F15 Page 3 of 21 1 Duty Cycle 1.1 Test Result ModeFrequency (MHz)Duty Cycle (%)Correction Factor 1/T (kHz) BLE 1M240264.791.882.56 BLE 1M244064.81.882.56 BLE 1M248064.81.882.56 Dongguan Yaxu (AiT) Technology Limited Report No.:AiTDG-260513002W8 FCC ID: 2BUF8-F15 Page 4 of 21 1.2 Test Graphs Test Graphs BLE 1M 2402MHz BLE 1M 2440MHz Dongguan Yaxu (AiT) Technology Limited Report No.:AiTDG-260513002W8 FCC ID: 2BUF8-F15 Page 5 of 21 BLE 1M 2480MHz Dongguan Yaxu (AiT) Technology Limited Report No.:AiTDG-260513002W8 FCC ID: 2BUF8-F15 Page 6 of 21 2 Maximum Conducted Output Power 2.1 Test Result ModeFrequency (MHz)Conducted Power (dBm) Limit (dBm)Verdict BLE 1M24026.930Pass BLE 1M24407.2530Pass BLE 1M24808.1830Pass Dongguan Yaxu (AiT) Technology Limited Report…

Text truncated - open the document above for the full version.
