Dash Cam Model: N04-TP&S6 VEVORSupport Center N04-TPN04S6 -1- MODEL: N04-TP&S6 Productpicturesareforreferenceonly,pleaserefertotherealthing. Thisistheoriginalinstruction,pleasereadallmanualinstructionscarefullybefore operating.VEVORreservesaclearinterpretationofourusermanual.The appearanceoftheproductshallbesubjecttotheproductyoureceived.Please forgiveusthatwewon'tinformyouagainifthereareanytechnologyorsoftware updatesonourproduct. Warning-Toreducetheriskofinjury,usermustreadinstructions manualcarefully. ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions:(1)Thisdevicemaynotcause harmfulinterference,and(2)thisdevicemustacceptanyinterference received,includinginterferencethatmaycauseundesiredoperation. Dash Cam -2- ThisproductissubjecttotheprovisionofEuropean Directive2012/19/EC.Thesymbolshowingawheeliebincrossed throughindicatesthattheproductrequiresseparaterefusecollection intheEuropeanUnion.Thisappliestotheproductandall accessoriesmarkedwiththissymbol,Productsmarkedassuchmay notbediscardedwithnormaldomesticwaste.butmustbetakentoa collectionpointforrecyclingelectricalandelectronicdevices. I. Product Overview 1.1 Product Introduction Dash Cam is a high-definition intelligent recording device specially designed for modern driving scenarios. Equipped with a wide-angle lens and ultra-high-definition resolution, it can clearly capture detailed information during driving, providing strong evidence for determining the responsibility of traffic accidents. In addition, the device has core functions such as parking monitoring (requires a dedicated step-down cable), loop recording, and emergency video locking, which provide comprehensive protection for driving safety. 1.2 Package Contents Model:N04-TP AccessoryNameQuantityRemarks DashCamMainUnit1PCS CarChargerCablewithCigaretteLighterPlug1PCS SuctionCupMount1PCS trimprytool1PCS UserManual1PCS RearCamerawithCable1PCS MicroSDCard1PCS N04-TP:64G -3- Model:S6 AccessoryNameQuantityRemarks DashCamMainUnit1PCS CarChargerCablewithCigaretteLighterPlug1PCS staticclingsticker2PCS trimprytool1PCS UserManual1PCS RearCamerawithCable1PCS 1.3TechnicalParameters ModelN04-TPS6 Screen3.18inchIPS;3.0inchIPS; Video Resolution Front4KFront4K RearFHDRearFHD CyclicRecord1/2/3Minute1/2/3Minute VideoFormatTSTS VideoH.264H.264 G-SensorSupportSupport Language Simplified Chinese/English Simplified Chinese/English StorageMicroSDCard(upMicroSDCard(up SuperNoneNone InputPowerDC12-24VDC12-24V CarChargerType-C5V/1.5AType-C5V/1.5A Storage Temperature -20°C~75°C-20°C~75°C Operating Temperature -10°C~60°C-10°C~60°C Note:Specificationscouldbesubjecttomodificationduetoupgradingorrevising. Pleaseregardtheactualproductasthestandardform. -4- II.InstallationGuide 2.1InstallationPositionRequirements CorePrinciple:Selecttheinnersideofthefrontwindshield,intheareatotheright oftherearviewmirror(fromthedriver'sperspective).Ensurethelensdoesnot blocktheview,andcanfullycoverthefrontofthevehicle,theroadahead,andthe edgesofthelanesonbothsides.Atthesametime,avoiddirectsunlightonthe lenstopreventoverexposureoftheimage. ForbiddenAreas:Donotinstallitonthedeploymentpathoftheairbag(suchas thelowerpartofthewindshieldnearthesteeringwheel);donotinstallitina positionthataffectstherainsensororthecameraofthelane-keepingassist system(ifthevehicleisequippedwithsuchsystems). 2.2DetailedInstallationSteps Step1:Preparation Cleantheinstallationareaonthewindshield:Wipetheglasswithacleaningcloth toremovedust,oilstains,andwaterstains,ensuringthebracketisfixedfirmly. Checkaccessories:Confirmthatthemainunit,bracket,powercable,andother accessoriesarecomplete. Step2:FixtheBracketandMainUnit Alignthesuctioncupofthesuctioncupbracketwiththecleanedglassarea,press the"lockcatch"onthetopofthebrackettoensurethesuctioncupisfullyattached. Afterattachment,gentlypullthebrackettocheckitsfirmness. Alignthecardslotatthebottomofthemainunitwiththebuckleatthetopofthe bracket,pushitinhorizontally.Afterhearinga"click"sound,confirmthemainunit isfixedinplace.Ifyouneedtoadjusttheangle,rotatetheballjointofthebracket toadjustthedirectionofthelens. Step3:ArrangethePowerCable IfusingaregularUSBpowercable:Connectoneendofthepowercabletothe USBportofthemainunit.Routetheotherendalongthegapoftheroof(useapry tooltoassistinhidingthecabletoavoiddamagingtheinterior)andtheinnerside oftheA-pillar(pullopenthesealingstripandhidethecableinside),andfinally connectittothevehicle'sUSBportorcigarettelighter(a5V/2Aadapteris required). Step4:DebuggingandConfirmation -5- Afterpoweringon,observetheimagedisplayedonthescreen:Ensurethereisno obstructionintheimage,thefrontofthevehicleisatthe1/5positionfromthe bottomofthescreen,theroadaheadiscentered,andtheedgesofthelaneson bothsidescanbefullydisplayed. -6- III.OperationInstructions Model:N04-TP PowerKey:Longpressformorethan3secondstoturnonoroff;shortpressto turnthescreenonoroff. UpKey:Inthemenudirectorystate,pressthiskeytoselectthemenudirectory upward. MMenuKey:Pressthiskeytodisplaythemenudirectory;inthemenudirectory state,pressthiskeytoconfirmtheoption. DownKey:Inthemenudirectorystate,pressthiskeytoselectthemenudirectory downward. -7- Model:S6 KeyA：PowerKey:Longpresstoturnon/off;Shortpresstoturnoffthescreen/turn onthescreen. RecordingMode 1.1MenuMode (1)Resolution:Press"MENU"tofindthe[Resolution],Press"OK"toconfirm, PressUPandDowntoselecttheResolution4K/2K/1080P,Press"OK"toconfirm.. (2)Looprecording:Press"MENU"tofindthe[Looprecording],Press"OK"to confirm,PressUPandDowntoselecttherecordedvideocycletimeoff1/2/3 minutes,Press"OK"toconfirm. (3)G-sensor:G-sensorwilldetectsignificantorsuddenshockandmovement thenautomaticallylockcurrentrecordingfromlooprecording,Off/Low /Medium/Highavailable (4)Time-Lapse:AfterselectingtheTime-Lapseoption,pressupanddownto selectOFFor1/2/3sthenpressOKbuttonforconfirm -8- (5)Time-LapseTime:AfterselectingtheTime-LapseTimeoption,pressupand downtoselectOFFor12/24/48hoursthenpressOKbuttonforconfirm (6)RecordAudio:videoisnormallywithaudio,butyoucansetitofftorecord wit…

Text truncated - open the document above for the full version.

Shenzhen Huanxiang Electronic Co.,Ltd Covered Equipment Certification Attestation Letter 12/31/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BUHP-N04TP Shenzhen Huanxiang Electronic Co.,Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Huanxiang Electronic Co.,Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Huanxiang Electronic Co.,Ltd (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen Huanxiang Electronic Co.,Ltd Date: 12/31/2025

Shenzhen Huanxiang Electronic Co.,Ltd * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 12/31/2025 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BUHP-N04TP FRN of applicant: 0037891470 Per section 2.911(d)(7) of the FCC rules, [Shenzhen Huanxiang Electronic Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Herland International Trading Inc FCC Registration Number (FRN): 0036324101 Physical U.S. Company Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Contact Person: Jianfeng Gao Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Jack bu Title: Manager Company Name: Shenzhen Huanxiang Electronic Co.,Ltd Date: 12/31/2025 Agent Signed (if different from Applicant): Signed: Printed name: Jianfeng Gao Title: Manager Company Name: Herland International Trading Inc Date: 12/31/2025

Shenzhen Huanxiang Electronic Co.,Ltd 2025-12-31 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen DL Testing Technology Co., Ltd.（101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China）to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Huanxiang Electronic Co.,Ltd（3/F, Building 8, Zone 1, Fuqiao Industrial Park, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen City） <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen Huanxiang Electronic Co.,Ltd

Shenzhen Huanxiang Electronic Co.,Ltd 2025-12-31 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen Huanxiang Electronic Co.,Ltd

Shenzhen Huanxiang Electronic Co.,Ltd 2025-12-31 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BUHP-N04TP Product Name: Dash Cam Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen Huanxiang Electronic Co.,Ltd

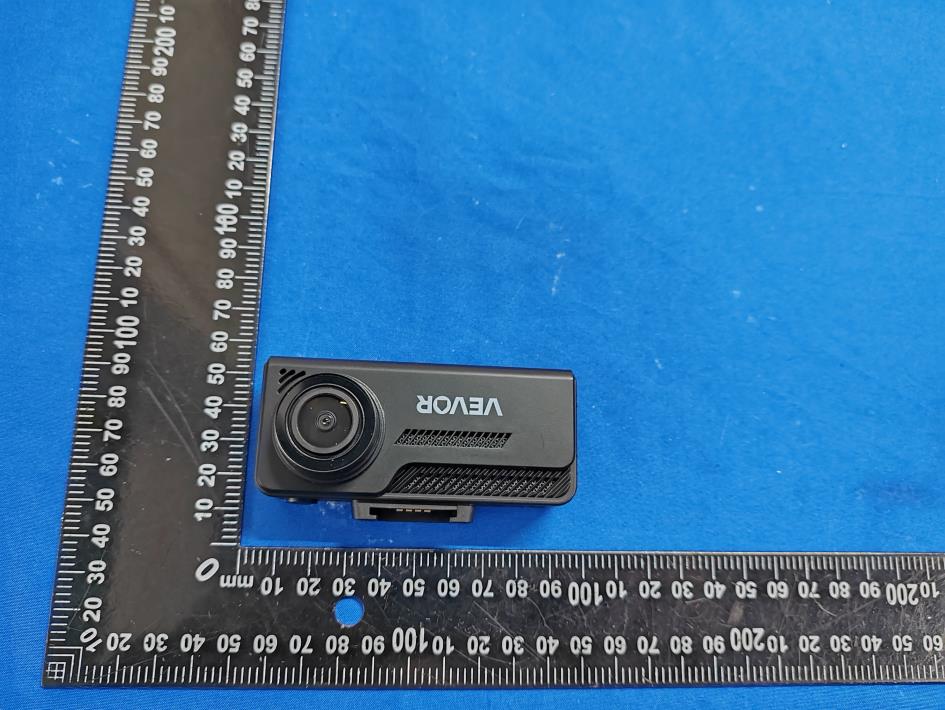

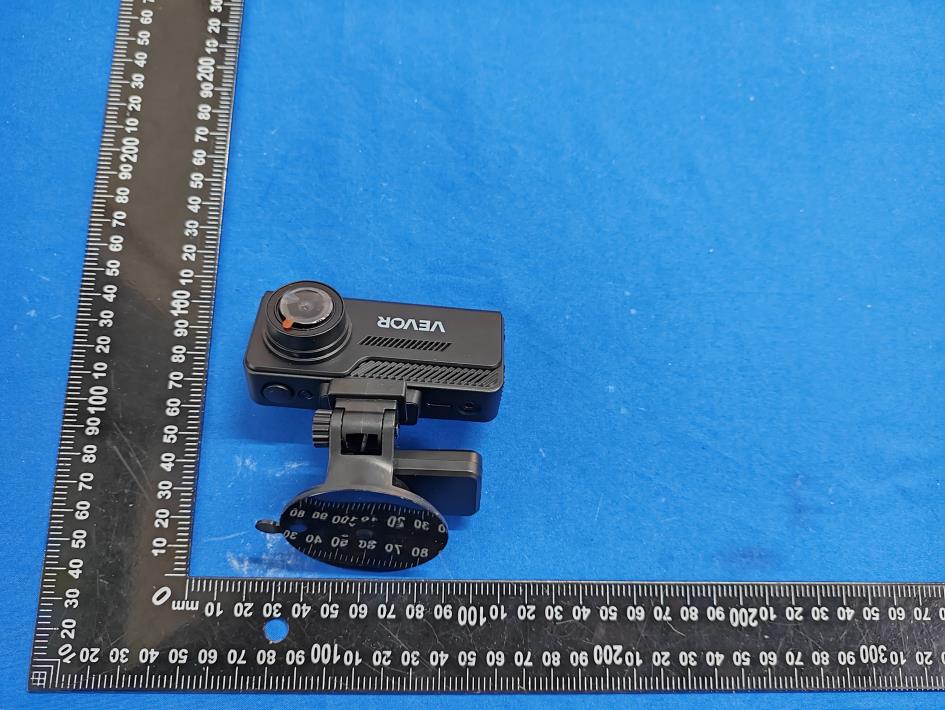

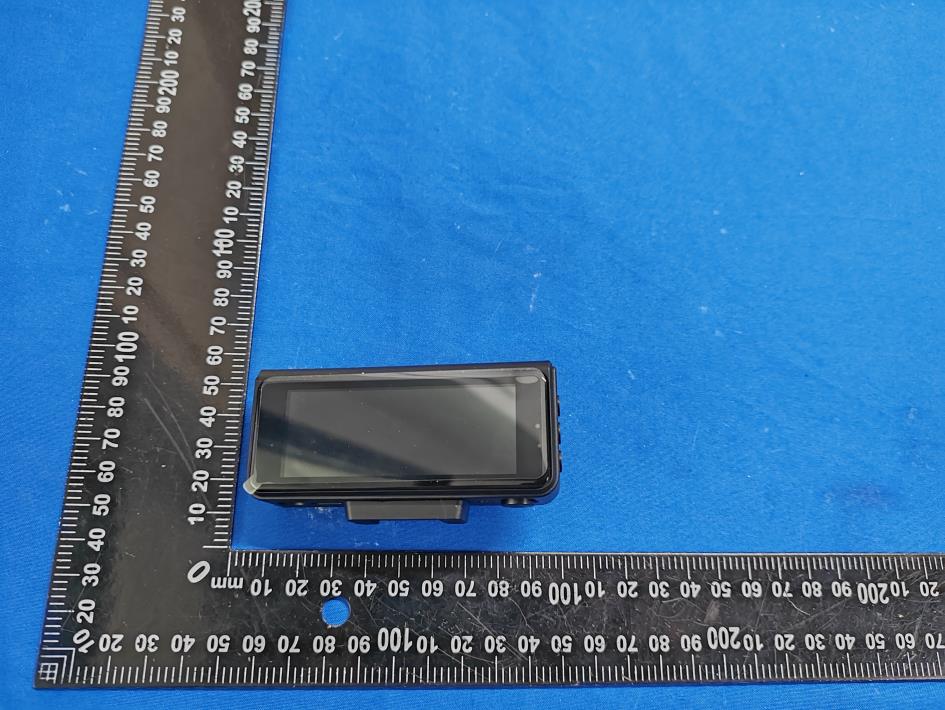

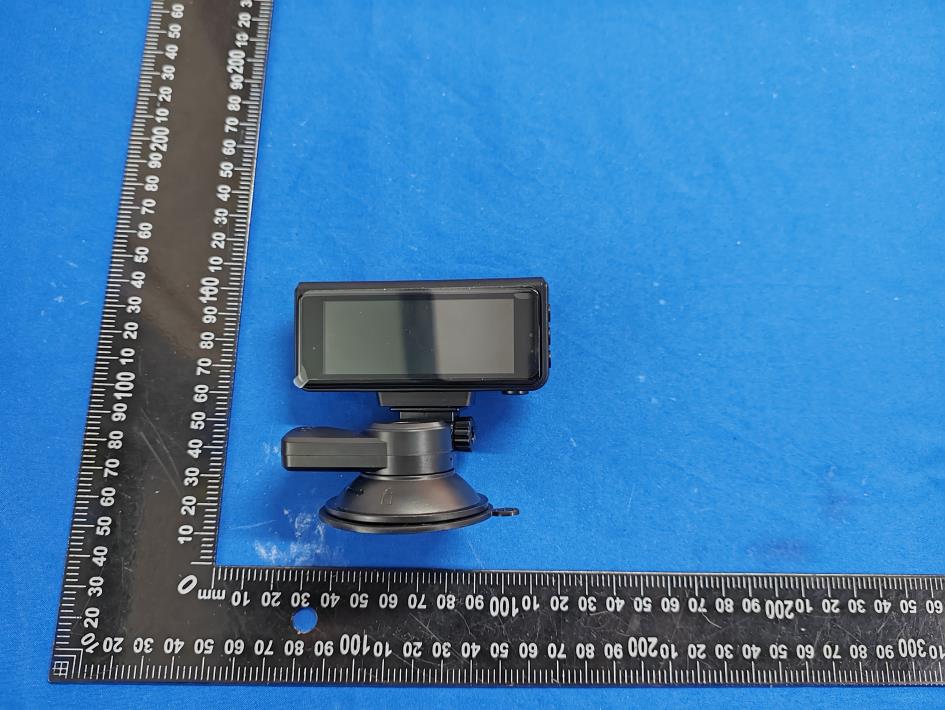

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Laser label Size: 18*12mm Model.: N04-TP FCC ID: 2BUHP-N04TP Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※ ANT

FCC ID: 2BUHP-N04TP RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in KDB 447498 D01 V06 and 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. EIRP=EMeas+20log(dMeas)-104.7 EIRP is the equivalent isotropically radiated power, in dBm EMeas is the field strength of the emission at the measurement distance, in dBμV/m dMeas is the measurement distance, in m Test Result of RF Exposure Evaluation wifi 2.4G mode Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 18.96 78.7046 0.0358 1.0 PASS 802.11g 18.06 63.9735 0.0291 1.0 PASS 802.11n HT20 17.92 61.9441 0.0282 1.0 PASS 802.11n HT40 16.76 47.4242 0.0216 1.0 PASS Remark: antenna gain=3.59dBi

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251231042R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 46 FCC Part 15C Test Report FCC ID: 2BUHP-N04TP Applicant: Shenzhen Huanxiang Electronic Co.,Ltd Address: 3/F, Building 8, Zone 1, Fuqiao Industrial Park, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen City Manufacturer: Shenzhen Huanxiang Electronic Co.,Ltd Address: 3/F, Building 8, Zone 1, Fuqiao Industrial Park, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen City Product Name: Dash Cam Trade Mark: VEVOR Model Number: N04-TP Date of Receipt: Dec. 31, 2025 Test Date: Dec. 31, 2025 - Jan. 14, 2026 Date of Report: Jan. 14, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020+Cor.1-2023 Test Result: Pass Report Number: DLE-251231042R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251231042R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 46 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 11 3.2.1 RADIATED EMISSION LIMITS 11 3.2.2 TEST PROCEDURE 12 3.2.3 DEVIATION FROM TEST STANDARD 12 3.2.4 TEST SETUP 12 3.2.5 EUT OPERATING CONDITIONS 13 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 14 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 15 3.2.8 TEST RESULTS (1GHZ~25GHZ) 17 3.3 RADIATED BAND EMISSION MEASUREMENT 21 3.3.1 TEST REQUIREMENT: 21 3.3.2 TEST PROCEDURE 21 3.3.3 DEVIATION FROM TEST STANDARD 21 3.3.4 TEST SETUP 22 3.3.5 EUT OPERATING CONDITIONS 22 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 27 3.4.1 APPLICABLE STANDARD 27 3.4.2 TEST PROCEDURE 27 3.4.3 DEVIATION FROM STANDARD 27 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251231042R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 46 Table of Contents Page 3.4.4 TEST SETUP 27 3.4.5 EUT OPERATION CONDITIONS 27 3.4.6 TEST RESULTS 27 4 . AVERAGE OUTPUT POWER 32 4.1 APPLIED PROCEDURES / LIMIT 32 4.1.1 TEST PROCEDURE 32 4.1.2 DEVIATION FROM STANDARD 32 4.1.3 TEST SETUP 32 4.1.4 EUT OPERATION CONDITIONS 32 4.1.5 TEST RESULTS 33 5 . POWER SPECTRAL DENSITY TEST 36 5.1 APPLIED PROCEDURES / LIMIT 36 5.1.1 TEST PROCEDURE 36 5.1.2 DEVIATION FROM STANDARD 36 5.1.3 TEST SETUP 36 5.1.4 EUT OPERATION CONDITIONS 36 5.1.5 TEST RESULTS 37 6 . 6DB BANDWIDTH TEST 40 6.1 APPLIED PROCEDURES / LIMIT 40 6.1.1 TEST PROCEDURE 40 6.1.2 DEVIATION FROM STANDARD 40 6.1.3 TEST SETUP 40 6.1.4 EUT OPERATION CONDITIONS 40 6.1.5 TEST RESULTS 41 7 . ANTENNA REQUIREMENT 46 7.1 STANDARD REQUIREMENT 46 7.2 EUT ANTENNA 46 8 . TEST SEUUP PHOTO 46 9 . EUT PHOTO 46 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251231042R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 46 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.209, 15.205 Band Edge Emission PASS 15.247(d) Conducted Spurious Emissions PASS 15.247(b) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2% 9 Power Spectral Density ±2.45dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251231042R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 46 2.. GENERAL INFORMATION 2.1. GENERAL DESCRIPTION OF EUT Product Name: Dash Cam Trade Mark: VEVOR Model Number: N04-TP Test Model: N04-TP Model Difference N/A Operation Frequency: 2412~2462 MHz for 802.11b/g/nHT20 2422~2452 MHz for 802.11nHT40 Channel numbers: 11 Channels for 802.11b/g/n(HT20) 7 channels for 802.11nHT40 Channel separation: 5MHz Modulation technology: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n(20/40): OFDM(QPSK, BPSK, 16-QAM, 64-QAM) Rate of Transmitter 802.11b: 11/5.5/2/1Mbps 802.11g: 5…

Text truncated - open the document above for the full version.

1 /6 2.4GHz 5 221ChipAntenna:RANT5221F245M02 1. Applications WLAN ,80 2.11 b/g, Bl uetoot h , WLAN ,etc ... 2. F eatu r es S MD , hi g hr e li ab ili ty,u l t r a Im pact,O mni- d ir ect i o n a l... 3. PartNumberInformation RANT5221F245M02 (A)(B)(C)(D)(E)(F) (A)Produc t Ty p eChi p An t enna (B)SizeCode 5 .0x2.0mm ( ± 0 .2mm ) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA& S ingl e F eed ing (F)AntennatypeType=02 咏成國際科技有限 公 司 RAINInternationalTechnologyCo.,Ltd. 2 /6 4. 00 2.3000 4.产品尺寸 5020单极天线 5.ElectricalSpecification Specification PartNumber RANT5221F245M02 CentralFrequency 2450 MHz Bandwidth120(Min.) MHz ReturnLoss -10(Max) dB PeakGain 3.5 9dBi Impedance 50Ohm OperatingTemperature - 40～+85 °C MaximumPower4W ResistancetoSolderingHeats 10(@260°C) sec. PolarizationLinear AzimuthBeamwidth Omni-directional TerminationSn(Leadless) 6. 推荐PCB FootPrint(Unit:mm) W Figure SymbolDimension(mm) L W A L（长） 5.00±0.20 W（宽） 2.00±0.30 T（厚度） 1.0±0.30 A （电极宽度） 0.50±0.20 4.0 3 /6 330 30 -10 -20 300 60 -30 -40 240120 210150 -X 180 0 0[dBd] 330 30 -10 -20 300 60 -30 -40 +Y 240120 210150 -X 180 7.MeasurementResults ReturnLoss 7.2RadiationPattern - X -X -Y +Z +X - +X - ： ： -Y 270 - Y 90 270 90 +Y +Z +Y 0 0[dBd] 4 /6 260 °C 20-40s 217°C 150-200°C Pre-heating 60-150s 60-180s Time(s) 8.ReliabilityandTestCondictions Testitem Testcondition/Testmethod Specification Solderability JISC0050-4.6 JESD22-B102D *Solderbathtemperature：2355C *Immersiontime：20.5sec Solder：Sn3Ag0.5Cuforlead-free Atleast95%ofasurfaceofeachterminal electrodemustbecoveredbyfreshsolder. Leaching (Resistanceto dissolutionof metallization) IEC60068-2-58 *Solderbathtemperature：2605C *Leachingimmersiontime：30 0.5sec Solder:SN63A Lossofmetallizationontheedgesofeach electrodeshallnotexceed25%. Bendingtest JISC0051-7.4.1 Themiddlepartofsubstrateshallbe pressurizedbymeansofthepressurizingrod atarateofabout1mm/sperseconduntilthe deflectionbecomes1mm/sandthenpressure shallbemaintainedfor51sec. Measurementtobemadeafterkeepingat roomtemperaturefor242hours Nomechanicaldamage. Electricalspecificationshallsatisfythe descriptionsinelectricalcharacteristicsunder theoperationaltemperaturerangewithin-40 ~85°C. Resistancetosoldering heat JISC0050-5.4 *Preheatingtemperature：120~150 °C , 1minute. *Soldertemperature：2705C *Immersiontime：101sec Solder：Sn3Ag0.5Cuforlead-free Measurementtobemadeafterkeepingat roomtemperaturefor242hrs Nomechanicaldamage. Electricalspecificationshallsatisfythe descriptionsinelectricalcharacteristicsunder theoperationaltemperaturerangewithin-40 ~85°C. Lossofmetallizationontheedgesofeach electrodeshallnotexceed25%. 9.SolderingandMounting T e m p e r a t u r e ( ° C ) 5 /6 10.天线应用注意事项 如果空间允许，最好不要选择太小尺寸的天线。  最好天线与附近物体之间有较大的净空区；否则匹配调节将会变得困难，辐射模式会受到严重扭曲。 天线的下方不应出现线路布局、接地层。  天线不应和金属物体放置太近，比如电池、芯片等，不应与电池等金属物有重叠。  注意内部缆线（如电池电源线）最好不要太靠近天线。  单极天线需要有合理的接地面才能发挥最好效果。  在最终产品方案上进行天线匹配，可以减短调节周期；而在光板上往往需要反复调节。  如果没有经过匹配，相同的天线放置完全不一样的布局板上可能无法正常工作。 不要使用金属外壳或带金属的塑料外壳盖在天线周围。  不要使用很细的天线馈电线，馈线应有一定的宽度，不应小于 0.1mm 。  根据PCB 的厚度和介电常数计算馈线阻抗， 50 欧姆会使天线调节较为容易  片式天线装配应尽可能远离电池、EMI防护材料、折叠扬声器、金属镙钉、 LCD 显示屏等。 11.StorageandTransportationInformation StorageConditions Tomaintainthesolderabilityofterminalelectrodes: 1.Temperatureandhumidityconditions:-10~40 °C and30~70%RH. 2.Recommendedproductsshouldbeusedwithin6monthsfromthetimeof delivery. 3.Thepackagingmaterialshouldbekeptwherenochlorineorsulfurexists intheair. TransportationConditions 1.Productsshouldbehandledwithcaretoavoiddamageorcontamination fromperspirationandskinoils. 2.Theuseoftweezersorvacuumpickupisstronglyrecommendedfor individualcomponents. 3.Bulkhandlingshouldensurethatabrasionandmechanicalshockare minimized. 6 /6 FeatureSpecificationsTolerances W12.00±0.30 P4.00±0.10 E1.75±0.10 F 5.50±0.10 P2 2.00±0.10 D 1.50 +0.10 -0.00 Po4.00±0.10 10Po40.00±0.20 12.Packing (1)Quantity/Reel:2000pcs/Reel (2)Plastictape: a.TapeDrawingb.TapeDimensions(unit:mm) c. R eelDrawing

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos ※※※※※ END OF REPORT ※※※※※
