2BUHV-ARDA01MT6580

User Manual/Manuel d'utilisation 1、Product Overview The MT6582/80 chip integrates Bluetooth 4.0 and WiFi 802.11 b/g/n wireless modules, supports 2.4GHz frequency band, and can achieve stable low-power Bluetooth connection and multi rate WiFi transmission. It is suitable for mobile devices and IoT scenarios, meeting the needs of short - and medium distance interconnection. 2、Product feature ◇ Supports Bluetooth 4.0 technology and can achieve 2.4GHz Bluetooth transmission. It has the characteristics of low power consumption, high stability, and strong anti-interference ability, which can meet the wireless communication needs of medium and short distances ◇ Support WiFi 802.11 b/g/n protocol, can carry out WiFi transmission in 2.4GHz band, provide stable wireless network connection, and facilitate equipment access to the Internet ◇ Adopting advanced wireless coexistence algorithms and hardware mechanisms, it can effectively solve the interference problems that may occur in multiple wireless communication modules on the same device, ensuring that Bluetooth and WiFi modules can work together stably and efficiently ◇ Supporting antenna sharing Bluetooth for 2.4GHz antennas, optimizing the antenna design of the device, reducing hardware costs and complexity, 1. Aperçu du produit La puce MT6582/80 intègre des modules sans fil Bluetooth 4.0 et WiFi 802.11 b/g/n, prend en charge la bande de fréquence 2,4GHz et peut réaliser une connexion Bluetooth stable à faible puissance et une transmission WiFi multi-débit. Il convient aux appareils mobiles et aux scénarios IoT, répondant aux besoins d'interconnexion à courte et moyenne distance. 2、Caractéristiques du produit ◇ Prend en charge la technologie Bluetooth 4.0 et peut réaliser la transmission Bluetooth à 2,4 GHz. Il a les caractéristiques de faible consommation d'énergie, de stabilité élevée et de forte capacité anti-interférence, qui peut répondre aux besoins de communication sans fil de moyennes et courtes distances ◇ Prise en charge du protocole WiFi 802.11 b/g/n, peut effectuer la transmission WiFi en bande de 2,4 GHz, fournir une connexion réseau sans fil stable et faciliter l'accès de l'équipement à Internet ◇ Adoptant des algorithmes avancés de coexistence sans fil et des mécanismes matériels, il peut résoudre efficacement les problèmes d'interférence qui peuvent survenir dans plusieurs modules de communication sans fil sur le même appareil, garantissant que les modules Bluetooth et WiFi peuvent fonctionner ensemble de manière stable et efficace ◇ Prise en charge du partage d'antennes Bluetooth pour les antennes 2,4 GHz, optimisation de la conception de l'antenne de l'appareil, réduction des coûts matériels et de la complexité, ◇ Adopting a quad core ARM Cortex-A7 architecture, it has certain computing and multitasking capabilities, which can meet basic system operation and application requirements ◇ Built in Mali-400 MP2 GPU, which can achieve certain graphics processing and multimedia functions, providing good graphics display effects and smooth graphics processing performance ◇ Multiple low-power design techniques have been adopted, such as optimized circuit design and dynamic voltage frequency adjustment, effectively reducing the power consumption of the chip while ensuring its normal operation 3、Application field household appliances 4、Technical parameters technical indicators parameter operating frequency 2.4GHz Frequency error +/-10KHz Working Voltage 3.6V-4.3V transmit power Max. 20.89dBm reception sensitivity –97dBm modulation scheme DSSS/OFDM/GFSK 5、 Pin description 6、 Dimensions and Pin Description name interface name description 1 power supply interface DC 5V 2 Serial communication interface Communicate with the control board 3 Serial communication Communicate with the ◇ Adoptant une architecture quad-core ARM Cortex-A7, il dispose de certaines capacités de calcul et de multitâche, qui peuvent répondre aux exigences de base du fonctionnement du système et des applications ◇ GPU MP2 Mali-400 intégré, qui peut réaliser certaines fonctions de traitement graphique et multimédia, offrant de bons effets d'affichage graphique et des performances de traitement graphique fluides ◇ Plusieurs techniques de conception à faible puissance ont été adoptées, telles que la conception de circuit optimisée et le réglage dynamique de la fréquence de tension, réduisant efficacement la consommation d'énergie de la puce tout en assurant son fonctionnement normal. 3, champ d'application appareils ménagers 4, Paramètres techniques Indicateurs techniques paramètre fréquence de fonctionnement 2.4GHz Erreur de fréquence +/-10KHz Tension de travail 3.6V-4.3V transmettre la puissance Max. 20.89dBm Sensibilité de réception –97dBm schéma de modulation DSSS/OFDM/GFSK 5、Description de la broche 6、Dimensions et broche Description nom nom de l'interface description 1 interface d'alimentation DC 5V 2 Interface de communication série Communiquer avec le tableau de contrôle 3 Interface de Communiquer avec le interface control board 4 Grounding interface Can effectively eliminate external interference 5 Key interface Connect touch buttons 6 External antenna interface Connect external antenna 7 USB port Can connect to a computer to read logs/debug 7、Note & Warning This module is not waterproof or lightning resistant. Please ensure proper waterproofing and lightning protection measures are taken. Do not reverse the polarity of the power supply, otherwise it may burn out the module. The installation environment of the module should be as anti-static as possible, and the antenna part you are matching should not come into contact with metal objects Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recept…

Text truncated - open the document above for the full version.

Arda (Zhejiang) Electric Co., Ltd. 092723-17 rev 10 Certification Application Attestation Statements Date: April 13, 2026 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) _____ Arda (Zhejiang) Electric Co., Ltd. ______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) _____ Arda (Zhejiang) Electric Co., Ltd. ______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☒ - is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates – see KDB 986446 Question 5) as an entity producing “covered” equipment. The applicant also certifies that the device does not have cybersecurity and/or anti-virus software produced by Kaspersky Lab, Inc or any of its successors and assignees identified on the covered list installed on the device, nor will it be installed by the applicant at any time after certification. Thank you, By: ________________________ ____Qi Jin_ _ (Signature 2 ) (Print name) Title: ______ _____ Manager _____________ Company: ___Arda (Zhejiang) Electric Co., Ltd. _ Telephone: +86 579 87298333__ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

ARDA (ZHEJIANG) ELECTRIC CO., LTD. Add: No.166 Yingui Northern Road, Chengxi New Industrial Zone , Yongkang, 321300 .P.R.China U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name:Induction Hardware Contact Name:Eric Keller; with copy to Brian Pick Street Address:12920 Old Virginia Road, Suite 160 City/Province/Zip:Reno, Nevada 89521 Telephone No:775-221-7485 Email:[email protected]; with copy to [email protected] FRN #: 0037841699 This letter is to confirm that Induction Hardware(“ Agent”) herebyaccepts the appointment and designation as the United States agent for Arda (Zhejiang) Electric Co.,Ltd.(“Applicant”),for service of process for matters related to equipment manufactured by the Applicant and sold by Agentin the United Statesfor which Applicant has applied to the Federal Communications Commission (“FCC”), for authorization or certification, as required by section 47 CFR 2.911(d)(7), and acknowledges its obligation to accept service of process for suchmatters. Induction Hardware By: Brian Pick, Secretary Date:January 27, 2026 The Applicant consents to the foregoing appointment of Agent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any FCC-related proceeding involving the equipment, whichever is later. The Applicant further acknowledges its responsibility to inform the FCC whenever its designationof an agent for service of process in the United States changes. Applicant Company name: ARDA (ZHEJIANG) ELECTRIC CO.,LTD. Grantee Code: 2BUHV FRN #: 0037845138 Contact Name: Qi Jin Street Address: No.166 Yingui Northern Road,Chengxi New Industry Area City/Province/Zip: Yongkang, Zhejiang Province, China 321300 Telephone No: +86 15888963943 Email: [email protected] Applicant Signature 1 : Date: Signed by (Printed Name/Title): Qi Jin/Deputy Sales Director 1 -Letters must be placed on appropriate letterhead. The signee for the applicant must be one of the following: Applicant (grantee) contact of record in the FCC’s authorization system, or authorized officers or employee of the applicant (grantee).

Arda (Zhejiang) Electric Co., Ltd. 050222-17 Authority to Act as Agent Date: March 23, 2026 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: ______ Intertek Testing Services (Shanghai FTZ) Co., Ltd.______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____March 22, 2027_____ By: ______ ___ __________ Qi Jin____________ (Signature 1 ) (Print name) Title: ___________Manager ______________ On behalf of: ________ Arda (Zhejiang) Electric Co., Ltd._____ (Company Name) Telephone: _______+86 579 87298333_____________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Arda (Zhejiang) Electric Co., Ltd. 050222-17 Request for Confidentiality Date: March 23, 2026 Subject: Confidentiality Request for: ______FCC ID: 2BUHV-ARDA01__IC: 35286-ARDA01____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and/or IC RSP-100, Section 12.4, the applicant requests that a part of the subject application(s) be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term --------------------------- External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term --------------------------- Test Setup Photos ☐ Short Term ☐ Permanent * 1 User’s Manual _____ Arda (Zhejiang) Electric Co., Ltd.______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __ (specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: (specify ISED expiration date / date of marketing) . Sincerely, By: __________________________ ______ _Qi Jin ____ Manager (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Arda (Zhejiang) Electric Co., Ltd. 070920-02b Request for Modular/Limited Modular Approval Date: April 21, 2026 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: ______2BUHV-ARDA01______ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: Data to the modulation circuit is buffered as described in the operational description provided with the application. 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: The module contains its own power supply regulation. Please refer to schematic filed with this application. 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Details: The module connects to its antenna directly. A list of antennas tested and approved with this device may be found in Antenna Declaration Letter provided with the application. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Details: The module was tested stand-alone as shown in test setup photographs filed with this application. Arda (Zhejiang) Electric Co., Ltd. 070920-02b Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: There is a label on the module as shown in the labeling exhibit filed with this application. 7. The modular transmitter must comply with all specific rule or operating requirements applicable to the transmitter, including all the conditions provided in the integration instructions by the gra…

Text truncated - open the document above for the full version.

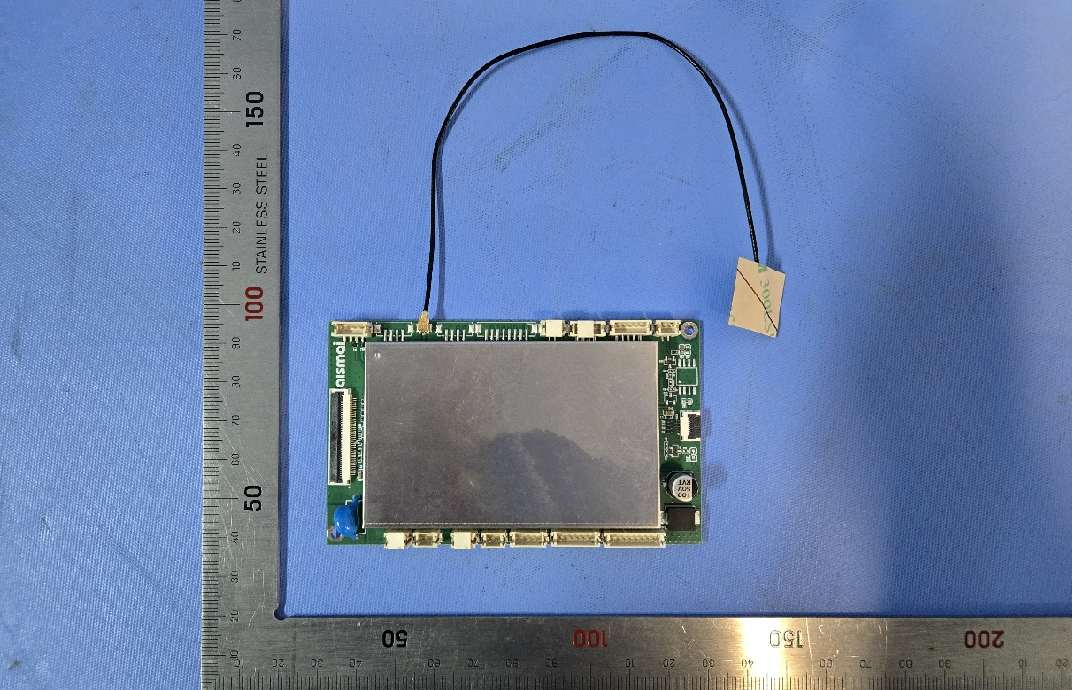

Page 1 of 2 External Photos Page 2 of 2

FCC ID Label MT6580 FCC ID: 2BUHV-ARDA01 IC:35286-ARDA01

Page 1 of 3 Internal Photos Page 2 of 3 Page 3 of 3 Antenna

Arda (Zhejiang) Electric Co., Ltd. MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: MT6580 REPORT NUMBER: 251101025HAN-003 ISSUE DATE: March 26, 2026 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd. Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 8 Report no.: 251101025HAN-003 Applicant: Arda (Zhejiang) Electric Co., Ltd. No.166 Yingui Northern Road, Chengxi New Industry Area, Yongkang, Zhejiang 321300, China Manufacturer: Arda (Zhejiang) Electric Co., Ltd. No.166 Yingui Northern Road, Chengxi New Industry Area, Yongkang, Zhejiang 321300, China Factory: Arda (Zhejiang) Electric Co., Ltd. No.166 Yingui Northern Road, Chengxi New Industry Area, Yongkang, Zhejiang 321300, China FCC ID: 2BUHV-ARDA01 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Offa Zhou Reviewer Alexander Li Report No.: 251101025HAN-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 8 Revision History Report No. Version Description Issued Date 251101025HAN-003 Rev. 01 Initial issue of report March 26, 2026 Report No.: 251101025HAN-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 8 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: WiFi and Bluetooth module Type/Model: MT6580 Description of EUT: The EUT covered in the report is WiFi and Bluetooth module. Rating: 5 VDC EUT type: Tabletop Floor standing Software Version: / Hardware Version: / Sample received date: November 25, 2025 Date of test: December 10, 2025 ~ January 10, 2026 1.2 Technical Specification Frequency Band: 2400MHz ~ 2483.5MHz Support Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n(HT20), IEEE 802.11n(HT40), Bluetooth 4.0 BLE Type of Modulation: IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n(HT20): OFDM (64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n(HT40): OFDM (64-QAM, 16-QAM, QPSK, BPSK) Bluetooth 4.0 BLE: GFSK Antenna: External Antenna, 2.89dBi Report No.: 251101025HAN-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 8 1.3 Description of Test Facility Name: Intertek Testing Services (Shanghai FTZ) Co., Ltd. Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L21189 FCC Accredited Lab Designation Number: CN0175 IC Registration Lab CAB identifier.: CN0014 VCCI Registration Lab Member No: 3598 (Registration No.: R-14243, G-10845, C-14723, T-12252) A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 251101025HAN-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 8 2 MPE Assessment Test result: PASS 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: According to§1.1310, the limit for general population/uncontrolled exposures Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz. * = Plane-wave equivalent power density. Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 251101025HAN-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 8 2.2 Assessment Results Power density (S) is calculated according to the formula: S = PG / (4πR²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 251101025HAN-001 and 251101025HAN-002: The calculations in the table below use the highest gain of antenna for client EUT. These calculations represent worst case in terms of the exposure levels. Mode Frequency Bands (MHz) PG (dBm) PG (mW) R (cm) S (mW/cm²) Limit (mW/cm²) 802.11b 2412~2462 20.89 122.74 20 0.024 1 Mode Frequency Bands (MHz) PG (dBm) PG (mW) R (cm) S (mW/cm²) Limit (mW/cm²) BLE 2402~2480 2.08 1.62 20 0.00032 1 Note: 1 mW/cm 2 from 1.310 Table 1. WIFI and BLE can transmit simultaneously, so the maximum rate of MPE is, 0.024/1 + 0.00032/1 = 0.02432 < 1.0 Report No.: 251101025HAN-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 8 of 8 Appendix I Definition below must be outlined in the User Manual: To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. *…

Text truncated - open the document above for the full version.

深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC, Ma 'anshanJinshengFortunePlaza,Ma 'anshanCommunity,ShajingSub-district, Bao 'an District,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] 规 格 承 认 书 ApprovalSheet 客户名称 Customer 日期 Data 2026/01/08 产品名称 Product WIFI/BT 天线 客户机型 Models 天线型号 antenna model F015K-21LB-200 客户料号 CustomerP/N 规格描述 Specifications 黑色FPC；MI-113一代端子黑色同轴线，长度L=200mm 供应商承认签印 VenderApprovedBy 客户承认签印 CustomerApprovedBy CheckedBy:CheckedBy: Audit By:Audit By: ApprovalBy:ApprovalBy: 文件修订履历表 版本 Version 修订内容 ReviseTheContent 修订人 Revused 核准 Approval 修订日期 Date 备注 Note 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] Content NO.ProectPageNO. 1Specification4 ３ AntennaPhysicalPicture5 ４ TestData6 ５ AntennaAssembly7 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC, Ma 'anshanJinshengFortunePlaza,Ma 'anshanCommunity,ShajingSub-district, Bao 'an District,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] Specification 1.1 ElectricalProperties CharacteristicsSpecifications WorkingBand2.4GWiFi/BT AntennaFromPIFA Impedance50Ω PolarizationLinear PeakEffi41 %@ 2.4G [email protected] 1.2 PhysicalProperties CharacteristicsSpecifications OperatingTemp -10°C~+60°C StorageTemp -10°C~+70°C Humidity10 ~95%RH 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] AntennaPhysicalPicture 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC, Ma 'anshanJinshengFortunePlaza,Ma 'anshanCommunity,ShajingSub-district, Bao 'an District,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] Test Data S11 Parameter-VSWR EfficiencyTable RadiationPattern 深圳市星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区沙井街道马安山社区马安山锦胜财富广场C栋610-614 Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,S…
