2BUJV-D100Kids Video Walkie Talkie/Children Video Walkie Talkie/Children Video Two Way Radio

Shenzhenshi Xingyi Technology Co., Ltd. Room 502, Block B, Huafeng Internet Creative Park, No. 107, Gonghe Industrial Road, Gongle Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/21 U.S. Agent Designation Shenzhenshi Xingyi Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BUJV-D100): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhenshi Xingyi Technology Co., Ltd. Shenzhenshi Xingyi Technology Co., Ltd. with the FRN [0037906344] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Zhiqun Fu ceo Shenzhenshi Xingyi Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

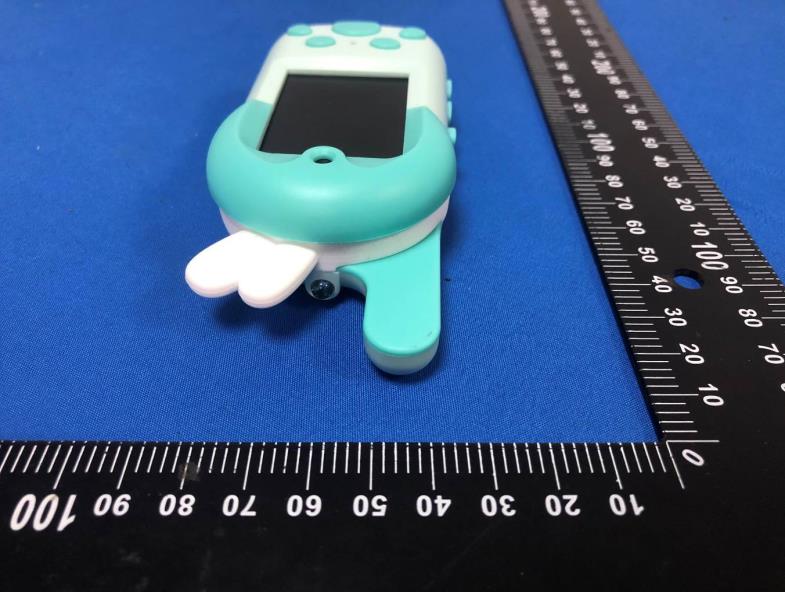

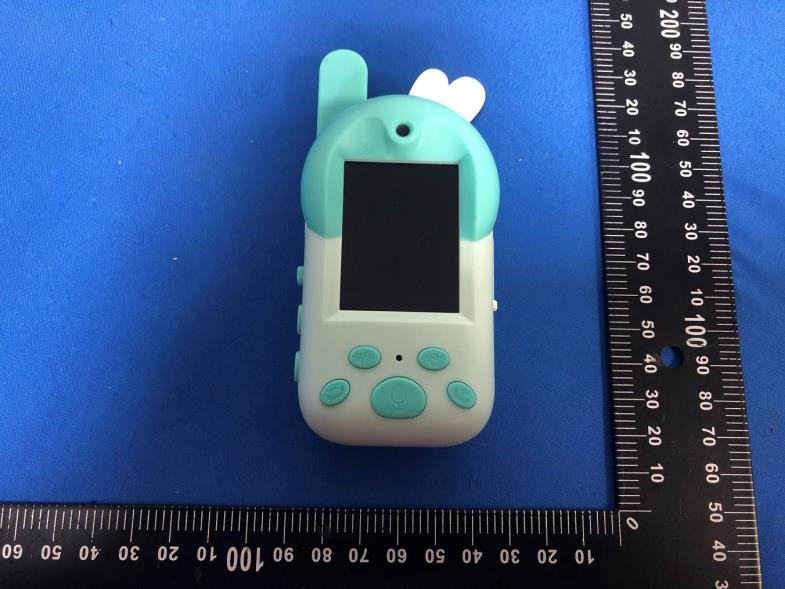

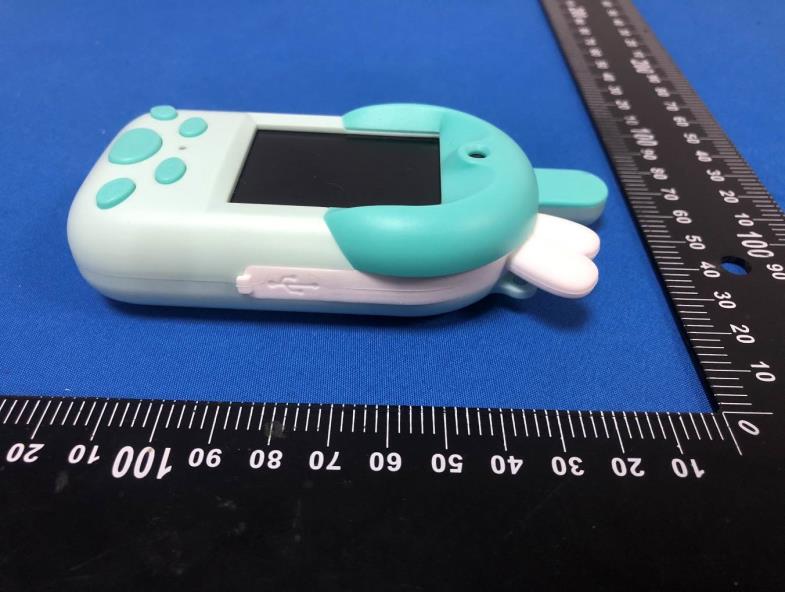

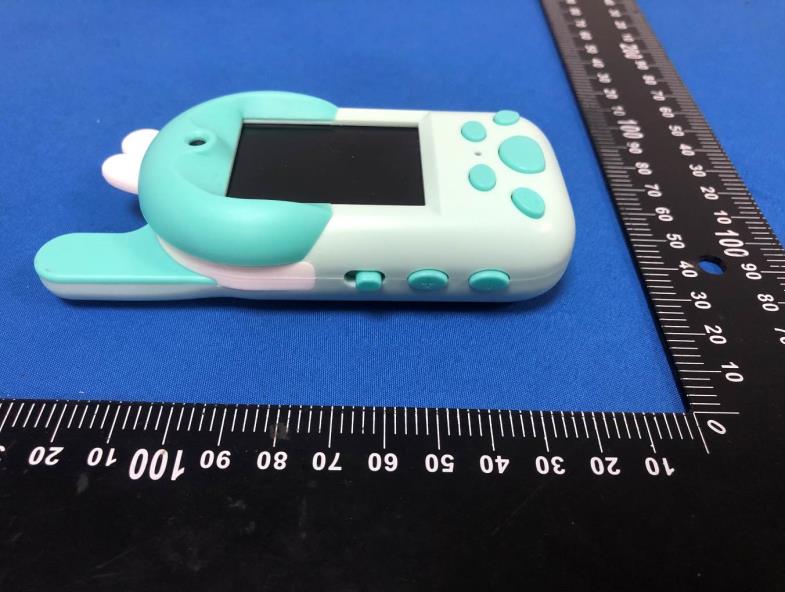

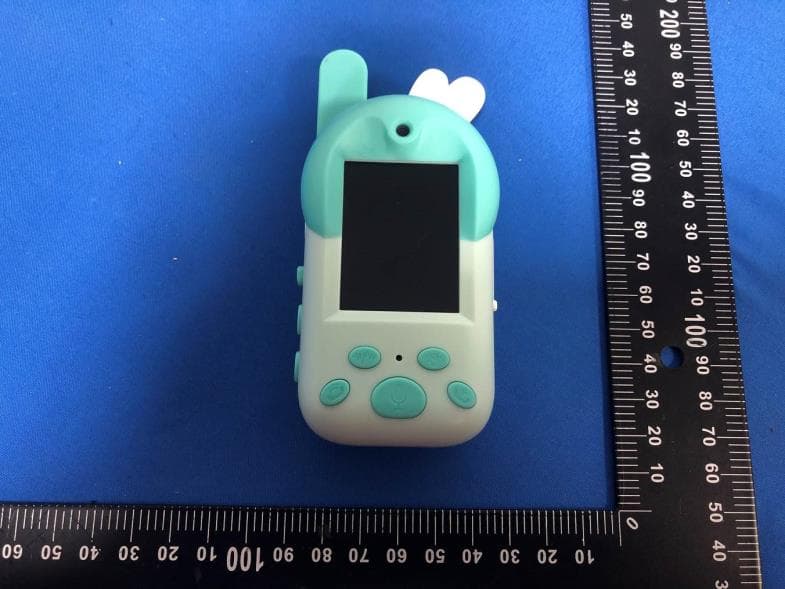

FCC ID: 2BUJV-D100 External Photos of the EUT FCC ID: 2BUJV-D100 FCC ID: 2BUJV-D100

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BUJV-D100

FCC ID: 2BUJV-D100 Internal Photos of the EUT 2.4G WIFI ANT FCC ID: 2BUJV-D100 FCC ID: 2BUJV-D100

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ............................................ : CTA26011200902 2BUJV-D100 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 19, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhenshi Xingyi Technology Co., Ltd. Address ............................................ : Room 502, Block B, Huafeng Internet Creative Park, No. 107, Gonghe Industrial Road, Gongle Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Kids Video Walkie Talkie/Children Video Walkie Talkie/Children Video Two Way Radio Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhenshi Xingyi Technology Co., Ltd. Model/Type reference ...................... : D100 Listed Models ................................... : N/A Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26011200902 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Kids Video Walkie Talkie/Children Video Walkie Talkie/Children Video Two Way Radio Model /Type : D100 Listed Models : N/A Applicant : Shenzhenshi Xingyi Technology Co., Ltd. Address : Room 502, Block B, Huafeng Internet Creative Park, No. 107, Gonghe Industrial Road, Gongle Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Manufacturer : Shenzhenshi Xingyi Technology Co., Ltd. Address : Room 502, Block B, Huafeng Internet Creative Park, No. 107, Gonghe Industrial Road, Gongle Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26011200902 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ...................................................................................................…

Text truncated - open the document above for the full version.

文件版本（FileVersion）：202201版权所有（propertyincopyright） 1 样品承认书 PartsApprovalSheet 生产供应商： Supplier 适用项目：JK200 Type/Spec 品牌：NQI Brand 送样日期：2025/11/18 SendoutDate 承认日期： ApproveDate 物料名称：WIFI天线 PartsName NQI规格:NQI-JK200-TG4.4-71X PartsNo 客户料号： Quantity 文件编号：NQI-RD-SPEC-20251106 DocumentNo 样品版本：V0 Version SupplierCustomer ApprovedByPreparedByEngineeringDeptQualityDept Manufacturer:Shenzhenshi Xingyi Technology Co., Ltd. Address:Room 502, Block B, Huafeng Internet Creative Park, No. 107, Gonghe Industrial Road, Gongle Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China 文件版本（FileVersion）：202201版权所有（propertyincopyright） 2 承认书履历表 （Resume） 日期 （Date） 天线版本 （Versins） 变更原因 （Reasonsforchange） 变更内容 （Contentofchange） 备注 （Note） 2025.11.18V0首版发行 文件版本（FileVersion）：202201版权所有（propertyincopyright） 3 目录 一 . 样品及说明 （Samplepictureanddescription）..........................................................4 二 . 测试设备及项目 （Testequipmentanditems）...................................................4-6 三 . 暗室连接及坐标 （Chamberconnectionandcoordinates）........................................6 四 . 天线匹配网络 （Antennamatchingnetwork）..........................................................7 五 . 天线电性能测试数据 （ElectricalperfornancetestData）.....................................7-9 六.天线结构图纸（Antennastructuredrawing）.........................................................10 七.重点尺寸检验报告（Keydimensioninspectionreport）............................................11 文件版本（FileVersion）：202201版权所有（propertyincopyright） 4 一 . 样品及说明 （Samplepictureanddescription） ： 二.试设备及项目（Testequipmentanditems）： 类别（Class）测试项目（Testitem）设备（Equipment） 1.Sparameter 1.回波损耗(RL) 2.驻波比（VSWR） 3.斯密斯原图（Smithchart） 网分（VNA）:AgilentE5071B R&SZVB8 Protek A333 电气参数说明（ElectricalSpecifications） 频率范围（Frequencyrange）（2400-2500)MHz 特性阻抗（impedance）50ohm 电压驻波比（VSWR）≤2.9 峰值增益（Gain）3.92DBi 极化形式（Polarization）线性 辐射方向（Radiationdirection）全向 连接方式说明（ConnectionModeDescription） 连接器（connector）IPEX一代 线缆规格（Cablespecifications）1.13*71MM同轴线 工作/储存温度（Working/Storagetemperature） 工作温度（Workingtemperature）-30°C～65°C 储存温度（Storagetemperature）-30°C～75°C 文件版本（FileVersion）：202201版权所有（propertyincopyright） 5 2.耦合测试（ Coupling testing） 1.发射功率（MAXPower） 2.接收灵敏度（MINSens） 1.2G/3GTester：Agilent8960 2.Thecouplingbox：TESCOMTC-5060A 3.3DChamber：ETS3DChamber（5x3x3） 3.3D无源测试 （PassiveTest） 1.效率（Effeciency） 2.增益（Gain） 3.辐射方向图 （Radiationpattern） 1.3DChamber：TEM243DChamber（5x5x5） ETS3DChamber（5x3x3） 2.网分（VNA）：AgilentE5071B R&SZVB8 4.3D有源测试 （ActiveTest） 1.3D功率（TRP） 2.3D灵敏度（TIS） 3.吞吐率（Throughputrate） 1.3DChamber：TEM243DChamber（5x5x5） ETS3DChamber（5x3x3） 2.2G/3GTester:Agilent8960 3.4GTester：MT8820C/CMW500 4.WIFI/BT/NB-iotTester：CMW500 5.5GTester：SP9500-CTS 6.Head：HEAD-P10（FACE-P10） 文件版本（FileVersion）：202201版权所有（propertyincopyright） 6 三.暗室连接及坐标（Chamberconnectionandcoordinates）： 文件版本（FileVersion）：202201版权所有（propertyincopyright） 7 四 . 天线匹配网络 （Antennamatchingnetwork） ： 五 .RL/VSWR/SmithChat （回波损耗 / 驻波比 /Smith ） Element（ Value ） E1(0201)主板原始 匹配，无更 改 E2(0201) E3(0201) 文件版本（FileVersion）：202201版权所有（propertyincopyright） 8 5.1增益及效率(Gainandefficiency) Frequency/MhzMaxGain/dBiEfficiency/% 24003.4157.41 24102.7755.46 24202.9857.02 24302.5854.95 24402.8158.48 24503.5363.1 24603.7865.77 24703.9265.16 24803.0260.67 24902.9861.8 25002.7363.1 5.23D 图 文件版本（FileVersion）：202201版权所有（propertyincopyright） 9 5.3TRP&TISOTA 数据 NQIANTTRP&TISparameterSummaryofJK200 BAND WIFA-N（65M） CHANNEL 1611 TRP(dBm) 21.3820.9519.58 TIS(dBm) -73.93-74.53-72.74 文件版本（FileVersion）：202201版权所有（propertyincopyright） 10 六、结构图纸 （Antennastructuredrawing） 文件版本（FileVersion）：202201版权所有（propertyincopyright） 11 七重点尺寸检验报告 （Keydimensioninspectionreport） ： 尺寸检验报告 客户 正方芯 项目 JK200 材质 铜管+同轴线 环保材料非环保材料 外观检查项目 □漏漆□断线□短路□划伤□脏污□开裂 不良数： 0 轻微严重致命 外观判定结果：合格不合格 功能或尺寸检查记录 NO检查序号尺寸公差 检查结果 检测仪器判定 12345 铜管 171.00±0.1571.0571.0071.0471.0371.02DNOK 224.00±0.1524.0424.0024.0224.0024.05DNOK 324.50±0.1524.5224.5324.5024.5424.52DNOK 450.00±0.1550.0450.0050.0550.0250.02DNOK 54.40±0.154.404.424.444.404.42DNOK 总体判定：合格不合格 不合格处理方式：返工特采使用 计量仪器代号说明：投影仪-PP塞规-PG高度规-HG角度规-AG游标卡尺-N数显卡尺-DN 外径千分尺-M 其它测试手段代码：三座标-3D螺纹规-SG专用治具-SE目视-E 备注： 测定人：刘敏

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26011200901 2BUJV-D100 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 19, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhenshi Xingyi Technology Co., Ltd. Address ............................................ : Room 502, Block B, Huafeng Internet Creative Park, No. 107, Gonghe Industrial Road, Gongle Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Kids Video Walkie Talkie/Children Video Walkie Talkie/Children Video Two Way Radio Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhenshi Xingyi Technology Co., Ltd. Model/Type reference ...................... : D100 Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26011200901 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Kids Video Walkie Talkie/Children Video Walkie Talkie/Children Video Two Way Radio Model /Type : D100 Listed Models : N/A Applicant : Shenzhenshi Xingyi Technology Co., Ltd. Address : Room 502, Block B, Huafeng Internet Creative Park, No. 107, Gonghe Industrial Road, Gongle Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Manufacturer : Shenzhenshi Xingyi Technology Co., Ltd. Address : Room 502, Block B, Huafeng Internet Creative Park, No. 107, Gonghe Industrial Road, Gongle Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26011200901 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory .................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BUJV-D100 Company : Shenzhenshi Xingyi Technology Co., Ltd. EUT : Kids Video Walkie Talkie/Children Video Walkie Talkie/Children Video Two Way Radio Model Number : D100 Report No. : CTA26011200901 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.960 2442.160 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.800 2404.160 2419.960 0.5 PASS 2437 15.680 2429.320 2445.000 0.5 PASS 2462 15.680 2454.120 2469.800 0.5 PASS 11N20SISO Ant1 2412 16.920 2403.520 2420.440 0.5 PASS 2437 16.960 2428.520 2445.480 0.5 PASS 2462 16.920 2453.680 2470.600 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.670 2405.2380 2418.9080 --- --- 2437 13.568 2430.2767 2443.8447 --- --- 2462 13.578 2455.2429 2468.8209 --- --- 11G Ant1 2412 16.972 2403.5980 2420.5700 --- --- 2437 16.925 2428.5859 2445.5109 --- --- 2462 16.889 2453.5767 2470.4657 --- --- 11N20SISO Ant1 2412 18.016 2403.0679 2421.0839 --- --- 2437 17.908 2428.0619 2445.9699 --- --- 2462 17.963 2453.0659 2471.0289 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 3.08 ≤30.00 PASS 2437 3.49 ≤30.00 PASS 2462 3.55 ≤30.00 PASS 11G Ant1 2412 2.97 ≤30.00 PASS 2437 3.76 ≤30.00 PASS 2462 3.80 ≤30.00 PASS 11N20SISO Ant1 2412 2.73 ≤30.00 PASS 2437 3.71 ≤30.00 PASS 2462 3.64 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -23.01 ≤8.00 PASS 2437 -22.63 ≤8.00 PASS 2462 -22.17 ≤8.00 PASS 11G Ant1 2412 -28.08 ≤8.00 PASS 2437 -28.22 ≤8.00 PASS 2462 -28.04 ≤8.00 PASS 11N20SISO Ant1 2412 -29.00 ≤8.00 PASS 2437 -27.98 ≤8.00 PASS 2462 -27.21 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -9.23 -55.94 ≤-29.23 PASS High 2462 -8.67 -57.39 ≤-28.67 PASS 11G Ant1 Low 2412 -13.52 -43.05 ≤-33.52 PASS High 2462 -12.67 -57.98 ≤-32.67 PASS 11N20SIS O Ant1 Low 2412 -13.66 -45.67 ≤-33.66 PASS High 2462 -12.65 -58.46 ≤-32.65 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -10.05 -10.05 --- PASS 30~1000 -10.05 -63.66 ≤-30.05 PASS 1000~26500 -10.05 -55.54 ≤-30.05 PASS 2437 Reference -9.64 -9.64 --- PASS 30~1000 -9.64 -63.58 ≤-29.64 PASS 1000~26500 -9.64 -54.98 ≤-29.64 PASS 2462 Reference -9.92 -9.92 --- PASS 30~1000 -9.92 -63.75 ≤-29.92 PASS 1000~26500 -9.92 -55.33 ≤-29.92 PASS 11G Ant1 2412 Reference -14.40 -14.40 --- PASS 30~1000 -14.40 -61.06 ≤-34.4 PASS 1000~26500 -14.40 -55.76 ≤-34.4 PASS 2437 Reference -13.06 -13.06 --- PASS 30~1000 -13.06 -63.06 ≤-33.06 PASS 1000~26500 -13.06 -55.82 ≤-33.06 PASS 2462 Reference -13.03 -13.03 --- PASS 30~1000 -13.03 -67.89 ≤-33.03 PASS 1000~26500 -13.03 -55.52 ≤-33.03 PASS 11N20SISO Ant1 2412 Reference -13.87 -13.87 --- PASS 30~1000 -13.87 -62.18 ≤-33.87 PASS 1000~26500 -13.87 -54.41 ≤-33.87 PASS 2437 Reference -13.15 -13.15 --- PASS 30~1000 -13.15 -61.09 ≤-33.15 PASS 1000~26500 -13.15 -55.32 ≤-33.15 PASS 2462 Reference -14.22 -14.22 --- PASS 30~1000 -14.22 -61.39 ≤-34.22 PASS 1000~26500 -14.22 -54.83 ≤-34.22 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.39 99.52 0.02 0.12 2462 8.36 8.40 99.52 0.02 0.12 11G Ant1 2412 0.15 0.19 78.95 1.03 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.19 78.95 1.03 6.67 11N20SISO Ant1 2412 0.17 0.22 77.27 1.12 5.88 2437 0.17 0.22 77.27 1.12 5.88 2462 0.17 0.22 77.27 1.12 5.88

35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437 37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462 39 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m ] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.43 3.92 0.03 38.72 ≤54 PASS AV 2378.000 -59.26 3.92 0.03 39.89 ≤54 PASS AV 2390.000 -60.23 3.92 0.03 38.92 ≤54 PASS Peak 2310.000 -52.29 3.92 0.00 46.83 ≤74 PASS Peak 2389.310 -48.58 3.92 0.00 50.54 ≤74 PASS Peak 2390.000 -51.75 3.92 0.00 47.37 ≤74 PASS High 2462 AV 2483.500 -59.51 3.92 0.02 39.63 ≤54 PASS AV 2493.900 -58.86 3.92 0.02 40.28 ≤54 PASS AV 2500.000 -60.27 3.92 0.02 38.87 ≤54 PASS Peak 2483.500 -49.62 3.92 0.00 49.5 ≤74 PASS Peak 2498.300 -49.1 3.92 0.00 50.02 ≤74 PASS Peak 2500.000 -52.41 3.92 0.00 46.71 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.37 3.92 1.03 39.78 ≤54 PASS AV 2378.000 -59.46 3.92 1.03 40.69 ≤54 PASS AV 2390.000 -60.48 3.92 1.03 39.67 ≤54 PASS Peak 2310.000 -52.77 3.92 0.00 46.35 ≤74 PASS Peak 2384.890 -49.36 3.92 0.00 49.76 ≤74 PASS Peak 2390.000 -51.34 3.92 0.00 47.78 ≤74 PASS High 2462 AV 2483.500 -60.15 3.92 1.03 40 ≤54 PASS AV 2497.860 -59.07 3.92 1.03 41.08 ≤54 PASS AV 2500.000 -59.82 3.92 1.03 40.33 ≤54 PASS Peak 2483.500 -52.19 3.92 0.00 46.93 ≤74 PASS Peak 2499.950 -49.62 3.92 0.00 49.5 ≤74 PASS Peak 2500.000 -49.62 3.92 0.00 49.5 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.59 3.92 1.12 39.65 ≤54 PASS AV 2353.690 -59.37 3.92 1.12 40.87 ≤54 PASS AV 2390.000 -60.5 3.92 1.12 39.74 ≤54 PASS Peak 2310.000 -53.92 3.92 0.00 45.2 ≤74 PASS Peak 2326.650 -48.42 3.92 0.00 50.7 ≤74 PASS Peak 2390.000 -51.49 3.92 0.00 47.63 ≤74 PASS High 2462 AV 2483.500 -59.47 3.92 1.12 40.77 ≤54 PASS AV 2483.670 -59.18 3.92 1.12 41.06 ≤54 PASS AV 2500.000 -59.84 3.92 1.12 40.4 ≤54 PASS Peak 2483.500 -51.66 3.92 0.00 47.46 ≤74 PASS Peak 2497.860 -49.85 3.92 0.00 49.27 ≤74 PASS Peak 2500.000 -52.34 3.92 0.00 46.78 ≤74 PASS 40 Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 41 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 42 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 43 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 44 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 45 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak
