2BUKW-CF08CConference Speakerphone

展开尺寸：117*1053mm， 折后尺寸：117*117mm， 材质：157g双铜， 正反4色印刷，过哑油，对折，ROHS PC DC 5V IN PC DC 5V IN PC DC 5V IN 1 10 8 10 9 2 34567 1. Hi-Res Mic 2. LED Indicator 3. Mic Mute 4. Volume Down 5. Power Button (PC&BT Mode Switch) 6. Volume Up 7. Cam Switch Button 8. PC Port 9. DC 5V In 10. Dual FHD Cam Charge your speakerphoneConnect with your speakerphone with other equipments RED color LED Output: 5V 2A Plug your speakerphone with the AC adapter via USB A to type C connector cable. Please choose the 5V 2A output AC adaptor to get the fast charging speed. Plug your speakerphone with USB A cable to connect other equipment by USB A port. The speakerphone will turn into “USB Mode”. Select your Camera, sound and microphone devices Switch dual cam and single cam Pairing your speakerphone with other equipment via Bluetooth MTK-CF08C MTK-CF08C Bluetooth & devices > Cameras Add a network camera Connected cameras MTK-CF08C Search for cameras Integrated Webcam PC DC 5V IN PC DC 5V IN Click the Cam Switch button to switch dual cam and single cam. Turn on your speakerphone and keep pressing 3s, the speakerphone will get into pairing mode. During the PC mode, double click the power button, it can turn into Bluetooth mode. You can connect the speakerphone with other device via Bluetooth. Turn on Bluetooth function and select mode MTK-CF08C in your device. MTK-CF08C Clear the Bluetooth pairing name of your speakerphone Turn on your speakerphone, then press the and button for 5s, the speakerphone will clear all pairing name. Turn on Bluetooth function and select mode MTK-CF08C in your device. MTK-CF08C Dual Cam Conference Speakerphone PC DC 5V IN PC DC 5V IN PC DC 5V IN 1 10 8 10 9 2 34567 �. 高清麦克风 �. LED指示灯 �. 麦克风静音 �. 音量减 �. 电源/模式切换键 �. 音量加 �. 镜头切换键 �. PC插孔 �. 电源�V插孔 ��. 双高清摄像头 如何充电如何连接会议全向麦克风和其他设备 红色LED灯 输出: �V �A 把USB A充电线插到带USB充电口的充电器上，同 时把Type C端接入会议全向麦克风。请用输出为�V �A输出的适配器，以获得最佳充电效果。 用USB A线连接会议全向麦克风和其他带USB A接 口的设备，会议全向麦克风会进入USB模式，可以 直接使用。 如何在电脑上设置摄像头、麦克风和喇叭如何切换单双摄像头如何通过蓝牙连接会议全向麦克风和其他设备 MTK-CF08C MTK-CF08C 蓝牙和其他设备 > 摄像头 添加网络摄像头 声音音频设置 声音输出 麦克风 相机 蓝牙 通知 补充 连接的摄像头 MTK-CF08C 搜索摄像头 Integrated Webcam PC DC 5V IN PC DC 5V IN 单击镜头切换按键可以切换 单双镜头。 长按全向麦克风�秒，会进入配对模式。 如在PC模式下，双击电源键，进入蓝牙模式。可以通 过蓝牙连接会议全向麦克风和其他设备。 在您的手机或者其他蓝牙设备上，请在 蓝牙设置中，打开蓝牙功能，选中 MTK-CF��C。 如何清除会议全向麦克风的蓝牙配对名称 启动会议全向麦克风，然后同时长按 和 �秒， 会议全向麦克风将会清除配对所有配对记录。 在您的手机或者其他蓝牙设备上，请在 蓝牙设置中，打开蓝牙功能，选中 MTK-CF��C。 双摄会议全向麦克风 选择你的喇叭和麦克风 MTK-CF08C 设置 蓝牙 MTK-CF08C 设置 蓝牙 FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition, compliance with exposure requirements.

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BUKW-CF08C CF08C, CF08 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Martion Lee Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2026-01-24

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BUKW-CF08C CF08C, CF08 We, Applicant Company Name: Moctek Electronic Limited Address: ROOM SO32, 2/F, THE CAPITAL, 61-65 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON, HONG KONG 999077, China Phone: +852-26681868 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-02-04 Signature Date Name / Title: Lynn Yao / Director Company: Moctek Electronic Limited Address: ROOM SO32, 2/F, THE CAPITAL, 61-65 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON, HONG KONG 999077, China Phone: +852-26681868 Fax: +852-26681868 E-Mail: [email protected]

Moctek Electronic Limited ROOM SO32, 2/F, THE CAPITAL, 61-65 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON, HONG KONG 999077, China Date: February 4, 2026 FCC ID: 2BUKW-CF08C Model Number: CF08C, CF08 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Moctek Electronic Limited hereby declare that our product (Conference Speakerphone) Model Number: CF08C, CF08 board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Lynn Yao / Director Company: Moctek Electronic Limited Address: ROOM SO32, 2/F, THE CAPITAL, 61-65 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON, HONG KONG 999077, China Phone: +852-26681868 Fax: +852-26681868 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BUKW-CF08C CF08C, CF08 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-02-04 Signature Date Name / Title: Lynn Yao / Director Company: Moctek Electronic Limited Address: ROOM SO32, 2/F, THE CAPITAL, 61-65 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KOWLOON, HONG KONG 999077, China Phone: +852-26681868 Fax: +852-26681868 E-Mail: [email protected]

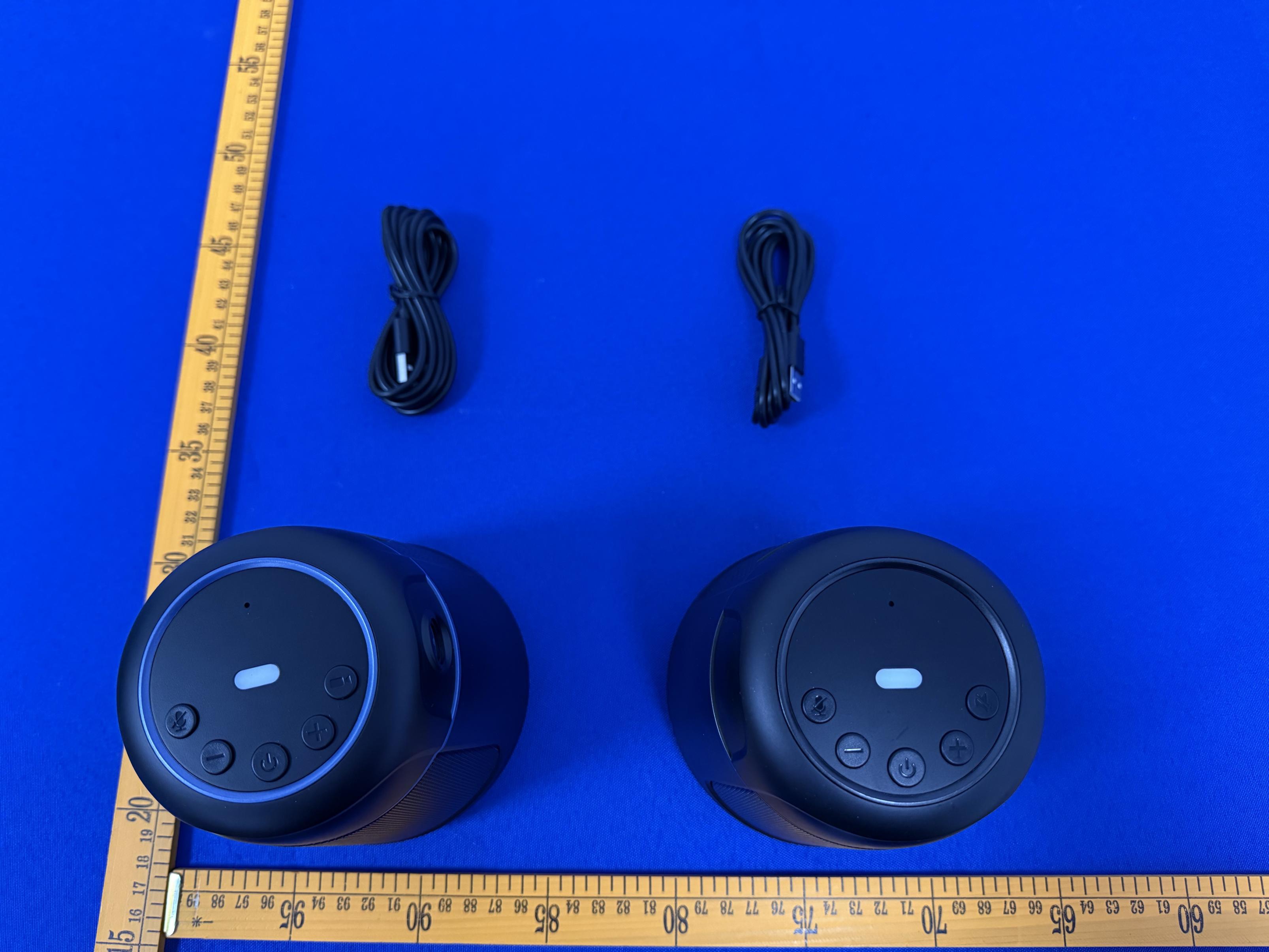

Page1of8FCCID:2BUKW-CF08C GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com ExternalPhotosoftheEUT Fig.1 TestModel:CF08C Fig.2 Page2of8FCCID:2BUKW-CF08C GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of8FCCID:2BUKW-CF08C GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6 Page4of8FCCID:2BUKW-CF08C GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.7 Fig.8 Page5of8FCCID:2BUKW-CF08C GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com AdditionalModelNo.:CF08 Fig.9 Fig.10 Page6of8FCCID:2BUKW-CF08C GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.11 Fig.12 Page7of8FCCID:2BUKW-CF08C GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.13 Fig.14 Page8of8FCCID:2BUKW-CF08C GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.15

Page1of1FCCID:2BUKW-CF08C GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com LABELANDLOCATION (Size:L4.0cmxW2.0cm) LabelLocation ConferenceSpeakerphone Model:CF08C FCCID:2BUKW-CF08C

Page 1 of 8 FCC ID: 2BUKW-CF08C Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 8 FCC ID: 2BUKW-CF08C Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 Page 3 of 8 FCC ID: 2BUKW-CF08C Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 5 Fig. 6 Page 4 of 8 FCC ID: 2BUKW-CF08C Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 7 Fig. 8 Page 5 of 8 FCC ID: 2BUKW-CF08C Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 9 Fig. 10 Page 6 of 8 FCC ID: 2BUKW-CF08C Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 11 Fig. 12 Page 7 of 8 FCC ID: 2BUKW-CF08C Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 13 Fig. 14 Bluetooth Antenna Page 8 of 8 FCC ID: 2BUKW-CF08C Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 15

Page 1 of 10 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation FOR MOCTEKELECTRONICLIMITED ConferenceSpeakerphone TestModel:CF08C AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:MOCTEKELECTRONICLIMITED Address: ROOMSO32,2/F,THECAPITAL,61-65CHATHAMROAD SOUTH,TSIMSHATSUI,KOWLOON,HONGKONG Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:January06,2026 Numberoftestedsamples:2 SampleNo.:C251224015-1,C251224015-2 Serialnumber:Prototype DateofTest:January06,2026~January22,2026 DateofReport:January23,2026 Page 2 of 10 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation ReportReferenceNo......................:LCSC12255005EC DateofIssue.......................................:January23,2026 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure.............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:MOCTEKELECTRONICLIMITED Address................................................:ROOMSO32,2/F,THECAPITAL,61-65CHATHAMROAD SOUTH,TSIMSHATSUI,KOWLOON,HONGKONG TestSpecification Standard..............................................:FCCKDBpublication447498D01GeneralRFExposureGuidance v06 FCCCFR47part11.1310 FCCCFR47part22.1093 TestReportFormNo.........................:TRF-4-E-215A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceof thematerial.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription......................:ConferenceSpeakerphone TradeMark..........................................:MOTAI TestModel...........................................:CF08C Ratings.................................................:PleaseRefertoPage6 Result..................................................:PASS Compiledby:Supervisedby:Approvedby: AceYao/AdministratorsJustinZhu/TechniqueDirectorGavinLiang/Manager Page 3 of 10 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation TestResultPASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. RevisionHistory TestReportNo.:LCSC12255005EC January23,2026 Dateofissue TestModel.............................. : CF08C EUT......................................... : ConferenceSpeakerphone Applicant...............................:MOCTEKELECTRONICLIMITED Address...................................:ROOMSO32,2/F,THECAPITAL,61-65CHATHAMROADSOUTH, TSIMSHATSUI,KOWLOON,HONGKONG Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:MOCTEKELECTRONICLIMITED Address...................................:ROOMSO32,2/F,THECAPITAL,61-65CHATHAMROADSOUTH, TSIMSHATSUI,KOWLOON,HONGKONG Telephone...............................:/ Fax..........................................:/ Factory...................................:/ Address...................................:/ Telephone...............................:/ Fax..........................................:/ Page 4 of 10 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com ReportVersionIssueDateRevisionContentRevisedBy 000January23,2026InitialIssue--- Page 5 of 10 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS DescriptionPage 1.PRODUCTINFORMATION....................................................................................................................................6 2.EVALUATIONMETHODANDLIMIT....................................................................................................................7 3.REFEREVALUATIONMETHOD..........................................................................................................................7 4.CONDUCTEDPOWERRESULTS........................................................................................................................8 5.MANUFACTURINGTOLERANCE........................................................................................................................8 6.EVALUATIONRESULTS........................................................................................................................................9 7.CONCLUSION....................................…

Text truncated - open the document above for the full version.

Page 1 of 34 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCCTESTREPORT For MOCTEKELECTRONICLIMITED ConferenceSpeakerphone TestModel:CF08C AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:MOCTEKELECTRONICLIMITED Address:ROOMSO32,2/F,THECAPITAL,61-65CHATHAMROADSOUTH, TSIMSHATSUI,KOWLOON,HONGKONG Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:January06,2026 Numberoftestedsamples:2 SampleNo.:C251224015-1,C251224015-2 Serialnumber:Prototype DateofTest:January06,2026~January22,2026 DateofReport:January23,2026 Page 2 of 34 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSC12255005EB DateofIssue.......................................:January23,2026 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:MOCTEKELECTRONICLIMITED Address................................................:ROOMSO32,2/F,THECAPITAL,61-65CHATHAMROAD SOUTH,TSIMSHATSUI,KOWLOON,HONGKONG TestSpecification Standard..............................................:FCCCFR47PART15C(15.247) TestReportFormNo......................:TRF-4-E-145A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceof thematerial.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:ConferenceSpeakerphone TradeMark..........................................:MOTAI TestModel...........................................:CF08C Ratings.................................................:PleaseRefertoPage6 Result..................................................:PASS Compiledby:Supervisedby:Approvedby: AceYao/AdministratorsJustinZhu/TechniqueDirectorGavinLiang/Manager Page 3 of 34 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com FCC--TESTREPORT TestModel...............................:CF08C EUT.........................................:ConferenceSpeakerphone Applicant...............................:MOCTEKELECTRONICLIMITED Address..................................:ROOMSO32,2/F,THECAPITAL,61-65CHATHAMROAD SOUTH,TSIMSHATSUI,KOWLOON,HONGKONG Telephone...............................:/ Fax..........................................:/ Manufacturer........................:MOCTEKELECTRONICLIMITED Address...................................:ROOMSO32,2/F,THECAPITAL,61-65CHATHAMROAD SOUTH,TSIMSHATSUI,KOWLOON,HONGKONG Telephone...............................: Fax..........................................: Factory...................................:/ Address...................................:/ Telephone...............................:/ Fax..........................................:/ TestResultPASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSC12255005EB January23,2026 Dateofissue Page 4 of 34 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000January23,2026InitialIssue--- Page 5 of 34 FCCID:2BUKW-CF08CReportNo.:LCSC12255005EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)........................................................................................................................6 1.2.SUPPORTEQUIPMENTLIST.................................................................................................................................7 1.3.EXTERNALI/OCABLE..........................................................................................................................................7 1.4.DESCRIPTIONOFTESTFACILITY........................................................................................................................7 1.5.STATEMENTOFTHEMEASUREMENTUNCERTAINTY..........................................................................................7 1.6.MEASUREMENTUNCERTAINTY.........................................................................................................…

Text truncated - open the document above for the full version.

Antenna S pecifications 2.4G PCB ANT 实 验 室 测 试 环 境 及 设 备 测试项目测试设备 S11、S12 、VSWR 、LOSS网络分析仪E5071B、E5062A Efficiency、Gain 3D Radiation Pattern Satimo SG16暗室、GP7*4*3暗室、E5071B TRP、TIS Satimo SG16暗室、GP7*4*3暗室、8960 、 CMW500、MT8820C、E4438C、 项 目 调 试 简 介 整机类型 频段信息 天线种类及频段信 息 天线 天线材 2400-2500M 质板载天线 天 线 无 源 驻 波 图 天 线 无 源 测 试 数 据 天 线 无 源 测 试 方 向 图 天 线 无 源 测 试 方 向 图 天 线 无 源 测 试 苹 果 图 THE END

Page 1 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB Appendix B RF Test Data for BT LE (Conducted Measurement) Product Name: Conference Speakerphone Test Model: CF08C Environmental Conditions Temperature: 24.1C Relative Humidity: 53.5% ATM Pressure: 100.0 kPa Test Engineer: Yan Chen Supervised by: Fengliu Tang Page 2 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB B.1 DTS Bandwidth Test Result TestMode Antenna Frequency [MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 0.680 2401.668 2402.348 0.5 PASS BLE_1M Ant1 2440 0.664 2439.664 2440.328 0.5 PASS BLE_1M Ant1 2480 0.732 2479.628 2480.360 0.5 PASS BLE_2M Ant1 2402 1.168 2401.420 2402.588 0.5 PASS BLE_2M Ant1 2440 1.156 2439.420 2440.576 0.5 PASS BLE_2M Ant1 2480 1.148 2479.428 2480.576 0.5 PASS Page 3 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Page 4 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 5 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Page 6 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB B.2 Maximum Peak conducted output power Test Result Peak TestMode Antenna Frequency [MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -2.47 ≤30 PASS BLE_1M Ant1 2440 1.84 ≤30 PASS BLE_1M Ant1 2480 2.18 ≤30 PASS BLE_2M Ant1 2402 -2.60 ≤30 PASS BLE_2M Ant1 2440 1.82 ≤30 PASS BLE_2M Ant1 2480 2.22 ≤30 PASS Page 7 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Page 8 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 9 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Page 10 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB B.3 Maximum power spectral density Test Result TestMode Antenna Frequency [MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.29 ≤8.00 PASS BLE_1M Ant1 2440 -14.97 ≤8.00 PASS BLE_1M Ant1 2480 -14.44 ≤8.00 PASS BLE_2M Ant1 2402 -22.55 ≤8.00 PASS BLE_2M Ant1 2440 -18.14 ≤8.00 PASS BLE_2M Ant1 2480 -17.60 ≤8.00 PASS Page 11 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Page 12 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 13 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Page 14 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB B.4 Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -3.34 -46.3 ≤-23.34 PASS BLE_1M Ant1 High 2480 1.66 -45.8 ≤-18.34 PASS BLE_2M Ant1 Low 2402 -4.60 -46.6 ≤-24.6 PASS BLE_2M Ant1 High 2480 -0.19 -46.11 ≤-20.19 PASS Page 15 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Page 16 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2480-PASS Page 17 of 35 FCC ID: 2BUKW-CF08C Report No.: LCSC12255005EB B.5 Conducted Spurious Emission Test Result TestMode Antenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 0~Reference -3.99 -3.99 --- PASS BLE_1M Ant1 2402 30~1000 -3.99 -56.56 ≤-23.99 PASS BLE_1M Ant1 2402 1000~26500 -3.99 -44.68 ≤-23.99 PASS BLE_1M Ant1 2440 0~Reference 1.17 1.17 --- PASS BLE_1M Ant1 2440 30~1000 1.17 -48.54 ≤-18.83 PASS BLE_1M Ant1 2440 1000~26500 1.17 -44.6 ≤-18.83 PASS BLE_1M Ant1 2480 0~Reference 1.44 1.44 --- PASS BLE_1M Ant1 2480 30~1000 1.44 -56.72 ≤-18.56 PASS BLE_1M Ant1 2480 1000~26500 1.44 -44.32 ≤-18.56 PASS BLE_2M Ant1 2402 0~Reference -5.51 -5.51 --- PASS BLE_2M Ant1 2402 30~1000 -5.51 -56.36 ≤-25.51 PASS BLE_2M Ant1 2402 1000~26500 -5.51 -44.18 ≤-25.51 PASS BLE_2M Ant1 2440 0~Reference -0.80 -0.80 --- PASS BLE_2M Ant1 2440 30~1000 -0.80 -5…
