2BUMYFREESONOHandheld diagnostic ultrasound system

Wuxi VUE Medical Equipment Co., Ltd. 401, Bldg Sagittarius-A, iPark, 18-3 Zhenze Rd, Xinwu District, Wuxi, China Date: [2026/2/9] Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BUMYFREESONO FRN: 0037834165 US Agent – Attestation Statement / Part 2.911(d)(7) [NextVPU (Shanghai) Co., Ltd.] certifies, that as of [July 3, 2025], we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: [2AOQI-ACW1]. [NextVPU (Shanghai) Co., Ltd. ], accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [NextVPU (Shanghai) Co., Ltd. ] for FCC ID: [2AOQI-ACW1]. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Wuxi VUE Medical Equipment Co., Ltd. Designated Agent: FCC US Agent, LLC Company Representative: Haining Chang Designated Agent Representative: Tim Payne Signature: Signature:

Wuxi VUE Medical Equipment Co., Ltd. 2026/5/9 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For (Handheld diagnostic ultrasound system /FreeSono Flex 9 FreeSono Flex 8 FreeSono Flex 7 FreeSono Flex 6 FreeSono Flex 5 FreeSono Flex 4 FreeSono Flex 3 AND FCC ID: 2BUMYFREESONO) To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < Wuxi VUE Medical Equipment Co., Ltd. >. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < Wuxi VUE Medical Equipment Co., Ltd. > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < Wuxi VUE Medical Equipment Co., Ltd. > feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature Printed Name: Haining Chang Company: Wuxi VUE Medical Equipment Co., Ltd. Job Title: QA Manager

Wuxi VUE Medical Equipment Co., Ltd. 2026/2/9 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Handheld diagnostic ultrasound system /FreeSono Flex 9 FreeSono Flex 8 FreeSono Flex 7 FreeSono Flex 6 FreeSono Flex 5 FreeSono Flex 4 FreeSono Flex 3 AND FCC ID: 2BUMYFREESONO) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the(Schematics/Operational Description/ Block Diagrams/ SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES) required to be submitted with this application be permanently withheld from public review. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Please contact me if there is any information you may need. Sincerely, Signature : Printed Name: Haining Chang Company: Wuxi VUE Medical Equipment Co., Ltd. Job Title: QA Manager Email: [email protected]

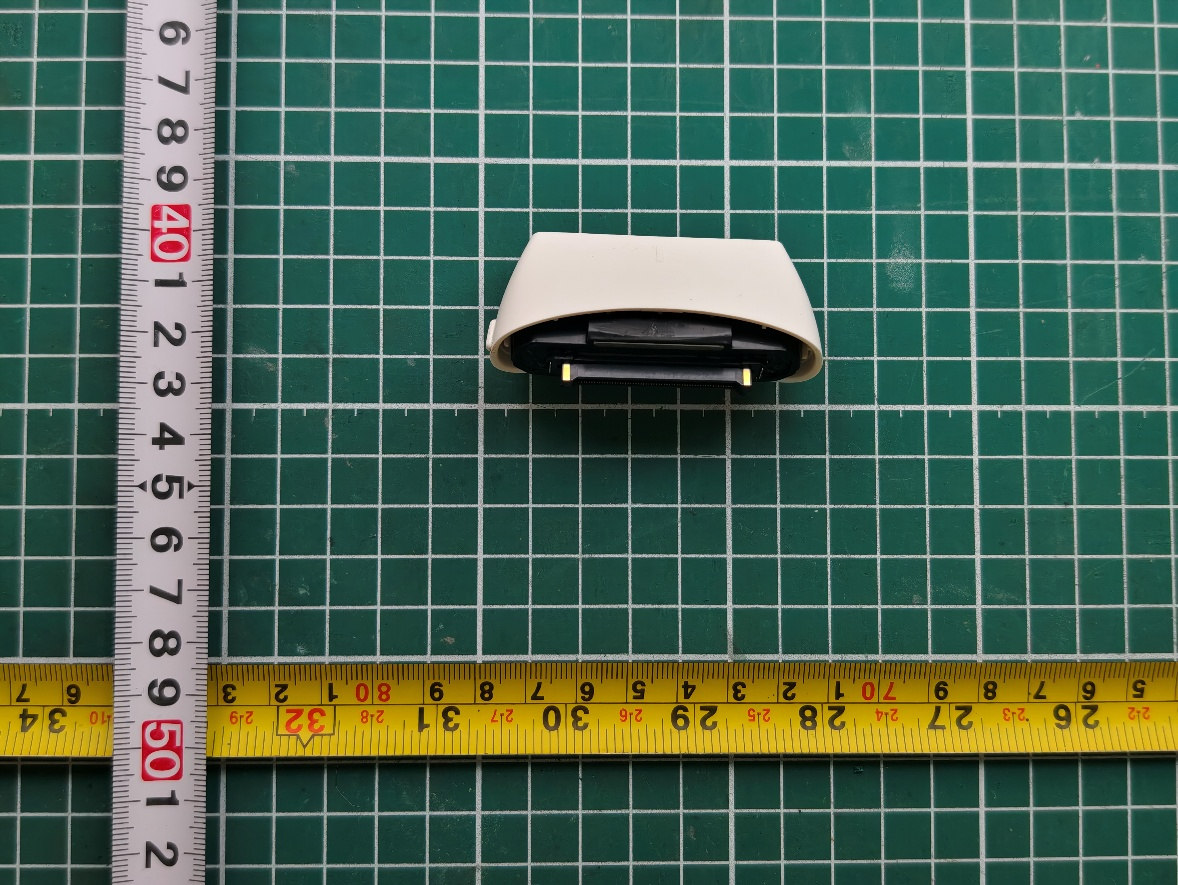

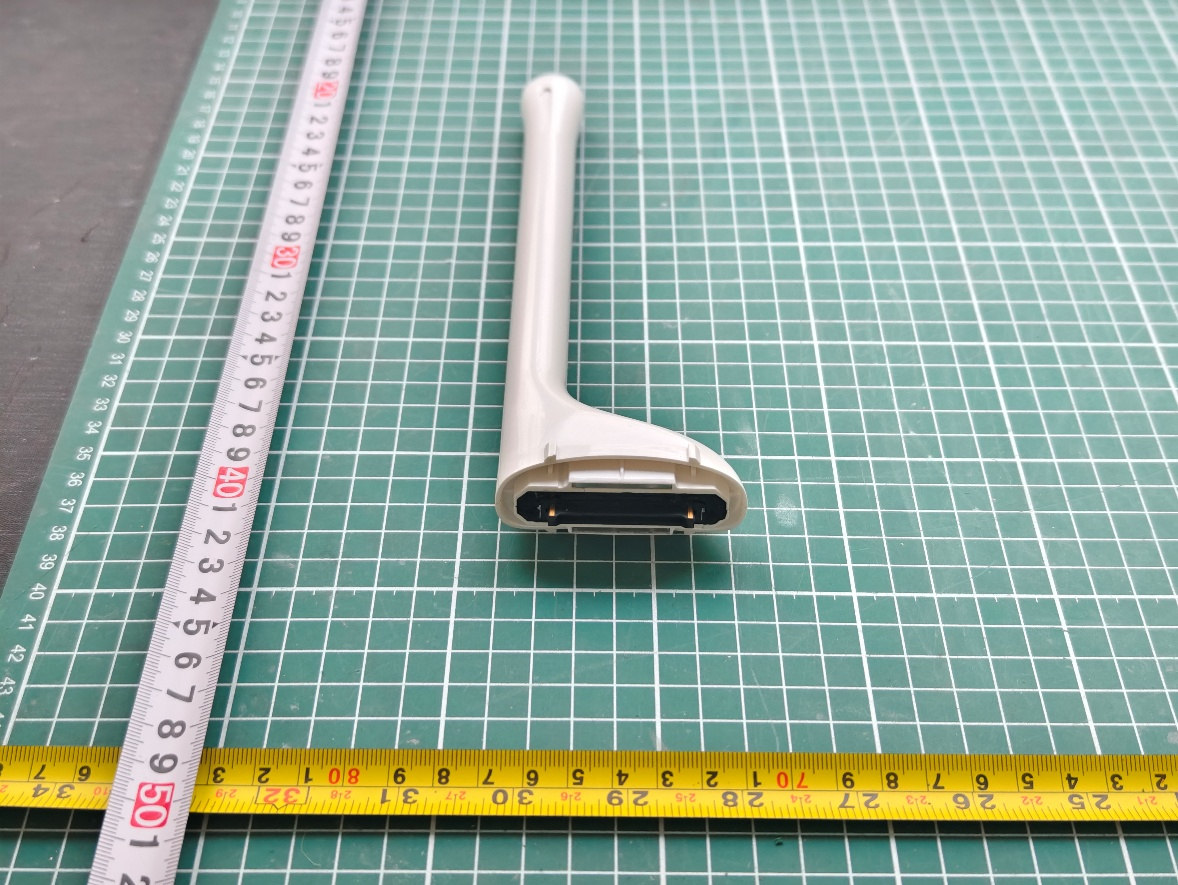

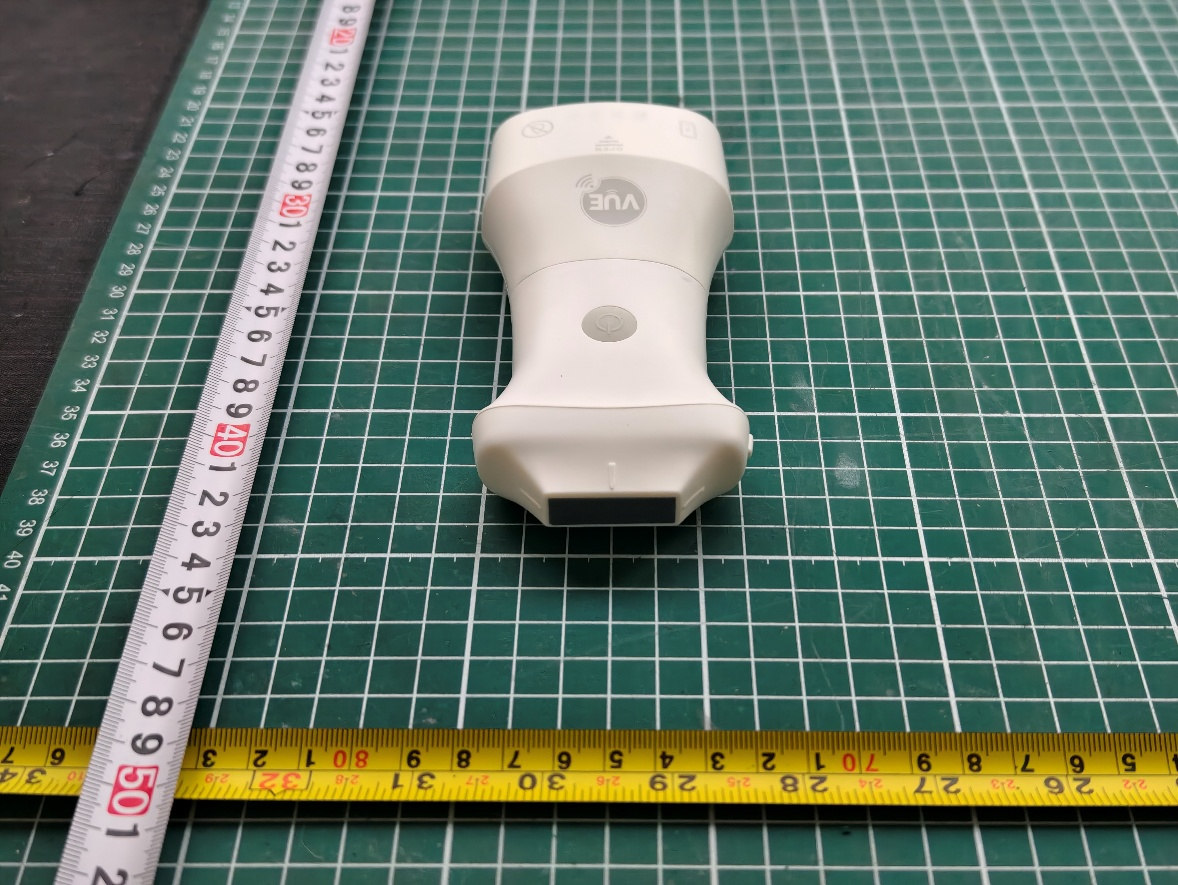

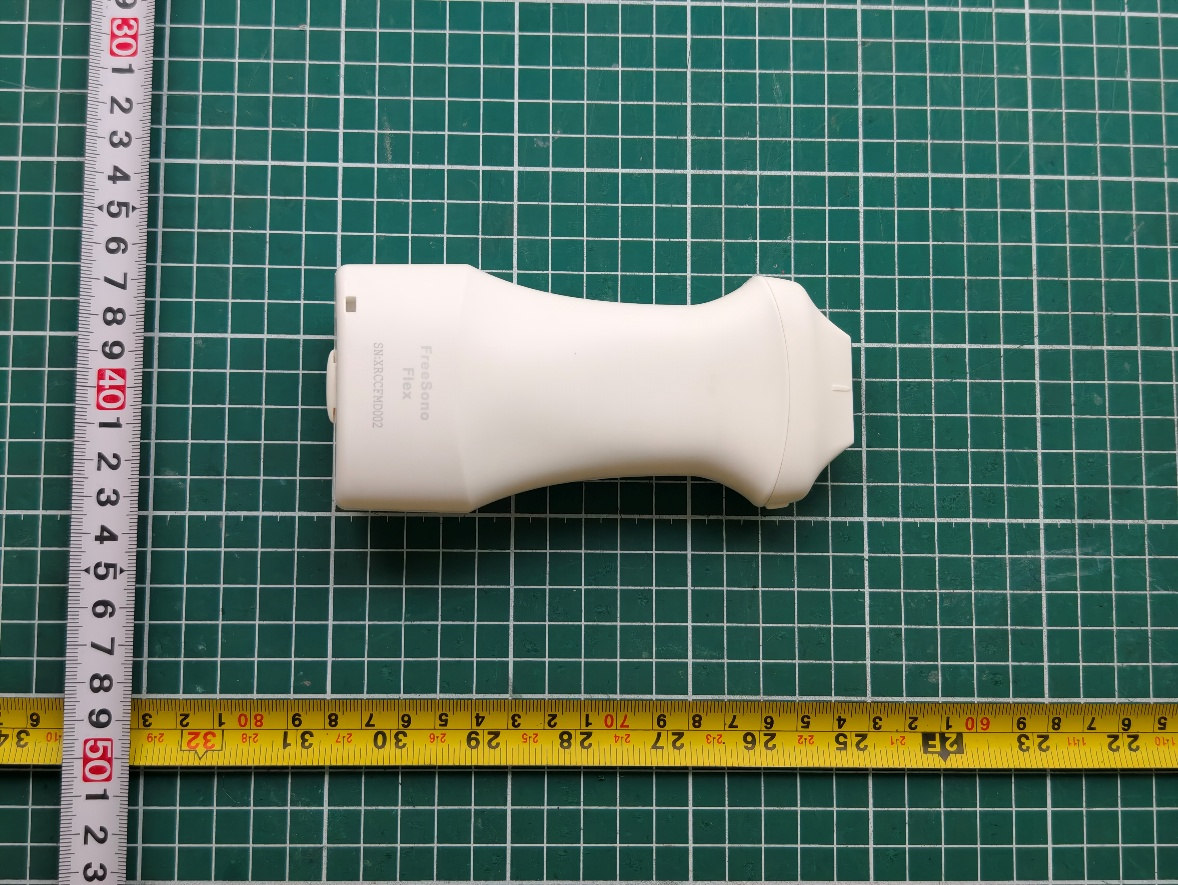

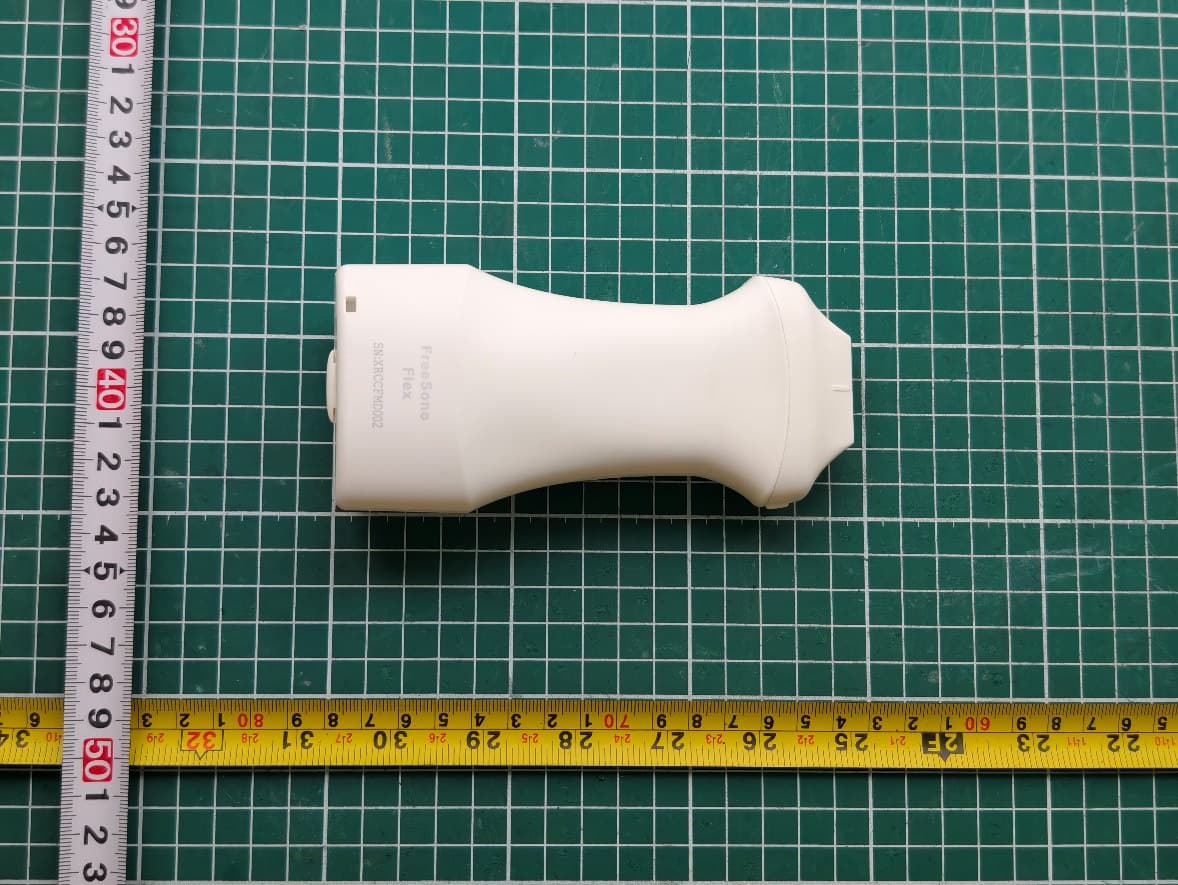

EUT Appearance Report No.: EFTA26010037-IE-04 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030E Page 1 of 8 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance EUT Appearance Report No.: EFTA26010037-IE-04 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030E Page 2 of 8 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: EFTA26010037-IE-04 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030E Page 3 of 8 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: EFTA26010037-IE-04 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030E Page 4 of 8 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: EFTA26010037-IE-04 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030E Page 5 of 8 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: EFTA26010037-IE-04 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030E Page 6 of 8 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: EFTA26010037-IE-04 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030E Page 7 of 8 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: EFTA26010037-IE-04 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030E Page 8 of 8 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Picture 1: Constituents of EUT

Prepared by: Wei Fangying Approved by: Xu Kai Eurofins TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 SAR TEST REPORT Applicant Wuxi VUE Medical Equipment Co., Ltd. FCC ID 2BUMYFREESONO Product Handheld diagnostic ultrasound system Brand VUE Model FreeSono Flex 9; FreeSono Flex 8; FreeSono Flex 7; FreeSono Flex 6; FreeSono Flex 5; FreeSono Flex 4; FreeSono Flex 3 Report No. EFTA26010037-IE-03-S2 Issue Date April 1, 2026 Eurofins TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in IEEE 1528-2013, ANSI C95.1: 1992, IEEE C95.1: 1991. The test results show that the equipment tested can demonstrate compliance with the requirements as documented in this report. SAR Test Report Report No.: EFTA26010037-IE-03-S2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 2 of 78 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ................................................................................................................................. 3 1.1 Notes of the Test Report ............................................................................................................ 3 1.2 Test Facility ................................................................................................................................ 3 1.3 Testing Location......................................................................................................................... 3 1.4 Laboratory Environment ............................................................................................................ 3 2 Statement of Compliance .................................................................................................................. 4 3 Description of Equipment Under Test ............................................................................................... 5 4 Test Specification, Methods and Procedures ................................................................................... 7 5 Operational Conditions during Test ................................................................................................... 8 5.1 Test Positions ............................................................................................................................ 8 5.1.1 Extremity exposure conditions ................................................................................. 8 5.1.2 Body SAR ................................................................................................................. 8 5.2 Measurement Variability ............................................................................................................ 9 5.3 Test Configuration ................................................................................................................... 10 5.3.1 Wi-Fi Test Configuration ........................................................................................ 10 6 SAR Measurements System Configuration .................................................................................... 12 6.1 SAR Measurement Set-up ....................................................................................................... 12 6.2 DASY5 E-field Probe System .................................................................................................. 13 6.3 SAR Measurement Procedure ................................................................................................. 14 7 Main Test Equipment ....................................................................................................................... 16 8 Tissue Dielectric Parameter Measurements & System Check ....................................................... 17 8.1 Tissue Verification ................................................................................................................... 17 8.2 System Check .......................................................................................................................... 19 8.3 SAR System Validation ............................................................................................................ 22 9 Normal and Maximum Output Power .............................................................................................. 23 9.1 WLAN Mode ............................................................................................................................. 23 10 Measured and Reported (Scaled) SAR Results ............................................................................. 24 10.1 EUT Antenna Locations ....................................................................................................... 24 10.2 Measured SAR Results ........................................................................................................ 25 10.3 Simultaneous Transmission Analysis .................................................................................. 27 11 Measurement Uncertainty ............................................................................................................... 28 ANNEX A: Test Layout ........................................................................................................................... 29 ANNEX B: System Check Results ......................................................................................................... 31 ANNEX C: Highest Graph Results ......................................................................................................... 34 ANNEX D: Probe Calibration Certificate (SN: 3677) ............................................................................. 38 ANNEX E: D2450V2 Dipole Calibration Certificate ............................................................................... 60 ANNEX …

Text truncated - open the document above for the full version.

OA-W01 Datasheet 1 OA-W01_V02 SMD Antenna Data Sheet OverAir® SMD Antenna Series Complies RoHS PN: OA-W01 2.4G/5G WIFI band antenna OA-W01 Datasheet 2 OA-W01_V02 Features: 1. A small SMD patch antenna measuring only 8.0 x 3.0 x 1.0 mm3. 2. Low energy loss, high antenna efficiency. 3. High stability under temperature and humidity changes. Application: 1. 2.4G/5G WIFI frequency band antenna application. 2. Other antenna applications operating in the 2.4G or 5G bands. Structure: Size: Three views Symbol Dimensions (mm). L 8.0±0.1 W 3.0±0.1 T 1.0±0.1 a 0.6±0.1 1. Antenna signal feed end 2. Antenna welding fixed end 3. Antenna feeder end marking OA-W01 Datasheet 3 OA-W01_V02 Electrical characteristics OA-W01 Specification Working Frequency 2400-2500MHz，5200-6000MHz Impedance 50Ω Gain (dBi). 5.5dBi(2.45GHz), 3.5dBi(5.5Ghz) VSWR <2 Operation Temperature -40°C~+85°C Power Capacity 3W The operating frequency of the antenna needs to be realized by debugging the impedance matching device. Antenna pad and trace design Design dimensional drawings OA-W01 Datasheet 4 OA-W01_V02 Matching device values Series Device Series 1 0Ω Parallel device Shunt 1 NC Series Device Series 2 0Ω Test the antenna test on the board (1.0mm thick). OA-W01 Datasheet 5 OA-W01_V02 Antenna S11 characteristics Antenna VSWR characteristics Efficiency and radiation diagram Efficiency, radiograph, gain and other properties are obtained based on the test board design. The specification test data for the OA-W01 antenna is based on the test PCB board size and the test orientation shown in the figure below. The following data was tested in an ETS 3D anechoic chamber. + Z X Y OA-W01 Datasheet 6 OA-W01_V02 Gain and efficiency Bandwidth 2.4G-2.5GHz Bandwidth 5.2G-5.8GHz Peak Gain 6.1dBi 3.67dBi Average Gain across the band 5.7dBi 2.63dBi Gain Range across the band 5.5dBi~6.1dBi 1.33dBi~3.67dBi Peak Efficiency 82.5% 62.4% Average Efficiency across the band 79% 51% Efficiency Range across the band 74.8%~82.5% 30.77%~62.4% Theta @2.45 GHz Phi @2.45 GHz OA-W01 Datasheet 7 OA-W01_V02 Total @2.45 GHz Theta @5.5 GHz Phi @5.5 GHz Total @5.5 GHz OA-W01 Datasheet 8 OA-W01_V02 Welding conditions Typical welding specifications for reliable and non-destructive are shown in the figure below: Packaging OA-W01 Datasheet 9 OA-W01_V02 Plastic carrier tape specification (unit: mm). Index By Bo It is T W Dimension (mm) 3.3±0.1 8.4±0.1 1.3±0.1 0.3±0.05 16.0±0.3 Index E F P P0 P2 Dimension (mm) 1.75±0.1 7.0±0.1 8.0±0.1 4.0±0.1 2.0±0.1 Reel size Index A B C Dimension(mm) 330 100 13.5 Standard Quantity: 2000 PCS/Plate Storage environment The following conditions should be met when the product is stored: Storage temperature of the tray : -10°C~+40°C (non-antenna operating temperature) The trays store humidity : 30% to 70% Relative Humidity (non-Antenna Operating Humidity) OA-W01 Datasheet 10 OA-W01_V02 The place where the product is placed should not come into contact with corrosive gases, such as sulfur, etc. Chlorine or acid may cause the product to oxidize and cause poor weldability. The product should be placed in the toolbox and protected from moisture and dust. Products should be stored in warehouses and protected from heat, vibration, and direct sunlight. Products should be stored under closed conditions.

Prepared by: Xu Ying Approved by: Xu Kai Eurofins TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 RF TEST REPORT Applicant Wuxi VUE Medical Equipment Co., Ltd. FCC ID 2BUMYFREESONO Product Handheld diagnostic ultrasound system Brand VUE Model FreeSono Flex 9; FreeSono Flex 8; FreeSono Flex 7; FreeSono Flex 6; FreeSono Flex 5; FreeSono Flex 4; FreeSono Flex 3 Report No. EFTA26010037-IE-05-R2 Issue Date March 25, 2026 Eurofins TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 15E (2025). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. RF Test Report Report No.: EFTA26010037-IE-05-R2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-006R Page 2 of 44 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1. Test Laboratory ............................................................................................................................... 4 1.1. Notes of the test report ........................................................................................................... 4 1.2. Test facility .............................................................................................................................. 4 1.3. Testing Location...................................................................................................................... 4 2. General Description of Equipment under Test ............................................................................... 5 2.1. Applicant and Manufacturer Information ................................................................................ 5 2.2. General information ................................................................................................................ 5 3. Applied Standards ........................................................................................................................... 7 4. Test Configuration ........................................................................................................................... 8 5. Test Case ...................................................................................................................................... 10 5.1. Occupied Bandwidth ............................................................................................................. 10 5.2. Average Power Output ......................................................................................................... 11 5.3. Frequency Stability ............................................................................................................... 13 5.4. Power Spectral Density ........................................................................................................ 15 5.5. Unwanted Emission .............................................................................................................. 17 5.6. Conducted Emission ............................................................................................................. 23 6. Test Results .................................................................................................................................. 24 6.1. Occupied Bandwidth ............................................................................................................. 24 6.2. Average Power Output ......................................................................................................... 31 6.3. Frequency Stability ............................................................................................................... 34 6.4. Power Spectral Density ........................................................................................................ 35 6.5. Unwanted Emission .............................................................................................................. 40 6.6. Conducted Emission ............................................................................................................. 41 7. Main Test Instruments .................................................................................................................. 42 8. The EUT Appearance ................................................................................................................... 43 9. Test Setup Photos ......................................................................................................................... 44 RF Test Report Report No.: EFTA26010037-IE-05-R2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-006R Page 3 of 44 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Summary of measurement results Number Test Case Clause in FCC rules Verdict 1 Average output power 15.407(a) PASS 2 Occupied bandwidth 15.407(e) PASS 3 Frequency stability 15.407(g) PASS 4 Power spectral density 15.407(a) PASS 5 Unwanted Emissions 15.407(b), 15.205, 15.209 PASS 6 Conducted Emissions 15.207 PASS Date of Testing: January 9, 2026 ~ January 21, 2026 Date of Sample Received: January 6, 2026 Note: PASS: The EUT complies with the essential requirements in the standard. FAIL: The EUT does not comply with the essential requirements in the standard. All indications of Pass/Fail in this report are opinions expressed by Eurofins TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. RF Test Report Report No.: EFTA26010037-IE-05-R2 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-006R Page 4 of 44 This report shall not be reproduced except in full, without the written approva…

Text truncated - open the document above for the full version.

Test Result Report No.: EFTA26010037-IE-05-R2- ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 1 of 26 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. ANNEX A: Test Result The radiated emission was measured in the following position: EUT stand-up position (Z axis), lie-down position (X, Y axis). The worst emission was found in lie-down position (X axis) and the loop antenna is coplanar, the others are vertical and horizontal. and the worst case was recorded. Test Result Report No.: EFTA26010037-IE-05-R2- ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 2 of 26 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 1. Unwanted Emission 1.1. Wi-Fi 5GHz The following graphs display the maximum values of horizontal and vertical by software. Blue trace uses the peak detection, Green trace uses the average detection. A symbol ( ) in the test plot below means (dBμV/m) The signal beyond the limit is carrier. 802.11a-Channel 48: Peak + Average 0 10 20 30 40 50 60 70 80 90 100 110 120 52305250 5300 5350 5400 5460 Level in dB V/  Frequency in MHz BAND EDGE FCC 5G PK BAND EDGE FCC 5G AV 5.354861250 GHz 58.979 dB V/ 5.356845000 GHz 46.873 dB V/ 802.11a-Channel 149: Peak 0 10 20 30 40 50 60 70 80 90 100 110 120 5600 5620 5640 5660 5680 5700 5720 5740 5755 Level in dB V/  Frequency in MHz FCC BANDEDGE_5G_band4 5.601123750 GHz 60.884 dB V/ 802.11a-Channel 165: Peak 0 10 20 30 40 50 60 70 80 90 100 110 120 5810 5820 5840 5860 5880 5900 5920 5940 5950 Level in dB V/  Frequency in MHz FCC BANDEDGE_5G_band4 5.939150000 GHz 59.202 dB V/ 802.11n HT20-Channel 48: Peak + Average 0 10 20 30 40 50 60 70 80 90 100 110 120 52305250 5300 5350 5400 5460 Level in dB V/  Frequency in MHz BAND EDGE FCC 5G PK BAND EDGE FCC 5G AV 5.376768750 GHz 46.361 dB V/ 5.357190000 GHz 59.282 dB V/ 802.11n HT20-Channel 149: Peak 0 10 20 30 40 50 60 70 80 90 100 110 120 5600 5620 5640 5660 5680 5700 5720 5740 5755 Level in dB V/  Frequency in MHz FCC BANDEDGE_5G_band4 5.602925625 GHz 60.750 dB V/ 802.11n HT20-Channel 165: Peak 0 10 20 30 40 50 60 70 80 90 100 110 120 5810 5820 5840 5860 5880 5900 5920 5940 5950 Level in dB V/  Frequency in MHz FCC BANDEDGE_5G_band4 5.942492500 GHz 59.250 dB V/ Test Result Report No.: EFTA26010037-IE-05-R2- ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 3 of 26 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Result of RE Sweep the whole frequency band through the range from 9kHz to the 10th harmonic of the carrier. The Radiates Emission from 9kHz to 30MHz and 18GHz to 26.5GHz are more than 20dB below the limit are not reported. Remark: 1. Correction Factor = Antenna factor + Insertion loss (cable loss + amplifier gain) 2. Margin = Limit – Quasi-Peak/ MAX Peak/ Average 3. A symbol ( ) in the test plot below means (dBμV/m) 4. The following graphs display the maximum values of coaxial and coplanar for 9k-30MHz; horizontal and vertical for above 30MHz by software. 5. For below 1GHz QP Level @Spectrum Overview H QP Level @Spectrum Overview V QP Level @Final Results QP Limit For above 1GHz PK Level @Spectrum Overview H PK Level @Spectrum Overview V PK Level @Final Results PK Limit AVG Level @Spectrum Overview H AVG Level @Spectrum Overview V AVG Level @Final Results AVG Limit Test Result Report No.: EFTA26010037-IE-05-R2- ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 4 of 26 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Continuous TX mode: During the test, the Radiates Emission from 30MHz to 1GHz was performed in all modes with all channels. The test data of the worst-case condition (802.11a CH157) was recorded in this report. 0 20 40 60 80 100 120 130 30M 50 60 80 100M200300 400 500 800 1G Level in dB V/  Frequency in Hz FCC RE QP Radiates Emission from 30MHz to 1GHz Test Result Report No.: EFTA26010037-IE-05-R2- ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 5 of 26 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 802.11a CH40 0 20 40 60 80 100 120 1G2G3G4G5G67 8G Level in dB V/  Frequency in Hz FCC 15E band 1&2A RE PK FCC 15E band 1&2A RE AV Note: The signal beyond the limit is carrier. Radiates Emission from 1GHz to 8GHz Frequency (MHz) MaxPeak (dBμV/m) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Meas. Time (ms) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 1282.625000 44.78 --- 68.20 23.42 500.0 200.0 H 117.0 -3.0 1308.875000 --- 34.36 54.00 19.64 500.0 100.0 V 354.0 -2.1 1697.375000 --- 36.02 54.00 17.98 500.0 100.0 H 183.0 0.4 1999.250000 48.81 --- 68.20 19.39 500.0 100.0 H 57.0 1.6 2675.625000 51.29 --- 68.20 16.91 500.0 100.0 H 284.0 5.6 2771.000000 --- 39.57 54.00 14.43 500.0 200.0 H 2.0 5.7 3435.125000 56.41 --- 68.20 11.79 500.0 100.0 V 0.0 9.7 3909.375000 --- 47.29 54.00 6.71 500.0 100.0 H 21.0 13.7 5063.500000 --- 47.86 54.00 6.14 500.0 200.0 V 0.0 15.5 5572.750000 60.62 --- 68.20 7.58 500.0 200.0 H 246.0 17.2 7671.875000 --- 49.19 54.00 4.81 500.0 200.0 H 154.0 18.9 7992.125000 61.38 --- 68.20 6.82 500.0 200.0 V 101.0 19.9 Test Result Report No.: EFTA26010037-IE-05-R2- ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 6 of 26 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 0 20 40 60 80 100 120 8G 10G18G Level in dB V/  Frequency in Hz FCC 15E band 1&2A RE PK FCC 15E band 1&2A RE AV Radiates Emission from 8GHz to 18GHz Frequency (MHz) MaxPeak (dBμV/m) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Meas. Time (ms) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 8025.000000 --- 38.87 54.00 15.13 500.0 100.0 V 247.0 9.0 8687.500000 48.46 --- 68.20 19.74 500.0 100.0 V 30.0…
