2BUN6-C15Security Camera

                                               ! "            "                  "#       "$                      %!  " %$    " %      &'(( )&*)+, -.'(/01**2)+)31)4'43()56)47)(&)+43+7'89:*)&2(7&73(;'42)16, .30*7'(<=(>&23(?)/'4@'+7A&3*7'(/*'*27/+)B7&)('*)5617&7*1>3664'B)+C>@3(0;3&*04)4     "      ! "D E     FG    FHG         "    I     "      HJ   "

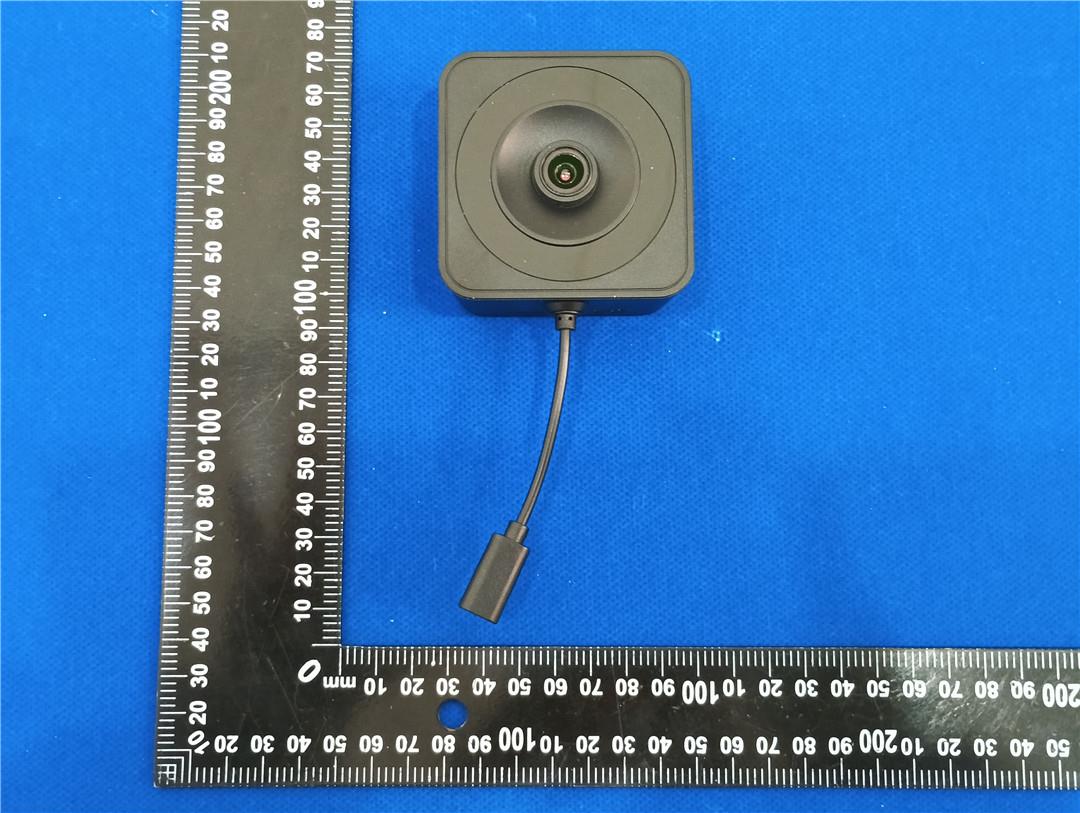

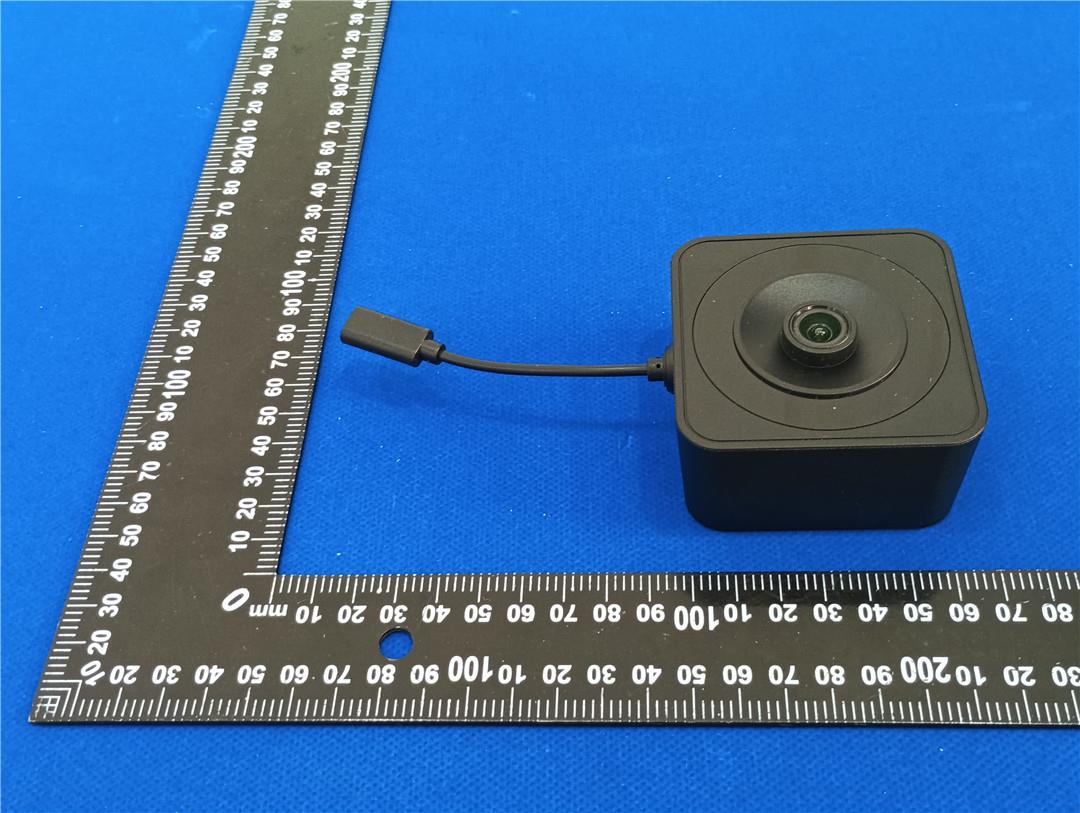

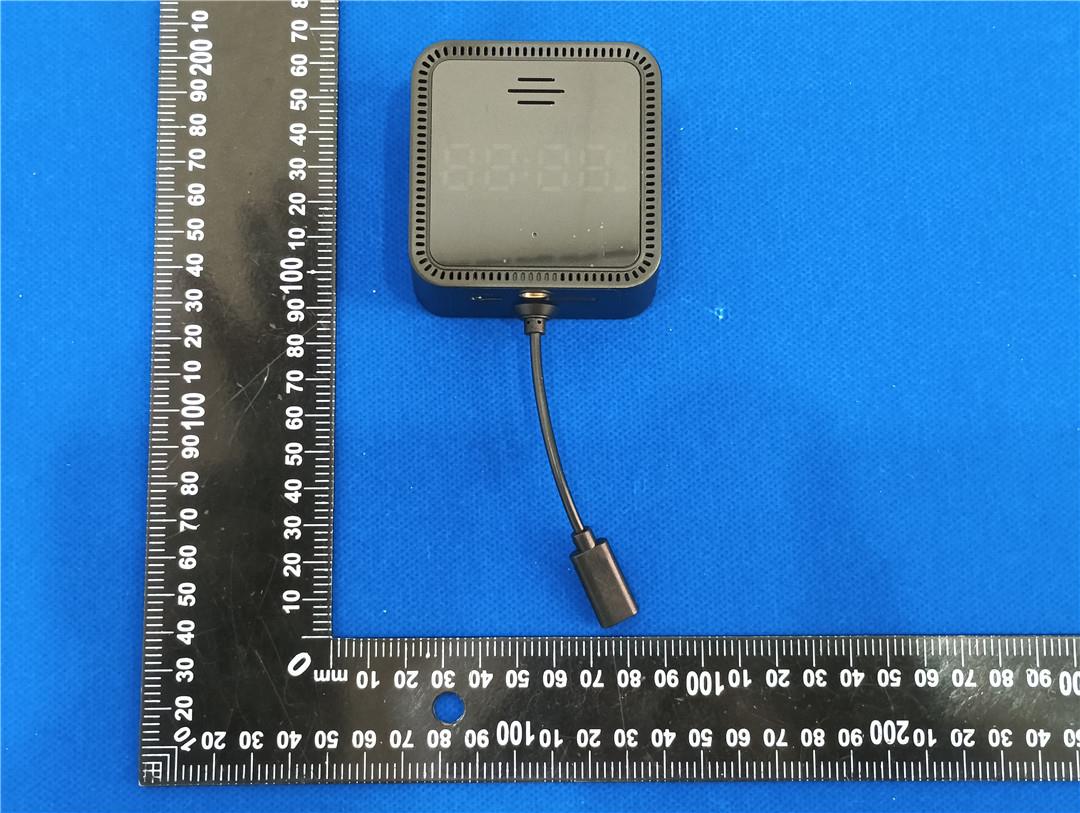

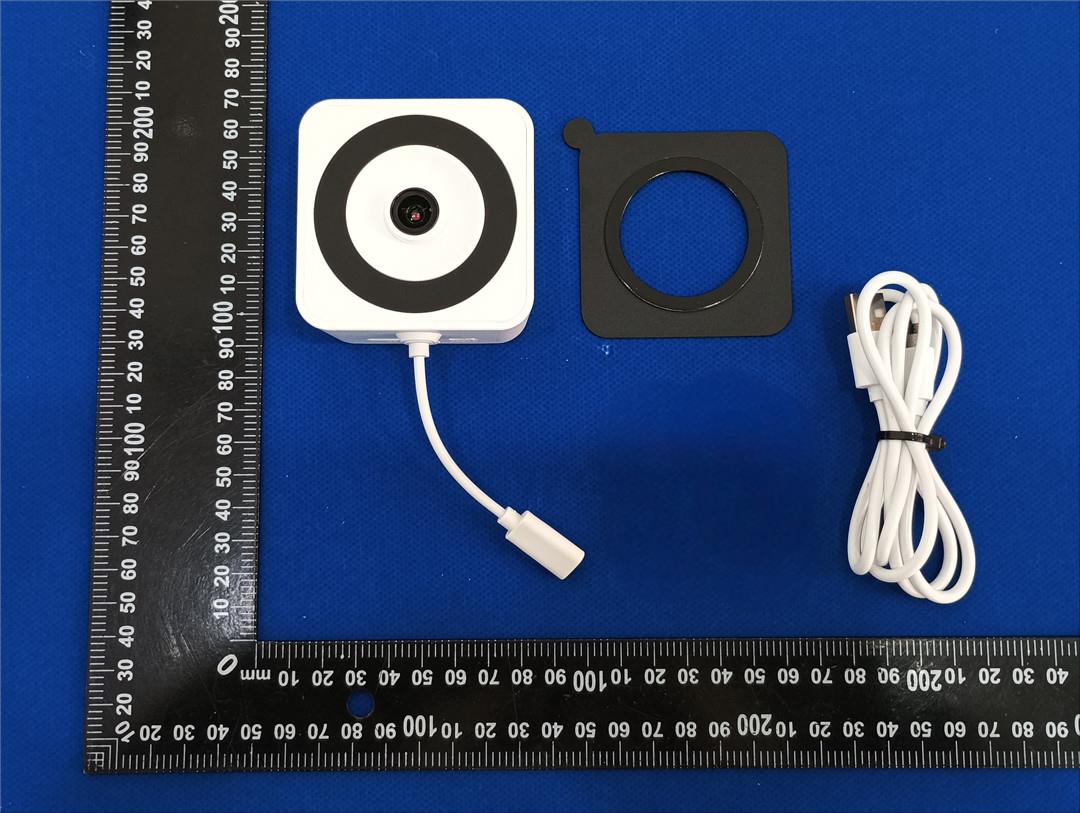

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 5 Product Name: Security Camera Model No.: C15 EUT Constructional Details External Photo Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 5 Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 5 Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 5 Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 5 of 5 ------End------

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BUN6-C15

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Security Camera Model No.: C15 EUT Constructional Details Internal Photo ANTENNA Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : HTT202601026F02 2BUN6-C15 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Jan. 13, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen Dingrui Interconnection Co., Ltd. Address............................................ : Room 1319, Building 11, Tiedong Logistics Zone, No. 3 Ping'an Avenue, Pinghu Community, Pinghu Sub-district, Longgang District, Shenzhen City Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Security Camera Manufacturer .................................... : Shenzhen Bafu Technology Co., Ltd Trade Mark ........................................ N/A Model/Type reference ...................... : C15 Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 5V Result ............................................... : PASS Report No.: HTT202601026F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Security Camera Model /Type : C15 Listed Models : C15 (Black), C15 (White), C15pro, C16, C17, C18, C19 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Dingrui Interconnection Co., Ltd. Address : Room 1319, Building 11, Tiedong Logistics Zone, No. 3 Ping'an Avenue, Pinghu Community, Pinghu Sub-district, Longgang District, Shenzhen City Manufacturer : Shenzhen Bafu Technology Co., Ltd Address : Tiedong Logistics Zone, No. 3 Ping'an Avenue, Pinghu Community, Pinghu Sub-district, Longgang District, Shenzhen City Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202601026F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 MPE Calculation Method 7 4.3 Conducted Power Results 8 4.4 Manufacturing tolerance 8 4.5 Standalone MPE Result 8 4.6 Simultaneous Transmission for MPE Result 8 5 C O N C L U S I O N .......................................................... 8 Report No.: HTT202601026F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Report No.: HTT202601026F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jan. 06, 2026 Testing commenced on : Jan. 06, 2026 Testing concluded on : Jan. 13, 2026 2.2 Product Description Product description: Security Camera Model/Type reference: C15 Power supply: DC 5V Adapter Information (Auxiliary test provided by the lab): Mode: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT202601026-1# (Engineer samp…

Text truncated - open the document above for the full version.

ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 版本：A1 客户 : 品名规格 DESCRIPTION: 料号 PARTNO.： 客户料号 CUSPARTNO.： 日期 DATE： 呈样签章: 工程 ENGINEERINGDEPARTMENT 品保 QCDEPARTMENT 业务 SALESDEPARTMENT 客户承认签章: 工程 ENGINEERINGDEPARTMENT 品保 QCDEPARTMENT 采购 PURCHASINGDEPARTMENT ж客户确认样品附意栏： 承认书 APPROVAL 2.4G-FPC-Antenna-80mm 2.4G-FPC-Antenna-80mm 2.4G-FPC-Antenna-80mm 2.4G-FPC-Antenna-80mm LZJ-002 2026-1-4 Add: 3rd-4th Floor, No. 102, Aoxi Road, Aobei Village, Henggang Town, Longgang District, Shenzhen ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 电器技术参数 电性能指标 ElectricalSpecifications 频率范围 2400-5800MHZFrequencyRange2400-5800MHZ 电压驻波比 ≤2.0 VSWR ≤2.0 增益 2DBIGAIN2DBI 输入阻抗 50ΩInputImpedance50Ω 机械指标 MechanicalSpecifications 线材颜色灰色 CableColorGRAY 接口形式 IPEXInputconnectoripex 工作温度 -40°C~+85°C WorkingTemperature -40°C~+85°C 工作湿度 20~80%WorkingHumidity20~80% 产品图片（Productpicture）： ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 规格图纸（ProductSpecification）： ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 环境性能测试（Environmentalperformancetest）: ITEM TESTCONDITION TESTRESULT Thestorage environment Intheabsenceofthespecifiedcircumstancestest temperature,humidity,airpressureisasfollows: 1temperatureis-30°C~+80°C 2relativehumidityfor45%-85% The3pressureis86kpa-106kpa Electricaland mechanical propertiesof normal T T T Thermocycling hermocycling hermocycling hermocycling; ; ; ; 5cyclesbetween70°Cand40°C,thenundernormal conditions 1-2H,appearancequalityinspection. Dimensionsshould meetthe requirementsand shallsatisfy Inthemechanical, electrical properties Resistanceto dampheat Test Relativehumidityis95±3%,testtemperature:40 °C . Continueafter2H, Testwithintheproductafterremovingthe5min determinationoftheelectricalproperties,inthenormal sample Under1-2H,theappearanceofqualityinspection Dimensionsshould meetthe requirementsand shallsatisfy Inthemechanical, electrical properties vibrationtest; Displacementamplitudeofvibrationfrequencyrange:10-55HZ, 0.35MM,theamplitudeofacceleration: 50.0M/S,sweepcycletimes:30times Electricaland mechanicalproperties ofnormal fall-downtest; 1Mhighaltitudeinaccordancewiththeperpendicularaxisfree fall3 Electricaland mechanicalproperties ofnormal ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 网分仪器测试图（Agilentnetworkanalyzertestchart）： 增益测试(Gain-Tset)： ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 增益测试: ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司

1 Appendix RF Test Data for 2.4G WIFI Company: : Shenzhen Dingrui Interconnection Co., Ltd. EUT : Security Camera FCC ID: : 2BUN6-C15 Model Number : C15 Report No. : HTT202601026F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 8.197 8.700 94.22 0.26 0.04 2437 8.196 8.700 94.21 0.26 0.04 2462 8.197 8.700 94.22 0.26 0.04 802.11g SISO 2412 1.362 1.863 73.11 1.36 0.03 2437 1.362 1.863 73.11 1.36 0.03 2462 1.362 1.863 73.11 1.36 0.03 802.11n (HT20) SISO 2412 1.274 1.774 71.82 1.44 0.01 2437 1.273 1.774 71.76 1.44 0.03 2462 1.274 1.774 71.82 1.44 0.00 802.11n (HT40) SISO 2422 0.634 1.134 55.91 2.53 0.03 2437 0.634 1.135 55.86 2.53 0.01 2452 0.634 1.135 55.86 2.53 0.01 3 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 4 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 5 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 6 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 7 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 8 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 9 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 14.665 / Pass 2437 1 14.630 / Pass 2462 1 14.731 / Pass 802.11g SISO 2412 1 17.233 / Pass 2437 1 17.187 / Pass 2462 1 17.220 / Pass 802.11n (HT20) SISO 2412 1 18.326 / Pass 2437 1 18.261 / Pass 2462 1 18.263 / Pass 802.11n (HT40) SISO 2422 1 36.556 / Pass 2437 1 36.375 / Pass 2452 1 36.384 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 10.344 >=0.5 Pass 2437 1 10.344 >=0.5 Pass 2462 1 10.347 >=0.5 Pass 802.11g SISO 2412 1 16.420 >=0.5 Pass 2437 1 16.298 >=0.5 Pass 2462 1 16.380 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.689 >=0.5 Pass 2437 1 17.545 >=0.5 Pass 2462 1 17.677 >=0.5 Pass 802.11n (HT40) SISO 2422 1 36.296 >=0.5 Pass 2437 1 35.996 >=0.5 Pass 2452 1 36.335 >=0.5 Pass 10 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 11 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 12 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 13 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 14 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 15 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 16 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 17 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 18 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 19 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 20 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 21 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 22 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 11.02 <=30 Pass 2437 13.83 <=30 Pass 2462 15.55 <=30 Pass 802.11g SISO 2412 17.97 <=30 Pass 2437 20.89 <=30 Pass 2462 22.28 <=30 Pass 802.11n (HT20) SISO 2412 17.78 <=30 Pass 2437 20.72 <=30 Pass 2462 22.13 <=30 Pass 802.11n (HT40) SISO 2422 18.06 <=30 Pass 2437 20.81 <=30 Pass 2452 20.94 <=30 Pass 23 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 802.11b SISO 2412 -0.80 <=8 Pass 2437 1.97 <=8 Pass 2462 3.60 <=8 Pass 802.11g SISO 2412 -0.74 <=8 Pass 2437 2.79 <=8 Pass 2462 4.02 <=8 Pass 802.11n (HT20) SISO 2412 -0.89 <=8 Pass 2437 2.76 <=8 Pass 2462 3.76 <=8 Pass 802.11n (HT40) SISO 2422 -3.44 <=8 Pass 2437 -0.27 <=8 Pass 2452 -0.50 <=8 Pass 24 4.2 Test Graph 4.2.1 PSD 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 25 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 26 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 27 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 28 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 29 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 30 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 802.11b SISO 2412 1 -0.90 2437 1 2.02 2462 1 3.68 802.11g SISO 2412 1 -0.39 2437 1 2.77 2462 1 3.92 802.11n (HT20) SISO 2412 1 -0.43 2437 1 2.76 2462 1 4.10 802.11n (HT40) SISO 2422 1 -3.41 2437 1 -0.26 2452 1 -0.46 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 802.11b SISO 2412 1 -0.90 -20.90 Pass 2437 1 2.02 -17.98 Pass 2462 1 3.68 -16.32 Pass 802.11g SISO 2412 1 -0.39 -20.39 Pass 2437 1 2.77 -17.23 Pass 2462 1 3.92 -16.08 Pass 802.11n (HT20) SISO 2412 1 -0.43 -20.43 Pass 2437 1 2.76 -17.24 Pass 2462 1 4.10 -15.90 Pass 802.11n (HT40) SISO 2422 1 -3.41 -23.41 Pass 2437 1 -0.26 -20.26 Pass 2452 1 -0.46 -20.46 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 31 5.2 Test Graph 5.2.1 Ref 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 32 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 33 802.11g_MCH_24…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : HTT202601026F01 2BUN6-C15 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Jan. 13, 2026 Testing Laboratory Name ............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ........................... : Shenzhen Dingrui Interconnection Co., Ltd. Address ............................................ : Room 1319, Building 11, Tiedong Logistics Zone, No. 3 Ping'an Avenue, Pinghu Community, Pinghu Sub-district, Longgang District, Shenzhen City Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen HTT Technology Co.,Ltd. Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Security Camera Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bafu Technology Co., Ltd Model/Type reference ...................... : C15 Listed Models ................................... : C15 (Black), C15 (White), C15pro, C16, C17, C18, C19 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5V Result ............................................... : PASS Report No.: HTT202601026F01 Page 2 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Security Camera Model /Type : C15 Listed Models : C15 (Black), C15 (White), C15pro, C16, C17, C18, C19 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Dingrui Interconnection Co., Ltd. Address : Room 1319, Building 11, Tiedong Logistics Zone, No. 3 Ping'an Avenue, Pinghu Community, Pinghu Sub-district, Longgang District, Shenzhen City Manufacturer : Shenzhen Bafu Technology Co., Ltd Address : Tiedong Logistics Zone, No. 3 Ping'an Avenue, Pinghu Community, Pinghu Sub-district, Longgang District, Shenzhen City Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202601026F01 Page 3 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 6 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility .............…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Security Camera Model No.: C15 Test Setup Photo Radiated Emission Report No.: HTT202601026 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF Test ------End------
