2BUNB-A10WIFI high-definition video camera

FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

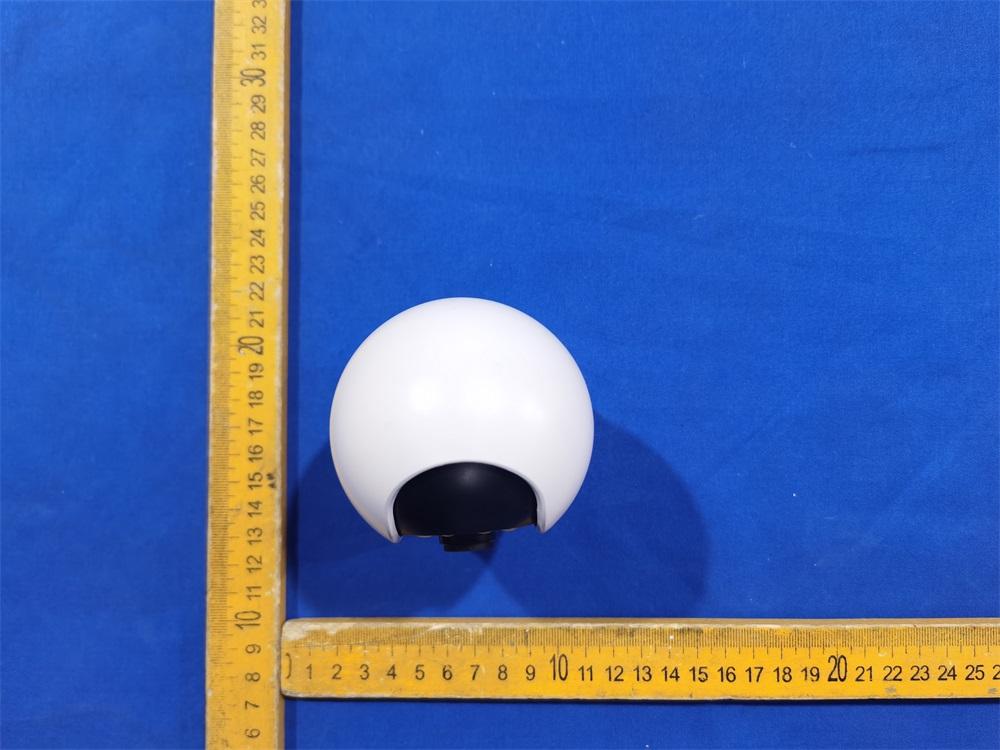

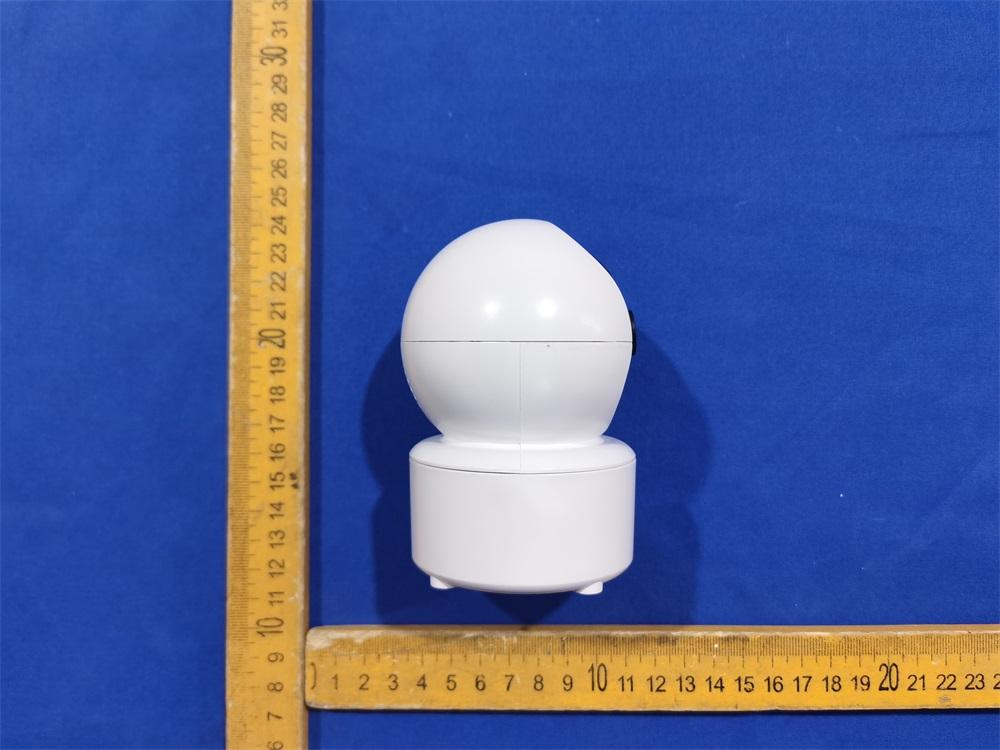

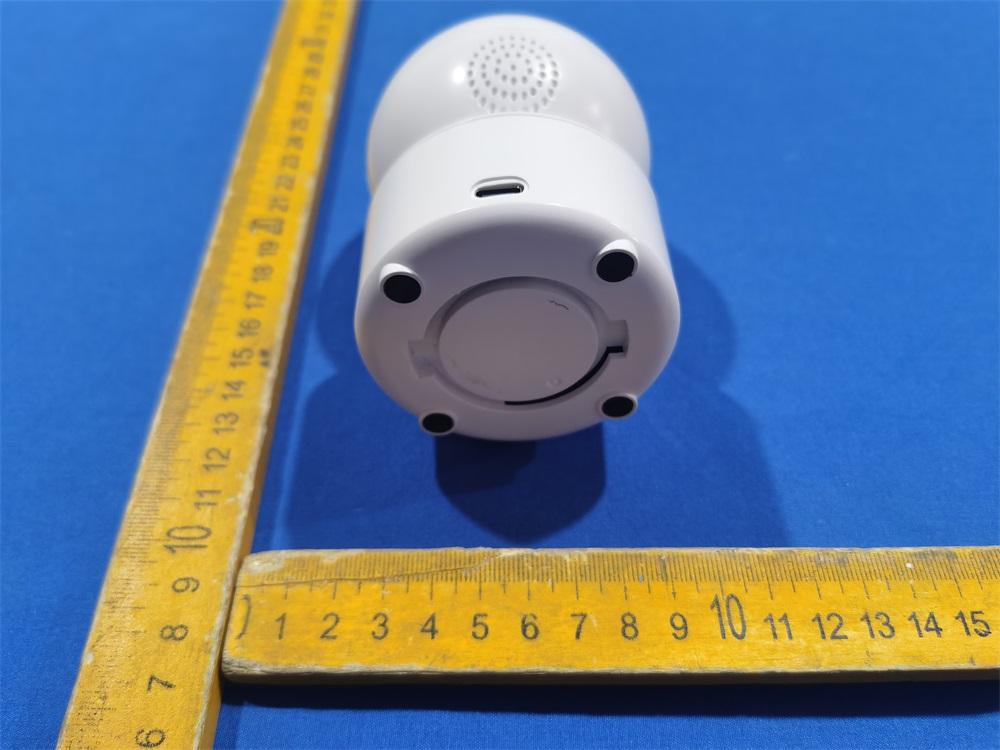

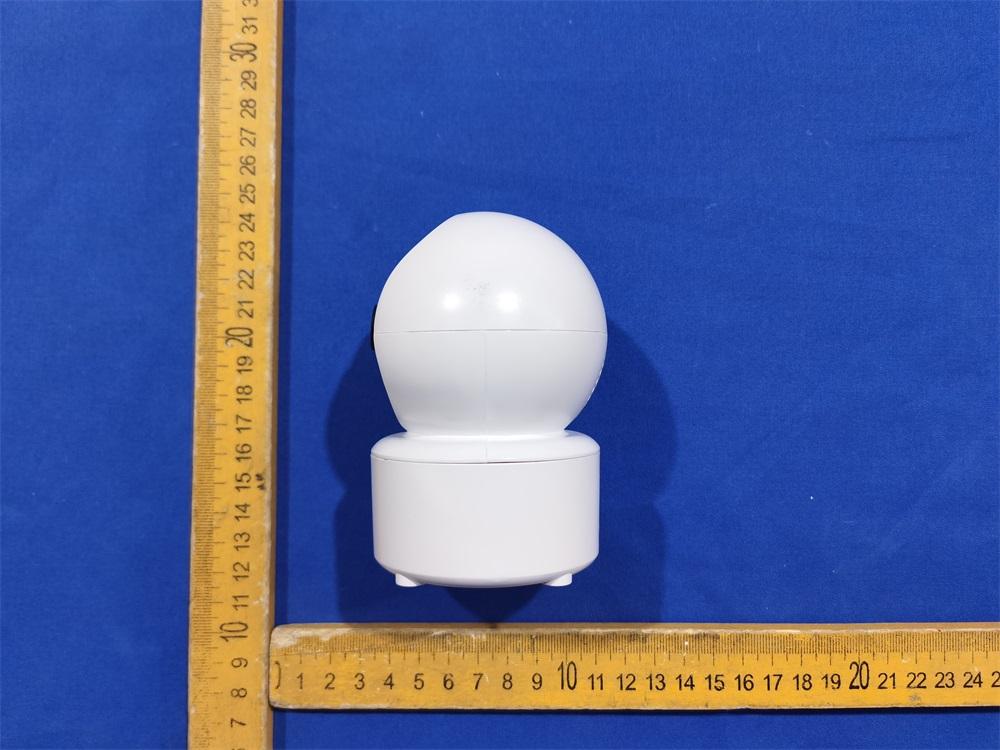

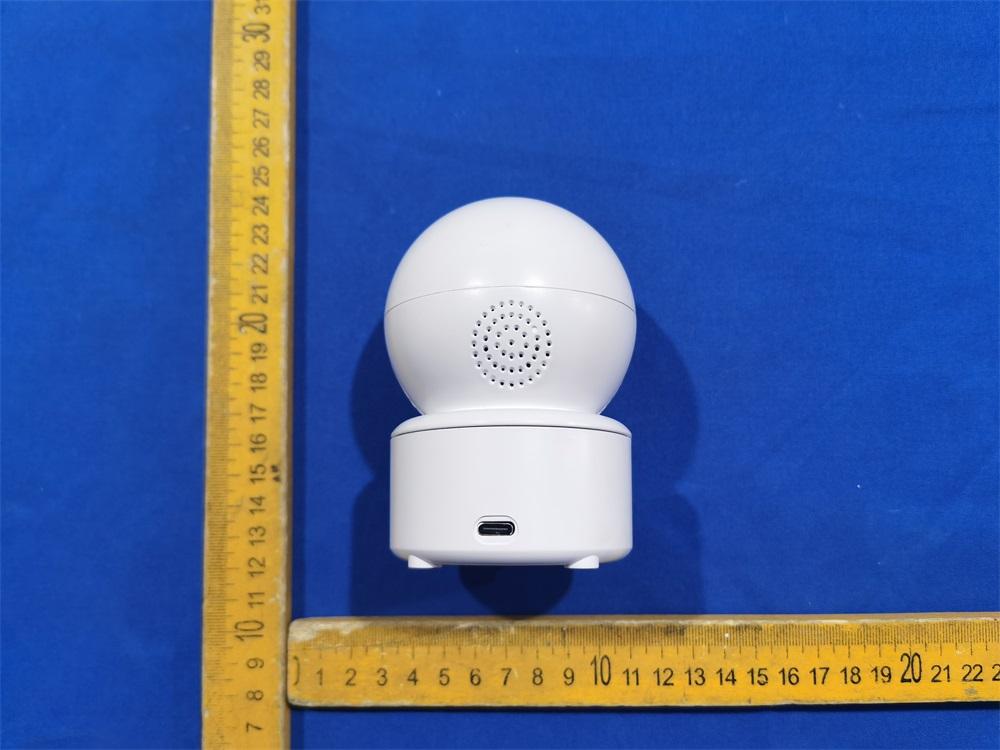

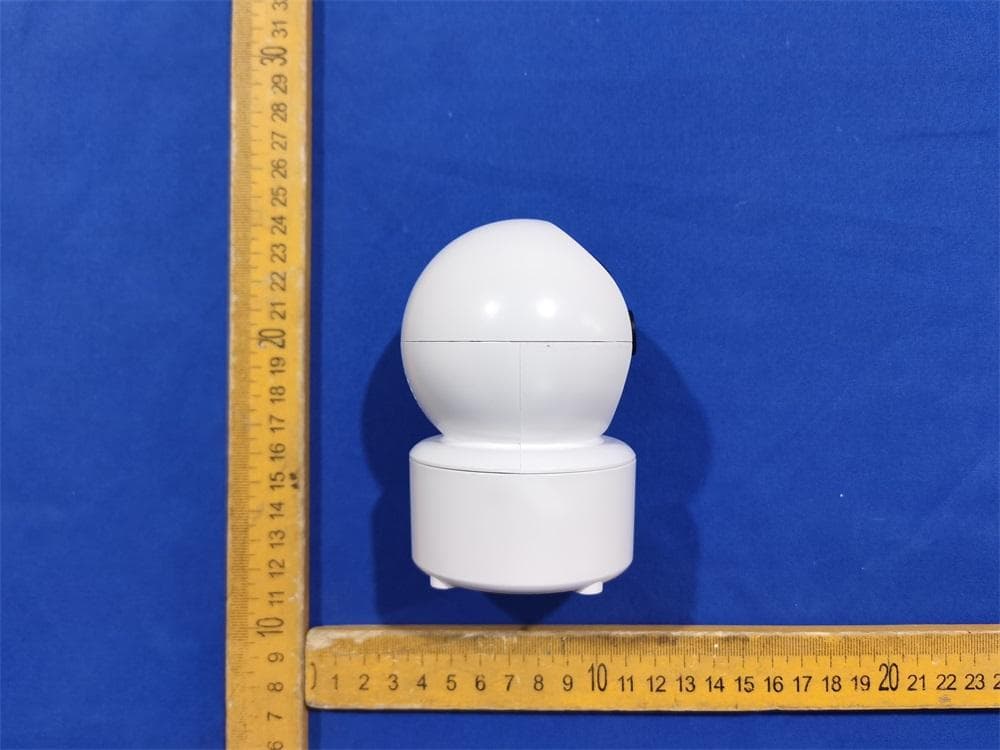

FCC ID: 2BUNB-A10 Fig. 1 Fig. 2 FPC Antenna FCC ID: 2BUNB-A10 Fig. 3 Fig. 4 FCC ID: 2BUNB-A10 Fig. 5 Fig. 6 FCC ID: 2BUNB-A10 Fig. 7 Fig. 8 FCC ID: 2BUNB-A10 Fig. 9 Fig. 10 FCC ID: 2BUNB-A10 Fig. 11

FCC ID: 2BUNB-A10 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BUNB-A10 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : GTS20251229008-1-06 2BUNB-A10 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Mar.18, 2026 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen CW-Vision Technology Co., Ltd. Address ............................................ : Room 501, Building 4, Yunli Intelligent Park, No. 6, Changfa Middle Road, Bantian Subdistrict, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : WIFI high-definition video camera Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen CW-Vision Technology Co., Ltd. Model/Type reference ...................... : A10 Listed Models .................................. : E27, A12, A13, A7, A701, A702, GT01, GT02, X01, G01, P66 Modulation Type ............................... : GFSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 5.0V by Adapter Result ............................................... : PASS Report No.: GTS20251229008-1-06 Page 2 of 25 T E S T R E P O R T Test Report No. : GTS20251229008-1-06 Mar.18, 2026 ____________________________________________________________________________________________ Date of issue Equipment under Test : WIFI high-definition video camera Model /Type : A10 Listed model : E27, A12, A13, A7, A701, A702, GT01, GT02, X01, G01, P66 Applicant : Shenzhen CW-Vision Technology Co., Ltd. Address : Room 501, Building 4, Yunli Intelligent Park, No. 6, Changfa Middle Road, Bantian Subdistrict, Longgang District, Shenzhen, China Manufacturer : Shenzhen CW-Vision Technology Co., Ltd. Address : Room 501, Building 4, Yunli Intelligent Park, No. 6, Changfa Middle Road, Bantian Subdistrict, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20251229008-1-06 Page 3 of 25 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. EUT Exercise Software .......................................................................................................................... 7 2.8. Special Accessories ............................................................................................................................... 7 2.9. External I/O Cable .................................................................................................................................. 7 2.10. Related Submittal(s) / Grant (s) ........................................................................................................... 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory ............................................…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .....................: FCC ID. ............................................ : GTS20251229008-1-05 2BUNB-A10 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Mar.18, 2026 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen CW-Vision Technology Co., Ltd. Address ............................................ : Room 501, Building 4, Yunli Intelligent Park, No. 6, Changfa Middle Road, Bantian Subdistrict, Longgang District, Shenzhen, China Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: WIFI high-definition video camera Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen CW-Vision Technology Co., Ltd. Model/Type reference....................... : A10 Listed Models .................................. : E27, A12, A13, A7, A701, A702, GT01, GT02, X01, G01, P66 Operation Frequency ........................ : From 2412MHz to 2462MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 5.0V by Adapter Result................................................ : PASS Report No.: GTS20251229008-1-05 Page 2 of 36 T E S T R E P O R T Test Report No. : GTS20251229008-1-05 Mar.18, 2026 ____________________________________________________________________________________ Date of issue Equipment under Test : WIFI high-definition video camera Model /Type : A10 Listed model : E27, A12, A13, A7, A701, A702, GT01, GT02, X01, G01, P66 Applicant : Shenzhen CW-Vision Technology Co., Ltd. Address : Room 501, Building 4, Yunli Intelligent Park, No. 6, Changfa Middle Road, Bantian Subdistrict, Longgang District, Shenzhen, China Manufacturer : Shenzhen CW-Vision Technology Co., Ltd. Address : Room 501, Building 4, Yunli Intelligent Park, No. 6, Changfa Middle Road, Bantian Subdistrict, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20251229008-1-05 Page 3 of 36 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 6 2.8. EUT Exercise Software .......................................................................................................................... 7 2.9. Special Accessories ............................................................................................................................... 7 2.10. External I/O Cable ................................................................................................................................ 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory .............................…

Text truncated - open the document above for the full version.

FCCID:2BUNB-A10 1 Case No. : GTS20251229008-1-05 Ambient Condition: 25°C,51%RH, Test Date:2026.1.14-2026.3.18Test Engineer:Evan ouyang AppendixA.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.200 2407.400 2416.600 0.5 PASS 2437 9.240 2432.400 2441.640 0.5 PASS 2462 9.200 2457.400 2466.600 0.5 PASS 11G Ant1 2412 16.480 2403.800 2420.280 0.5 PASS 2437 16.480 2428.800 2445.280 0.5 PASS 2462 16.480 2453.800 2470.280 0.5 PASS 11N20SISO Ant1 2412 17.640 2403.200 2420.840 0.5 PASS 2437 17.640 2428.200 2445.840 0.5 PASS 2462 17.720 2453.160 2470.880 0.5 PASS FCCID:2BUNB-A10 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BUNB-A10 3 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BUNB-A10 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BUNB-A10 5 11N20SISO_Ant1_2462 FCCID:2BUNB-A10 6 AppendixA.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.075 2405.4476 2418.5226 --- --- 2437 13.075 2430.4918 2443.5668 --- --- 2462 13.029 2455.4995 2468.5285 --- --- 11G Ant1 2412 17.008 2403.4709 2420.4789 --- --- 2437 17.031 2428.5345 2445.5655 --- --- 2462 16.991 2453.4892 2470.4802 --- --- 11N20SISO Ant1 2412 17.967 2402.9910 2420.9580 --- --- 2437 17.932 2428.0443 2445.9763 --- --- 2462 17.950 2453.0405 2470.9905 --- --- FCCID:2BUNB-A10 7 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BUNB-A10 8 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BUNB-A10 9 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BUNB-A10 10 11N20SISO_Ant1_2462 FCCID:2BUNB-A10 11 AppendixA.3: Maximum conducted output power Test Result -CHP TestMode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 12.93 ≤30.00 PASS 2437 12.76 ≤30.00 PASS 2462 13.43 ≤30.00 PASS 11G Ant1 2412 19.19 ≤30.00 PASS 2437 19.53 ≤30.00 PASS 2462 17.83 ≤30.00 PASS 11N20SISO Ant1 2412 16.96 ≤30.00 PASS 2437 17.29 ≤30.00 PASS 2462 17.74 ≤30.00 PASS FCCID:2BUNB-A10 12 AppendixA.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.10 ≤8.00 PASS 2437 -12.87 ≤8.00 PASS 2462 -10.99 ≤8.00 PASS 11G Ant1 2412 -13.69 ≤8.00 PASS 2437 -13.44 ≤8.00 PASS 2462 -15.12 ≤8.00 PASS 11N20SISO Ant1 2412 -15.54 ≤8.00 PASS 2437 -15.57 ≤8.00 PASS 2462 -14.44 ≤8.00 PASS FCCID:2BUNB-A10 13 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BUNB-A10 14 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BUNB-A10 15 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BUNB-A10 16 11N20SISO_Ant1_2462 FCCID:2BUNB-A10 17 AppendixA.5:Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 1.32 -45.59 ≤-18.68 PASS High 2462 1.97 -44.32 ≤-18.03 PASS 11G Ant1 Low 2412 0.27 -35.46 ≤-19.73 PASS High 2462 -0.77 -46.24 ≤-20.77 PASS 11N20SISO Ant1 Low 2412 -1.58 -36.76 ≤-21.58 PASS High 2462 -0.98 -45.84 ≤-20.98 PASS FCCID:2BUNB-A10 18 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCCID:2BUNB-A10 19 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 FCCID:2BUNB-A10 20 11N20SISO_Ant1_High_2462 FCCID:2BUNB-A10 21 AppendixA.6:Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.92 -0.92 --- PASS 30~1000 -0.92 -55.83 ≤-20.92 PASS 1000~26500 -0.92 -45.82 ≤-20.92 PASS 2437 Reference -0.45 -0.45 --- PASS 30~1000 -0.45 -55.52 ≤-20.45 PASS 1000~26500 -0.45 -46.16 ≤-20.45 PASS 2462 Reference 1.32 1.32 --- PASS 30~1000 1.32 -55.73 ≤-18.68 PASS 1000~26500 1.32 -46.68 ≤-18.68 PASS 11G Ant1 2412 Reference -2.42 -2.42 --- PASS 30~1000 -2.42 -55.7 ≤-22.42 PASS 1000~26500 -2.42 -46.39 ≤-22.42 PASS 2437 Reference -2.32 -2.32 --- PASS 30~1000 -2.32 -55.37 ≤-22.32 PASS 1000~26500 -2.32 -48.14 ≤-22.32 PASS 2462 Reference -3.98 -3.98 --- PASS 30~1000 -3.98 -55.83 ≤-23.98 PASS 1000~26500 -3.98 -46.83 ≤-23.98 PASS 11N20SISO Ant1 2412 Reference -2.06 -2.06 --- PASS 30~1000 -2.06 -55.61 ≤-22.06 PASS 1000~26500 -2.06 -47.28 ≤-22.06 PASS 2437 Reference -4.55 -4.55 --- PASS 30~1000 -4.55 -55.7 ≤-24.55 PASS 1000~26500 -4.55 -47.03 ≤-24.55 PASS 2462 Reference -3.85 -3.85 --- PASS 30~1000 -3.85 -56.22 ≤-23.85 PASS 1000~26500 -3.85 -47.75 ≤-23.85 PASS FCCID:2BUNB-A10 22 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 FCCID:2BUNB-A10 23 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 FCCID:2BUNB-A10 24 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 FCCID:2BUNB-A10 25 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference FCCID:2BUNB-A10 26 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference FCCID:2BUNB-A10 27 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 FCCID:2BUNB-A10 28 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 FCCID:2BUNB-A10 29 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 FCCID:2BUNB-A10 30 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 FCCID:2BUNB-A10 31 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference FCCID:2BUNB-A10 32 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 FCCID:2BUNB-A10 33 AppendixA.7: Duty Cycle Test Result TestMode Antenna Frequency [MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor [KHz] 11B Ant1 2412 8.38 8.66 96.77 0.14 0.12 2437 8.38 8.66 96.77 0.14 0.12 2462 8.39 8.66 96.88 0.14 0.12 11G Ant1 2412 1.39 1.67 83.23 0.80 0.72 2437 1.39 1.69 82.25 0.85 0.72 2462 1.39 1.67 83.23 0.80 0.72 11N20SISO Ant1 2412 1.28 1.57 81.53 0.89 0.78 2437 1.28 1.57 81.53 0.89 0.78 2462 1.28 1.57 81.53 0.89 0.78 FCCID:2BUNB-A10 34 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BUNB-A10 35 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BUNB-A10 36 11G_Ant1_2462 11N20SISO_Ant…

Text truncated - open the document above for the full version.

FCC ID: 2BUNB-A10 1 Case No. : GTS20251229008-1-06 Ambient Condition: 25 °C, 51 %RH According Standard: ■Part15C Test Date: 2026.1.14-2026.3.18 Test Engineer: Evan ouyang AppendixB.1: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 0.652 2401.652 2402.304 0.5 PASS 2440 0.696 2439.620 2440.316 0.5 PASS 2480 0.672 2479.632 2480.304 0.5 PASS FCC ID: 2BUNB-A10 2 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2BUNB-A10 3 FCC ID: 2BUNB-A10 4 AppendixB.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 1.0308 2401.4648 2402.4956 --- --- 2440 1.0307 2439.4643 2440.4950 --- --- 2480 1.0364 2479.4609 2480.4973 --- --- FCC ID: 2BUNB-A10 5 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2BUNB-A10 6 FCC ID: 2BUNB-A10 7 AppendixB.3: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE Ant1 2402 -0.25 ≤30 PASS 2440 2.30 ≤30 PASS 2480 3.26 ≤30 PASS FCC ID: 2BUNB-A10 8 AppendixB.4: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -17.23 ≤8.00 PASS 2440 -14.76 ≤8.00 PASS 2480 -13.43 ≤8.00 PASS FCC ID: 2BUNB-A10 9 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2BUNB-A10 10 FCC ID: 2BUNB-A10 11 AppendixB.5:Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 Low 2402 -1.77 -48.6 ≤-21.77 PASS High 2480 1.40 -48.48 ≤-18.6 PASS FCC ID: 2BUNB-A10 12 Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 FCC ID: 2BUNB-A10 13 AppendixB.6:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 Reference -1.44 -1.44 --- PASS 30~1000 -1.44 -56.16 ≤-21.44 PASS 1000~26500 -1.44 -47.07 ≤-21.44 PASS 2440 Reference 1.28 1.28 --- PASS 30~1000 1.28 -56.72 ≤-18.72 PASS 1000~26500 1.28 -46.67 ≤-18.72 PASS 2480 Reference 2.29 2.29 --- PASS 30~1000 2.29 -57.36 ≤-17.71 PASS 1000~26500 2.29 -46.96 ≤-17.71 PASS FCC ID: 2BUNB-A10 14 Test Graphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 BLE_Ant1_2402_1000~26500 FCC ID: 2BUNB-A10 15 BLE_Ant1_2440_0~Reference BLE_Ant1_2440_30~1000 FCC ID: 2BUNB-A10 16 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference BLE_Ant1_2480_30~1000 FCC ID: 2BUNB-A10 17 BLE_Ant1_2480_1000~26500 FCC ID: 2BUNB-A10 18 AppendixB.7: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] Duty Cycle Factor[dB] 1/T Factor[KHz] BLE Ant1 2402 2.09 2.51 0.8327 83.27 0.80 0.48 2440 2.09 2.51 0.8327 83.27 0.80 0.48 2480 2.09 2.51 0.8327 83.27 0.80 0.48 FCC ID: 2BUNB-A10 19 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2BUNB-A10 20 FCC ID: 2BUNB-A10 21 AppendixB.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz ) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLE Ant1 Low 2402 AV 2310.000 -49.46 ≤-41.20 45.74 ≤54 PASS AV 2322.050 -46.81 ≤-41.20 48.39 ≤54 PASS AV 2390.000 -49.12 ≤-41.20 46.08 ≤54 PASS Peak 2310.000 -43.15 ≤-21.20 52.05 ≤74 PASS Peak 2370.140 -39.15 ≤-21.20 56.05 ≤74 PASS Peak 2390.000 -42.56 ≤-21.20 52.64 ≤74 PASS High 2480 AV 2483.500 -47.76 ≤-41.20 47.44 ≤54 PASS AV 2483.520 -47.76 ≤-41.20 47.44 ≤54 PASS AV 2500.000 -48.52 ≤-41.20 46.68 ≤54 PASS Peak 2483.500 -41.21 ≤-21.20 53.99 ≤74 PASS Peak 2485.360 -36.95 ≤-21.20 58.25 ≤74 PASS Peak 2500.000 -40.83 ≤-21.20 54.37 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The Duty Cycle Factor and RBW Factor is compensated in the graph. 3. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. FCC ID: 2BUNB-A10 22 Test Graphs BLE_Ant1_Low_2402_AV BLE_Ant1_Low_2402_Peak BLE_Ant1_High_2480_AV FCC ID: 2BUNB-A10 23 BLE_Ant1_High_2480_Peak

Manufacturer Yuanchuangxing electronics (Shenzhen)CO.,LTD. Address Room 303, Building A, No. 164, Junxin Road, Niulake Community, Guanlan Subdistrict, Longhua District, Shenzhen City Model YCX08N-2030-80B Antenna type FPC antenna Antenna Gain 3.40dBi for 2.4G 1.Test equipment and conditions: 1.1.Network Analyzer 1.2.Communication test equipment 1.3.Test system 1.4.Matching circuit 2.Test Data: 2.1. Standing wave ratio 2.2.Efficiency 2.3.Directivity diagram 3.Antenna drawing（mm）:

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No. ................. : FCC ID. ......................................... : GTS20251229008-1-07 2BUNB-A10 Compiled by ( position+printed name+signature): File administrators Peter Xiao Supervised by ( position+printed name+signature): Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Feb.03, 2026 Representative Laboratory Name ....................................................... : Shenzhen Global Test Service Co.,Ltd. Address ......................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen CW-Vision Technology Co., Ltd. Address ............................................ : Room 501, Building 4, Yunli Intelligent Park, No. 6, Changfa Middle Road, Bantian Subdistrict, Longgang District, Shenzhen, China Test specification ........................ : Standard ........................................ : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices TRF Originator .............................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : WIFI high-definition video camera Trade Mark .................................... : N/A Manufacturer ................................. : Shenzhen CW-Vision Technology Co., Ltd. Model/Type reference ................... : A10 Listed Models .............................. : E27, A12, A13, A7, A701, A702, GT01, GT02, X01, G01, P66 Hardware Version ........................ : N/A Software Version ........................... : N/A Rating ............................................ : DC 5.0V by Adapter Result ............................................ : PASS Report No.:GTS20251229008-1-07 Page 2 of 11 T E S T R E P O R T Test Report No. : GTS20251229008-1-07 Feb.03, 2026 ______________________________________________________________________________________________ Date of issue Equipment under Test : WIFI high-definition video camera Model /Type : A10 Listed model : E27, A12, A13, A7, A701, A702, GT01, GT02, X01, G01, P66 Applicant : Shenzhen CW-Vision Technology Co., Ltd. Address : Room 501, Building 4, Yunli Intelligent Park, No. 6, Changfa Middle Road, Bantian Subdistrict, Longgang District, Shenzhen, China Manufacturer : Shenzhen CW-Vision Technology Co., Ltd. Address : Room 501, Building 4, Yunli Intelligent Park, No. 6, Changfa Middle Road, Bantian Subdistrict, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.:GTS20251229008-1-07 Page 3 of 11 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT ......…

Text truncated - open the document above for the full version.
