2BUNP-FLIGHTWALLTheFlightWall Mini

Mini User ManualRev. 1.5 Welcome TheFlightWall is an LED display that shows live information of aircraft flying near you, right as they pass by your window. What’s in the box: TheFlightWall Mini Power brick Desk stand TheFlightWall has been made possible by aviation enthusiasts like yourself, we appreciate all the support on this project! Getting Setup Powering Up WiFi Setup Download the app TheFlightWall is easy to setup and configure with our mobile app. On first power-up, the display will show connection information. Ensure you have TheFlightWall app installed. Follow the steps in the app, scanning the QR code on screen or connecting manually. Select your WiFi network, enter your password, and wait for the display to connect. Once connected, the display will restart and may perform software updates. Next, configure your settings! Connect the USB to the power brick and plug it into any standard US outlet. Get your FlightWall connected to your internet. Data Configuration Data Filters Location and Flights Set the area you want to scan for flights, either a radius around a point or a custom shape matching your view. Apply filters for busy airspaces Specific altitude range Hide municipal aircraft Hide helicopters Set your “home” airport Optionally set your local airport(s) to contextualize the display so flights say “arriving” or “departing” The maximum area is 800 km² (308.88 mi²) Track individual flights Switch to flight tracking mode and enter any flight number to track an individual flight. See departure and arrival times, progress percentage, and what town or ocean the plane is currently over. Display Configuration Brightness and Border Layouts Change the display brightness and toggle an optional border around the display. Choose how the information is displayed on screen from one of the preset layouts. Show the airline logo, show pure text, and/or show detailed metrics for each plane. The device will check for software updates to enhance features and performance. Updates will automatically install when the device is powered on. Look out for new improvements to both the device and the app! Software Updates Mounting The desk stand can be installed to lean the display on a table (although it probably can stand on its own). Attach the mounting plate with the included screws and pull apart the stand to clip it into the mounting plate. Desk Stand Wall Hook Using the built in hooks on the top of the Mini you can easily mount the display on the wall. Ensure the use of proper nails or fasteners to prevent a conundrum. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

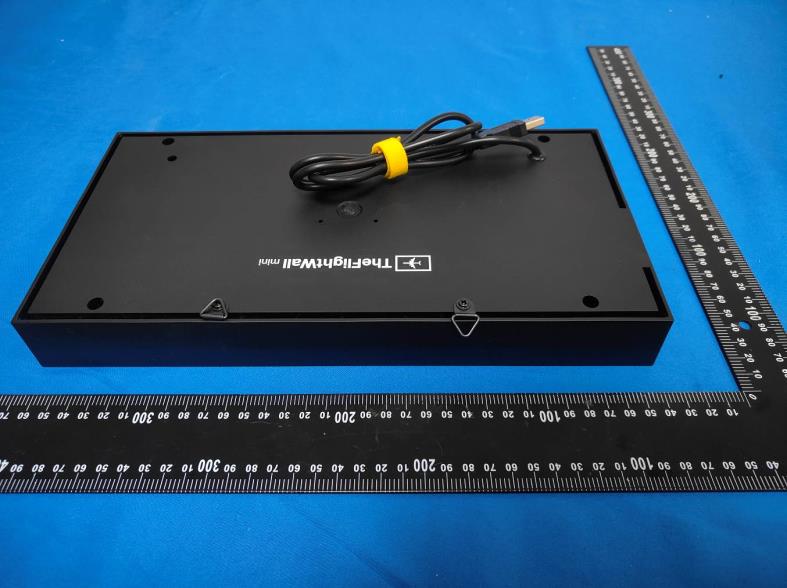

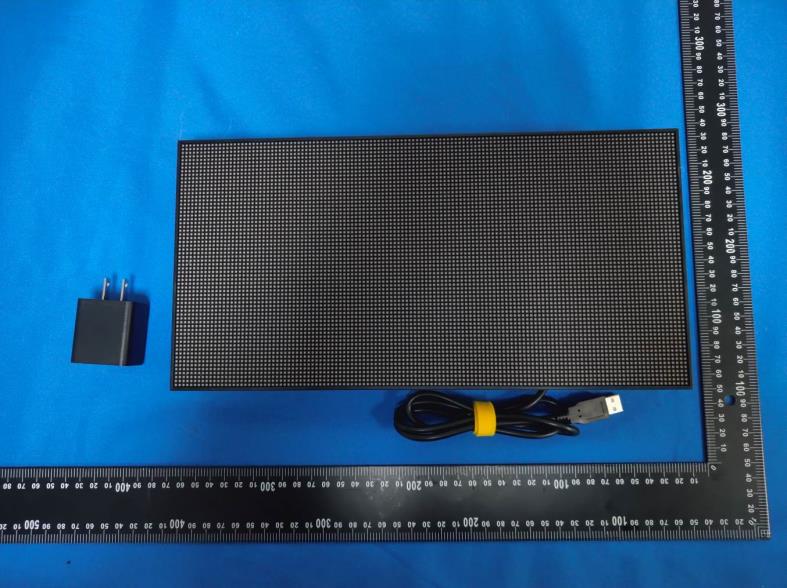

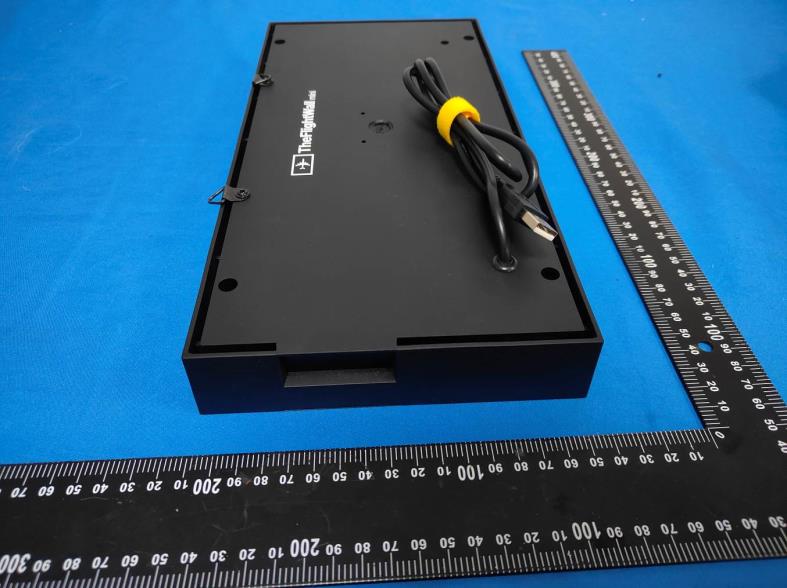

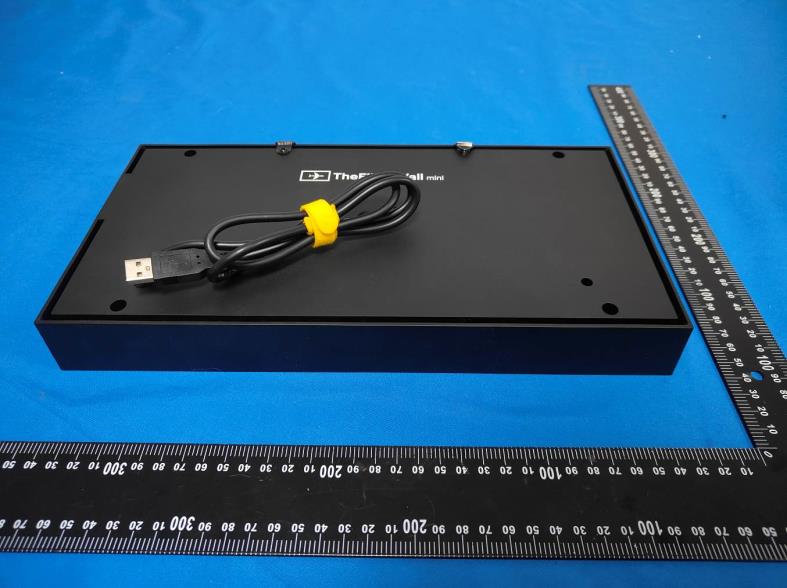

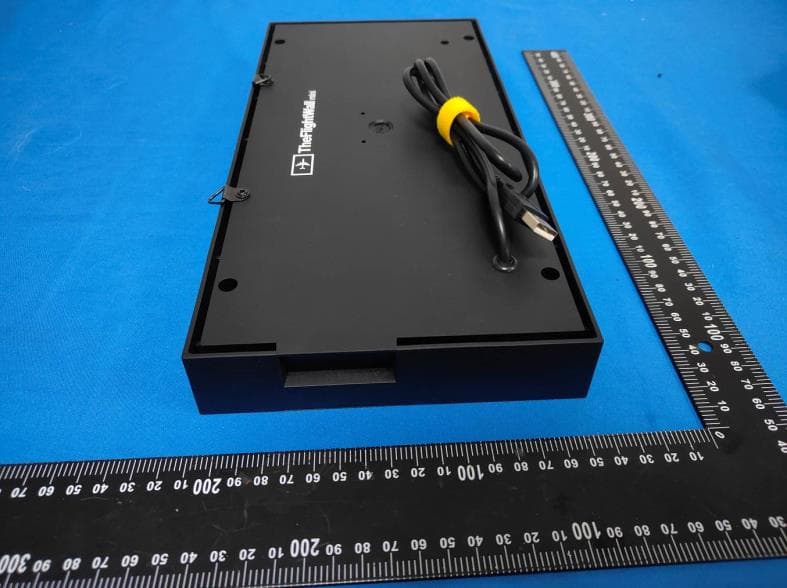

FCC ID: 2BUNP-FLIGHTWALL External Photos of the EUT FCC ID: 2BUNP-FLIGHTWALL FCC ID: 2BUNP-FLIGHTWALL

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BUNP-FLIGHTWALL

FCC ID: 2BUNP-FLIGHTWALL Internal Photos of the EUT FCC ID: 2BUNP-FLIGHTWALL 2.4G WIFI ANT FCC ID: 2BUNP-FLIGHTWALL

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26012000102 2BUNP-FLIGHTWALL Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 26, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Caixin Technology Co., Ltd Address............................................ : 5th Floor, Building A, Wanda Industrial Park, Shiyan Town, Bao'an District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : TheFlightWall Mini Trade Mark ....................................... : TheFlightWall Manufacturer .................................... : Shenzhen Caixin Technology Co., Ltd Model and/or type reference ........... : TheFlightWall Mini Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26012000102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : TheFlightWall Mini Model and/or type reference : TheFlightWall Mini Listed Models : TheFlightWall Widescreen Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Caixin Technology Co., Ltd Address : 5th Floor, Building A, Wanda Industrial Park, Shiyan Town, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Caixin Technology Co., Ltd Address : 5th Floor, Building A, Wanda Industrial Park, Shiyan Town, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26012000102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26012000102 Page 4 of 8 Shenzhen CTA Testing Technolo…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model TheFlightWall Mini Frequency range 2400-2500MHz Manufacturer Shenzhen Caixin Technology Co., Ltd Address 5th Floor, Building A, Wanda Industrial Park, Shiyan Town, Bao'an District, Shenzhen, China ANT Peak Gain 0.87 dBi 2. Antenna Photo: Length :23.36mm Width:5.57mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26012000101 2BUNP-FLIGHTWALL Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 26, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Caixin Technology Co., Ltd Address ............................................ : 5th Floor, Building A, Wanda Industrial Park, Shiyan Town, Bao'an District, Shenzhen, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : TheFlightWall Mini Trade Mark ....................................... : TheFlightWall Manufacturer .................................... : Shenzhen Caixin Technology Co., Ltd Model and/or type reference ........... : TheFlightWall Mini Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26012000101 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : TheFlightWall Mini Model and/or type reference : TheFlightWall Mini Listed Models : TheFlightWall Widescreen Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Caixin Technology Co., Ltd Address : 5th Floor, Building A, Wanda Industrial Park, Shiyan Town, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Caixin Technology Co., Ltd Address : 5th Floor, Building A, Wanda Industrial Park, Shiyan Town, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26012000101 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility..........................................................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BUNP-FLIGHTWALL Company : Shenzhen Caixin Technology Co., Ltd EUT : TheFlightWall Mini Model Number : TheFlightWall Mini Report No. : CTA26012000101 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.960 2442.160 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 16.000 2404.080 2420.080 0.5 PASS 2437 15.800 2429.120 2444.920 0.5 PASS 2462 15.440 2454.360 2469.800 0.5 PASS 11N20SISO Ant1 2412 16.920 2403.720 2420.640 0.5 PASS 2437 16.400 2428.720 2445.120 0.5 PASS 2462 17.200 2453.440 2470.640 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.414 2405.3452 2418.7592 --- --- 2437 13.398 2430.3437 2443.7417 --- --- 2462 13.414 2455.3147 2468.7287 --- --- 11G Ant1 2412 16.808 2403.6760 2420.4840 --- --- 2437 16.810 2428.6901 2445.5001 --- --- 2462 16.876 2453.6348 2470.5108 --- --- 11N20SISO Ant1 2412 17.839 2403.1130 2420.9520 --- --- 2437 17.870 2428.1261 2445.9961 --- --- 2462 17.937 2453.0101 2470.9471 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.48 ≤30.00 PASS 2437 14.56 ≤30.00 PASS 2462 14.79 ≤30.00 PASS 11G Ant1 2412 13.01 ≤30.00 PASS 2437 13.16 ≤30.00 PASS 2462 13.24 ≤30.00 PASS 11N20SISO Ant1 2412 12.81 ≤30.00 PASS 2437 12.97 ≤30.00 PASS 2462 13.26 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -10.71 ≤8.00 PASS 2437 -10.53 ≤8.00 PASS 2462 -11.41 ≤8.00 PASS 11G Ant1 2412 -18.27 ≤8.00 PASS 2437 -18.26 ≤8.00 PASS 2462 -18.97 ≤8.00 PASS 11N20SISO Ant1 2412 -19.31 ≤8.00 PASS 2437 -18.58 ≤8.00 PASS 2462 -18.06 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 2.23 -49.97 ≤-17.77 PASS High 2462 2.74 -55.15 ≤-17.26 PASS 11G Ant1 Low 2412 -3.35 -35.55 ≤-23.35 PASS High 2462 -3.15 -56.84 ≤-23.15 PASS 11N20SIS O Ant1 Low 2412 -3.68 -36.01 ≤-23.68 PASS High 2462 -3.03 -58.11 ≤-23.03 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.94 0.94 --- PASS 30~1000 0.94 -67.89 ≤-19.06 PASS 1000~26500 0.94 -54.31 ≤-19.06 PASS 2437 Reference 1.87 1.87 --- PASS 30~1000 1.87 -68.18 ≤-18.13 PASS 1000~26500 1.87 -54.6 ≤-18.13 PASS 2462 Reference 1.59 1.59 --- PASS 30~1000 1.59 -68.52 ≤-18.41 PASS 1000~26500 1.59 -54.88 ≤-18.41 PASS 11G Ant1 2412 Reference -4.33 -4.33 --- PASS 30~1000 -4.33 -67.81 ≤-24.33 PASS 1000~26500 -4.33 -55.61 ≤-24.33 PASS 2437 Reference -3.76 -3.76 --- PASS 30~1000 -3.76 -68.49 ≤-23.76 PASS 1000~26500 -3.76 -55.65 ≤-23.76 PASS 2462 Reference -3.77 -3.77 --- PASS 30~1000 -3.77 -68.56 ≤-23.77 PASS 1000~26500 -3.77 -54.58 ≤-23.77 PASS 11N20SISO Ant1 2412 Reference -4.32 -4.32 --- PASS 30~1000 -4.32 -67.34 ≤-24.32 PASS 1000~26500 -4.32 -54.95 ≤-24.32 PASS 2437 Reference -4.08 -4.08 --- PASS 30~1000 -4.08 -68.38 ≤-24.08 PASS 1000~26500 -4.08 -56 ≤-24.08 PASS 2462 Reference -3.38 -3.38 --- PASS 30~1000 -3.38 -68 ≤-23.38 PASS 1000~26500 -3.38 -55.22 ≤-23.38 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.36 8.40 99.52 0.02 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.15 0.20 75.00 1.25 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.14 0.19 73.68 1.33 7.14 11N20SISO Ant1 2412 0.17 0.22 77.27 1.12 5.88 2437 0.17 0.22 77.27 1.12 5.88 2462 0.17 0.22 77.27 1.12 5.88 35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437 37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462 39 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m ] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.08 2.00 0.03 37.15 ≤54 PASS AV 2385.670 -53.64 2.00 0.03 43.59 ≤54 PASS AV 2390.000 -56.53 2.00 0.03 40.70 ≤54 PASS Peak 2310.000 -51.88 2.00 0.00 45.32 ≤74 PASS Peak 2386.320 -45.72 2.00 0.00 51.48 ≤74 PASS Peak 2390.000 -47.9 2.00 0.00 49.30 ≤74 PASS High 2462 AV 2483.500 -56.29 2.00 0.03 40.94 ≤54 PASS AV 2487.960 -55.14 2.00 0.03 42.09 ≤54 PASS AV 2500.000 -59.07 2.00 0.03 38.16 ≤54 PASS Peak 2483.500 -48.31 2.00 0.00 48.89 ≤74 PASS Peak 2487.960 -46.88 2.00 0.00 50.32 ≤74 PASS Peak 2500.000 -50.32 2.00 0.00 46.88 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.48 2.00 1.25 37.97 ≤54 PASS AV 2386.970 -59.1 2.00 1.25 39.35 ≤54 PASS AV 2390.000 -59.55 2.00 1.25 38.90 ≤54 PASS Peak 2310.000 -53.19 2.00 0.00 44.01 ≤74 PASS Peak 2387.620 -49.52 2.00 0.00 47.68 ≤74 PASS Peak 2390.000 -51.07 2.00 0.00 46.13 ≤74 PASS High 2462 AV 2483.500 -59.18 2.00 1.33 39.35 ≤54 PASS AV 2484.880 -58.57 2.00 1.33 39.96 ≤54 PASS AV 2500.000 -60.02 2.00 1.33 38.51 ≤54 PASS Peak 2483.500 -50.32 2.00 0.00 46.88 ≤74 PASS Peak 2489.280 -49.25 2.00 0.00 47.95 ≤74 PASS Peak 2500.000 -49.83 2.00 0.00 47.37 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.28 2.00 1.12 38.04 ≤54 PASS AV 2389.700 -59.06 2.00 1.12 39.26 ≤54 PASS AV 2390.000 -59.93 2.00 1.12 38.39 ≤54 PASS Peak 2310.000 -52.26 2.00 0.00 44.94 ≤74 PASS Peak 2388.400 -49.11 2.00 0.00 48.09 ≤74 PASS Peak 2390.000 -50 2.00 0.00 47.20 ≤74 PASS High 2462 AV 2483.500 -58.89 2.00 1.12 39.43 ≤54 PASS AV 2484.990 -58.7 2.00 1.12 39.62 ≤54 PASS AV 2500.000 -60.32 2.00 1.12 38.00 ≤54 PASS Peak 2483.500 -50.62 2.00 0.00 46.58 ≤74 PASS Peak 2483.670 -48.71 2.00 0.00 48.49 ≤74 PASS Peak 2500.000 -50.87 2.00 0.00 46.33 ≤74 PASS 40 Note：The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 41 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 42 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 43 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 44 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 45 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak

FCC ID: 2BUNP-FLIGHTWALL Test Setup Photos of the EUT FCC ID: 2BUNP-FLIGHTWALL
