2BUOI-525Game Controller

一、产品简介及其应用范围 工作电压 工作电流 静态电流 连续运行时间 输入电压/电流 充电时间 传输距离 电池容量 待机时间 二、产品参数 DC3.7V <140mA <20uA > 8H DC5V / 550mA 约 2 小时 ≥10M 1000mAh 充满电后 90 天 三、包装清单 游戏手柄X1 说明书X1 Type-C USB线X1 标准按键：Home， ， ，↑， ↓， ←， →， ╳， ， ， ，L1，L2，L3， R1， R2，R3 ，TOUCH，编程键M1/M2； 1.该手柄性能稳定，性价比高； 2.蓝牙5.3与主机连接； 3.手柄联机距离达10M以内无延时操控； 4.具备3D 加速度传感器和陀螺仪传感器功能，组成的6轴传感器功能； 5.具备RGB LED彩色通道指示，方便区分不同用户及角色； 6.蓝牙联机方式与原厂手柄方式一致； 7.支持USB锂电池充电; 8.支持3.5mm TRRS立体声接孔可连接耳机与麦克风； 9.支持双点电容式感应触控板； 10.支持有线与主机连接，支持有线音频功能； 11.支持喇叭功能； 12.磁吸面盖设计可拆换颜色及图案。 ◆使用标准PS5功能，可通过driver在PC上工作,Windows7以上和Android 5.0以 上系统免驱动。 ◆本方案支持PC USB在线升级产品程序,从而支持PS5主机最新升级系统.可有效避 免因主机升级系统导致产品无法使用难题。 五 功能介绍、 六PS5平台功能、 使用说明书 P5无线游戏手柄 ◆ 该产品支持有线和蓝牙连接，具有低延迟和稳定的性能。 ◆ 兼容PS5、Windows（PC）、Android、iOS、Mac和Steam Deck平台。 ◆ 无需安装驱动程序，即插即用。 ◆ 具有编程功能。 ◆ 支持3.5mm耳机，用于立体声音频输出和语音通信。 ◆磁吸面盖设计可拆换颜色及图案。 ◆配备9种可调颜色的RGB照明效果。 七、PC电脑连接 ◆手柄支持苹果设备在IOS13.0以上系统连接；MAC平台支持有线进行连接，支持 有线音频功能。 2.手柄连接安卓、Steam Deck设备： ◆手柄关机状态下先按住SHARE键，再按Home键组合（ +Home），⻓按3秒，指 示灯闪烁，手柄进入配对状态，此时松开按键；在平台蓝牙进行搜索名称为“DualSenes Wireless Controller”的设备，点击进行连接，连接成功后手柄指示灯显示常亮。 ◆Steam Deck可支持有线进行连接，支持有线音频功能（连接SteamDeck为PC 状态，可进行切换模式） ◆注：MAC和Steam Deck有线连接需使用type c转USB转接线 ◆如使用过程中出现开机后扳机或者摇杆异常时需要校准：手柄在关机状态下，按住 + 插入USB到电脑或主机，再按Home键开机（开机前勿触碰摇杆及扳机），开 机后通道灯会快闪，此时正常按扳机L2/R2键 2-3次，摇左右3D各2-3圈，最后长按X 键1秒确认，通道灯长亮（有线）或者进入慢闪（蓝牙），此时校准成功；--关机保存。 九、扳机和 摇杆校准3D 十 编程功能、 5.录制好编程后，长按背部按键可触发AUTO半自动循环；（多个宏编程有此效果） ◆宏编程功能清除： 同时按下（Touch+M1）或者（Touch+M2）键5秒, 通道灯由闪烁变为长亮，马达 震动提 示，此时M1/M2恢复默认空值； 注：出厂时，编程键无功能，需用户自行设定编程，编程键带记忆功能 1.左右摇杆各可控RGB开机幻彩渐变，(灯效带记忆模式） 2.模式切换： 键+十字键 调节,七彩渐变→变色呼吸→全红→全橙→全黄→全绿→ 全青→全蓝→全紫→全白→全灭→七彩渐变)手柄震动提示。 3.灯光亮度强弱调节：按 键和十字键 可调节当前灯光增强，按 键和 键可调节 当前灯光减弱（灯光强弱工6几档，分别是20％亮度，0-20-40-60-80-100）记忆调 节；默认80%亮度，手柄震动提示。 八、其它设备连接 十RGB灯效一、 ◆ 可编程按键：十字按钮（↑，↓，←，→），╳， ， ， ，L1 \ R1 \L2 \ R2 \ L3 \ R3，左摇杆，右摇杆；支持记录按键时间 十二、复位功能 当控制器遇到任何问题时，您可以使用回形针按下控制器背面的复位按钮进行重置。 复位 1、Product Introduction and Application Scope Working Voltage operating current quiescent current Continuous running time Input voltage/current Charging time transmission distance battery capacity standby time 2、Product Parameters DC3.7V <140mA <20uA > 8H DC5V / 550mA About 2 hours ≥10M 1000mAh 90 days after fully charged 3、Packaging List Game controller X1 Manual X1 Magnetic surface shell (already installed) Type-C USB cable X1 Standard buttons: Home, , , ↑, ↓, ←, →, x, , , , L1,L2,L3, R1, R2,R3 ,TOUCH, Programming keys M1/M2; 1. The controller supports any software version of the PS5 host; 2. Connects to the host device with Bluetooth 5.3 ; 3. The online distance of the controller can be controlled within 10M; 4. Equipped with 3D acceleration sensor and gyroscope sensor functions, forming a 6-axis sensor function; 5. Equipped with RGB LED color channel indicators for easy differentiation of different users and roles; 6. The Bluetooth connection method is consistent with the original controller method; 7. Supports USB lithium battery charging; 8. Supports 3.5mm TRRS stereo jack to connect headphones and microphone; 9. Support dual point capacitive sensing touch panel; 10. Supports wired connection to the host and wired audio function; 11. Support speaker function; 12. Magnetic surface cover design with interchangeable colors and patterns ◆ Using standard PS5 functions, can work on PC through driver, Above the Windows 7 and Android 5.0 no need any driver. ◆This controller supports USB online upgrades, allowing it to follow the PS5 console system updates to the latest version. Users do not need to worry about the controller not functioning properly due to console upgrades. 5 Feature Introduction、 6、PS5 platform features 7、 PC computer connection 9、Trigger and 3D joystick calibration 11、RGB lighting effects 10、Programming function ◆ Programmable buttons: Cross buttons (↑, ↓, ←, →), X, , , ,L1 \ R1 \L2 \ R2 \ L3 \ R3, Left joystick, right joystick; Support recording key press time ◆Operation method: 1.Press the (Touch+M1) or (Touch+M2) keys simultaneously for 3 seconds, and the channel light will flash slowly, indicating that the joystick has been activated Enter programming mode, motor vibration prompt; 2. Press any action key you want to program (map), press the key and the channel light will flash rapidly, release it and flash slowly, remember Motor vibration prompt indicates successful button programming, and the selected programming trigger key (M1/M2) is the macro key. 3.After entering 24 times, pressing the channel light again will no longer flash and prompt the user that the recording is full (i.e. macro programming) Up to 24 key values can be recorded; After entering macro editing mode, if no button is pressed for 5 minutes, the previous settings 12、Reset function Reset User Manual P5 Wireless GamePad □ ◆ The controller is in PS5 working mode Any function in the game, including basic digital and analog buttons, can be fully implemented on the PS5 console, As well as six axis SENSOR function and LED color display function, it can also support specific games Vibration holding function; This controller not only supports Bluetooth wireless function when connected to the host, but also supports wired and wireless communication Host connection, users can play games while charging, enjoying the game; ◆ Sensor verification Users can manually calibrate the sensor if they notice any abnormal phenomena during use: when the handle is connected, Place the desktop horizontally, press and hold the key+ key for 3 seconds, and the channel light on the handle will flash to indicate that the calibration is successful after stopping flashing. ◆ Controller connection and sleep power-saving mode 1.If the controller end fails to communicate with the PS5 host within 15 seconds of searching, the controller will enter sleep modeState; In online mode, there are no buttons for about 10 minutes and the 3D joystick does not move significantly. The joystick enters the low ◆Wired connection 1.Connect the controller to the computer using aUSB cable, and the computer will automatically install drivers.The controller have wired audio and X-input model t…

Text truncated - open the document above for the full version.

DongguanYierjiaElectronicCo.,LTD 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:DongguanYierjiaElectronicCo.,LTD Address:Room304,Building9,No.653,ShidaRoad,DalingshanSection,DalingshanTown, DongguanCity,GuangdongProvince,China FCCID:2BUOI-525 Model(s):525 2.911(d)(5)(i)EquipmentType We,[DongguanYierjiaElectronicCo.,LTD]certifythattheequipmentforwhichauthorizationis soughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:LiuShiyanDate:2026.02.04 TitleandCompanyname:manager/DongguanYierjiaElectronicCo.,LTD NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

DongguanYierjiaElectronicCo., LTD 2.911(d)(5)(ii)ApplicantAttestationv1.2 Section 2.9 11(d)(5)(ii) Certification – Applicant (Covered Lis t) Company name: Dongguan Yierjia Electronic Co., LTD Address: Room 304, Building 9, No. 653, Shida Road, Dalingshan Section, Dalingshan Town, Dongguan City, Guangdong Province, China Model(s): 525 2.911(d)(5)(ii) Applicant filing We, [ Dongguan Yierjia Electronic Co., LTD] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name:Liu ShiyanDate:202 6.02 .04 Title and Companyname:manager/DongguanYierjiaElectronicCo., LTD NOTE1 Deleteoptionnot applicableto this application. NOTE2 “CoveredList”; is the List of Equipmentand ServicesCoveredBy Section2 of The SecureNetworksAct, availableat https://www.fcc.gov/supplychain/coveredlist References; 1) 986446D01 CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) FederalRegisterdocument2022-28263publishedon 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

DongguanYierjiaElectronicCo.,LTD AgentAuthorization Company:DongguanYierjiaElectronicCo.,LTD Address:Room304,Building9,No.653,ShidaRoad,DalingshanSection, DalingshanTown,DongguanCity,GuangdongProvince,China ProductName:GameController TradeMark:/ ModelNumber(s):525 FCCID:2BUOI-525 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2026-02-04 Name:LiuShiyan Title:manager Company:DongguanYierjiaElectronicCo.,LTD

DongguanYierjiaElectronicCo.,LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026-02-04 Subject;RequestforConfidentiality FCCID:2BUOI-525 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription BOM SoftwareSecurityRequirements Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name/Title:LiuShiyan/manager Company:Room304,Building9,No.653,ShidaRoad,DalingshanSection,Dalingshan Town,DongguanCity,GuangdongProvince,China Phone:13266549672 Fax:/ E-Mail:[email protected]

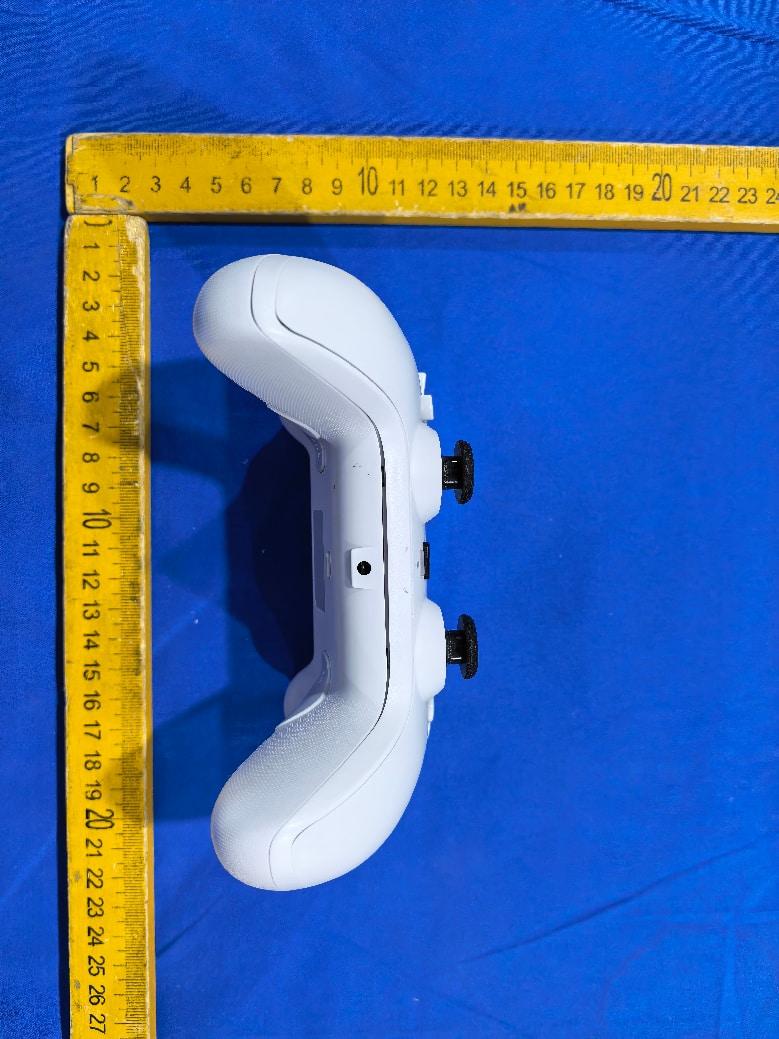

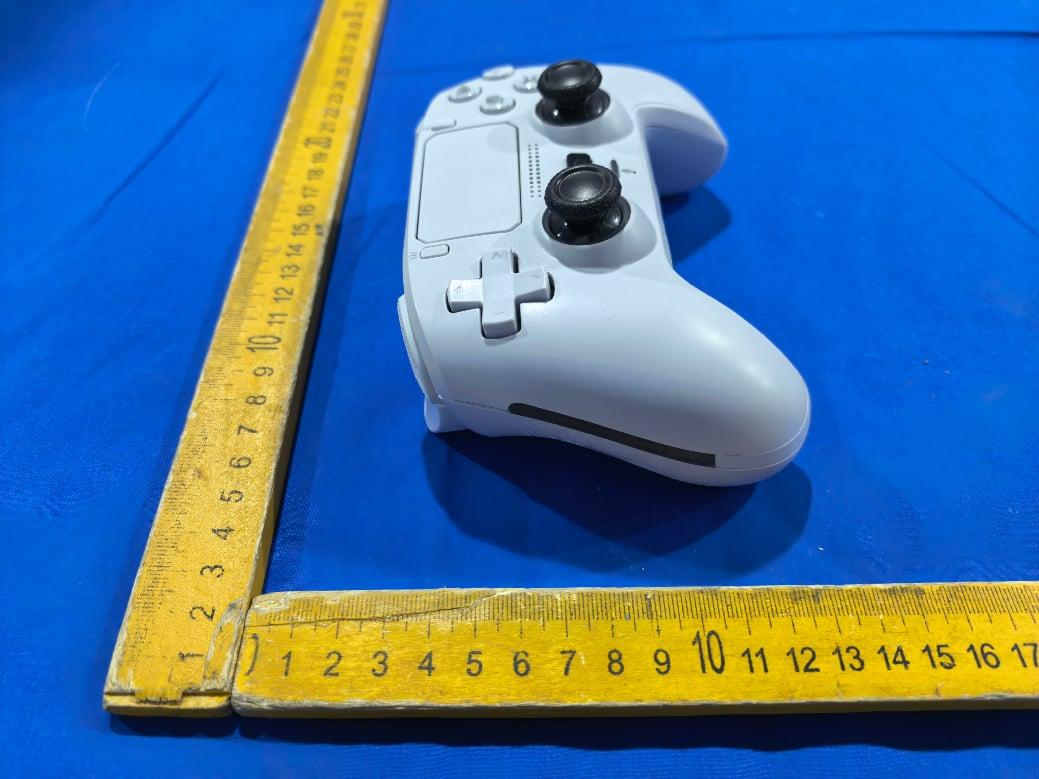

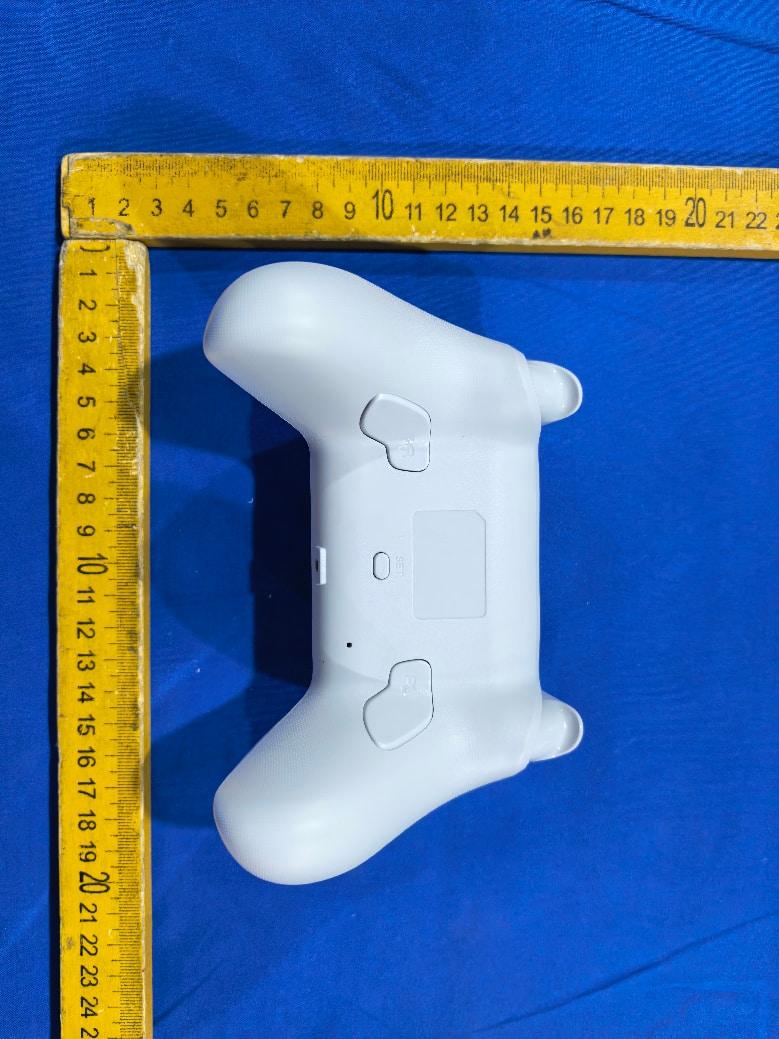

FCCID:2BUOI-525 1Externalphotos Figure 1 Figure 2 FCCID:2BUOI-525 Figure 3 Figure 4 FCCID:2BUOI-525 Figure 5 Figure 6 FCCID:2BUOI-525 Figure 7 Figure 8

_____________________________________________________________________________________________________ LABELANDLOCATION (Size:L2.0cmx2.0cm) productname：GameController Model：525 TradeMark：/ Input:DC5V FCCID:2BUOI-525 LabelLocation

FCCID:2BUOI-525 1Internalphotos Figure 1 Figure2 FCCID:2BUOI-525 Figure3 Figure4 FCCID:2BUOI-525 Figure5 Figure6 FCCID:2BUOI-525 Figure7 Figure8 FCCID:2BUOI-525 Figure9 Figure10 Antenna FCCID:2BUOI-525 Figure11 Figure12 RFChip

ShenzhenGlobalTestServiceCo.,Ltd. No.7-101and8A-104,Building7and8,DCCCulturalandCreativeGarden,No.98,PingxinNorthRoad, ShangmuguCommunity,PinghuStreet,LonggangDistrict,Shenzhen,Guangdong RFExposureevaluation ReportReferenceNo........................: FCCID..................................................: GTS20260123007-1-02 2BUOI-525 Compiledby (position+printedname+signature)..:FileadministratorsPeterXiao Supervisedby (position+printedname+signature)..:TestEngineerEvanOuyang Approvedby (position+printedname+signature)..: ManagerJasonHu Dateofissue.........................................:Feb.04,2026 RepresentativeLaboratoryName.:ShenzhenGlobalTestServiceCo.,Ltd. Address ................................................. : No.7-101and8A-104,Building7and8,DCCCulturalandCreative Garden,No.98,PingxinNorthRoad,ShangmuguCommunity, PinghuStreet,LonggangDistrict,Shenzhen,Guangdong,China Applicant’sname...............................:DongguanYierjiaElectronicCo.,LTD Address.................................................:Room304,Building9,No.653,ShidaRoad,DalingshanSection, DalingshanTown,DongguanCity,GuangdongProvince,China Testspecification..............................: Standard ................................................ : 47CFR§1.1310 47CFR§2.1093 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator......................................:ShenzhenGlobalTestServiceCo.,Ltd. MasterTRF...........................................:Dated2014-12 ShenzhenGlobalTestServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGlobalTestServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial. ShenzhenGlobalTestServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................:GameController TradeMark............................................: N/A Manufacturer ......................................... :YangzhouAmigotoysCo.,ltd Model/Typereference.........................:525 ListedModels......................................: N/A Exposurecategory...............................:Generalpopulation/uncontrolledenvironment EUTType .............................................. :Portable HardwareVersion...............................: N/A SoftwareVersion..................................: N/A Rating ..................................................... :DC5V1AorDC3.7VbyBattery Result ..................................................... :PASS ReportNo.:GTS20260123007-1-02Page 2 of 8 TESTREPORT TestReportNo.: GTS20260123007-1-02 Feb.04,2026 ______________________________________________________________________________________________ Dateofissue EquipmentunderTest:GameController Model/Type: 525 Listedmodel:N/A Applicant :DongguanYierjiaElectronicCo.,LTD Address : Room304,Building9,No.653,ShidaRoad,DalingshanSection, DalingshanTown,DongguanCity,GuangdongProvince,China Manufacturer :DongguanYierjiaElectronicCo.,LTD Address : Room304,Building9,No.653,ShidaRoad,DalingshanSection, DalingshanTown,DongguanCity,GuangdongProvince,China TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GTS20260123007-1-02Page 3 of 8 Contents 1.SUMMARY...............................................................................................................................................4 1.1.ProductDescription....................................................................................................................................4 2.TESTENVIRONMENT.......................................................................................................................5 2.1.Addressofthetestlaboratory...................................................................................................................5 2.2.TestFacility..................................................................................................................................................5 2.3.Environmentalconditions...........................................................................................................................5 2.4.Statementofthemeasurementuncertainty.............................................................................................5 3.METHODOFMEASUREMENT.....................................................................................................6 3.1.ApplicableStandard....................................................................................................................................6 3.2.EvaluationMethodandLimit......................................................................................................................6 4.CONDUCTEDPOWERRESULTS...............................................................................................7 5.MANUFACTURINGTOLERANCE...............................................................................................7 6.EVALUATIONRESULTS.................................................................................................................7 6.1.StandaloneEvaluation................................................................................................................................7 7.CONCLUSION........................................................................................................................................8 ReportNo.:GTS20260123007-1-02Page 4 of 8 1.SUMMARY 1.1.ProductDescription ProductName:GameController TradeMark:N/A Model/Typereference:525 ListModel:N/A ModelDeclarationN/A Powersupply:DC5V1AorDC3.7VbyBattery HardwareVersionN/A SoftwareVersionN/A SampleID GTS20260123007-1-S001-1#&GTS20260123007-1-S001-2# Bluetooth FrequencyRange2402MHz~2480MHz ChannelNumber40channelsforBluetooth(DTS) ChannelSpacing2MHzforBluetooth(DTS) ModulationTypeGFSKforBluetooth…

Text truncated - open the document above for the full version.

ManufacturerShenzhenInnosystemTechnologyLtd AddressF2Building3ShenzhenSoftwarePark TechnologyMiddle2RdGaoXinScience &TechnologyParkNorth,S.Z ModelMP341V1.0 AntennatypeInternalantenna AntennaGain0.0dBifor2.4G 1.Testequipmentandconditions: 1.1.NetworkAnalyzer 1.2.Communicationtestequipment 1.3.Testsystem 1.4.Matchingcircuit 2.TestData: 2.1.Standingwaveratio 2.2.Efficiency 2.4G Fred (MHz) Effi (%) Effi (%) Gain (dBi) Gain (dBd) UHIS (%) DHIS (%) Max (dB) Min (dB) Attenut (Hor) Attenut (Ver) 240044.38-2.79-0.750.8440.2813.321.020.9548.2649.33 241044.63-2.46-0.660.8542.4213.541.080.8448.6649.58 242044.94-2.12-1.000.7940.9614.771.130.6748.7149.88 243044.27-2.70-1.200.7543.2415.231.090.7248.2149.35 244044.75-2.39-1.320.7340.7115.791.060.8648.5849.56 245044.82-1.83-1.180.7641.1916.181.040.9949.1149.99 246044.28-2.630.001.0042.3918.251.130.7748.3749.22 247044.49-2.34-0.840.8241.7818.801.050.6848.5049.54 248045.08-2.23-0.950.8040.8919.051.060.7448.9849.99 249044.21-2.68-0.850.8243.2119.231.140.9348.2449.20 250044.46-2.32-0.710.8440.4419.621.050.8248.4849.61 2.3.Directivitydiagram 3.Antennadrawing:

FCCID:2BUOI-525 1 CaseNo.:GTS20260123007-1-01 AmbientCondition:25°C,54%RH AccordingStandard:■Part15C TestDate:2026.1.31-2026.2.3TestEngineer:Evanouyang AppendixA.1:DTSBandwidth TestResult TestModeAntennaFreq(MHz) DTSBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLEAnt1 24020.7002401.6522402.3520.5PASS 24400.7202439.6442440.3640.5PASS 24800.6762479.6442480.3200.5PASS FCCID:2BUOI-525 2 TestGraphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BUOI-525 3 FCCID:2BUOI-525 4 AppendixA.2:OccupiedChannelBandwidth TestResult TestModeAntennaFreq(MHz) OCB[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLEAnt1 24021.03762401.49402402.5316------ 24401.02902439.49422440.5232------ 24801.02952479.48702480.5165------ FCCID:2BUOI-525 5 TestGraphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BUOI-525 6 FCCID:2BUOI-525 7 AppendixA.3:Maximumconductedoutputpower TestModeAntennaFreq(MHz) ConductedPeak Powert[dBm] Conducted Limit[dBm] Verdict BLEAnt1 24021.95≤30PASS 24400.69≤30PASS 2480-1.67≤30PASS FCCID:2BUOI-525 8 AppendixA.4:Maximumpowerspectraldensity TestResult TestModeAntennaFreq(MHz)Result[dBm/3kHz]Limit[dBm/3kHz]Verdict BLEAnt1 2402-15.51≤8.00PASS 2440-16.72≤8.00PASS 2480-17.66≤8.00PASS FCCID:2BUOI-525 9 TestGraphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BUOI-525 10 FCCID:2BUOI-525 11 AppendixA.5:Bandedgemeasurements TestResult TestModeAntennaChNameFreq(MHz)RefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLEAnt1 Low2402-0.20-49.84≤-20.2PASS High2480-3.58-49.27≤-23.58PASS FCCID:2BUOI-525 12 TestGraphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 FCCID:2BUOI-525 13 AppendixA.6:ConductedSpuriousEmission TestResult TestModeAntennaFreq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLEAnt1 2402 Reference0.240.24---PASS 30~10000.24-61.15≤-19.76PASS 1000~265000.24-48.23≤-19.76PASS 2440 Reference-0.90-0.90---PASS 30~1000-0.90-60.79≤-20.9PASS 1000~26500-0.90-47.55≤-20.9PASS 2480 Reference-3.34-3.34---PASS 30~1000-3.34-59.88≤-23.34PASS 1000~26500-3.34-47.77≤-23.34PASS FCCID:2BUOI-525 14 TestGraphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 BLE_Ant1_2402_1000~26500 FCCID:2BUOI-525 15 BLE_Ant1_2440_0~Reference BLE_Ant1_2440_30~1000 FCCID:2BUOI-525 16 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference BLE_Ant1_2480_30~1000 FCCID:2BUOI-525 17 BLE_Ant1_2480_1000~26500 FCCID:2BUOI-525 18 AppendixA.7:DutyCycle TestResult TestModeAntennaFreq(MHz) ON Time [ms] Period [ms] X DC [%] DutyCycle Factor[dB] 1/T Factor[KHz] BLEAnt1 24022.132.500.852085.200.700.47 24402.132.500.852085.200.700.47 24800.390.630.619061.902.082.56 FCCID:2BUOI-525 19 TestGraphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BUOI-525 20 FCCID:2BUOI-525 21 AppendixA.8:EmissionsinRestrictedBands TestResult TestModeAntennaChName Freq (MHz) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLEAnt1 Low2402 AV2310.000-49.39≤-41.2045.81≤54PASS AV2388.410-48.86≤-41.2046.34≤54PASS AV2390.000-48.93≤-41.2046.27≤54PASS Peak2310.000-43.79≤-21.2051.41≤74PASS Peak2370.245-38.68≤-21.2056.52≤74PASS Peak2390.000-39.81≤-21.2055.39≤74PASS High2480 AV2483.500-48.73≤-41.2046.47≤54PASS AV2497.440-48.59≤-41.2046.61≤54PASS AV2500.000-48.67≤-41.2046.53≤54PASS Peak2483.500-41.33≤-21.2053.87≤74PASS Peak2497.920-39.08≤-21.2056.12≤74PASS Peak2500.000-41.23≤-21.2053.97≤74PASS Note： 1.TheAntennaGainiscompensatedinthegraph. 2.TheDutyCycleFactorandRBWFactoriscompensatedinthegraph. 3.ThelimitindBmforaveragedetectorisconversionfrom54dBuV/m,accordingto15.209(a).The limitindBmforpeakdetectoris20dBabovethelimitofaveragedetectorindBm. FCCID:2BUOI-525 22 TestGraphs BLE_Ant1_Low_2402_AV BLE_Ant1_Low_2402_Peak BLE_Ant1_High_2480_AV FCCID:2BUOI-525 23 BLE_Ant1_High_2480_Peak

ShenzhenGlobalTestServiceCo.,Ltd. No.7-101and8A-104,Building7and8,DCCCulturalandCreativeGarden,No.98,PingxinNorthRoad, ShangmuguCommunity,PinghuStreet,LonggangDistrict,Shenzhen,Guangdong FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID.................................................: GTS20260123007-1-01 2BUOI-525 Compiledby (position+printedname+signature) .. :FileadministratorsPeterXiao Supervisedby (position+printedname+signature)..:TestEngineerEvanOuyang Approvedby (position+printedname+signature) .. : ManagerJasonHu Dateofissue ......................................... :Feb.04,2026 RepresentativeLaboratoryName.:ShenzhenGlobalTestServiceCo.,Ltd. Address ................................................ : No.7-101and8A-104,Building7and8,DCCCulturalandCreative Garden,No.98,PingxinNorthRoad,ShangmuguCommunity,Pinghu Street,LonggangDistrict,Shenzhen,Guangdong,China Applicant’sname ............................... :DongguanYierjiaElectronicCo.,LTD Address ................................................. : Room304,Building9,No.653,ShidaRoad,DalingshanSection, DalingshanTown,DongguanCity,GuangdongProvince,China Testspecification..............................: Standard................................................:FCCPart15.247 TRFOriginator ...................................... :ShenzhenGlobalTestServiceCo.,Ltd. MasterTRF ........................................... :Dated2014-12 ShenzhenGlobalTestServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen GlobalTestServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.Shenzhen GlobalTestServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamagesresultingfrom thereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription ........................ :GameController TradeMark............................................:N/A Manufacturer.........................................:DongguanYierjiaElectronicCo.,LTD Model/Typereference.........................:525 ListedModels......................................:N/A ModulationType .................................. :GFSK OperationFrequency .......................... :From2402MHzto2480MHz HardwareVersion...............................:N/A SoftwareVersion..................................:N/A Rating.....................................................:DC5V1AorDC3.7VbyBattery Result.....................................................:PASS ReportNo.:GTS20260123007-1-01Page 2 of 36 TESTREPORT TestReportNo.: GTS20260123007-1-01 Feb.04,2026 ____________________________________________________________________________________________ Dateofissue EquipmentunderTest :GameController Model/Type :525 Listedmodel :N/A Applicant : DongguanYierjiaElectronicCo.,LTD Address: Room304,Building9,No.653,ShidaRoad,DalingshanSection, DalingshanTown,DongguanCity,GuangdongProvince,China Manufacturer :DongguanYierjiaElectronicCo.,LTD Address: Room304,Building9,No.653,ShidaRoad,DalingshanSection, DalingshanTown,DongguanCity,GuangdongProvince,China TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GTS20260123007-1-01Page 3 of 36 Contents 1.TESTSTANDARDS.........................................................................................................................................4 2.SUMMARY.......................................................................................................................................................5 2.1.GeneralRemarks...................................................................................................................................5 2.2.ProductDescription................................................................................................................................5 2.3.EquipmentUnderTest............................................................................................................................6 2.4.ShortdescriptionoftheEquipmentunderTest(EUT)...........................................................................6 2.5.EUToperationmode..............................................................................................................................6 2.6.BlockDiagramofTestSetup..................................................................................................................7 2.7.EUTExerciseSoftware..........................................................................................................................7 2.8.SpecialAccessories...............................................................................................................................7 2.9.ExternalI/OCable..................................................................................................................................7 2.10.RelatedSubmittal(s)/Grant(s)............................................................................................................7 2.11.Modifications.........................................................................................................................................7 3.TESTENVIRONMENT.....................................................................................................................................8 3.1.Addressofthetestlaboratory................................................................................................................8 3.2.TestFacility.............................................................................................................................................8 3.3.Environmentalconditions.......................................................................................................................8 3.4.Statementofthemeasurementuncertainty..................................................................................…

Text truncated - open the document above for the full version.

FCCID:2BUOI-525 _________________________________________________________________________________________ 1.TESTSETUPPHOTOGRAPHS 1.1PhotoofConductedEmissionMeasurement FCCID:2BUOI-525 _________________________________________________________________________________________ 1.2.PhotoofRadiatedEmissionsMeasurement
