2BUOV-HD-APPRGBCar atmosphere light

Instructions On the home page, manually pull down to refresh, the APP will automatically search for nearby devices, and click the “LED BLE 01-XXXX" device to enter the lighting control interface. ☆ ☆Android phones also need to enable the mobile location function and allow permissions. The Bluetooth function of the mobile phone system must be turned on. Pull down refresh 1. Color: color circle and single color. You can adjust the color at will, customize the color, and adjust the brightness of the white light by dragging the ring. 3. Custom: You can customize the color, and then select the mode Mode switch Custom color 5. Settings: button in the upper right corner. After setting, click "Save", and then "Send Timer". Set the timer, select the timer, then click the "Add" Add Save After adding the timer, Finally, click on 'Send Timer' Song list 2. Mode: select one of the modes, you can adjust the speed and brightness Add to Favorites 4. Music: There is music and a microphone, and the music needs to be adjusted by playing songs on the mobile phone; the microphone is adjusted by the external sound level. Mode switching 3、 自定义：可以自定颜色,然后选择模式 自定颜色 4 麦克风是通过外部声音大小调节。 、 音乐：有音乐和麦克风，音乐需要手机播放歌曲来进行调节； 5、 设置：设置，选择定时，然后点击右上方“添加”按钮， 设置完后，点击“保存”，然后“发送定时”。 定时 1 通过拖动圆环调节白光亮度 、彩色：有色环和单色。可以随意调颜色、自定颜色，单色 添加 点击模式切换 模式切换 歌曲列表 2、 模式：多种模式，选择其中一种模式。 添加完定时， 最后点击“发送定时” 自定义 色环切换 设置 开关 颜色选择 添加收藏 保存 操作说明 在首页界面，手动下拉刷新，APP自动搜索附近的设备，点击 当安装app，弹出请求时，请点击“同意”,“允许”否则部分功能无法使用 ☆必须开启手机系统的蓝牙功能。 ☆安卓手机还要打开手机定位功能并允许权限。 “LED BLE 01-XXXX”设备后，进入灯光控制界面。 下拉刷新 When installing the app and a request pops up, please click "Agree" or "Allow", otherwise some features cannot be used 当前连接的设备数量 “0”没连接设备 “1”已连接1个设备 Technical Parameters Product Name Support System Signal Mode Bluetooth controller Bluetooth 4.0 LED Bluetooth Controller Manual 1. Color: color circle and single color. You can adjust the color at will, customize the color, and adjust the brightness of the white light by dragging the ring. Setting Customize On/off Select color Color circle switch Number of connected devicesNumber of connected devices '0' is not connected to a device '1' device has been connected '0' is not connected to a device '1' device has been connected Instructions On the home page, manually pull down to refresh, the APP will automatically search for nearby devices, and click the "LED BLE 00-XXXX" device to enter the lighting control interface. ☆ ☆Android phones also need to enable the mobile location function and allow permissions. The Bluetooth function of the mobile phone system must be turned on. When installing the app and a request pops up, please click "Agree" or "Allow", otherwise some features cannot be used Pull down refresh 5. Settings: Timing settings, click the "Add" button at the top right, after setting, click "Save", and then "Send Timing". 4. Music: There are voice control and music, and the voice control can set the color, mode, sensitivity, and change the effect of the light. Music can be changed by playing songs on the phone. Color change Mode switching 3. : You can customize the color and then select the mode Custom Custom color 2. Mode: Multiple modes, choose one of them. Add to Favorites Mode switch After adding the timer, Finally, click on 'Send Timer' Add Song list Save Download APP Please search for "LED LAMP" in major application markets or scan the QR code below. 1. Is the Bluetooth and location functions of the mobile phone system enabled (note: Bluetooth can be enabled on the mobile phone system, do not select to connect Bluetooth devices in the phone settings) 2. Is there any other phone nearby that is already connected? If so, please disconnect. Bluetooth 4.0 only supports one to many control and does not support many to many control 3. Bluetooth has been turned on, but no device has been found. Exit the app in the background and reopen it. If prompted to turn on Bluetooth, enable the Bluetooth function in the mobile system 4. Is there a Bluetooth device connected in the phone system settings? If so, please disconnect the Bluetooth device, Open the app again after exiting from the background 5. Normal operation still cannot connect, the phone restarts and the lights are powered on again; Open the app and connect again; 6. The above still cannot be connected. Uninstall the app, download and install it again, turn on the lights, turn on the phone's Bluetooth and location. When the APP cannot connect to control: After installing the APP, turn on the Bluetooth function of the phone, then power on the light, open the APP, allow the prompt to locate and enable, enter the APP homepage interface, manually pull down to refresh the interface, select the device icon, and enter the lighting control interface. Android 11 and above / iOS 15 and above LED蓝牙控制器 说明书 下载APP 请在各大应用市场搜索“LED LAMP或扫描下方二维码。” APP安装后，开启手机的蓝牙功能，然后灯，打开APP，允许 定位开启的提示，进入APP首页界面，手动下拉刷新界面，选择设备 图标，进入灯光控制界面。 上电 APP无法连接控制时： 1、手机系统的蓝牙和定位功能是否开启（注：手机系统的蓝牙开启即可， 不要在手机设置处选择连接蓝牙设备） 2、附近是否有别的手机已经连接上，如果有，请断开，蓝牙4.0只支持 一对多控制，不支持多对多控制 3、蓝牙已经打开，还是没搜索到设备，后台退出APP，再重新打开APP， 如果提示打开蓝牙，在手机系统里面开启蓝牙功能 4、是否在手机系统设置处，连接了蓝牙设备，如果已连接，请断开蓝牙 设备，APP从后台退出后重新打开 5、正常操作还是无法连接，手机重启，灯重新上电；打开APP再连接； 6、以上还是无法连接，卸载APP，重新下载安装APP，灯通上电，开启 手机蓝牙和定位。 产品名称 蓝牙控制器 支持系统 连接模式 蓝牙4.0 技术参数 Android 11/ iOS 15及以上 以上 Technical Parameters Product Name Support System Signal Mode Bluetooth controller Bluetooth 4.0 LED Bluetooth Controller Manual Download APP Please search for "LED LAMP" in major application markets or scan the QR code below. 1. Is the Bluetooth and location functions of the mobile phone system enabled (note: Bluetooth can be enabled on the mobile phone system, do not select to connect Bluetooth devices in the phone settings) 2. Is there any other phone nearby that is already connected? If so, please disconnect. Bluetooth 4.0 only supports one to many control and does not support many to many control 3. Bluetooth has been turned on, but no device has been found. Exit the app in the background and reopen it. If prompted to turn on…

Text truncated - open the document above for the full version.

Guangzhou HaoDeng Electronic Technology Co., Ltd. Room 202, 2nd Floor, Building A, Phase II, Bayi Technology Industrial Park, No. 22-15, Hongxing Road, Yongping Street, Baiyun District, Guangzhou, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/29 U.S. Agent Designation Guangzhou HaoDeng Electronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BUOV-HD-APPRGB): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Guangzhou HaoDeng Electronic Technology Co., Ltd. Guangzhou HaoDeng Electronic Technology Co., Ltd. with the FRN [0037947504] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Dongtao Zheng Manager Guangzhou HaoDeng Electronic Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

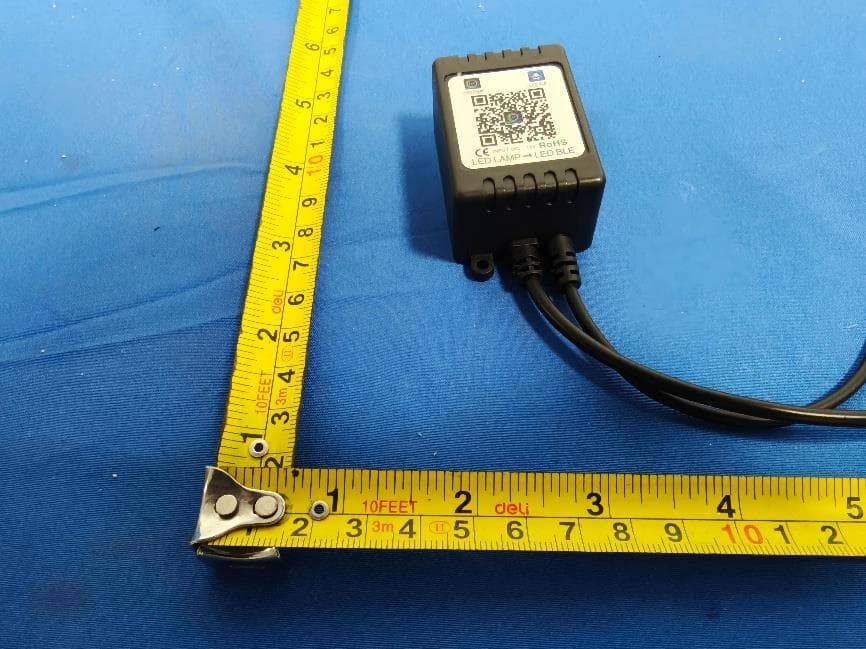

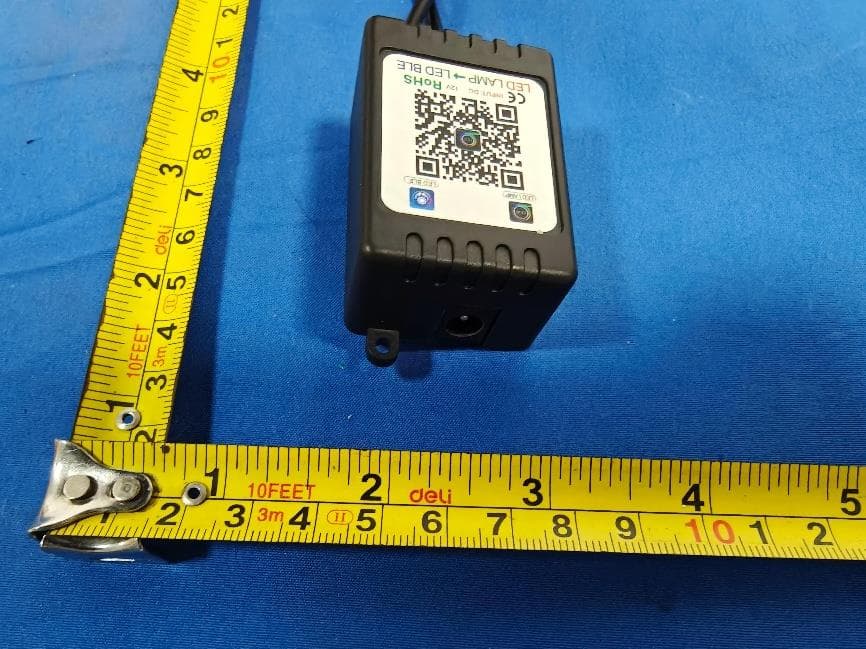

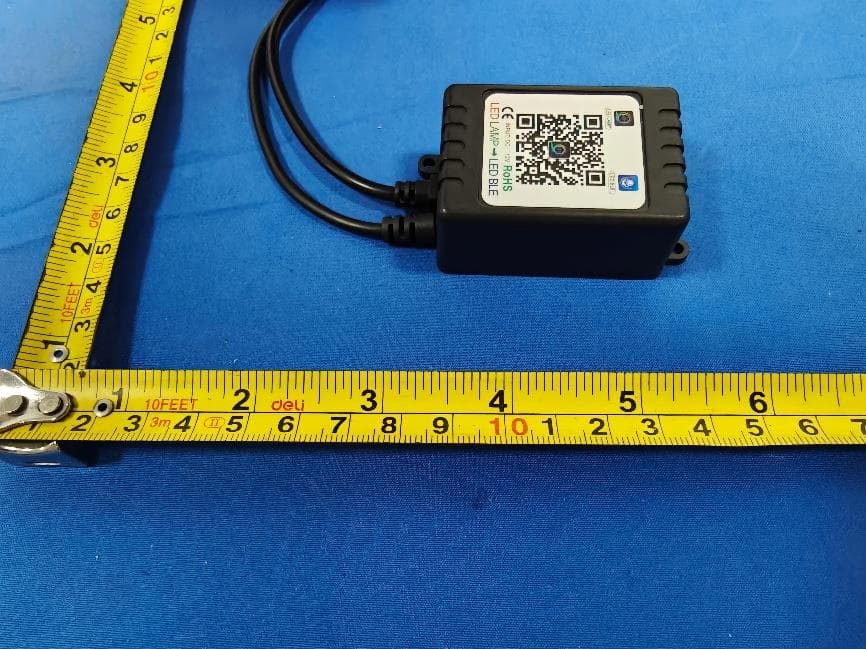

FCC ID: 2BUOV-HD-APPRGB External Photos of the EUT FCC ID: 2BUOV-HD-APPRGB FCC ID: 2BUOV-HD-APPRGB

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BUOV-HD-APPRGB

FCC ID: 2BUOV-HD-APPRGB Internal Photos of the EUT BLE ANT FCC ID: 2BUOV-HD-APPRGB FCC ID: 2BUOV-HD-APPRGB FCC ID: 2BUOV-HD-APPRGB FCC ID: 2BUOV-HD-APPRGB FCC ID: 2BUOV-HD-APPRGB

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .................... : FCC ID. ........................................... : CTA26011600302 2BUOV-HD-APPRGB Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 23, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Guangzhou HaoDeng Electronic Technology Co., Ltd. Address ........................................... : Room 202, 2nd Floor, Building A, Phase II, Bayi Technology Industrial Park, No. 22-15, Hongxing Road, Yongping Street, Baiyun District, Guangzhou, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Car atmosphere light Trade Mark ....................................... : N/A Manufacturer .................................... : Guangzhou HaoDeng Electronic Technology Co., Ltd. Model/Type reference ...................... : APP RGB T4+4 Listed Models ................................... : APP RGBT5+4, APP RGBT3+2, APP RGBT2+2, APP RGB-18 Rating ............................................... : DC 12V From external circuit Result ............................................... : PASS Report No.: CTA26011600302 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Car atmosphere light Model /Type : APP RGB T4+4 Listed Models : APP RGBT5+4, APP RGBT3+2, APP RGBT2+2, APP RGB-18 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Guangzhou HaoDeng Electronic Technology Co., Ltd. Address : Room 202, 2nd Floor, Building A, Phase II, Bayi Technology Industrial Park, No. 22-15, Hongxing Road, Yongping Street, Baiyun District, Guangzhou, China Manufacturer : Guangzhou HaoDeng Electronic Technology Co., Ltd. Address : Room 202, 2nd Floor, Building A, Phase II, Bayi Technology Industrial Park, No. 22-15, Hongxing Road, Yongping Street, Baiyun District, Guangzhou, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26011600302 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ...........................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BUOV-HD-APPRGB Company : Guangzhou HaoDeng Electronic Technology Co., Ltd. EUT : Car atmosphere light Model Number : APP RGB T4+4 Report No. : CTA26011600301 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.644 2401.692 2402.336 0.5 PASS 2440 0.640 2439.696 2440.336 0.5 PASS 2480 0.640 2479.696 2480.336 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0093 2401.5182 2402.5275 --- --- 2440 1.0034 2439.5200 2440.5234 --- --- 2480 1.0077 2479.5192 2480.5269 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.42 ≤30 PASS 2440 -3.63 ≤30 PASS 2480 -3.67 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.16 ≤8.00 PASS 2440 -19.78 ≤8.00 PASS 2480 -19.53 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -3.56 -57.44 ≤-23.56 PASS High 2480 -3.67 -56.14 ≤-23.67 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -4.55 -4.55 --- PASS 30~1000 -4.55 -68.53 ≤-24.55 PASS 1000~26500 -4.55 -45.03 ≤-24.55 PASS 2440 Reference -5.10 -5.10 --- PASS 30~1000 -5.10 -68.27 ≤-25.1 PASS 1000~26500 -5.10 -46.71 ≤-25.1 PASS 2480 Reference -4.53 -4.53 --- PASS 30~1000 -4.53 -68.44 ≤-24.53 PASS 1000~26500 -4.53 -48.17 ≤-24.53 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m ] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.46 2.00 1.80 38.54 ≤54 PASS AV 2370.455 -59.03 2.00 1.80 39.97 ≤54 PASS AV 2390.000 -59.98 2.00 1.80 39.02 ≤54 PASS Peak 2310.000 -52.84 2.00 0.00 44.36 ≤74 PASS Peak 2372.240 -48.29 2.00 0.00 48.91 ≤74 PASS Peak 2390.000 -52.36 2.00 0.00 44.84 ≤74 PASS High 2480 AV 2483.500 -58.42 2.00 1.80 40.58 ≤54 PASS AV 2483.520 -58.42 2.00 1.80 40.58 ≤54 PASS AV 2500.000 -59.5 2.00 1.80 39.50 ≤54 PASS Peak 2483.500 -49.59 2.00 0.00 47.61 ≤74 PASS Peak 2484.800 -45.74 2.00 0.00 51.46 ≤74 PASS Peak 2500.000 -51.61 2.00 0.00 45.59 ≤74 PASS Note：The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

1.ElectricalCharacteristics ItemSpecification Manufacturer ShenzhenTaiYilinanScienc e&TechnologyCo.,Ltd TypePCBMeanderLineAntenna Centralfrequency2.441GHz Bandwidth78MHz(Typicalvalue) Gain1dBi PolarizationLinear VSWR2max. AzimuthBandwithOmni-directional Impedance50Ω RatedPower(max.)4dBm MaximumInputPower10dBm OperationTemperature-40C~+85C 2.Thesuggestionofmatchingcircuit 3.TheMeasurementofS-ParameterandVSWR Address:Room 313, Xinda Business Building, Fenghuanggang First Industrial Zone, Qianjin Second Road, Xixiang Street, Bao'an District, Shenzhen Frequency(GHz)S11(dB) 2.402-10.24 2.441-24.02 2.480-10.74 Frequency(GHz)VSWR 2.4021.88 2.4411.13 2.4801.81 Thereference: ReturnLoss -6.02dB-7.36dB-10dB-13dB-20dB VSWR 32.51.921.5761.22 ReturnPowerRatio 25%18.37%10%5%0.98%

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26011600301 2BUOV-HD-APPRGB Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Jan. 23, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Guangzhou HaoDeng Electronic Technology Co., Ltd. Address ...........................................: Room 202, 2nd Floor, Building A, Phase II, Bayi Technology Industrial Park, No. 22-15, Hongxing Road, Yongping Street, Baiyun District, Guangzhou, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Car atmosphere light Trade Mark ......................................: N/A Manufacturer ...................................: Guangzhou HaoDeng Electronic Technology Co., Ltd. Model/Type reference .....................: APP RGB T4+4 Listed Models ..................................: APP RGBT5+4, APP RGBT3+2, APP RGBT2+2, APP RGB-18 Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: DC 12V From external circuit Result ..............................................: PASS Report No.: CTA26011600301 Page 2 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Car atmosphere light Model /Type : APP RGB T4+4 Listed Models : APP RGBT5+4, APP RGBT3+2, APP RGBT2+2, APP RGB-18 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Guangzhou HaoDeng Electronic Technology Co., Ltd. Address : Room 202, 2nd Floor, Building A, Phase II, Bayi Technology Industrial Park, No. 22-15, Hongxing Road, Yongping Street, Baiyun District, Guangzhou, China Manufacturer : Guangzhou HaoDeng Electronic Technology Co., Ltd. Address : Room 202, 2nd Floor, Building A, Phase II, Bayi Technology Industrial Park, No. 22-15, Hongxing Road, Yongping Street, Baiyun District, Guangzhou, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26011600301 Page 3 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ...........................................…

Text truncated - open the document above for the full version.

FCC ID: 2BUOV-HD-APPRGB Test Setup Photos of the EUT
