2BUX9-SWN100Skywork note

Skywork note Product User Manual Version Date Update Content V2.0 2026.01.14 Initial release V2.1 2026.03.31 Update AI Listen World ShenZhen Ailyworld Technology Co.,Ltd. 6 / 6 Product Description SWN100 card-type smart voice recorder designed for business professionals, government personnel, corporate employees, students, etc. Utilizing proprietary low-power recording technology, it ensures the product can meet the requirement of continuous recording for a full day while maintaining an ultra-thin design.  Thin as a Card, Record Anytime, Anywhere Featuring an ultra-thin card design with a thickness of only 3.7mm, it easily fits into wallets or pockets. Perfect for business meetings, lecture notes, or capturing inspiration— efficient recording is always at hand. Direct Magnetic Attachment Built-in magnetic module allows secure attachment to the back of mobile phones (for phones without magnetic attachment, use the included magnetic ring). Carry it with you without worry of loss. Wireless Charging Supports wireless charging, freeing you from cables and ensuring worry-free battery life. Low Power Consumption & Long Battery Life, Extended Standby Equipped with an intelligent power-saving chip, a single charge provides up to 24 hours of continuous recording and up to 365 days of standby time. No need for frequent charging during business trips or travel—ready to wake up at crucial moments. Product Usage Scenarios Example Attached to Phone Back、Placed Inside ID Card、 Carried in Wallet AI Listen World ShenZhen Ailyworld Technology Co.,Ltd. 6 / 6 Product Hardware Specifications Specification Parameter Dimensions 85 x 53 mm Thickness 3.7 mm Microphone 2* Silicon Mics, 1* Bone Conduction Mic Storage Capacity 2GB Connectivity Bluetooth V5.3 + Dual-band WIFI (2.4GHz & 5GHz) Transmission Speed Bluetooth: Android >80kbps, iOS >30kbps; Wi-Fi >20Mbps Touch Button Long press 1.5s to start/stop recording; short press to wake/mark Charging Method Wireless Charging + Wired Charging Battery 130 mAh Recording Distance 10m (recommended 1–3m) Recording Duration 24 hours Standby Duration 365 days Charging Time 100 minutes Product Software Features Feature Description Dual-Mic Recording & Storage Microphone recording stores audio within the device. Bluetooth Real-Time Audio Transmission Microphone recording transmits audio to the mobile app via Bluetooth in real time. Bluetooth Audio Transmission Transfers stored audio from the device to the app via Bluetooth. WIFI Fast Audio Transfer Transfers stored audio from the device to the app via WIFI. Battery Level Detection Detects battery level, displays low battery via indicator, and transmits battery info to the app. Real-Time Time Synchronization Automatically syncs system time when connected via Bluetooth or WIFI. Dual-Layer VAD Detection In recording mode, supports automatic sleep when no sound is detected and automatic recording when sound is detected. Recording Mode Selection Supports selection between normal recording and phone call recording. AI Listen World ShenZhen AiListen Technology Co., Ltd. 4 / 6 Android & IOS App Feature Description Speech-to-Text Converts audio to text using a large language model. Real-Time Speech-to- Text Receives audio from the device via Bluetooth in real time and converts it to text using a large language model. WIFI Fast Audio Transfer Receives stored audio from the device via WIFI. Bluetooth Audio Transfer Receives stored audio from the device via Bluetooth. Audio Playback Plays recorded audio files on the mobile phone. Large Model Services Supports ChatGPT and Doubao. Speaker Differentiation Supports differentiation of 3-5 speakers in a conversation. Summary Templates Universal, Meeting, Consultation, Call, Speech, Explanation; can generate corresponding mind maps. AI Listen World ShenZhen Ailyworld Technolog Co.,Ltd. 6 / 6 Category Scenario Description Power On / Pairing LED Status Waiting for APP pairing, battery < 20% 【Indicator】 Red light flashes. If not paired within 30 seconds, it turns off. Waiting for APP pairing, battery ≥ 20% 【Indicator】 Green light flashes. If not paired within 30 seconds, it turns off. App paired successfully, battery <20% 【Indicator】Red light stays on for 5s, then turns off. App paired successfully, battery ≥20%% 【Indicator】Green light stays on for 5s, then turns off. Power Off Battery <3% Auto Power Off Charging LED Status (Magnetic or Wireless) Charging, battery <20% 【Indicator】Red LED breathes. Charging, 80% ≤ battery <100% 【Indicator】Green LED breathes. Fully Charged 【Indicator】Green LED stays on. Recording LED Status Recording start (battery >20%) 【Status Light】Blue recording LED stays on. Recording stop 【Status Light】Blue recording LED turns off. Recording start (battery <20%) 【Status Light】Blue recording LED stays on; 【Indicator】red LED flashes for 5s then turns off. Charging+Recording LED Status(Magnetic or Wireless) Recording Start Consistent with recording status indication Recording Stop Consistent with charging status indication Double-Click Button (during recording) Paused state 【Status Light】Red pause LED on; (Motor)short vibration once. Single-Click Button (during recording pause) Resumes from paused state 【Status Light】Red pause LED turns off. Single-Click Button Short press Wake device (can power on from off state). Long press 12s System recovery from abnormal state. Long press 1s Motor long vibration once; starts recording (can start recording from off state) Long press 1s again Stops recording; vibrates twice. Single-click Button (Precondition: In recording state) Mark important point 【Status Light】Recording blue light quick flashes once, then continues steady on Storage Status Storage Full 【Indicator】Green and red lights show yellow steady on Auto Sleep No recording/transfer for 30s Enters sleep mode; Bluetooth remains connected (press button to wake). Auto Power Off No recording/transfer for 24 hours Powers off automatically (press button to wake). Standards & Compli…

Text truncated - open the document above for the full version.

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:HOPEKCORPORATIONINC Address:16755CoyoteBushDrUnit84,SanDiego,CA92127UnitedStates FRN:0034562900 ContactName:YangyangXu TelephoneNo:(561)875-9826 E-mail:[email protected] ThisletteristoconfirmthattheUSAgentforServiceofProcessacceptsresponsibilitytoactas alocalrepresentativeonbehalfofSKYWORKAIPTE.LTD. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. Applicant: CompanyName:SKYWORKAIPTE.LTD. ProductDescription:Skyworknote FRN:0038085437 GranteeCode:2BUX9 FCCID:2BUX9-SWN100 ContactName:TaoXiong Address:2ScienceParkDrive,#01-08,Ascent,Singapore118222 TelephoneNo:13025435949 E-mail:[email protected] TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. ThisAgreementisvaliduntil(Permanentlyvalid). Date:2026/4/15 Applicant’sName: SKYWORKAIPTE.LTD. USAgentforServiceofProcess’sName: HOPEKCORPORATIONINC Title:BUheadTitle:Manager SignatureSignature

Rev 1/26/2023 SKYWORK AI PTE.LTD. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Mar. 12, 2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BUX9-SWN100 [SKYWORK AI PTE.LTD.] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [SKYWORK AI PTE.LTD.] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Tao Xiong Rev 1/26/2023 SKYWORK AI PTE.LTD. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Mar. 12, 2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BUX9-SWN100 [SKYWORK AI PTE.LTD.] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Tao Xiong

SKYWORK AI PTE.LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 14, 2026 Subject; Request for Confidentiality FCC ID: 2BUX9-SWN100 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tao Xiong Title: BU head

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 SKYWORK AI PTE.LTD. Date: Mar. 12, 2026 Product Model Number: SWN100 FCC ID: 2BUX9-SWN100 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: BU head Email: [email protected] Telephone: 13025435949 On behalf of: SKYWORK AI PTE.LTD.

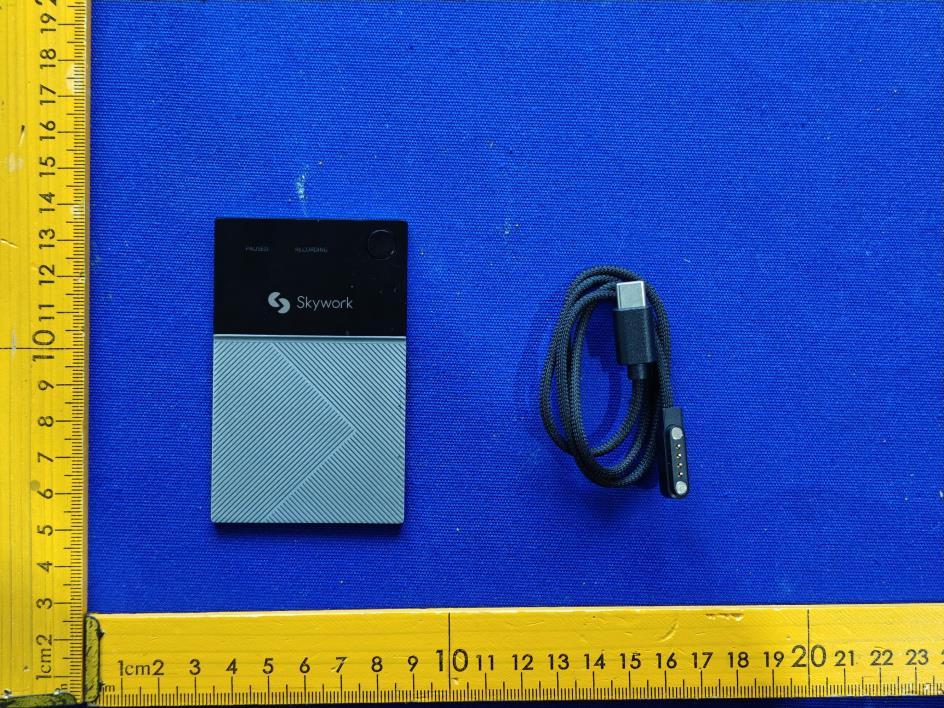

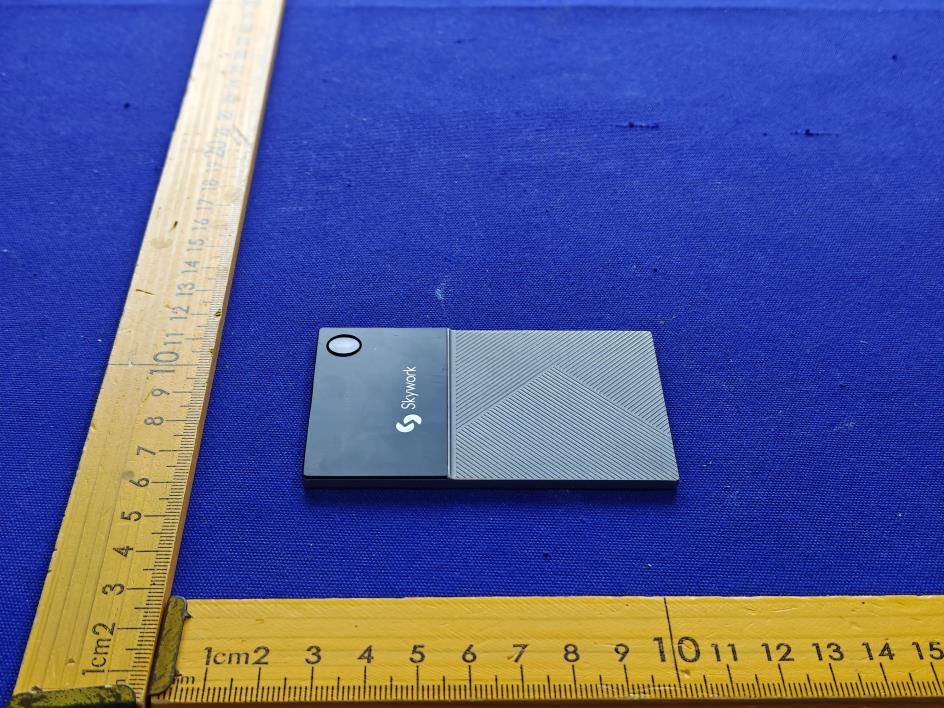

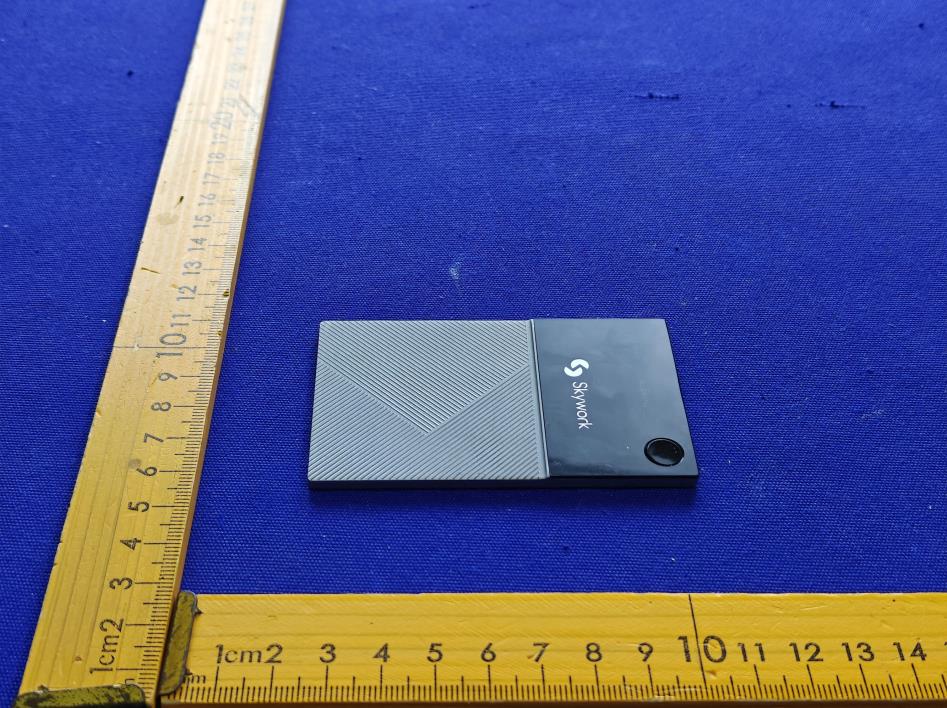

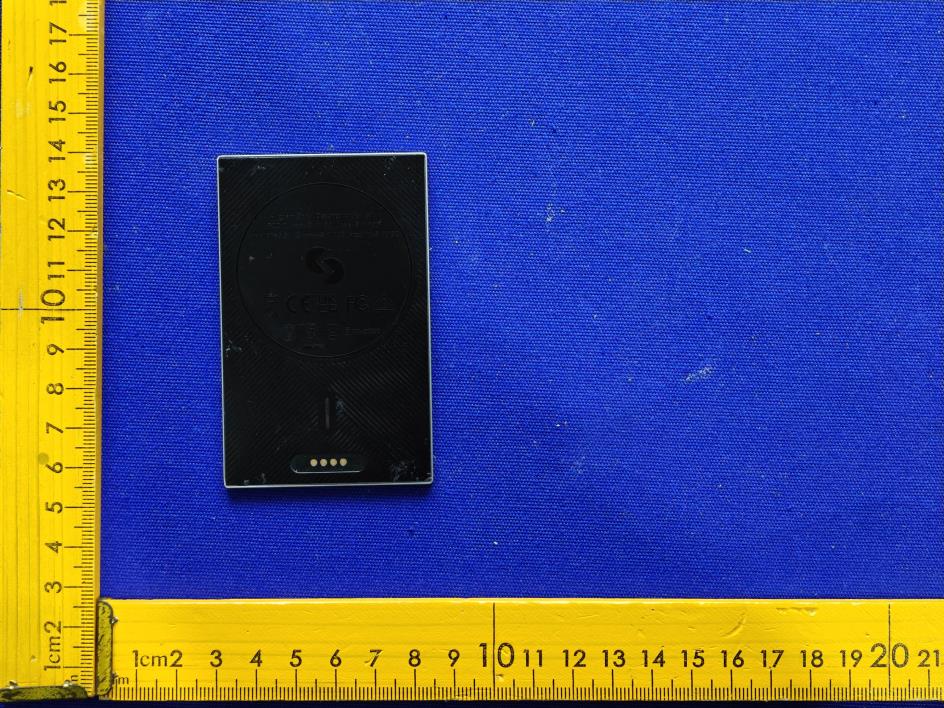

Ext Photos Model: SWN100 Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

222-260308 35

Int Photos Model: SWN100 Photo 1 Photo 2 Photo 3 Photo 4 TX ANT Photo 5 Photo 6 RX ANT Photo 7 Photo 8 Photo 9

- Page 1 of 9 - Report No.: HB20260227008E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com RF EXPOSURE Test Report Product: Skywork note Trade Mark: Skywork Model Number: SWN100 FCC ID: 2BUX9-SWN100 Prepared for SKYWORK AI PTE.LTD. 2 Science Park Drive, #01-08, Ascent, Singapore 118222 Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 9 - Report No.: HB20260227008E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 5 1.2 TEST MODE .............................................................................................................................................................. 5 1.3 TEST SETUP .............................................................................................................................................................. 5 1.4 ANCILLARY EQUIPMENT .............................................................................................................................................. 5 2 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 6 2.1 TEST LABORATORY ..................................................................................................................................................... 6 2.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 6 2.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 6 2.4 TEST SOFTWARE ........................................................................................................................................................ 6 3 LIST OF TEST EQUIPMENT .................................................................................................................................. 7 4 RF EXPOSURE..................................................................................................................................................... 8 4.1 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS........................................................................................................ 8 4.1.1. Limit ............................................................................................................................................................ 8 4.1.2. Test Procedures ........................................................................................................................................... 8 4.1.3. Test Result ................................................................................................................................................... 9 - Page 3 of 9 - Report No.: HB20260227008E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com TEST RESULT CERTIFICATION Applicant’s Name ................. : SKYWORK AI PTE.LTD. Address ................................. : 2 Science Park Drive, #01-08, Ascent, Singapore 118222 Manufacturer's Name .......... : SKYWORK AI PTE.LTD. Address ................................. : 2 Science Park Drive, #01-08, Ascent, Singapore 118222 Product description Product name ........................ : Skywork note Model Number ....................... : SWN100 Standards ............................. : FCC CFR 47 PART 1 , 1.1310 Test procedure ....................... : KDB 447498 D01 General RF Exposure Guidance v06 This device described above has been tested by Shenzhen HongBiao Certification& Testing Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the EMC requirements. And it is applicable only to the tested sample identified in the report. Date of Test ........................................... : Date (s) of performance of tests ............. : Feb. 28, 2026~Mar. 06, 2026 Test Result .............................................. : Pass Testing Engineer : ( Z o e Su) Technical Manager : (M i n g L i u) Authorized Signatory : (L e o S u) - Page 4 of 9 - Report No.: HB20260227008E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Revision History Revised No. Date of Issue Description 01 Mar. 06, 2026 Original - Page 5 of 9 - Report No.: HB20260227008E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 1 General Description 1.1 Description of EUT Product name: Skywork note Model name: SWN100 Series Model: N/A Different of series model: N/A Operation frequency: 2402-2480MHz Modulation type: GFSK Bit Rate of transmitter: 1Mbps, 2Mbps Antenna…

Text truncated - open the document above for the full version.

Page 1 of 81 Report No.: AiTSZ-260316041FW1 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093) and IEEE Std 1528-2013 Product Name: Skywork note Model No.: SWN100 Serial Model: N/A Brand Name: Skywork Report No.: AiTSZ-260316041FW1 FCC ID: 2BUX9-SWN100 Prepared for SKYWORK AI PTE.LTD. 2 Science Park Drive, #01-08, Ascent, Singapore 118222 Prepared by Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 2 of 81 Report No.: AiTSZ-260316041FW1 TEST RESULT CERTIFICATION Applicant’s name ................. : SKYWORK AI PTE.LTD. Address ................................. : 2 Science Park Drive, #01-08, Ascent, Singapore 118222 Manufacturer's Name .......... : SKYWORK AI PTE.LTD. Address ................................. : 2 Science Park Drive, #01-08, Ascent, Singapore 118222 Product description Product name ........................ : Skywork note Trademark ........................... : Skywork Model and/or type reference : SWN100 Serial Model........................... : N/A Standards ............................. : FCC 47 CFR Part 2(2.1093) IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Guangdong Asia Hongke Test Technology Limited. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01.Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. : AiTSZ-260316041-1 Date of Test Date (s) of performance of tests ............. : Mar. 16, 2026 ~ Mar. 20, 2026 Date of Issue .......................................... : Apr. 22, 2026 Test Result.............................................. : Pass Reviewed by: Approved by: Ken Zou Jack Li Page 3 of 81 Report No.: AiTSZ-260316041FW1 ※ ※ Revision History※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Apr. 22, 2026 Jack Li Page 4 of 81 Report No.: AiTSZ-260316041FW1 TABLE OF CONTENTS 1. General Information .......................................................................................... 6 1.1. RF exposure limits .................................................................................. 6 1.2. Statement of Compliance ....................................................................... 7 1.3. EUT Description ..................................................................................... 8 1.4. Test specification(s) ................................................................................ 9 1.5. Ambient Condition ................................................................................. 9 1.6. Test Facility ............................................................................................. 9 2. SAR Measurement System ............................................................................... 10 2.1. SATIMO SAR Measurement Set-up Diagram ......................................... 10 2.2. Robot ................................................................................................... 11 2.3. Probe ................................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................ 12 2.4. Phantoms ............................................................................................. 13 2.5. Technical Data ...................................................................................... 14 2.6. Device Holder ...................................................................................... 15 2.7. Test Equipment List .............................................................................. 16 3. SAR Measurement Procedures ........................................................................ 19 3.1. Power Reference.................................................................................. 19 3.2. Area scan & Zoom scan ........................................................................ 19 3.3. Description of interpolation/extrapolation scheme ............................. 21 3.4. Volumetric Scan ................................................................................... 21 3.5. Power Drift .......................................................................................... 21 4. System Verification Procedure ......................................................................... 22 4.1. Tissue Verification ................................................................................ 22 4.1.1. Tissue Dielectric Parameter Check Results ..................................... 23 4.2. System Verification Procedure ............................................................. 24 4.2.1. System Verification Results ............................................................ 25 5. SAR measurement variabilit ............................................................................. 26 6. SAR Measurement Uncertainty ........................................................................ 27 7. RF Exposure Positions ...................................................................................... 29 7.1. Generic device ...................…

Text truncated - open the document above for the full version.

- Page 1 of 58 - Report No.: HB20260227008E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Test Report Product: Skywork note Trade Mark: Skywork Model Number: SWN100 FCC ID: 2BUX9-SWN100 Prepared for SKYWORK AI PTE.LTD. 2 Science Park Drive, #01-08, Ascent, Singapore 118222 Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 58 - Report No.: HB20260227008E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 6 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 6 1.2 TEST MODE .............................................................................................................................................................. 6 1.3 OPERATION CHANNEL LIST ........................................................................................................................................... 7 1.4 TEST SETUP .............................................................................................................................................................. 7 1.5 POWER SETTING CONFIGURATION PARAMETERS ............................................................................................................... 7 1.6 ANCILLARY EQUIPMENT .............................................................................................................................................. 7 2 SUMMARY OF TEST RESULT ............................................................................................................................... 8 3 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 9 3.1 TEST LABORATORY ..................................................................................................................................................... 9 3.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 9 3.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 9 3.4 TEST SOFTWARE ...................................................................................................................................................... 10 4 LIST OF TEST EQUIPMENT .................................................................................................................................11 5 TEST ITEM AND RESULTS ...................................................................................................................................13 5.1 ANTENNA REQUIREMENT .......................................................................................................................................... 13 5.1.1 Standard Requirement ............................................................................................................................. 13 5.1.2 Test Result ................................................................................................................................................. 13 5.2 CONDUCTED EMISSION ............................................................................................................................................. 14 5.2.1 Limits ........................................................................................................................................................ 14 5.2.2 Test Procedures ......................................................................................................................................... 14 5.2.3 Test Setup .................................................................................................................................................. 15 5.2.4 Test Result ................................................................................................................................................. 15 5.3 RADIATED EMISSION ................................................................................................................................................ 18 5.3.1 Limits ........................................................................................................................................................ 18 5.3.2 Test Procedures ......................................................................................................................................... 18 5.3.3 Test Setup .................................................................................................................................................. 18 5.3.4 Test Result ................................................................................................................................................. 19 5.3.5 Band Edge - Radiated ............................................................................................................................... 25 5.4 PEAK OUTPUT POWER ............................................................................................................................................. 29 5.4.1 Limit ..…

Text truncated - open the document above for the full version.
