2BV48-F11Tablet PC

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body. ISED Statement ‐ English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. ‐ French:Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux CNR exempts de licence d’Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes : (1) Cet appareil ne doit pas causer d’interférences. (2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l’appareil. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator & your body. Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 0 cm entre leradiateur et votre corps. The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. L'appareil destiné à fonctionner dans la bande 5150-5250 MHz est uniquement destiné à une utilisation en intérieur afin de réduire le potentiel d'interférences nuisibles aux systèmes mobiles par satellite cocanaux.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26041601305 2BV48-F11 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 27, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Huayue Zhijie Technology Co., Ltd. Address............................................ : 11th Floor, Building 1, Changyi Industrial Zone, No.1 Lirong Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Tablet PC Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Huayue Zhijie Technology Co., Ltd. Model/Type reference ...................... : F11 Listed Models ................................... : Refer to page 2 Rating ............................................... : Input: 5V2A Battery: 3.7V 6000mAh 22.2Wh Result ............................................... : PASS Report No.: CTA26041601305 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Tablet PC Model /Type : F11 Listed Models : T10, F11pro, F13, T08, Q8, G16, P30, P50, T12, S9, F17, Y20, Z07, Z08, Z104, Z105, F19 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model F11 and the test results for the main test model can cover the listed models. Applicant : Shenzhen Huayue Zhijie Technology Co., Ltd. Address : 11th Floor, Building 1, Changyi Industrial Zone, No.1 Lirong Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Manufacturer : Shenzhen Huayue Zhijie Technology Co., Ltd. Address : 11th Floor, Building 1, Changyi Industrial Zone, No.1 Lirong Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26041601305 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance ........................................................................................ 10 4.4 Evaluation Result ................................................................................................... 10 4.5 Simu…

Text truncated - open the document above for the full version.

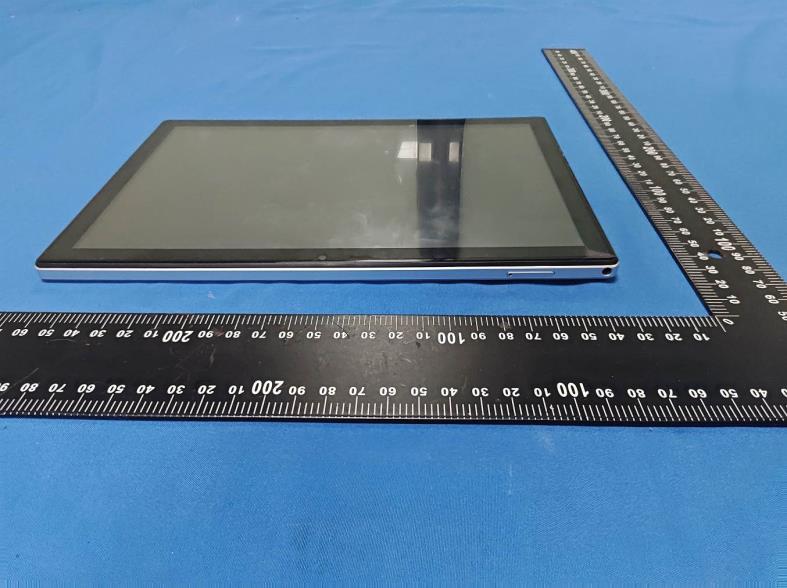

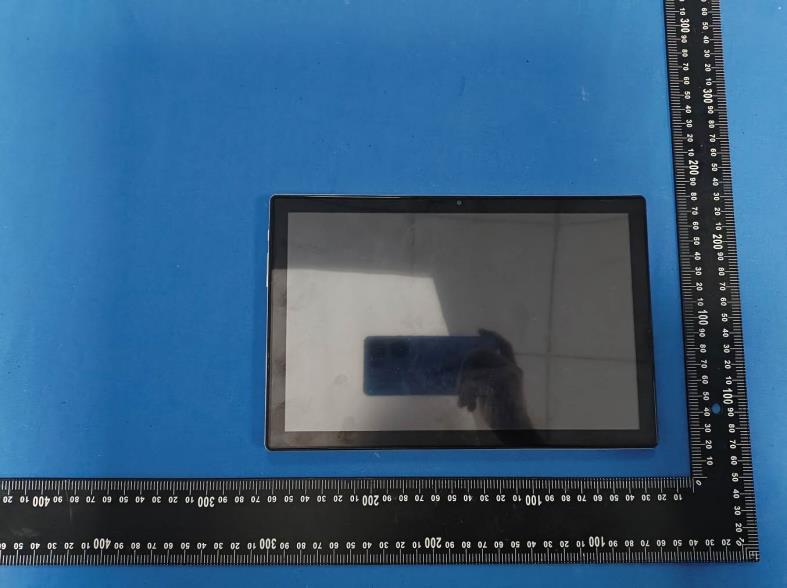

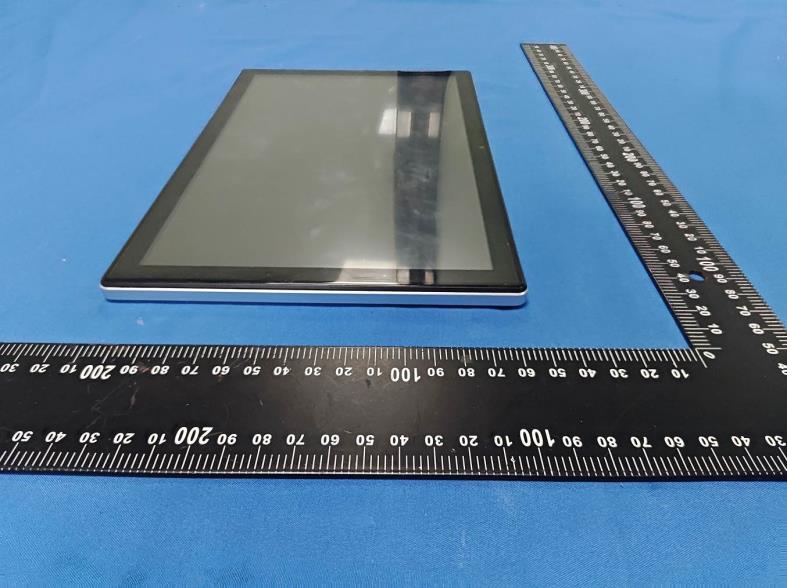

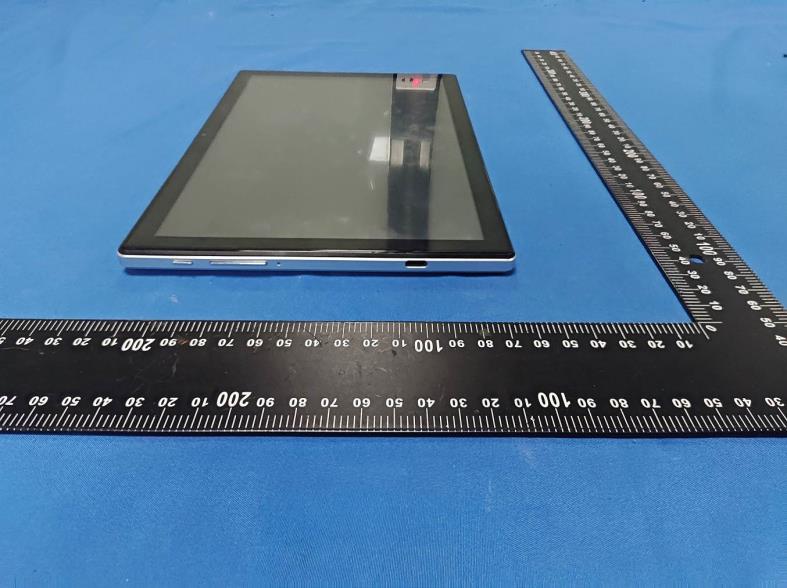

FCC ID: 2BV48-F11 Test Setup Photos of the EUT FCC ID: 2BV48-F11

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BV48-F11 Company : Shenzhen Huayue Zhijie Technology Co., Ltd. EUT : Tablet PC Model Number : F11 Report No. : CTA26041601303 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.360 2404.440 2419.800 0.5 PASS 2437 16.000 2429.040 2445.040 0.5 PASS 2462 15.760 2454.120 2469.880 0.5 PASS 11N20SISO Ant1 2412 16.440 2404.080 2420.520 0.5 PASS 2437 16.800 2428.640 2445.440 0.5 PASS 2462 16.640 2453.840 2470.480 0.5 PASS 11N40SISO Ant1 2422 35.760 2404.080 2439.840 0.5 PASS 2437 35.840 2419.160 2455.000 0.5 PASS 2452 35.760 2434.160 2469.920 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.734 2405.1664 2418.9004 --- --- 2437 13.709 2430.1714 2443.8804 --- --- 2462 13.731 2455.1629 2468.8939 --- --- 11G Ant1 2412 16.982 2403.5382 2420.5202 --- --- 2437 16.955 2428.5519 2445.5069 --- --- 2462 16.983 2453.5341 2470.5171 --- --- 11N20SISO Ant1 2412 17.992 2403.0186 2421.0106 --- --- 2437 17.969 2428.0329 2446.0019 --- --- 2462 17.986 2453.0325 2471.0185 --- --- 11N40SISO Ant1 2422 36.272 2403.9159 2440.1879 --- --- 2437 36.246 2418.9750 2455.2210 --- --- 2452 36.336 2433.9278 2470.2638 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 1.39 ≤30.00 PASS 2437 1.48 ≤30.00 PASS 2462 1.30 ≤30.00 PASS 11G Ant1 2412 1.79 ≤30.00 PASS 2437 1.93 ≤30.00 PASS 2462 1.79 ≤30.00 PASS 11N20SISO Ant1 2412 1.58 ≤30.00 PASS 2437 1.77 ≤30.00 PASS 2462 1.62 ≤30.00 PASS 11N40SISO Ant1 2422 1.51 ≤30.00 PASS 2437 1.56 ≤30.00 PASS 2452 1.43 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -24.01 ≤8.00 PASS 2437 -23.83 ≤8.00 PASS 2462 -24.82 ≤8.00 PASS 11G Ant1 2412 -30.26 ≤8.00 PASS 2437 -29.82 ≤8.00 PASS 2462 -29.71 ≤8.00 PASS 11N20SISO Ant1 2412 -30.34 ≤8.00 PASS 2437 -28.71 ≤8.00 PASS 2462 -29.42 ≤8.00 PASS 11N40SISO Ant1 2422 -32.51 ≤8.00 PASS 2437 -32.88 ≤8.00 PASS 2452 -32.24 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -10.79 -57.97 ≤-30.79 PASS High 2462 -10.85 -57.9 ≤-30.85 PASS 11G Ant1 Low 2412 -14.74 -47.19 ≤-34.74 PASS High 2462 -14.70 -58.02 ≤-34.7 PASS 11N20SIS O Ant1 Low 2412 -14.67 -45.12 ≤-34.67 PASS High 2462 -14.70 -58.09 ≤-34.7 PASS 11N40SIS O Ant1 Low 2422 -18.54 -46.41 ≤-38.54 PASS High 2452 -18.60 -58.32 ≤-38.6 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -10.78 -10.78 --- PASS 30~1000 -10.78 -68.27 ≤-30.78 PASS 1000~26500 -10.78 -55.06 ≤-30.78 PASS 2437 Reference -11.84 -11.84 --- PASS 30~1000 -11.84 -68.05 ≤-31.84 PASS 1000~26500 -11.84 -55.55 ≤-31.84 PASS 2462 Reference -12.32 -12.32 --- PASS 30~1000 -12.32 -67.77 ≤-32.32 PASS 1000~26500 -12.32 -55.47 ≤-32.32 PASS 11G Ant1 2412 Reference -15.00 -15.00 --- PASS 30~1000 -15.00 -67.51 ≤-35 PASS 1000~26500 -15.00 -55.46 ≤-35 PASS 2437 Reference -14.90 -14.90 --- PASS 30~1000 -14.90 -68.4 ≤-34.9 PASS 1000~26500 -14.90 -54.32 ≤-34.9 PASS 2462 Reference -16.24 -16.24 --- PASS 30~1000 -16.24 -67.32 ≤-36.24 PASS 1000~26500 -16.24 -55 ≤-36.24 PASS 11N20SISO Ant1 2412 Reference -15.43 -15.43 --- PASS 30~1000 -15.43 -67.39 ≤-35.43 PASS 1000~26500 -15.43 -55.27 ≤-35.43 PASS 2437 Reference -15.30 -15.30 --- PASS 30~1000 -15.30 -66.98 ≤-35.3 PASS 1000~26500 -15.30 -55.51 ≤-35.3 PASS 2462 Reference -15.51 -15.51 --- PASS 30~1000 -15.51 -66.94 ≤-35.51 PASS 1000~26500 -15.51 -54.97 ≤-35.51 PASS 11N40SISO Ant1 2422 Reference -19.18 -19.18 --- PASS 30~1000 -19.18 -68.23 ≤-39.18 PASS 1000~26500 -19.18 -55.67 ≤-39.18 PASS 2437 Reference -18.66 -18.66 --- PASS 30~1000 -18.66 -68.21 ≤-38.66 PASS 1000~26500 -18.66 -55.27 ≤-38.66 PASS 2452 Reference -19.03 -19.03 --- PASS 30~1000 -19.03 -67.66 ≤-39.03 PASS 1000~26500 -19.03 -53.96 ≤-39.03 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500

深圳市俊宇通讯器材有限公司 ShenZhen JY Communication Equipment Co.,Ltd. 客 户： 项 目： 日 期：2026.4.3 射 频： 公司地址：深圳市龙岗区吉华街道水径社区八约一街4号秋瑞创意园506 ShenZhen JY Communication Equipment Co.,Ltd. Address: Room 506, Qiurui Creative Park, No. 4, Bayue 1st Street, Shuijing Community, Jihua Street, Longgang District, Shenzhen City 测试环境 测试项目设备 1. S参数 （S-parameter） 1. 回波损耗 （Return Loss） 2. 电压驻波比（VSWR） 网络分析仪: Agilent E5071B×2 HP 8753D PROTEK A338 2. 有源测试 （Active ） 1. 发射功率 （TRP） 2. 接收灵敏度（TIS） 3. 频率误差 4. 屏灭、屏亮 1. 暗室：飞图 7x4x3 m (24探头3D) Chamber ETS 5x3x3 m (3D) Chamber 2.综合测试仪: Agilent 8960 ×2 CMW500 ×3/CMU200 3.无源测试 （Passive） 1.天线增益 （Gain） 2.天线效率 （Efficiency） 1. 暗室：飞图 7x4x3 m (24探头3D) Chamber ETS 5x3x3 m (3D) Chamber 2. 网络分析仪：Agilent E5071B ShenZhen JY Communication Equipment Co.,Ltd. 匹配电路WIFI/BT/GPS天线 ANT PA 0Ω NF NF 贵司原始匹配电路未做任何更改 ShenZhen JY Communication Equipment Co.,Ltd. Wifis11 ShenZhen JY Communication Equipment Co.,Ltd. 天线效率 ShenZhen JY Communication Equipment Co.,Ltd. 2.4GWIFI&BT方向图 ShenZhen JY Communication Equipment Co.,Ltd. 5.8G WIFI方向图 ShenZhen JY Communication Equipment Co.,Ltd. 提示说明 提示： 一 、此数据只针对客户提供样机所产生的数据，不代表客户最终量产状态； 二、请客户仔细确认我司报告中，匹配电路修改及环境处理说明； 三、量产前请配合提供试产样机来我司二次验证；如有更换物料、更新软件及环境 处理等，请提前告知； 四、如客户需要第三方复测，或者送客户测试，请到我司验证后再送样机；防止机 器与调试机有差异； 五：我司不接受，我们调试以外的机器数据和其它暗室测试的数据，但可以参考， 认证暗室除外，如数据有差异，一切以调试机为准去找原因。 ShenZhen JY Communication Equipment Co.,Ltd. ShenZhen JY Communication Equipment Co.,Ltd. 谢谢! 此报告中所包含的一切信息、版权归我司所有，再未经我司许可的情况下，请勿散播给第三 方 ShenZhen JY Communication Equipment Co.,Ltd.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26041601301 2BV48-F11 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Apr. 27, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Shenzhen Huayue Zhijie Technology Co., Ltd. Address ...........................................: 11th Floor, Building 1, Changyi Industrial Zone, No.1 Lirong Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Tablet PC Trade Mark ......................................: N/A Manufacturer ...................................: Shenzhen Huayue Zhijie Technology Co., Ltd. Model/Type reference .....................: F11 Listed Models ..................................: Refer to page 2 Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: 5V2A Battery: 3.7V 6000mAh 22.2Wh Result ..............................................: PASS Report No.: CTA26041601301 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Tablet PC Model /Type : F11 Listed Models : T10, F11pro, F13, T08, Q8, G16, P30, P50, T12, S9, F17, Y20, Z07, Z08, Z104, Z105, F19 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model F11 and the test results for the main test model can cover the listed models. Applicant : Shenzhen Huayue Zhijie Technology Co., Ltd. Address : 11th Floor, Building 1, Changyi Industrial Zone, No.1 Lirong Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Manufacturer : Shenzhen Huayue Zhijie Technology Co., Ltd. Address : 11th Floor, Building 1, Changyi Industrial Zone, No.1 Lirong Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26041601301 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 …

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BV48-F11 Company : Shenzhen Huayue Zhijie Technology Co., Ltd. EUT : Tablet PC Model Number : F11 Report No. : CTA26041601301 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.648 2401.688 2402.336 0.5 PASS 2440 0.628 2439.692 2440.320 0.5 PASS 2480 0.644 2479.692 2480.336 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0116 2401.5151 2402.5267 --- --- 2440 1.0027 2439.5190 2440.5217 --- --- 2480 1.0116 2479.5160 2480.5276 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 0.36 ≤30 PASS 2440 0.11 ≤30 PASS 2480 0.15 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.35 ≤8.00 PASS 2440 -15.44 ≤8.00 PASS 2480 -15.48 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 0.32 -53.76 ≤-19.68 PASS High 2480 -0.07 -52.51 ≤-20.07 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -1.16 -1.16 --- PASS 30~1000 -1.16 -67.94 ≤-21.16 PASS 1000~26500 -1.16 -42.67 ≤-21.16 PASS 2440 Reference -0.49 -0.49 --- PASS 30~1000 -0.49 -67.27 ≤-20.49 PASS 1000~26500 -0.49 -42.08 ≤-20.49 PASS 2480 Reference -1.60 -1.60 --- PASS 30~1000 -1.60 -68.53 ≤-21.6 PASS 1000~26500 -1.60 -42.96 ≤-21.6 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.42 0.63 0.6667 66.67 1.76 --- --- 2440 0.42 0.63 0.6667 66.67 1.76 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -59.37 2.46 1.76 40.05 ≤54 PASS AV 2382.740 -58.27 2.46 1.76 41.15 ≤54 PASS AV 2390.000 -58.86 2.46 1.76 40.56 ≤54 PASS Peak 2310.000 -51.65 2.46 0.00 46.01 ≤74 PASS Peak 2367.410 -48.17 2.46 0.00 49.49 ≤74 PASS Peak 2390.000 -50.54 2.46 0.00 47.12 ≤74 PASS High 2480 AV 2483.500 -57.72 2.46 1.80 41.74 ≤54 PASS AV 2483.840 -56.98 2.46 1.80 42.48 ≤54 PASS AV 2500.000 -58.47 2.46 1.80 40.99 ≤54 PASS Peak 2483.500 -48.26 2.46 0.00 49.4 ≤74 PASS Peak 2484.000 -46.13 2.46 0.00 51.53 ≤74 PASS Peak 2500.000 -51.04 2.46 0.00 46.62 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26041601303 2BV48-F11 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 27, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Huayue Zhijie Technology Co., Ltd. Address ............................................ : 11th Floor, Building 1, Changyi Industrial Zone, No.1 Lirong Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen City, Guangdong Province, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Tablet PC Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Huayue Zhijie Technology Co., Ltd. Model/Type reference ...................... : F11 Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Ratings ............................................. : Input: 5V2A Battery: 3.7V 6000mAh 22.2Wh Result ............................................... : PASS Report No.: CTA26041601303 Page 2 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Tablet PC Model /Type : F11 Listed Models : T10, F11pro, F13, T08, Q8, G16, P30, P50, T12, S9, F17, Y20, Z07, Z08, Z104, Z105, F19 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model F11 and the test results for the main test model can cover the listed models. Applicant : Shenzhen Huayue Zhijie Technology Co., Ltd. Address : 11th Floor, Building 1, Changyi Industrial Zone, No.1 Lirong Road, Xinshi Community, Dalang Street, Lo…
