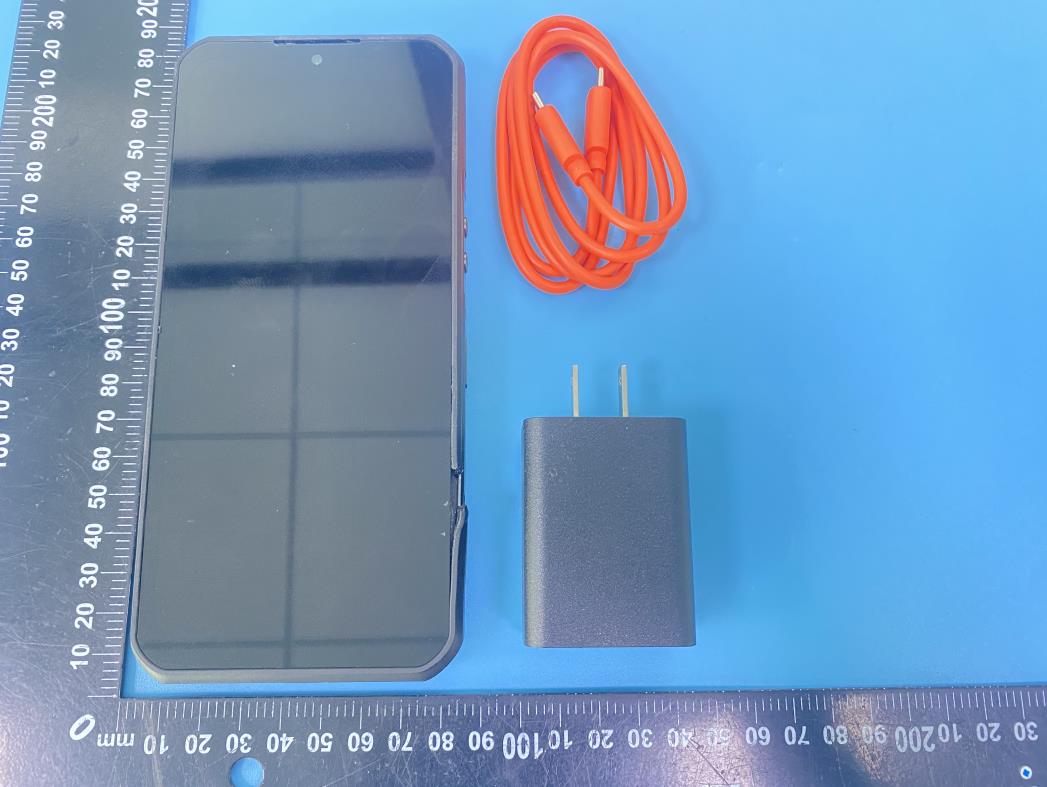

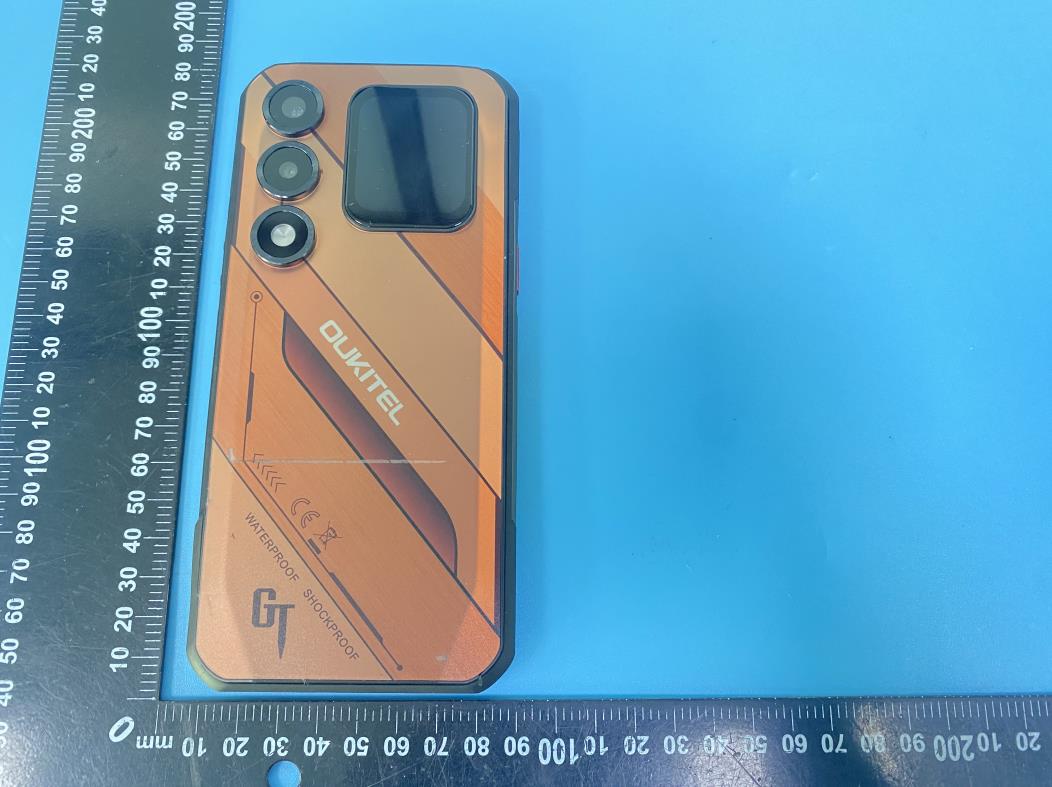

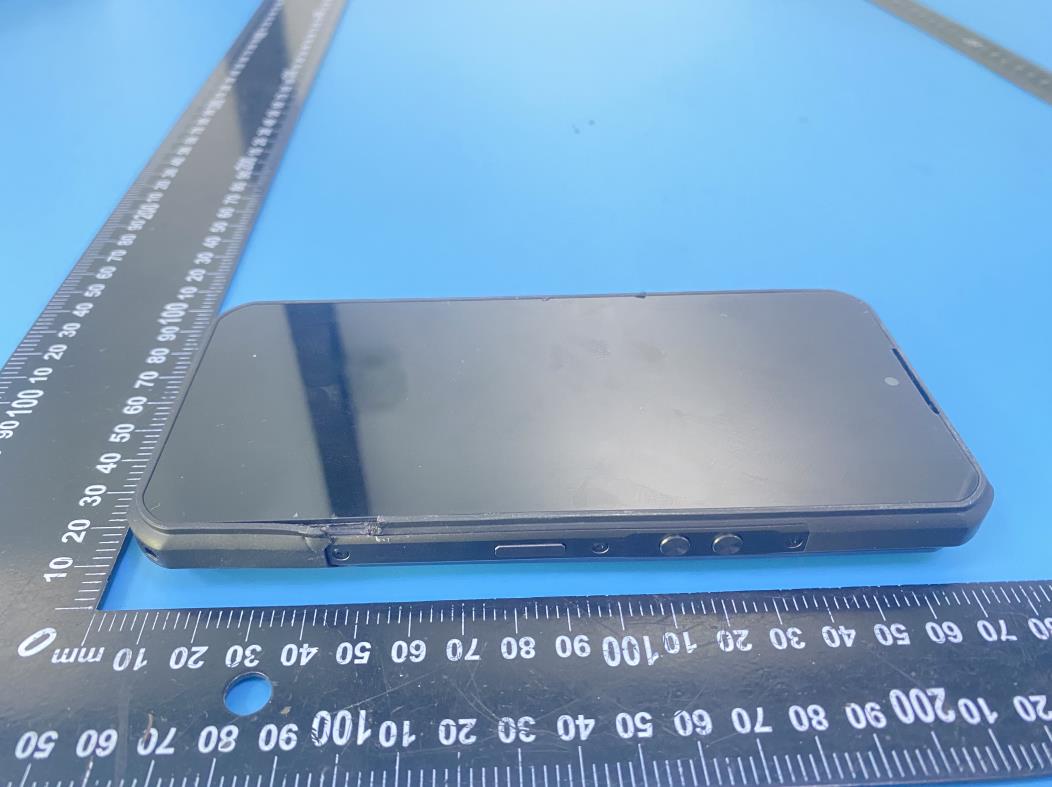

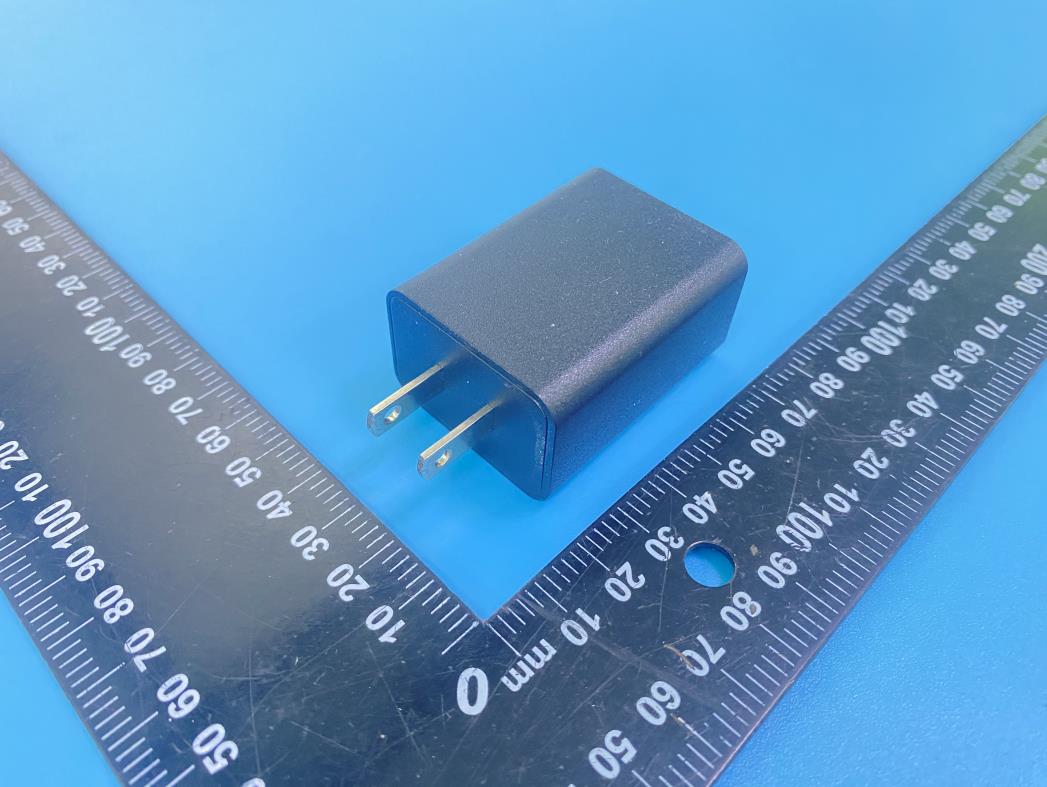

Page 1 of 307 Report No.: N26011600911E FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093) and IEEE Std 1528-2013 Product Name： Smart phone Brand Name： OUKITEL Model Name： WP66 Family Model： WP66 GT, WP66 S, WP66 Pro, WP66 Plus, WP66 Ultra, WP66 MAX, WP66 TITAN, WP66 4G, WP66 5G Report No.： N26011600911E FCC ID： 2BV5C-WP66 Prepared for YUNJI (HONG KONG) HOLDINGS CO.,LIMITED MAXGRAND PLAZA NO.3 TAI YAU STREET SAN PO KONG HK Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Page 2 of 307 Report No.: N26011600911E TEST RESULT CERTIFICATION Applicant’s name ................. : YUNJI (HONG KONG) HOLDINGS CO.,LIMITED Address ................................. : MAXGRAND PLAZA NO.3 TAI YAU STREET SAN PO KONG HK Manufacturer's Name .......... : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Product description Product name ........................ : Smart phone Brand Name ......................... : OUKITEL Model and/or type reference .............................. : WP66 Family Model ......................... : WP66 GT, WP66 S, WP66 Pro, WP66 Plus, WP66 Ultra, WP66 MAX, WP66 TITAN, WP66 4G, WP66 5G Standards ............................. : FCC 47 CFR Part 2(2.1093) IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................ S2601190073-1# Date of Test Date (s) of performance of tests ............. : Jan. 24, 2026~ Feb. 25, 2026 Date of Issue .......................................... : Apr. 10, 2026 Test Result .............................................. : Pass Prepared By : Reviewed By : Approved By : Owen Xiao (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 307 Report No.: N26011600911E ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Apr. 10, 2026 Owen Xiao Page 4 of 307 Report No.: N26011600911E TABLE OF CONTENTS 1. General Information .......................................................................................... 6 1.1. RF exposure limits .................................................................................. 6 1.2. Statement of Compliance ....................................................................... 7 1.3. EUT Description ..................................................................................... 7 1.4. Test specification(s) .............................................................................. 10 1.5. Ambient Condition ............................................................................... 10 1.6. Facilities And Accreditations ................................................................ 10 1.6.1. Facilities ......................................................................................... 10 1.6.2. Laboratory Accreditations And Listings .......................................... 10 2. SAR Measurement System ............................................................................... 11 2.1. SATIMO SAR Measurement Set-up Diagram ......................................... 11 2.2. Robot ................................................................................................... 12 2.3. E-Field Probe ........................................................................................ 13 2.3.1. E-Field Probe Calibration ................................................................ 13 2.4. SAM phantoms .................................................................................... 14 2.4.1. Technical Data ................................................................................ 15 2.5. Device Holder ...................................................................................... 16 2.6. Test Equipment List .............................................................................. 17 3. SAR Measurement Procedures ........................................................................ 19 3.1. Power Reference.................................................................................. 19 3.2. Area scan & Zoom scan ........................................................................ 19 3.3. Description of interpolation/extrapolation scheme ............................. 21 3.4. Volumetric Scan ................................................................................... 21 3.5. Power Drift .......................................................................................... 21 4. System Verification Procedure ......................................................................... 22 4.1. Tissue Verification ................................................................................ 22 4.1.1. Tissue Dielectric Parameter Check Results ..................................... 23 4.2. System Verification Procedure ............................................................. 24 4.2.1. System Verification Results ...........................…

Text truncated - open the document above for the full version.

Page 1 of 27 Report No.: N26011600935E ` FCC RADIO TEST REPORT FCC ID: 2BV5C-WP66 Product： Smart phone Trade Mark： OUKITEL Model Name： WP66 Family Model： WP66 GT, WP66 S, WP66 Pro, WP66 Plus, WP66 Ultra, WP66 MAX, WP66 TITAN, WP66 4G, WP66 5G Report No.： N26011600935E Issue Date: Apr. 10, 2026 Prepared for YUNJI (HONG KONG) HOLDINGS CO.,LIMITED MAXGRAND PLAZA NO.3 TAI YAU STREET SAN PO KONG HK Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Page 2 of 27 Report No.: N26011600935E ` TEST RESULT CERTIFICATION Applicant’s name ................. : YUNJI (HONG KONG) HOLDINGS CO.,LIMITED Address ................................. : MAXGRAND PLAZA NO.3 TAI YAU STREET SAN PO KONG HK Manufacturer's Name .......... : SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD Address ................................. : A2 2F BUILDING ENET NEW INDUSTRIAL PARK, DAFU INDUSTRIAL ZONE, GUANLAN,LONGHUA SHENZHEN, 518XXX China Product description Product name............................ : Smart phone Model and/or type reference : WP66 Family Model ......................... : WP66 GT, WP66 S, WP66 Pro, WP66 Plus, WP66 Ultra, WP66 MAX, WP66 TITAN, WP66 4G, WP66 5G Test Sample number .............. : S2601190074-1# Standards ............................. : FCC Part15.225 Test procedure ............................... : ANSI C63.10-2020 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : Jan. 16, 2026 ~ Apr. 10, 2026 Date of Issue .......................................... : Apr. 10, 2026 Test Result.............................................. : Pass Prepared By : Reviewed By : Approved By : Allen Liu (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 27 Report No.: N26011600935E ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS (CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 TEST CONFIGURATION 12 4.1.3 TEST PROCEDURE 12 4.1.4 TEST RESULT 13 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1 RADIATED EMISSION LIMITS 15 4.2.2 TEST PROCEDURE 16 4.2.3 DEVIATION FROM TEST STANDARD 16 4.2.4 TEST SETUP 17 4.2.5 TEST RESULTS (BELOW 30MHZ) 18 4.2.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 22 5 . BANDWIDTH TEST 24 5.1 TEST PROCEDURE 24 5.2 DEVIATION FROM STANDARD 24 5.3 TEST SETUP 24 5.4 TEST RESULTS 25 6. FREQUENCY TOLERANCE 26 Page 4 of 27 Report No.: N26011600935E ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.225) Standard Section Test Item Judgment Remark 15.207 Conducted Emission Pass 15.205(a) 15.209 15.225(abcd) Radiated Spurious Emission Pass 15.225 15.215(c) 20dB Bandwidth Pass 15.225(e) Frequency Tolerance Pass 15.203 Antenna Requirement Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 27 Report No.: N26011600935E ` 1.1 TEST FACILITY All measurement facilities used to collect the measurement data are located at No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR Publication 22. Site Description CNAS-Lab. : The Certificate Registration Number is L5516. IC-Registration The Certificate Registration Number is 9270A. CAB identifier:CN0074 FCC- Accredited Test Firm Registration Number: 463705. Designation Number: CN1184 A2LA-Lab. The Certificate Registration Number is 4298.01 This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2017 General requirements for the competence of testing and calibration laboratories. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009). Name of Firm : Shenzhen NTEK Testing Technology Co., Ltd. Site Location : No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China. 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 27 Report No.: N26011600935E ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Smart phone Trade Mark OUKITEL Model Name WP66 Family Model WP66 GT, WP66 S, WP66 Pro, WP66 Plus, WP66 Ultra, WP66 MAX, WP66 TITAN, WP66 4G, WP66 5G Model Difference All models are the same circuit and RF module, except for model names. Product Description The EUT is a Smart phone Operation Frequency: 13.56MHz Modulation Type: ASK Number Of Channel …

Text truncated - open the document above for the full version.

Shenzhen Qixin Tongda Technology Co., Ltd. Room 503, Building 211, Tairan Fourth Road, Chegongmiao, Futian District, Shenzhen Antenna Test Report MODEL: S196 GSM: B2/B3/B5/B8 CDMA:BC0/BC1/BC10 WCDMA: B1/B2/B4/B5/B8/B19 TDD:B34/B38/B39/B40/B41F FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28AB/ B66/B71 5G:n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n66/n71/n77/n78 project：XIONG（187 1893 6792） DATE：2026-02-28 1. Test Project 2.Test Equipment Test Project Equipment 1. S Parameter 1. Return Loss(RL) 2. VSWR Network Analyzer： Agilent 5071B 2. RF Test （2/3/4/5G） 1. power 2. level 3.TRP/TIS Comprehensive Test： SP9500/CMW500/8960 Test Environment： Anechoic Chamber Agilent 5071B （S Parameter（RL/VSWR）Test Equipment） SP9500 （5GTest Equipment） Agilent 8960 （2G/3G Test Equipment） CMW 500 （2G/3G/4GTest Equipment） 3.TestEnvironment Microwave Anechoic Chamber 4.Test Steps Passive VSWR/RL Test Steps: 50Ω Coaxial Cable 100mm Length Copper Pipe 5071B Network Analyzer Test Fixture Active TRP/TIS Test Steps： Open Computer OTA Test Software Open Turntable Switch And Reset To zero Open 8960/CMW500 Test Equipment Test mobile phone insert test SIM card and Put into the microwave darkroom to connect OTA Software automatic testing Output Data 5.Antenna Gain Band Max Gain Band Max Gain GSM850 -0.87 NR-B1 -0.17 GSM900 -0.71 NR-B2 0.47 DCS1800 0.85 NR-B3 0.85 PCS1900 0.47 NR-B5 -0.87 WCDMA1 -0.17 NR-B7 -0.47 WCDMA2 0.47 NR-B8 -0.71 WCDMA4 0.54 NR-B12 -1.22 WCDMA5 -0.87 NR-B20 -0.87 WCDMA8 -0.71 NR-B25 0.47 WCDMA19 -0.87 NR-B28 -1.33 LTE-B1 -0.17 NR-B38 -0.78 LTE-B2 0.47 NR-B40 -0.58 LTE-B3 0.85 NR-B41 -0.79 LTE-B4 0.54 NR-B66 0.58 LTE-B5 -0.87 NR-B71 -2.08 LTE-B7 -0.47 NR-B77 0.53 LTE-B8 -0.71 NR-B78 0.50 LTE-B12 -1.22 LTE-B13 -1.45 BC0 -0.87 LTE-B17 -1.25 BC1 0.47 LTE-B18 -0.87 BC10 -0.87 LTE-B19 -0.89 LTE-B20 -0.87 LTE-B25 0.47 Bluetooth -0.13 LTE-B26 -0.87 WIFI-2.4G -0.13 LTE-B28 -1.33 WIFI-5.1G -0.38 LTE-B66 0.58 WIFI-5.8G -0.50 LTE-B71 -2.08 GPS -0.31 LTE-B34 0.17 LTE-B38 -0.78 LTE-B39 0.85 LTE-B40 -0.58 LTE-B41 -0.79 6.3D Lobe Diagram GPS BT/WIFI-2.4 5.1G-WIFI 5.8G-WIFI NFC Physical parameters of antenna body physical properties size W 0.5mm G 0.5mm T 0.04mm N 3.6 SIZE 43mm*43mm 7. Antenna drawing 8.Introduction to Antenna Information S196 Antenna type and frequency band MAIN ANTENNA(PIFA):2G/3G/4G/5G DIV ANTENNA(PIFA):2G/3G/4G/5G GPS/WIFI/BT ANTENNA(PIFA):L1/2.4GWIFI/BT Antenna materia FPC

Page 304 of 307 Report No.: N26011600911E <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -29.27 - 53.6 - Feb. 21, 2024 -25.738 12.07 55.969 2.369 Feb. 13, 2025 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 305 of 307 Report No.: N26011600911E <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.57 - 54.5 - Feb. 21, 2024 -23.352 8.674 55.439 0.939 Feb. 13, 2025 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 306 of 307 Report No.: N26011600911E <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.64 - 25.8 - Feb. 21, 2024 -9.494 1.51 26.574 0.774 Feb. 13, 2025 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 307 of 307 Report No.: N26011600911E <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.91 - 38.53 - Feb. 21, 2024 -15.039 0.865 40.791 2.261 Feb. 13, 2025 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _____________________________________ END_______________________________________

Page 278 of 307 Report No.: N26011600911E Page 279 of 307 Report No.: N26011600911E Page 280 of 307 Report No.: N26011600911E Page 281 of 307 Report No.: N26011600911E Page 282 of 307 Report No.: N26011600911E Page 283 of 307 Report No.: N26011600911E Page 284 of 307 Report No.: N26011600911E Page 285 of 307 Report No.: N26011600911E Page 286 of 307 Report No.: N26011600911E Page 287 of 307 Report No.: N26011600911E Page 288 of 307 Report No.: N26011600911E Page 289 of 307 Report No.: N26011600911E Page 290 of 307 Report No.: N26011600911E Page 291 of 307 Report No.: N26011600911E Page 292 of 307 Report No.: N26011600911E Page 293 of 307 Report No.: N26011600911E Page 294 of 307 Report No.: N26011600911E Page 295 of 307 Report No.: N26011600911E Page 296 of 307 Report No.: N26011600911E Page 297 of 307 Report No.: N26011600911E Page 298 of 307 Report No.: N26011600911E Page 299 of 307 Report No.: N26011600911E Page 300 of 307 Report No.: N26011600911E <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -29.73 - 52.50 - Feb. 21, 2024 29.875 0.488 52.798 0.298 Feb. 13, 2025 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 301 of 307 Report No.: N26011600911E <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -42.84 - 50.50 - Feb. 21, 2024 -46.216 7.88 51.571 1.071 Feb. 13, 2025 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 302 of 307 Report No.: N26011600911E <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.53 - 44.8 - Feb. 21, 2024 -25.579 4.276 44.876 0.076 Feb. 13, 2025 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 303 of 307 Report No.: N26011600911E <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.28 - 46.2 - Feb. 21, 2024 -27.206 16.86 46.948 0.748 Feb. 13, 2025 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data

Page 255 of 307 Report No.: N26011600911E Page 256 of 307 Report No.: N26011600911E Page 257 of 307 Report No.: N26011600911E Page 258 of 307 Report No.: N26011600911E Page 259 of 307 Report No.: N26011600911E Page 260 of 307 Report No.: N26011600911E Page 261 of 307 Report No.: N26011600911E Page 262 of 307 Report No.: N26011600911E Page 263 of 307 Report No.: N26011600911E Page 264 of 307 Report No.: N26011600911E Page 265 of 307 Report No.: N26011600911E Page 266 of 307 Report No.: N26011600911E Page 267 of 307 Report No.: N26011600911E Page 268 of 307 Report No.: N26011600911E Page 269 of 307 Report No.: N26011600911E Page 270 of 307 Report No.: N26011600911E Page 271 of 307 Report No.: N26011600911E Page 272 of 307 Report No.: N26011600911E Page 273 of 307 Report No.: N26011600911E Page 274 of 307 Report No.: N26011600911E Page 275 of 307 Report No.: N26011600911E Page 276 of 307 Report No.: N26011600911E Page 277 of 307 Report No.: N26011600911E

Page 226 of 307 Report No.: N26011600911E F. 3D Image 3D screen shot Hot spot position Page 227 of 307 Report No.: N26011600911E 37# SAR Measurement at NR band 78 (Cheek, Left) Date of measurement: 26/1/2026 A. Experimental conditions. Probe 0725-EPGO-448 ConvF 1.32 Area Scan dx=15mm dy=15mm, Complete Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete Phantom Left head Device Position Cheek Band NR band 78 Signal NR FDD Channel Center [NR-ARFCN] / Channel Center [MHz] Middle (633334)/ frequency 3500.01 Mhz Cell Bandwidth 20 Mhz Modulation DFT-s-OFDM - QPSK subcarrier spacing (SCS) 30 kHz Middle TX Frequency (MHz) 3500.01 B. Permitivity Middle TX Frequency (MHz) 3500.01 Relative permitivity (real part) 41.28 Relative permitivity (imaginary part) 19.41 Conductivity (S/m) 0.90 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-64.00, Y=-20.00 ; SAR Peak: 0.45 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.249 SAR 1g (W/Kg) 0.328 Variation (%) -3.60 Horizontal validation criteria: minimum distance (mm) 0.00 Vertical validation criteria: SAR ratio M2/M1 (%) 0.00 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.515 0.350 0.240 0.224 0.172 0.159 0.125 Page 228 of 307 Report No.: N26011600911E F. 3D Image 3D screen shot Hot spot position Page 229 of 307 Report No.: N26011600911E 38# SAR Measurement at NR band 5 (Body, Validation Plane) Date of measurement: 26/1/2026 A. Experimental conditions. Probe 0725-EPGO-448 ConvF 1.32 Area Scan dx=15mm dy=15mm, Complete Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete Phantom Left head Device Position Cheek Band NR band 78 Signal NR FDD Channel Center [NR-ARFCN] / Channel Center [MHz] Middle (633334)/ frequency 3500.01 Mhz Cell Bandwidth 20 Mhz Modulation DFT-s-OFDM - QPSK subcarrier spacing (SCS) 30 kHz Middle TX Frequency (MHz) 3500.01 B. Permitivity Middle TX Frequency (MHz) 3500.01 Relative permitivity (real part) 41.28 Relative permitivity (imaginary part) 19.41 Conductivity (S/m) 0.90 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=15.00, Y=-57.00 ; SAR Peak: 0.99 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.300 SAR 1g (W/Kg) 0.563 Variation (%) 0.55 Horizontal validation criteria: minimum distance (mm) 17.89 Vertical validation criteria: SAR ratio M2/M1 (%) 68.42 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.939 0.573 0.377 0.011 0.171 0.121 0.085 Page 230 of 307 Report No.: N26011600911E F. 3D Image 3D screen shot Hot spot position Page 231 of 307 Report No.: N26011600911E 14. Appendix D. Calibration Certificate Table of contents E Field Probe - 0725-EPGO-448 750 MHz Dipole - SN 03/15 DIP 0G750-355 835 MHz Dipole - SN 03/15 DIP 0G835-347 1800 MHz Dipole - SN 03/15 DIP 1G800-349 1900 MHz Dipole - SN 03/15 DIP 1G900-350 2450 MHz Dipole - SN 03/15 DIP 2G450-352 2600 MHz Dipole - SN 03/15 DIP 2G600-356 5000-6000 MHz Dipole - SN 13/14 WGA 33 Justification of the extended calibration Page 232 of 307 Report No.: N26011600911E Page 233 of 307 Report No.: N26011600911E Page 234 of 307 Report No.: N26011600911E Page 235 of 307 Report No.: N26011600911E Page 236 of 307 Report No.: N26011600911E Page 237 of 307 Report No.: N26011600911E Page 238 of 307 Report No.: N26011600911E Page 239 of 307 Report No.: N26011600911E Page 240 of 307 Report No.: N26011600911E Page 241 of 307 Report No.: N26011600911E Page 242 of 307 Report No.: N26011600911E Page 243 of 307 Report No.: N26011600911E Page 244 of 307 Report No.: N26011600911E Page 245 of 307 Report No.: N26011600911E Page 246 of 307 Report No.: N26011600911E Page 247 of 307 Report No.: N26011600911E Page 248 of 307 Report No.: N26011600911E Page 249 of 307 Report No.: N26011600911E Page 250 of 307 Report No.: N26011600911E Page 251 of 307 Report No.: N26011600911E Page 252 of 307 Report No.: N26011600911E Page 253 of 307 Report No.: N26011600911E Page 254 of 307 Report No.: N26011600911E

Page 146 of 307 Report No.: N26011600911E 10# System check at 3500 MHz Date of measurement: 6/2/2026 A. Experimental conditions. Probe 0725-EPGO-448 ConvF 1.39 Area Scan dx=12mm dy=12mm, Complete Zoom Scan 7x7x7,dx=5mm dy=5mm dz=5.0mm,Complete Phantom Validation plane Device Position Dipole Band CW3500 Signal CW Channels/Frequency Middle B. Permitivity Middle TX Frequency (MHz) 3500.00 Relative permitivity (real part) 37.64 Relative permitivity (imaginary part) 14.62 Conductivity (S/m) 2.84 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=5.00, Y=0.00 ; SAR Peak: 11.65 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 2.652 SAR 1g (W/Kg) 6.134 Variation (%) -0.18 Horizontal validation criteria: minimum distance (mm) 10.00 Vertical validation criteria: SAR ratio M2/M1 (%) 48.12 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 11.167 6.540 3.147 1.540 0.765 0.390 0.206 Page 147 of 307 Report No.: N26011600911E F. 3D Image 3D screen shot Hot spot position Page 148 of 307 Report No.: N26011600911E 11# System check at 3700 MHz Date of measurement: 5/2/2026 A. Experimental conditions. Probe 0725-EPGO-448 ConvF 1.35 Area Scan dx=12mm dy=12mm, Complete Zoom Scan 7x7x7,dx=5mm dy=5mm dz=5.0mm,Complete Phantom Validation plane Device Position Dipole Band CW3700 Signal CW Channels/Frequency Middle B. Permitivity Middle TX Frequency (MHz) 3700.00 Relative permitivity (real part) 37.03 Relative permitivity (imaginary part) 15.10 Conductivity (S/m) 3.10 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=5.00, Y=0.00 ; SAR Peak: 11.39 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 2.584 SAR 1g (W/Kg) 6.057 Variation (%) -0.19 Horizontal validation criteria: minimum distance (mm) 10.00 Vertical validation criteria: SAR ratio M2/M1 (%) 47.69 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 12.795 6.405 2.293 1.490 0.620 0.357 0.145 Page 149 of 307 Report No.: N26011600911E F. 3D Image 3D screen shot Hot spot position Page 150 of 307 Report No.: N26011600911E 12# System check at 5200 MHz Date of measurement: 31/1/2026 A. Experimental conditions. Probe 0725-EPGO-448 ConvF 1.37 Area Scan dx=10mm dy=10mm, Complete Zoom Scan 7x7x12,dx=4mm dy=4mm dz=2.0mm,Complete Phantom Validation plane Device Position Dipole Band CW5200 Signal CW Channels/Frequency Middle B. Permitivity Middle TX Frequency (MHz) 5200.00 Relative permitivity (real part) 36.72 Relative permitivity (imaginary part) 15.76 Conductivity (S/m) 4.55 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=-2.00 ; SAR Peak: 5.27 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.554 SAR 1g (W/Kg) 1.625 Variation (%) -0.31 Horizontal validation criteria: minimum distance (mm) 8.00 Vertical validation criteria: SAR ratio M2/M1 (%) 58.81 E. Z Axis Scan Z (mm) 0.00 2.00 4.00 6.00 8.00 10.0 0 12.0 0 14.0 0 16.0 0 18.0 0 20.0 0 22.0 0 SAR (W/Kg) 4.86 4 3.12 2 1.83 6 1.14 4 0.71 9 0.48 0 0.32 6 0.22 2 0.14 9 0.11 1 0.08 8 0.04 9 Page 151 of 307 Report No.: N26011600911E F. 3D Image 3D screen shot Hot spot position Page 152 of 307 Report No.: N26011600911E 13# System check at 5800 MHz Date of measurement: 1/2/2026 A. Experimental conditions. Probe 0725-EPGO-448 ConvF 1.35 Area Scan dx=10mm dy=10mm, Complete Zoom Scan 7x7x12,dx=4mm dy=4mm dz=2.0mm,Complete Phantom Validation plane Device Position Dipole Band CW5800 Signal CW Channels/Frequency Middle B. Permitivity Middle TX Frequency (MHz) 5800.00 Relative permitivity (real part) 35.44 Relative permitivity (imaginary part) 15.94 Conductivity (S/m) 5.13 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=-2.00 ; SAR Peak: 5.87 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.577 SAR 1g (W/Kg) 1.726 Variation (%) 0.89 Horizontal validation criteria: minimum distance (mm) 5.66 Vertical validation criteria: SAR ratio M2/M1 (%) 65.80 E. Z Axis Scan Z (mm) 0.00 2.00 4.00 6.00 8.00 10.0 0 12.0 0 14.0 0 16.0 0 18.0 0 20.0 0 22.0 0 SAR (W/Kg) 5.17 6 3.15 2 0.84 8 1.25 1 0.42 8 0.54 7 0.23 6 0.26 5 0.12 3 0.15 0 0.09 1 0.08 7 Page 153 of 307 Report No.: N26011600911E F. 3D Image 3D screen shot Hot spot position Page 154 of 307 Report No.: N26011600911E 13. Appendix C. Plots of High SAR Measurement 1# SAR Measurement at GPRS850 (Cheek, Right) 2# SAR Measurement at GPRS850 (Body, Validation Plane) 3# SAR Measurement at GPRS1900 (Cheek, Right) 4# SAR Measurement at GPRS1900 (Cheek, Validation Plane) 5# SAR Measurement at Band 2 (1900) (Cheek, Right) 6# SAR Measurement at Band 2 (1900) (Cheek, Validation Plane) 7# SAR Measurement at Band 4 (1700) (Cheek, Right) 8# SAR Measurement at Band 4 (1700) (Cheek, Validation Plane) 9# SAR Measurement at Band 5 (850) (Cheek, Left) 10# SAR Measurement at Band 5 (850) (Body, Validation Plane) 11# SAR Measurement at U-NII-1 (Cheek, Left) 12# SAR Measurement at U-NII-1 (Body, Validation Plane) 13# SAR Measurement at U-NII-3 (Cheek, Left) 14# SAR Measurement at U-NII-3 (Body, Validation Plane) 15# SAR Measurement at ISM (Cheek, Left) 16# SAR Measurement at ISM (Body, Validation Plane) 17# SAR Measurement at LTE band 2 (Cheek, Left) 18# SAR Measurement at LTE band 2 (Cheek, Validation Plane) 19# SAR Measurement at LTE band 4 (Cheek, Left) 20# SAR Measurement at LTE band 4 (Cheek, Validation Plane) 21# SAR Measurement at LTE band 5 (Cheek, Left) 22# SAR Measurement at LTE band 5 (Body, Validation Plane) 23# SAR Measurement at LTE band 7 (Cheek, Left) 24# SAR Measurement at LTE band 7 (Body, Validation Plane) 25# SAR Measurement at LTE band 12 (Cheek, Left) 26# SAR Measurement at LTE band 12 (Body, Validation Plane) 27# SAR Measurement at LTE band 17 (Cheek, Left) 28# SAR Measurement at LTE band 17 (Body, Validation Plane) 29# SAR Measurement at LTE band 25 (Cheek, Left) 30# SAR Measurement at LTE band 25 (Cheek, Validation Plane) 31# SAR Measurement at LTE band 26 (Cheek, Left) 32# SAR Measurement at LTE band 26 (Cheek, Left) 33# SAR Measurement at LTE band 26 (Body, Validation Plane) 34# SAR Measurement at LTE…

Text truncated - open the document above for the full version.

Page 78 of 307 Report No.: N26011600911E n78(3450-3550) 30 70 633334 1@1 CP_256QAM 17.50 17.20 n78(3450-3550) 30 70 633334 1@187 CP_2…
