2BV5T-A48DSPMixer

This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Guangdong Ruiyuda Electronic Technology Co., Ltd. Workshop 02, No. C3-2, Zone 2, Enping Park, Jiangmen Industrial Transfer Park, Enping City, Guangdong Province, P.R.China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/05/21 U.S. Agent Designation Guangdong Ruiyuda Electronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BV5T-A48DSP): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Guangdong Ruiyuda Electronic Technology Co., Ltd. with the FRN [0038426771] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Xinjiang Huang Manager Guangdong Ruiyuda Electronic Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

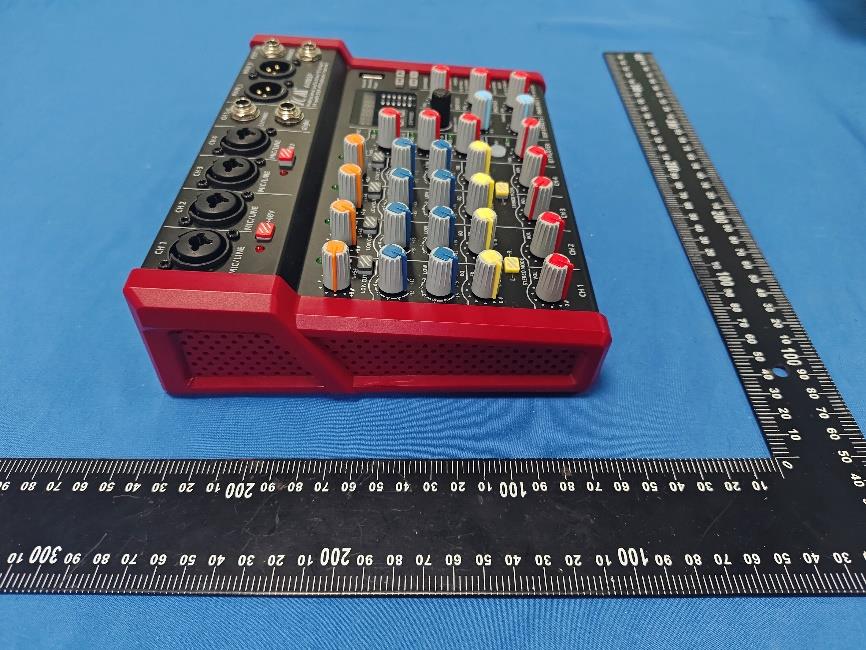

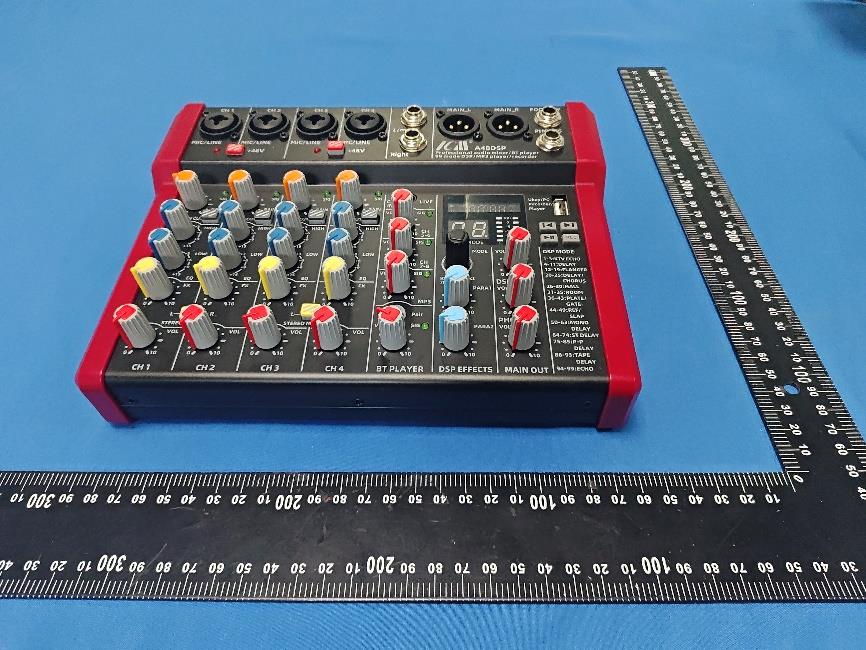

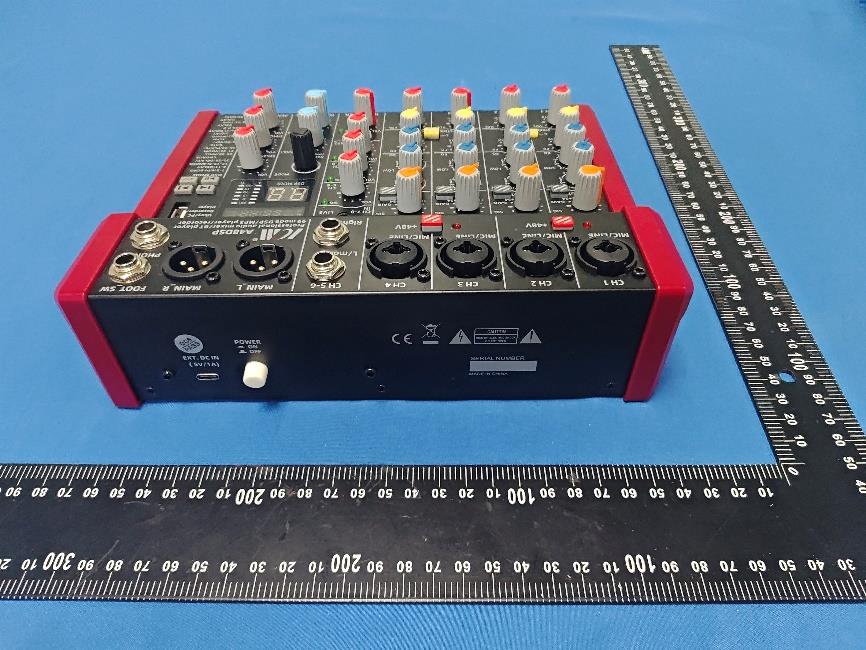

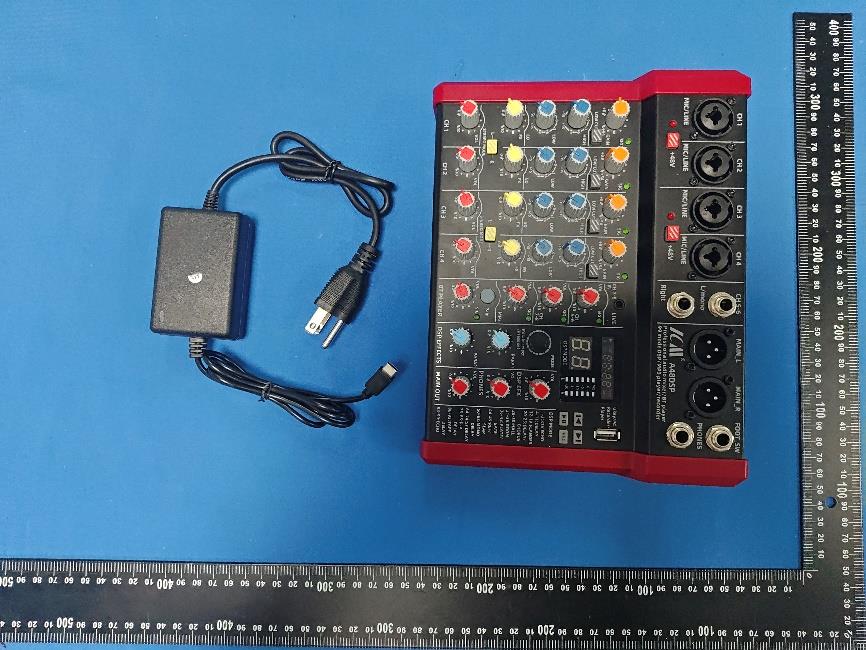

FCC ID: 2BV5T-A48DSP External Photos of the EUT FCC ID: 2BV5T-A48DSP FCC ID: 2BV5T-A48DSP

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BV5T-A48DSP

FCC ID: 2BV5T-A48DSP Internal Photos of the EUT FCC ID: 2BV5T-A48DSP FCC ID: 2BV5T-A48DSP Antenna FCC ID: 2BV5T-A48DSP

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26041101702 2BV5T-A48DSP Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 16, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Guangdong Ruiyuda Electronic Technology Co., Ltd. Address............................................ : Workshop 02, No. C3-2, Zone 2, Enping Park, Jiangmen Industrial Transfer Park, Enping City, Guangdong Province, P.R.China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mixer Trade Mark ....................................... : ICM, CHXYKOM Manufacturer .................................... : Guangdong Ruiyuda Electronic Technology Co., Ltd. Model/Type reference ...................... : A48DSP Listed Models ................................... : Refer to Page 2 Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26041101702 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Mixer Model /Type : A48DSP Listed Models : A28DSP, A68DSP, B428DSP, B628DSP, B828DSP, C648DSP, C848DSP, C1048DSP, D166_PRO, D186_PRO, D206_PRO, D226_PRO, D266_PRO, Digo-4D, Digo-8D, Digo-16D, UAC-4X, UAC-6X, UAC-8X, UAC-12X, UAC-4X pro, UAC-6X pro, UAC-8X pro, UAC-12X pro, A8, UB44_DUO, UB66_DUO, UM-36, UM-35, UM-33, UM-32, UM-66, UM-68, M100, M100pro, 22pro, 222T, 42pro, 422T, MF11PRO, MF22PRO, G10-DX, G12-DX, G16-DX, T102-FX, T122-FX, T162-FX, SE4-ME, SE6-ME, SE8-ME, CSD-4, CSD-6, CSD-8, CSD-12, U-PAD, STUDIO22+, STUDIO42+, MU-208FX, MU-210FX, MU-212FX, MU-P208FX, MU-P210FX, MU-P212FX, PB-8, PB-12, PB-16, R8-SC, R12-SC, PW-608, PW-808, PW-1220, M206, M206-P, M208, M208-P, M210, M210-P, Q4208, Q4208-P, CS-8, CS-10, CS-14, CS-8P, CS-10P, CS-14P, ST-62, ST-82, ST-122, ST-62P, ST-82P, ST-122P, M12.0, M12.4, M14.2, M16.4, M18.6, M24.6, PMX-6M, PMX-8M, PMX-12M, PMX-16M, S16, S12, S8, C-604 FX, AlcheMix 403 Pro, AlcheMix 803 Pro, AlcheMix 1203 Pro, SM-210P, SM-212P, SM-215P, SM-220P, SM-230P, SM-210DSP, SM-212DSP, SM-215DSP, SM-201P, MO-12, MO-14, PRO-2FX10, PRO-2FX14, PRO-2FX18, PRO-3FX12, PRO-3FX16, PRO-3FX20, MT-42, MT-62, MT-82, Mi_DM4, Mi_DM6, Mi_DM8, MA-8, MA-12, MA-16, DMA-22, DMA-32, DMA-22 MAX, DMA-32 MAX, DMB-8, DMB-16, DMB-24, DM-12X, DM-20X, V12, B-403, B-603, B-803 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model A48DSP and the test results for the main test model can cover the listed models. Applicant : Guangdong Ruiyuda Electronic Technology Co., Ltd. Address : Workshop 02, No. C3-2, Zone 2, Enping Park, Jiangmen Industrial Transfer Park, Enping City, Guangdong Province, P.R.China Manufacturer : Guangdong Ruiyuda Electronic Technology Co., Ltd. Address : Workshop 02, No. C3-2, Zone 2, Enping Park, Jiangmen Industrial Transfer Park, Enping City, Guangdong Province, P.R.China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26041101702 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT .............................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26041101701 2BV5T-A48DSP Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 16, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Guangdong Ruiyuda Electronic Technology Co., Ltd. Address ............................................ : Workshop 02, No. C3-2, Zone 2, Enping Park, Jiangmen Industrial Transfer Park, Enping City, Guangdong Province, P.R.China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mixer Trade Mark ....................................... : ICM, CHXYKOM Manufacturer .................................... : Guangdong Ruiyuda Electronic Technology Co., Ltd. Model/Type reference ...................... : A48DSP Listed Models ................................... : Refer to Page 2 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26041101701 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Mixer Model /Type : A48DSP Listed Models : A28DSP, A68DSP, B428DSP, B628DSP, B828DSP, C648DSP, C848DSP, C1048DSP, D166_PRO, D186_PRO, D206_PRO, D226_PRO, D266_PRO, Digo-4D, Digo-8D, Digo-16D, UAC-4X, UAC-6X, UAC-8X, UAC-12X, UAC-4X pro, UAC-6X pro, UAC-8X pro, UAC-12X pro, A8, UB44_DUO, UB66_DUO, UM-36, UM-35, UM-33, UM-32, UM-66, UM-68, M100, M100pro, 22pro, 222T, 42pro, 422T, MF11PRO, MF22PRO, G10-DX, G12-DX, G16-DX, T102-FX, T122-FX, T162-FX, SE4-ME, SE6-ME, SE8-ME, CSD-4, CSD-6, CSD-8, CSD-12, U-PAD, STUDIO22+, STUDIO42+, MU-208FX, MU-210FX, MU-212FX, MU-P208FX, MU-P210FX, MU-P212FX, PB-8, PB-12, PB-16, R8-SC, R12-SC, PW-608, PW-808, PW-1220, M206, M206-P, M208, M208-P, M210, M210-P, Q4208, Q4208-P, CS-8, CS-10, CS-14, CS-8P, CS-10P, CS-14P, ST-62, ST-82, ST-122, ST-62P, ST-82P, ST-122P, M12.0, M12.4, M14.2, M16.4, M18.6, M24.6, PMX-6M, PMX-8M, PMX-12M, PMX-16M, S16, S12, S8, C-604 FX, AlcheMix 403 Pro, AlcheMix 803 Pro, AlcheMix 1203 Pro, SM-210P, SM-212P, SM-215P, SM-220P, SM-230P, SM-210DSP, SM-212DSP, SM-215DSP, SM-201P, MO-12, MO-14, PRO-2FX10, PRO-2FX14, PRO-2FX18, PRO-3FX12, PRO-3FX16, PRO-3FX20, MT-42, MT-62, MT-82, Mi_DM4, Mi_DM6, Mi_DM8, MA-8, MA-12, MA-16, DMA-22, DMA-32, DMA-22 MAX, DMA-32 MAX, DMB-8, DMB-16, DMB-24, DM-12X, DM-20X, V12, B-403, B-603, B-803 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model A48DSP and the test results for the main test model can cover the listed models. Applicant : Guangdong Ruiyuda Electronic Technology Co., Ltd. Address : Workshop 02, No. C3-2, Zone 2, Enping Park, Jiangmen Industrial Transfer Park, Enping City, Guangdong Province, P.R.China Manufacturer : Guangdong Ruiyuda Electronic Technology Co., Ltd. Address : Workshop 02, No. C3-2, Zone 2, Enping Park, Jiangmen Industrial Transfer Park, Enping City, Guangdong Province, P.R.China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26041101701 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description .......................................................................................................................... 5 2.3 Equipment Under Test ..........…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BV5T-A48DSP Company : Guangdong Ruiyuda Electronic Technology Co., Ltd. EUT : Mixer Model Number : A48DSP Report No. : CTA26041101701 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.960 2401.547 2402.507 --- --- 2441 0.954 2440.547 2441.501 --- --- 2480 0.951 2479.550 2480.501 --- --- 2DH5 Ant1 2402 1.320 2401.352 2402.672 --- --- 2441 1.326 2440.349 2441.675 --- --- 2480 1.308 2479.361 2480.669 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.88498 2401.5745 2402.4595 --- --- 2441 0.86120 2440.5806 2441.4418 --- --- 2480 0.86595 2479.5845 2480.4505 --- --- 2DH5 Ant1 2402 1.1937 2401.4160 2402.6097 --- --- 2441 1.1957 2440.4155 2441.6112 --- --- 2480 1.2027 2479.4120 2480.6147 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.38 ≤20.97 PASS 2441 0.01 ≤20.97 PASS 2480 0.00 ≤20.97 PASS 2DH5 Ant1 2402 3.06 ≤20.97 PASS 2441 2.63 ≤20.97 PASS 2480 2.57 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.018 ≥0.960 PASS 2DH5 Ant1 Hop 0.952 ≥0.884 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.405 318 0.129 ≤0.4 PASS DH3 Ant1 Hop 1.661 163 0.271 ≤0.4 PASS DH5 Ant1 Hop 2.911 110 0.32 ≤0.4 PASS 2DH1 Ant1 Hop 0.415 318 0.132 ≤0.4 PASS 2DH3 Ant1 Hop 1.667 157 0.262 ≤0.4 PASS 2DH5 Ant1 Hop 2.915 110 0.321 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.12 -56.78 ≤-20.12 PASS High 2480 -0.57 -57.36 ≤-20.57 PASS Low Hop_2402 -0.86 -51.39 ≤-20.86 PASS High Hop_2480 0.10 -56.97 ≤-19.9 PASS 2DH5 Ant1 Low 2402 -1.63 -50.03 ≤-21.63 PASS High 2480 -0.75 -57.24 ≤-20.75 PASS Low Hop_2402 -2.06 -54.48 ≤-22.06 PASS High Hop_2480 -0.20 -56.97 ≤-20.2 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.81 -0.81 --- PASS 30~1000 -0.81 -68.34 ≤-20.81 PASS 1000~26500 -0.81 -43.48 ≤-20.81 PASS 2441 Reference -0.07 -0.07 --- PASS 30~1000 -4.57 -67.91 ≤-24.57 PASS 1000~26500 -4.57 -48.86 ≤-24.57 PASS 2480 Reference -0.10 -0.10 --- PASS 30~1000 -4.45 -68.27 ≤-24.45 PASS 1000~26500 -4.45 -49.67 ≤-24.45 PASS 2DH5 Ant1 2402 Reference 0.19 0.19 --- PASS 30~1000 0.19 -67.07 ≤-19.81 PASS 1000~26500 0.19 -43.98 ≤-19.81 PASS 2441 Reference -2.07 -2.07 --- PASS 30~1000 -2.07 -67.59 ≤-22.07 PASS 1000~26500 -2.07 -45.04 ≤-22.07 PASS 2480 Reference -1.74 -1.74 --- PASS 30~1000 -1.74 -67.46 ≤-21.74 PASS 1000~26500 -1.74 -46.56 ≤-21.74 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- ---

36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480 39 Appendix J: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -59.79 2.00 1.10 38.51 ≤54 PASS AV 2379.380 -58.54 2.00 1.10 39.76 ≤54 PASS AV 2390.000 -59.34 2.00 1.10 38.96 ≤54 PASS Peak 2310.000 -53.04 2.00 0.00 44.16 ≤74 PASS Peak 2388.095 -48.98 2.00 0.00 48.22 ≤74 PASS Peak 2390.000 -52.84 2.00 0.00 44.36 ≤74 PASS High 2480 AV 2483.500 -58.58 2.00 1.10 39.72 ≤54 PASS AV 2483.760 -57.44 2.00 1.10 40.86 ≤54 PASS AV 2500.000 -59.49 2.00 1.10 38.81 ≤54 PASS Peak 2483.500 -49.98 2.00 0.00 47.22 ≤74 PASS Peak 2486.640 -47.95 2.00 0.00 49.25 ≤74 PASS Peak 2500.000 -51.06 2.00 0.00 46.14 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -60.4 2.00 1.09 37.89 ≤54 PASS AV 2376.230 -58.51 2.00 1.09 39.78 ≤54 PASS AV 2390.000 -59.46 2.00 1.09 38.83 ≤54 PASS Peak 2310.000 -52.26 2.00 0.00 44.94 ≤74 PASS Peak 2364.890 -48.26 2.00 0.00 48.94 ≤74 PASS Peak 2390.000 -52.26 2.00 0.00 44.94 ≤74 PASS High 2480 AV 2483.500 -57.79 2.00 1.10 40.51 ≤54 PASS AV 2484.800 -57.55 2.00 1.10 40.75 ≤54 PASS AV 2500.000 -58.3 2.00 1.10 40.00 ≤54 PASS Peak 2483.500 -46.78 2.00 0.00 50.42 ≤74 PASS Peak 2484.160 -44.4 2.00 0.00 52.80 ≤74 PASS Peak 2500.000 -50.86 2.00 0.00 46.34 ≤74 PASS High 2480 AV 2483.500 -57.48 2.00 1.09 40.81 ≤54 PASS AV 2483.520 -57.48 2.00 1.09 40.81 ≤54 PASS AV 2500.000 -59.49 2.00 1.09 38.80 ≤54 PASS Peak 2483.500 -48.64 2.00 0.00 48.56 ≤74 PASS Peak 2483.600 -44.75 2.00 0.00 52.45 ≤74 PASS Peak 2500.000 -51.33 2.00 0.00 45.87 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 40 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV 41 DH5_Ant1_High_2480_Peak 2DH5_Ant1_Low_2402_AV 42 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV 2DH5_Ant1_High_2480_Peak 43

1. Antenna Description: Antenna type PCB antenna Model A48DSP Frequency range 2402MHz~2480MHz Manufacturer Guangdong Ruiyuda Electronic Technology Co., Ltd. Address Workshop 02, No. C3-2, Zone 2, Enping Park, Jiangmen Industrial Transfer Park, Enping City, Guangdong Province, P.R.China ANT Peak Gain 1.43 dBi 2. Antenna Photo: Length: 15.34mm Width: 4.69mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

FCC ID: 2BV5T-A48DSP Test Setup Photos of the EUT FCC ID: 2BV5T-A48DSP
