2BV5X-SH-01Dishwasher

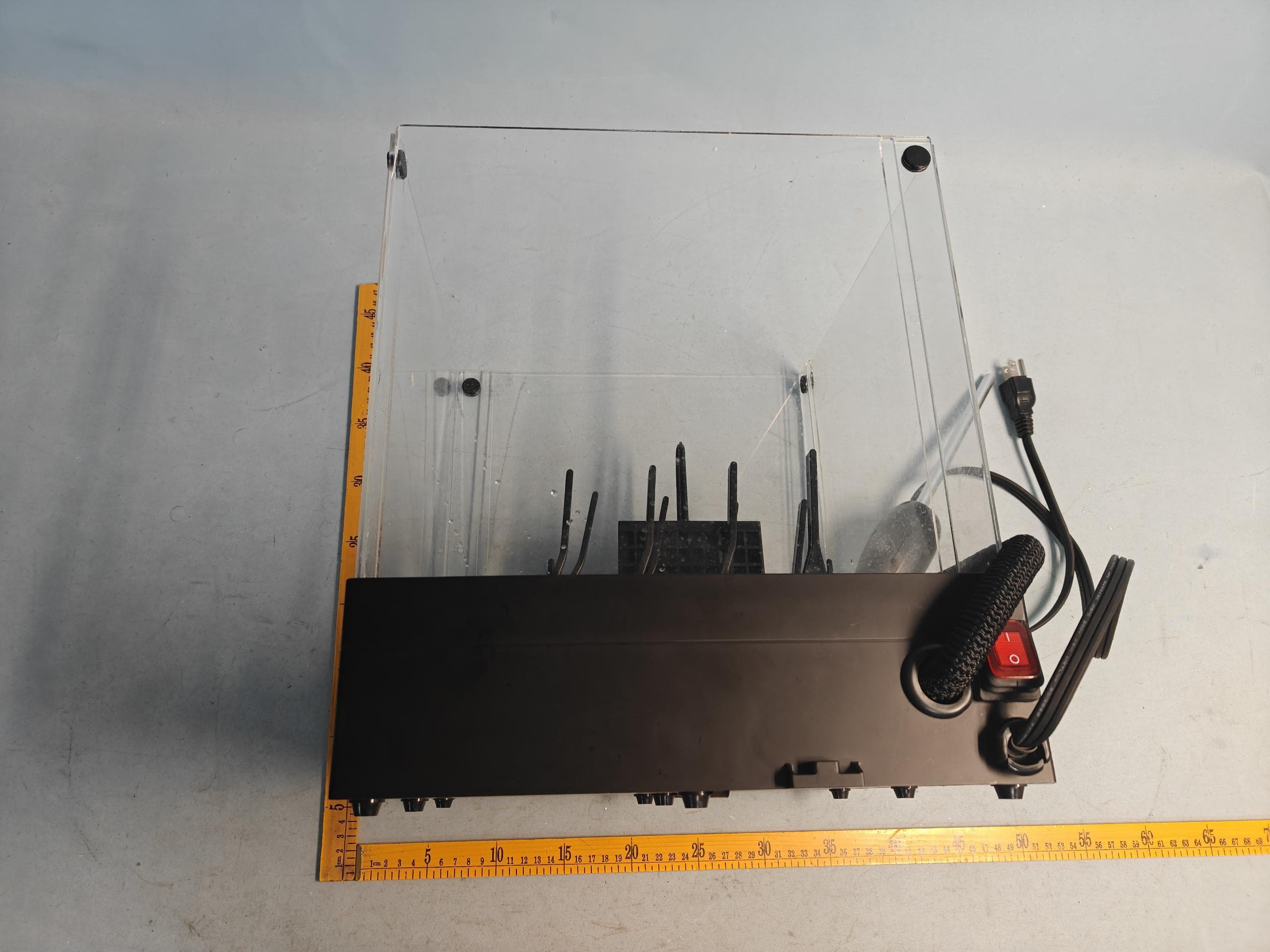

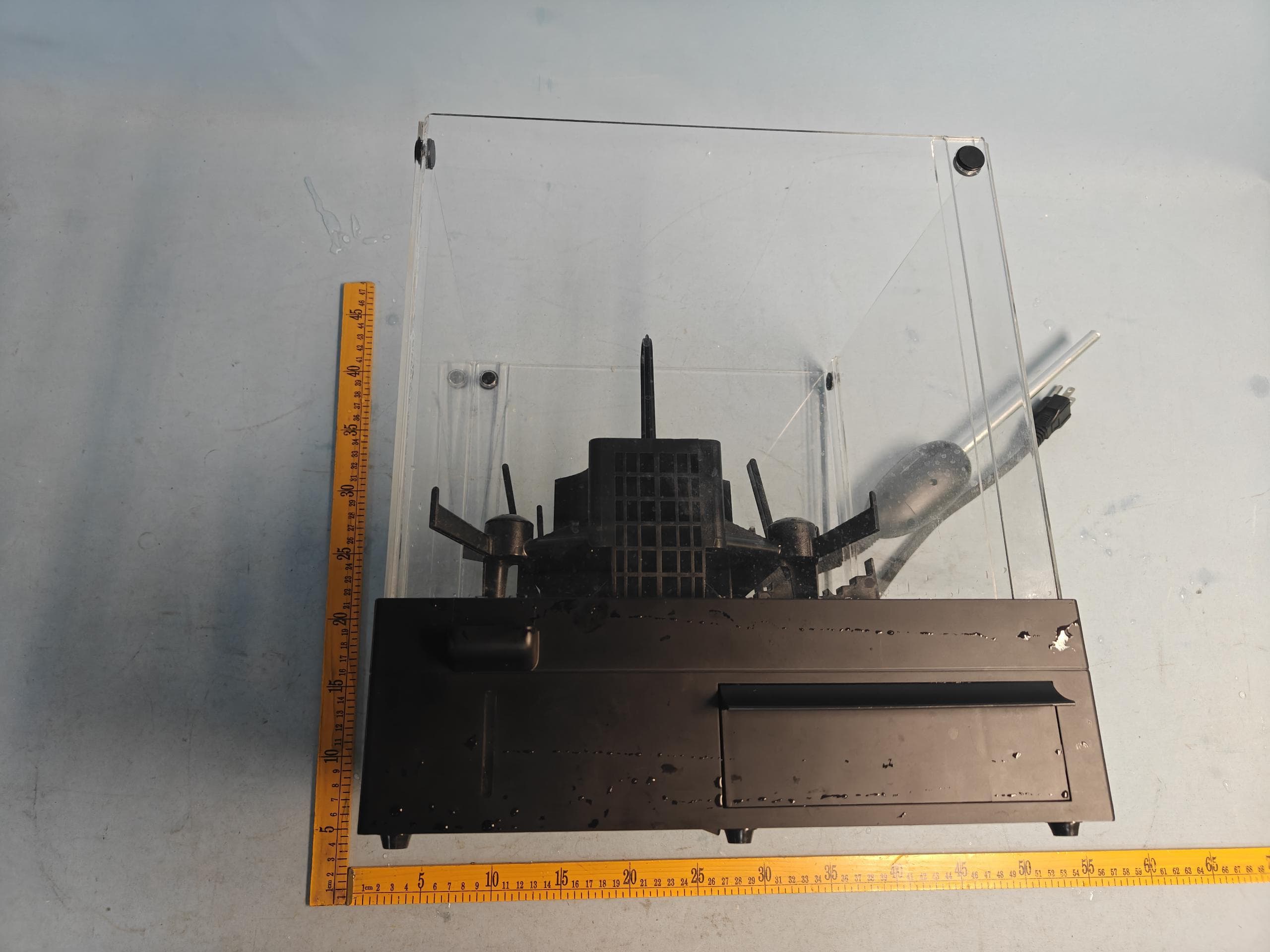

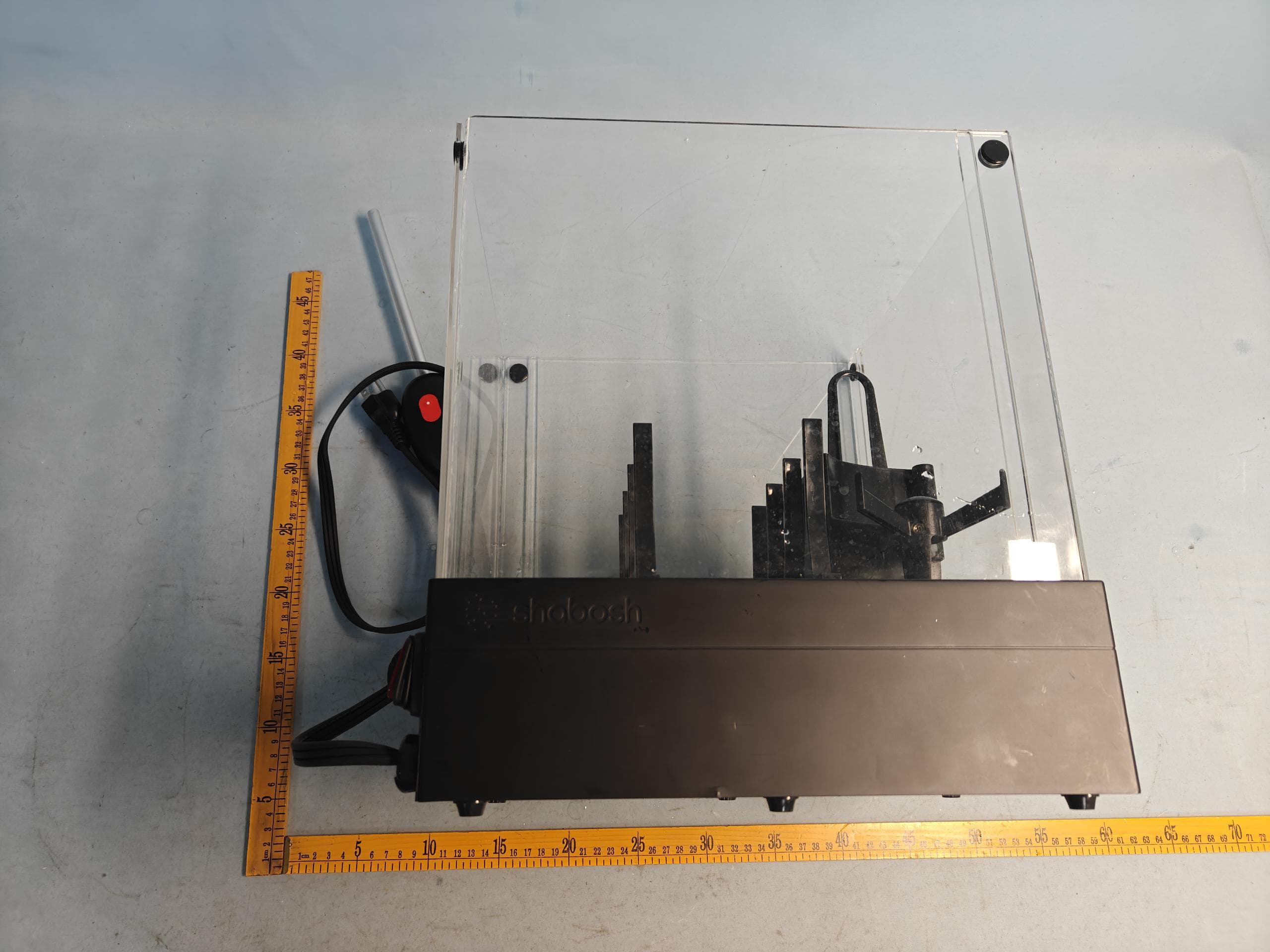

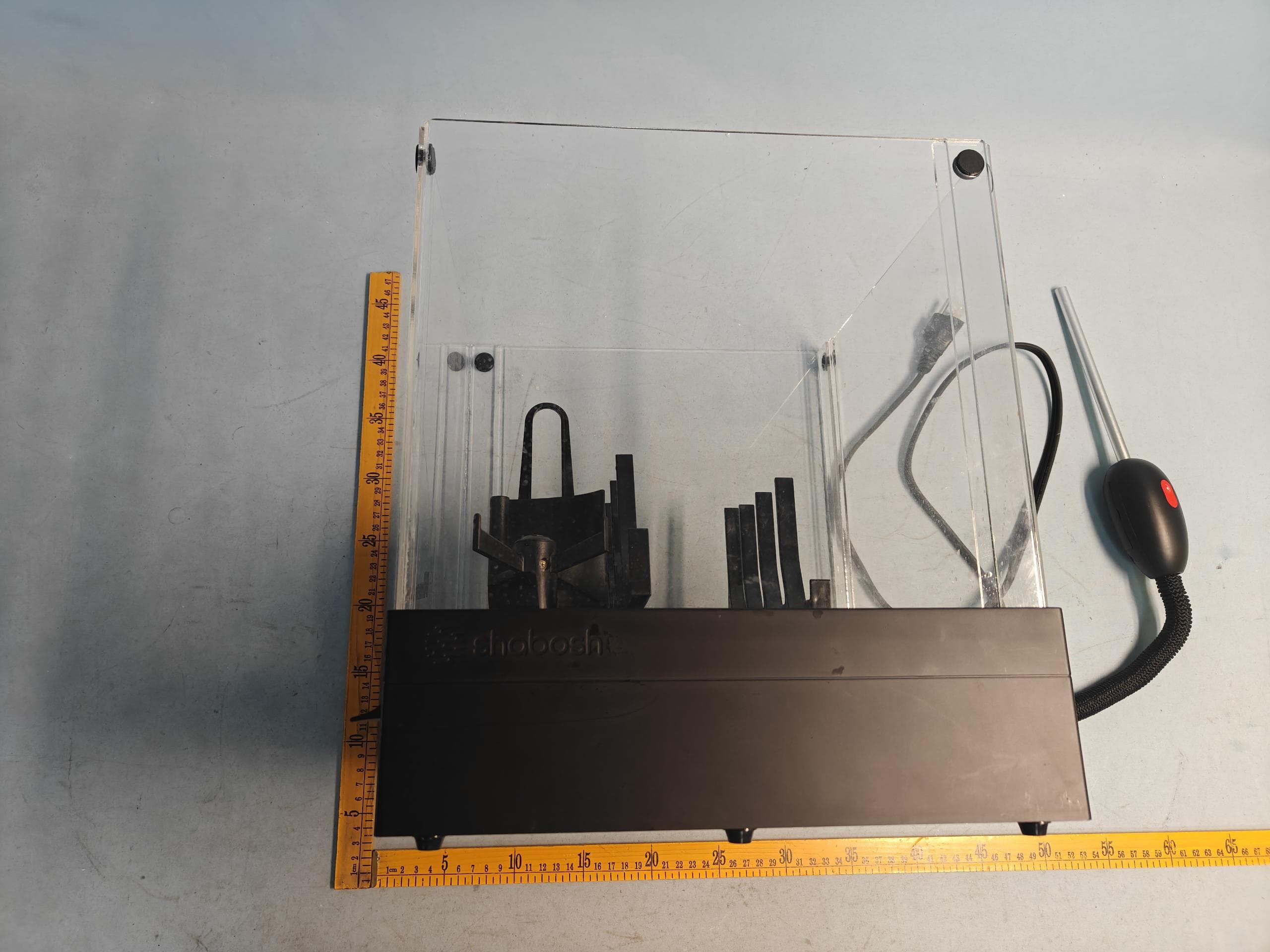

洗碗机说明书 Dishwasher User Manual 可拆卸透明墙x4 碟子支架x2 杯子支架x1 遥控手柄 洗洁精仓 可抽拉清水水槽 废水流出水槽（与 清水水槽一体） 铝合金水管 喷头 正面 Front Transparent wall x4 Dish support x2 Remote handle Soap case AL tube Nozzle Glass support x1 Water drawer Dirt water tunnel 后面 Back 膨胀水管 开关 电源线 Switch Power cord Expansive pipe 零件Parts规格参数Specification数量 QTY 用途 Usage备注 Remarks 开关 Switch220V 30A1开关 Switch美规，欧规机器通用 EU and US type use the same switch 欧规加热器 EU heater220V 1800W1加热水 Heating water美规加热器 110V 1800W US heater 110V 1800W 水泵 Pump12V 6A1抽水 Pump water 蠕动泵 Peristaltic pump 6V1抽洗洁精 Pump soap 电源 Adapter100-240V AC转12V DC1水泵供电 Power Pupm 2.4G收发模块 2.4G module 2发射接收信号 Receive and send signal 遥控板1个，主板1个 Main board x1 Remote controller 蜂鸣器 Buzzer12V1发报警提示音 Alarm 欧规电源线 EU power cord 1美规使用美规电源线 US type use US power cord 电池 BatteryAAA 7号电池Battery， 1.5V 2 主板 Main board1 遥控板 Handle board1 开关 欧规/美规电 源线 水泵 遥控板 含2.4G 收发模块 电池 主板 含2.4G收发模块 电源 蜂鸣器 欧规/美规加 热器 蠕动泵 Switch EU/US power cord Pump Battery Handle board (include 2.4G module) Main board (include 2.4G module) Adapter Buzzer EU/US heater Peristaltic pump 1、清洗，冲洗功能描述 1. Cleaning and rinsing function description 功能I（绿灯）：清洗 Function I (Green Light): Cleaning 第0秒：水泵电机渐强，入水温度检测 At 0 seconds, the water pump motor gradually strengthens, and the inlet water temperature is detected 第2秒：开启洗洁精用尽检测，喷洗洁精 At 2 second, activate the detergent depletion test and spray detergent 第5秒：开启缺水检测 At 5 seconds, enable water shortage detection 第6秒：开启加热 At 6 seconds, turn on heating 第40秒：清洗结束 At 40 seconds, cleaning completed 功能II（蓝灯）：冲洗 Function II (Blue Light): Rinse 第0秒：保持开加热，停止喷洗洁精，停止洗洁精用尽检测，入水温度检测 At 0 seconds: Keep heating on, stop spraying detergent, disable detergent depletion detection, and enable inlet water temperature detection 第1秒：继续缺水检测 At 1 second, Continue water shortage detection 第50秒：冲洗结束 At 50 seconds, Rinse completed 一、开启后，按程序运行，90秒自动关闭 1. Once start, the dishwasher will run automatically according to the firmware setting and will stop at 90 seconds 功能II（蓝灯）：冲洗 Function II (Blue Light): Rinse 第0秒：入水温度检测，开启加热 At 0 second, inlet water temperature detection, turn on heating 第1秒：开启缺水检测 At 1 second, enable water shortage detection 第50秒：冲洗结束 At 50 seconds, Rinse completed 二、开启后进入功能II，按程序运行，50秒后自动结束 Once start, the dishwasher will run automatically according to the firmware setting and will stop at 50 seconds 三、短按开关键切换功能I与功能II Short press to switch between Function I and Function II 四、长按开关键3秒发送关机指令，无洗洁精冲洗5秒后再停机 Press and hold the power button for 3 seconds to send a shutdown command, rinse for 5 seconds without detergent, and then stop the machine 五、遥控手柄90秒不操作自动关机 Remote control handle automatically shuts down after 90 seconds of inactivity 2、报警功能描述 Alarm Function 无洗洁精报警：蜂鸣器一声短声，只报警不停机 No detergent alarm: The buzzer makes a short sound and only alarms without stopping the machine 无水报警：蜂鸣器三声长声，缺水报警后立刻停机 Water shortage alarm: The buzzer beeps three times for a long time, and the machine stops immediately after the water shortage alarm 水过热报警：蜂鸣器两短声，水温超过39°C，停止加热，不停机 Water overheating alarm: Two short beeps from the buzzer, if the water temperature exceeds 39 °C, stop heating without stopping the machine 三、报警功能描述 Alarm Function 3、配对操作 Pairing operation 配对操作 Pairing operation ： 先打开主机，遥控器上电池后，长按3秒，指示灯熄灭，蜂鸣器连续响5声 First turn on the dishwasher, connect the battery to the remote control, press and hold for 3 seconds, the indicator light will turn off, and the buzzer will sound continuously for 5 times. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates. uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux RSS exempts de licence d’Innovation, Sciences et Développement économique Canada. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes?: 1. Cet appareil ne peut pas causer d’interférence. 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un fonctionnement indésirable de l’appareil. L' appareil a été évalué pour répondre aux exigences générales en matière d' exposition aux RF. L' appareil peut être utilisé en condition d' exposition portable sans restriction.

HeshanGoldPowerElectricCo.,Ltd. CoveredEquipmentCertificationAttestationLetter 8/21/2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2BV5X-SH-01 HeshanGoldPowerElectricCo.,Ltd.certifiesthattheequipmentforwhichauthorization issoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. HeshanGoldPowerElectricCo.,Ltd.certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. HeshanGoldPowerElectricCo.,Ltd.certifiesthattheequipmentforwhichauthorization issoughtdoesnotincludecybersecurityoranti-virussoftwareproducedorprovidedby KasperskyLab,Inc.oranyofitssuccessorsandassignees,includingequipmentwith integratedKasperskyLab,Inc.(oranyofitssuccessorsandassignees)cybersecurityor anti-virussoftwarepursuanttoDA-24-886andKDB986446D01CoveredEquipment GuidancesectionB(2a). Signed: Printedname:Jack Title:Manager CompanyName:HeshanGoldPowerElectricCo.,Ltd. Date:8/21/2026

HeshanGoldPowerElectricCo.,Ltd. 8/27/2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Canada K1V1H2 REQUESTFORCONFIDENTIALITY-FCC FCCID:2BV5X-SH-01 PursuanttoSections0.457(d)(1)(ii)and0.459oftheCommission’sRulesandFCCGuidance document726920,weherebyrequestconfidentialtreatmentofinformationaccompanyingthis applicationasoutlinedbelow: PERMANENTLONG-TERMCONFIDENTIALITY: Schematics BlockDiagrams TheoryofOperation Theaboveinformationcontainstradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthisinformationmightbeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors.TheApplicantunderstandsthatpursuanttoRule 0.457(d)(1)(ii),disclosureofthisApplicationandallaccompanyingmaterialswillnotbemadebefore thedateoftheGrantforthisApplication. Sincerely, Signed: Printedname:Jack Title:Manage

FCCLabelandLocation Size:45mm*45mm ProposedLabelLocationonEUT Labellocation Label FCCID:2BV5X-SH-01 IC:35601-SH-01 ModelNo.:SH-01 Input:120Vac,60Hz CANICES(B)/NMB(B) Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust acceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation.

ANT

TestReportNumber: LCZE26050012 TotalPage(s):2 ApplicantName:HeshanGoldPowerElectricCo.,Ltd. ApplicantAddress:BangtangIndustrialZone,ZhaiwuTown,HeshanJiangmenCity, Guangdong ProductName:Dishwasher control Model/TypeReference:SH-01 FCCID:2BV5X-SH-01 DateofIssue:2026-07-10 TestingLaboratory:LCTECHGuangdongTestingServicesCo.,Ltd. 2/F.,TechnologyandEnterpriseDevelopmentCenter,Guangyuan Road,Xiaolan,Zhongshan,Guangdong,China TestSpecification:KDB447498D04InterimGeneralRFExposureGuidancev01 TestResult:Passed Compiledby:Reviewedby: 2026-07-10RexHe DateNameSignature 2026-07-10TensionLi DateNameSignature Remark: N/A Theduplicationofthisreportorpartsofitanditsuseforadvertisingpurposesisonlyallowedwithpermission ofthetestinglaboratory.Thisreportcontainstheresultoftheexaminationoftheproductsamplesubmittedby theapplicant.Ageneralstatementconcerningthequalityoftheproductsfromtheseriesmanufacturecannot bederivedtherefore. RFExposureevaluation Accordingto447498D04InterimGeneralRFExposureGuidancev01 eirp=ptxgt=(EXd)2/30 where:pt=transmitteroutputpowerinwatts, gt=numericgainofthetransmittingantenna(unitless), E=electricfieldstrengthinV/m,---10((dBuV/m)/20)/106 d=measurementdistanceinmeters(m)---3mSopt=(EXd)2/30xgt Frequency(MHz)FieldStrength (dBuv/m) eirp(mW)limit(mW)min.distance (cm) 244076.090.0000130.50 ThenSARevaluationisnotrequired

TestReportNumber: LCZE26050012 TotalPage(s):26 ApplicantName:HeshanGoldPowerElectricCo.,Ltd. ApplicantAddress:BangtangIndustrialZone,ZhaiwuTown,HeshanJiangmenCity, Guangdong ProductName:Dishwasher control Model/TypeReference:SH-01 FCCID:2BV5X-SH-01 DateofIssue:2026-07-10 TestingLaboratory:LCTECHGuangdongTestingServicesCo.,Ltd. 2/F.,TechnologyandEnterpriseDevelopmentCenter,Guangyuan Road,Xiaolan,Zhongshan,Guangdong,China TestSpecification:FCC47CFRPart15SubpartC:Section15.249 TestResult:Passed Compiledby:Reviewedby: 2026-07-10RexHe DateNameSignature 2026-07-10TensionLi DateNameSignature Remark: N/A Theduplicationofthisreportorpartsofitanditsuseforadvertisingpurposesisonlyallowedwith permissionofthetestinglaboratory.Thisreportcontainstheresultoftheexaminationoftheproductsample submittedbytheapplicant.Ageneralstatementconcerningthequalityoftheproductsfromtheseries manufacturecannotbederivedtherefore. Page 2 of 26 ReportNo.:LCZE26050012 LCTECHGuangdongTestingServicesCo.,Ltd. Add:2/F.,TechnologyandEnterpriseDevelopmentCenter, GuangyuanRoad,Xiaolan,Zhongshan,Guangdong,China Tel:+86-760-22833366Fax:+86-760-22833399E-mail:[email protected]://www.lccert.com Contents 1SUMMARYOFTESTRESULTS.....................................................................................................3 2.GENERALTESTINFORMATION...................................................................................................4 2.1DESCRIPTIONOFEUT.........................................................................................................4 2.2TESTING...............................................................................................................................4 2.3TESTENVIRONMENTCONDITIONS.......................................................................................4 2.4TESTLABORATORY..............................................................................................................5 2.5MEASUREMENTUNCERTAINTY............................................................................................5 3EQUIPMENTLIST.........................................................................................................................6 4TESTRESULTS............................................................................................................................7 4.1ANTENNAREQUIREMENT.....................................................................................................7 4.2RADIATEDEMISSION..........................................................................................................11 TESTRESULT:..........................................................................................................................13 4.320DBBANDWIDTH............................................................................................................16 5TESTSETUPPHOTO..................................................................................................................17 6TESTSETUPOFEUT................................................................................................................19 Page 3 of 26 ReportNo.:LCZE26050012 LCTECHGuangdongTestingServicesCo.,Ltd. Add:2/F.,TechnologyandEnterpriseDevelopmentCenter, GuangyuanRoad,Xiaolan,Zhongshan,Guangdong,China Tel:+86-760-22833366Fax:+86-760-22833399E-mail:[email protected]://www.lccert.com 1SummaryofTestResults DescriptionofTestItemStandardResult AntennaRequirement FCCPart15SubpartC:15.203 PASS ACPowerLineConductedEmission FCCPart15SubpartC:15.207N/A FieldStrengthofTheFundamentalSignal FCCPart15SubpartC:15.249(b) PASS SpuriousEmission FCCPart15SubpartC:15.249(b)/15.209PASS Bandedge FCCPart15SubpartC:15.249(d)/15.205PASS 20dBBandwidth FCCPart15SubpartC:15.215(c) PASS Note: N/AisanabbreviationforNotApplicable,andmeansthisitemisnotapplicableforthisdevice. Page 4 of 26 ReportNo.:LCZE26050012 LCTECHGuangdongTestingServicesCo.,Ltd. Add:2/F.,TechnologyandEnterpriseDevelopmentCenter, GuangyuanRoad,Xiaolan,Zhongshan,Guangdong,China Tel:+86-760-22833366Fax:+86-760-22833399E-mail:[email protected]://www.lccert.com 2.Generaltestinformation 2.1DescriptionofEUT Remark: 1.Antennagaininformationprovidedbythecustomer 2.Therelevantinformationofthesampleisprovidedbytheentrustingcompany,andthelaboratoryis notresponsibleforitsauthenticity. 2.2Testing Dateofreceiptoftestitem:2026-05-13 Date(s)ofperformanceoftests:2026-05-20to2026-07-08 2.3Testenvironmentconditions Duringthemeasurementtheenvironmentalconditionswerewithinthelistedranges: ProductName: Dishwasher ModelNumber:SH-01 EUTfunctiondescription:Pleasereferenceusermanualofthisdevice Powersupply:AC120V,60Hz FCCID:2BV5X-SH-01 Operationfrequency : 2440MHz Modulation : GFSK AntennaType : PCBantenna AntennaGain : 0dBi DateofReceipt:2026/05/13 Temperaturerange:15-35°C Humidityrange:20-75% Pressurerange:98-101kPa Page 5 of 26 ReportNo.:LCZE26050012 LCTECHGuangdongTestingServicesCo.,Ltd. Add:2/F.,TechnologyandEnterpriseDevelopmentCenter, GuangyuanRoad,Xiaolan,Zhongshan,Guangdong,China Tel:+86-760-22833366Fax:+86-760-22833399E-mail:[email protected]://www.lccert.com 2.4Testlaboratory LCTECHGuangdongTestingServicesCo.,Ltd. Add:2/F.,TechnologyandEnterpriseDevelopmentCenter,GuangyuanRoad,Xiaolan,Zhongshan, Guangdong,China TestSites:1/F.,BuildingI,TechnologyandEnterpriseDevelopmentCenter,GuangyuanRoad,Xiaolan, Zhongshan,Guangdong,China 2.5Measurementuncertainty TestItemUncertainty UncertaintyforConductionemissiontest3.45dB UncertaintyforRadiationEmissiontest(30MHZ-1GHZ)4.85dB UncertaintyforRadiationEmissiontest(Above1GHz)5.15dB Note：Thisuncertaintyrepresentsanexpandeduncertaintyexpressedatapproximatelythe95% confidencelevelusingacoveragefactorofk=2. Page 6 of 26 ReportNo.:LCZE26050012 LCTECHGuangdongTestingServicesCo.,Ltd. Add:2/F.,TechnologyandEnterpriseDevelopmentCenter, GuangyuanRoad,Xiaolan,Zhongshan,Guangdong,China Tel:+86-760-22833366Fax:+86-760-22833399E-mail:[email protected]://www.lccert.com 3Equipmentlist ItemTestEquipment…

Text truncated - open the document above for the full version.

Page 24 of 26 ReportNo.:LCZE26050012 LCTECHGuangdongTestingServicesCo.,Ltd. Add:2/F.,TechnologyandEnterpriseDevelopmentCenter, GuangyuanRoad,Xiaolan,Zhongshan,Guangdong,China Tel:+86-760-22833366Fax:+86-760-22833399E-mail:[email protected]://www.lccert.com Page 25 of 26 ReportNo.:LCZE26050012 LCTECHGuangdongTestingServicesCo.,Ltd. Add:2/F.,TechnologyandEnterpriseDevelopmentCenter, GuangyuanRoad,Xiaolan,Zhongshan,Guangdong,China Tel:+86-760-22833366Fax:+86-760-22833399E-mail:[email protected]://www.lccert.com Page 26 of 26 ReportNo.:LCZE26050012 LCTECHGuangdongTestingServicesCo.,Ltd. Add:2/F.,TechnologyandEnterpriseDevelopmentCenter, GuangyuanRoad,Xiaolan,Zhongshan,Guangdong,China Tel:+86-760-22833366Fax:+86-760-22833399E-mail:[email protected]://www.lccert.com ------Endoftestreport------

AntennaInformation 1.Manufacturer’sname: HeshanGoldPowerElectricCo.,Ltd. 2.manufacturer’saddress: BangtangIndustrialZone,ZhaiwuTown,HeshanJiangmenCity,Guangdong 3.Antennamodelname: CY-705 4.Antennasize L*W:5.6mm*14.6mm 5.AntennaGain:0dBi

RadiatedEmission(30MHz-1GHz) ConductedEmission RadiatedEmission(Above1GHz)
